SSANGYONG KORANDO 2012 Service Manual

05-18
1) SVC
4. OPERATING PROCESS
2) STD

05-20
SVC ▶
3) Block Diagram

05-218010-01

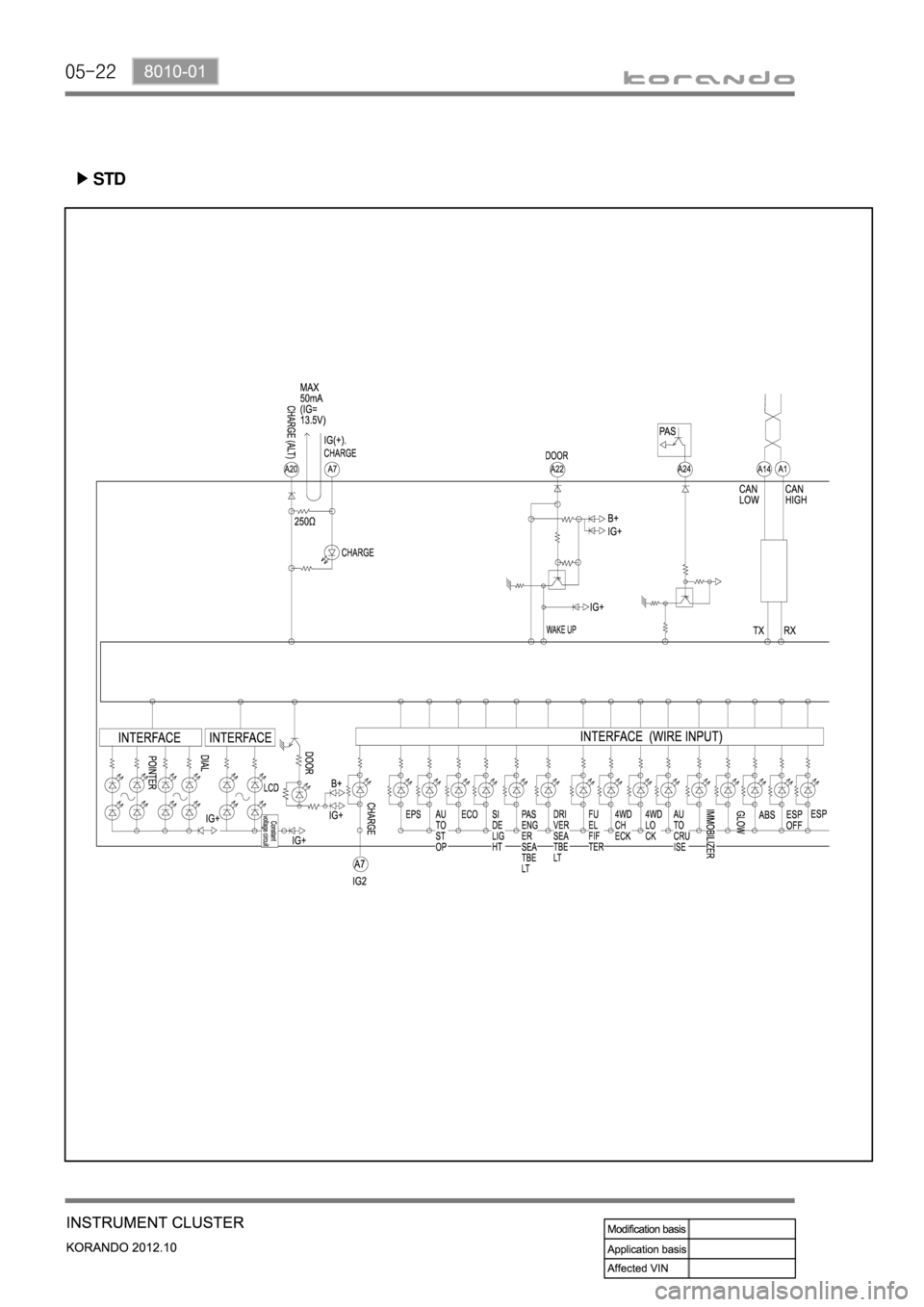

05-22
STD ▶

05-238010-01

05-24
4) Display Sequence
Display sequence for STD main LCD & SVC DOT LCD ▶
Operating time of Trip
switchFunction
Below 1 second
(60 to 980 ms)STD Mode change
(ODO → TRIP A → TRIP B → DTE → AFC → IFC →
ILLUMINATION → OUT TEMP)
SVC Mode change
(TRIP A → TRIP B → DTE → AFC → IFC →
ILLUMINATION → OUT TEMP)
Over 1 seconds Reset function (Trip A, B, AFC)
<004f007000930093009c0094009000950088009b0090009600950047004f005d0047009b00960047005800470093008c009d008c0093005000530047009c00950090009b00470096008d00470096009c009b009a0090008b008c0047009b008c0094009700
8c00990088009b009c0099008c0047004f0b45004702e90047>℉))
Over 3 seconds - Ready Mode change
(Illumination → OUT TEMP → ODO)
If the Trip/Reset switch is not pressed within 3 seconds after getting into the illumination mode and the
ambient air temperature mode, the LCD changes to next mode.
The factory-setting mode is DTE (Distance To Empty) mode. *
*

05-258010-01
Operations for power supply in SVC ▶
When the ignition switch is turned to ON position, the message "WELCOME" is displayed for 2
seconds on the DOT LCD and the seat belt reminder comes on for 4 seconds. However, if a signal
with higher priority is received, the seat belt reminder comes on only for 2 seconds to display it.
The pre-warning (system check) indicator comes on for 4 seconds and goes off 0.4 seconds after
that the ignition is switched on.
All input signals can be input 4 seconds after the pre-warning (system check) indicator starts
illuminating.
Only the symbol and DOT LCD are illuminated initially, if the SKM (Smart Key Module) or door (B-
CAN) signal is received
while B+ power is supplied.
If the ignition is switched on with the LCD illuminated, the DOT LCD and the symbol follow
the side fascia panel.
When the step 1, 2 and 3 are performed after 4 seconds, the seat belt warning lamp is deactivated in
advance.
Dial light ON condition: Lights up gradually for 2 seconds when the ignition is switched on. 1.
2.
3.
4.
5.
6.
5) Illumination & Brightness
(1) Operations for Power Supply

05-26
When the ignition is switched off, the message "GOOD-BYE" is displayed for 2 seconds and disappears.
The other LCDs go off as soon as the ignition is switched off.
The dial and pointer dim down for 2 seconds and go off at the same time when the DOT LCD goes off. 7.

05-278010-01
Operations for power supply in STD ▶
The operation input before the LCD backlight is illuminated, right after the ignition is turned OFF or ON,
is ignored.
<007b008f008c00470073006a006b004700890088008a009200930090008e008f009b004700880095008b00470096009b008f008c009900470093008800940097009a004700880099008c0047009000930093009c0094009000950088009b008c008b004700
570055005b004700b70057005500580047009a008c008a0096>nd after the ignition ON is
detected.
The LCD display, LCD backlight, dial lamp and indicator lamp are turned on or off by the ignition
switch ON/OFF operation. -
-
-
