SSANGYONG KORANDO 2012 Service Manual

05-8
Engine RPM gaugeSpeedometer
STD â–¶
LCD

05-98010-01
1) SVC
3. Description of Warning Lamps & Indicators

05-10
2) STD

05-118010-01
Indicator
(green)
Headlamp high beam indicator â–¶
Front fog lamp indicator â–¶
Side light indicator â–¶
Indicator
(blue)
Indicator
(green)
Indicator
(amber)
Glow indicator(DSL only) â–¶
Indicator
(red)
Fuel filter indicator(DSL only) â–¶This indicator comes on when the tail lamp is switched on.
This indicator comes on when the ignition switch is turned to the "ON"
position and will go off when the glow plugs are sufficiently heated.
This indicator comes on when the water level in the fuel filter exceeds a
certain level. This lamp comes on when the headlamp high beam is operated.
This indicator comes on when the fog lamp switch is operated after the tail
lamps comes on.
3) Details of Warning Lamps and Indicators

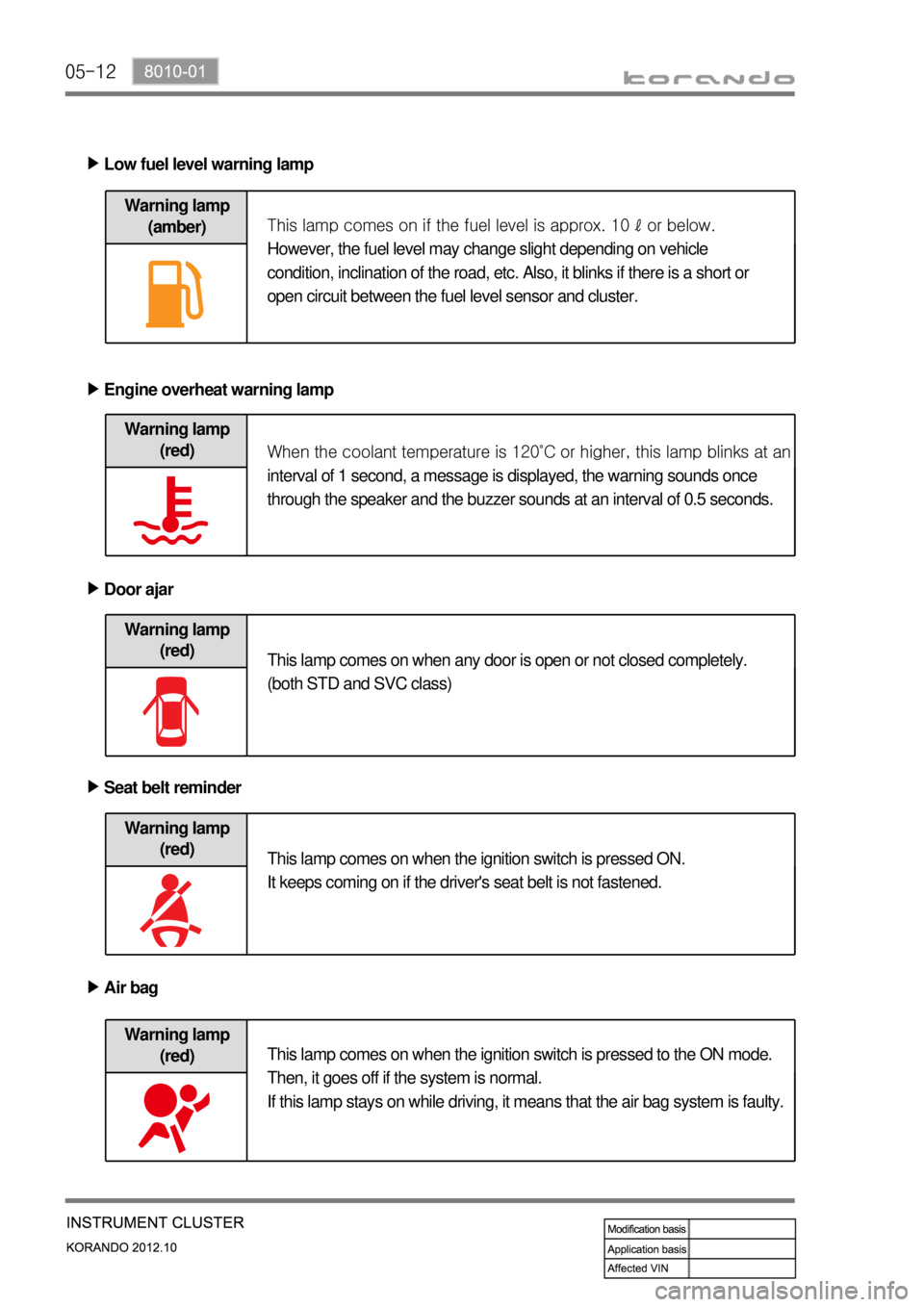

05-12
Low fuel level warning lamp â–¶
Warning lamp
(amber)
Engine overheat warning lamp â–¶
Warning lamp
(red)
Door ajar â–¶
Warning lamp
(red)
Seat belt reminder â–¶
Warning lamp
(red)
Air bag â–¶
Warning lamp
(red)
This lamp comes on if the fuel level is approx. 10 â„“ or below.
However, the fuel level may change slight depending on vehicle
condition, inclination of the road, etc. Also, it blinks if there is a short or
open circuit between the fuel level sensor and cluster.
<007e008f008c00950047009b008f008c0047008a00960096009300880095009b0047009b008c00940097008c00990088009b009c0099008c00470090009a0047005800590057020b006a0047009600990047008f0090008e008f008c009900530047009b00
8f0090009a0047009300880094009700470089009300900095>ks at an
interval of 1 second, a message is displayed, the warning sounds once
through the speaker and the buzzer sounds at an interval of 0.5 seconds.
This lamp comes on when any door is open or not closed completely.
(both STD and SVC class)
This lamp comes on when the ignition switch is pressed ON.
It keeps coming on if the driver's seat belt is not fastened.
This lamp comes on when the ignition switch is pressed to the ON mode.
Then, it goes off if the system is normal.
If this lamp stays on while driving, it means that the air bag system is faulty.

05-138010-01
Indicator
(amber)
ESP â–¶
ESP OFF indicator â–¶
Engine check warning lamp â–¶
Indicator
(amber)
Indicator
(amber)
Indicator (red)
Battery charge warning lamp â–¶
Indicator (red)
Engine oil level warning lamp â–¶This lamp comes on if any sensor or device related to the engine control is
defective.
This lamp comes on when the start switch is ON or when the battery level is
low.
(For EEM, warning lamp is controlled according to CAN signal)
This lamp comes on when the ignition switch is turned to "ON" position,
and then goes off if the engine oil level is normal.
If the engine oil level warning lamp comes on while driving, check the
engine oil level and oil leakage. -
- This indicator comes on when the ESP system is faulty.
This indicator comes on when pressing the ESP OFF switch.

05-14
Indicator
(amber)
Brake warning lamp (brake fluid) â–¶
ABS warning lamp â–¶
Passenger air bag disable indicator â–¶
Indicator
(red)
Indicator
(amber)
Indicator
(red)
EPS â–¶
Indicator
(amber)
Immobilizer indicator â–¶This indicator comes on when the passenger air bag OFF switch is operated.
This indicator comes on the immobilizer (transponder) is not certified.This lamp comes on when the parking brake is applied or the brake fluid
is insufficient.
If this lamp doesn't go off after the parking brake is released, check the
brake fluid level first and then fluid leakage. -
-
This warning light comes on when the ignition switch is turned to ON
and should go out if the system is normal -
This indicator comes on when the EPS system is faulty.

05-158010-01
Indicator
(green)
Hazard indicator â–¶
ECO indicator â–¶
Cruise control indicator â–¶
Indicator
(red)
Indicator
(green)
Indicator
(green)
4WD LOCK indicator â–¶
Indicator
(red)
4WD check warning lamp â–¶This indicator comes on when the cruise control system is activated.
This indicator goes off when the brake pedal is depressed. (auto cruise
deactivated)
This warning lamp comes on when the 4WD LOCK switch is pressed.
This indicator goes off when pressing the switch again.
This warning lamp comes on when the 4WD system is defective. This indicator comes on when the hazard warning flashers are switched on.
(applies to STD class)
This indicator comes on when the ECO cruise system is activated.
This indicator goes off when the brake pedal is depressed. (ECO
deactivated)

05-16
Indicator
(green)
Passenger seat belt reminder â–¶
Left turn signal indicator â–¶
Right turn signal indicator â–¶
Indicator
(red)
Indicator
(green)
Indicator
(red)
Winter mode indicator(DSL only) â–¶The right turn signal indicator blinks if the light switch is pushed up to the right,
and both turn signal indicators blink if the hazard warning flasher switch is
pressed.
When the mode switch is pressed, the winter mode is selected and the
winter mode indicator comes on on the instrument cluster. The winter
mode is used to start off on a slippery road with the 2nd gear. If the switch
is pressed again, the winter mode is deactivated and system returns to
standard mode.This indicator comes on when the ignition switch is turned to the "ON"
position and goes off when the passenger's seat belt is fastened.
The left turn signal indicator blinks if the light switch is pushed down to the
left, and both turn signal indicators blink if the hazard warning flasher switch
is pressed.
Smart key warning lamp â–¶
Indicator
(amber)
This lamp comes on when the uncertified transponder or smart key is
detected,
SKM system is defective or there is no smart key in the vehicle.

05-178010-01
Indicator
(amber)
Winter mode indicator(DSL only) â–¶
Steering wheel heating indicator â–¶
Indicator
(green)This indicator comes on when the winter mode switch is switched on and
goes off when the switch is off.
This comes on together with the winter mode display on the LCD screen.
(applies to STD class)
This indicator comes on when the steering wheel heating switch
is operated with the ignition switch turned on and the engine running.
(applies to SVC class)
