05-38
Function Signal Remark
Display type 3 digits LCD
Display range 50 km ~ 999 km
(30 miles ~ 999 miles)
Resolution 1 km (mile)
Display interval every 1 seconds
(1) DTE (Distance To Empty) Mode
The DTE (distance to empty) function is an estimation on how much further the vehicle can be driven with
the fuel remaining in the tank, based on the previous driving pattern (fuel economy).
8) Display Mode
STD Class Odometer Display & Data Storage ▶

05-398010-01
Function Signal Remark
Display type 3 digits LCD
Display range 0.0 km ~ 99.9 km
(0 miles~99.9 miles)
Resolution 0.1 km (mile)
Display interval every 10 seconds
Data clear - Disconnect B+
voltage
- Press and hold Reset
switch for more than
1 sec.
- Reset automatically
when refilling
(2) Average Fuel Consumption Mode
The LCD display indicates average fuel consumption calculated based on total driving distance and total
fuel consumption since B+ power supply or data reset.
(3) Instant Fuel Consumption Mode
The LCD display indicates the instant fuel consumption (for 2 seconds) calculated based on driving
distance and fuel consumption for last 2 seconds.
Function Signal Remark
Display type 3 digits LCD
Display range 0.0 ~ 99.9
(MPG, ℓ/100 km, km/ℓ)
Resolution 0.1 km (mile)
Display interval every 2 seconds

05-40
When the ignition is switched on and the vehicle is drived more than 10 km, average fuel consumption
is displayed at every 200 ms, based on the fuel consumption and driving distance for 600 ms. -
Function Signal Remark
Display type DOT BAR TYPE(92DOT)
Display range0.0 ~ 20(ℓ/100km, km/ℓ)/ 0.0 ~ 50(MPG)
Resolution
(DOT)0.2174(ℓ/100km, km/ℓ per Bar),
0.5435(MPG per Bar)
Display intervalevery 200ms(25℃)

05-418010-01
SVC class instrument cluster STD class instrument cluster
(4) Illumination Mode
(5) Ambient Air Temperature Mode
The ambient air temperature is calculated and displayed.
This is displayed on both STD and SVC class, regardless of FATC type (automatic or manual).
<006d009600990047007a007d006a0047008a00930088009a009a00530047009b008f008c0047008b00990090009d008c00990047009a008c009b004700960095009300a00047009b008f008c0047009c00950090009b00470089008c009b009e008c008c00
9500470b45004700880095008b00470d910047009600950047>the DOT LCD, the ambient
temperature is displayed on the SEG LCD. -
-
-
Function Signal Remark
Display type 3 digits LCD
Display range
Resolution1℃(1℉)
TRIP/RESET switch ▶
Press for less than 1 second: change to next mode
Press for more than 1 second:
: Enter into illumination level mode
<02e700470073008c009d008c00930047008a008f00880095008e008c009a0047008900a0004700580047009a009b008c00970047009c0097004700880095008b0047008b0096009e00950047009e008f008c0095004700970099008c009a009a0090009500
8e0047009b008f008c0047009a009e0090009b008a008f0047>for more than
1 second on consecutively illumination mode
(e.g. Level 4 → 5 → 6 → 5 → 4 → 3 → 2 → 1)
If the Trip/Reset switch is not pressed within 3 seconds after getting into the illumination mode, the
LCD changes to next mode. -
-
-
-30℃ ~ 90℃
(-22℉~ 194℉)
-31℃ ~ -33℃
: maintain 30℃
91℃~93℃
: maintain 90℃ -
-
-

05-42
9) Buzzer
Specifications ▶
Function Signal
Part name PKM17EPP-2002-B0 (MURATA, Piezoelectric Sound Components)
Permitted input voltage 25 VP-P or less
Operating temperature-20˚C to +70˚C
Storage temperature-30˚C to +80˚C
Sound pressure level 70 dB/min (3 Vp-p, 2 kHz, square wave, 10 cm)
Capacitance10.9 nF ±30% (120 Hz)
Output ▶
Pin No.Middle East
(STD only)Except Middle
EastBuzzer
Priority
ON_Time OFF_Time
PAS O O - - 0
Over speed
warningO X 500 ms 200 ms 1
ESP O O 100 ms 100 ms 2
Temperature
warningO O 500 ms 500 ms 3
Fuel filter O O 500 ms 500 ms 4
Parking
brakeO O 2.8 s 1.5 s 5
Modulating frequency: 1.96 kHz
If the signal with higher priority is activated during the operation of signal with lower priority, the
current operation should be completed before starting the operation with higher priority.
If there are multiple signals at a time, the operation should be completed by the priority. -
-
-

05-438010-01
10) PAS (Parking Aid System)
(2) Self Diagnosis Mode
Operating conditions
Self diagnosis is performed once when the ignition is switched on (gear shift lever in "R" position). If
the system is defective (Fail) due to open sensor or communication problem, the information for the
failed sensor is sent to the instrument cluster. ▶
Fail condition (However, no obstacle should be within 30 cm)
1. The signal wire is open
2. The power wire (+ and -)is open -
Buzzer interval during self diagnosis ▶
(1) Sensor Operating Process
The ultrasonic sensors transmit ultrasonic waves and receive the reflected waves from an obstacle to
detect it in the following order: L → C → R.

05-44
Timeout processing time for buzzer interval after measuring distance/self diagnosis: 600 ms
- If timeout is reached, the PAS returns to undetected condition.
Process while re-inputting
After timeout, the process is performed normally if the signal required for display is received from
beginning to end.
(not detectable if the signal is received in the midst of process) 1.
2.Exception/error handling -Buzzer interval when measuring distance ▶

05-458010-01
Pin No.Message
Operating condition
Ambient temperature:
indicates air temperature
outside controlTRIP switch
Trip AReset: Press and hold the Trip switch
for more than 1 second
Trip BReset: Press and hold the Trip switch
for more than 1 second
Distance to empty:
indicates a distance can be
driven with the fuel remaining
controlFactory-setting mode
Average fuel consumption:
indicates average fuel
controlReset: Press and hold the Trip switch
for more than 1 second
Instant fuel consumption:
indicates fuel consumption for
a short periodsTRIP switch
Illumination brightness:
indicates tail lamp brightness
controlBrightness control: Press and hold the
Trip switch for more than 1 second
Start-up screenDisplayed for 2 seconds right after
ignition is switched on
Driver's seat belt
reminderDisplayed for 4 seconds after
'WELCOME' screen
DOT LCD message display ▶
Pin No. Message Operating condition

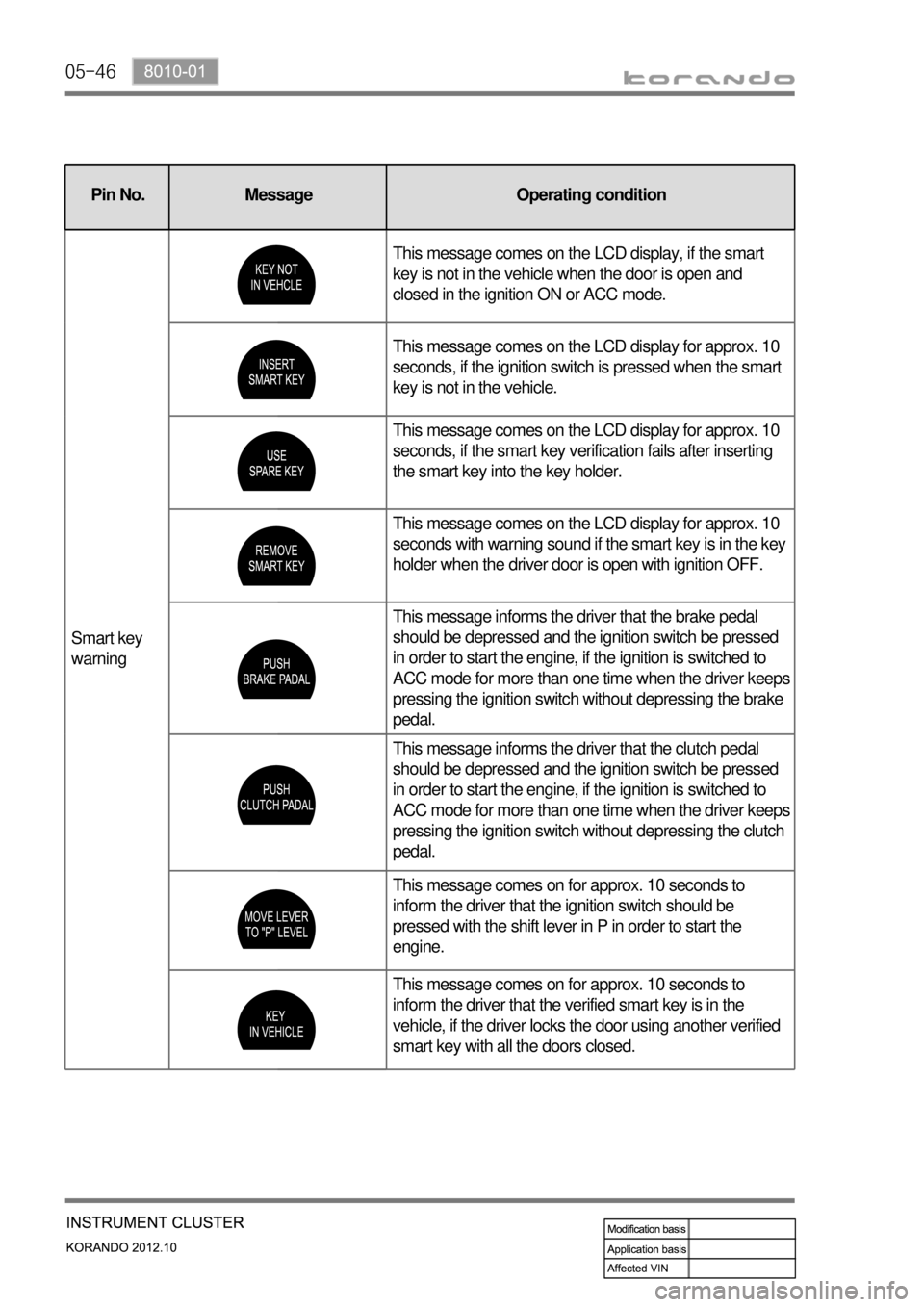

05-46
Pin No.Message
Operating condition
Domestic Export
Smart key
warningThis message comes on the LCD display, if the smart
key is not in the vehicle when the door is open and
closed in the ignition ON or ACC mode.
This message comes on the LCD display for approx. 10
seconds, if the ignition switch is pressed when the smart
key is not in the vehicle.
This message comes on the LCD display for approx. 10
seconds, if the smart key verification fails after inserting
the smart key into the key holder.
This message comes on the LCD display for approx. 10
seconds with warning sound if the smart key is in the key
holder when the driver door is open with ignition OFF.
This message informs the driver that the brake pedal
should be depressed and the ignition switch be pressed
in order to start the engine, if the ignition is switched to
ACC mode for more than one time when the driver keeps
pressing the ignition switch without depressing the brake
pedal.
This message informs the driver that the clutch pedal
should be depressed and the ignition switch be pressed
in order to start the engine, if the ignition is switched to
ACC mode for more than one time when the driver keeps
pressing the ignition switch without depressing the clutch
pedal.
This message comes on for approx. 10 seconds to
inform the driver that the ignition switch should be
pressed with the shift lever in P in order to start the
engine.
This message comes on for approx. 10 seconds to
inform the driver that the verified smart key is in the
vehicle, if the driver locks the door using another verified
smart key with all the doors closed.
Pin No. Message Operating condition

05-478010-01
Pin No.Message
Operating condition
Domestic Export
Smart key
warningThis message comes on for 10 seconds if incorrect
signal on vehicle power control, ignition switch or gear
shift position is received or the signal is not received from
the SKM after the smart key is verified.
This message comes on for approx. 10 seconds if the
low smart key battery is detected when the ignition
switch is pressed or the engine is started.
DoorThis message comes on to inform the driver that any of
the doors is open or closed.
While the door/tailgate is displayed in 4 steps, the hood
displayed in 3 steps.
Parking aid
systemIf any obstacle is detected in the rear of the vehicle when
the shift lever is moved to "R" position with IGN ON,
each sensor shows its position and distance.
If any error is detected during initial diagnosis, it is
displayed as "?". Other than that is operated in the same
way as the PAS distance measurement mode.
Cruise
controlThis message comes on when the cruise control system
is activated.
This message comes on when the cruise control system
is deactivated.
This message comes on when the cruise switch is
moved to the ECO position.Pin No. Message Operating condition
