AUTO washer switch coupled wiper operation
The wiper AUTO switch is in the OFF position with IGN ON
When the AUTO washer switch is turned ON for 0.1 seconds or more (T1), the windshield washer
motor is activated for 2 seconds (T2).
The windshield wiper LO relay is operated 4 times (T5) 0.5 seconds (T4) after the windshield washer
motor has been activated.
And then the windshield wiper LO relay is deactivated 3 times (T6) of operation while the windshield
washer motor is activated for 1.5 seconds (T3). A.
B.
C.
D. Operation 1.
The input from the AUTO washer switch during the washer coupled wiper operation is overridden.
The input from the AUTO washer switch during the AUTO washer coupled wiper operation is
ignored.
The input from the AUTO washer switch during the speed sensitive intermittent wiper operation is
ignored.
When the signal from the intermittent wiper switch is received during the AUTO washer operation,
the AUTO washer doesn't operate any longer and the intermittent wiper operation will be performed.
The input from the washer switch during the AUTO washer operation is ignored. -
-
-
-
-

8710-01
Operating process
BCM and rain sensor system diagram
Data recognition time
The LIN communication is established when the ignition is turned ON, regardless of the wiper and light
switch operation. Then the function for the LIN data is carried out with the wiper AUTO switch or AUTO
light switch in the AUTO position.
The data from the rain sensor is recognized as 2 consecutive data.
Operation when data is recognized
Data OFF: Lo/HI relay output OFF
Low speed signal: LO relay output ON (ON for at least 1 revolution), HI relay output OFF
High speed signal: HI relay output ON (ON for at least 1 revolution), LO relay output ON
The washer input is overridden during continuous operation of wiper. (washer coupled wiper operation
during intermittent operation)

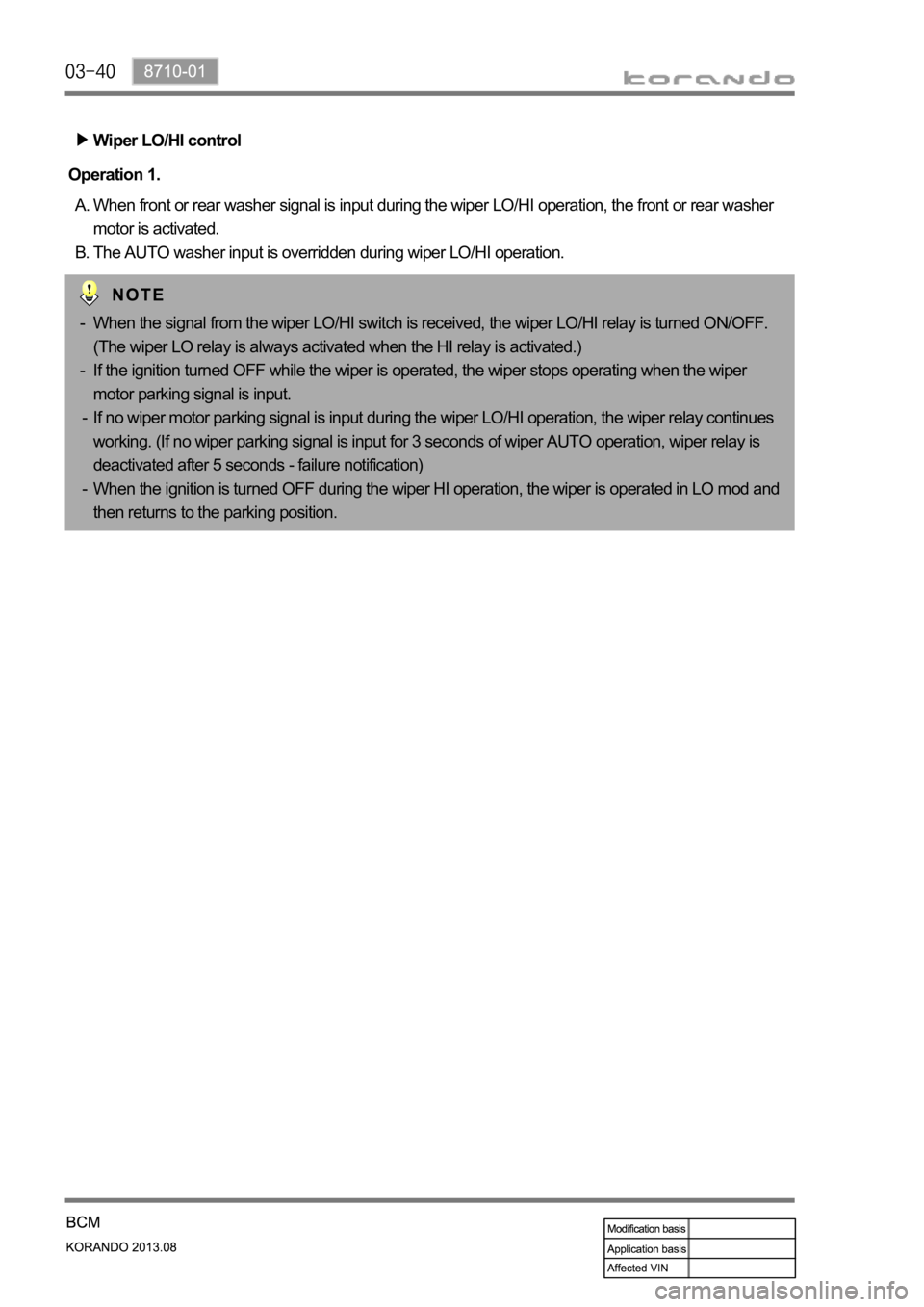

Wiper LO/HI control
When front or rear washer signal is input during the wiper LO/HI operation, the front or rear washer
motor is activated.
The AUTO washer input is overridden during wiper LO/HI operation. A.
B. Operation 1.
When the signal from the wiper LO/HI switch is received, the wiper LO/HI relay is turned ON/OFF.
(The wiper LO relay is always activated when the HI relay is activated.)
If the ignition turned OFF while the wiper is operated, the wiper stops operating when the wiper
motor parking signal is input.
If no wiper motor parking signal is input during the wiper LO/HI operation, the wiper relay continues
working. (If no wiper parking signal is input for 3 seconds of wiper AUTO operation, wiper relay is
deactivated after 5 seconds - failure notification)
When the ignition is turned OFF during the wiper HI operation, the wiper is operated in LO mod and
then returns to the parking position. -
-
-
-

Seat belt reminder operation
A
BIf the seat belt is fastened after the seat belt reminder is activated, the output of the reminder is
turned OFF immediately. The reminder will be operated again whenever the seat belt is
unbuckled.
CWhen the seat belt reminder is activated initially with the seat belt unbuckled, the internal buzzer
(chime) is turned ON for 0.02 seconds and then turned OFF for 1.18 seconds (this cycle
continues for 5 minutes) and the driver seat belt warning lamp on the instrument cluster remains
on.
DWhen the seat belt reminder is activated with the seat belt unbuckled, the internal buzzer (chime)
is turned ON for 0.02 seconds and then turned OFF for 1.18 seconds (this cycle continues for 5
minutes) and the passenger seat belt warning lamp on the instrument cluster remains on, after
detecting that the passenger seat is occupied through the input value of the passenger seat
occupancy sensor.
EWhen the vehicle speed is changed while the seat belt reminder is turned on, the internal buzzer
(chime) is operated as follows:
FPriority of internal buzzer (chime) operation
(Seat belt reminder > ignition key reminder > sunroof warning > tail lamp warning > hazard
warning flasher on > turn signal indicator)GEN
The seat belt reminder is operated when the
vehicle is driven at 25 km/h or more with IGN
ON and alternator in High status (engine
running), and driver seat belt is not fastened. If
the vehicle speed is decreased to less than 25
km/h within 5 minutes after the seat belt
reminder is activated, the internal buzzer
(chime) is turned off. If the vehicle speed is
increased to 25 km/h or more, the buzzer
signal is output for 5 minutes. Only EU If the driver and passenger seat belts are not
fastened with the ignition switch ON, engine
running, vehicle speed above 10 km/h and
any passenger occupied, the seat belt
reminder is activated. In addition, even though
the vehicle speed reduces to below 10 km/h
after the reminder is activated at speed of 10
km/h or higher, it will remain activated.
Vehicle speedFunction
Remarks
Interior buzzerInstrument
cluster
25 Km/h to 49 Km/h
(10km/h~49km/h)0.02 sec. ON / 1.18 sec. OFF Remains on (Only EU)
50 Km/h to 99 Km/h 0.02 sec. ON / 0.98 sec. OFF Remains on
100 km/h or more 0.02 sec. ON / 0.78 sec. OFF Remains on

Door is opened with IGN OFF.
The key hole lamp comes on.
The key hole lamp comes on for 10 seconds (T1) when the door is closed. A.
B.
C. Operation 1.
The ignition is turned ON with the key hole lamp ON.
The key hole lamp goes out. D.
E. Operation 2.
10. KEY HOLE LAMP CONTROL
The key hole lamp goes out when the REKES LOCK signal is received (in theft deterrent
mode).
When the key hole lamp and immobilizer signals are received simultaneously, the immobilizer signal
overrides the key hole lamp signal.
When the immobilizer confirmation is failed, regardless of the key hole lamp operation condition, it
flashes for 11 seconds at intervals of 0.5 sec. ON/0.5 sec. OFF.
When the ignition is turned ON in virgin status, the key hole lamp flashes for 8 seconds at intervals
of 0.5 sec. ON/0.5 sec. OFF. -
-
-
-

Door coupled room lamp control
When all doors are closed with IGN ON, the room lamp goes out immediately. A. Operation 1.
All doors are closed with IGN OFF.
The room lamp stays on for 2 seconds (T1) and then fades out over 3 seconds (T2) and goes off.
- When the ignition is turned ON while the room lamp is fading out, the lamp goes out immediately. B.
C. Operation 2.
When UNLOCK signal by the smart key (REKES key) is received with IGN OFF (ignition key
removed) and all doors closed, the room lamp remains ON for 30 seconds (T3).
When UNLOCK signal is received again while the room lamp is ON, the lamp stays on for 30
seconds more. The room lamp lighting is extended when UNLOCK signal by the REKES key is
received. D.
E. Operation 3.
The room lamp stays on when a door is opened during fading out.
The lamp goes out or fades out when the door is closed. F. Operation 4.
12. ROOM LAMP CONTROL
When the room lamp switch is in the door coupled position and the driver/passenger/rear door is
opened, the room lamp comes on.
The room lamp goes out automatically after 10 minutes of illumination when the ignition is turned OFF
(ignition key is removed) and a door is open.
The sleep mode is deactivated when the door status is changed or UNLOCK signal is received after
automatic switching off. -
-
-
When the open driver/passenger/rear door is closed, the room lamp fades out. When the system
enters the theft deterrent mode, the room lamp goes out immediately.
In puddle lamp coupled room lamp mode, the room lamp comes on when the puddle lamp
operation signal is received. -
-

Room lamp cut off control
The lamp is turned off when entering sleep mode or in alarming status. A. Operation 1.
When the ignition is turned OFF (ignition key removed) with the room lamp switch ON, the room
lamp comes on for 10 minutes and then goes out automatically.
When the room lamp is turned off automatically, the room lamp automatic switching off signal is sent
to the instrument cluster before entering sleep mode. B.
C. Operation 2. (preventing battery discharge)
When the ACC is turned ON or ignition is turned ON with the ignition key inserted, the room lamp is
activated. D. Operation 3.
When the room lamp cut off operation is activated, the BCM sends cut off operation signal to the
instrument cluster through B-CAN to prevent the battery discharge. -

Door LOCK/UNLOCK control by door knob switch
The driver and passenger door LOCK knob switches are in the LOCK position from UNLOCK
position.
The door LOCK relay is activated for 0.5 seconds (T1). A.
B. Operation 1.
The driver and passenger door LOCK knob switches are in the UNLOCK position from LOCK
position.
The door UNLOCK relay is activated for 0.5 seconds (T2). C.
D. Operation 2.
All open doors are closed.
The LOCK signal is input within 0.5 seconds (T3).
The UNLOCK signal for all doors is output once for 0.5 seconds (T4). E.
F.
G. Operation 3.
14. CENTRAL DOOR LOCKING SYSTEM CONTROL
For BCM with SKM, sleep mode is deactivated by receiving the status signals from the driver door
knob switch, passenger door knob switch, rear LH/RH door knob switch, and central door
LOCK/UNLOCK switch through the wiring.
If all doors are unlocked 5 times within 1 minute after door LOCK signal output, because of faulty
door knob switch and door open switch, the doors are forced to lock and not allowed to unlock.
However, the UNLOCK conditions are met, the UNKLOCK signal is input normally. -
-
The door lock/unlock system does not work regardless of the door LOCK/UNLOCK switch position,
when reconnecting the battery. (to reset, turn the ignition ON) -
The signal change from UNLOCK to LOCK is ignored during LOCK/UNLOCK output by the central
door LOCK switch, REKES key, and door handle switch.
If LOCK signal from the switch is input within 0.5 seconds after any door is closed, UNLOCK signal
is output. -
-

Door LOCK/UNLOCK control by central door LOCK switch
The central door LOCK switch is turned ON.
The door LOCK/UNLOCK relay is activated for 0.5 seconds (T1, T2). A.
B. Operation 1.
The central door switch signal is ignored in the theft deterrent mode. C. Operation 2.
When one of the door LOCK detection switches* is in LOCK position with the ignition turned OFF,
all doors are unlocked automatically.
When the central door switch LOCK is operated with all doors unlocked and any door ajar, the door
LOCK relay is activated followed by UNLOCK relay to prevent the door LOCK by misoperation.
* Door LOCK detection switch: The switch is installed inside the door actuator and detects
the door LOCK status. -
-
Central door LOCK switch (driver door side)

Door LOCK/UNLOCK by REKES key
When the REKES LOCK switch is pressed less than 0.5 seconds (T1), the door LOCK relay is
activated for 0.5 seconds (T2).
All of following conditions are met within 0.2 seconds (T4) after the chattering time (T3): A.
B. Operation 1.
When the REKES UNLOCK switch is pressed less than 2 seconds (T5), the door UNLOCK relay is
activated for 0.5 seconds (T2).
The door UNLOCK conditions are met, the turn signal lamp is operated once for 1 second. D.
E. Operation 2.
All doors closed
Hood closed
Tailgate closed
Door LOCK detection switch in LOCK state -
-
-
-
The turn signal lamp flashes 2 times at intervals of 0.5 sec. ON/0.5 sec. OFF. C.
Operating process (for vehicles without SKM)
Do not operate the REKES key with the ignition key inserted or for 1 second after the ignition key is
removed. (to prevent the remote controller switch malfunction)
When one of the LOCK switches is unlocked after the door LOCK, all doors will be unlocked. -
-
