3) Camshaft Assembly
Overview
The camshaft is hollow type, and contains the cam, octagon cam, OCV gallery, cam position rotor. The
camshaft operates the intake and exhaust valves.
Location
Exhaust camshaft
Intake camshaft
Timing marks
Align the timing marks (A) on the camshaft
flange and camshaft cap when installing the
intake/exhaust camshaft.

1211-01
4) Intake/Exhaust Valve Assembly (Installed on Cylinder Head)
(1) Features
Automatic adustment of valve clearance by hydraulic pressure system (Maintenance Free)_Hydraulic
lash
Decreased valve operating noise
Decreased friction loss by introducing the roller type finger follower
Decreased running amount by compact design (increased valve following movement in high speed
and improved fuel economy by decreased friction loss) -
-
-
-
-
(2) Layout and components
Intake camshaft assemblyExhaust camshaft assembly
Valve stem seal
Valve upper
spring seat
Valve guide
Hydraulic lash
adjuster
Exhaust valve assembly
Valve spring
Finger follower
Intake valve assembly

5) Cylinder Head Gasket
The cylinder head gasket is installed between cylinder block and cylinder head to seal the combustion
gas from the combustion chamber, engine oil and coolant.Overview
Location
Cylinder head gasket
3 Layer MLS Gasket
Thickness : 0.7 mm (Compressed)
PFP: Max. 85 bar -
-
-

1311-01
The drive chain is single chain drive system with simple design and variable performance, and it utilizes
the hydraulic tensioner to reduce the wave impact generated by the chain. The silent chain provides the
silence during the operation. To improve NVH, the shoulder bolt has been introduced. Overview
Layout and Components
Hydraulic tensioner
Consists of tensioner housing
plug, spring, check valve, and
operated by hydraulic
pressure and spring in
tensioner
Timing chain
Chain type: Silent chain type
Links: 146 ea
Tensioner rail
Installed between exjaust
camshaft sprocket and
crankshaft sprocket
Crankshaft sprocket
Teeth: 21 ea
Oil pump sprocket
Teeth: 28 ea
Exhaust camshaft
sprocket
Teeth:42 eaIntake camshaft
sprocket
CVVT
Teeth: 42 ea
OCV
Controls the hydraulic circuit
to control the intake cam
sprocket variably
Clamping rail
Installed between intake
camshaft sprocket and
crankshaft sprocket
Mechanical tensioner
Operated by spring in
tensioner
Oil pump chain
Chain type: Silent chain type
Links: 58 ea

1) Timing Gear Case Cover
Features
Major function: Protecting the chain drive system, minor function: Shielding the chain noise
Timing gear case cover prevents the oil from leaking.
The crankshaft front seal and the engine mounting bracket are installed on the timing gear case
cover. -
-
-
Timing gear case cover
Do not touch the inner lip of crankshaft front seal installed on the timing gear case cover. -

1311-01
Layout and Location
Hydraulic chain tensioner
In G20DF engine, the hydraulic auto tensioner is used to keep the tension for chain drive system of
engine. The auto tensioner is operated by the spring in tensioner and the hydraulic pressure.
2) Hydraulic Auto Tensioner
Oil gallery

3) Oil Pump Chain Tensioner
Layout and Location
Oil pump chain tensioner
Operated by spring in tensioner
Tensioner type: Compensating and absorbing the impact
Static and dynamic force: spring -
-
-

1311-01
A. Timing chain
B. Oil pump chain

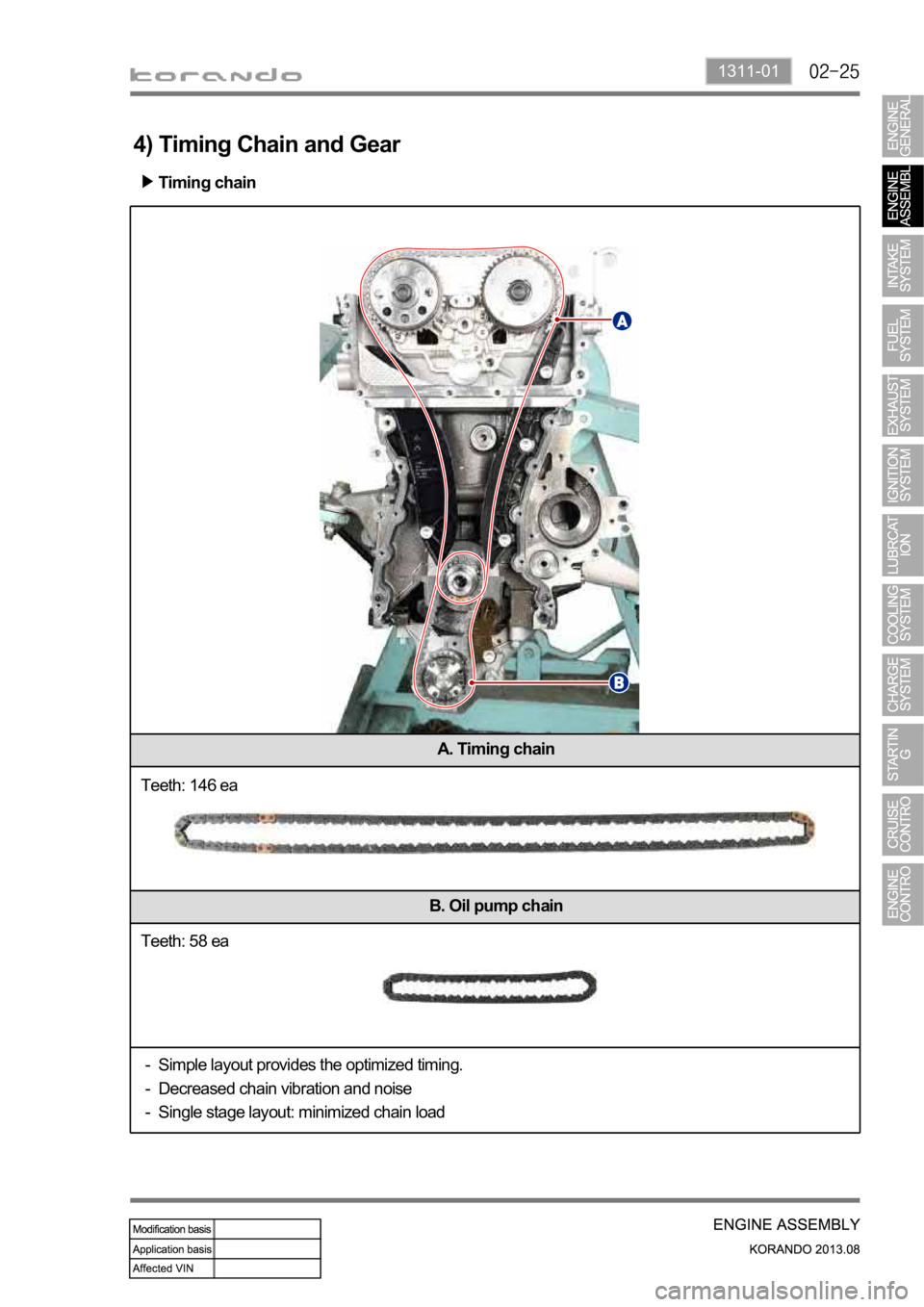

4) Timing Chain and Gear
Timing chain
Simple layout provides the optimized timing.
Decreased chain vibration and noise
Single stage layout: minimized chain load -
-
- Teeth: 146 ea
Teeth: 58 ea

Clamping rail
Installed between intake
camshaft sprocket and
crankshaft sprocket
5) Chain Rails
The chain rails are used for optimizing the movement of chain drive system. And they also prevent the
chain from contacting each other when the chain is loose, and reduces the chain wear. The chain rail is
normally made of PA (Polyamide nylon), and PA66 and PA46 are used for the chain rails in G20DF
engine. For the tensioner rail, PA46 is used to provide high anti-wear function and high strength since
the load to the rail is huge. Ther is an open area for shoulder bolt hole in the clamping rail. The chain
rails are installed by shoulder bolts.
Tensioner rail
Installed between
exhaust camshaft
sprocket and crankshaft
sprocket

1130-13
1) Overview
Dual mass flywheel (DMF)
- Manual transaxleDrive plate
- Automatic transaxle
Dual mass flywheel reduces the unbalanced
rotation of crankshaft in manual transaxle
equipped vehicle. The flywheel is installed on the
crankshaft and is engaged to the clutch disc to
transfer the driving torque from the engine to the
powertrain system. Additionally, DMF decreases
the rattling noise in transaxle and the vehicle
vibration by reducing the differences of torque and
rotational speed due to the combustion in engine.The drive plate initially drives the powertrain
system by using the power from the start motor
when starting the engine. The drive plate is
installed on the crankshaft and is engaged to the
torque converter of automatic transaxle to transfer
the driving torque from the engine to the powertrain
system.
