SSANGYONG KORANDO 2013 Service Manual

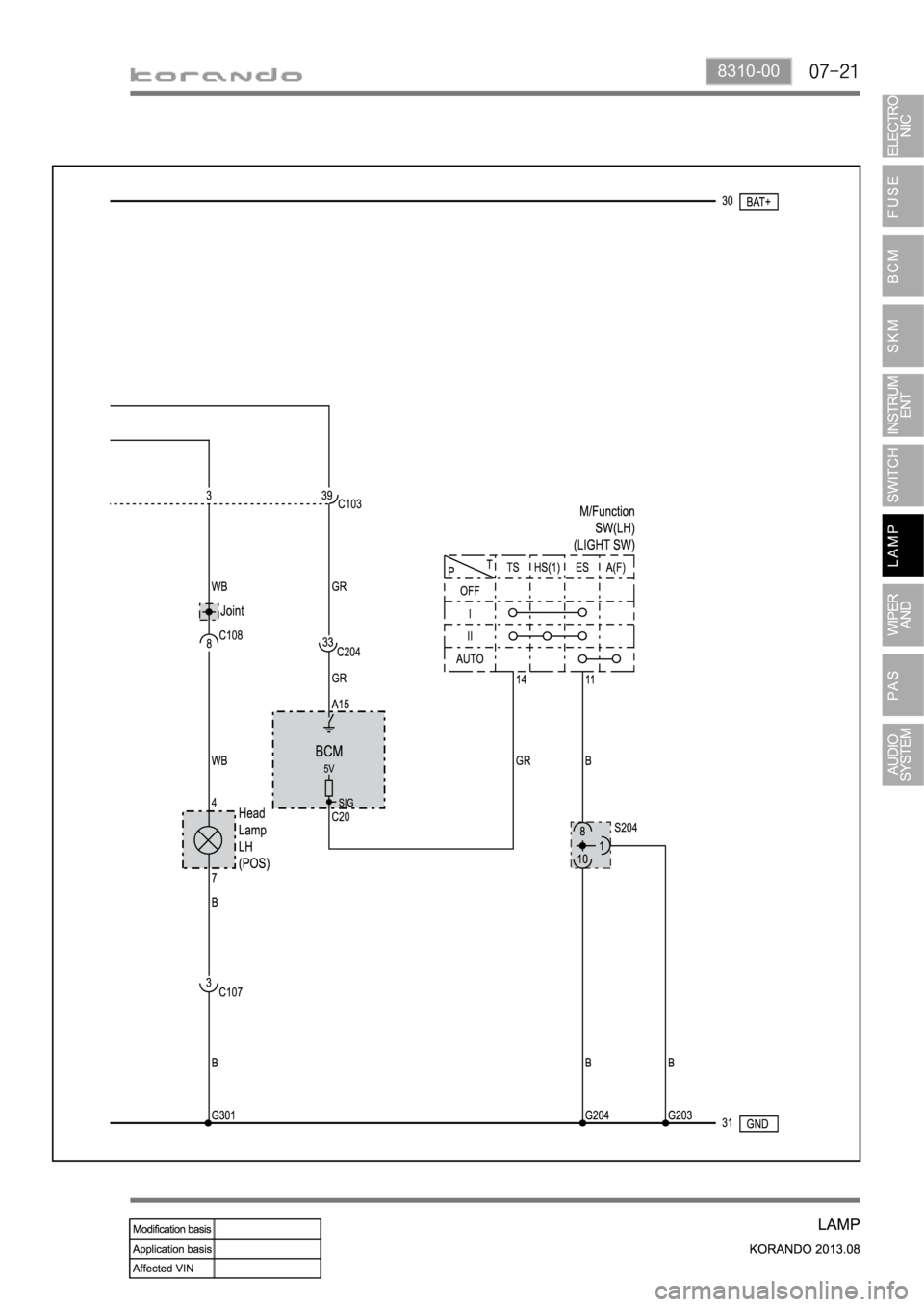

Headlamp(W/ VSM)

8310-00

Tail lamp circuit diagram

8310-00

(5) Fog lamp
The fog lamp is operated by the fog lamp switch only when the headlamp (tail lamp) is operating.
The front and rear fog lamps go off when turning the ignition switch or headlamp (tail lamp) switch to the
"OFF" position.
Front
Rear
(EU only)
Rear fog light
Front fog lamp

8310-00
Fog lamp circuit diagram

Turn signal lamp
Rear
Front
(6) Turn signal lamp / Side repeater lamp
The turn signal lamp is operated by the BCM when the BCM receives a signal from the multifunction
switch. The BCM cycles the turn signal lamp and buzzer (ON/OFF) 75 times per minute.
The turn signal lamps are operational only when IGN1 is ON.
If the turn signal lamp fails while it is illuminated, the BCM cycles the lamp and buzzer 100 times per
minute.
The BCM determines that there is an open circuit if the load is 3.0 A or less, and there is a short circuit if
the load is 7.0 A or more.
When turning ON the turn signal switch, the lamp blinks 3 times by the BCM. When turning OFF the
switch during the operation, the turn signal lamp blinks 3 times and goes off.
When turning OFF and then immediately ON the turn signal switch during auto blinking operation of 3
times, the turn signal lamp blinks additional 3 times.
If one of the turn signal lamp is flashing and the other lamp switch is turned on, the lamp for the activated
switch flashes.
Turn signal lamp

8310-00
(7) Side repeater lamp
Side repeater lamp
The side repeater lamp is operated by the BCM when the BCM receives a signal from the multifunction
switch.
The BCM cycles the side repeater lamp and buzzer (ON/OFF) 75 times per minute.
The side repeater lamp operates only when IGN1 is ON.
If the side repeater lamp fails while it is illuminated, the BCM cycles the lamp and buzzer 100 times per
minute.
The lamp automatically flashes 3 times when the multifunction switch is turned on. If the switch is turned
off
during this operation, the lamp flashes 3 times and then goes off.
If the switch is turned off and then on during the 3 times of automatic flashing, the lamp flashes 3 more
times.

Turn signal lamp circuit diagram

8310-00
