SUBARU BAJA 2006 1.G Owners Manual

11 - 5 6
Maintenance and service

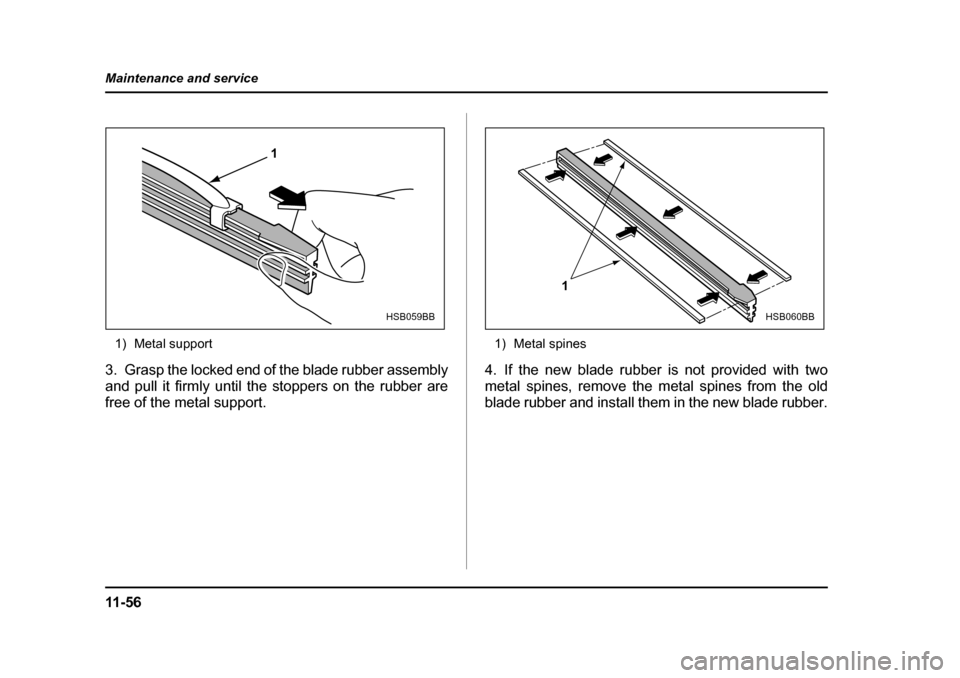

1) Metal support
3. Grasp the locked end of the blade rubber assembly
and pull it firmly until the stoppers on the rubber are
free of the metal support. 1) Metal spines
4. If the new blade rubber is not provided with two
metal spines, remove the metal spines from the old
blade rubber and install them in the new blade rubber.
1
HSB059BB
1
HSB060BB

11 -5 7
Maintenance and service
– CONTINUED –

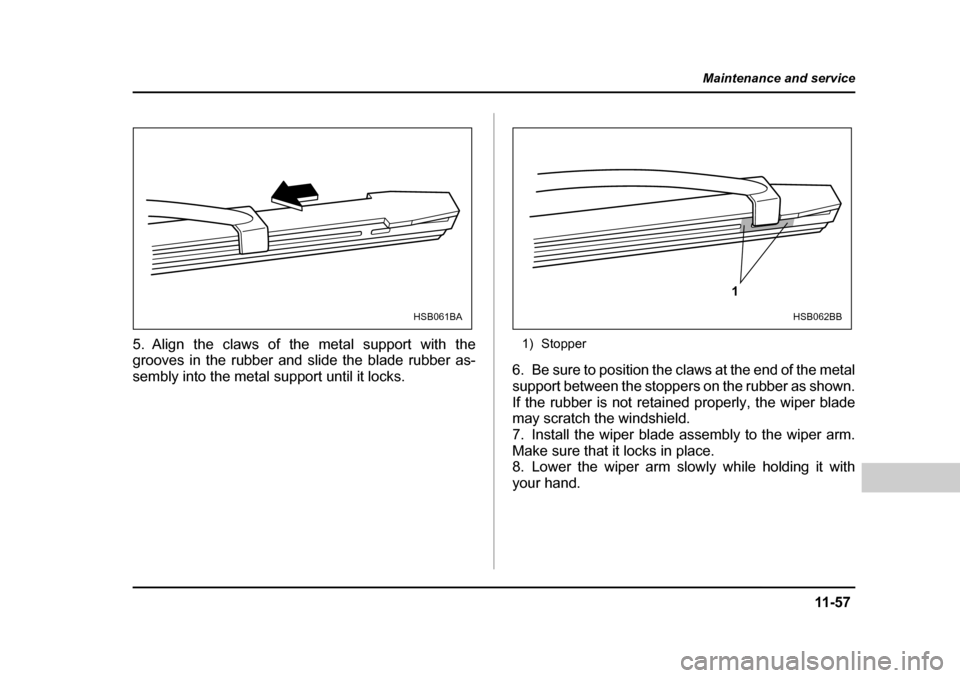

5. Align the claws of the metal support with the
grooves in the rubber and slide the blade rubber as-
sembly into the metal support until it locks. 1) Stopper
6. Be sure to position the claws at the end of the metal
support between the stoppers on the rubber as shown.
If the rubber is not retai ned properly, the wiper blade
may scratch the windshield.
7. Install the wiper blade assembly to the wiper arm.
Make sure that it locks in place.
8. Lower the wiper arm slowly while holding it with
your hand.
HSB061BA
1
HSB062BB

11 - 5 8
Maintenance and service
BatteryBattery
y
Before beginning work on or near any bat-
tery, be sure to extingui sh all cigarettes, match-
es, and lighters. Never expose a battery to an
open flame or electric sp arks. Batteries give off
a gas which is highly flammable and explosive. y For safety, in case an explosion does occur,
wear eye protection or shield your eyes when
working near any battery. Never lean over a bat-tery. y Do not let battery fluid contact eyes, skin,
fabrics, or paint becaus e battery fluid is a cor-
rosive acid. If battery fluid gets on your skin or
in your eyes, immediat ely flush the area with
water thoroughly. Seek medical help immedi-
ately if acid has entered the eyes.
If battery fluid is accid entally swallowed, imme-
diately drink a large amount of milk or water,
and seek medical attention immediately. y To lessen the risk of sparks, remove rings,
metal watchbands, and other metal jewelry.
Never allow metal tools to contact the positive
battery terminal and anything connected to it
WHILE you are at the same time in contact with any other metallic portion of the vehicle be-
cause a short circuit will result.y
Keep everyone including children away from
the battery.y Charge the battery in a well-ventilated area.
y Battery posts terminals and related accesso-
ries contain lead and lead compounds, chemi-
cals known to the State of California to cause
cancer and reproductive harm. Batteries also
contain other chemicals known to the State of
California to cause cancer. Wash hands after
handling.
It is unnecessary to periodically check the battery fluid
level or periodically refill with distilled water.
Never use more than 10 amperes when charg-
ing the battery because it will shorten battery
life.

11 -5 9
Maintenance and service
– CONTINUED –

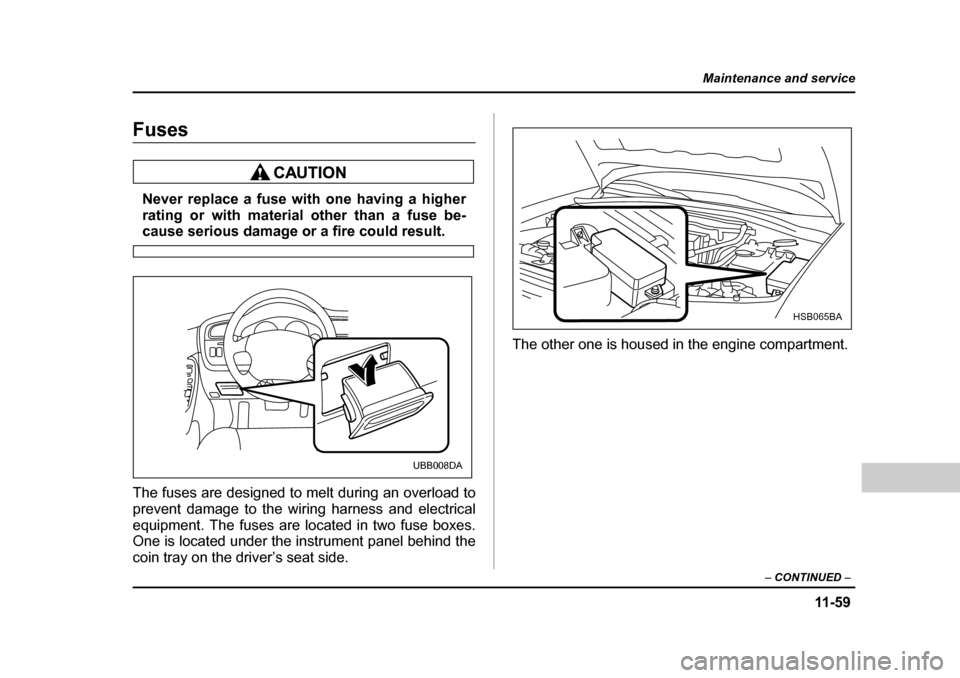

FusesFuses
Never replace a fuse with one having a higher
rating or with material other than a fuse be-
cause serious damage or a fire could result.
The fuses are designed to melt during an overload to
prevent damage to the wiring harness and electrical
equipment. The fuses are located in two fuse boxes.
One is located under the instrument panel behind the
coin tray on the driver’s seat side. The other one is housed in the engine compartment.
UBB008DA
HSB065BA

11 - 6 0
Maintenance and service

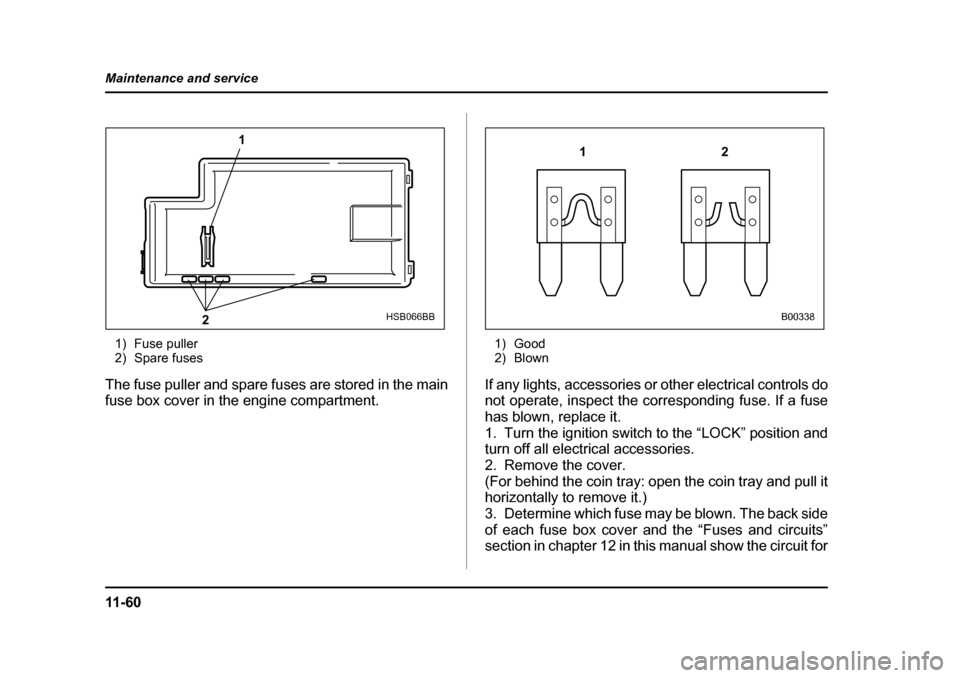

1) Fuse puller
2) Spare fuses
The fuse puller and spare fuses are stored in the main
fuse box cover in the engine compartment. 1) Good
2) Blown
If any lights, accessories or other electrical controls do
not operate, inspect the corresponding fuse. If a fuse
has blown, replace it.
1. Turn the ignition switch to the “LOCK” position and
turn off all electrical accessories.
2. Remove the cover.
(For behind the coin tray: open the coin tray and pull it
horizontally to remove it.)
3. Determine which fuse may be blown. The back side
of each fuse box cover and the “Fuses and circuits”
section in chapter 12 in this manual show the circuit for
1
2
HSB066BB
12
B00338

11 -6 1
Maintenance and service
– CONTINUED –
each fuse.

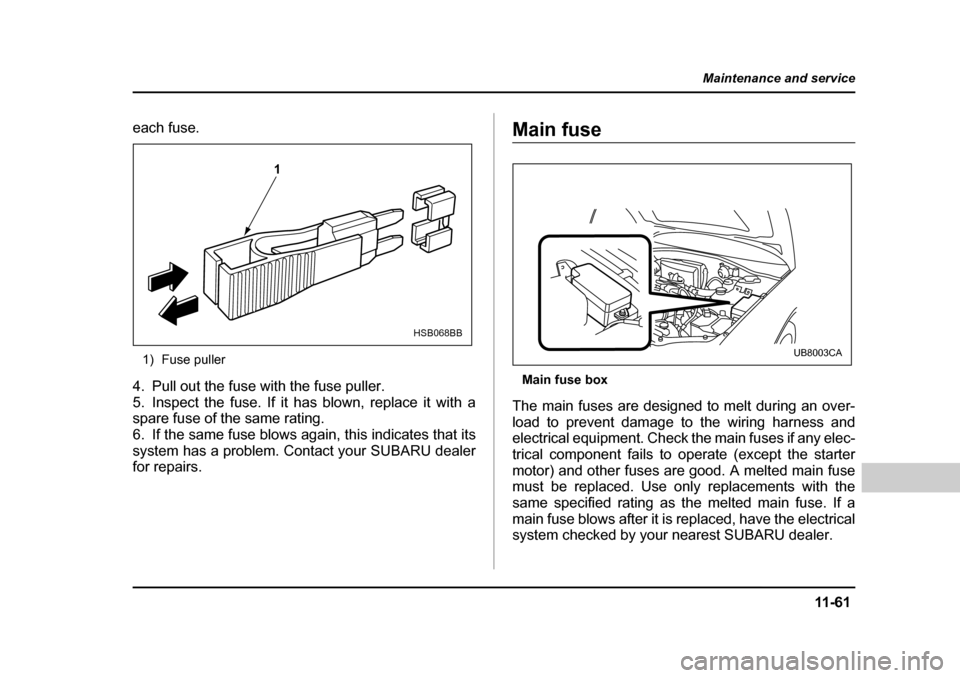

1) Fuse puller
4. Pull out the fuse with the fuse puller.
5. Inspect the fuse. If it has blown, replace it with a
spare fuse of the same rating.
6. If the same fuse blows again , this indicates that its
system has a problem. Contact your SUBARU dealer for repairs.Main fuseMain fuse
Main fuse box
The main fuses are designed to melt during an over-
load to prevent damage to the wiring harness and
electrical equipment. Check the main fuses if any elec-
trical component fails to operate (except the starter
motor) and other fuses are good. A melted main fuse
must be replaced. Use only replacements with the
same specified rating as the melted main fuse. If a
main fuse blows after it is replaced, have the electrical
system checked by your nearest SUBARU dealer.
1
HSB068BB
UB8003CA

11 - 6 2
Maintenance and service
Installation of accessoriesAccessories
Always consult your SUBARU dealer before installing
fog lights or any other electr
ical equipment in your ve-
hicle. Such accessories may cause the electronic sys-
tem to malfunction if they ar e incorrectly installed or if
they are not suited for the vehicle.

11 -6 3
Maintenance and service
– CONTINUED –

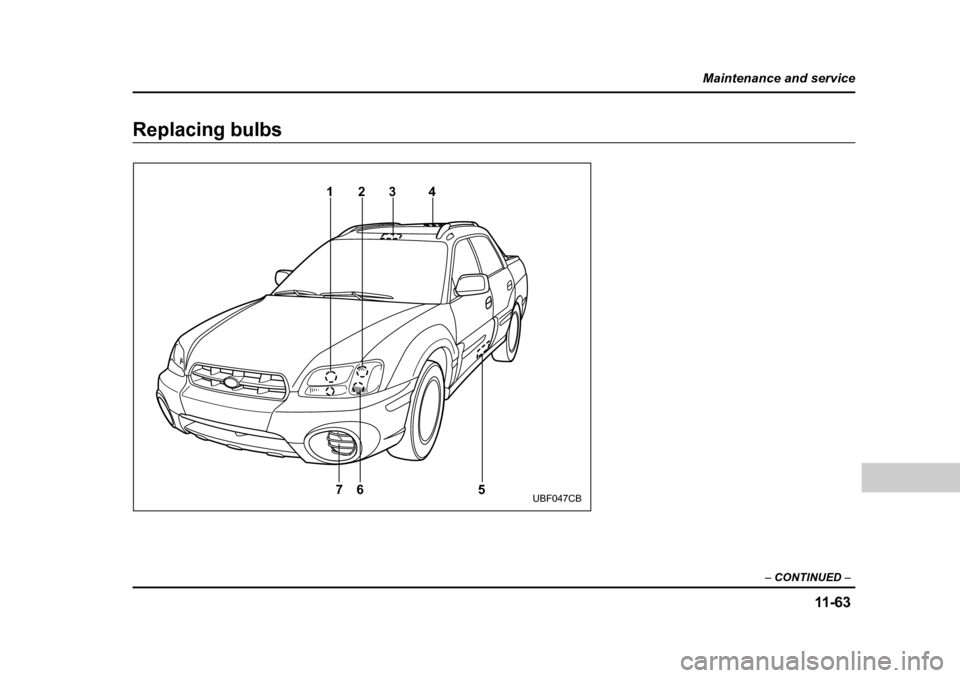

Replacing bulbs
76
14
23
5UBF047CB

11 - 6 4
Maintenance and service
Wattage Bulb No.
1) Headlight BAJA-S 12V-65/ 55W9007 (HB5)
BAJA-B Low beam 12V-55W H1
High beam 12V-60W 9005 (HB3)
2) Front turn signal light 12V-27W 1156NA (Amber)
3) Map light 12V-8W –
4) Dome light 12V-8W –
5) Door step light 12V-3.4W –
6) Front turn signal light/ parking and front side marker light 12V-27/8W
1157NA
(Amber)
7) Front fog light 12V-51W 9006 (HB4)

11 -6 5
Maintenance and service
– CONTINUED –

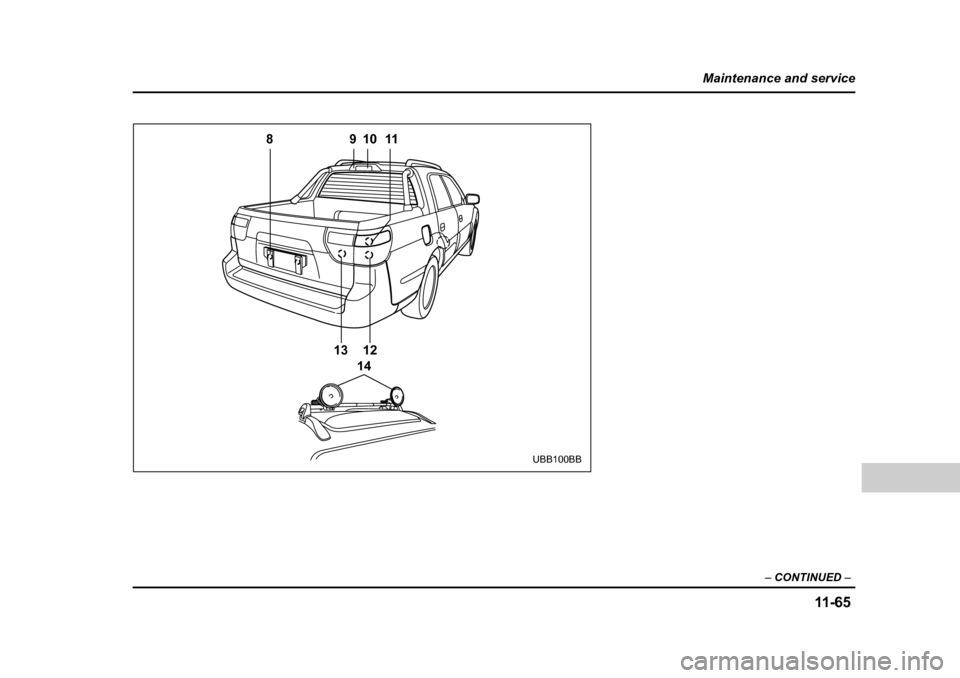

1412
13
89
10 11
UBB100BB
