SUBARU BAJA 2006 1.G Owners Manual

11 - 6 6
Maintenance and service
Replace any bulb only with a new bulb of the
specified wattage. Using a bulb of different
wattage could result in a fire.
„ Headlight
„Headlights
„ Replacing bulbs
„ Headlight
Halogen headlight bulbs become very hot while
in use. If you touch the bulb surface with bare
hands or greasy gloves, finger prints or grease
on the bulb surface will develop into hot spots
and cause the bulb to break. If there are finger
prints or grease on the bulb surface, wipe them
away with a soft cloth moistened with alcohol.
NOTE
If headlight aiming is required, consult your
SUBARU dealer for proper adjustment of the head-
light aim.
Wattage Bulb No.
8) License plate light 12V-5W 168
9) Cargo light 12V-13W 912
10) High mount stop light 12V-13W 912
11) Backup light 12V-21W 7440
12) Brake rear turn signal/ tail light 12V-21/ 5W7443
13) Tail light 12V-5W 168
14) Sports activity lights 12V-55W H3

11 -6 7
Maintenance and service
– CONTINUED –
TBAJA-Sport

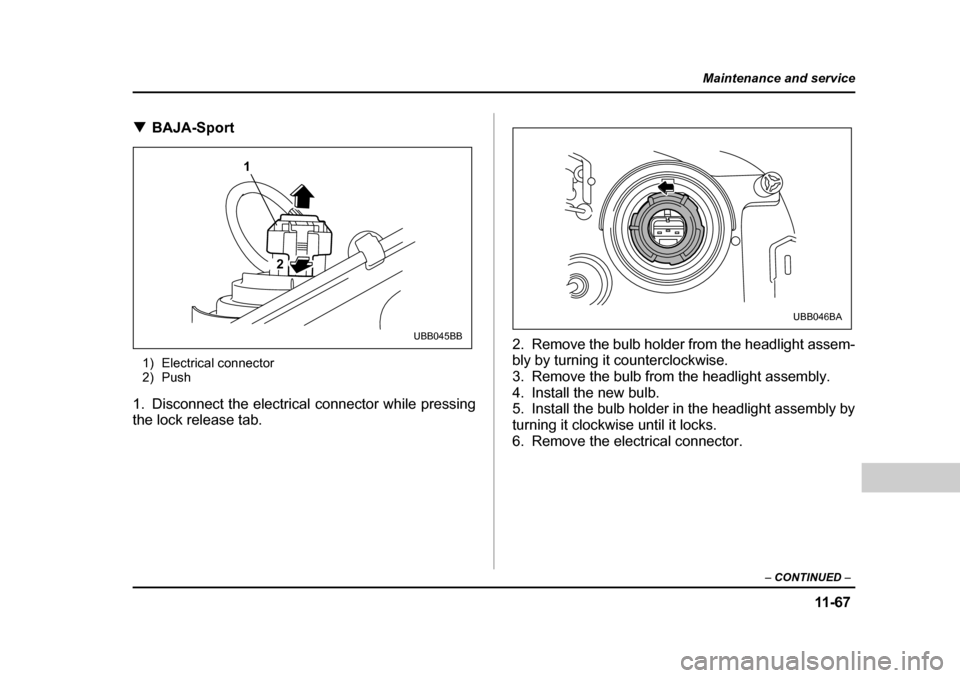

1) Electrical connector
2) Push
1. Disconnect the electrical connector while pressing
the lock release tab. 2. Remove the bulb holder from the headlight assem-
bly by turning it counterclockwise.
3. Remove the bulb from the headlight assembly.
4. Install the new bulb.
5. Install the bulb holder in the headlight assembly by
turning it clockwise until it locks.
6. Remove the electrical connector.
1
2
UBB045BB
UBB046BA

11 - 6 8
Maintenance and service
T
BAJA-Turbo

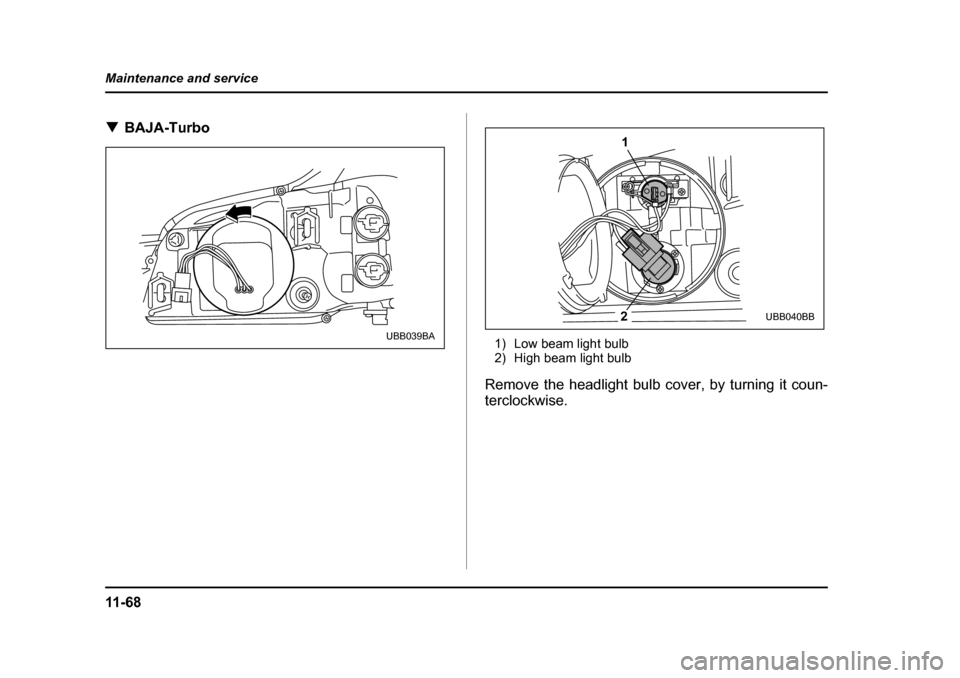

1) Low beam light bulb
2) High beam light bulb
Remove the headlight bulb cover, by turning it coun-
terclockwise.
UBB039BA
1
2UBB040BB

11 -6 9
Maintenance and service
– CONTINUED –

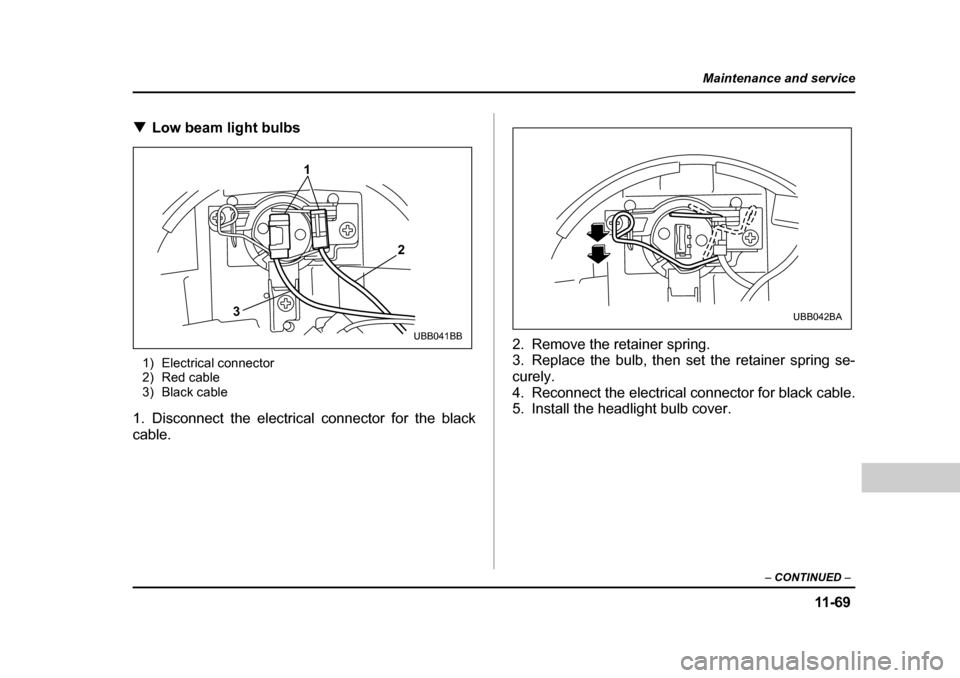

TLow beam light bulbs0
1) Electrical connector
2) Red cable
3) Black cable
1. Disconnect the electrical connector for the black
cable. 2. Remove the retainer spring.
3. Replace the bulb, then set the retainer spring se- curely.
4. Reconnect the electrical connector for black cable.
5. Install the headlight bulb cover.
1
2
3
UBB041BB
UBB042BA

11 - 7 0
Maintenance and service
T
High beam light bulbs0

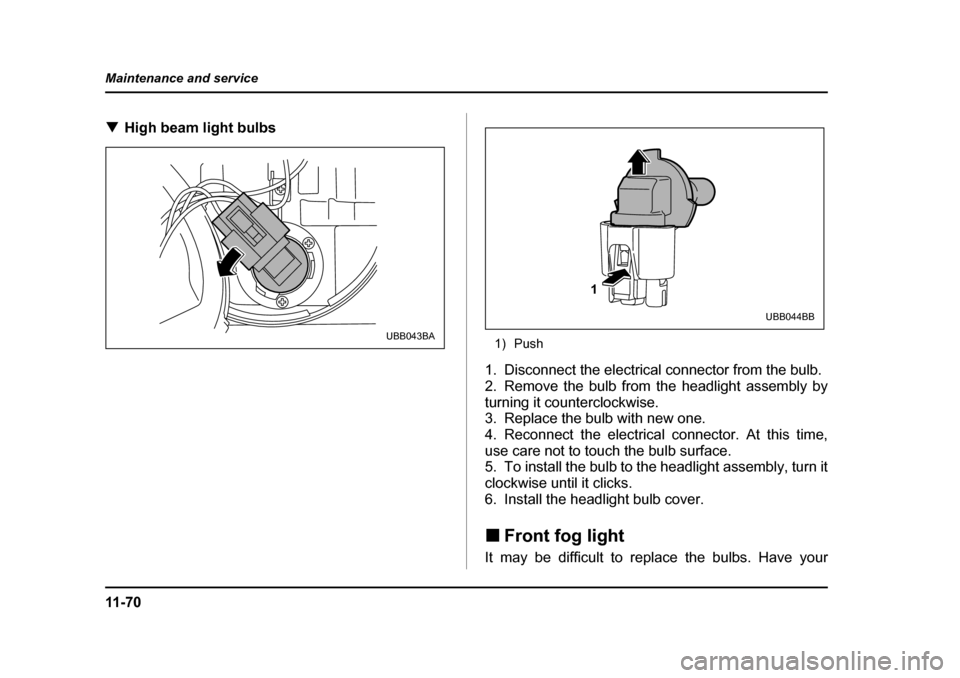

1) Push
1. Disconnect the electrical connector from the bulb.
2. Remove the bulb from the headlight assembly by
turning it counterclockwise.
3. Replace the bulb with new one.
4. Reconnect the electrical connector. At this time,
use care not to touch the bulb surface.
5. To install the bulb to the headlight assembly, turn it
clockwise until it clicks.
6. Install the headlight bulb cover. „ Front fog light
„Replacing bulbs
„ Front fog light
„ Front
„ Fog lightIt may be difficult to replace the bulbs. Have your
UBB043BA
1
UBB044BB

11 -7 1
Maintenance and service
– CONTINUED –
SUBARU dealer replace the bulbs if necessary. „Front turn signal light, parking light
and side marker light
„Replacing bulbs
„ Front turn signal light
„ Replacing bulbs
„ Parking light
„ Front
„ Turn signal light, parking light and side marker lightThe headlight assembly must be removed before the
front turn signal light and parking light bulbs can be re-
placed. When the headlight assembly has been re-
moved and then reinstalled, it may become necessary
to make a headlight aiming adjustment. After a bulb
has been replaced, it is recommended that the head-
light aiming adjustment be made at a SUBARU dealer.

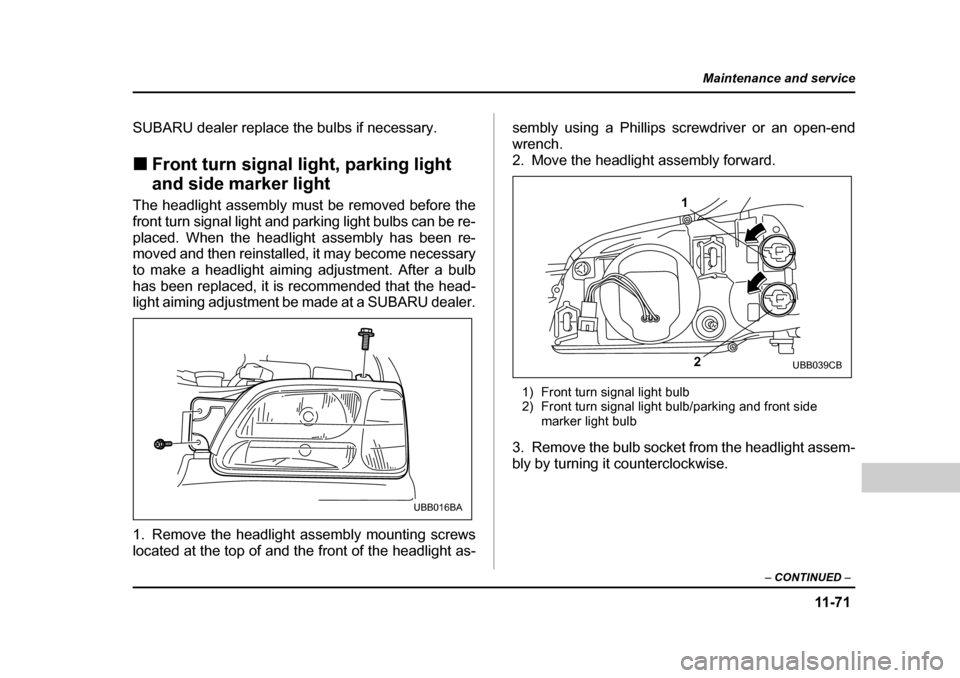

1. Remove the headlight assembly mounting screws
located at the top of and th e front of the headlight as- sembly using a Phillips screwdriver or an open-end
wrench.
2. Move the headlight assembly forward.
1) Front turn signal light bulb
2) Front turn signal light bulb/parking and front side marker light bulb
3. Remove the bulb socket from the headlight assem-
bly by turning it counterclockwise.
UBB016BA
1
2
UBB039CB

11 - 7 2
Maintenance and service
4. Remove the bulb from the socket by pushing it and
turning counterclockwise. Install a new bulb in the socket.
5. Set the bulb socket into the headlight assembly and
turn it clockwise until it locks.
6. Set the headlight assembly into the vehicle body.
Tighten the mounting screws. „
Rear combination lights
„Replacing bulbs
„ Rear combination lights
„ Rear
„ Combination lightsRear combination lights are composed of the rear turn
signal/brake/tail light and backup lights. TRear turn signal/Brake/Tail and Backup lights
The rear turn signal/brake/tail light is one bulb with two filament types.
If any one of them malfunctions, replace the bulb with
a new one.
1. Open the tailgate.
2. Pry the cover from the side of the rear combination
light.
UBB020BA
UBB083BA

11 -7 3
Maintenance and service
– CONTINUED –

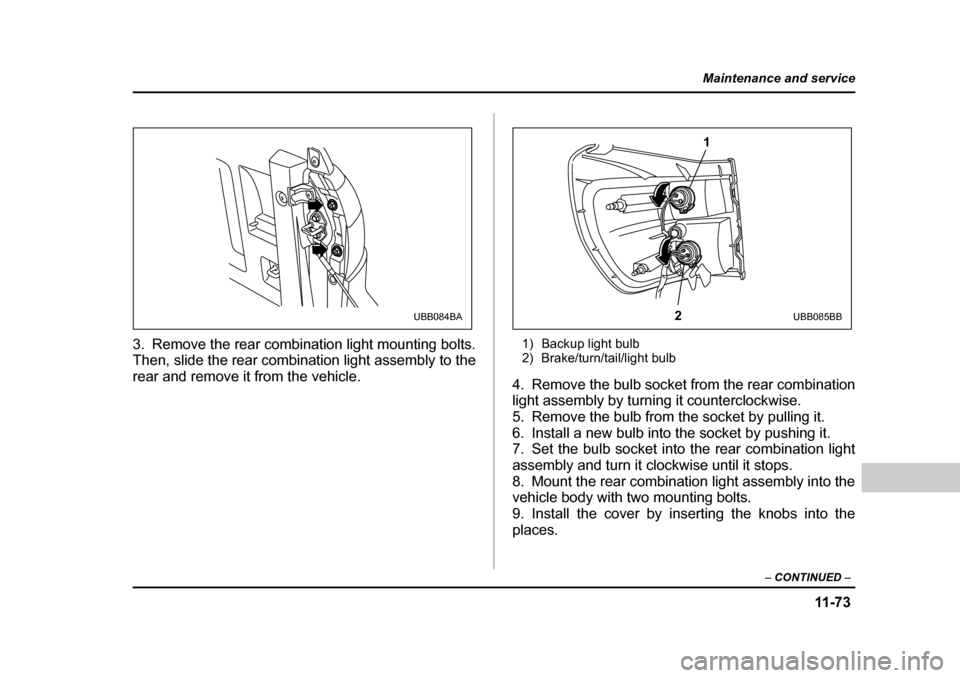

3. Remove the rear combination light mounting bolts.
Then, slide the rear combination light assembly to the
rear and remove it from the vehicle. 1) Backup light bulb
2) Brake/turn/tail/light bulb
4. Remove the bulb socket from the rear combination
light assembly by turning it counterclockwise.
5. Remove the bulb from the socket by pulling it.
6. Install a new bulb into the socket by pushing it.
7. Set the bulb socket into the rear combination light
assembly and turn it cl ockwise until it stops.
8. Mount the rear combination light assembly into the
vehicle body with two mounting bolts.
9. Install the cover by inserting the knobs into the
places.
UBB084BA2
1
UBB085BB

11 - 7 4
Maintenance and service
„
Tail light (on the tailgate)„
Replacing bulbs
„ Tail light
„ Tail light1. Open the tailgate.

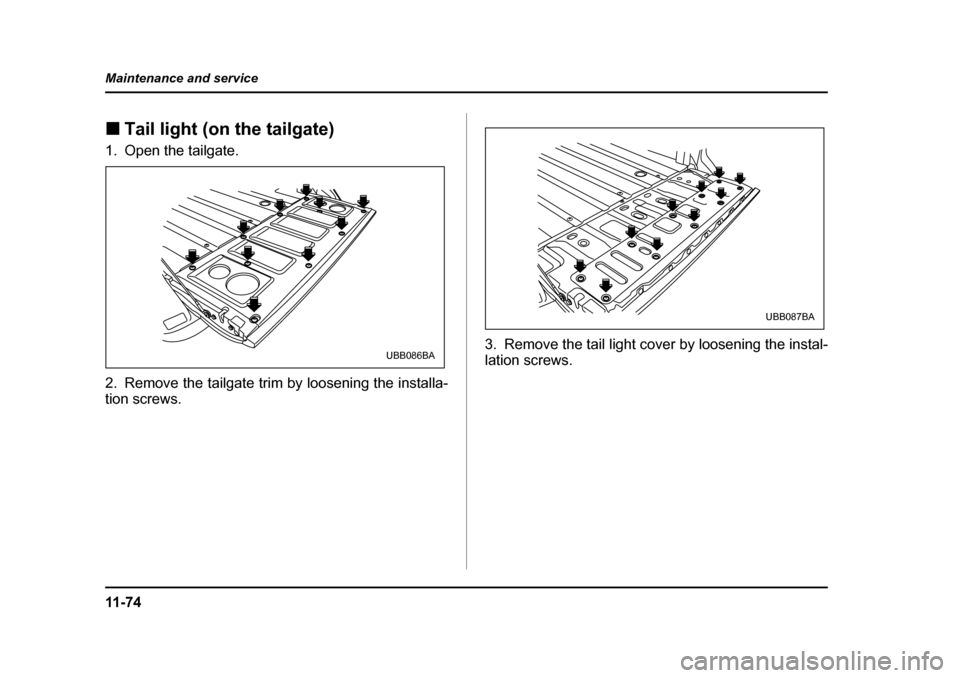

2. Remove the tailgate trim by loosening the installa- tion screws. 3. Remove the tail light cover by loosening the instal-
lation screws.
UBB086BA
UBB087BA

11 -7 5
Maintenance and service
– CONTINUED –

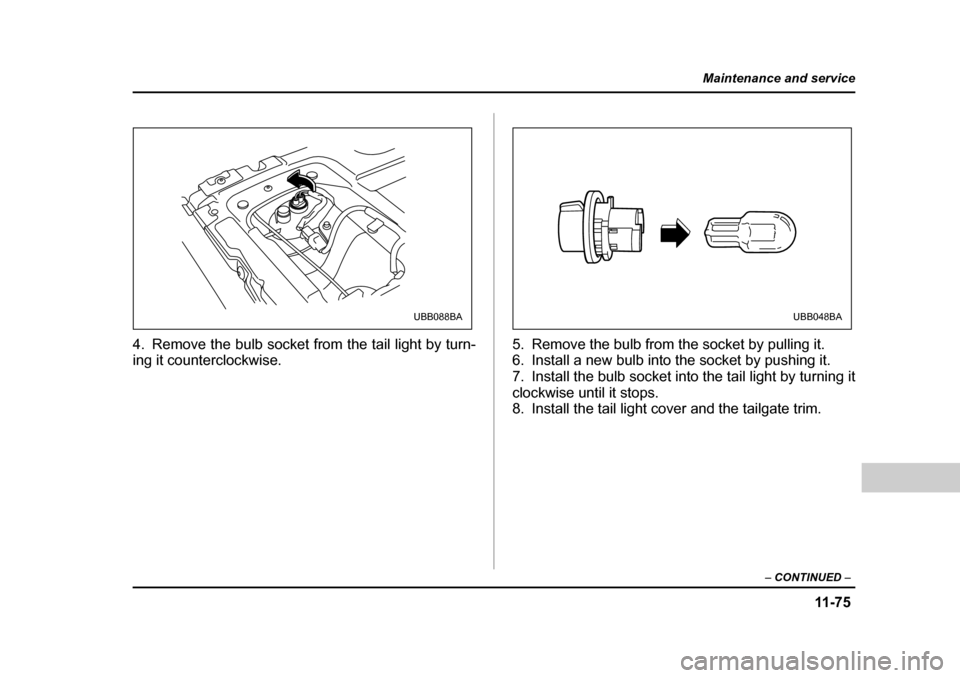

4. Remove the bulb socket from the tail light by turn-
ing it counterclockwise. 5. Remove the bulb from the socket by pulling it.
6. Install a new bulb into the socket by pushing it.
7. Install the bulb socket into the tail light by turning it
clockwise until it stops.
8. Install the tail light cover and the tailgate trim.
UBB088BAUBB048BA
