Audio and Visual 183
Before Using the Audio and Visual System
About the audio and visual system
•Subjecting the control buttons or liquid crystal display to excessive
shock could result in audio and visual screen deformation or other
damage.
•Keep any heat source (including lighted cigarettes) away from the
audio and visual system. If a heat source is brought into contact with
the audio and visual system cabinet or panel, they could be
deformed or otherwise degraded.
•In extreme cold, the audio and visual screen may operate sluggishly
and the display may dim. Such conditions do not indicate a problem.
They will disappear when the temperature inside the vehicle rises to
a normal temperature.
•Tiny black and white dots may occasionally appear on the liquid
crystal display. These dots are a normal characteristic of the display.
They do not indicate a problem.
•When the audio and visual screen requires cleaning, gently wipe it
with a silicone cloth or other soft cloth. If necessary, spray the cloth
with neutral cleaning fluid. Be sure to wipe away any cleaning fluid
left on the audio and visual screen. Do not spray the cleaning fluid
directly onto the audio and visual screen. Spraying cleaning fluid
directly onto the audio and visual screen could cause an adverse
effect on internal components. It is also not recommended to wipe
the audio and visual screen with a stiff cloth or attempt to clean it
using thinners, alcohol, or any other volatile solvent. Doing so could
leave scratches or erase the control button labels. CAUTION
Never disassemble or modify the audio and visual system
Never disassemble or modify the system. Doing so may lead
to a fire, an electric shock, or some other type of accident.
Do not continue using the audio and visual system if it
malfunctions
If the system shows any sign of malfunctioning (for example,
the monitor displays no picture), stop using it immediately
and contact the nearest SUBARU dealer. Continuing to use
the system could lead to a fire, an electric shock, or some
other type of accident.
If the audio and visual system gets dirty, or emits smoke or an
odd smell, stop using it
If a foreign object gets inside the system, liquid is spilled
onto the system, or the system emits smoke or an unusual
smell, stop using it immediately and contact the nearest
SUBARU dealer. Continuing to use the system could lead to a
fire, an electric shock, or some other type of accident.

184 Audio and Visual
Before Using the Audio and Visual System

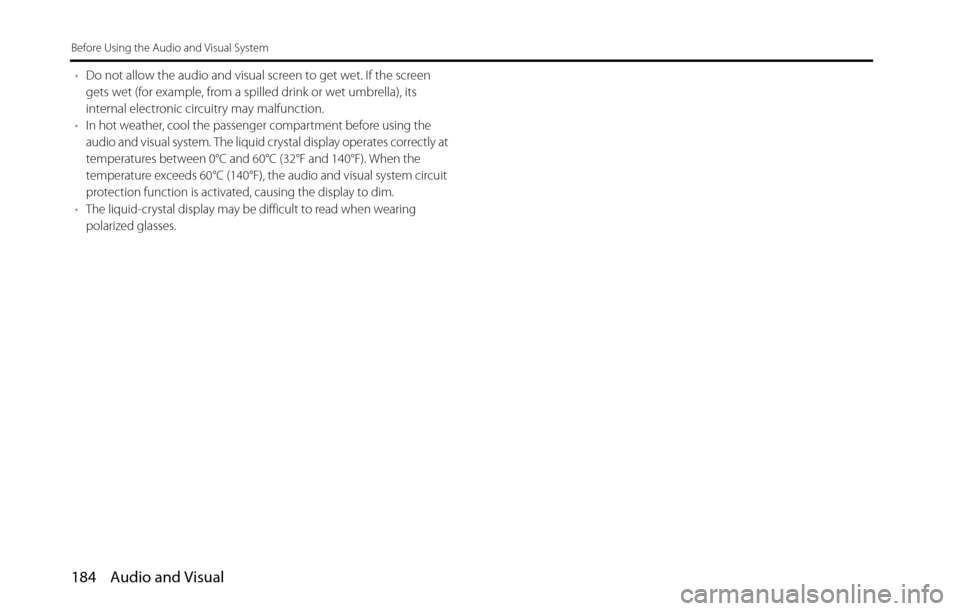

•Do not allow the audio and visual screen to get wet. If the screen
gets wet (for example, from a spilled drink or wet umbrella), its
internal electronic circuitry may malfunction.
•In hot weather, cool the passenger compartment before using the
audio and visual system. The liquid crystal display operates correctly at
temperatures between 0°C and 60°C (32°F and 140°F). When the
temperature exceeds 60°C (140°F), the audio and visual system circuit
protection function is activated, causing the display to dim.
•The liquid-crystal display may be difficult to read when wearing
polarized glasses.

186 Audio and Visual
Before Using the Audio and Visual System
About Discs
NOTE•In cold or rainy weather, just as the interior glass surface becomes fogged,
dew (water condensation) may also form on the unit. When this occurs, disc
playback may jump or stop. Ventilate or dehumidify the air in the vehicle for a
while before resuming playback.
•If a problem occurs, the player function stops automatically to protect its
internal parts. If the player does not operate even when you follow the
on-screen messages, the player may have failed. Consult your SUBARU dealer.
•Playback may jump when the player is subjected to severe vibrations while
traveling over a rough surface.
•Do not use a commercially available lens cleaner because it may damage the
pickup of the player.
■About the supported discs
•An audio disc bearing one of the marks below can be played.
•It is possible that a CD-R (CD-Recordable) or CD-RW (CD-ReWritable) disc will
not play on the unit due to the recording condition, disc characteristics,
scratches, dirt, or deterioration caused by long-term storage in the vehicle.
Also, a CD-R or CD-RW disc that has not been finalized and a CD-R or CD-RW
disc recorded in UDF format cannot be played.
•The CD-TEXT function can be used only for commercially available CDs that
support CD-text. Characters written on CD-R and CD-RW discs may not be
displayed correctly.
•Do not use a CD or See Through disc that has a transparent or semi-
transparent recording area as they may fail to load or unload or play their
contents.•A Copy Control CD (CCCD) may not be played as it does not meet the official
CD Standard.
■Handling discs
•Do not place a disc in direct sunlight. Store each disc in its protective case.
Otherwise, discs may warp and fail to play.
•Do not attach paper-based tape to either the recording side or label side of a
disc. Damage could result.

190 Audio and Visual
Basic Operation

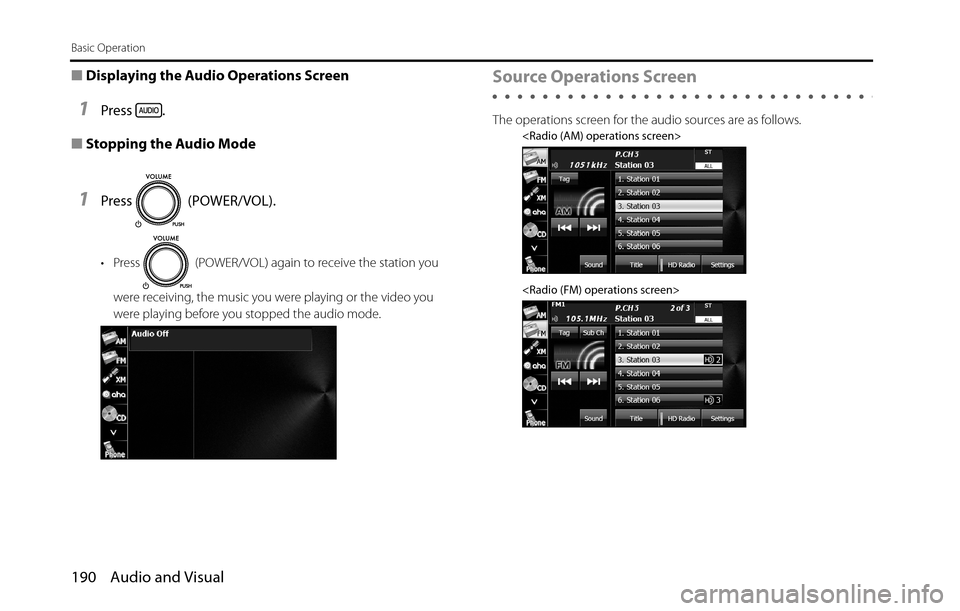

■Displaying the Audio Operations Screen
1Press .
■Stopping the Audio Mode
1Press (POWER/VOL).
• Press (POWER/VOL) again to receive the station you
were receiving, the music you were playing or the video you
were playing before you stopped the audio mode.
Source Operations Screen
The operations screen for the audio sources are as follows.

192 Audio and Visual
Basic Operation



* When the external unit is connected, can be displayed and screen.
AUX

Audio and Visual 193
Basic Operation

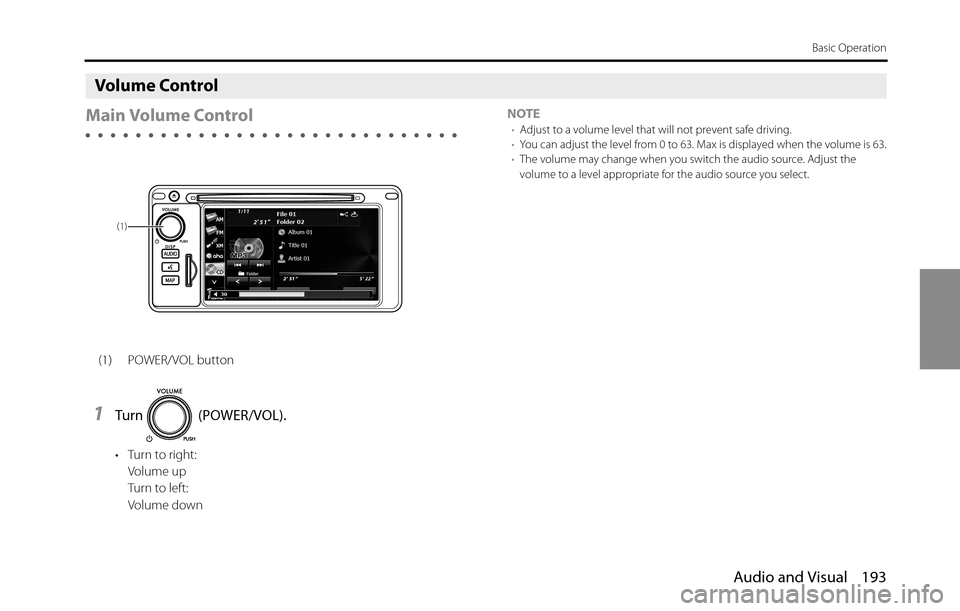

Volume Control
Main Volume Control
(1) POWER/VOL button
1Turn (POWER/VOL).
• Turn to right:
Volume up
Turn to lef t:
Volume downNOTE
•Adjust to a volume level that will not prevent safe driving.
•You can adjust the level from 0 to 63. Max is displayed when the volume is 63.
•The volume may change when you switch the audio source. Adjust the
volume to a level appropriate for the audio source you select.
(1)

194 Audio and Visual
Basic Operation

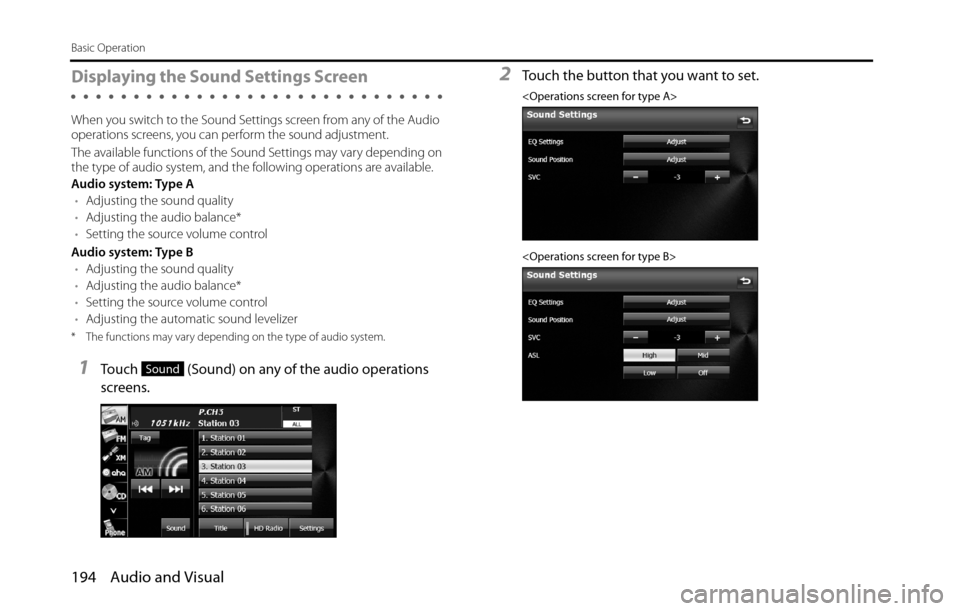

Displaying the Sound Settings Screen
When you switch to the Sound Settings screen from any of the Audio
operations screens, you can perform the sound adjustment.
The available functions of the Sound Settings may vary depending on
the type of audio system, and the following operations are available.
Audio system: Type A
•Adjusting the sound quality
•Adjusting the audio balance*
•Setting the source volume control
Audio system: Type B
•Adjusting the sound quality
•Adjusting the audio balance*
•Setting the source volume control
•Adjusting the automatic sound levelizer
* The functions may vary depending on the type of audio system.
1Touch (Sound) on any of the audio operations
screens.
2Touch the button that you want to set.


Sound

200 Audio and Visual
Audio Operations
Using the Radio
Using the Radio
(1) Preset button
(2) Settings button
(3) HD Radio button
(4) Title button
(5) Tune up/down buttons
(6) AUDIO button
(7) Tag button
(8) Sub Ch button
*
* Displayed only in FM radio mode.
NOTE•Station names on the preset buttons are displayed only when the information
is received. Otherwise, the frequencies are displayed.
•About HD Radio¥ Technology
HD Radio Technology manufactured under license from iBiquity Digital
Corporation. U.S. and Foreign Patents. HD Radio¥ and the HD, HD Radio, and
“Arc” logos are proprietary trademarks of iBiquity Digital Corp.
(1)
(2) (4) (3) (5) (6)(8) (7)

Audio and Visual 201
Audio Operations

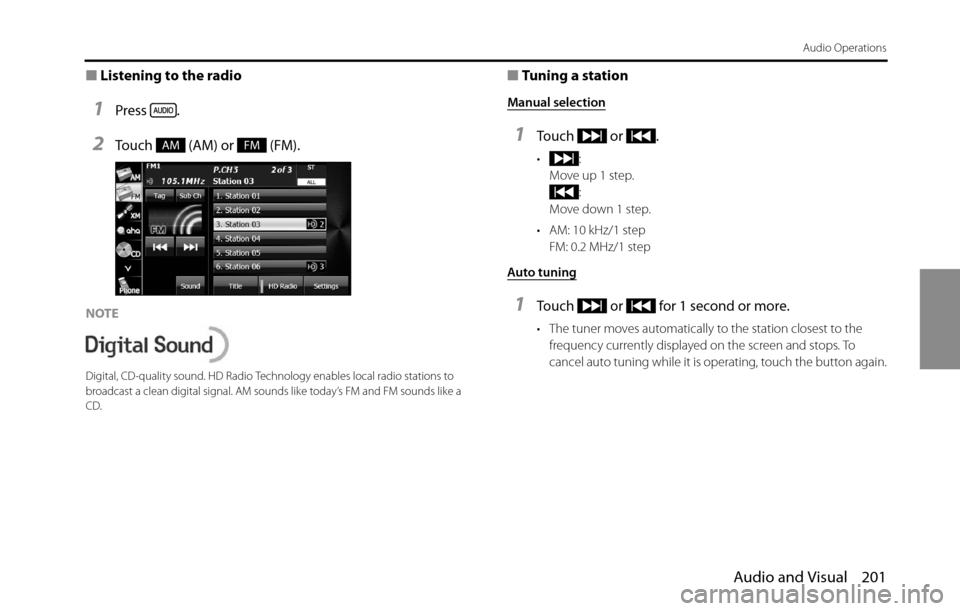

■Listening to the radio
1Press .
2Touch (AM) or (FM).
NOTE
Digital, CD-quality sound. HD Radio Technology enables local radio stations to
broadcast a clean digital signal. AM sounds like today’s FM and FM sounds like a
CD.
■Tuning a station
Manual selection
1Touch or .
•:
Move up 1 step.
:
Move down 1 step.
• AM: 10 kHz/1 step
FM: 0.2 MHz/1 step
Auto tuning
1Touch or for 1 second or more.
• The tuner moves automatically to the station closest to the
frequency currently displayed on the screen and stops. To
cancel auto tuning while it is operating, touch the button again.
AMFM

202 Audio and Visual
Audio Operations
NOTE•In some cases, it is difficult to maintain the optimum reception because the
position of the antenna on the vehicle is always changing (relative to the
station antenna), and so the strength of the received wireless signal changes
continuously. Also, obstructions such as the natural topography or the pillars
of signboards may affect the reception.
•Auto tuning may not be possible in areas where the received signal is weak.
Selecting from a preset button
1Touch a preset button saved in the memory.
• The saved preset channel is selected and the corresponding
station is received.
■Selecting a radio band
In FM radio mode only, you can select the reception band.
1Press .
2Touch (FM).
• Touch (FM) to change the reception band in the
following order.
• The band currently being received is displayed at the top left of
the screen.
■Saving a station
You can save radio stations manually or automatically.
Manual saving
1Select the station that you want to save using manual
tuning or auto tuning.
2Touch the preset button that you want to use for
2 seconds or more.
• The selected station is saved and displayed on the preset
button.
• To manually set additional stations for the remaining preset
channels, repeat this procedure for each channel.
• You can set 6 stations each for FM 1, 2 and 3, and 6 stations for
AM, making a total of 24 stations.
FM
FM
FM1
 FM2
 FM3
