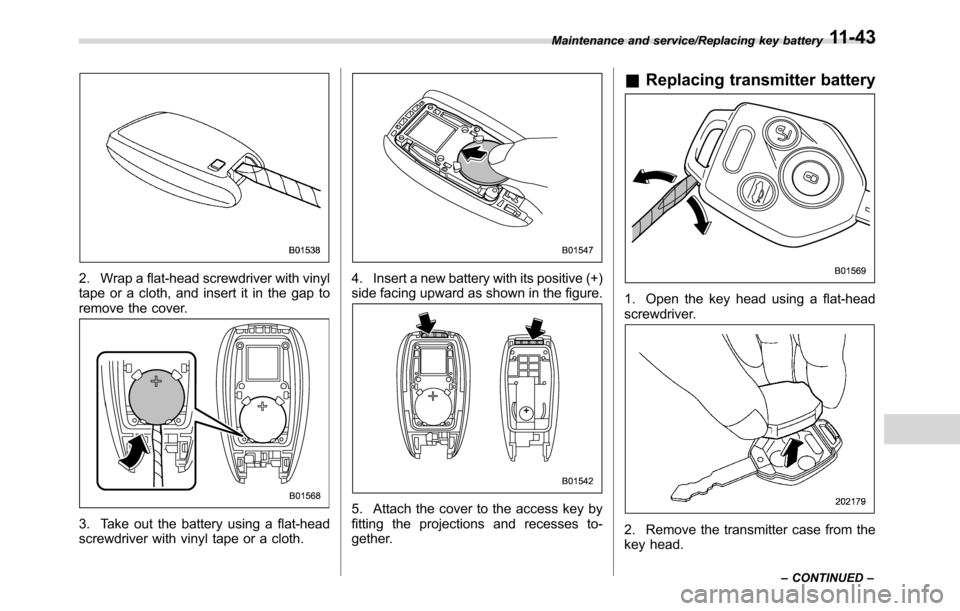

2. Wrap a flat-head screwdriver with vinyl
tape or a cloth, and insert it in the gap to
remove the cover.
3. Take out the battery using a flat-head
screwdriver with vinyl tape or a cloth.
4. Insert a new battery with its positive (+)
side facing upward as shown in the figure.
5. Attach the cover to the access key by
fitting the projections and recesses to-
gether.
&Replacing transmitter battery
1. Open the key head using a flat-head
screwdriver.
2. Remove the transmitter case from the
key head.
Maintenance and service/Replacing key battery
–CONTINUED–11-43

Maintenance and service/Replacing key battery

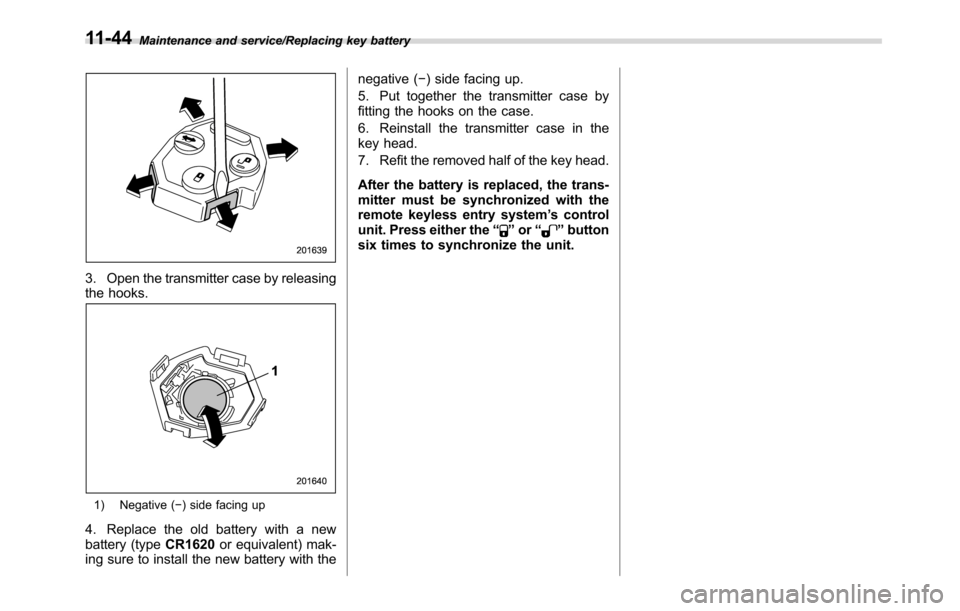

3. Open the transmitter case by releasing
the hooks.
1) Negative (−) side facing up
4. Replace the old battery with a new
battery (typeCR1620or equivalent) mak-
ing sure to install the new battery with thenegative (−) side facing up.
5. Put together the transmitter case by
fitting the hooks on the case.
6. Reinstall the transmitter case in the
key head.
7. Refit the removed half of the key head.
After the battery is replaced, the trans-
mitter must be synchronized with the
remote keyless entry system’s control
unit. Press either the“
”or“”button
six times to synchronize the unit.
11-44

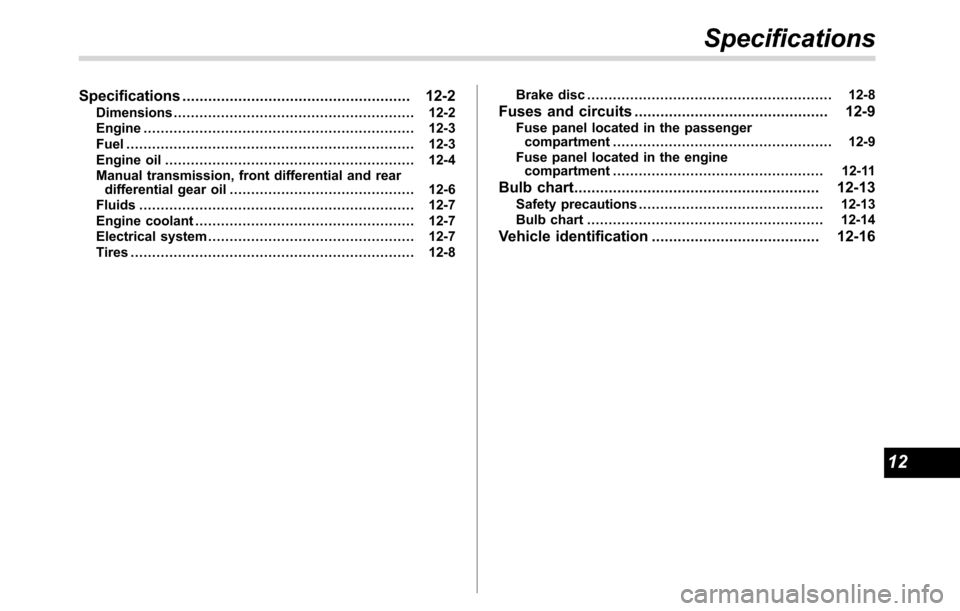

Specifications..................................................... 12-2
Dimensions........................................................ 12-2
Engine............................................................... 12-3
Fuel................................................................... 12-3
Engine oil.......................................................... 12-4
Manual transmission, front differential and rear
differential gear oil........................................... 12-6
Fluids................................................................ 12-7
Engine coolant................................................... 12-7
Electrical system................................................ 12-7
Tires.................................................................. 12-8Brake disc......................................................... 12-8Fuses and circuits............................................. 12-9
Fuse panel located in the passenger
compartment................................................... 12-9
Fuse panel located in the engine
compartment................................................. 12-11
Bulb chart......................................................... 12-13Safety precautions........................................... 12-13
Bulb chart....................................................... 12-14
Vehicle identification....................................... 12-16
Specifications
12

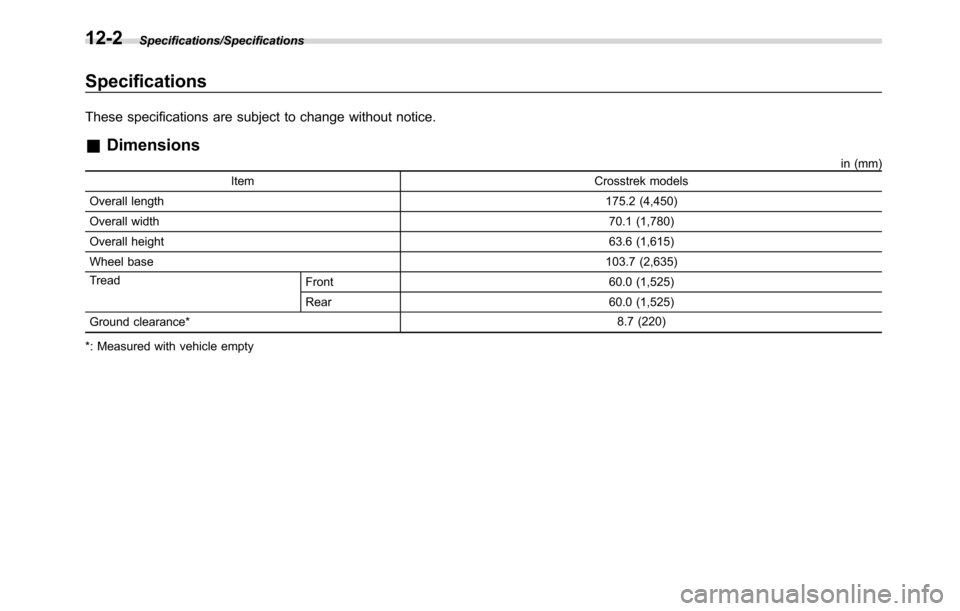

Specifications/Specifications
Specifications
These specifications are subject to change without notice.
&Dimensions
in (mm)
Item Crosstrek models
Overall length175.2 (4,450)
Overall width70.1 (1,780)
Overall height63.6 (1,615)
Wheel base103.7 (2,635)
Tread
Front 60.0 (1,525)
Rear 60.0 (1,525)
Ground clearance*8.7 (220)
*: Measured with vehicle empty
12-2

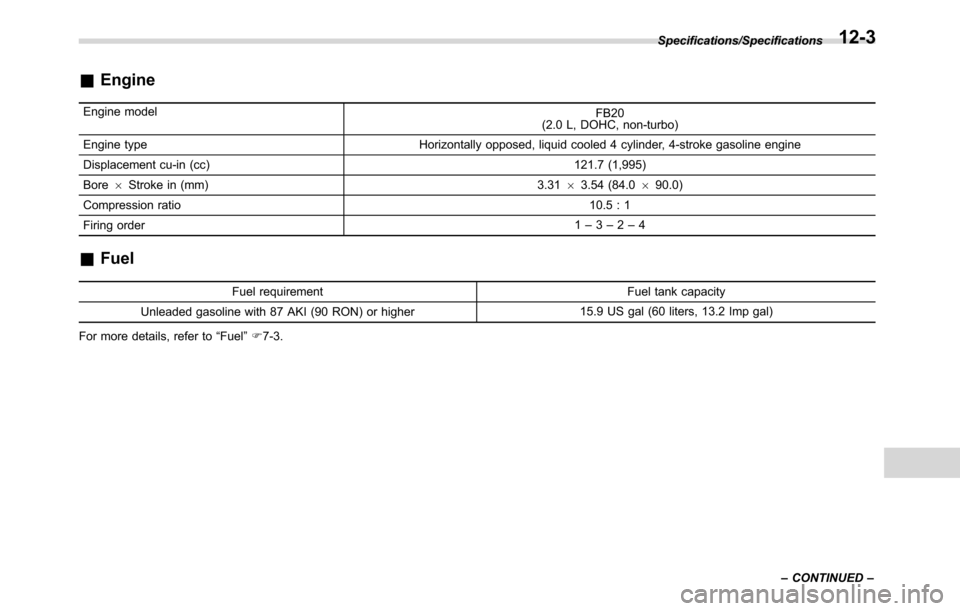

&Engine
Engine model
FB20
(2.0 L, DOHC, non-turbo)
Engine type Horizontally opposed, liquid cooled 4 cylinder, 4-stroke gasoline engine
Displacement cu-in (cc) 121.7 (1,995)
Bore6Stroke in (mm) 3.3163.54 (84.0690.0)
Compression ratio10.5 : 1
Firing order1–3–2–4
&Fuel
Fuel requirement Fuel tank capacity
Unleaded gasoline with 87 AKI (90 RON) or higher15.9 US gal (60 liters, 13.2 Imp gal)
For more details, refer to“Fuel”F7-3.Specifications/Specifications
–CONTINUED–
12-3

Specifications/Specifications

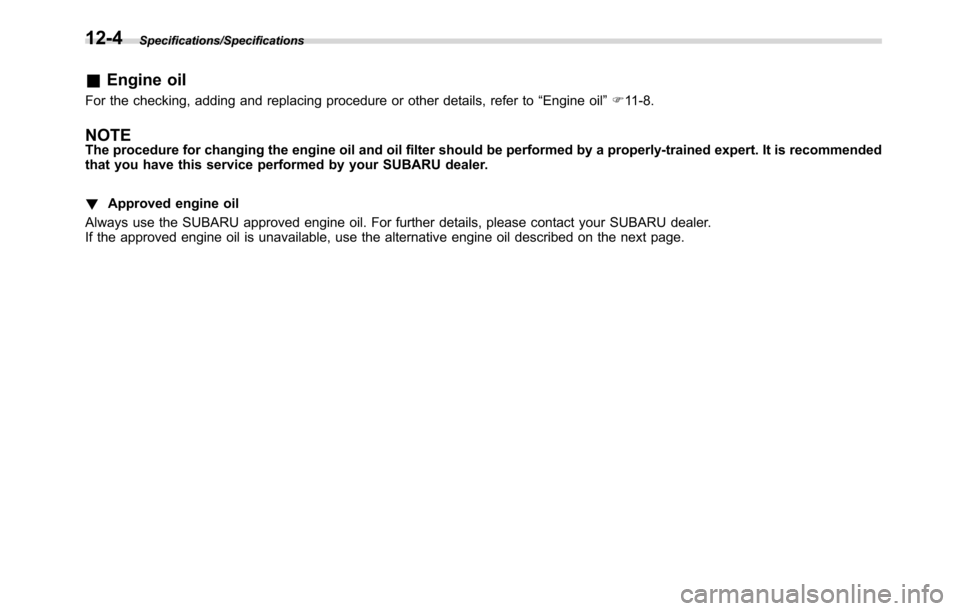

&Engine oil
For the checking, adding and replacing procedure or other details, refer to“Engine oil”F11-8.
NOTEThe procedure for changing the engine oil and oil filter should be performed by a properly-trained expert. It is recommended
that you have this service performed by your SUBARU dealer.
!Approved engine oil
Always use the SUBARU approved engine oil. For further details, please contact your SUBARU dealer.
If the approved engine oil is unavailable, use the alternative engine oil described on the next page.
12-4

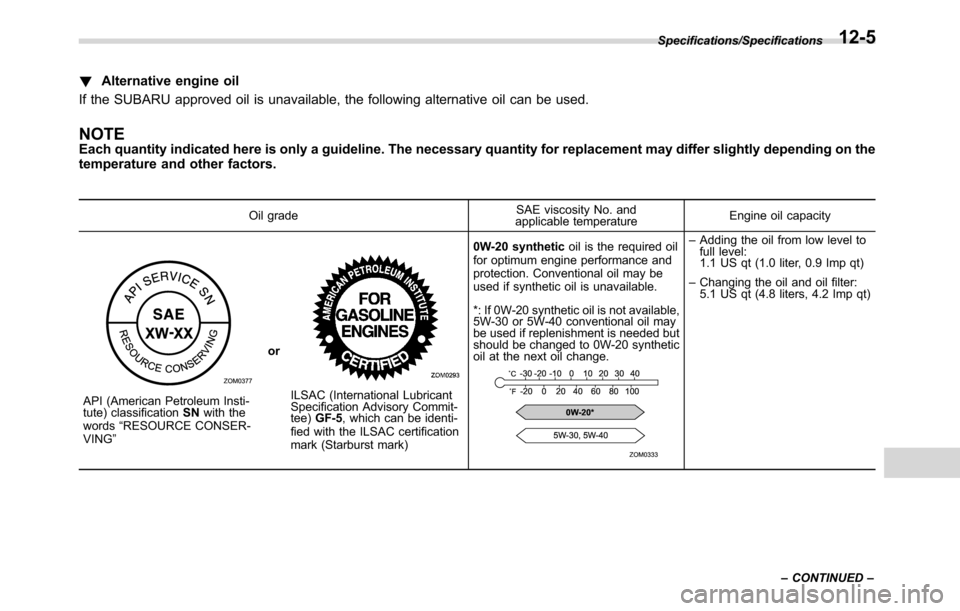

!Alternative engine oil
If the SUBARU approved oil is unavailable, the following alternative oil can be used.
NOTEEach quantity indicated here is only a guideline. The necessary quantity for replacement may differ slightly depending on the
temperature and other factors.
Oil gradeSAE viscosity No. and
applicable temperatureEngine oil capacity
API (American Petroleum Insti-
tute) classificationSNwith the
words“RESOURCE CONSER-
VING”orILSAC (International Lubricant
Specification Advisory Commit-
tee)GF-5, which can be identi-
fied with the ILSAC certification
mark (Starburst mark)0W-20 syntheticoil is the required oil
for optimum engine performance and
protection. Conventional oil may be
used if synthetic oil is unavailable.
*: If 0W-20 synthetic oil is not available,
5W-30 or 5W-40 conventional oil may
be used if replenishment is needed but
should be changed to 0W-20 synthetic
oil at the next oil change.
–Adding the oil from low level to
full level:
1.1 US qt (1.0 liter, 0.9 Imp qt)
–Changing the oil and oil filter:
5.1 US qt (4.8 liters, 4.2 Imp qt) Specifications/Specifications
–CONTINUED–
12-5

Specifications/Specifications

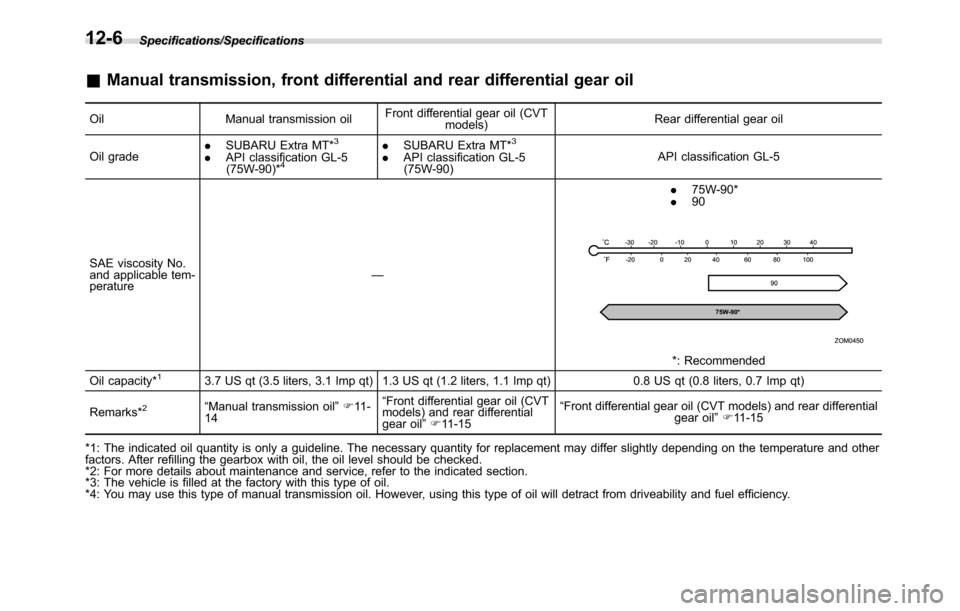

&Manual transmission, front differential and rear differential gear oil
Oil Manual transmission oilFront differential gear oil (CVT
models)Rear differential gear oil
Oil grade.SUBARU Extra MT*
3
.API classification GL-5
(75W-90)*4
.SUBARU Extra MT*3
.API classification GL-5
(75W-90)API classification GL-5
SAE viscosity No.
and applicable tem-
perature—.75W-90*
.90
*: Recommended
Oil capacity*13.7 US qt (3.5 liters, 3.1 Imp qt) 1.3 US qt (1.2 liters, 1.1 Imp qt) 0.8 US qt (0.8 liters, 0.7 Imp qt)
Remarks*
2“Manual transmission oil”F11 -
14“Front differential gear oil (CVT
models) and rear differential
gear oil”F11-15“Front differential gear oil (CVT models) and rear differential
gear oil”F11-15
*1: The indicated oil quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors. After refilling the gearbox with oil, the oil level should be checked.
*2: For more details about maintenance and service, refer to the indicated section.
*3: The vehicle is filled at the factory with this type of oil.
*4: You may use this type of manual transmission oil. However, using this type of oil will detract from driveability and fuel efficiency.
12-6

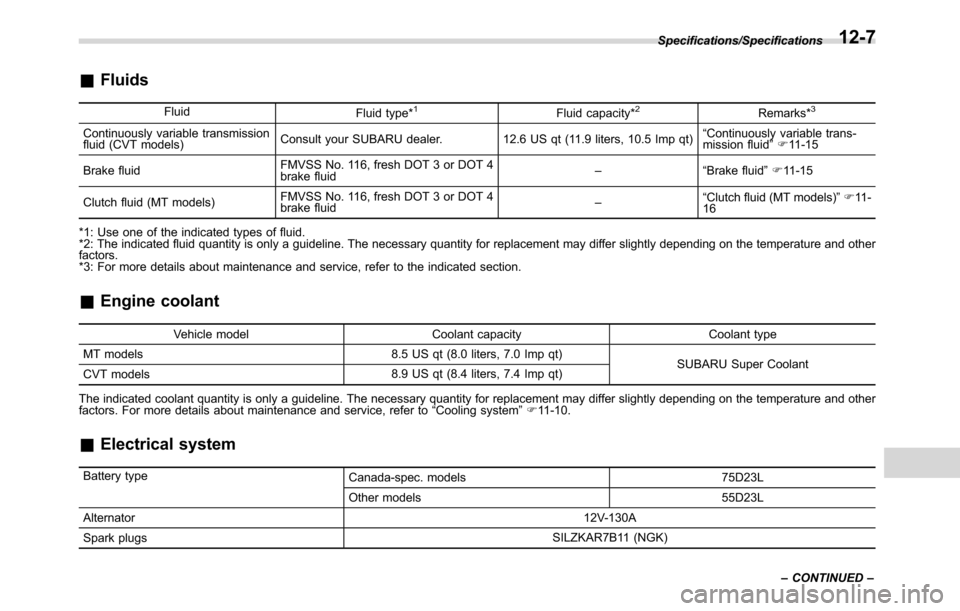

&Fluids
Fluid
Fluid type*1Fluid capacity*2Remarks*3
Continuously variable transmission
fluid (CVT models)Consult your SUBARU dealer. 12.6 US qt (11.9 liters, 10.5 Imp qt)“Continuously variable trans-
mission fluid”F11-15
Brake fluidFMVSS No. 116, fresh DOT 3 or DOT 4
brake fluid–“Brake fluid”F11-15
Clutch fluid (MT models)FMVSS No. 116, fresh DOT 3 or DOT 4
brake fluid–“Clutch fluid (MT models)”F11 -
16
*1: Use one of the indicated types of fluid.
*2: The indicated fluid quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors.
*3: For more details about maintenance and service, refer to the indicated section.
&Engine coolant
Vehicle model Coolant capacity Coolant type
MT models 8.5 US qt (8.0 liters, 7.0 Imp qt)
SUBARU Super Coolant
CVT models8.9 US qt (8.4 liters, 7.4 Imp qt)
The indicated coolant quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors. For more details about maintenance and service, refer to“Cooling system”F11-10.
&Electrical system
Battery type
Canada-spec. models 75D23L
Other models 55D23L
Alternator12V-130A
Spark plugsSILZKAR7B11 (NGK)Specifications/Specifications
–CONTINUED–
12-7

Specifications/Specifications

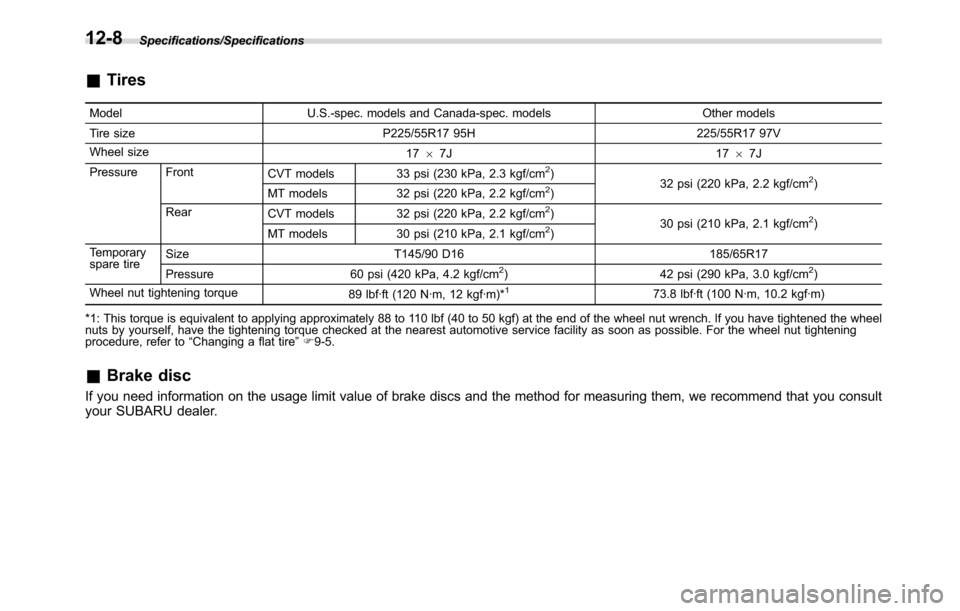

&Tires
Model U.S.-spec. models and Canada-spec. models Other models
Tire size P225/55R17 95H 225/55R17 97V
Wheel size
1767J 1767J
Pressure Front
CVT models 33 psi (230 kPa, 2.3 kgf/cm
2)
32 psi (220 kPa, 2.2 kgf/cm2)
MT models 32 psi (220 kPa, 2.2 kgf/cm2)
Rear
CVT models 32 psi (220 kPa, 2.2 kgf/cm2)
30 psi (210 kPa, 2.1 kgf/cm2)
MT models 30 psi (210 kPa, 2.1 kgf/cm2)
Temporary
spare tireSize T145/90 D16 185/65R17
Pressure 60 psi (420 kPa, 4.2 kgf/cm
2) 42 psi (290 kPa, 3.0 kgf/cm2)
Wheel nut tightening torque
89 lbf·ft (120 N·m, 12 kgf·m)*173.8 lbf·ft (100 N·m, 10.2 kgf·m)
*1: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel
nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening
procedure, refer to“Changing a flat tire”F9-5.
&Brake disc
If you need information on the usage limit value of brake discs and the method for measuring them, we recommend that you consult
your SUBARU dealer.
