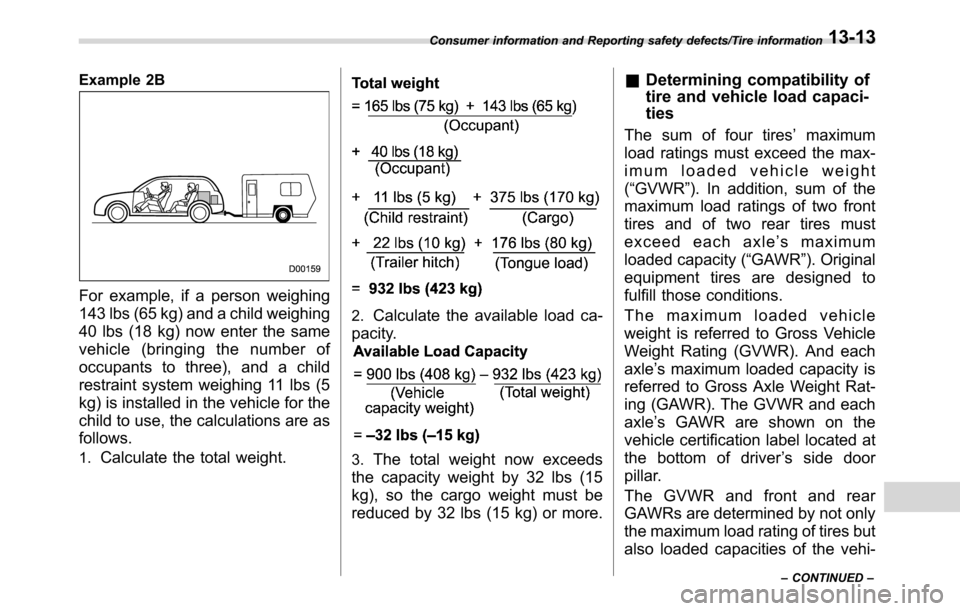

Example 2B
For example, if a person weighing
143 lbs (65 kg) and a child weighing
40 lbs (18 kg) now enter the same
vehicle (bringing the number of
occupants to three), and a child
restraint system weighing 11 lbs (5
kg) is installed in the vehicle for the
child to use, the calculations are as
follows.
1.Calculate the total weight.
2.Calculate the available load ca-
pacity.
3.The total weight now exceeds
the capacity weight by 32 lbs (15
kg), so the cargo weight must be
reduced by 32 lbs (15 kg) or more.
&Determining compatibility of
tire and vehicle load capaci-
ties
The sum of four tires’maximum
load ratings must exceed the max-
imum loaded vehicle weight
(“GVWR”). In addition, sum of the
maximum load ratings of two front
tires and of two rear tires must
exceed each axle’smaximum
loaded capacity (“GAWR”). Original
equipment tires are designed to
fulfill those conditions.
The maximum loaded vehicle
weight is referred to Gross Vehicle
Weight Rating (GVWR). And each
axle’s maximum loaded capacity is
referred to Gross Axle Weight Rat-
ing (GAWR). The GVWR and each
axle’s GAWR are shown on the
vehicle certification label located at
the bottom of driver’s side door
pillar.
The GVWR and front and rear
GAWRs are determined by not only
the maximum load rating of tires but
also loaded capacities of the vehi-
Consumer information and Reporting safety defects/Tire information
–CONTINUED–13-13

Consumer information and Reporting safety defects/Tire information
cle’s suspension, axles and other
parts of the body.
Therefore, this means that the
vehicle cannot necessarily be
loaded up to the tire’s maximum
load rating on the tire sidewall.
&Adverse safety conse-
quences of overloading on
handling and stopping and
on tires
Overloading could affect vehicle
handling, stopping distance, and
vehicle and tire performance in the
following ways. This could lead to
an accident and possibly result in
severe personal injury.
.Vehicle stability will deteriorate.
.Heavy and/or high-mounted
loads could increase the risk of
rollover.
.Stopping distance will increase.
.Brakes could overheat and fail.
.Suspension, bearings, axles and
other body parts could break or
experience accelerated wear that
will shorten vehicle life.
.Tires could fail.
.Tread separation could occur.
.Tire could separate from its rim.

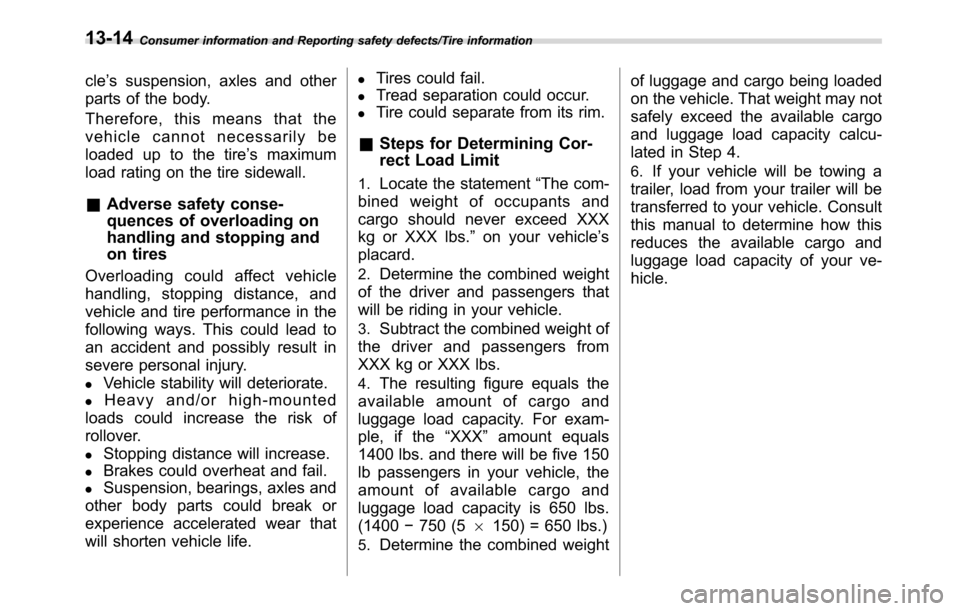

&Steps for Determining Cor-
rect Load Limit
1.Locate the statement“The com-
bined weight of occupants and
cargo should never exceed XXX
kg or XXX lbs.”on your vehicle’s
placard.
2.Determine the combined weight
of the driver and passengers that
will be riding in your vehicle.
3.Subtract the combined weight of
the driver and passengers from
XXX kg or XXX lbs.
4.The resulting figure equals the
available amount of cargo and
luggage load capacity. For exam-
ple, if the“XXX”amount equals
1400 lbs. and there will be five 150
lb passengers in your vehicle, the
amount of available cargo and
luggage load capacity is 650 lbs.
(1400−750 (56150) = 650 lbs.)
5.Determine the combined weightof luggage and cargo being loaded
on the vehicle. That weight may not
safely exceed the available cargo
and luggage load capacity calcu-
lated in Step 4.
6.If your vehicle will be towing a
trailer, load from your trailer will be
transferred to your vehicle. Consult
this manual to determine how this
reduces the available cargo and
luggage load capacity of your ve-
hicle.
13-14

Uniform tire quality grading
standards
This information indicates the rela-
tive performance of passenger car
tires in the area of treadwear,
traction, and temperature resis-
tance. This is to aid the consumer
in making an informed choice in the
purchase of tires.
Quality grades can be found where
applicable on the tire sidewall be-
tween tread shoulder and maxi-
mum section width. For example:
Treadwear 200 Traction AA Tem-
perature A
The quality grades apply to new
pneumatic tires for use on passen-
ger cars. However, they do not
apply to deep tread, winter type
snow tires, space-saver or tempor-
ary use spare tires, tires with
nominal rim diameters of 12 inches
or less, or to some limited produc-
tion tires.
All passenger car tires must con-form to Federal Safety Require-
ments in addition to these grades.
&Treadwear
The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under con-
trolled conditions on a specified
government test course.
For example, a tire graded 150
would wear one and one-half (1-
1/2) times as well on the govern-
ment course as a tire graded 100.
The relative performance of tires
depends upon the actual conditions
of their use, however, and may
depart significantly from the norm
due to variations in driving habits,
service practices and differences in
road characteristics and climate.
&Traction AA, A, B, C
The traction grades, from highest to
lowest, are AA, A, B and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on spe-cified government test surfaces of
asphalt and concrete. A tire marked
C may have poor traction perfor-
mance.
WARNING
The traction grade assigned to
this tire is based on straight-
ahead braking traction tests,
and does not include accel-
eration, cornering, hydroplan-
ing, or peak traction charac-
teristics.
&Temperature A, B, C
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled con-
ditions on a specified indoor labora-
tory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire failure. The
Consumer information and Reporting safety defects/Uniform tire quality grading standards
–CONTINUED–13-15

Consumer information and Reporting safety defects/Reporting safety defects (U.S.A.)
grade C corresponds to a level of
performance which all passenger
car tires must meet under the
Federal Motor Vehicle Safety Stan-
dards No. 109. Grades B and A
represent higher levels of perfor-
mance on the laboratory test wheel
than the minimum required by law.
WARNING
The temperature grade for this
tire is established for a tire
that is properly inflated and
not overloaded. Excessive
speed, underinflation, or ex-
cessive loading, either sepa-
rately or in combination, can
cause heat buildup and possi-
ble tire failure.

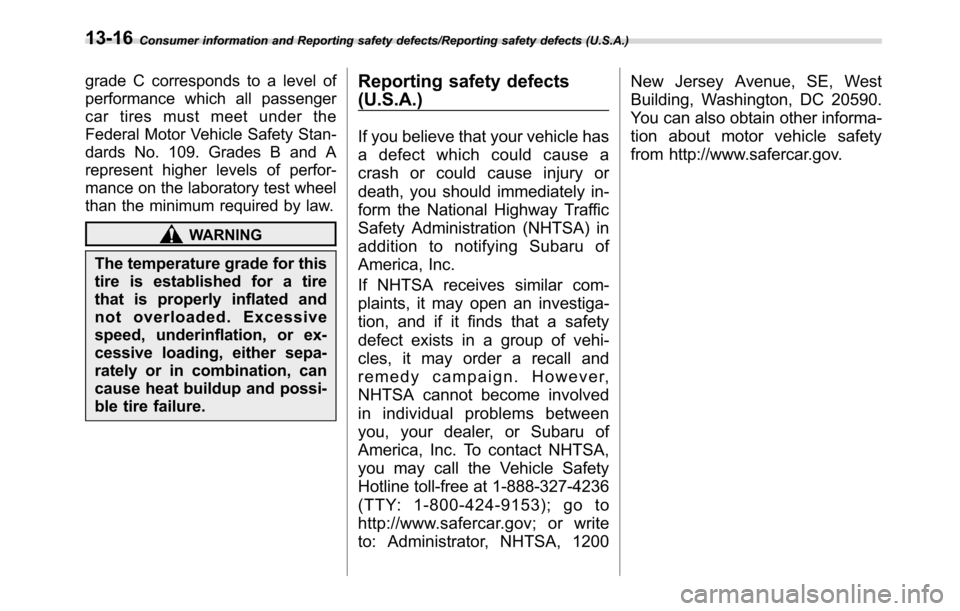

Reporting safety defects
(U.S.A.)
If you believe that your vehicle has
a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Subaru of
America, Inc.
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of vehi-
cles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Subaru of
America, Inc. To contact NHTSA,
you may call the Vehicle Safety
Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write
to: Administrator, NHTSA, 1200New Jersey Avenue, SE, West
Building, Washington, DC 20590.
You can also obtain other informa-
tion about motor vehicle safety
from http://www.safercar.gov.
13-16

Supplement
&Declaration of conformity with FCC rules
!Electrostatic sensor for occupant detection system
Consumer information and Reporting safety defects/Supplement13-17

————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————

Index
14

14-2Index
A
Abbreviation................................................................... 3
ABS (Anti-lock Brake System)..................................... 7-32
Warning light......................................................... 3-21
Access key................................................................. 2-9
Warning indicator................................................... 3-25
Accessories.............................................................. 11-36
Accessory power outlet................................................. 6-8
Air cleaner element................................................... 11-12
Air conditioner
Automatic climate control.......................................... 4-7
Manual climate control.............................................. 4-8
Air filtration system..................................................... 4-12
Air flow mode.............................................................. 4-8
Alarm system............................................................ 2-26
All-Wheel Drive warning light....................................... 3-23
Aluminum wheel....................................................... 11-28
Cleaning............................................................... 10-3
Antenna...................................................................... 5-2
Anti-lock Brake System (ABS)..................................... 7-32
Arming the system..................................................... 2-27
Armrest....................................................................... 1-8
Ashtray..................................................................... 6-10
AT OIL TEMP warning light......................................... 3-19
Audio
aha
TMby HARMAN................................................ 5-43
AM/FM radio......................................................... 5-28
AUX ..................................................................... 5-60
Base display audio set.............................................. 5-4
Basic operation...................................................... 5-18
Bluetooth audio...................................................... 5-57CD ....................................................................... 5-52
iPod...................................................................... 5-55
Pandora
®.............................................................. 5-49
SiriusXM Satellite Radio.......................................... 5-37
STARLINK
TM7.0 Multimedia Plus audio set................ 5-6
Steering switches for audio...................................... 5-62
SUBARU STARLINK............................................... 5-26
Unit setting............................................................ 5-19
USB memory......................................................... 5-54
Auto on/off headlights................................................. 3-89
Automatic headlight beam leveler................................. 3-93
Warning light.......................................................... 3-31
Automatic Locking Retractor/Emergency Locking
Retractor (ALR/ELR)................................................ 1-12
B
Battery
Drainage prevention function..................................... 2-7
Jump starting......................................................... 9-10
Replacement (access key)..................................... 11-42
Replacement (transmitter)...................................... 11-43
Vehicle battery..................................................... 11-33
Bluetooth
®
Audio.................................................................... 5-57
Hands-free phone system........................................ 5-70

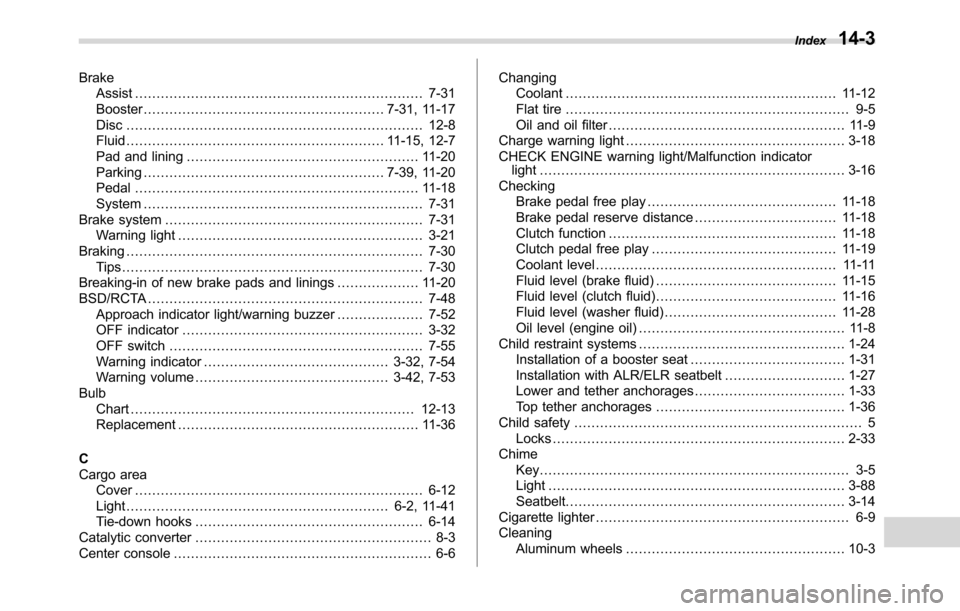

Settings................................................................. 5-65
Troubleshooting...................................................... 5-88
Bluetooth
®settings..................................................... 5-65
Booster seat.............................................................. 1-31
Bottle holder............................................................... 6-7

Brake
Assist................................................................... 7-31
Booster........................................................ 7-31, 11-17
Disc..................................................................... 12-8
Fluid............................................................ 11-15, 12-7
Pad and lining...................................................... 11-20
Parking........................................................ 7-39, 11-20
Pedal.................................................................. 11-18
System................................................................. 7-31
Brake system............................................................ 7-31
Warning light......................................................... 3-21
Braking..................................................................... 7-30
Tips...................................................................... 7-30
Breaking-in of new brake pads and linings................... 11-20
BSD/RCTA................................................................ 7-48
Approach indicator light/warning buzzer.................... 7-52
OFF indicator........................................................ 3-32
OFF switch........................................................... 7-55
Warning indicator........................................... 3-32, 7-54
Warning volume............................................. 3-42, 7-53
Bulb
Chart.................................................................. 12-13
Replacement........................................................ 11-36
C
Cargo area
Cover................................................................... 6-12
Light............................................................. 6-2, 11-41
Tie-down hooks..................................................... 6-14
Catalytic converter....................................................... 8-3
Center console............................................................ 6-6Changing
Coolant............................................................... 11-12
Flat tire.................................................................. 9-5
Oil and oil filter....................................................... 11-9
Charge warning light................................................... 3-18
CHECK ENGINE warning light/Malfunction indicator
light....................................................................... 3-16
Checking
Brake pedal free play............................................ 11-18
Brake pedal reserve distance................................. 11-18
Clutch function..................................................... 11-18
Clutch pedal free play........................................... 11-19
Coolant level........................................................ 11-11
Fluid level (brake fluid).......................................... 11-15
Fluid level (clutch fluid).......................................... 11-16
Fluid level (washer fluid)........................................ 11-28
Oil level (engine oil)................................................ 11-8
Child restraint systems................................................ 1-24
Installation of a booster seat.................................... 1-31
Installation with ALR/ELR seatbelt............................ 1-27
Lower and tether anchorages................................... 1-33
Top tether anchorages............................................ 1-36
Child safety................................................................... 5
Locks.................................................................... 2-33
Chime
Key........................................................................ 3-5
Light..................................................................... 3-88
Seatbelt................................................................. 3-14
Cigarette lighter........................................................... 6-9
Cleaning
Aluminum wheels................................................... 10-3

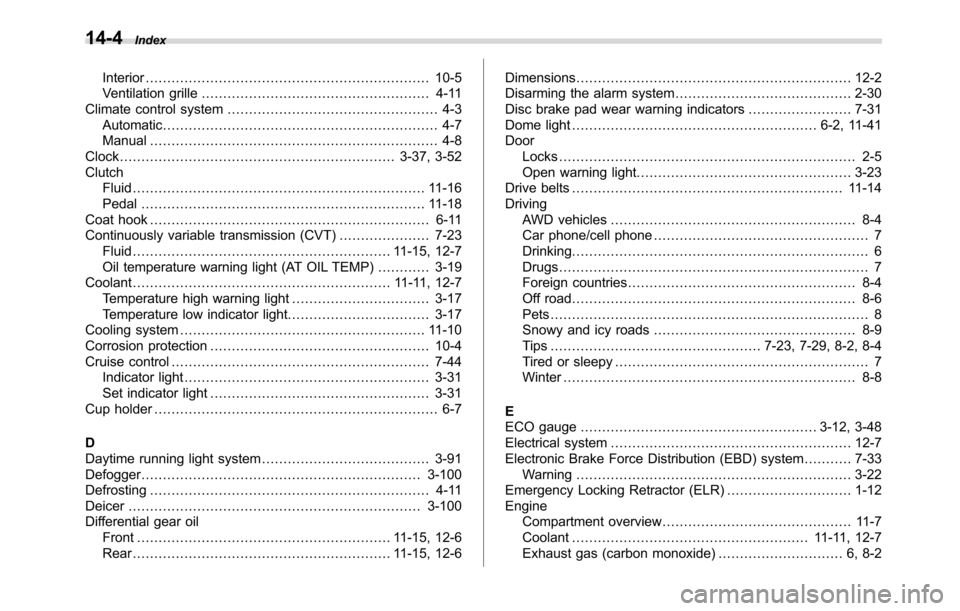

Index14-3

14-4Index
Interior.................................................................. 10-5
Ventilation grille..................................................... 4-11
Climate control system................................................. 4-3
Automatic................................................................ 4-7
Manual................................................................... 4-8
Clock................................................................ 3-37, 3-52
Clutch
Fluid.................................................................... 11-16
Pedal.................................................................. 11-18
Coat hook................................................................. 6-11
Continuously variable transmission (CVT)..................... 7-23
Fluid............................................................ 11-15, 12-7
Oil temperature warning light (AT OIL TEMP)............ 3-19
Coolant............................................................ 11-11, 12-7
Temperature high warning light................................ 3-17
Temperature low indicator light................................. 3-17
Cooling system......................................................... 11-10
Corrosion protection................................................... 10-4
Cruise control............................................................ 7-44
Indicator light......................................................... 3-31
Set indicator light................................................... 3-31
Cup holder.................................................................. 6-7
D
Daytime running light system....................................... 3-91
Defogger................................................................. 3-100
Defrosting................................................................. 4-11
Deicer.................................................................... 3-100
Differential gear oil
Front........................................................... 11-15, 12-6
Rear............................................................ 11-15, 12-6Dimensions................................................................ 12-2
Disarming the alarm system......................................... 2-30
Disc brake pad wear warning indicators........................ 7-31
Dome light......................................................... 6-2, 11-41
Door
Locks..................................................................... 2-5
Open warning light.................................................. 3-23
Drive belts............................................................... 11-14
Driving
AWD vehicles......................................................... 8-4
Car phone/cell phone.................................................. 7
Drinking..................................................................... 6
Drugs........................................................................ 7
Foreign countries..................................................... 8-4
Off road.................................................................. 8-6
Pets.......................................................................... 8
Snowy and icy roads............................................... 8-9
Tips ................................................. 7-23, 7-29, 8-2, 8-4
Tired or sleepy........................................................... 7
Winter.................................................................... 8-8
E
ECO gauge....................................................... 3-12, 3-48
Electrical system........................................................ 12-7
Electronic Brake Force Distribution (EBD) system........... 7-33
Warning................................................................ 3-22
Emergency Locking Retractor (ELR)............................. 1-12
Engine
Compartment overview............................................ 11-7
Coolant....................................................... 11-11, 12-7
Exhaust gas (carbon monoxide)............................. 6, 8-2
