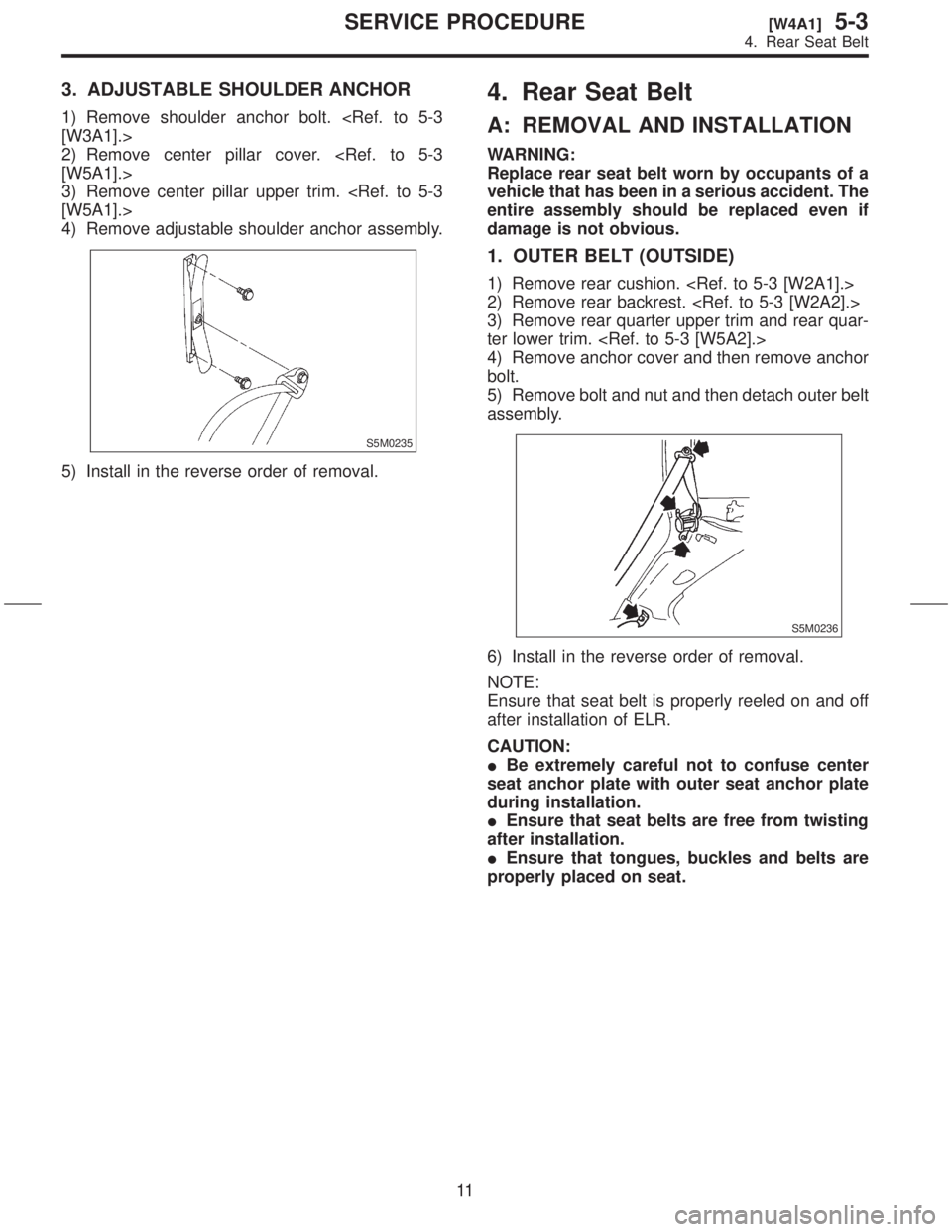

3. ADJUSTABLE SHOULDER ANCHOR
1) Remove shoulder anchor bolt. [W3A1].>
2) Remove center pillar cover. [W5A1].>
3) Remove center pillar upper trim. [W5A1].>
4) Remove adjustable shoulder anchor assembly.
S5M0235
5) Install in the reverse order of removal.
4. Rear Seat Belt
A: REMOVAL AND INSTALLATION
WARNING:
Replace rear seat belt worn by occupants of a
vehicle that has been in a serious accident. The
entire assembly should be replaced even if
damage is not obvious.
1. OUTER BELT (OUTSIDE)
1) Remove rear cushion.
2) Remove rear backrest.
3) Remove rear quarter upper trim and rear quar-
ter lower trim.
4) Remove anchor cover and then remove anchor
bolt.
5) Remove bolt and nut and then detach outer belt
assembly.
S5M0236
6) Install in the reverse order of removal.
NOTE:
Ensure that seat belt is properly reeled on and off
after installation of ELR.
CAUTION:
IBe extremely careful not to confuse center
seat anchor plate with outer seat anchor plate
during installation.
IEnsure that seat belts are free from twisting
after installation.
IEnsure that tongues, buckles and belts are
properly placed on seat.
11
[W4A1]5-3SERVICE PROCEDURE
4. Rear Seat Belt

2. INNER BELT
1) Remove rear cushion.
2) Remove bolts and then remove inner belt.
S5M0408
3) Install in the reverse order of removal.
3. ADJUSTABLE SHOULDER ANCHOR
1) Remove anchor cover (A) and anchor (B).

2) Remove rear quarter upper trim. [W5A2].>
3) Remove adjustable shoulder anchor (C).
S5M0409A
4) Install in the reverse order of removal.
4. OUTER BELT (CENTER)
1) Remove rear end of roof trim, then hang down
roof trim.
2) Remove cover (A), then pass the tongue (B)
from roof trim hole.
S5M0410A
3) Loosen bolts and then detach outer belt center.
S5M0411
4) Install in the reverse order of removal.
NOTE:
Ensure that seat belt is properly reeled on and off
after installation of ELR.
12
5-3[W4A2]SERVICE PROCEDURE
4. Rear Seat Belt

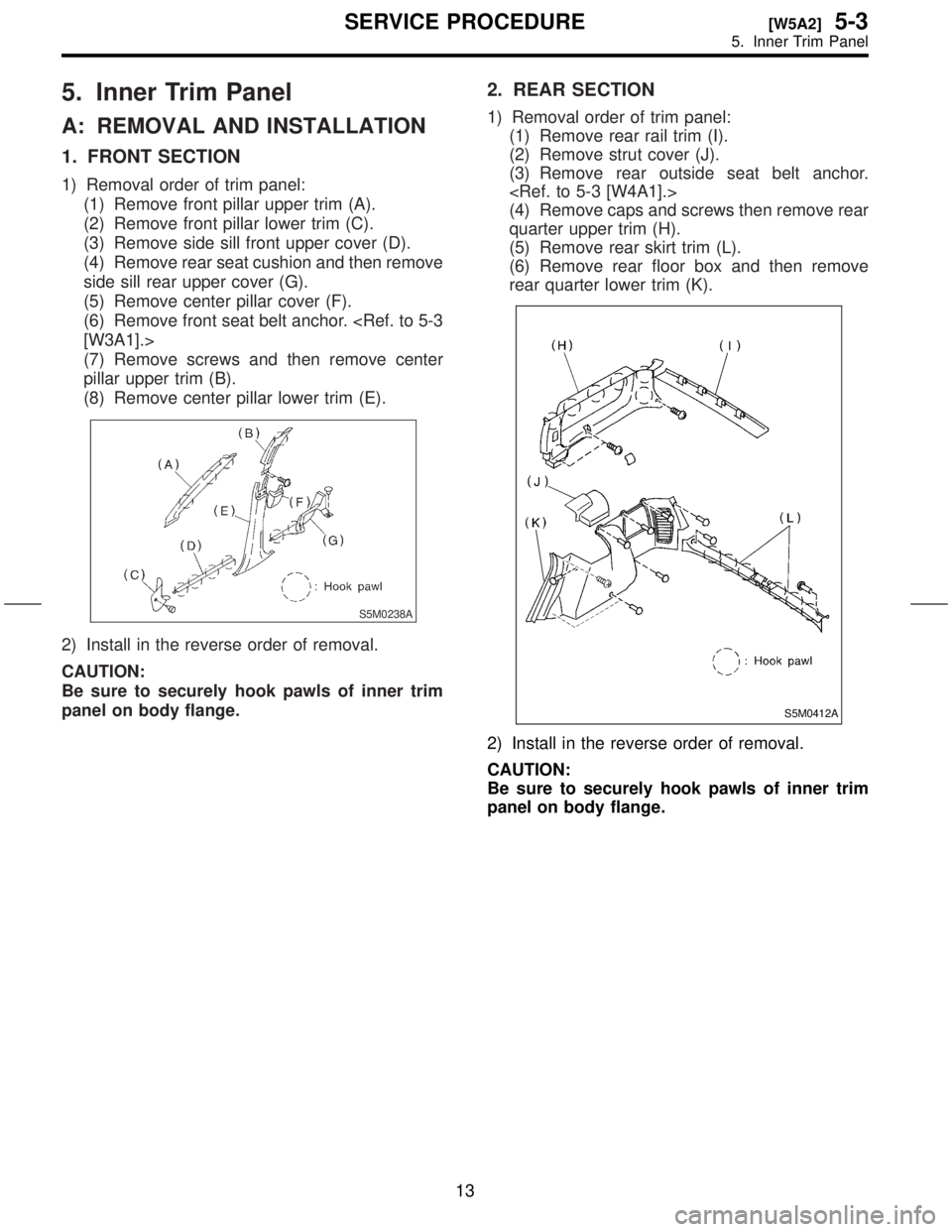

5. Inner Trim Panel
A: REMOVAL AND INSTALLATION
1. FRONT SECTION
1) Removal order of trim panel:
(1) Remove front pillar upper trim (A).
(2) Remove front pillar lower trim (C).
(3) Remove side sill front upper cover (D).
(4) Remove rear seat cushion and then remove
side sill rear upper cover (G).
(5) Remove center pillar cover (F).
(6) Remove front seat belt anchor. [W3A1].>
(7) Remove screws and then remove center
pillar upper trim (B).
(8) Remove center pillar lower trim (E).
S5M0238A
2) Install in the reverse order of removal.
CAUTION:
Be sure to securely hook pawls of inner trim
panel on body flange.
2. REAR SECTION
1) Removal order of trim panel:
(1) Remove rear rail trim (I).
(2) Remove strut cover (J).
(3) Remove rear outside seat belt anchor.

(4) Remove caps and screws then remove rear
quarter upper trim (H).
(5) Remove rear skirt trim (L).
(6) Remove rear floor box and then remove
rear quarter lower trim (K).
S5M0412A
2) Install in the reverse order of removal.
CAUTION:
Be sure to securely hook pawls of inner trim
panel on body flange.
13
[W5A2]5-3SERVICE PROCEDURE
5. Inner Trim Panel

3. FLOOR SECTION
1) Removal order of floor mat:
(1) Remove front seats.
(2) Remove rear seat cushion. [W2A1].>
(3) Remove console box, depending on the
specifications.
(4) Remove front pillar lower trim panel. to 5-3 [W5A1].>
(5) Remove center pillar lower trim panel. to 5-3 [W5A1].>
(6) Remove side sill cover. [W5A1].>
(7) Remove clips from floor mat.
NOTE:
When pulling out edge, do not pull mat alone; pull
mat together with edge. Pry off two steel clips on
side sill front cover and one on side sill rear cover
using screwdriver.
(8) Remove mat hook.
(9) Remove mat from toe board area.
(10) Remove mat from rear heater duct.
(11) Roll mat, and take it out of opened rear
door.
S5M0240
(12) Install in the reverse order of removal.
NOTE:
ISecure mat firmly with hook and velcro tape.
IInsert mat edge firmly into the groove of side sill
cover.
2) Removal order of rear floor box:(1) Remove clips and then detach rear floor
boxes.
S5M0241
(2) Install in the reverse order of removal.
4. ROOF TRIM
1) Remove head console.
S5M0243
2) Remove sunvisor and assist rail.
3) Remove front pillar upper trim and center pillar
upper trim , rear quarter
upper trim and rear rail trim.
4) Detach sunroof garnish (A). (Sunroof equipped
model)
S5M0305B
5) Using ST, remove clips.
ST 925580000 PULLER
14
5-3[W5A3]SERVICE PROCEDURE
5. Inner Trim Panel

6) While detaching snap lock carefully, remove
cover (A). Pass outer belt center tongue (B)
through hole on roof trim, then remove roof trim.
S5M0410A
S5M0413
7) Install in the reverse order of removal.
CAUTION:
When removing clip, use great care to prevent
damaging the roof trim.
NOTE:
When installing roof trim, pass the outer belt cen-
ter tongue through hole on roof trim.
15
[W5A4]5-3SERVICE PROCEDURE
5. Inner Trim Panel

MEMO:
16
5-3SERVICE PROCEDURE

1. Instrument Panel
S5M0377A
(1) Pad & frame
(2) Grille side (D)
(3) Front def. grille
(4) Grille side (P)
(5) Grille vent (P)
(6) Glove box panel
(7) Glove box lid
(8) Knob
(9) Instrument panel center console
(10) BRKT (Radio)
(11) Center console cover(12) Pocket
(13) Panel center
(14) Center pocket lid
(15) Grille center
(16) Cup holder
(17) Side pocket
(18) Lower cover ASSY
(19) Meter visor
(20) Grille vent (D)
(21) Console cover
(22) Console lid(23) Rear cup holder
(24) Console box
(25) Console pocket
(26) Rear console BRKT
(27) Front cover
Tightening torque: N´m (kg-m, ft-lb)
T:
7±1 (0.7±0.1, 5.1±0.7)
2
5-4[C100]COMPONENT PARTS
1. Instrument Panel

1. Instrument Panel
A: REMOVAL
Airbag system wiring harness is routed near com-
bination meter.
CAUTION:
IAll airbag system wiring harness and con-
nectors are yellow. Do not use electrical test
equipment on these circuits.
IBe careful not to damage airbag system wir-
ing harness when servicing the instrument
panel.
1) Disconnect ground cable from battery.
2) Remove shift knob. (MT model)
3) Remove console cover (A) and front cover (B).
S5M0042A
4) Remove console box.
S5M0043
5) Remove lower cover and then disconnect con-
nector.
S5M0044A
6) Disconnect data link connector (A) from lower
cover.
S5M0045A
7) Remove knee panel.
S5M0046
8) Remove glove box.
S5M0047A
9) Remove center panel and disconnect connec-
tor.
10) Remove audio.
S5M0048A
3
[W1A0]5-4SERVICE PROCEDURE
1. Instrument Panel

11) Remove the two bolts and lower steering col-
umn.
G5M0278
12) Set temperature control switch to ªFULL
HOTº, mode selector switch to ªDEFº position and
recirc switch to ªFRESHº position.
13) Disconnect temperature control cable and
mode control cable from heater unit then discon-
nect recirc control cable from intake unit.
NOTE:
Do not move switch and link when installing.
S5M0049A
4
5-4[W1A0]SERVICE PROCEDURE
1. Instrument Panel

14) Disconnect harness connectors and then remove the installing bolts and nuts.
CAUTION:
Be sure to hold socket section and not harness when disconnecting.
NOTE:
Put matching mark, if necessary, for easy reassembly.
S5M0378B
5
[W1A0]5-4SERVICE PROCEDURE
1. Instrument Panel
