SUBARU FORESTER 2004 Service Repair Manual

CC(H4SO)-13
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Symptom
B: CHECK POWER SUPPLY
TROUBLE SYMPTOM:
Cruise control can be set normally, but indicator does not come on. (When main switch is pressed.)

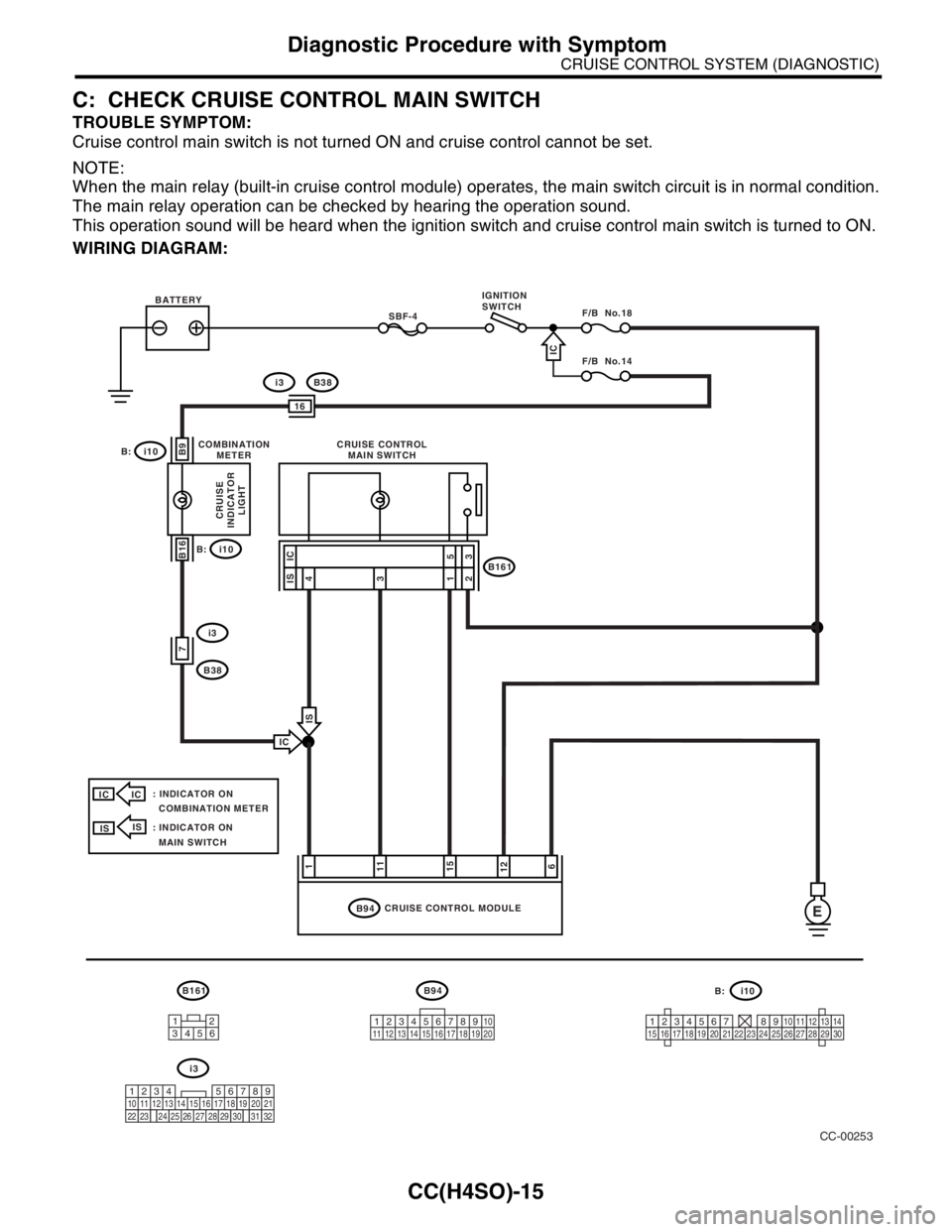

WIRING DIAGRAM:
CC-00253
B161
i3
i10 B:B94
12345678910
11 12 13 14 15 16 17 18 19 20
E
11115126
5
3
7
B16
B9
BATTERY
CRUISE CONTROL MODULE CRUISE CONTROL
MAIN SWITCH
CRUISE
INDICATOR
LIGHT
COMBINATION
METER
SBF-4F/B No.18
B94
B161
F/B No.14
IGNITION
SWITCH
i10
i3
B38
i3B38
B:
i10
B:
123456789101112131415161718192021222324252627282930
219
32
1234 5610 11 12 13 14 15716
23 3019 20
22 26 27 28 29817
24 3118
25
: INDICATOR ON
COMBINATION METER
4
3
1
2
IC
IS
ISIS
IC
IC
IC
IS
IC
: INDICATOR ON
MAIN SWITCH IS
16
12
3456

CC(H4SO)-14
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Symptom
Step Check Yes No
1 CHECK POWER SUPPLY.
1) Turn the ignition switch to OFF.
2) Disconnect the cruise control module har-
ness connector.
3) Turn the ignition switch to ON.
4) Measure the voltage between harness con-
nector terminal and chassis ground.
Connector & terminal
(B94) No. 12 (+) — Chassis ground (
−):Is the voltage more than 10 V? Go to step 2. Check the fuse
No. 18 (in fuse &
relay box).
 Check the har-
ness for open or
short between
cruise control
module and fuse &
relay box.
2 CHECK GROUND CIRCUIT.
1) Turn the ignition switch OFF.
2) Measure the resistance between harness
connector terminal and chassis ground.
Connector & terminal
(B94) No. 6 — Chassis ground:Is the resistance less than 10
Ω?Power supply and
ground circuit are
OK.Repair the har-
ness.

CC(H4SO)-15
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Symptom
C: CHECK CRUISE CONTROL MAIN SWITCH
TROUBLE SYMPTOM:
Cruise control main switch is not turned ON and cruise control cannot be set.
NOTE:
When the main relay (built-in cruise control module) operates, the main switch circuit is in normal condition.
The main relay operation can be checked by hearing the operation sound.
This operation sound will be heard when the ignition switch and cruise control main switch is turned to ON.

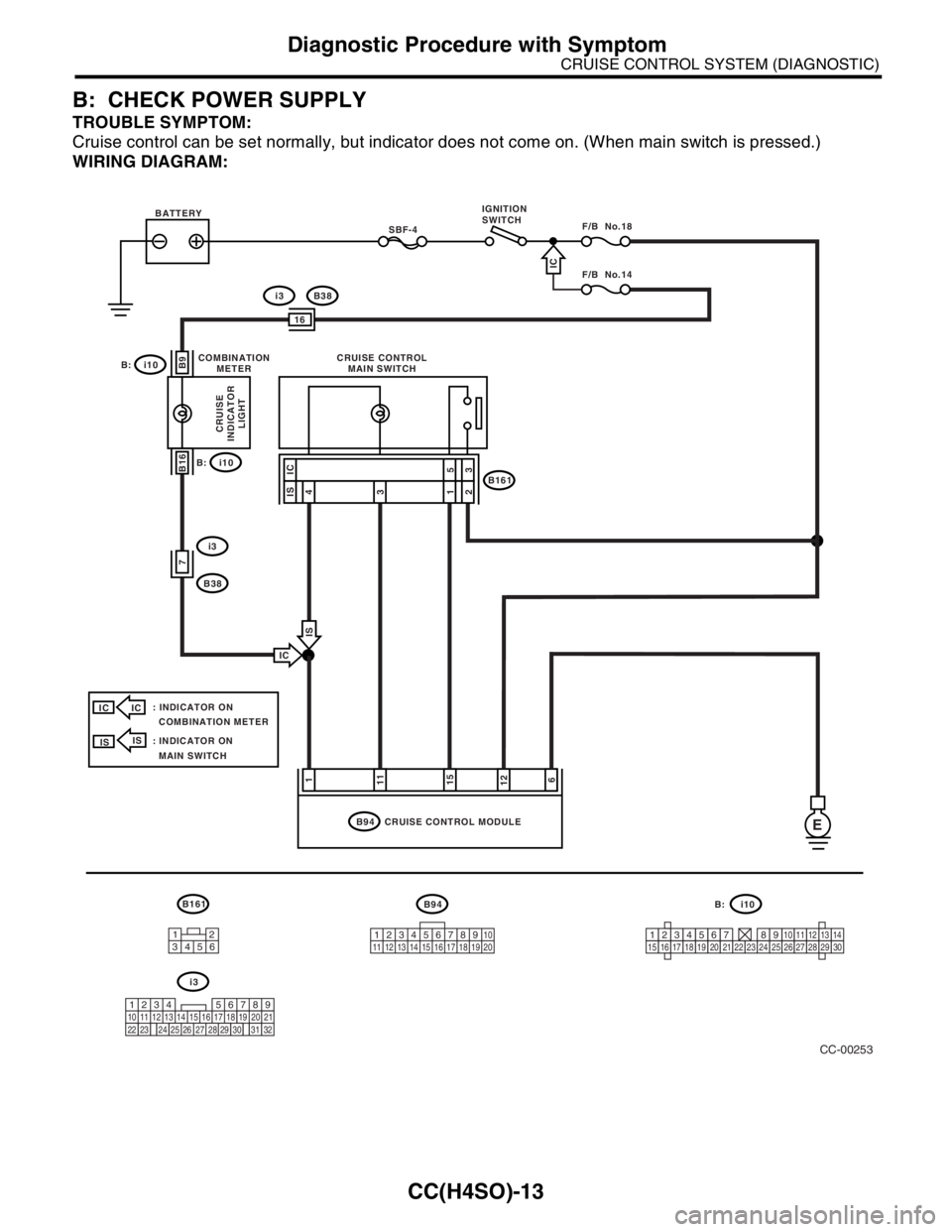

WIRING DIAGRAM:
CC-00253
B161
i3
i10 B:B94
12345678910
11 12 13 14 15 16 17 18 19 20
E
11115126
5
3
7
B16
B9
BATTERY
CRUISE CONTROL MODULE CRUISE CONTROL
MAIN SWITCH
CRUISE
INDICATOR
LIGHT
COMBINATION
METER
SBF-4F/B No.18
B94
B161
F/B No.14
IGNITION
SWITCH
i10
i3
B38
i3B38
B:
i10
B:
123456789101112131415161718192021222324252627282930
219
32
1234 5610 11 12 13 14 15716
23 3019 20
22 26 27 28 29817
24 3118
25
: INDICATOR ON
COMBINATION METER
4
3
1
2
IC
IS
ISIS
IC
IC
IC
IS
IC
: INDICATOR ON
MAIN SWITCH IS
16
12
3456

CC(H4SO)-16
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Symptom
Step Check Yes No
1 CHECK CRUISE CONTROL MAIN SWITCH
CIRCUIT.
1) Turn the ignition switch to OFF.
2) Disconnect the cruise control main switch
harness connector.
3) Turn the ignition switch to ON.
4) Measure the voltage between harness con-
nector terminal and chassis ground.
Connector & terminal
With indicator built in combination
meter:
(B161) No. 3 (+) — Chassis ground (
−):
With indicator built in main switch:
(B161) No. 2 (+) — Chassis ground (
−):Is the voltage more than 10 V? Go to step 2. Check the fuse
No. 18 (in fuse &
relay box).
 Check the har-
ness for open or
short between
cruise control main
switch and fuse &
relay box.
2 CHECK CRUISE CONTROL MAIN SWITCH
CIRCUIT.
1) Turn the ignition switch OFF.
2) Disconnect the cruise control module har-
ness connector.
3) Measure the resistance between cruise
control module harness connector terminal
and cruise control main switch harness con-
nector terminal.
Connector & terminal
With indicator built in combination
meter:
(B94) No. 15 — (B161) No. 5:
With indicator built in main switch:
(B94) No. 15 — (B161) No. 1:Is the resistance less than 10
Ω?Go to step 3.Repair the har-
ness.
3 CHECK CRUISE CONTROL MAIN SWITCH.
Remove and check the cruise control main
switch. Switch.>Is the cruise control main
switch OK?Replace the cruise
control module.Replace the cruise
control main
switch.

CC(H4SO)-17
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Symptom
D: CHECK CRUISE INDICATOR LIGHT
TROUBLE SYMPTOM:
Cruise control can be set normally, but indicator light does not come on. (When main switch is pressed.)

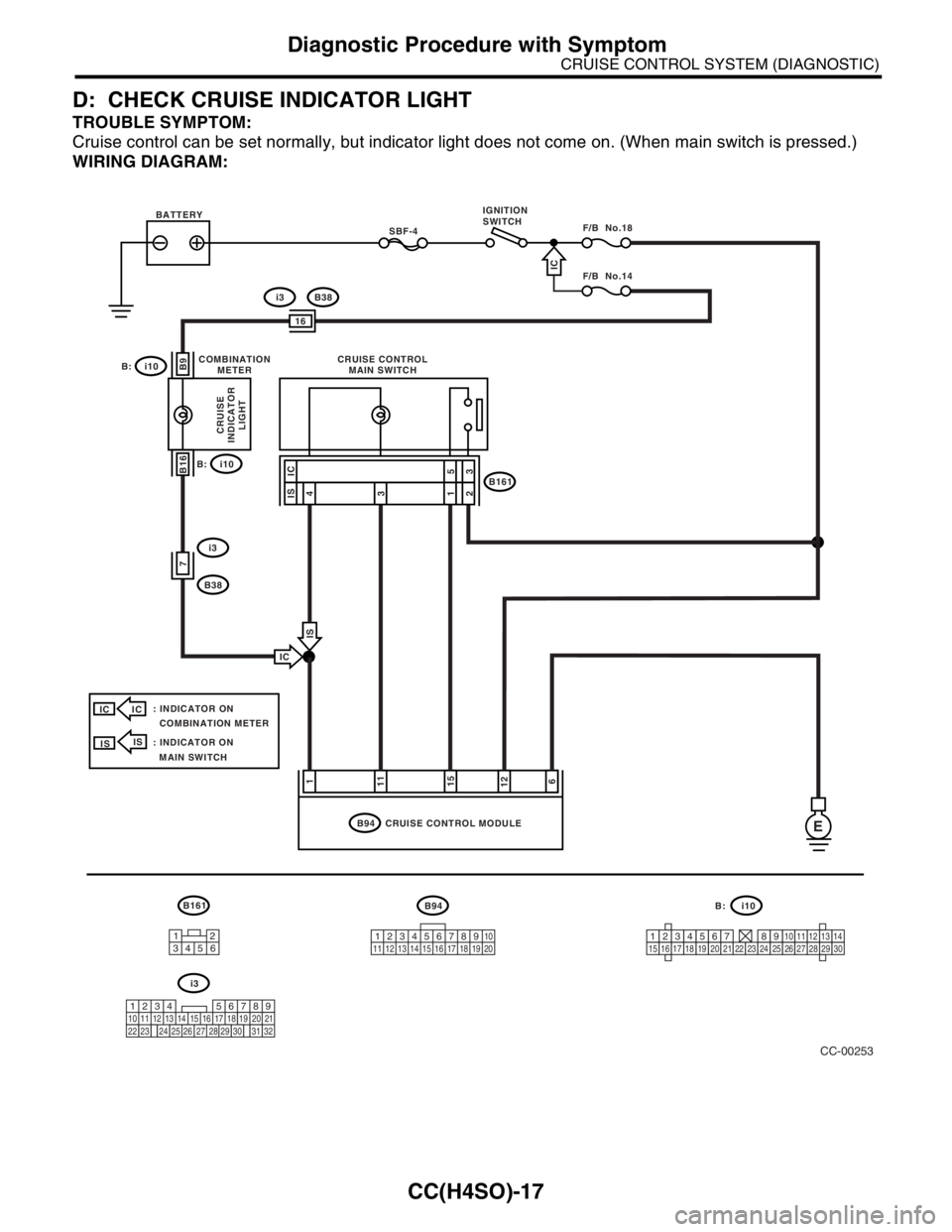

WIRING DIAGRAM:
CC-00253
B161
i3
i10 B:B94
12345678910
11 12 13 14 15 16 17 18 19 20
E
11115126
5
3
7
B16
B9
BATTERY
CRUISE CONTROL MODULE CRUISE CONTROL
MAIN SWITCH
CRUISE
INDICATOR
LIGHT
COMBINATION
METER
SBF-4F/B No.18
B94
B161
F/B No.14
IGNITION
SWITCH
i10
i3
B38
i3B38
B:
i10
B:
123456789101112131415161718192021222324252627282930
219
32
1234 5610 11 12 13 14 15716
23 3019 20
22 26 27 28 29817
24 3118
25
: INDICATOR ON
COMBINATION METER
4
3
1
2
IC
IS
ISIS
IC
IC
IC
IS
IC
: INDICATOR ON
MAIN SWITCH IS
16
12
3456

CC(H4SO)-18
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Symptom
Step Check Yes No
1 CHECK CRUISE INDICATOR LIGHT CIR-
CUIT.
1) Turn the ignition switch to OFF.
2) With indicator built in combination meter:
Disconnect the combination meter harness
connector.
With indicator built in main switch:
Disconnect the cruise control main switch har-
ness connector.
3) Turn the ignition switch to ON.
4) Measure the voltage between harness con-
nector terminal and chassis ground.
Connector & terminal
With indicator built in combination
meter:
(i10) No. 9 (+) — Chassis ground (
−):
With indicator built in main switch:
(B161) No. 3 (+) — Chassis ground (
−):Is the voltage more than 10 V? Go to step 2. Check the fuse
No. 13 (in fuse &
relay box).
 Check the har-
ness for open or
short between
combination meter
and fuse & relay
box.
2 CHECK CRUISE INDICATOR LIGHT CIR-
CUIT.
1) Turn the ignition switch to OFF.
2) Disconnect the cruise control module har-
ness connector.
3) Measure the resistance between cruise
control module harness connector terminal
and combination meter harness connector ter-
minal.
Connector & terminal
With indicator built in combination
meter:
(B94) No. 1 (+) — (i10) No. 16:
With indicator built in main switch:
(B94) No. 1 (+) — (B161) No. 4:Is the resistance less than 10
Ω?Go to step 3.Repair the har-
ness.
3 CHECK CRUISE INDICATOR LIGHT CIR-
CUIT.
Ground the cruise control module harness
connector terminal with a suitable wire.
Connector & terminal
(B94) No. 1 — Chassis ground:Does the cruise indicator light
illuminate?Replace the cruise
control module. With indicator
built in combina-
tion meter: Check
the cruise indicator
light bulb in combi-
nation meter, and
replace it if mal-
function
occurred.No mal-
function found,
replace the printed
circuit of combina-
tion meter.
 With indicator
built in main
switch: Replace
the cruise control
main switch.

CC(H4SO)-19
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Symptom
E: CHECK CRUISE CONTROL COMMAND SWITCH
TROUBLE SYMPTOM:
Cruise control cannot be set. (Cancelled immediately.)
WIRING DIAGRAM:
CC-00040
B94F45B236S1F144
12345678910
11 12 13 14 15 16 17 18 19 20
412365
4
321
BATTERY
CRUISE CONTROL MODULECRUISE CONTROL
COMMAND SWITCH
STEERING
ROLL CONNECTORHORN HORN RELAY HORN SWITCH
RESUME/
ACCEL
SWITCHCANCEL
SWITCHSET/
COAST
SWITCH M/B No.6
B94
F37
B62F45
S1
321
910
B236
13
3 2
11
3245123
8910411 12 13 14 15 16567
F144
F37
RHD
RHD
LHD
LHD
RHD :
:LHD
: LHD MODEL
: RHD MODEL
LHD
RHDRHD LHD
RHD :
:LHD

CC(H4SO)-20
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Symptom
Step Check Yes No
1 CHECK SET/COAST SWITCH CIRCUIT.
1) Turn the ignition switch to OFF.
2) Disconnect the cruise control module har-
ness connector.
3) Measure the voltage between harness con-
nector terminal and chassis ground when SET/
COAST switch is pressed and not pressed.
Connector & terminal
(B94) No. 10 (+) — Chassis ground (
−):Is the voltage 0 V when the
SET/COAST switch is not
pressed? Is the voltage more
than 10 V when the SET/
COAST switch is pressed?Go to step 2.Go to step 4.
2 CHECK RESUME/ACCEL SWITCH CIRCUIT.
Measure the voltage between harness connec-
tor terminal and chassis ground when
RESUME/ACCEL switch is pressed and not
pressed.
Connector & terminal
(B94) No. 9 (+) — Chassis ground (
−):Is the voltage 0 V when the
RESUME/ACCEL switch is not
pressed? Is the voltage more
than 10 V when the RESUME/
ACCEL switch is pressed?Go to step 3.Go to step 4.
3 CHECK CANCEL SWITCH CIRCUIT.
Measure the voltage between harness connec-
tor terminal and chassis ground when CAN-
CEL switch is pressed and not pressed.
Connector & terminal
(B94) No. 9 (+) — Chassis ground (
−):
(B94) No. 10 (+) — Chassis ground (
−): Is the voltage 0 V when the
CANCEL switch is not
pressed? Is the voltage more
than 10 V when the CANCEL
switch is pressed?Cruise control
command switch
circuit is OK.Go to step 4.
4 CHECK POWER SUPPLY FOR COMMAND
SWITCH.
Check the horn operation.Does the horn sound? Go to step 5. Check the fuse
No. 6 (in main fuse
box).
 Check the horn
relay. COM-3, INSPEC-
TION, Horn Sys-
tem.>
 Check the har-
ness for open or
short between
cruise control
command switch
and fuse & relay
box.
5 CHECK CRUISE CONTROL COMMAND
SWITCH.
Remove and check the cruise control com-
mand switch. Command Switch.>Is the cruise control command
switch OK?Check the harness
between cruise
control command
switch and cruise
control module.Replace the cruise
control command
switch.

CC(H4SO)-21
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Symptom
F: CHECK STOP LIGHT SWITCH AND BRAKE SWITCH
TROUBLE SYMPTOM:
Cruise control cannot be set.
WIRING DIAGRAM:
CC-00033
B107B94B65
AT :AT MODEL
MT :MT MODEL
1212345678910
11 12 13 14 15 16 17 18 19 20
BATTERY
CRUISE
CONTROL
MODULE
SBF-1SBF-2F/B No.16
CLUTCH
SWITCH (MT MODEL)
1
2
B65
B94
B107STOP LIGHT SWITCH
AND BRAKE SWITCH
BRAKE
SWITCH STOP LIGHT
SWITCH
4
3
1
2
2011
16
AT
MT
MT
AT
1234

CC(H4SO)-22
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Symptom
Step Check Yes No
1 CHECK STOP LIGHT SWITCH AND BRAKE
SWITCH CIRCUIT.
1) Turn the ignition switch to OFF.
2) Disconnect the stop light switch and brake
switch harness connector.
3) Turn the ignition switch to ON.
4) Turn the cruise control main switch to ON.
5) Measure the voltage between harness con-
nector terminal and chassis ground.
Connector & terminal
(B65) No. 2 (+) — Chassis ground (
−): Is the voltage more than 10 V? Go to step 2. Check the fuse
No. 16 (in fuse &
relay box).
 Check the har-
ness for open or
short between
stop light/brake
switch and fuse &
relay box.
2 CHECK STOP LIGHT SWITCH AND BRAKE
SWITCH CIRCUIT.
Measure the voltage between harness connec-
tor terminal and chassis ground.
Connector & terminal
(B65) No. 4 (+) — Chassis ground (
−): Is the voltage more than 10 V? Go to step 3. Check the har-
ness for open or
short between
stop light/brake
switch and cruise
control module (AT
model).
 Check the clutch
switch and circuit
(MT model).
3 CHECK STOP LIGHT SWITCH AND BRAKE
SWITCH CIRCUIT.
1) Turn the cruise control main switch and
ignition switch to OFF.
2) Disconnect the cruise control module har-
ness connector.
3) Measure the resistance between cruise
control module harness connector terminal
and stop light switch and brake switch harness
connector terminal.
Connector & terminal
(B94) No. 20 — (B65) No. 3:
(B94) No. 16 — (B65) No. 1: Is the resistance less than 10
Ω?Go to step 4.Repair the har-
ness.
4 CHECK STOP LIGHT SWITCH AND BRAKE
SWITCH.
Remove and check the stop light switch and
brake switch. Switch.>Are the stop light switch and
brake switch are OK?Stop light switch
and brake switch
circuit are OK.Replace the stop
light switch and
brake switch.
