SUBARU LEGACY 1999 Service Repair Manual

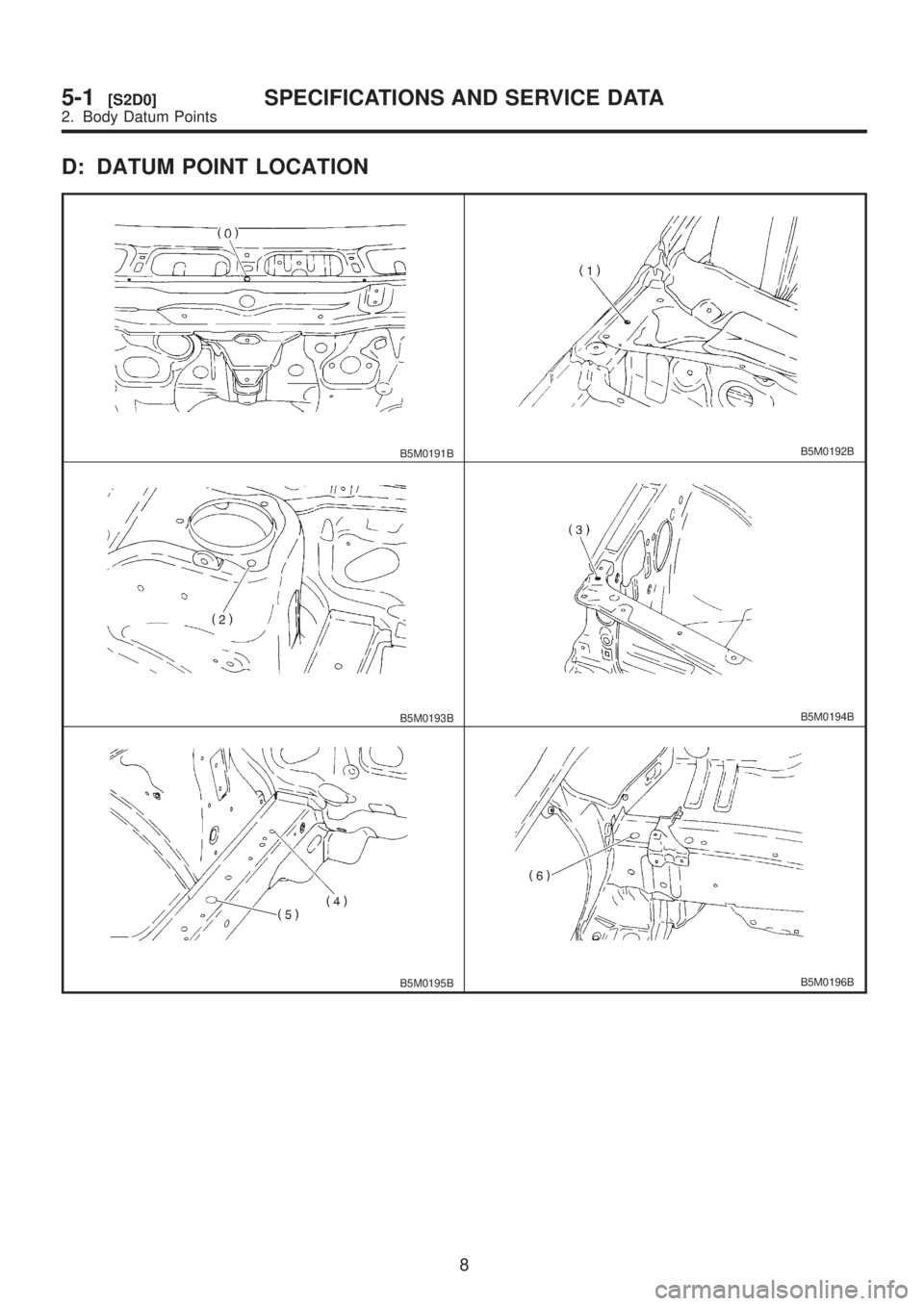

D: DATUM POINT LOCATION
B5M0191BB5M0192B
B5M0193BB5M0194B
B5M0195BB5M0196B
8

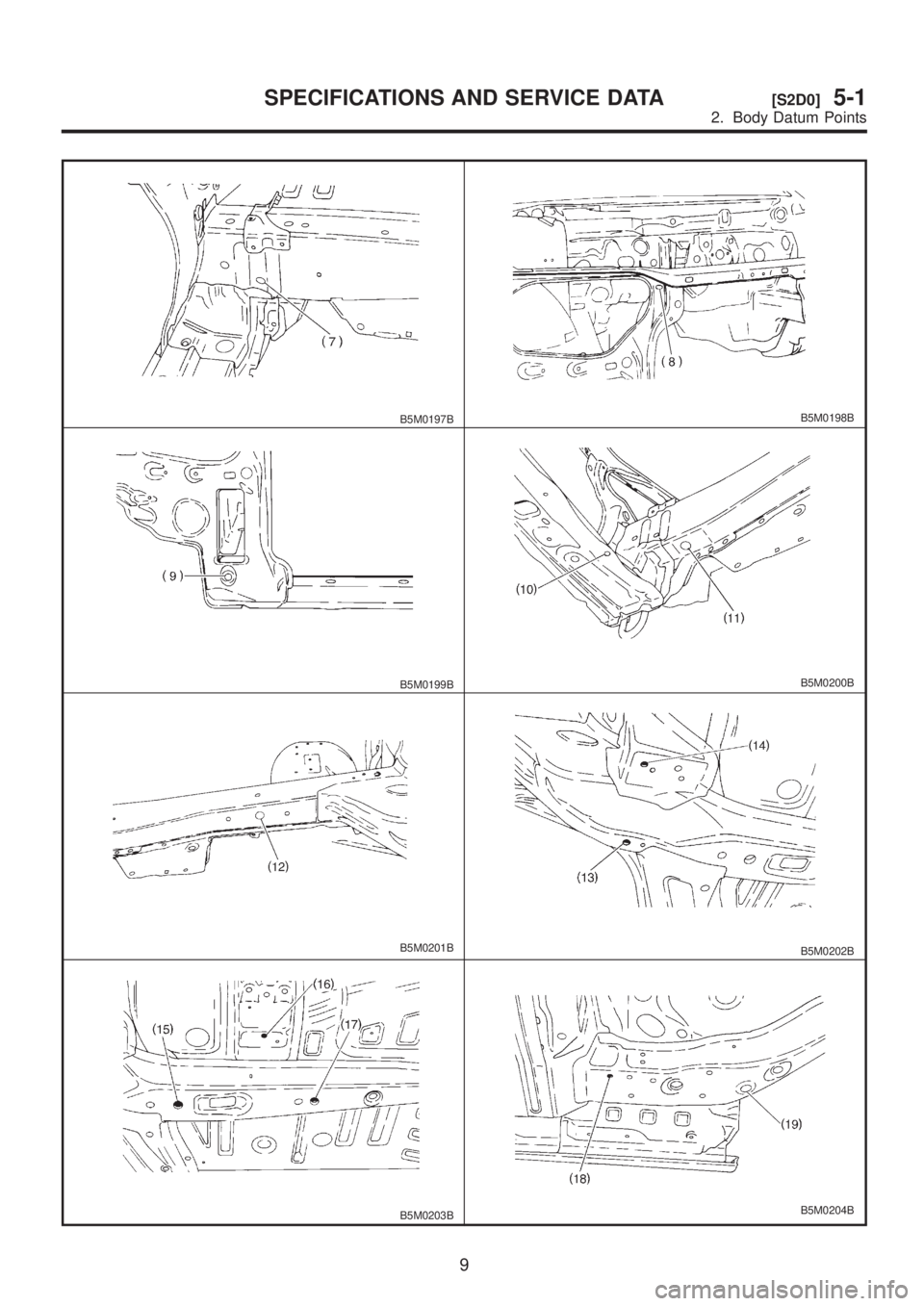

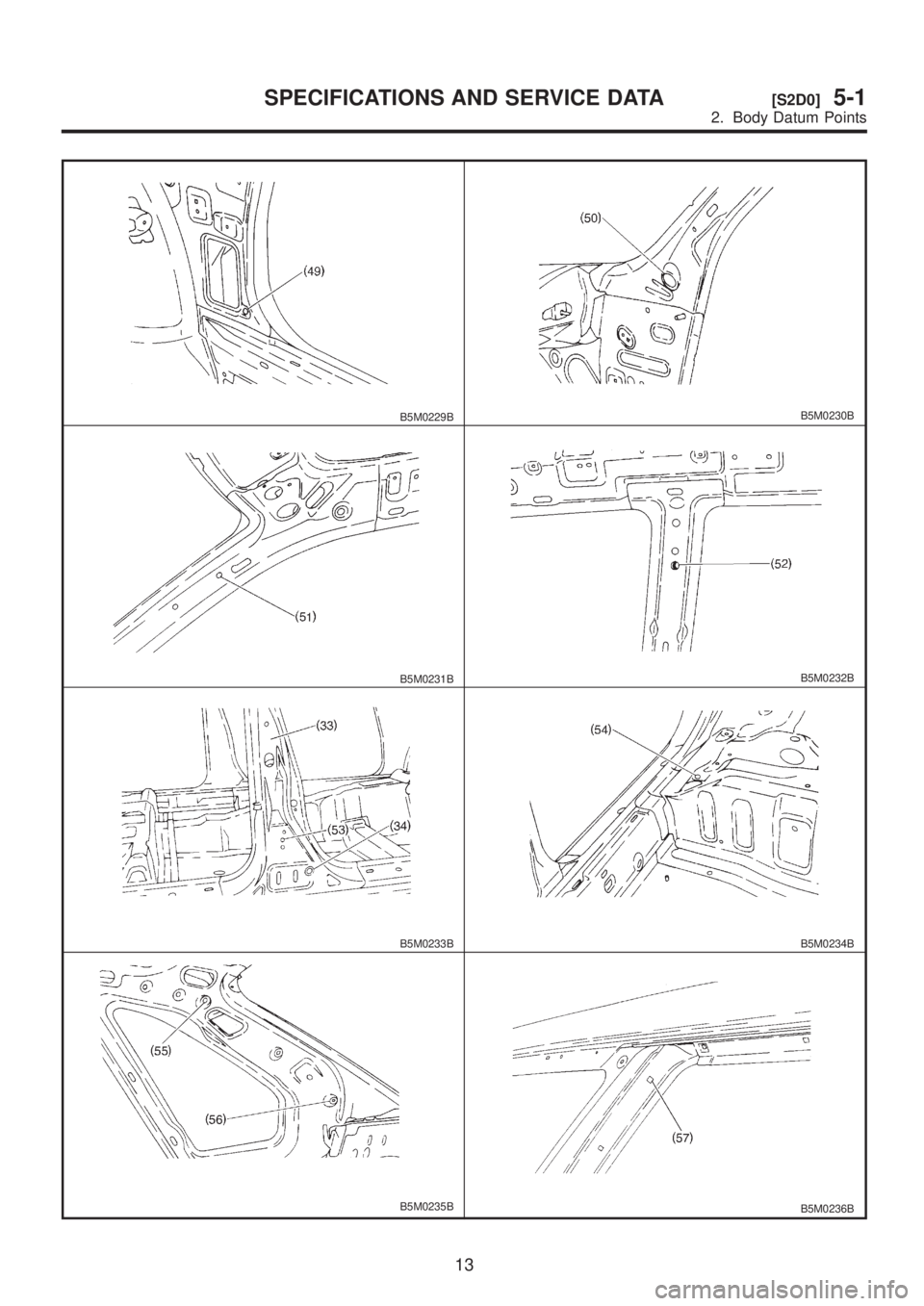

5-1[S2D0]SPECIFICATIONS AND SERVICE DATA
2. Body Datum Points

B5M0197BB5M0198B
B5M0199BB5M0200B
B5M0201BB5M0202B
B5M0203BB5M0204B
9
[S2D0]5-1SPECIFICATIONS AND SERVICE DATA
2. Body Datum Points

B5M0205BB5M0206B
B5M0207BB5M0208B
B5M0209BB5M0210B
B5M0211BB5M0212B
10

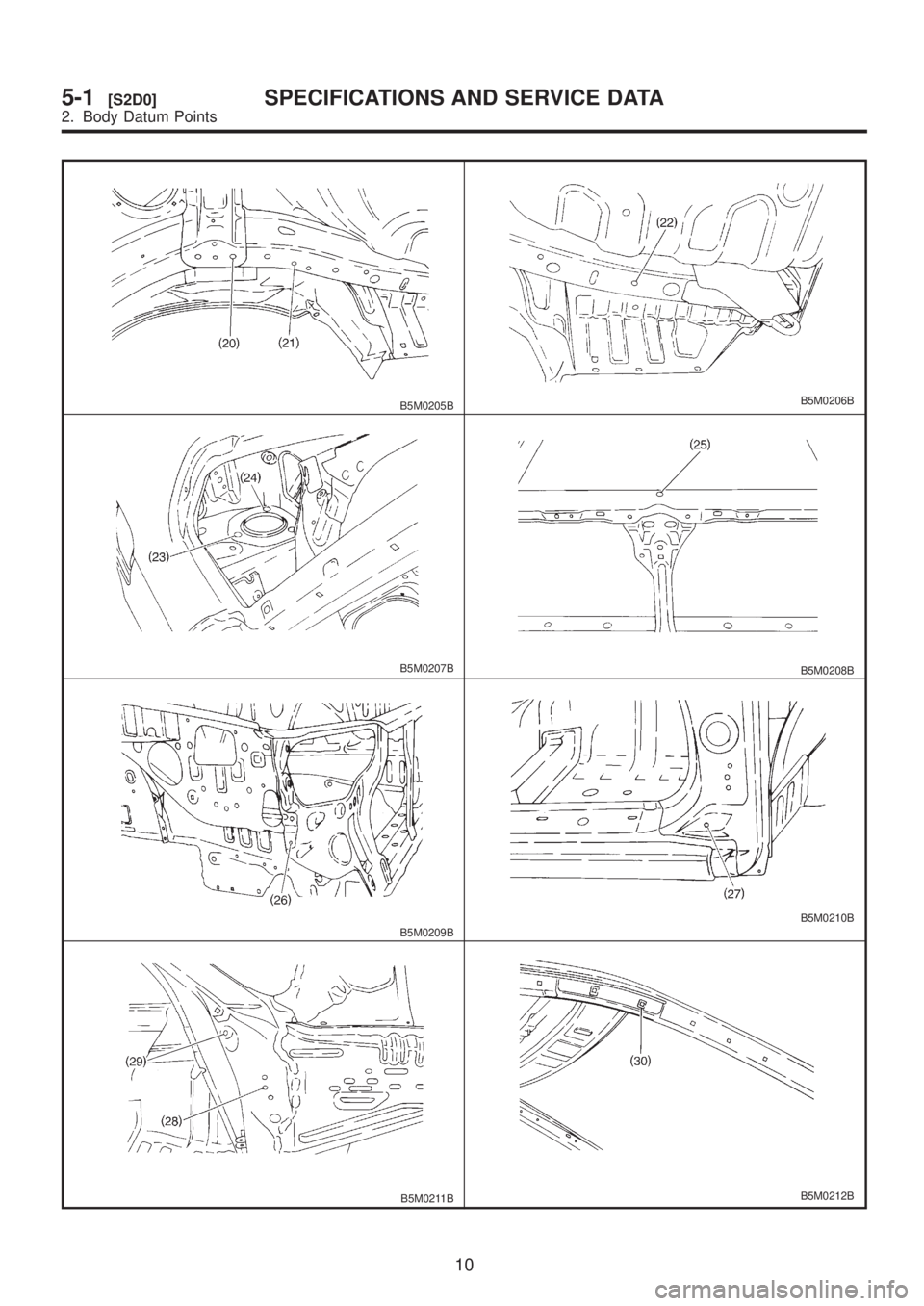

5-1[S2D0]SPECIFICATIONS AND SERVICE DATA
2. Body Datum Points

B5M0213BB5M0214B
B5M0215BB5M0216B
B5M0217BB5M0218B
B5M0219BB5M0220B
11

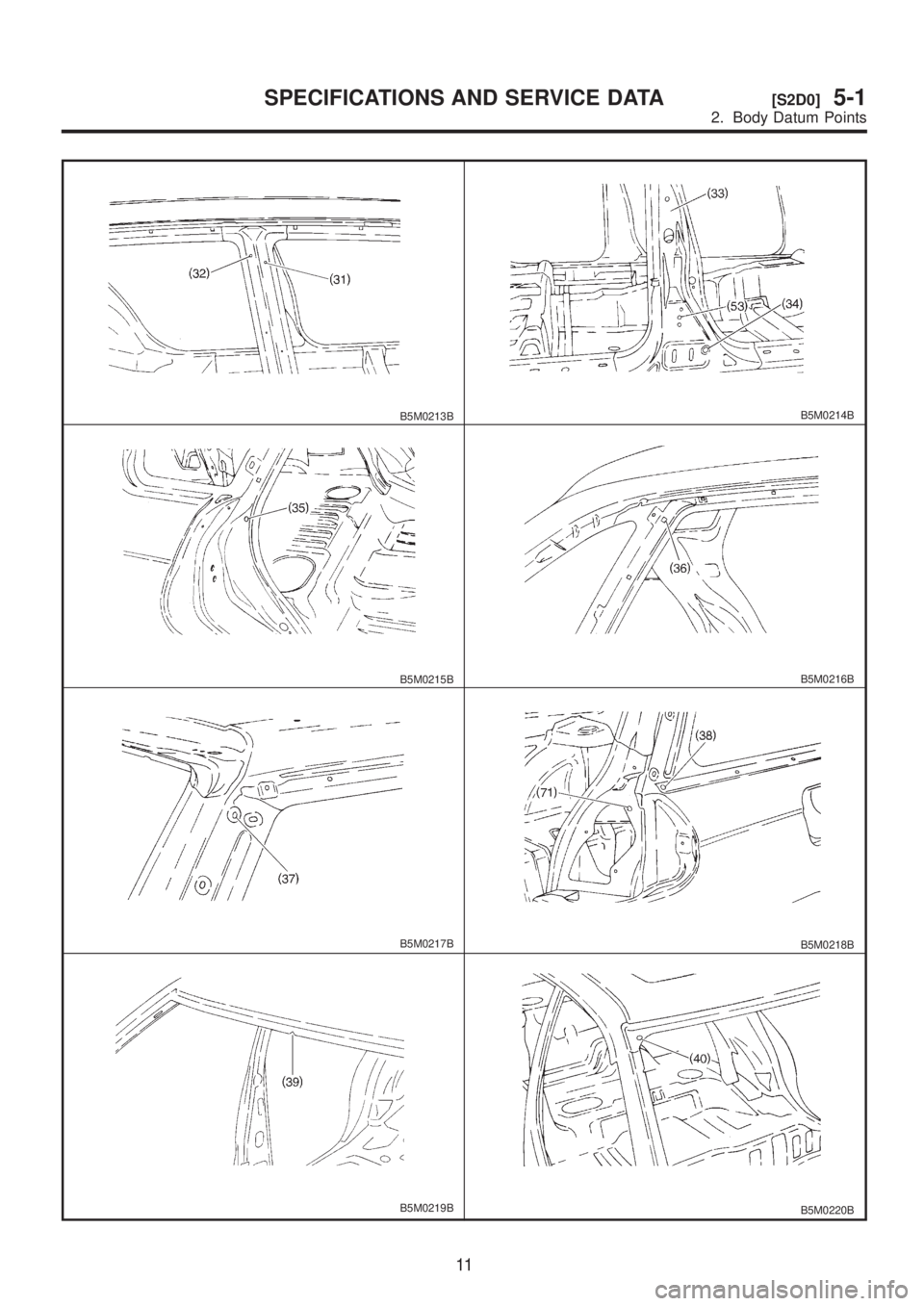

[S2D0]5-1SPECIFICATIONS AND SERVICE DATA
2. Body Datum Points

B5M0221B
B5M0222B
B5M0223BB5M0224B
B5M0225BB5M0226B
B5M0227BB5M0228B
12

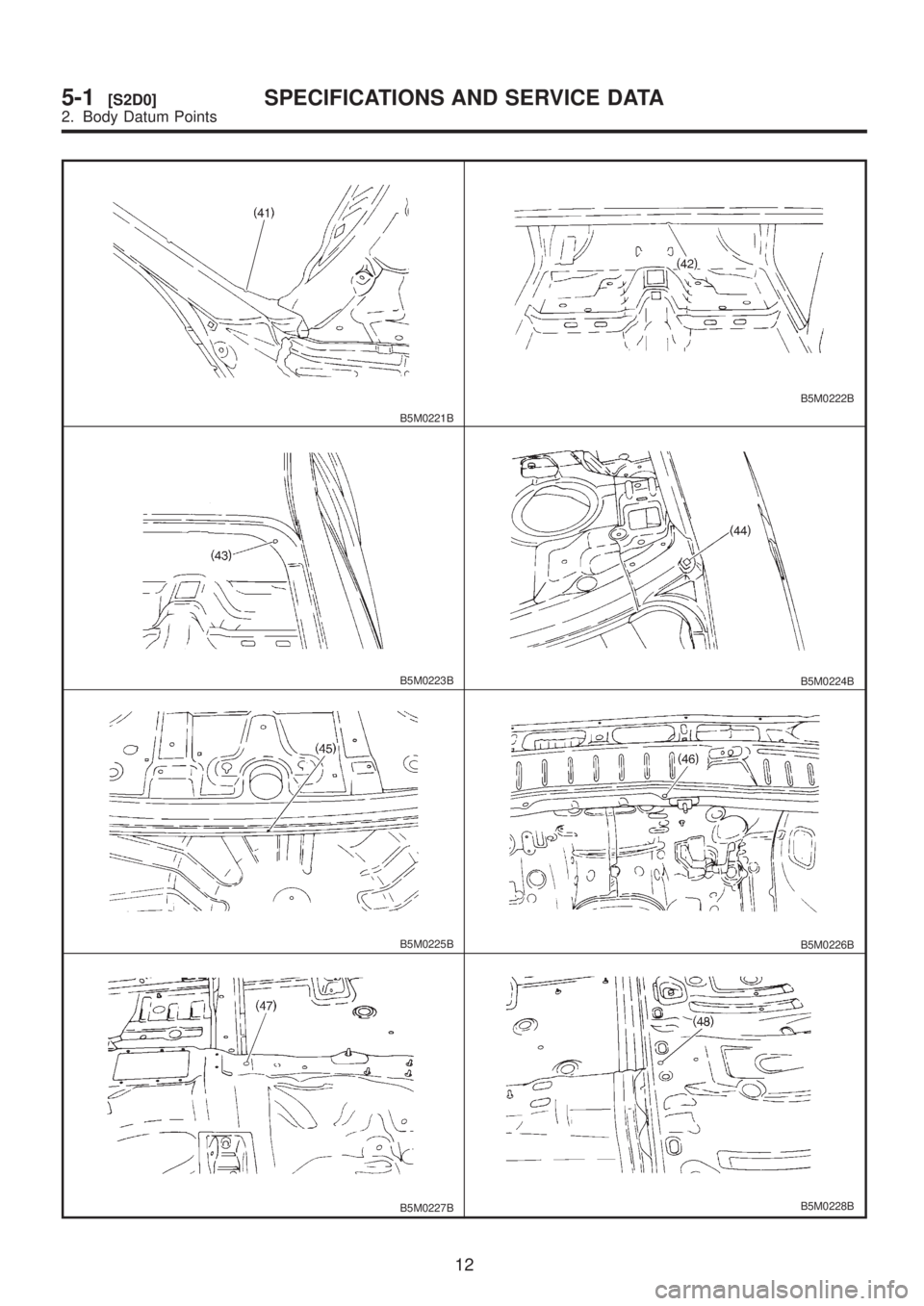

5-1[S2D0]SPECIFICATIONS AND SERVICE DATA
2. Body Datum Points

B5M0229BB5M0230B
B5M0231BB5M0232B
B5M0233BB5M0234B
B5M0235BB5M0236B
13

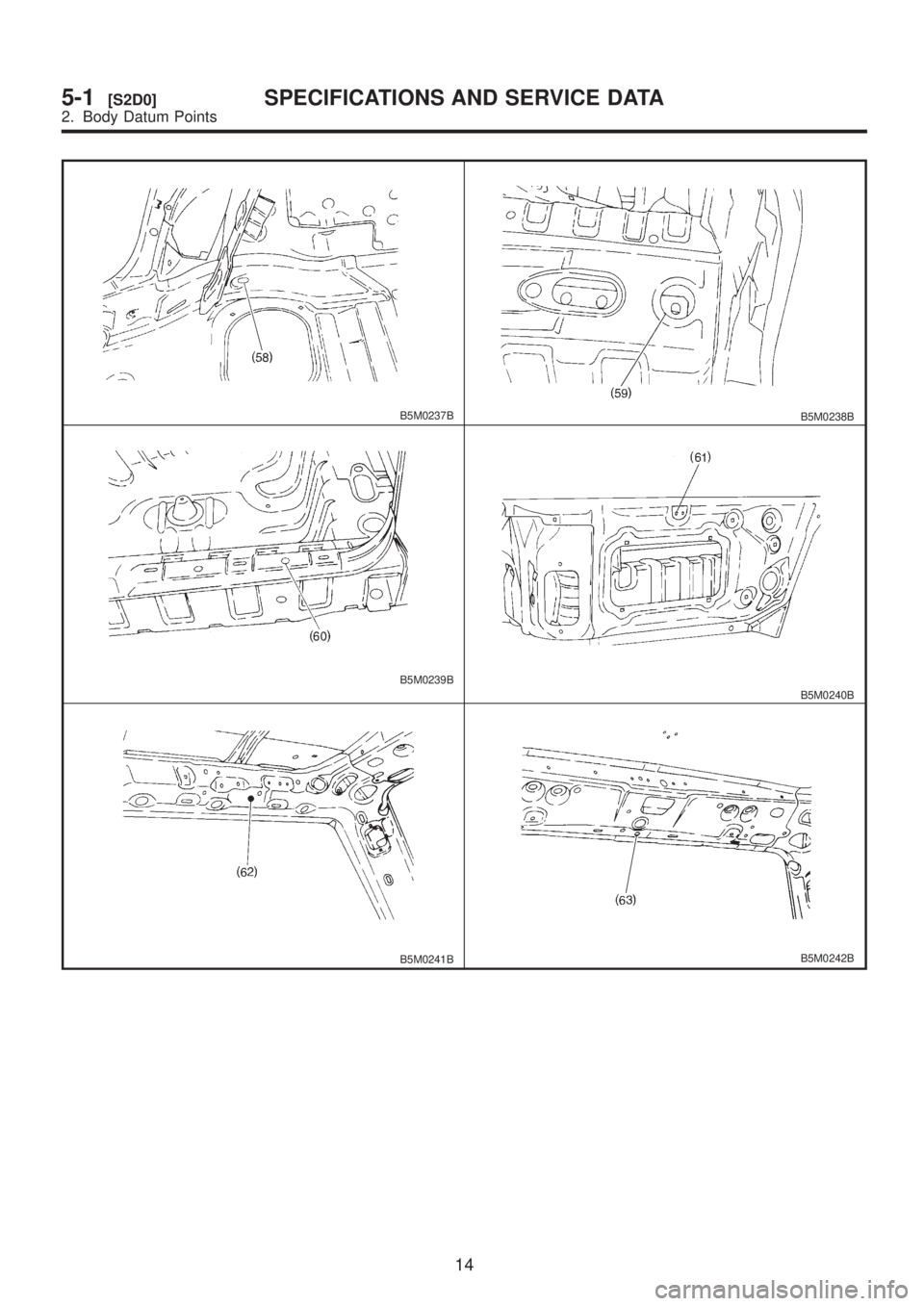

[S2D0]5-1SPECIFICATIONS AND SERVICE DATA
2. Body Datum Points

B5M0237BB5M0238B
B5M0239BB5M0240B
B5M0241BB5M0242B
14

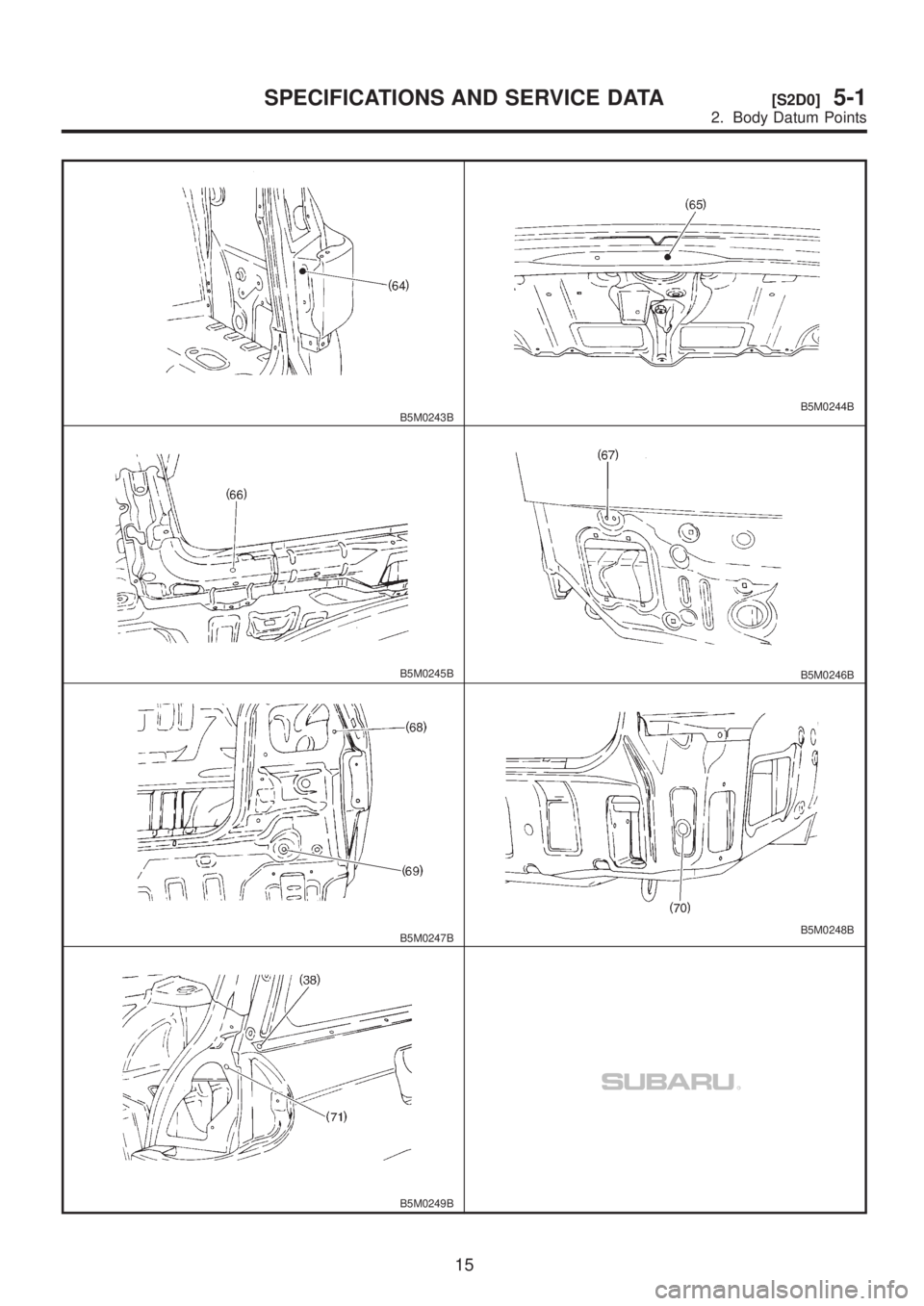

5-1[S2D0]SPECIFICATIONS AND SERVICE DATA
2. Body Datum Points

B5M0243BB5M0244B
B5M0245BB5M0246B
B5M0247BB5M0248B
B5M0249B
15
[S2D0]5-1SPECIFICATIONS AND SERVICE DATA
2. Body Datum Points

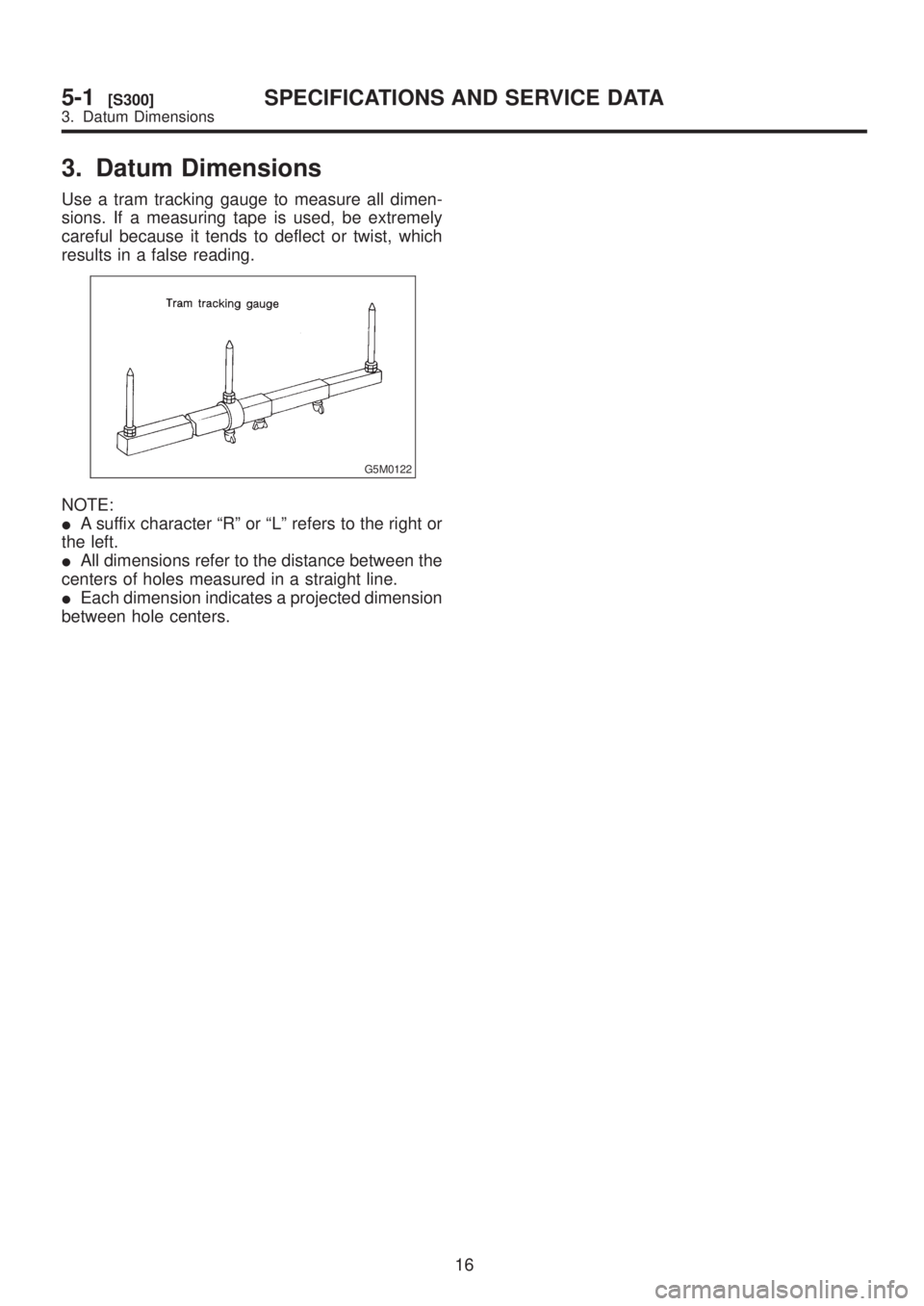

3. Datum Dimensions
Use a tram tracking gauge to measure all dimen-
sions. If a measuring tape is used, be extremely
careful because it tends to deflect or twist, which
results in a false reading.
G5M0122
NOTE:
IA suffix character ªRº or ªLº refers to the right or
the left.
IAll dimensions refer to the distance between the
centers of holes measured in a straight line.
IEach dimension indicates a projected dimension
between hole centers.
16
5-1[S300]SPECIFICATIONS AND SERVICE DATA
3. Datum Dimensions

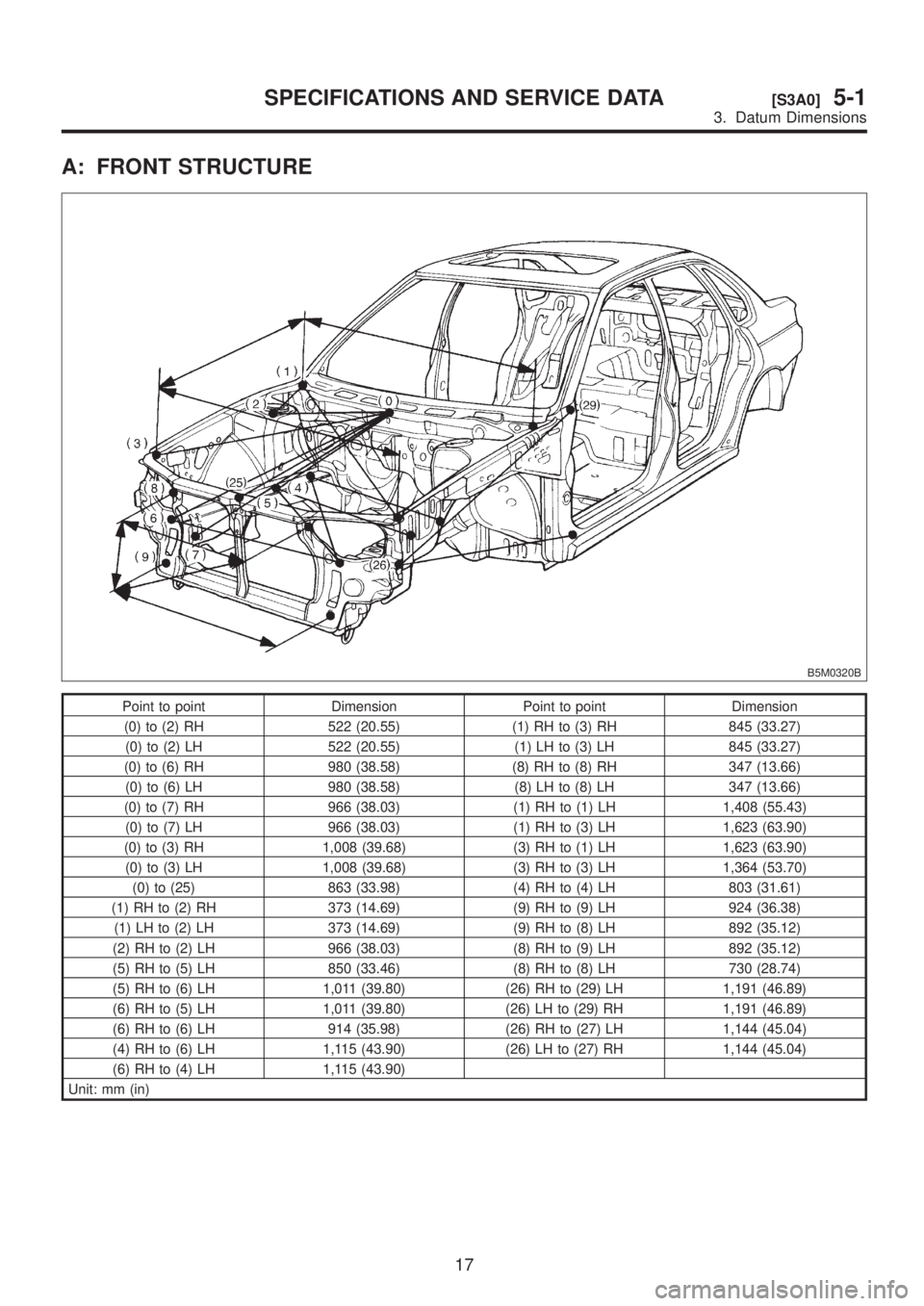

A: FRONT STRUCTURE
B5M0320B
Point to point Dimension Point to point Dimension
(0) to (2) RH 522 (20.55) (1) RH to (3) RH 845 (33.27)
(0) to (2) LH 522 (20.55) (1) LH to (3) LH 845 (33.27)
(0) to (6) RH 980 (38.58) (8) RH to (8) RH 347 (13.66)
(0) to (6) LH 980 (38.58) (8) LH to (8) LH 347 (13.66)
(0) to (7) RH 966 (38.03) (1) RH to (1) LH 1,408 (55.43)
(0) to (7) LH 966 (38.03) (1) RH to (3) LH 1,623 (63.90)
(0) to (3) RH 1,008 (39.68) (3) RH to (1) LH 1,623 (63.90)
(0) to (3) LH 1,008 (39.68) (3) RH to (3) LH 1,364 (53.70)
(0) to (25) 863 (33.98) (4) RH to (4) LH 803 (31.61)
(1) RH to (2) RH 373 (14.69) (9) RH to (9) LH 924 (36.38)
(1) LH to (2) LH 373 (14.69) (9) RH to (8) LH 892 (35.12)
(2) RH to (2) LH 966 (38.03) (8) RH to (9) LH 892 (35.12)
(5) RH to (5) LH 850 (33.46) (8) RH to (8) LH 730 (28.74)
(5) RH to (6) LH 1,011 (39.80) (26) RH to (29) LH 1,191 (46.89)
(6) RH to (5) LH 1,011 (39.80) (26) LH to (29) RH 1,191 (46.89)
(6) RH to (6) LH 914 (35.98) (26) RH to (27) LH 1,144 (45.04)
(4) RH to (6) LH 1,115 (43.90) (26) LH to (27) RH 1,144 (45.04)
(6) RH to (4) LH 1,115 (43.90)
Unit: mm (in)
17
[S3A0]5-1SPECIFICATIONS AND SERVICE DATA
3. Datum Dimensions
