SUBARU LEGACY 1999 Service Repair Manual

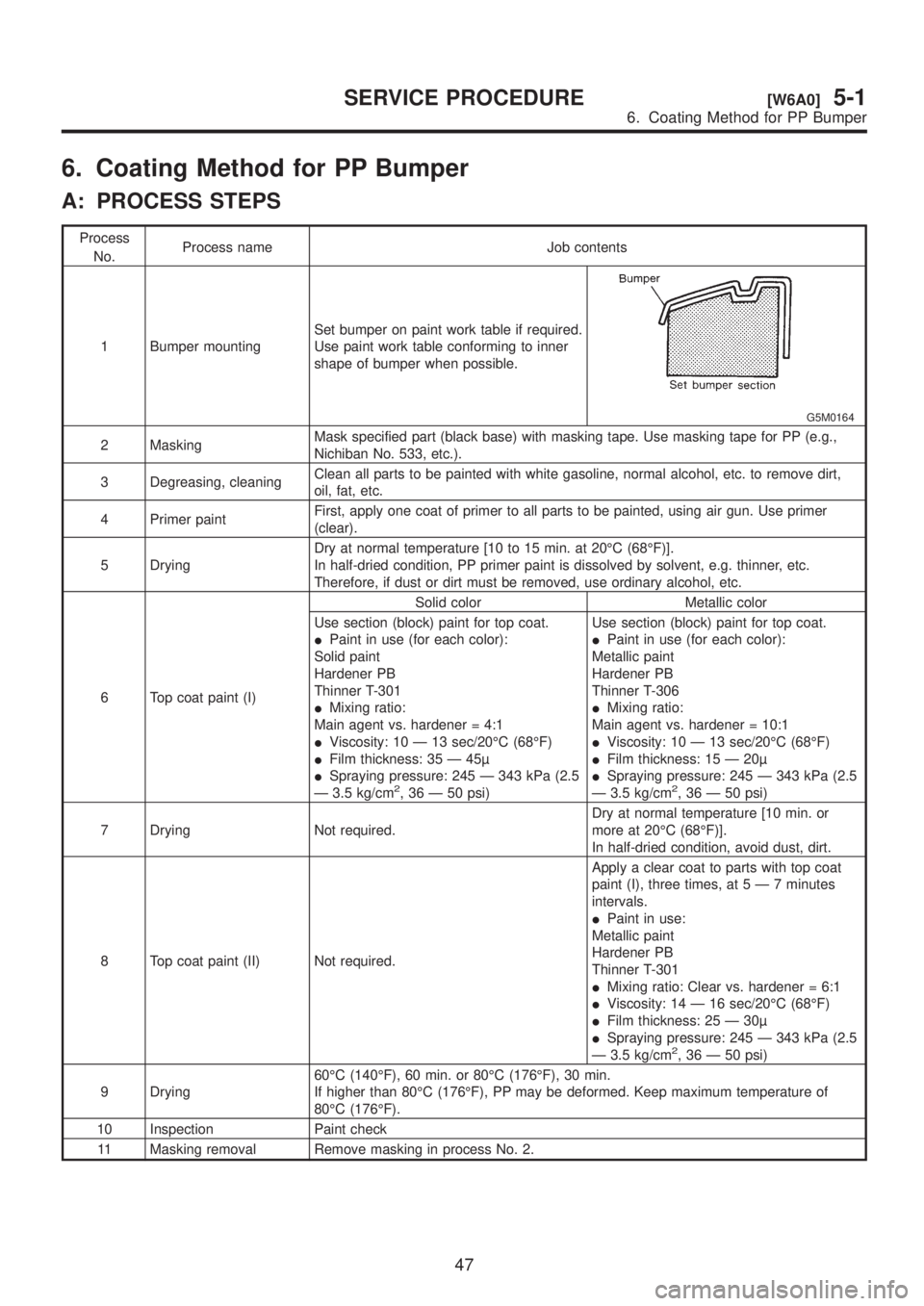

6. Coating Method for PP Bumper
A: PROCESS STEPS
Process
No.Process name Job contents
1 Bumper mountingSet bumper on paint work table if required.
Use paint work table conforming to inner
shape of bumper when possible.
G5M0164
2 MaskingMask specified part (black base) with masking tape. Use masking tape for PP (e.g.,
Nichiban No. 533, etc.).
3 Degreasing, cleaningClean all parts to be painted with white gasoline, normal alcohol, etc. to remove dirt,
oil, fat, etc.
4 Primer paintFirst, apply one coat of primer to all parts to be painted, using air gun. Use primer
(clear).
5 DryingDry at normal temperature [10 to 15 min. at 20ÉC (68ÉF)].
In half-dried condition, PP primer paint is dissolved by solvent, e.g. thinner, etc.
Therefore, if dust or dirt must be removed, use ordinary alcohol, etc.
6 Top coat paint (I)Solid color Metallic color
Use section (block) paint for top coat.
IPaint in use (for each color):
Solid paint
Hardener PB
Thinner T-301
IMixing ratio:
Main agent vs. hardener = 4:1
IViscosity: 10 Ð 13 sec/20ÉC (68ÉF)
IFilm thickness: 35 Ð 45
ISpraying pressure: 245 Ð 343 kPa (2.5
Ð 3.5 kg/cm
2, 36 Ð 50 psi)Use section (block) paint for top coat.
IPaint in use (for each color):
Metallic paint
Hardener PB
Thinner T-306
IMixing ratio:
Main agent vs. hardener = 10:1
IViscosity: 10 Ð 13 sec/20ÉC (68ÉF)
IFilm thickness: 15 Ð 20
ISpraying pressure: 245 Ð 343 kPa (2.5
Ð 3.5 kg/cm2, 36 Ð 50 psi)
7 Drying Not required.Dry at normal temperature [10 min. or
more at 20ÉC (68ÉF)].
In half-dried condition, avoid dust, dirt.
8 Top coat paint (II) Not required.Apply a clear coat to parts with top coat
paint (I), three times, at5Ð7minutes
intervals.
IPaint in use:
Metallic paint
Hardener PB
Thinner T-301
IMixing ratio: Clear vs. hardener = 6:1
IViscosity: 14 Ð 16 sec/20ÉC (68ÉF)
IFilm thickness: 25 Ð 30
ISpraying pressure: 245 Ð 343 kPa (2.5
Ð 3.5 kg/cm
2, 36 Ð 50 psi)
9 Drying60ÉC (140ÉF), 60 min. or 80ÉC (176ÉF), 30 min.
If higher than 80ÉC (176ÉF), PP may be deformed. Keep maximum temperature of
80ÉC (176ÉF).
10 Inspection Paint check
11 Masking removal Remove masking in process No. 2.
47
[W6A0]5-1SERVICE PROCEDURE
6. Coating Method for PP Bumper

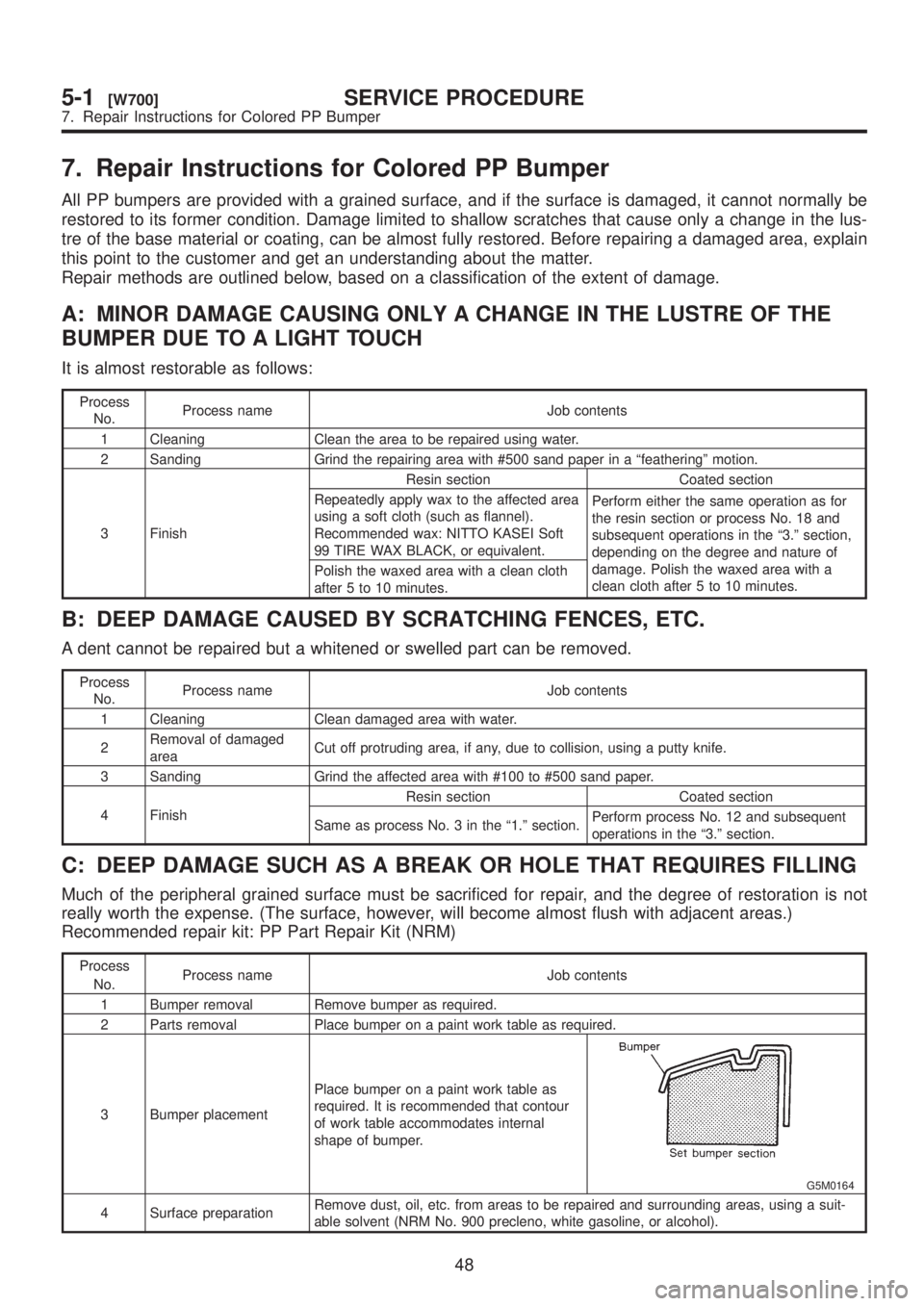

7. Repair Instructions for Colored PP Bumper
All PP bumpers are provided with a grained surface, and if the surface is damaged, it cannot normally be
restored to its former condition. Damage limited to shallow scratches that cause only a change in the lus-
tre of the base material or coating, can be almost fully restored. Before repairing a damaged area, explain
this point to the customer and get an understanding about the matter.
Repair methods are outlined below, based on a classification of the extent of damage.
A: MINOR DAMAGE CAUSING ONLY A CHANGE IN THE LUSTRE OF THE
BUMPER DUE TO A LIGHT TOUCH
It is almost restorable as follows:
Process
No.Process name Job contents
1 Cleaning Clean the area to be repaired using water.
2 Sanding Grind the repairing area with #500 sand paper in a ªfeatheringº motion.
3 FinishResin section Coated section
Repeatedly apply wax to the affected area
using a soft cloth (such as flannel).
Recommended wax: NITTO KASEI Soft
99 TIRE WAX BLACK, or equivalent.Perform either the same operation as for
the resin section or process No. 18 and
subsequent operations in the ª3.º section,
depending on the degree and nature of
damage. Polish the waxed area with a
clean cloth after 5 to 10 minutes. Polish the waxed area with a clean cloth
after 5 to 10 minutes.
B: DEEP DAMAGE CAUSED BY SCRATCHING FENCES, ETC.
A dent cannot be repaired but a whitened or swelled part can be removed.
Process
No.Process name Job contents
1 Cleaning Clean damaged area with water.
2Removal of damaged
areaCut off protruding area, if any, due to collision, using a putty knife.
3 Sanding Grind the affected area with #100 to #500 sand paper.
4 FinishResin section Coated section
Same as process No. 3 in the ª1.º section.Perform process No. 12 and subsequent
operations in the ª3.º section.
C: DEEP DAMAGE SUCH AS A BREAK OR HOLE THAT REQUIRES FILLING
Much of the peripheral grained surface must be sacrificed for repair, and the degree of restoration is not
really worth the expense. (The surface, however, will become almost flush with adjacent areas.)
Recommended repair kit: PP Part Repair Kit (NRM)
Process
No.Process name Job contents
1 Bumper removal Remove bumper as required.
2 Parts removal Place bumper on a paint work table as required.
3 Bumper placementPlace bumper on a paint work table as
required. It is recommended that contour
of work table accommodates internal
shape of bumper.
G5M0164
4 Surface preparationRemove dust, oil, etc. from areas to be repaired and surrounding areas, using a suit-
able solvent (NRM No. 900 precleno, white gasoline, or alcohol).
48
5-1[W700]SERVICE PROCEDURE
7. Repair Instructions for Colored PP Bumper

Process
No.Process name Job contents

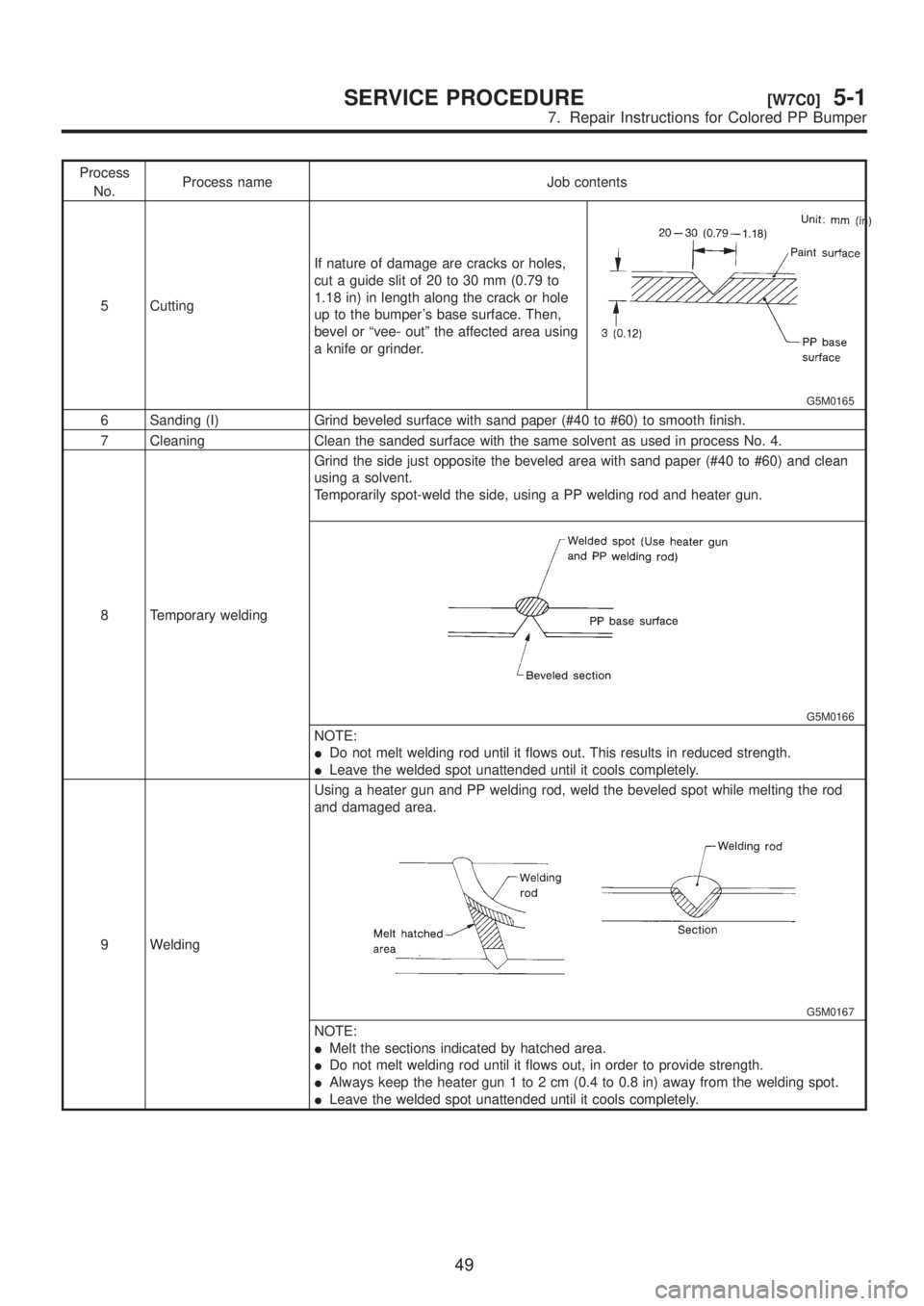

5 CuttingIf nature of damage are cracks or holes,
cut a guide slit of 20 to 30 mm (0.79 to
1.18 in) in length along the crack or hole
up to the bumper's base surface. Then,
bevel or ªvee- outº the affected area using
a knife or grinder.
G5M0165
6 Sanding (I) Grind beveled surface with sand paper (#40 to #60) to smooth finish.
7 Cleaning Clean the sanded surface with the same solvent as used in process No. 4.
8 Temporary weldingGrind the side just opposite the beveled area with sand paper (#40 to #60) and clean
using a solvent.
Temporarily spot-weld the side, using a PP welding rod and heater gun.
G5M0166
NOTE:
IDo not melt welding rod until it flows out. This results in reduced strength.
ILeave the welded spot unattended until it cools completely.
9 WeldingUsing a heater gun and PP welding rod, weld the beveled spot while melting the rod
and damaged area.
G5M0167
NOTE:
IMelt the sections indicated by hatched area.
IDo not melt welding rod until it flows out, in order to provide strength.
IAlways keep the heater gun 1 to 2 cm (0.4 to 0.8 in) away from the welding spot.
ILeave the welded spot unattended until it cools completely.
49
[W7C0]5-1SERVICE PROCEDURE
7. Repair Instructions for Colored PP Bumper

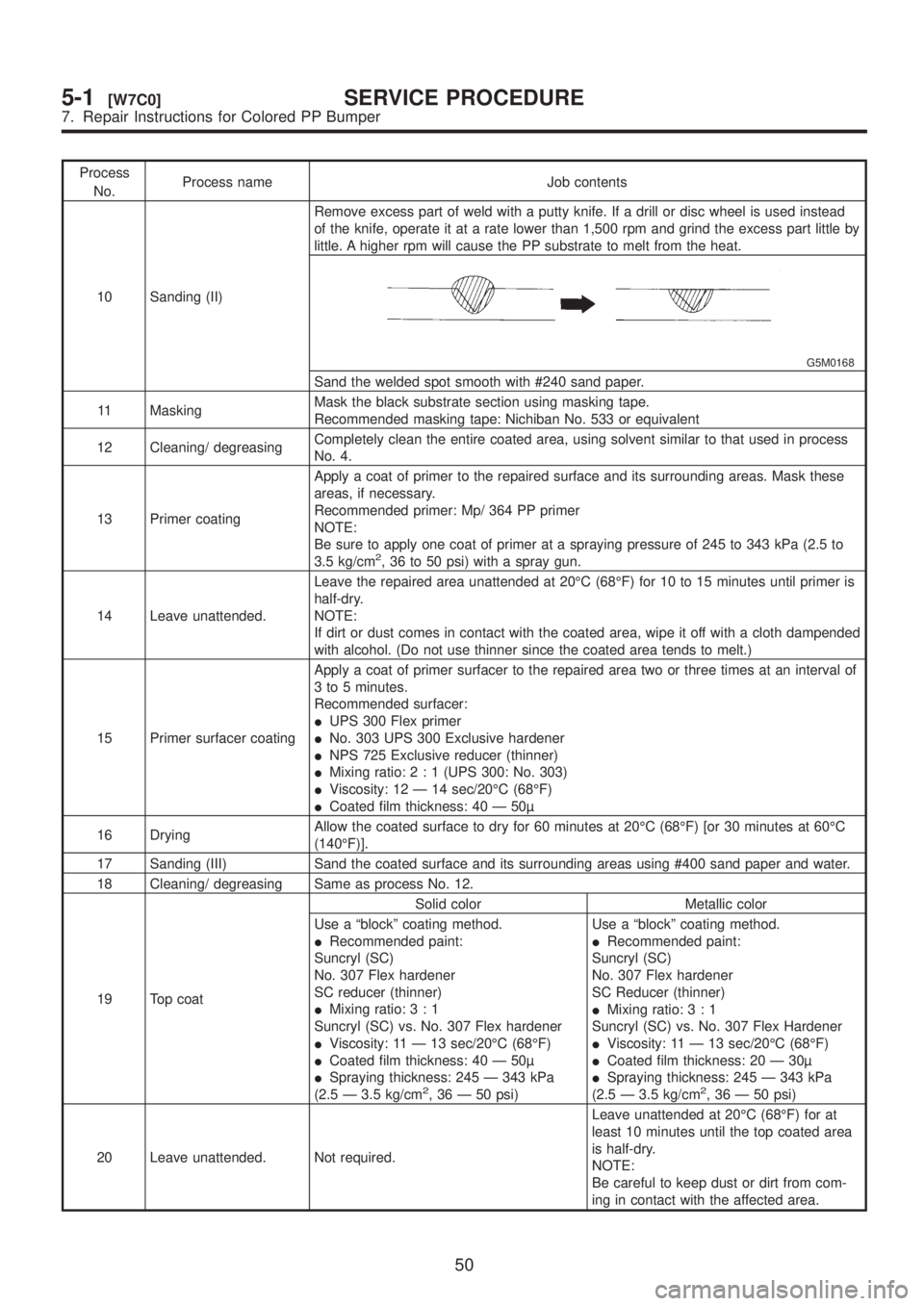

Process
No.Process name Job contents
10 Sanding (II)Remove excess part of weld with a putty knife. If a drill or disc wheel is used instead
of the knife, operate it at a rate lower than 1,500 rpm and grind the excess part little by
little. A higher rpm will cause the PP substrate to melt from the heat.
G5M0168
Sand the welded spot smooth with #240 sand paper.
11 MaskingMask the black substrate section using masking tape.
Recommended masking tape: Nichiban No. 533 or equivalent
12 Cleaning/ degreasingCompletely clean the entire coated area, using solvent similar to that used in process
No. 4.
13 Primer coatingApply a coat of primer to the repaired surface and its surrounding areas. Mask these
areas, if necessary.
Recommended primer: Mp/ 364 PP primer
NOTE:
Be sure to apply one coat of primer at a spraying pressure of 245 to 343 kPa (2.5 to
3.5 kg/cm
2, 36 to 50 psi) with a spray gun.
14 Leave unattended.Leave the repaired area unattended at 20ÉC (68ÉF) for 10 to 15 minutes until primer is
half-dry.
NOTE:
If dirt or dust comes in contact with the coated area, wipe it off with a cloth dampended
with alcohol. (Do not use thinner since the coated area tends to melt.)
15 Primer surfacer coatingApply a coat of primer surfacer to the repaired area two or three times at an interval of
3 to 5 minutes.
Recommended surfacer:
IUPS 300 Flex primer
INo. 303 UPS 300 Exclusive hardener
INPS 725 Exclusive reducer (thinner)
IMixing ratio:2:1(UPS 300: No. 303)
IViscosity: 12 Ð 14 sec/20ÉC (68ÉF)
ICoated film thickness: 40 Ð 50
16 DryingAllow the coated surface to dry for 60 minutes at 20ÉC (68ÉF) [or 30 minutes at 60ÉC
(140ÉF)].
17 Sanding (III) Sand the coated surface and its surrounding areas using #400 sand paper and water.
18 Cleaning/ degreasing Same as process No. 12.
19 Top coatSolid color Metallic color
Use a ªblockº coating method.
IRecommended paint:
Suncryl (SC)
No. 307 Flex hardener
SC reducer (thinner)
IMixing ratio:3:1
Suncryl (SC) vs. No. 307 Flex hardener
IViscosity: 11 Ð 13 sec/20ÉC (68ÉF)
ICoated film thickness: 40 Ð 50
ISpraying thickness: 245 Ð 343 kPa
(2.5 Ð 3.5 kg/cm
2, 36 Ð 50 psi)Use a ªblockº coating method.
IRecommended paint:
Suncryl (SC)
No. 307 Flex hardener
SC Reducer (thinner)
IMixing ratio:3:1
Suncryl (SC) vs. No. 307 Flex Hardener
IViscosity: 11 Ð 13 sec/20ÉC (68ÉF)
ICoated film thickness: 20 Ð 30
ISpraying thickness: 245 Ð 343 kPa
(2.5 Ð 3.5 kg/cm2, 36 Ð 50 psi)
20 Leave unattended. Not required.Leave unattended at 20ÉC (68ÉF) for at
least 10 minutes until the top coated area
is half-dry.
NOTE:
Be careful to keep dust or dirt from com-
ing in contact with the affected area.
50
5-1[W7C0]SERVICE PROCEDURE
7. Repair Instructions for Colored PP Bumper

Process
No.Process name Job contents
21 Top coat (II) Not required.Apply a clear coat three times at an inter-
val of 3 to 5 minutes.
IRecommended paint:
Suncryl (SC)
No. 307 Flex hardener
SC Reducer (thinner)
IMixing ratio:3:1
Suncryl (SC) vs. No. 307 Flex Hardener
IViscosity: 11 Ð 13 sec/20ÉC (68ÉF)
ICoated film thickness: 20 Ð 30
ISpraying thickness: 245 Ð 343 kPa
(2.5 Ð 3.5 kg/cm
2, 36 Ð 50 psi)
22 DryingAllow the coated surface to dry at 20ÉC (68ÉF) for two hours or 60ÉC (140ÉF) for 30
minutes.
NOTE:
Do not allow the temperature to exceed 80ÉC (176ÉF) since this will deform the PP
substrate.
23 Inspection Carefully check the condition of the repaired area.
24 Masking removal Remove masking tape applied in process No. 11 and 13.
25 Parts installation Install parts on bumper in reverse order of removal.
26 Bumper installation Install bumper.
51
[W7C0]5-1SERVICE PROCEDURE
7. Repair Instructions for Colored PP Bumper

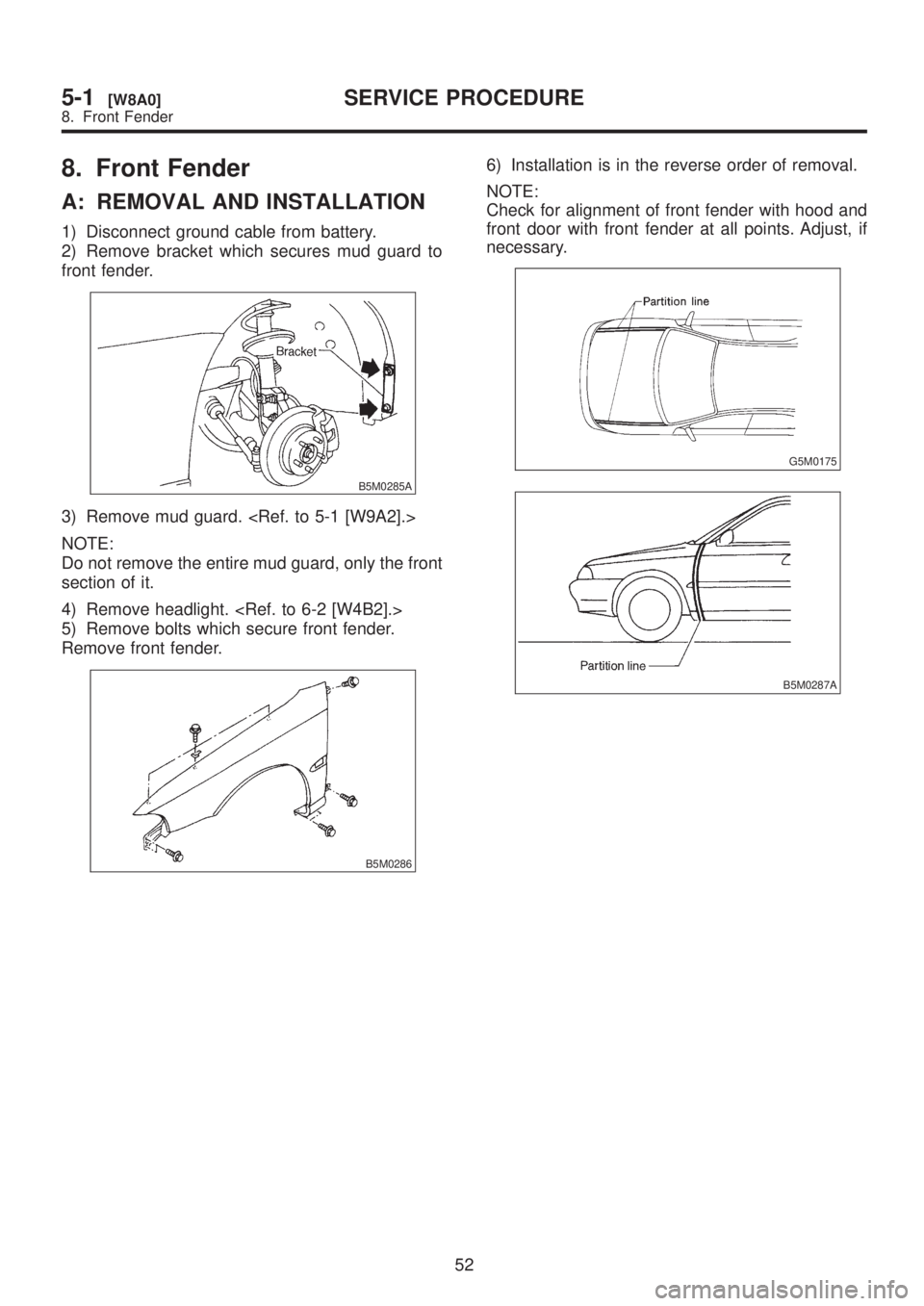

8. Front Fender
A: REMOVAL AND INSTALLATION
1) Disconnect ground cable from battery.
2) Remove bracket which secures mud guard to
front fender.
B5M0285A
3) Remove mud guard.
NOTE:
Do not remove the entire mud guard, only the front
section of it.
4) Remove headlight.
5) Remove bolts which secure front fender.
Remove front fender.
B5M0286
6) Installation is in the reverse order of removal.
NOTE:
Check for alignment of front fender with hood and
front door with front fender at all points. Adjust, if
necessary.
G5M0175
B5M0287A
52
5-1[W8A0]SERVICE PROCEDURE
8. Front Fender

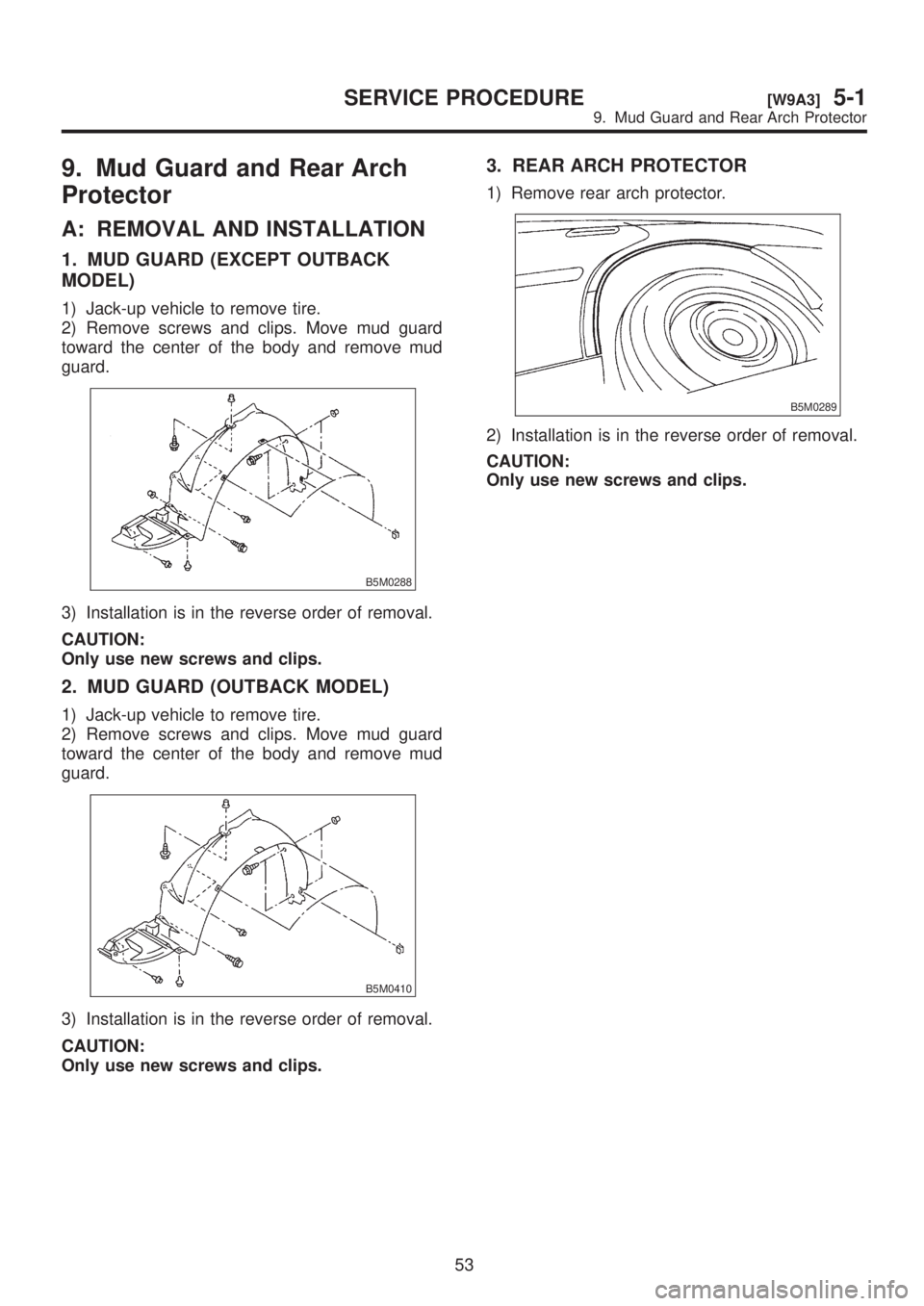

9. Mud Guard and Rear Arch
Protector
A: REMOVAL AND INSTALLATION
1. MUD GUARD (EXCEPT OUTBACK
MODEL)
1) Jack-up vehicle to remove tire.
2) Remove screws and clips. Move mud guard
toward the center of the body and remove mud
guard.
B5M0288
3) Installation is in the reverse order of removal.
CAUTION:
Only use new screws and clips.
2. MUD GUARD (OUTBACK MODEL)
1) Jack-up vehicle to remove tire.
2) Remove screws and clips. Move mud guard
toward the center of the body and remove mud
guard.
B5M0410
3) Installation is in the reverse order of removal.
CAUTION:
Only use new screws and clips.
3. REAR ARCH PROTECTOR
1) Remove rear arch protector.
B5M0289
2) Installation is in the reverse order of removal.
CAUTION:
Only use new screws and clips.
53
[W9A3]5-1SERVICE PROCEDURE
9. Mud Guard and Rear Arch Protector

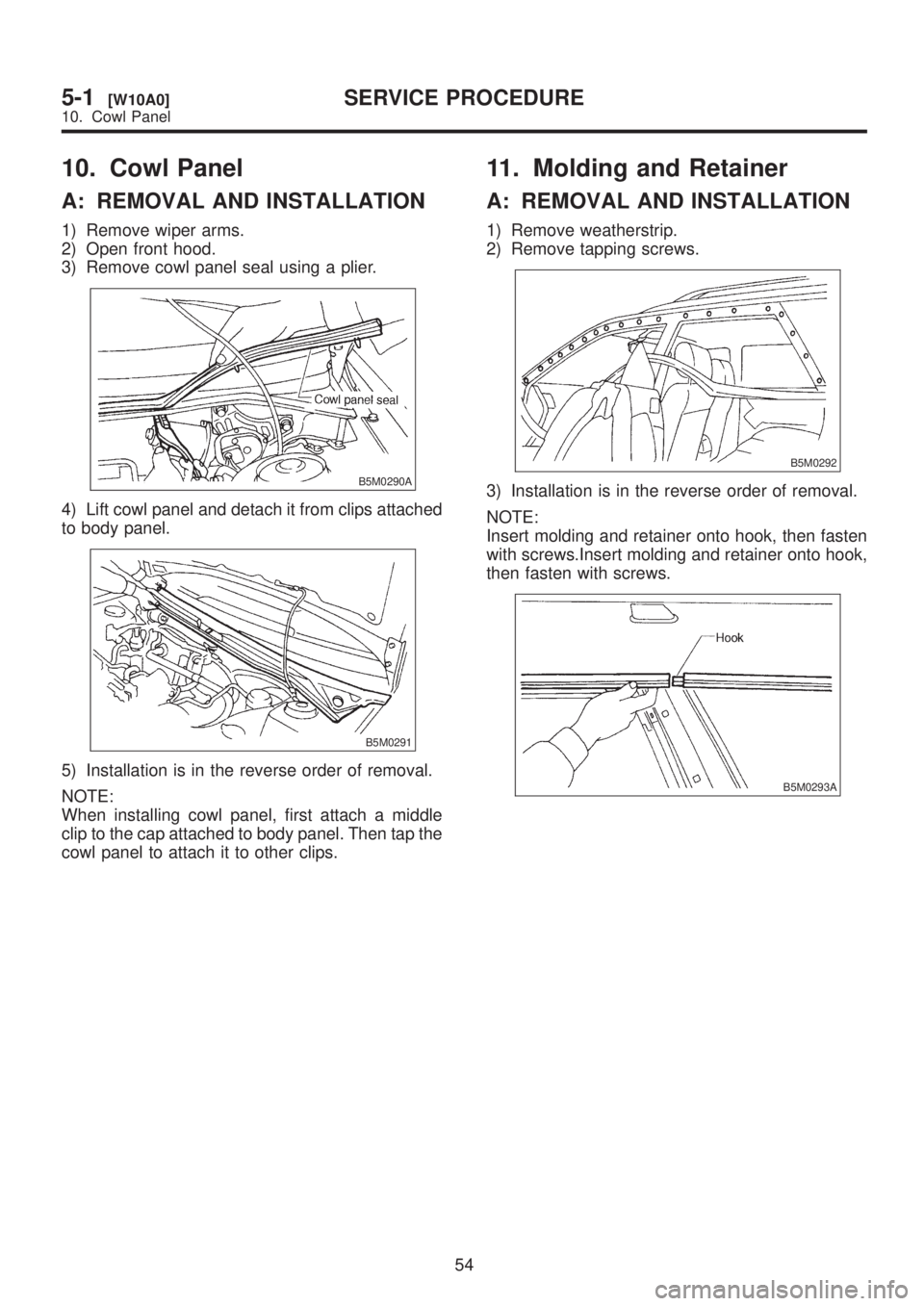

10. Cowl Panel
A: REMOVAL AND INSTALLATION
1) Remove wiper arms.
2) Open front hood.
3) Remove cowl panel seal using a plier.
B5M0290A
4) Lift cowl panel and detach it from clips attached
to body panel.
B5M0291
5) Installation is in the reverse order of removal.
NOTE:
When installing cowl panel, first attach a middle
clip to the cap attached to body panel. Then tap the
cowl panel to attach it to other clips.
11. Molding and Retainer
A: REMOVAL AND INSTALLATION
1) Remove weatherstrip.
2) Remove tapping screws.
B5M0292
3) Installation is in the reverse order of removal.
NOTE:
Insert molding and retainer onto hook, then fasten
with screws.Insert molding and retainer onto hook,
then fasten with screws.
B5M0293A
54
5-1[W10A0]SERVICE PROCEDURE
10. Cowl Panel

10. Cowl Panel
A: REMOVAL AND INSTALLATION
1) Remove wiper arms.
2) Open front hood.
3) Remove cowl panel seal using a plier.
B5M0290A
4) Lift cowl panel and detach it from clips attached
to body panel.
B5M0291
5) Installation is in the reverse order of removal.
NOTE:
When installing cowl panel, first attach a middle
clip to the cap attached to body panel. Then tap the
cowl panel to attach it to other clips.
11. Molding and Retainer
A: REMOVAL AND INSTALLATION
1) Remove weatherstrip.
2) Remove tapping screws.
B5M0292
3) Installation is in the reverse order of removal.
NOTE:
Insert molding and retainer onto hook, then fasten
with screws.Insert molding and retainer onto hook,
then fasten with screws.
B5M0293A
54
5-1[W10A0]SERVICE PROCEDURE
10. Cowl Panel

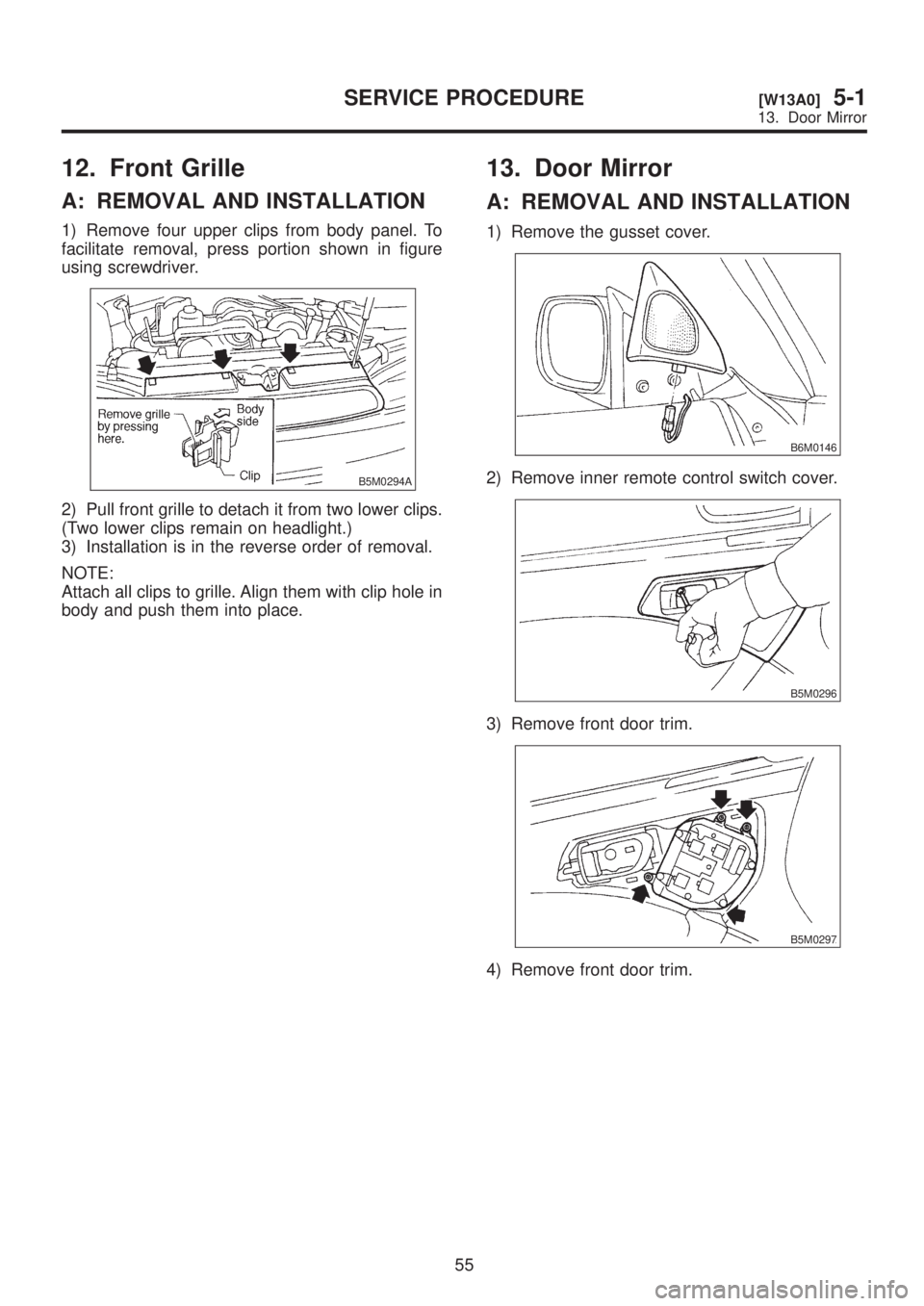

12. Front Grille
A: REMOVAL AND INSTALLATION
1) Remove four upper clips from body panel. To
facilitate removal, press portion shown in figure
using screwdriver.
B5M0294A
2) Pull front grille to detach it from two lower clips.
(Two lower clips remain on headlight.)
3) Installation is in the reverse order of removal.
NOTE:
Attach all clips to grille. Align them with clip hole in
body and push them into place.
13. Door Mirror
A: REMOVAL AND INSTALLATION
1) Remove the gusset cover.
B6M0146
2) Remove inner remote control switch cover.
B5M0296
3) Remove front door trim.
B5M0297
4) Remove front door trim.
55
[W13A0]5-1SERVICE PROCEDURE
13. Door Mirror
