16
Menu Screen Keys and FunctionsThe table below shows the keys displayed on the navigation menu (NAV. MENU) screen, the functions
accessible by selecting these keys, and the pages of this manual that describe the instructions you should
follow when using these functions.
Press button or select
to display the menu screen.Select to return to the
current map screen.

17
Menu Screen Keys and Functions
Menu screen key Function Reference
page
Destination EntryAddress page 26
Point of Interest page 32Select from Map page 35Emergency page 38Memory Point page 29Previous Destination page 34Intersection page 42Freeway Ent/Exit page 36Phone Number page 44Coordinates page 40
Stored LocationsMemory Points page 89
Avoid Area page 97Dest. & Way Pt. page 57Home page 100Previous Dest. page 102Preset Dests. page 104
VolumeVolume page 12
Navigation Set UpUser Settings page 71
Quick POI Selection page 74Language Selection page 76Navigation Information page 77Calibration page 79Set Clock page 82Restore System Defaults page 84
Route OptionsSearch Condition page 54
Detour page 55Route Pref. page 56Dest. & Way Pt. page 57Display Route page 65
Route Preview page 66

18

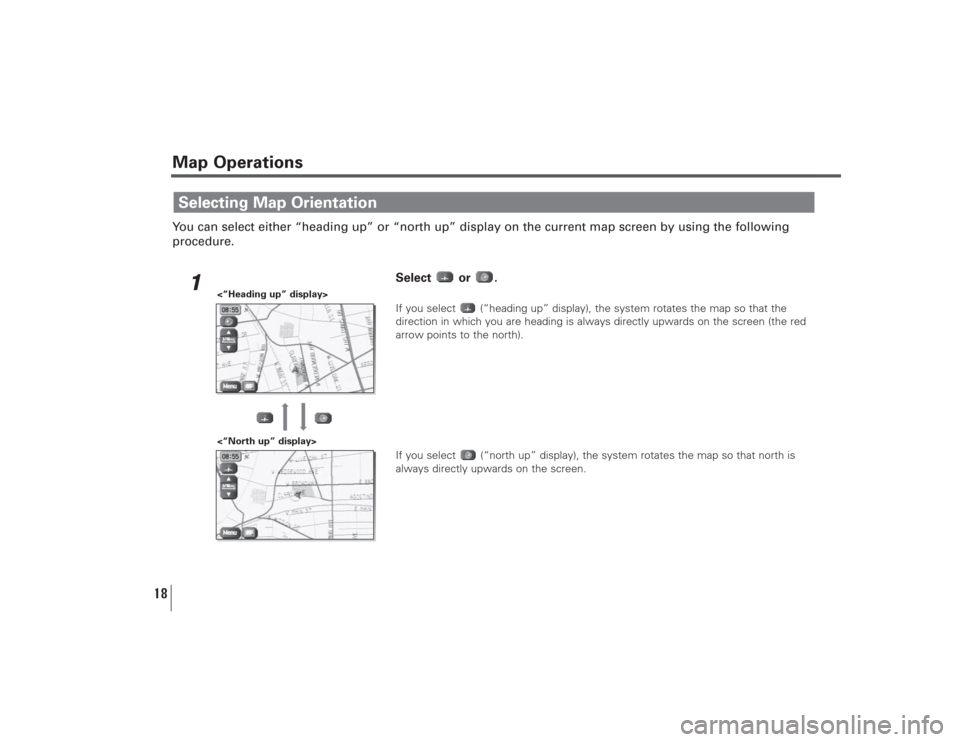

Map OperationsYou can select either “heading up” or “north up” display on the current map screen by using the following
procedure.
1
Select or .If you select (“heading up” display), the system rotates the map so that the
direction in which you are heading is always directly upwards on the screen (the red
arrow points to the north).
If you select (“north up” display), the system rotates the map so that north is
always directly upwards on the screen.
Selecting Map Orientation
<“North up” display> <“Heading up” display>

20
Map Operations

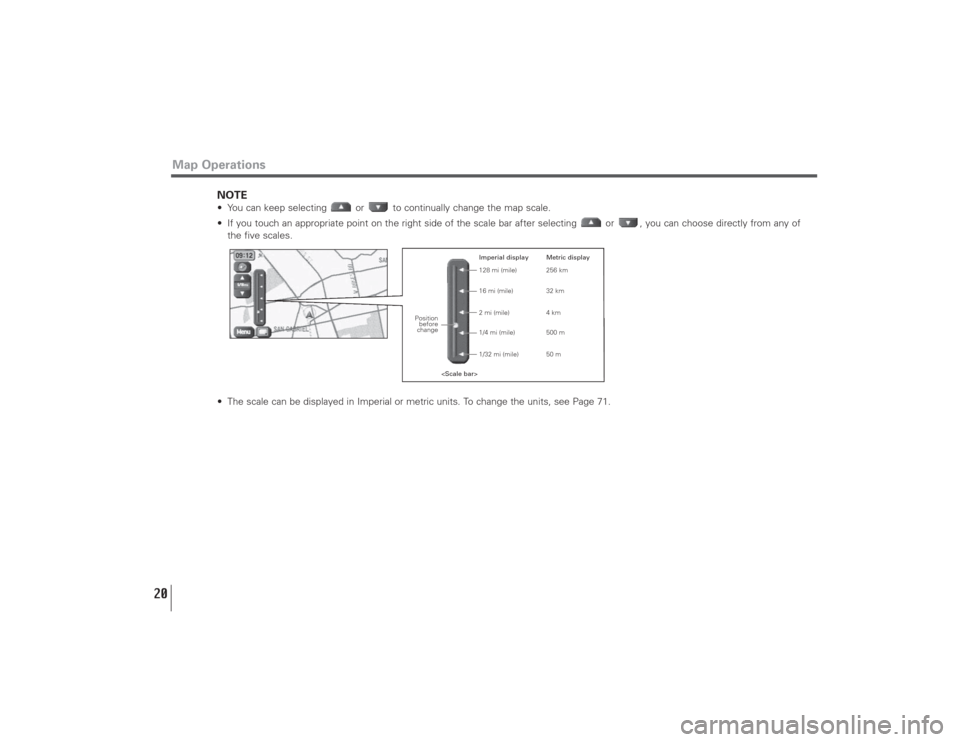

NOTE• You can keep selecting or to continually change the map scale.
• If you touch an appropriate point on the right side of the scale bar after selecting or , you can choose directly from any of
the five scales.
• The scale can be displayed in Imperial or metric units. To change the units, see Page 71.
Imperial display
128 mi (mile)
16 mi (mile)
2 mi (mile)
1/4 mi (mile)
1/32 mi (mile)Metric display
256 km
32 km
4 km
500 m
50 m
Position
before
change

22
Setting Route

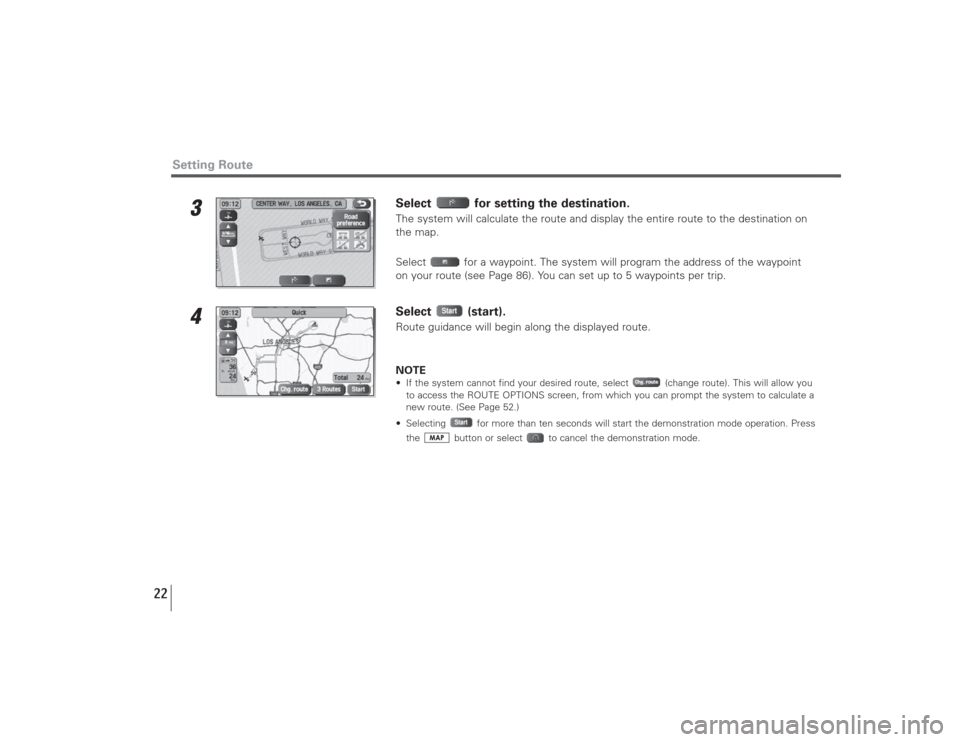

3
Select for setting the destination. The system will calculate the route and display the entire route to the destination on
the map.
Select for a waypoint. The system will program the address of the waypoint
on your route (see Page 86). You can set up to 5 waypoints per trip.
4
Select (start). Route guidance will begin along the displayed route.
NOTE• If the system cannot find your desired route, select (change route). This will allow you
to access the ROUTE OPTIONS screen, from which you can prompt the system to calculate a
new route. (See Page 52.)
• Selecting for more than ten seconds will start the demonstration mode operation. Press
the button or select to cancel the demonstration mode.

23

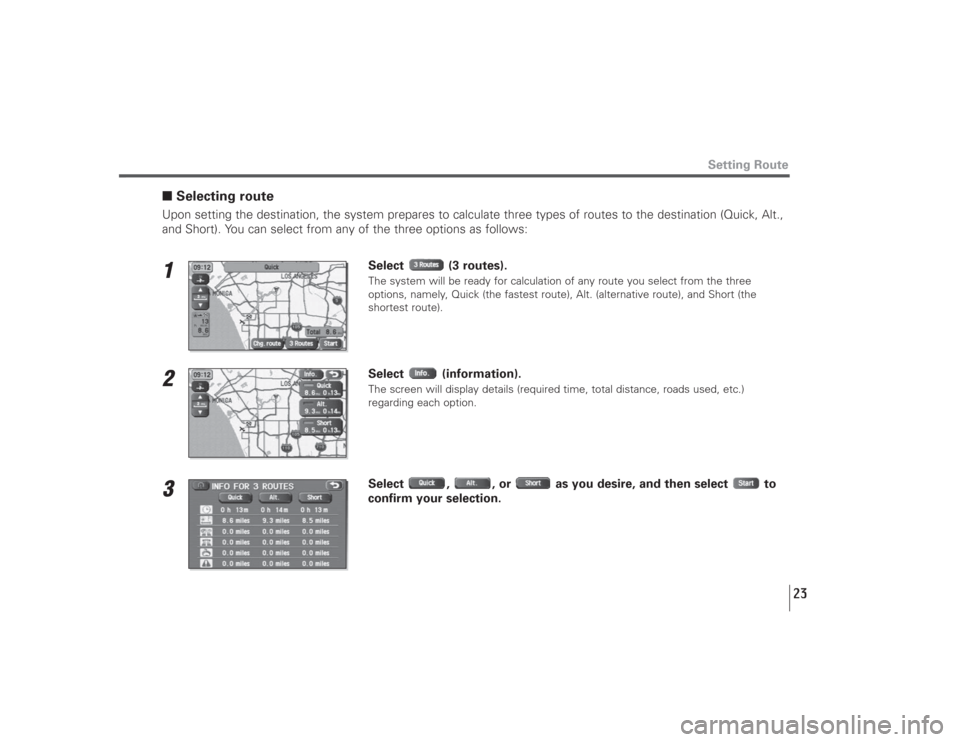

■Selecting routeUpon setting the destination, the system prepares to calculate three types of routes to the destination (Quick, Alt.,
and Short). You can select from any of the three options as follows:1
Select (3 routes).The system will be ready for calculation of any route you select from the three
options, namely, Quick (the fastest route), Alt. (alternative route), and Short (the
shortest route).
2
Select (information).The screen will display details (required time, total distance, roads used, etc.)
regarding each option.
3
Select , , or as you desire, and then select to
confirm your selection.
Setting Route

25
3

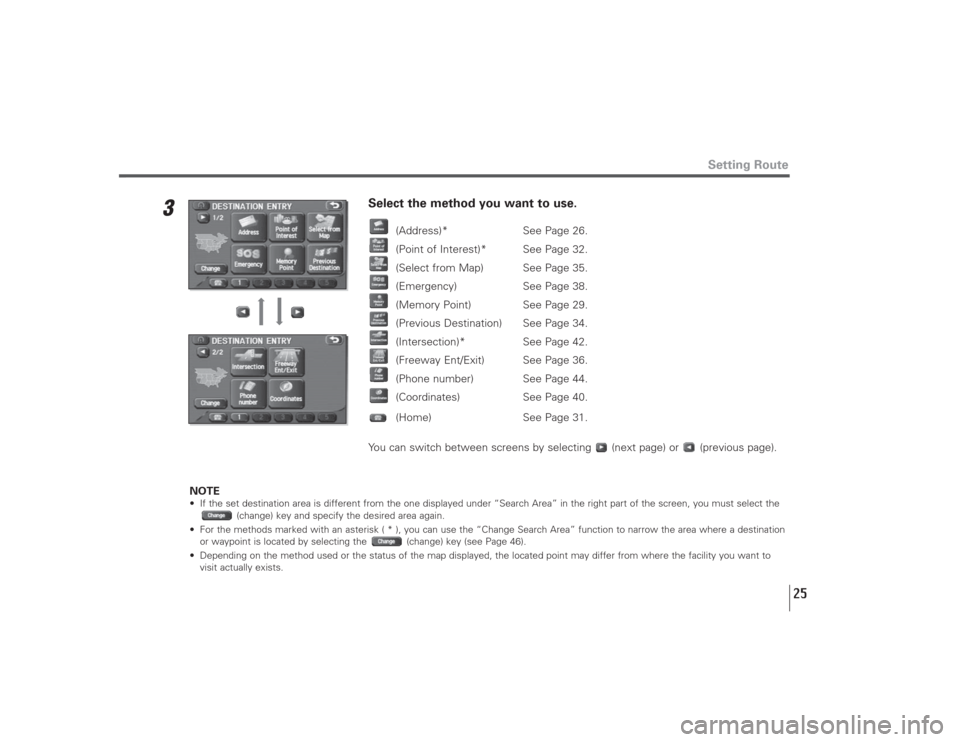

Select the method you want to use.
(Address)* See Page 26.
(Point of Interest)* See Page 32.
(Select from Map) See Page 35.
(Emergency) See Page 38.
(Memory Point) See Page 29.
(Previous Destination) See Page 34.
(Intersection)* See Page 42.
(Freeway Ent/Exit) See Page 36.
(Phone number) See Page 44.
(Coordinates) See Page 40.
(Home) See Page 31.
You can switch between screens by selecting (next page) or (previous page).
NOTE
• If the set destination area is different from the one displayed under “Search Area” in the right part of the screen, you must select the
(change) key and specify the desired area again.
• For the methods marked with an asterisk ( * ), you can use the “Change Search Area” function to narrow the area where a destination
or waypoint is located by selecting the (change) key (see Page 46).
• Depending on the method used or the status of the map displayed, the located point may differ from where the facility you want to
visit actually exists.
Setting Route

26
Setting Route
■“Address” method1
Enter a house number using the keypad on the house number input
screen and select .
2
Enter the street name.If you enter enough letters to identify a street name and advance to Step 3, a list
showing several street names will be displayed. Select the desired street name from
the list.
:Use this key to delete the last character entered. Select it repeatedly if you
want to delete all the characters entered.
You can switch between keypad screens showing different characters by selecting
(others), (symbols) or (alphabet).
First, choose either of the two procedures below to follow the “address” method.
• Press the button or select , select (destination entry), and then select (address).
• Press the button and select (address).

28
Setting Route

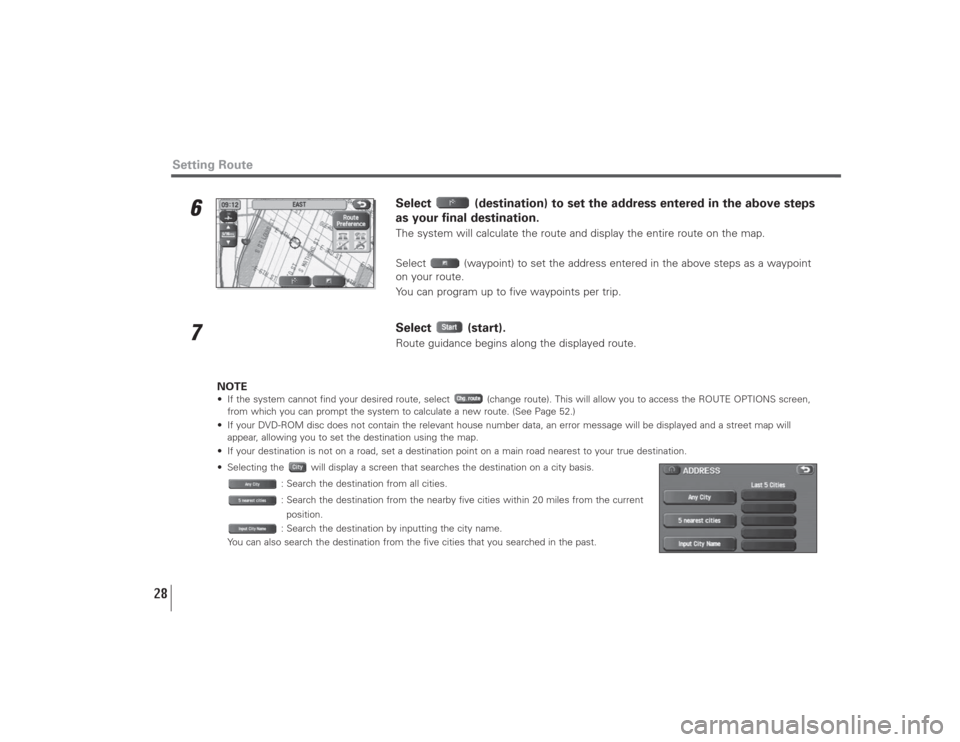

6
Select (destination) to set the address entered in the above steps
as your final destination.The system will calculate the route and display the entire route on the map.
Select (waypoint) to set the address entered in the above steps as a waypoint
on your route.
You can program up to five waypoints per trip.
7
Select (start).Route guidance begins along the displayed route.
NOTE
• If the system cannot find your desired route, select (change route). This will allow you to access the ROUTE OPTIONS screen,
from which you can prompt the system to calculate a new route. (See Page 52.)
• If your DVD-ROM disc does not contain the relevant house number data, an error message will be displayed and a street map will
appear, allowing you to set the destination using the map.
• If your destination is not on a road, set a destination point on a main road nearest to your true destination.
• Selecting the will display a screen that searches the destination on a city basis.
: Search the destination from all cities.
: Search the destination from the nearby five cities within 20 miles from the current
position.
: Search the destination by inputting the city name.
You can also search the destination from the five cities that you searched in the past.

29

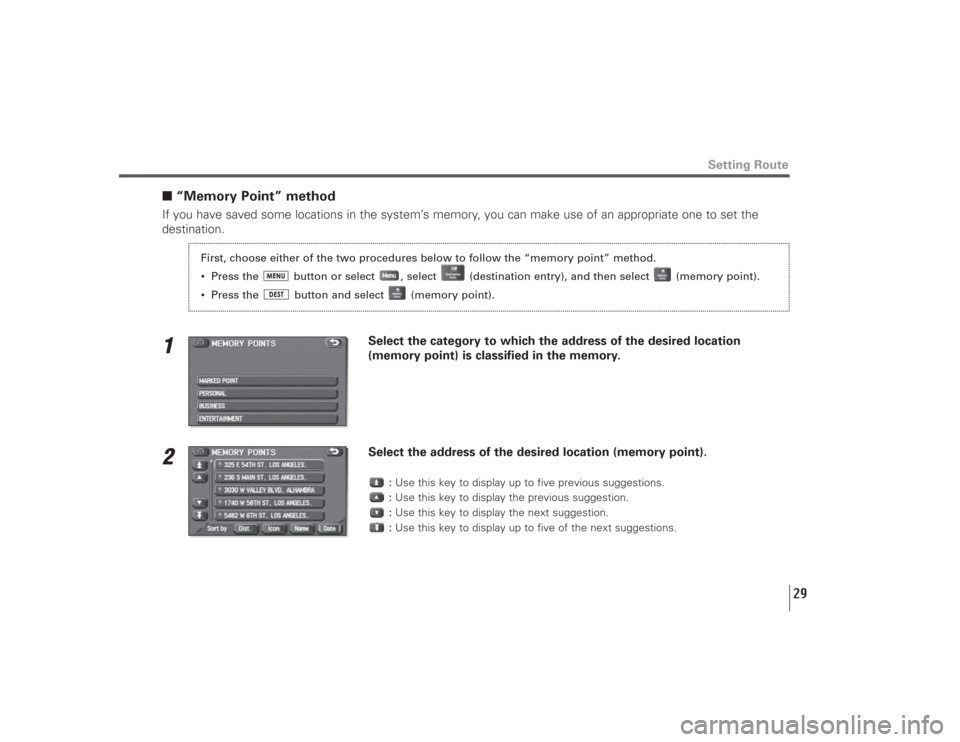

■“Memory Point” methodIf you have saved some locations in the system’s memory, you can make use of an appropriate one to set the
destination.1
Select the category to which the address of the desired location
(memory point) is classified in the memory.
2
Select the address of the desired location (memory point).
:Use this key to display up to five previous suggestions.
:Use this key to display the previous suggestion.
:Use this key to display the next suggestion.
:Use this key to display up to five of the next suggestions.
Setting Route
First, choose either of the two procedures below to follow the “memory point” method.
• Press the button or select , select (destination entry), and then select (memory point).
• Press the button and select (memory point).
