display SUBARU LEGACY 2008 4.G Navigation Manual

65
Route Options

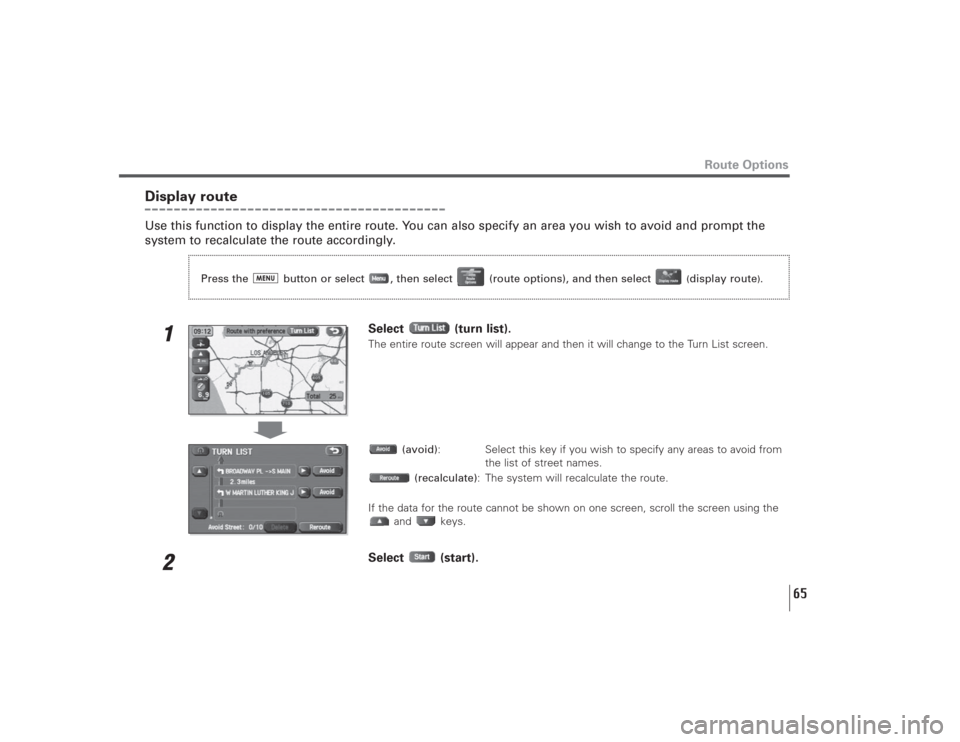

Display routeUse this function to display the entire route. You can also specify an area you wish to avoid and prompt the
system to recalculate the route accordingly.
1
Select (turn list).The entire route screen will appear and then it will change to the Turn List screen.
(avoid): Select this key if you wish to specify any areas to avoid from
the list of street names.
(recalculate): The system will recalculate the route.
If the data for the route cannot be shown on one screen, scroll the screen using the
and keys.
2
Select (start).
Press the button or select , then select (route options), and then select
(display route
).

66
Route previewThe system can show you an automated simulation of the calculated route.
1
Start the simulation drive according to the calculated route using the
keys on the screen as follows:
: Move to the start point.
: The simulation drive will start toward the start point. After the start, this key will
be displayed as , and when it is selected, the simulation drive will switch to
high-speed driving.
: The simulation drive will stop.
: The simulation drive will start toward the destination. After the start, this key
will be displayed as , and when it is selected, the simulation drive will
switch to high-speed driving.
: Move to the destination.
: The EDIT ROUTE PREVIEW screen will be displayed. (See page 67.)
NOTE
The visual speed of the simulation vehicle varies with the map scale selected. The speed appears to be faster with a wide-area map than
with a zoom-in map.
Route Options
Press the button or select , then select (route options), and then select
(route preview
).

67
Route Options

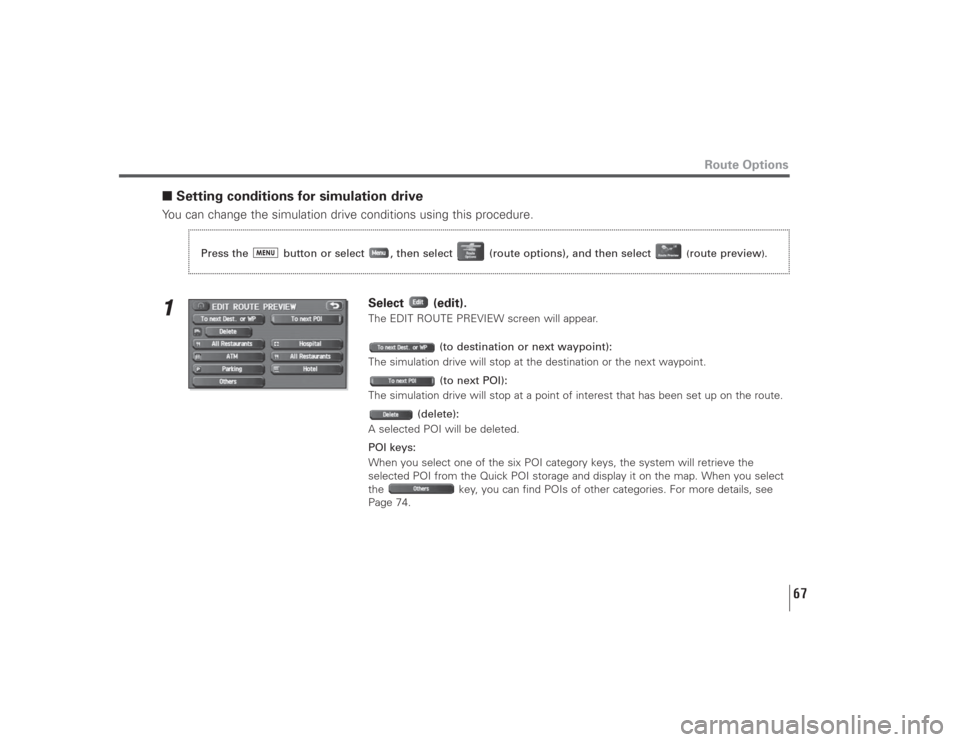

■Setting conditions for simulation driveYou can change the simulation drive conditions using this procedure.1
Select (edit).The EDIT ROUTE PREVIEW screen will appear.
(to destination or next waypoint):
The simulation drive will stop at the destination or the next waypoint.
(to next POI):
The simulation drive will stop at a point of interest that has been set up on the route.
(delete):
A selected POI will be deleted.
POI keys:
When you select one of the six POI category keys, the system will retrieve the
selected POI from the Quick POI storage and display it on the map. When you select
the key, you can find POIs of other categories. For more details, see
Page 74.
Press the button or select , then select (route options), and then select
(route preview
).

68
If, for example, the (restaurant) category key is selected and a
simulation drive is started, your simulation vehicle will then stop at a restaurant on
the route.
If you then select (information), the system will display information on the
restaurant.
NOTE
You must finish the simulation drive before you actually start to drive. Although the simulation drive will automatically stop when you
actually start to drive, not finishing it properly can lead to an error in the display of your vehicle’s current position.
Route Options

69

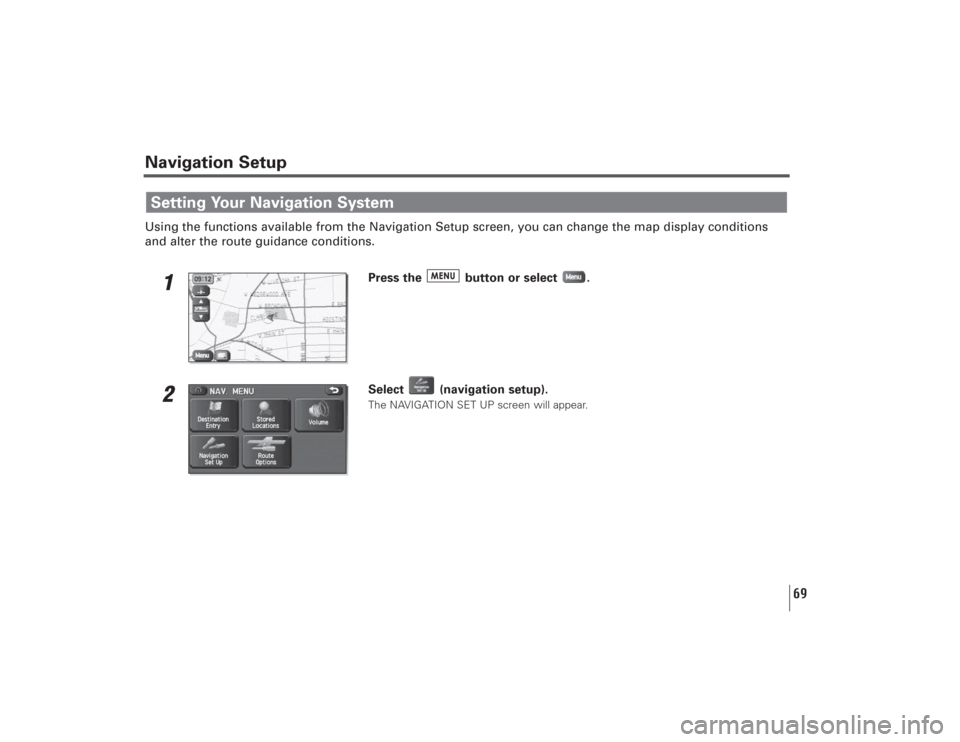

Navigation SetupUsing the functions available from the Navigation Setup screen, you can change the map display conditions
and alter the route guidance conditions.
1
Press the button or select .
2
Select (navigation setup).The NAVIGATION SET UP screen will appear.
Setting Your Navigation System

70
Select any of the displayed functions as necessary. This screen consists of two
pages. Change the page by using the or keys.
(user settings):
This function allows you to change the screen display and sound settings. (See Page
71.)
(quick POI selection):
This function allows you to set the point of interest categories that are displayed
when you select the menu from the current position screen. (See Page 74.)
(language selection):
This function allows you to change the language for the menu screens and the voice
guidance. (See Page 76.)
(navigation information):
This function allows you to confirm the vehicle signal, the version of the DVD-ROM
disc. (See Page 77.)
(calibration):
You can use this function to correct display errors in the vehicle’s position and
direction. (See Page 79.)
(set clock):
This function allows you to set the time. (See Page 82.)
(restore system defaults):
This function allows you to change the system’s current settings back to the default
settings (factory settings). (See Page 84.)
Navigation Setup

71
Navigation Setup

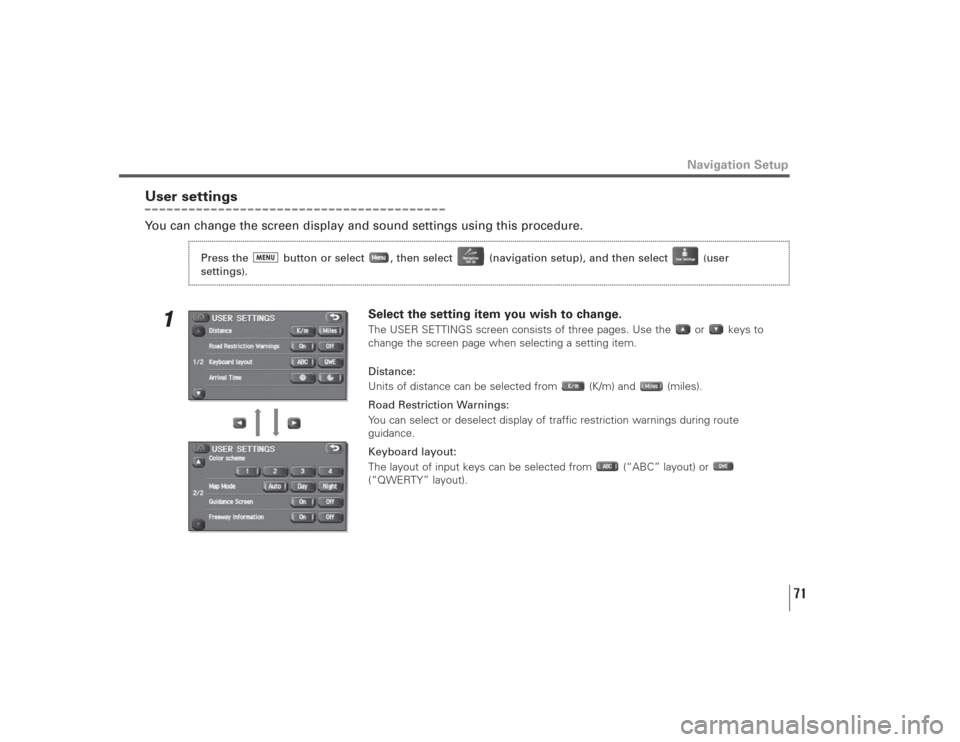

User settingsYou can change the screen display and sound settings using this procedure.
1
Select the setting item you wish to change.The USER SETTINGS screen consists of three pages. Use the or keys to
change the screen page when selecting a setting item.
Distance:
Units of distance can be selected from (K/m) and (miles).
Road Restriction Warnings:
You can select or deselect display of traffic restriction warnings during route
guidance.
Keyboard layout:
The layout of input keys can be selected from (“ABC” layout) or
(“QWERTY” layout).
Press the button or select , then select (navigation setup), and then select
(user
settings
).

72
Arrival Time:
Time of arrival at the destination or a waypoint can be displayed in two different
ways: estimated arrival time or remaining driving time. Select for the estimated
arrival time display or for the remaining time display.
Color scheme:
Select your preferred screen color from four options to .
Map Mode:
The map display mode can be set to any of the automatic, daytime, and nighttime
modes.
(automatic):The brightness of the display will automatically change to daytime
brightness and nighttime brightness when the headlights are
turned off and on, respectively.
(daytime):The brightness of the display is fixed at the daytime setting
regardless of whether the headlights are on or off.
(nighttime):The brightness of the display is fixed at the nighttime setting
regardless of whether the headlights are on or off.
Navigation Setup

73

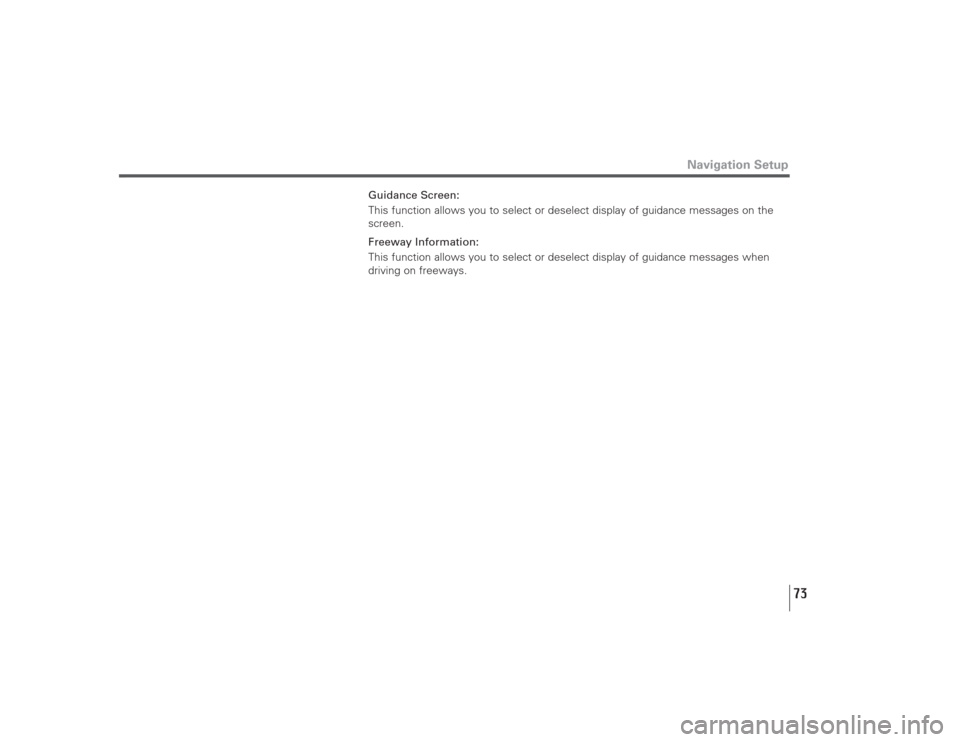

Guidance Screen:
This function allows you to select or deselect display of guidance messages on the
screen.
Freeway Information:
This function allows you to select or deselect display of guidance messages when
driving on freeways.
Navigation Setup

74

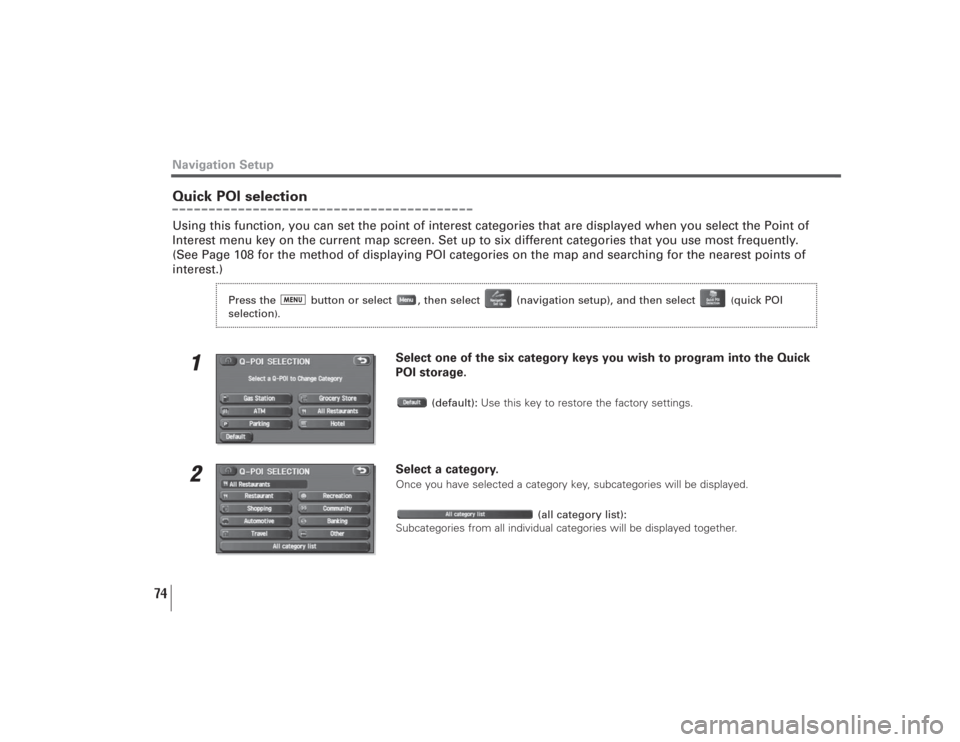

Navigation SetupQuick POI selectionUsing this function, you can set the point of interest categories that are displayed when you select the Point of
Interest menu key on the current map screen. Set up to six different categories that you use most frequently.
(See Page 108 for the method of displaying POI categories on the map and searching for the nearest points of
interest.)
1
Select one of the six category keys you wish to program into the Quick
POI storage.
(default):Use this key to restore the factory settings.
2
Select a category.Once you have selected a category key, subcategories will be displayed.
(all category list):
Subcategories from all individual categories will be displayed together.
Press the button or select , then select (navigation setup), and then select
(quick POI
selection
).
