display SUBARU LEGACY 2008 4.G Navigation Manual

45
3

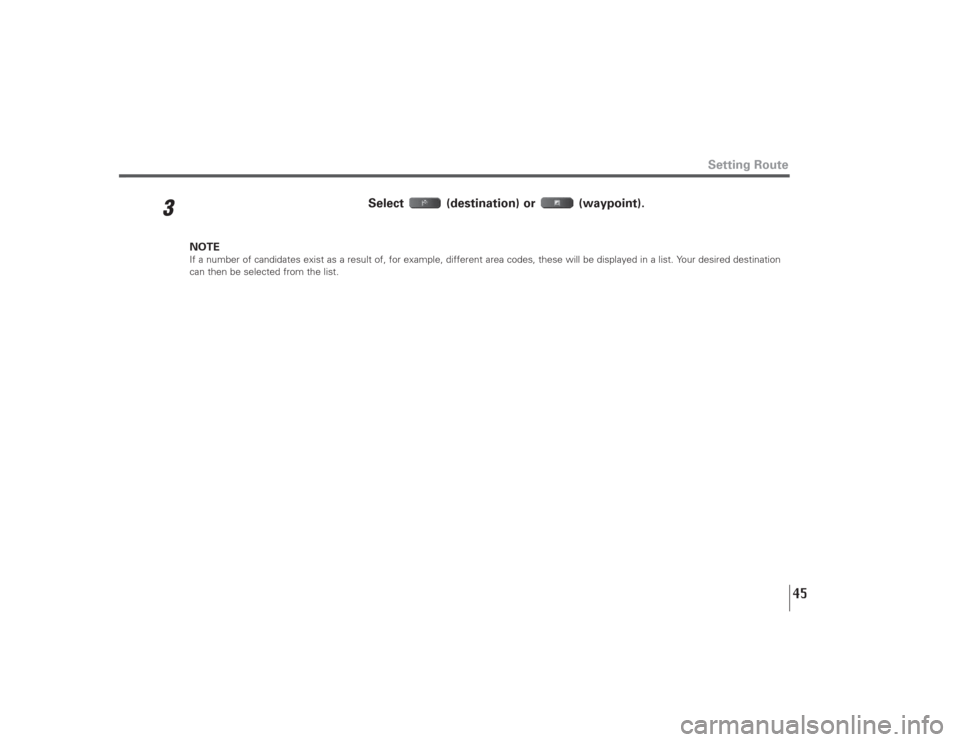

Select (destination) or (waypoint).
NOTEIf a number of candidates exist as a result of, for example, different area codes, these will be displayed in a list. Your desired destination
can then be selected from the list.
Setting Route

48

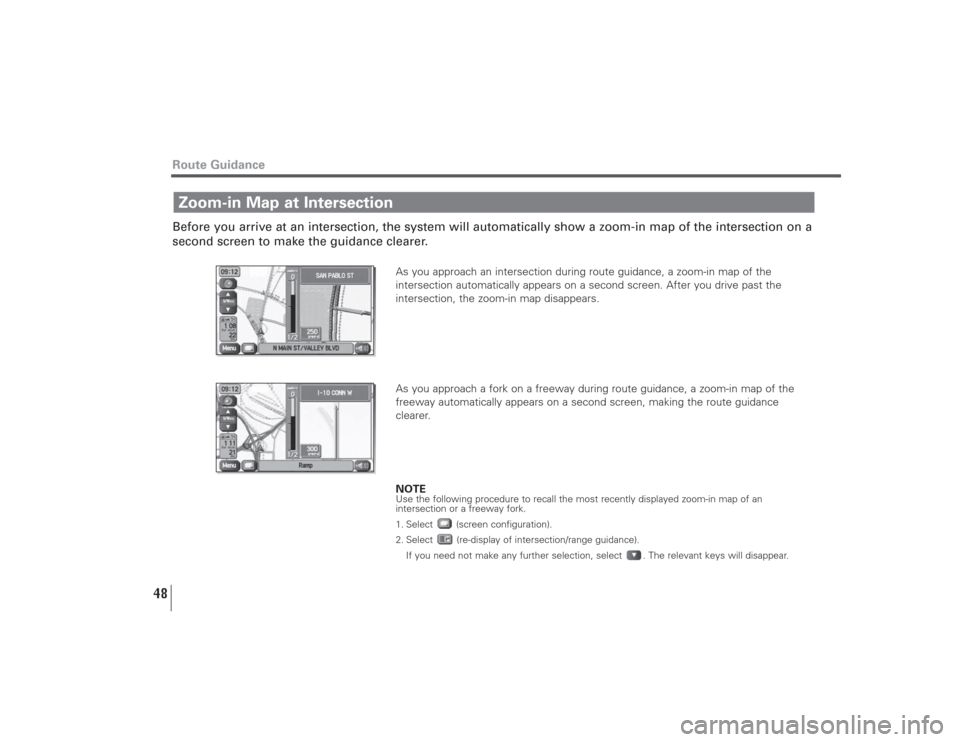

Before you arrive at an intersection, the system will automatically show a zoom-in map of the intersection on a
second screen to make the guidance clearer.
As you approach an intersection during route guidance, a zoom-in map of the
intersection automatically appears on a second screen. After you drive past the
intersection, the zoom-in map disappears.
As you approach a fork on a freeway during route guidance, a zoom-in map of the
freeway automatically appears on a second screen, making the route guidance
clearer.
NOTEUse the following procedure to recall the most recently displayed zoom-in map of an
intersection or a freeway fork.
1. Select (screen configuration).
2. Select (re-display of intersection/range guidance).
If you need not make any further selection, select . The relevant keys will disappear.
Zoom-in Map at IntersectionRoute Guidance

49
Route Guidance

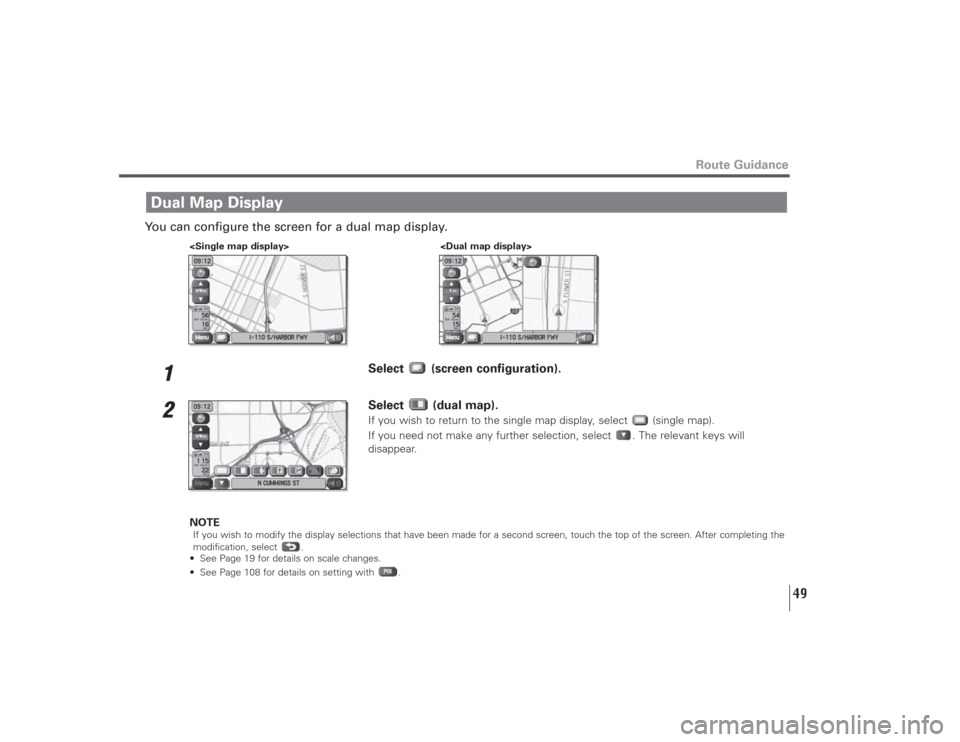

You can configure the screen for a dual map display.
1
Select (screen configuration).
2
Select (dual map).If you wish to return to the single map display, select (single map).
If you need not make any further selection, select . The relevant keys will
disappear.
NOTE
If you wish to modify the display selections that have been made for a second screen, touch the top of the screen. After completing the
modification, select .
• See Page 19 for details on scale changes.
• See Page 108 for details on setting with .
Dual Map Display

50

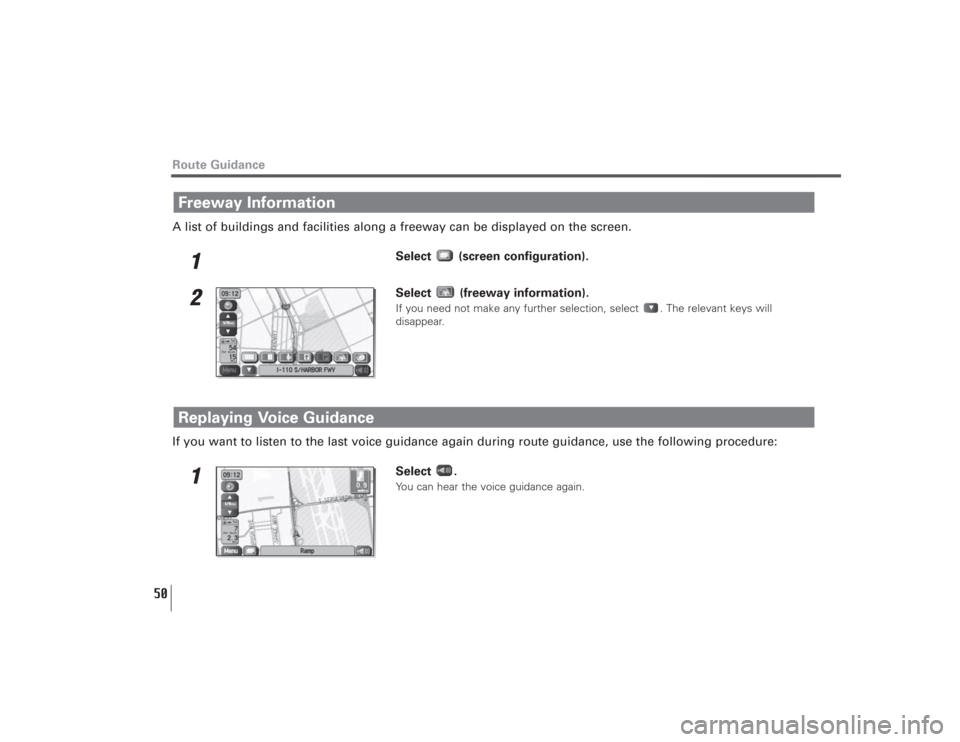

A list of buildings and facilities along a freeway can be displayed on the screen.
1
Select (screen configuration).
2
Select (freeway information).If you need not make any further selection, select . The relevant keys will
disappear.
If you want to listen to the last voice guidance again during route guidance, use the following procedure:
1
Select .You can hear the voice guidance again.
Replaying Voice GuidanceFreeway InformationRoute Guidance

51

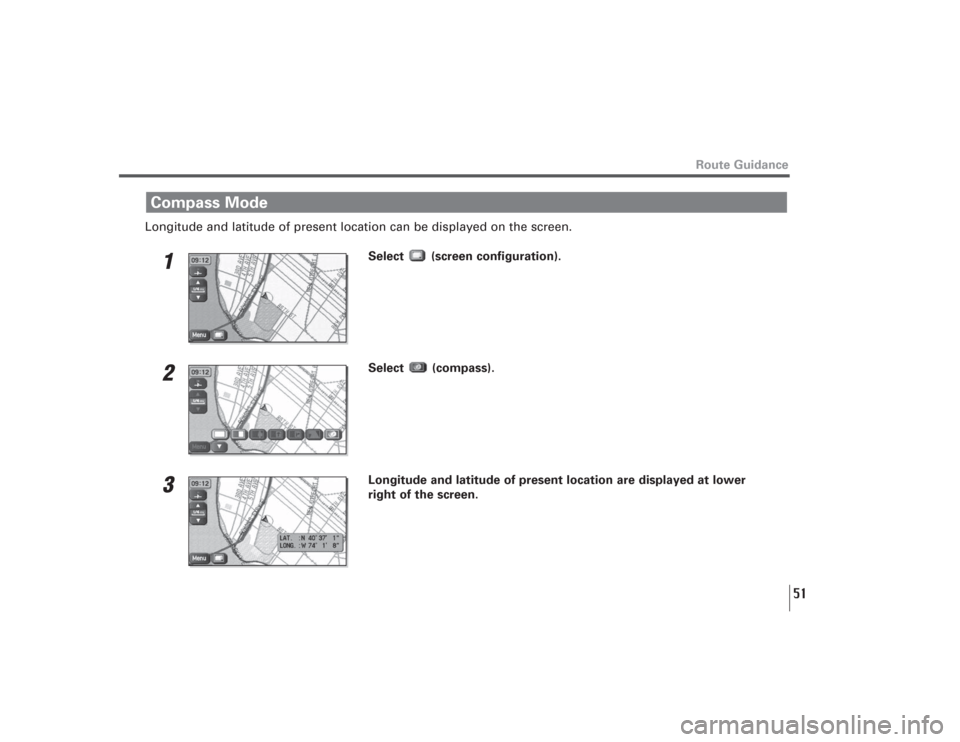

Longitude and latitude of present location can be displayed on the screen.
1
Select (screen configuration).
2
Select (compass).
3
Longitude and latitude of present location are displayed at lower
right of the screen.
Compass Mode
Route Guidance

52

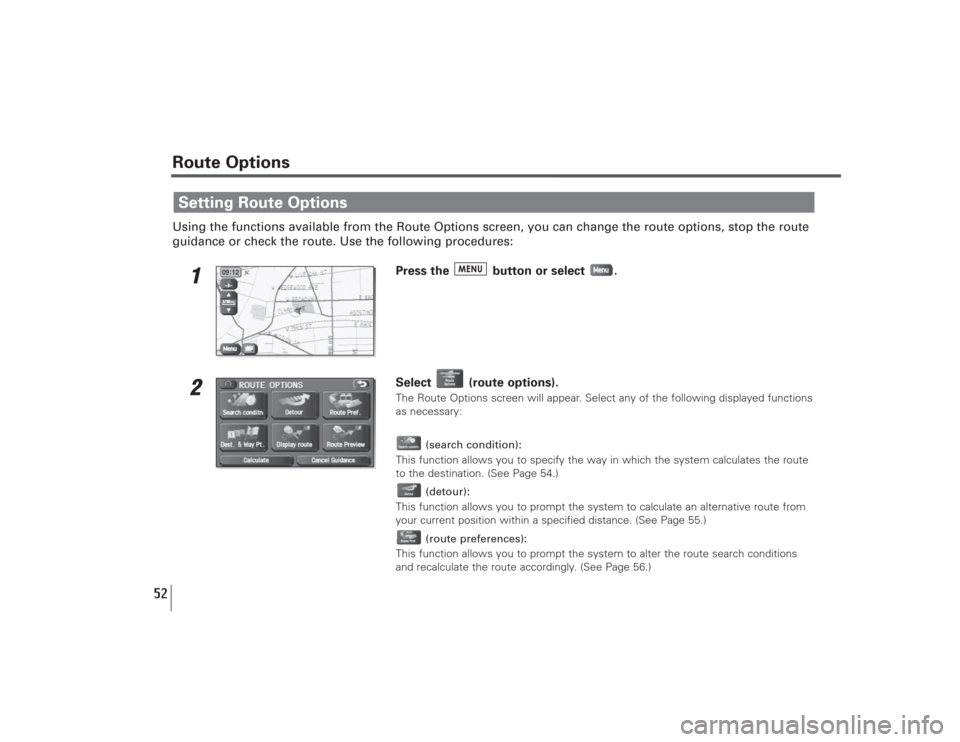

Using the functions available from the Route Options screen, you can change the route options, stop the route
guidance or check the route. Use the following procedures:
1
Press the button or select .
2
Select (route options). The Route Options screen will appear. Select any of the following displayed functions
as necessary:
(search condition):
This function allows you to specify the way in which the system calculates the route
to the destination. (See Page 54.)
(detour):
This function allows you to prompt the system to calculate an alternative route from
your current position within a specified distance. (See Page 55.)
(route preferences):
This function allows you to prompt the system to alter the route search conditions
and recalculate the route accordingly. (See Page 56.)
Setting Route OptionsRoute Options

53
Route Options
(destination and waypoint):
This function allows you to modify the destination and waypoints, and prompt the
system to recalculate the route accordingly. (See Page 57.)
(display route):
This function allows you to confirm the entire route and, if necessary, prompt the
system to recalculate the route according to your specification. (See Page 65.)
(route preview):
This function allows you to simulate a drive along the system-calculated route before
departure. (See Page 66.)
(calculate):
Selecting this key prompts the system to recalculate the route.
(cancel guidance):
Selecting this key prompts the system to stop route guidance. Note that this erases
the destination and waypoints. To prompt the system to start guidance again, select
(calculate).
NOTE
A recalculated route will sometimes be the same route as the one displayed before recalculation.

59
Route Options
■Modifying destination or waypoint positionsUse this procedure to modify the destination or waypoint positions. The screen will display the calculated route and
the positions of the destination or waypoints that you will be able to modify.1
Select (list).
2
Select (change location).
3
Select the key corresponding to the location that is to be modified.The map for the area around your current location will be displayed.
Press the button or select , then select (route options), and then select
(destination and
waypoints
).

63
Route Options
■Deleting destination or waypointsUse this procedure when you wish to delete the previously set destination or waypoint.1
Select (delete).
2
Select the key corresponding to the destination or waypoint you wish
to delete.
3
Confirmation message will be displayed. Select (yes).Select (no) to cancel the deletion.
4
Select (calculate).
Press the button or select , then select (route options), and then select
(destination and
waypoints
).

64

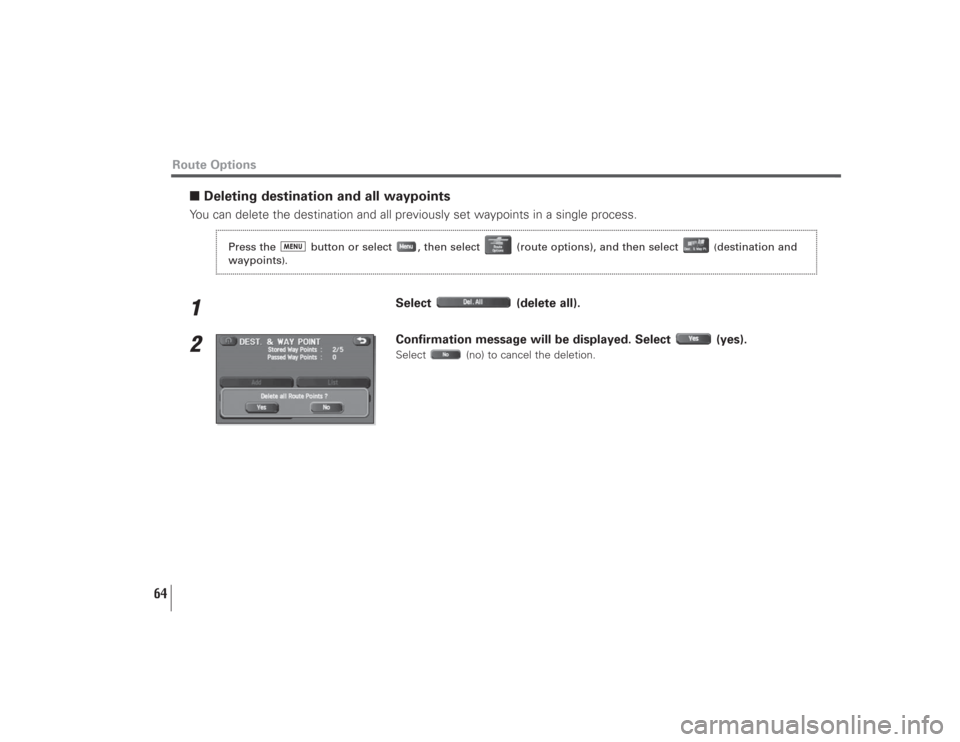

■Deleting destination and all waypointsYou can delete the destination and all previously set waypoints in a single process.1
Select (delete all).
2
Confirmation message will be displayed. Select (yes).Select (no) to cancel the deletion.
Route Options
Press the button or select , then select (route options), and then select
(destination and
waypoints
).
