EN(H6DO)(diag)-120
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step Check Yes No
1CHECK IDLE SWITCH SIGNAL.
1) Turn the ignition switch to ON.
2) Operate the LED operation mode for
engine using Subaru Select Monitor.
NOTE:•Subaru Select Monitor
For detailed operation procedure, refer to the
“LED OPERATION MODE FOR ENGINE.”
Monitor.>
Does the LED of {Idle Switch
Signal} come on?
Go to step 2.Check the throttle
position sensor cir-
cuit. EN(H6DO)(diag)-
382, DTC P2135
THROTTLE/
PEDAL POSI-
TION SENSOR/
SWITCH “A”/“B”
VOLTAGE RATIO-
NALITY, Diagnos-
tic Procedure with
Diagnostic Trou-
ble Code (DTC).>
NOTE:
In this case, it is
not necessary to
inspect DTC
P0106.
2CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Check the relative
DTC.“List of Diag-
nostic Trouble
Code (DTC)” to
EN(H6DO)(diag)-
69, List of Diag-
nostic Trouble
Code (DTC).>
NOTE:
In this case, it is
not necessary to
inspect DTC
P0106.
Go to step 3.
3CHECK CONDITION OF MANIFOLD ABSO-
LUTE PRESSURE SENSOR.
Is the manifold absolute pres-
sure sensor installation bolt
tightened securely?
Go to step 4.Securely tighten
the manifold abso-
lute pressure sen-
sor installation
bolt.
4CHECK CONDITION OF THROTTLE BODY.Is the throttle body installation
bolt tightened securely?
Replace the mani-
fold absolute pres-
sure sensor. to FU(H6DO)-22,
Manifold Absolute
Pressure Sensor.>
Tighten the throttle
body installation
bolt securely.

EN(H6DO)(diag)-121
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
R: DTC P0076 INTAKE VALVE CONTROL CIRCUIT LOW (BANK 1)
DTC DETECTING CONDITION:
•Immediately at fault recognition
•GENERAL DESCRIPTION LOW (BANK 1), Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
Erroneous idling
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-03658
B21
E2
B137
E69
24
21
2625
E69
12
25
ECM
OIL SWITCHING SOLENOID VALVE RH
B21
123412131415567816171819910 1120212223 24 25 2627 28 29 3031 32 33
3534 37363938 41404342 4445 47464948 51505352 54
B137
85610 11 12 13 14 157213416
3019 20 2228 29
91718 2521 23 243126 27

EN(H6DO)(diag)-122
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step Check Yes No
1CHECK HARNESS BETWEEN ECM AND OIL
SWITCHING SOLENOID VALVE.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and oil
switching solenoid valve.
3) Measure the resistance between ECM and
oil switching solenoid valve.
Connector & terminal
(B137) No. 25 — (E69) No. 1:
(B137) No. 24 — (E69) No. 2:
Is the resistance less than 1
Ω?
Go to step 2.Repair the open
circuit of harness
between ECM and
oil switching sole-
noid valve connec-
tor.
NOTE:In this case, repair
the following item:
•Open circuit
of harness be-
tween ECM and
oil switching so-
lenoid valve
connector
•Poor contact
of coupling con-
nector
2CHECK OIL SWITCHING SOLENOID VALVE.
1) Remove the oil switching solenoid valve
connector.
2) Measure the resistance between oil switch-
ing solenoid valve terminals.
Te r m i n a l s
No. 1 — No. 2:
Is the resistance between 6 —
12 Ω?
Repair the poor
contact of ECM
and oil switching
solenoid valve.
Replace the oil
switching solenoid
valve. ME(H6DO)-78, Oil
Switching Sole-
noid Valve.>

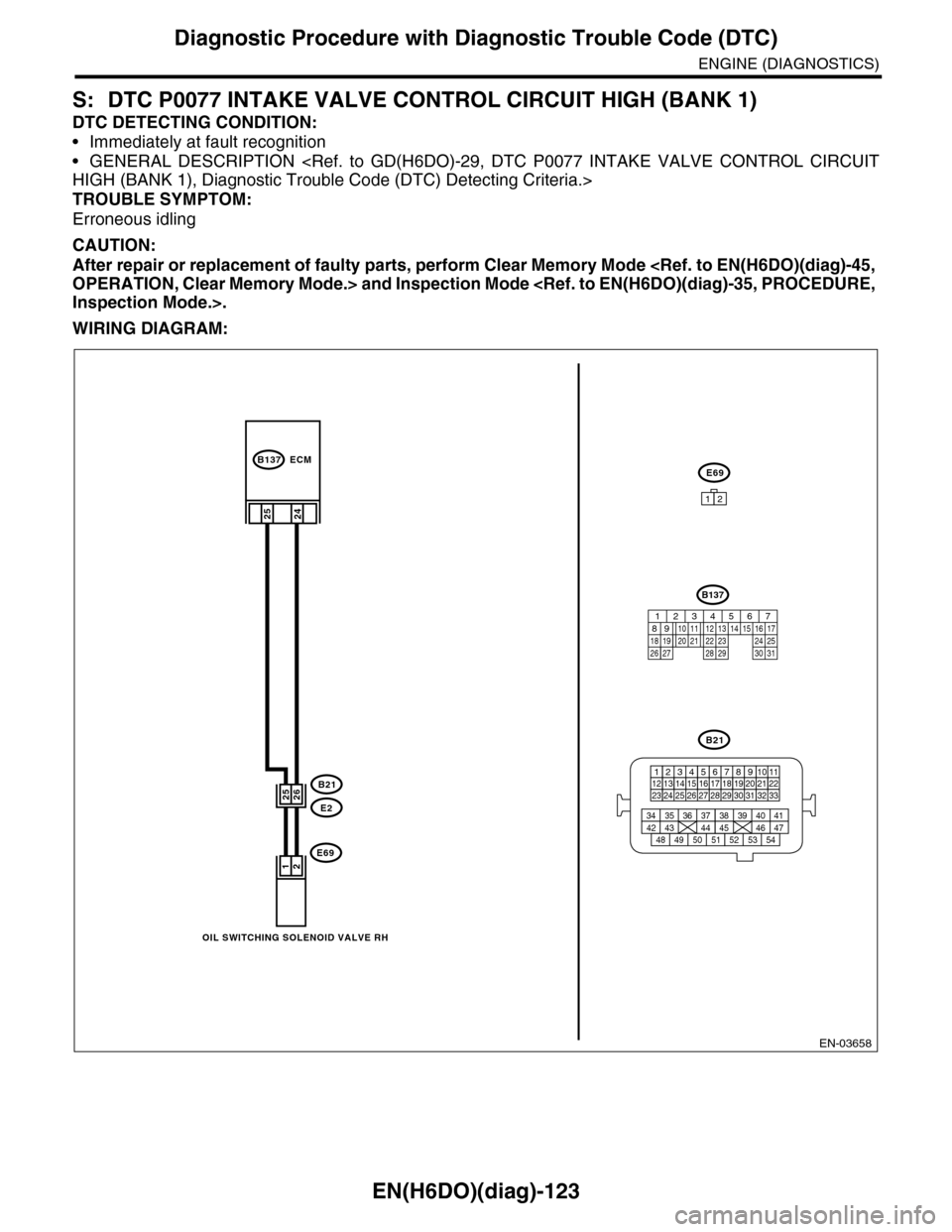

EN(H6DO)(diag)-123
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
S: DTC P0077 INTAKE VALVE CONTROL CIRCUIT HIGH (BANK 1)
DTC DETECTING CONDITION:
•Immediately at fault recognition
•GENERAL DESCRIPTION HIGH (BANK 1), Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
Erroneous idling
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-03658
B21
E2
B137
E69
24
21
2625
E69
12
25
ECM
OIL SWITCHING SOLENOID VALVE RH
B21
123412131415567816171819910 1120212223 24 25 2627 28 29 3031 32 33
3534 37363938 41404342 4445 47464948 51505352 54
B137
85610 11 12 13 14 157213416
3019 20 2228 29
91718 2521 23 243126 27

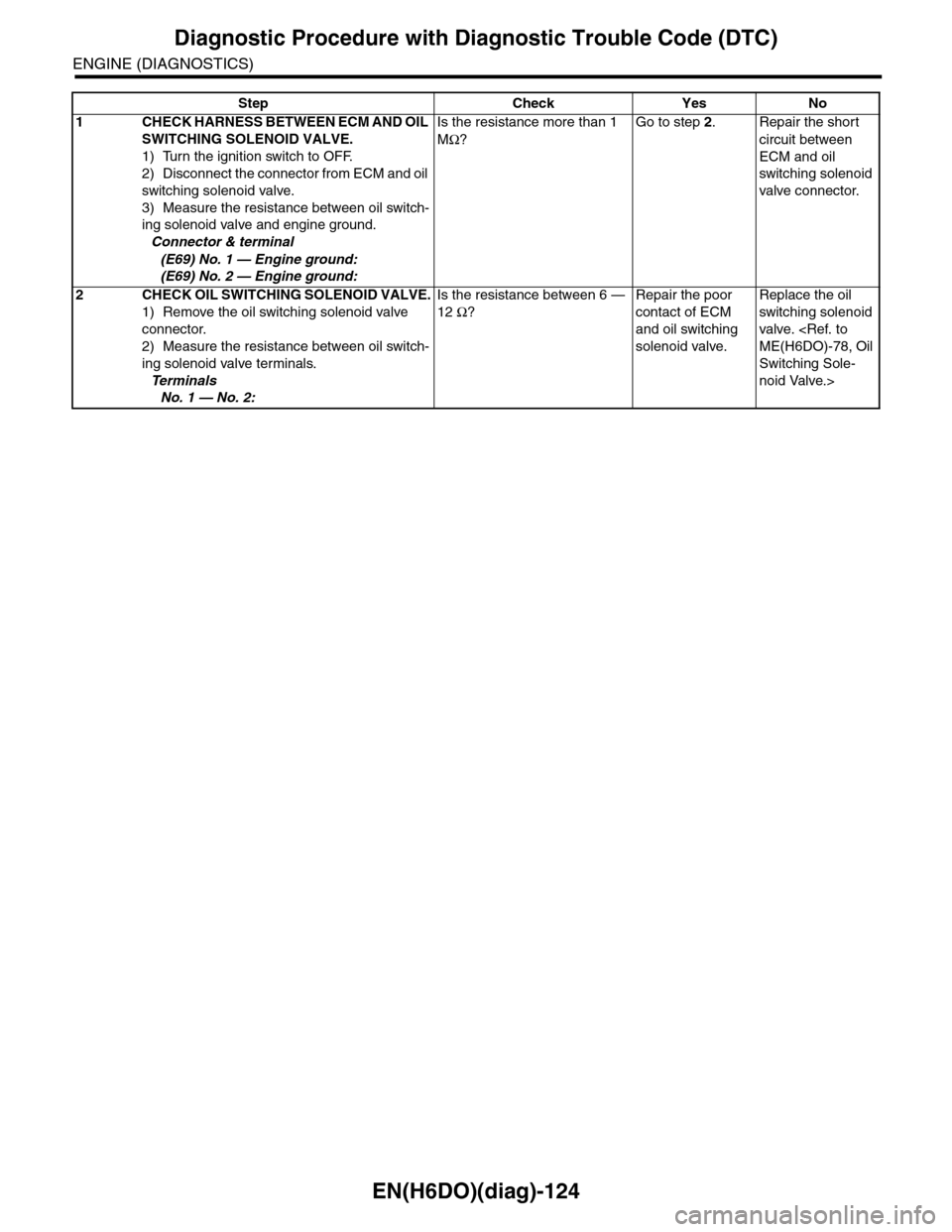

EN(H6DO)(diag)-124
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step Check Yes No
1CHECK HARNESS BETWEEN ECM AND OIL
SWITCHING SOLENOID VALVE.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and oil
switching solenoid valve.
3) Measure the resistance between oil switch-
ing solenoid valve and engine ground.
Connector & terminal
(E69) No. 1 — Engine ground:
(E69) No. 2 — Engine ground:
Is the resistance more than 1
MΩ?
Go to step 2.Repair the short
circuit between
ECM and oil
switching solenoid
valve connector.
2CHECK OIL SWITCHING SOLENOID VALVE.
1) Remove the oil switching solenoid valve
connector.
2) Measure the resistance between oil switch-
ing solenoid valve terminals.
Te r m i n a l s
No. 1 — No. 2:
Is the resistance between 6 —
12 Ω?
Repair the poor
contact of ECM
and oil switching
solenoid valve.
Replace the oil
switching solenoid
valve. ME(H6DO)-78, Oil
Switching Sole-
noid Valve.>

EN(H6DO)(diag)-125
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
T: DTC P0082 INTAKE VALVE CONTROL CIRCUIT LOW (BANK 2)
DTC DETECTING CONDITION:
•Immediately at fault recognition
•GENERAL DESCRIPTION LOW (BANK 2), Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
Erroneous idling
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-03659
B21
E2
B137
E70
30
21
3029
E70
12
31
ECM
B21
123412131415567816171819910 1120212223 24 25 2627 28 29 3031 32 33
3534 37363938 41404342 4445 47464948 51505352 54
OIL SWITCHING SOLENOID VALVE LH
B137
85610 11 12 13 14 157213416
3019 20 2228 29
91718 2521 23 243126 27

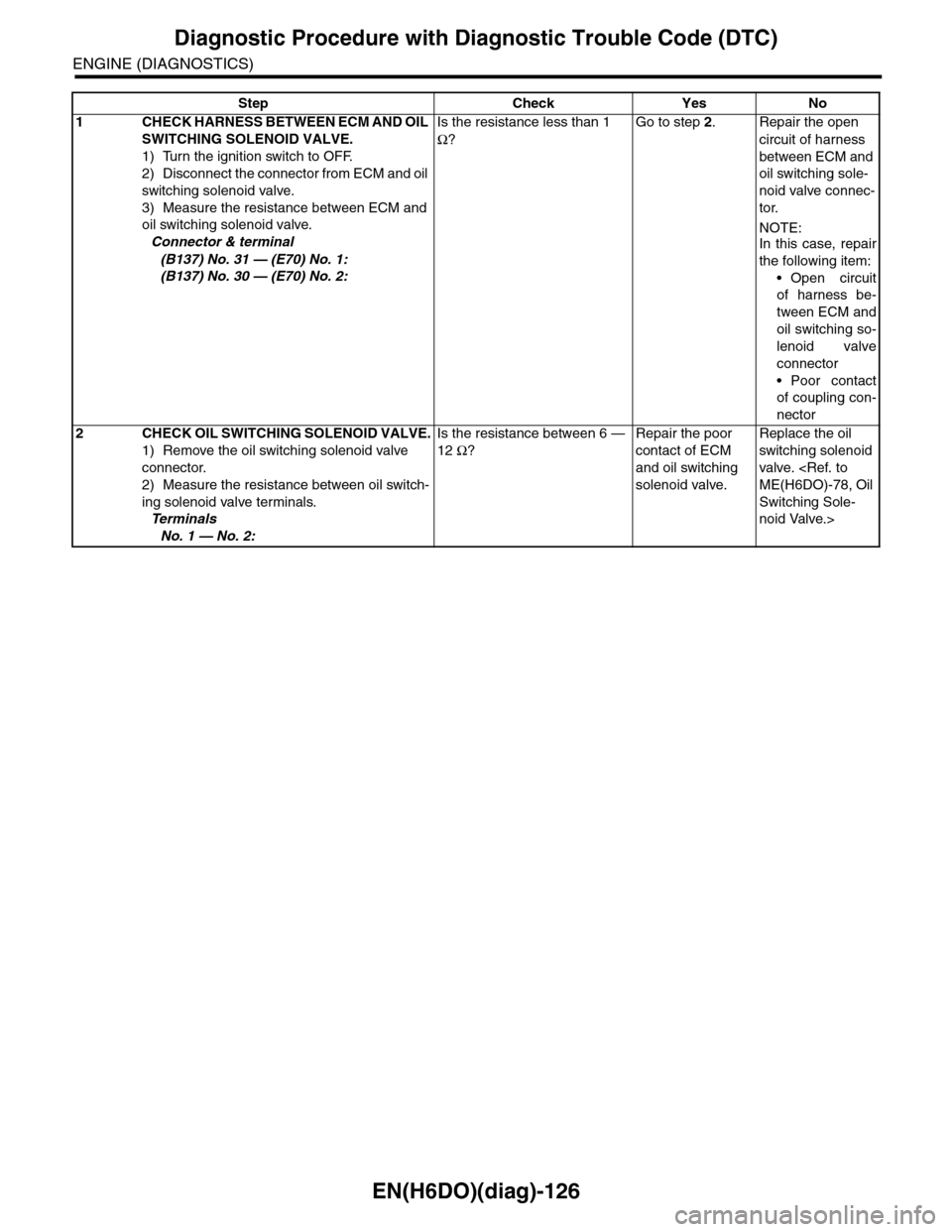

EN(H6DO)(diag)-126
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step Check Yes No
1CHECK HARNESS BETWEEN ECM AND OIL
SWITCHING SOLENOID VALVE.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and oil
switching solenoid valve.
3) Measure the resistance between ECM and
oil switching solenoid valve.
Connector & terminal
(B137) No. 31 — (E70) No. 1:
(B137) No. 30 — (E70) No. 2:
Is the resistance less than 1
Ω?
Go to step 2.Repair the open
circuit of harness
between ECM and
oil switching sole-
noid valve connec-
tor.
NOTE:In this case, repair
the following item:
•Open circuit
of harness be-
tween ECM and
oil switching so-
lenoid valve
connector
•Poor contact
of coupling con-
nector
2CHECK OIL SWITCHING SOLENOID VALVE.
1) Remove the oil switching solenoid valve
connector.
2) Measure the resistance between oil switch-
ing solenoid valve terminals.
Te r m i n a l s
No. 1 — No. 2:
Is the resistance between 6 —
12 Ω?
Repair the poor
contact of ECM
and oil switching
solenoid valve.
Replace the oil
switching solenoid
valve. ME(H6DO)-78, Oil
Switching Sole-
noid Valve.>

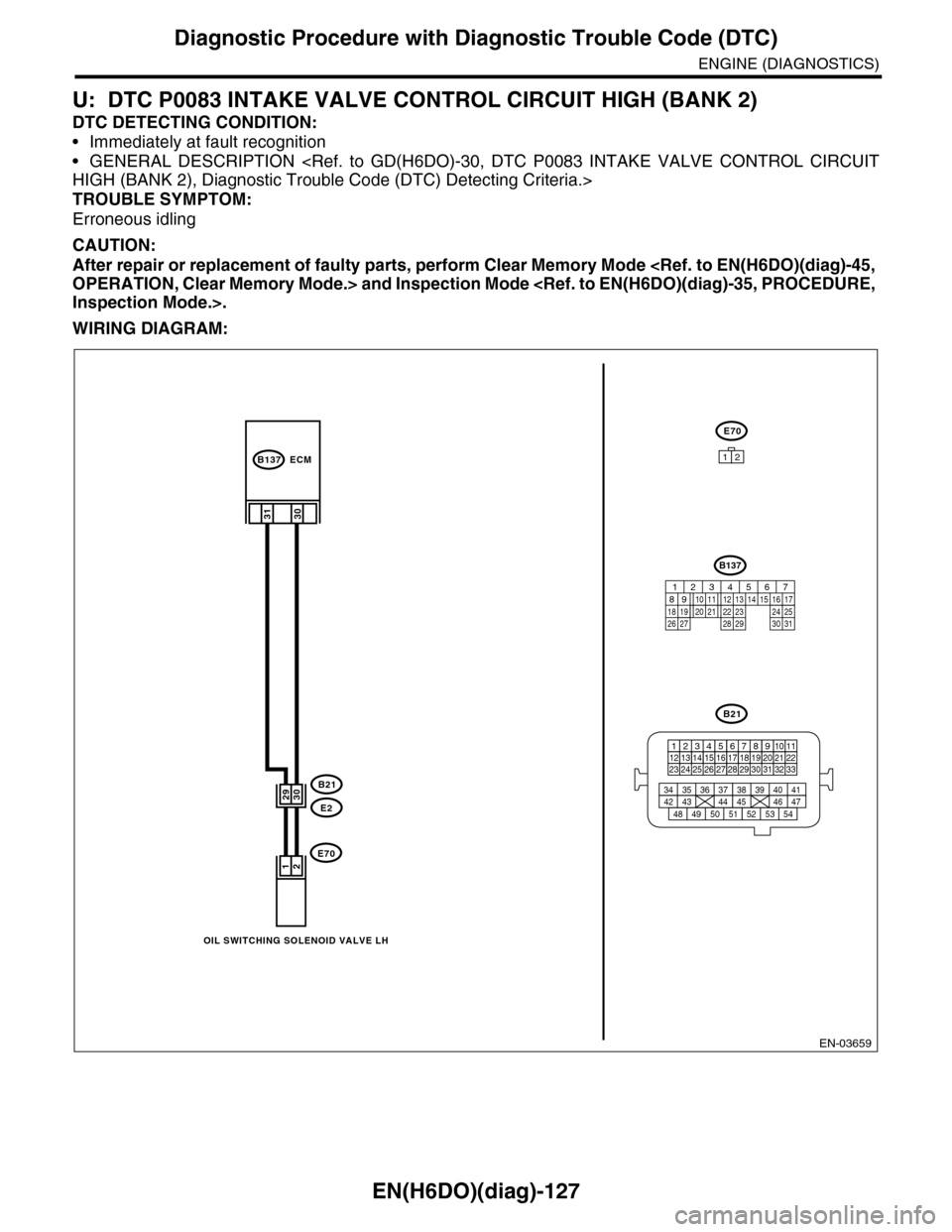

EN(H6DO)(diag)-127
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
U: DTC P0083 INTAKE VALVE CONTROL CIRCUIT HIGH (BANK 2)
DTC DETECTING CONDITION:
•Immediately at fault recognition
•GENERAL DESCRIPTION HIGH (BANK 2), Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
Erroneous idling
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-03659
B21
E2
B137
E70
30
21
3029
E70
12
31
ECM
B21
123412131415567816171819910 1120212223 24 25 2627 28 29 3031 32 33
3534 37363938 41404342 4445 47464948 51505352 54
OIL SWITCHING SOLENOID VALVE LH
B137
85610 11 12 13 14 157213416
3019 20 2228 29
91718 2521 23 243126 27

EN(H6DO)(diag)-128
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step Check Yes No
1CHECK HARNESS BETWEEN ECM AND OIL
SWITCHING SOLENOID VALVE.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and oil
switching solenoid valve.
3) Measure the resistance between oil switch-
ing solenoid valve and engine ground.
Connector & terminal
(E70) No. 1 — Engine ground:
(E70) No. 2 — Engine ground:
Is the resistance more than 1
MΩ?
Go to step 2.Repair the short
circuit between
ECM and oil
switching solenoid
valve connector.
2CHECK OIL SWITCHING SOLENOID VALVE.
1) Remove the oil switching solenoid valve
connector.
2) Measure the resistance between oil switch-
ing solenoid valve terminals.
Te r m i n a l s
No. 1 — No. 2:
Is the resistance between 6 —
12 Ω?
Repair the poor
contact of ECM
and oil switching
solenoid valve.
Replace the oil
switching solenoid
valve. ME(H6DO)-78, Oil
Switching Sole-
noid Valve.>

EN(H6DO)(diag)-129
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
V: DTC P0101 MASS OR VOLUME AIR FLOW CIRCUIT RANGE/PERFOR-
MANCE
DTC DETECTING CONDITION:
•Detected when two consecutive driving cycles with fault occur.
•GENERAL DESCRIPTION RANGE/PERFORMANCE, Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
•Erroneous idling
•Engine stalls.
•Poor driving performance
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Mode.>.
WIRING DIAGRAM:
EN-03660
B3
BATTERY
E
B424
1
B3
MASS AIR FLOW AND INTAKEAIR TEMPERATURE SENSOR
ECMB135
SBF-7
123453412
56
B47
**
2435
3418263035
MAIN RELAY
B47
12
46
35
B424
12345678
* : TERMINAL NO. OPTIONAL ARRANGEMENT
B135
567821943102422 23 2511 12 13 14 1526 2728
16 17 18 1920 2129 30 31 32 33 34 35
