5AT-15
General Description
AUTOMATIC TRANSMISSION
11.OIL COOLER PIPE AND OIL COOLER
(1) Radiator (4) ATF filterTightening torque: N·m (kgf-m, ft-lb)
(2) Clip (5) ATF filter bracketT: 7.5 (0.76, 5.5)
(3) ATF hose (6) ATF cooler pipe
(1)
(2)
(3)
(3)
(2)
(2)
(2)
(2)
(2)
(6)
(4)
(5)
(3)(3)
(3)
(3)
(2)
(2)
(2)
(2)
(2)
(2)
T
T
T
(3)
AT-03253

5AT-16
General Description
AUTOMATIC TRANSMISSION
12.TRANSMISSION MOUNTING
(1) Pitching stopperTightening torque: N·m (kgf-m, ft-lb)
(2) Rear cushion rubberT1: 35 (3.6, 26)
(3) CrossmemberT2: 40 (4.1, 29.5)
(4) Stopper T3: 50 (5.1, 36.9)
T4: 58 (5.9, 42.8)
T5: 75 (7.6, 55.3)
AT-01738
(2)
(3)
(4)
(1)
T4
T5
T5
T2
T2
T1
T3

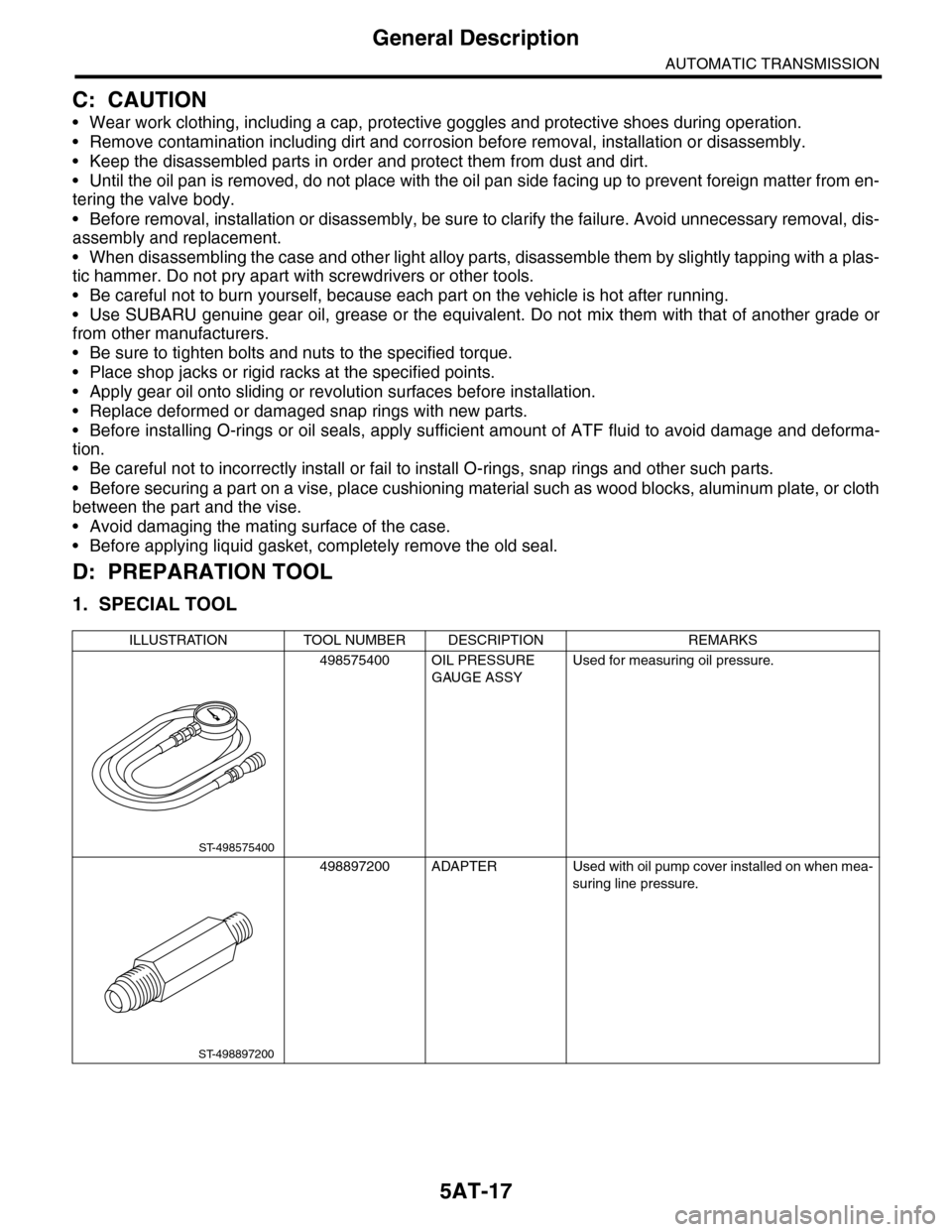

5AT-17
General Description
AUTOMATIC TRANSMISSION
C: CAUTION
•Wear work clothing, including a cap, protective goggles and protective shoes during operation.
•Remove contamination including dirt and corrosion before removal, installation or disassembly.
•Keep the disassembled parts in order and protect them from dust and dirt.
•Until the oil pan is removed, do not place with the oil pan side facing up to prevent foreign matter from en-
tering the valve body.
•Before removal, installation or disassembly, be sure to clarify the failure. Avoid unnecessary removal, dis-
assembly and replacement.
•When disassembling the case and other light alloy parts, disassemble them by slightly tapping with a plas-
tic hammer. Do not pry apart with screwdrivers or other tools.
•Be careful not to burn yourself, because each part on the vehicle is hot after running.
•Use SUBARU genuine gear oil, grease or the equivalent. Do not mix them with that of another grade or
from other manufacturers.
•Be sure to tighten bolts and nuts to the specified torque.
•Place shop jacks or rigid racks at the specified points.
•Apply gear oil onto sliding or revolution surfaces before installation.
•Replace deformed or damaged snap rings with new parts.
•Before installing O-rings or oil seals, apply sufficient amount of ATF fluid to avoid damage and deforma-
tion.
•Be careful not to incorrectly install or fail to install O-rings, snap rings and other such parts.
•Before securing a part on a vise, place cushioning material such as wood blocks, aluminum plate, or cloth
between the part and the vise.
•Avoid damaging the mating surface of the case.
•Before applying liquid gasket, completely remove the old seal.
D: PREPARATION TOOL
1. SPECIAL TOOL
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
498575400 OIL PRESSURE
GAUGE ASSY
Used for measuring oil pressure.
498897200 ADAPTER Used with oil pump cover installed on when mea-
suring line pressure.
ST-498575400
ST-498897200

5AT-18
General Description
AUTOMATIC TRANSMISSION
498897700 OIL PRESSURE
ADAPTER
Used for measuring transfer clutch pressure.
498545400 FILTER WRENCH Used for removing and installing the ATF filter.
498277200 STOPPER SET Used for removing and installing automatic
transmission assembly to engine.
41099AA010 ENGINE SUPPORT
BRACKET
Used for supporting engine.
41099AA020 ENGINE SUPPORT Used for supporting engine.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
ST-498897700
ST-498545400
ST-498277200
ST41099AA010
ST41099AA020

5AT-19
General Description
AUTOMATIC TRANSMISSION
398527700 PULLER ASSY • Used for removing the extension case roller
bearing.
•Used for removing the extension oil seal.
•Used for removing the front differential side
retainer bearing outer race.
•Used for removing the front differential side
retainer oil seal.
498057300 INSTALLER Used for installing the extension oil seal.
498077000 REMOVER Used for removing the differential taper roller
bearing.
18630AA010 WRENCH COMPL
RETAINER
Used for removing and installing the differential
side retainer.
398487700 DRIFT Used for installing the front differential taper
roller bearing.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
ST-398527700
ST-498057300
ST-498077000
ST18630AA010
ST-398487700

5AT-20
General Description
AUTOMATIC TRANSMISSION
498255400 PLATE Used for measuring the backlash of hypoid gear.
498247001 MAGNET BASE • Used for measuring the gear backlash.
•Used with DIAL GAUGE (498247100).
498247100 DIAL GAUGE • Used for measuring the gear backlash.
•Used with MAGNET BASE (498247001).
498517000 REPLACER Used for removing the front roller bearing.
499787700 WRENCH Used for removing and installing the drive pinion
lock nut.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
ST-498255400
ST-498247001
ST-498247100
ST-498517000
ST-499787700

5AT-21
General Description
AUTOMATIC TRANSMISSION
398643600 GAUGE Used for measuring the total end play, extension
end play and drive pinion height.
378744300 PISTON GUIDE Used for measuring height from mating surface
of the main case to pressure plate.
499737100 PULLER SET Used for removing the reduction driven gear
assembly.
498077600 REMOVER Used for removing the ball bearing.
18667AA010 HOLDER • Used for removing and installing the drive pin-
ion lock nut.
•Used as a handle to rotate gear when check-
ing tooth contact.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
ST-398643600
ST-378744300
ST-499737100
ST-498077300
ST18667AA010

5AT-22
General Description
AUTOMATIC TRANSMISSION
18482AA010 CARTRIDGE Troubleshooting for the electrical system.
22771AA030 SUBARU SELECT
MONITOR KIT
Tr o u b l e s h o o t i n g f o r t h e e l e c t r i c a l s y s t e m .
18675AA000 DIFFERENTIAL
SIDE OIL SEAL
INSTALLER
Used for installing the differential side retainer oil
seal.
18654AA000 INSTALLER Used for removing and installing the ball bearing.
28399SA010 OIL SEAL PROTEC-
TOR
Used for protecting oil seal when installing front
drive shaft.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
ST18482AA010
ST22771AA030
ST18675AA000
ST18654AA000
ST28399SA010

5AT-23
General Description
AUTOMATIC TRANSMISSION
18763AA000 COMPRESSOR
SHAFT
Used for disassembling multi-plate clutch for shift
transmission.
18765AA000 COMPRESSOR
SUPPORT
Used for disassembling multi-plate clutch for shift
transmission.
18676AA020TORX® WRENCHUsed for disassembling torque converter case.
18854AA000 ANGLE GAUGE Used for tightening parking support.
498077300 REMOVER Used for removing ball bearing of reduction
driven gear.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
ST18763AA000
ST18765AA000
ST18676AA020
ST18854AA000
ST-498077300

5AT-24
General Description
AUTOMATIC TRANSMISSION
499587100 OIL SEAL
INSTALLER
Used for installing the oil seal.
499787500 ADAPTER Used for removing and installing drive pinion lock
nut.
499575400 GAUGE Used for measuring height of total end play.
18762AA000 COMPRESSOR
SPECIAL TOOL
Used for disassembling multi-plate clutch for shift
transmission.
499755602
(Newly adopted tool)
PRESS Used for installing the parking gear.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
ST-499587100
ST-499787500
ST-499575400
ST18762AA000
ST-499755602
