SUBARU TRIBECA 2009 1.G Service Workshop Manual

ET-26
Multi Function Display (MFD)
ENTERTAINMENT

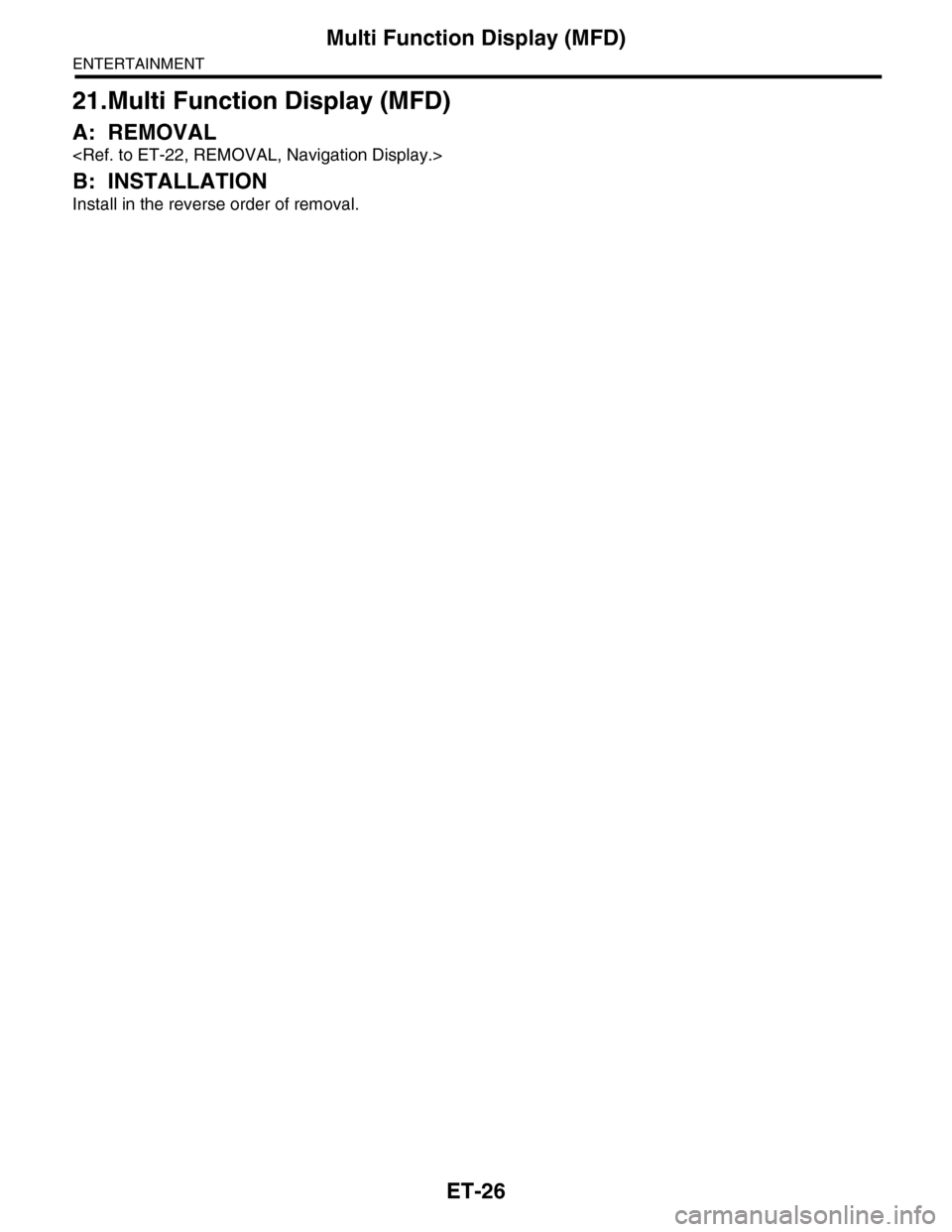

21.Multi Function Display (MFD)
A: REMOVAL

B: INSTALLATION
Install in the reverse order of removal.

ET-27
Multi Function Switch
ENTERTAINMENT
22.Multi Function Switch
A: REMOVAL

B: INSTALLATION
Install in the reverse order of removal.

ET-28
Rear Entertainment
ENTERTAINMENT
23.Rear Entertainment
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Insert a flat tip screw driver in the section, and
remove the room lamp lens.
3) Remove the bolts, and then remove the monitor
cover.
4) Remove the 4 mounting bolts.
5) Remove the temporary screws and remove the
monitor body.
NOTE:
Always support with one hand to prevent the unit
from falling.
6) Remove the temporary clips from the roof brace.
B: INSTALLATION
1) Attach the temporary clip and temporary screw
to the rear entertainment system body.
NOTE:
When installing a new rear entertainment system, a
clip is supplied on the unit, and this step can be
omitted.
2) Place the hook of the rear entertainment unit on
the roof brace section.
3) Affix the temporary fixture clips on the roof
brace.
4) Tighten the 4 attachment bolts, and connect the
connector.
5) Connect the room lamp connector, attach the
cover and affix with the bolts.
6) Attach the room lamp lens from the outside of
the vehicle and snap into place.
Install in the reverse order of removal.
(A) Cutout
(A) Clip
ET-00188
(A)
ET-00189
(A)
ET-00199
ET-00190

ET-29
AUX Input Terminal
ENTERTAINMENT

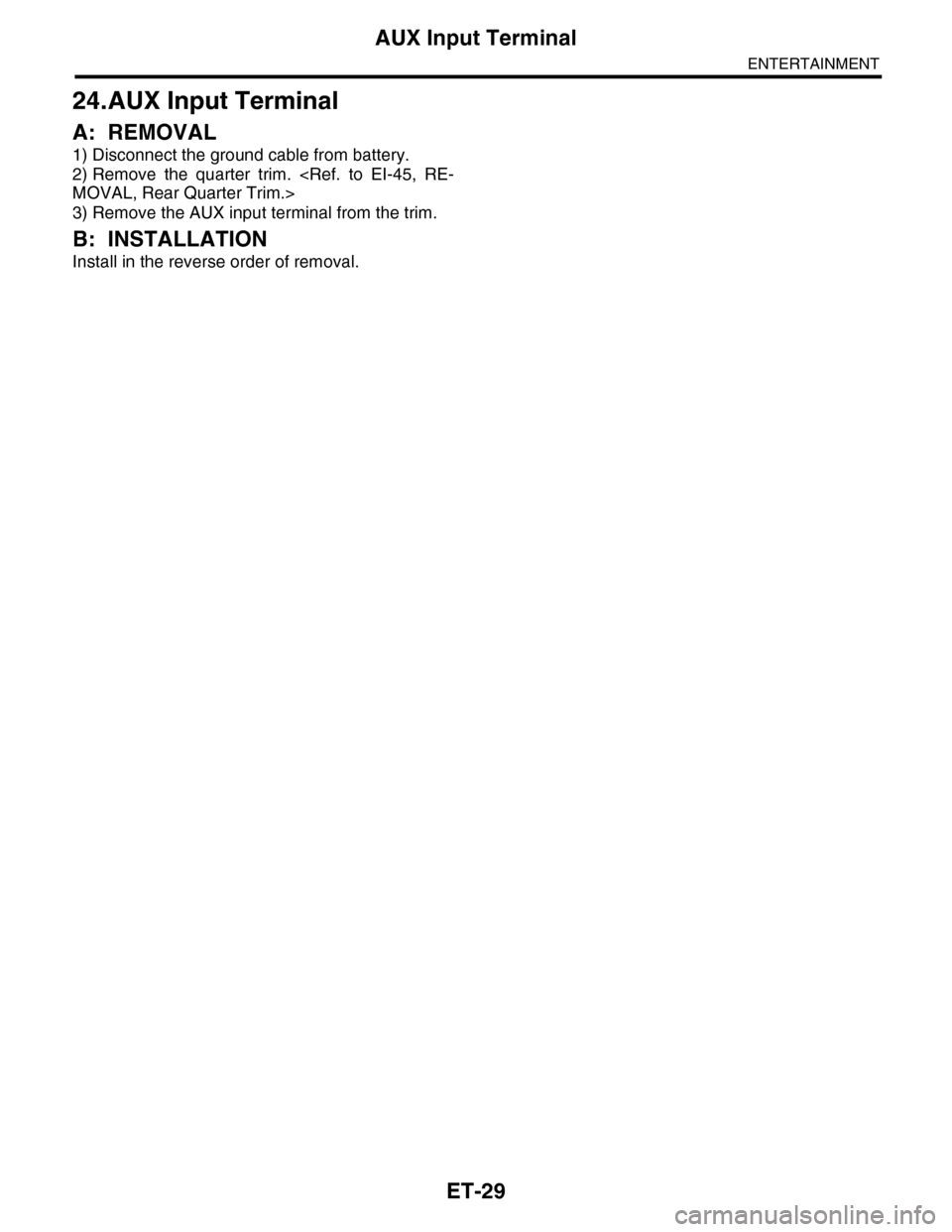

24.AUX Input Terminal
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the quarter trim. MOVAL, Rear Quarter Trim.>
3) Remove the AUX input terminal from the trim.
B: INSTALLATION
Install in the reverse order of removal.

ET-30
Front Accessory Power Supply Socket
ENTERTAINMENT
25.Front Accessory Power Sup-
ply Socket
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the console box. MOVAL, Center Console.>
3) Disconnect the harness connector, and remove
the accessory power supply socket.
NOTE:
The socket can be pulled out by unlocking the ac-
cessory socket lock in 2 locations and turning the
socket to the left.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Confirm that the accessory socket is locked and
can not be pulled out.
ET-00191
(A)

ET-31
Rear Accessory Power Supply Socket
ENTERTAINMENT

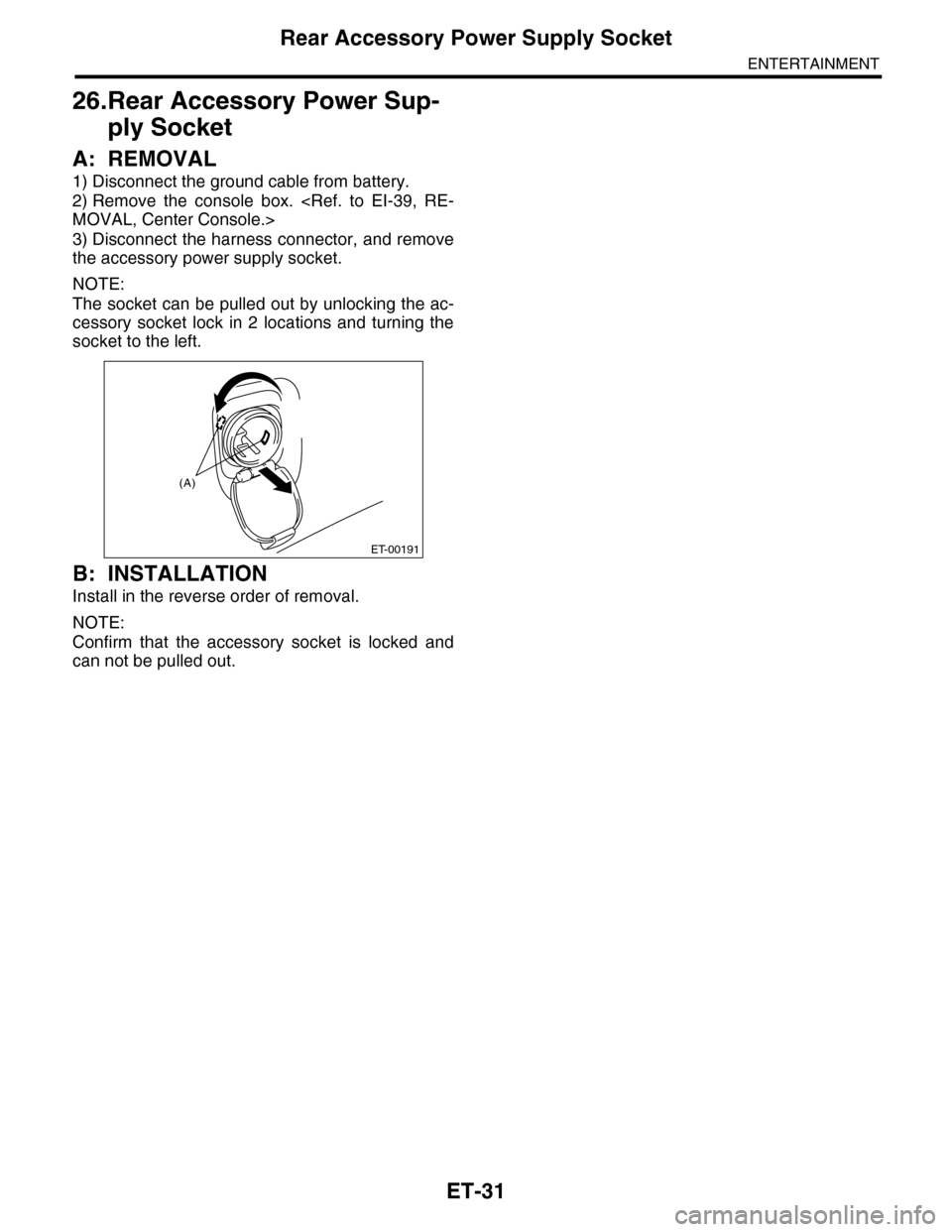

26.Rear Accessory Power Sup-
ply Socket
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the console box. MOVAL, Center Console.>
3) Disconnect the harness connector, and remove
the accessory power supply socket.
NOTE:
The socket can be pulled out by unlocking the ac-
cessory socket lock in 2 locations and turning the
socket to the left.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Confirm that the accessory socket is locked and
can not be pulled out.
ET-00191
(A)

ET-32
Steering Satellite Switch
ENTERTAINMENT

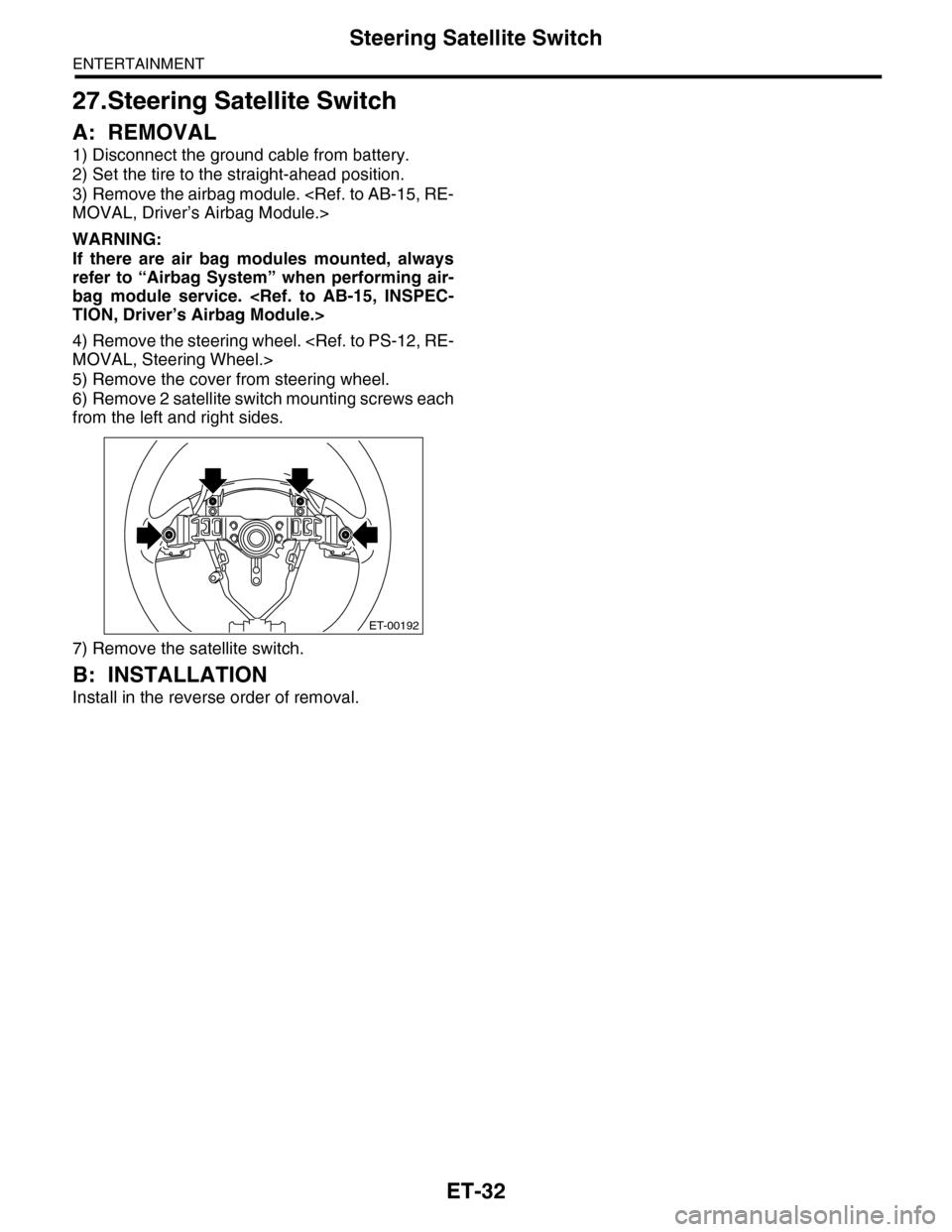

27.Steering Satellite Switch
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Set the tire to the straight-ahead position.
3) Remove the airbag module. MOVAL, Driver’s Airbag Module.>
WARNING:
If there are air bag modules mounted, always
refer to “Airbag System” when performing air-
bag module service. TION, Driver’s Airbag Module.>
4) Remove the steering wheel. MOVAL, Steering Wheel.>
5) Remove the cover from steering wheel.
6) Remove 2 satellite switch mounting screws each
from the left and right sides.
7) Remove the satellite switch.
B: INSTALLATION
Install in the reverse order of removal.
ET-00192

ET-33
Steering Satellite Switch
ENTERTAINMENT
C: INSPECTION
ET-00193
12345
Step Check Yes No
1MUTE SWITCH CONTINUITY CHECK.
1) Press the mute switch.
2) Measure the resistance between satellite
switch connector terminals.
Te r m i n a l s
No. 1 — No. 2:
Is the resistance approx. 22 Ω?Go to step 2.Replace the satel-
lite switch.
2VOLUME SWITCH CONTINUITY CHECK.
1) Press the volume switch.
2) Measure the resistance between satellite
switch connector terminals.
Te r m i n a l s
No. 1 — No. 2: Volume up
No. 1 — No. 2: Volume down
Is the resistance approx. 90 Ω?
(Volume up) And is the resis-
tance approx. 190 Ω? (Volume
down)
Go to step 3.Replace the satel-
lite switch.
3MODE SWITCH CONTINUITY CHECK.
1) Press the MODE switch.
2) Measure the resistance between satellite
switch connector terminals.
Te r m i n a l s
No. 1 — No. 2:
Is the resistance approx. 330
Ω?
Go to step 4.Replace the satel-
lite switch.
4SEEK SWITCH CONTINUITY CHECK.
1) Press the seek switch.
2) Measure the resistance between satellite
switch connector terminals.
Te r m i n a l s
No. 1 — No. 2: Seek up
No. 1 — No. 2: Seek down
Is the resistance approx. 600
Ω? (Seek up) And is the resis-
tance approx. 1.1 kΩ? (Seek
down)
Go to step 5.Replace the satel-
lite switch.
5CHECK SATELLITE SWITCH INSULATION.
1) Not to operate the satellite switch.
2) Measure the resistance between satellite
switch connector terminals.
Te r m i n a l s
No. 1 — No. 2:
Is the resistance approx. 4.7
kΩ?
Satellite switch is
normal.
Replace the satel-
lite switch.

ET-34
Steering Satellite Switch
ENTERTAINMENT

ET-16
Tweeter
ENTERTAINMENT
11.Tweeter
A: REMOVAL
1. FRONT
1) Disconnect the ground cable from battery.
2) Remove the front door trim. MOVAL, Door Trim.>
3) Remove the side deflector duct.
4) Remove the tweeter mounting screws.
5) Remove the tweeter.
2. REAR
1) Disconnect the ground cable from battery.
2) Remove the rear quarter trim. REMOVAL, Rear Quarter Trim.>
3) Disconnect the connector, and then remove the
tweeter mounting screws.
4) Remove the tweeter.
B: INSTALLATION
Install in the reverse order of removal.
ET-00176
ET-00177
