General Description
EXTERIOR BODY PANELS
1. General Description
A: SPECIFICATION

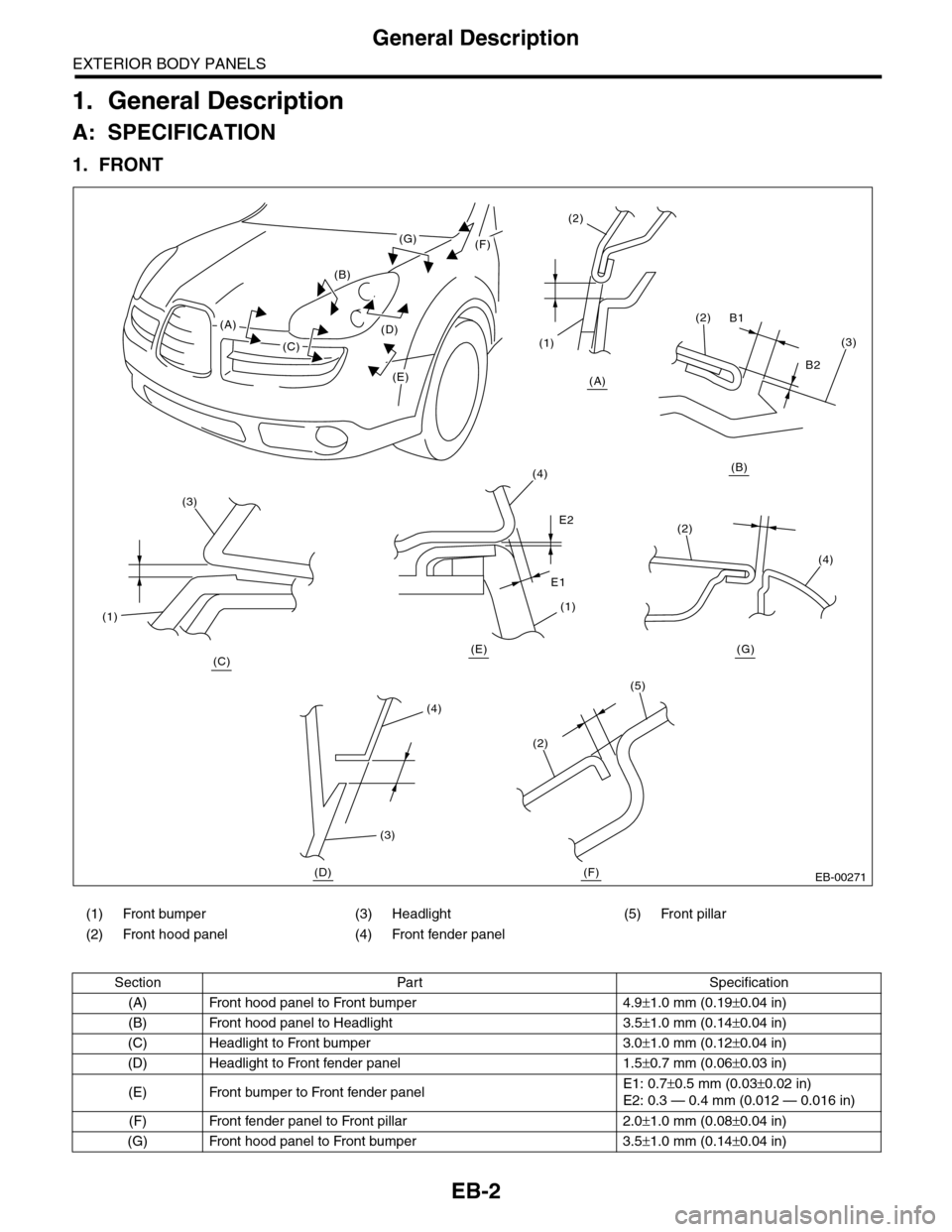

1. FRONT
(1) Front bumper (3) Headlight (5) Front pillar
(2) Front hood panel (4) Front fender panel
Section Part Specification
(A) Front hood panel to Front bumper 4.9±1.0 mm (0.19±0.04 in)
(B) Front hood panel to Headlight 3.5±1.0 mm (0.14±0.04 in)
(C) Headlight to Front bumper 3.0±1.0 mm (0.12±0.04 in)
(D) Headlight to Front fender panel 1.5±0.7 mm (0.06±0.03 in)
(E) Front bumper to Front fender panelE1: 0.7±0.5 mm (0.03±0.02 in)
E2: 0.3 — 0.4 mm (0.012 — 0.016 in)
(F) Front fender panel to Front pillar 2.0±1.0 mm (0.08±0.04 in)
(G) Front hood panel to Front bumper 3.5±1.0 mm (0.14±0.04 in)
EB-00271
(A)
(B)
(E) (G)
(D) (F)
(2)
(2)
(4)
(1)
(2)
(4)
(4)
(2)
(5)
(3)
(3)
(1)
(3)
B1
E2
E1
B2
(F)(G)
(D)
(E)
(C)
(A)
(B)
(1)
(C)

EB-3
General Description
EXTERIOR BODY PANELS

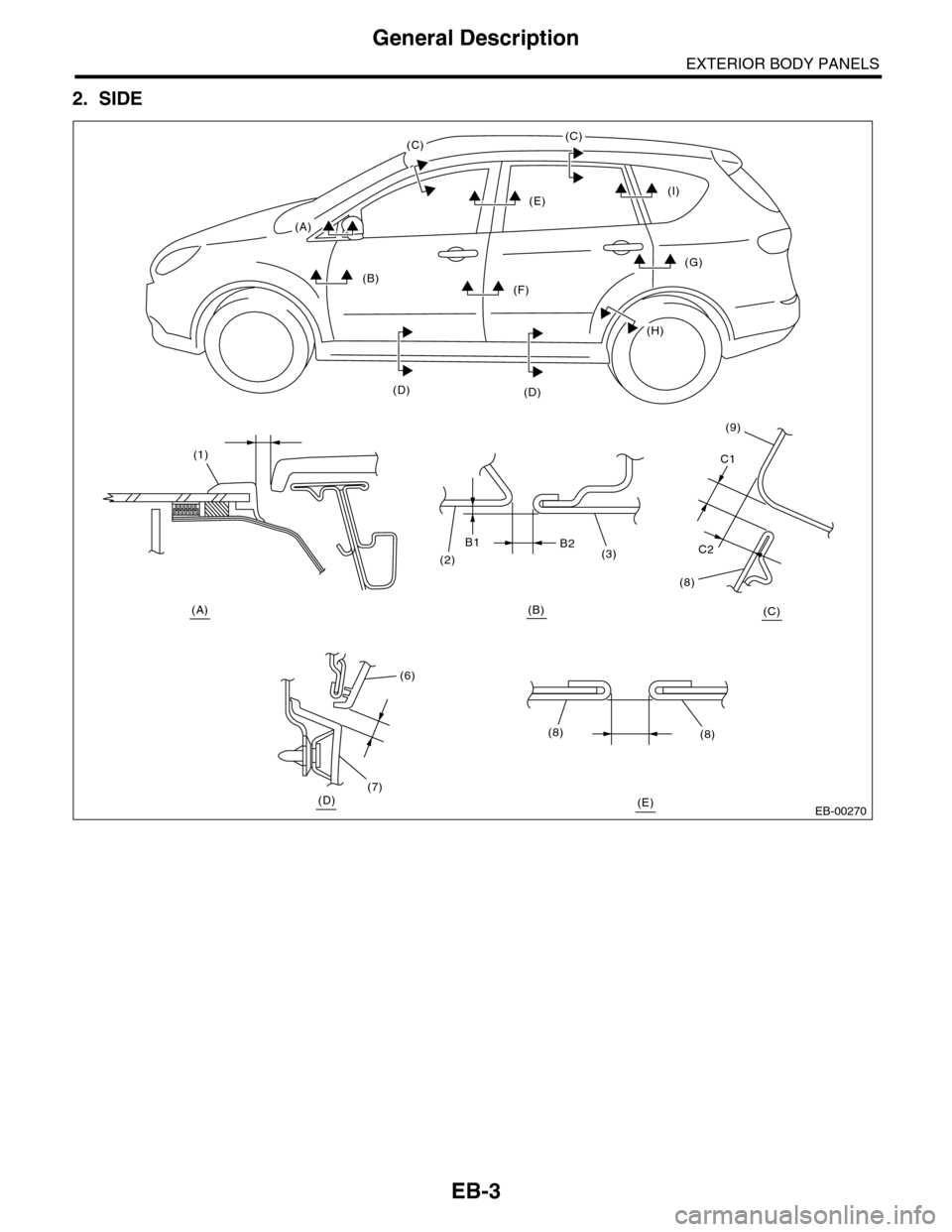

2. SIDE
EB-00270
(A) (B)
(E)(D)
(1)
(2)(3)
(6)
(7)
(8)(8)
(8)
(9)
B1B2C2
C1
(C)
(I)
(C)
(E)
(C)
(A)
(B)(F)
(D)(D)
(H)
(G)

EB-4
General Description
EXTERIOR BODY PANELS

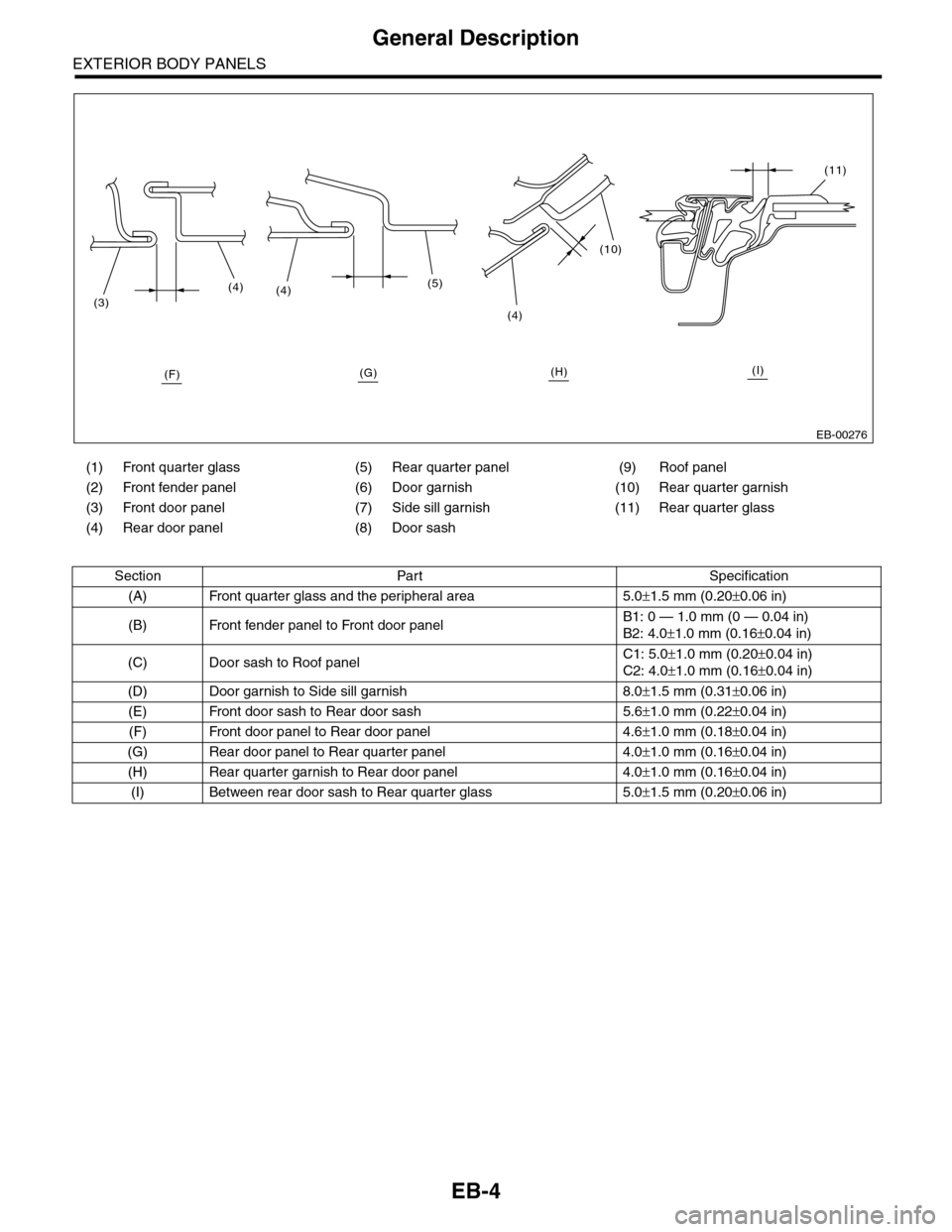

(1) Front quarter glass (5) Rear quarter panel (9) Roof panel
(2) Front fender panel (6) Door garnish (10) Rear quarter garnish
(3) Front door panel (7) Side sill garnish (11) Rear quarter glass
(4) Rear door panel (8) Door sash
Section Part Specification
(A) Front quarter glass and the peripheral area 5.0±1.5 mm (0.20±0.06 in)
(B) Front fender panel to Front door panelB1: 0 — 1.0 mm (0 — 0.04 in)
B2: 4.0±1.0 mm (0.16±0.04 in)
(C) Door sash to Roof panelC1: 5.0±1.0 mm (0.20±0.04 in)
C2: 4.0±1.0 mm (0.16±0.04 in)
(D) Door garnish to Side sill garnish 8.0±1.5 mm (0.31±0.06 in)
(E) Front door sash to Rear door sash 5.6±1.0 mm (0.22±0.04 in)
(F) Front door panel to Rear door panel 4.6±1.0 mm (0.18±0.04 in)
(G) Rear door panel to Rear quarter panel 4.0±1.0 mm (0.16±0.04 in)
(H) Rear quarter garnish to Rear door panel 4.0±1.0 mm (0.16±0.04 in)
(I) Between rear door sash to Rear quarter glass 5.0±1.5 mm (0.20±0.06 in)
EB-00276
(3)
(4)(4)(5)
(4)
(10)
(11)
(F)(G)(H)(I)

EB-5
General Description
EXTERIOR BODY PANELS

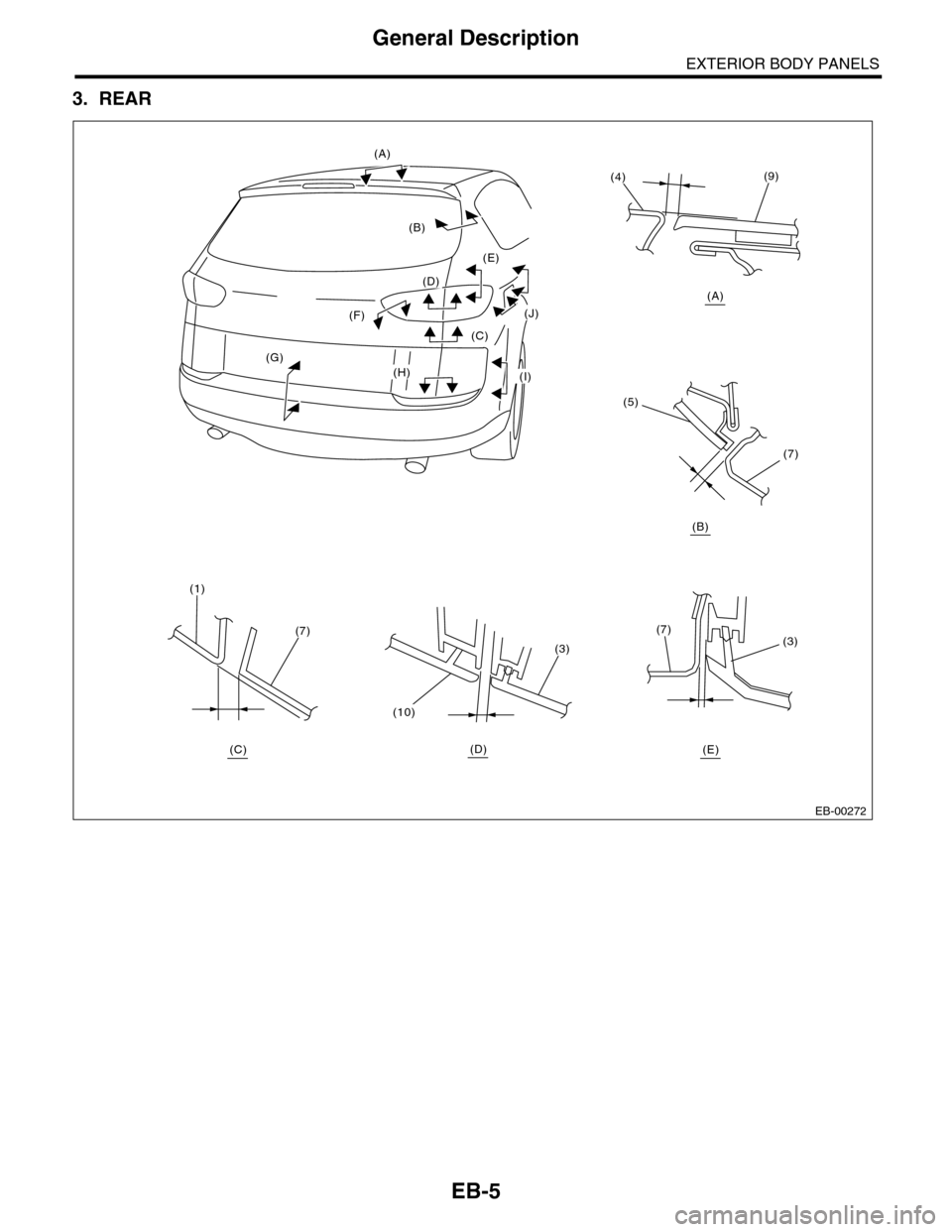

3. REAR
EB-00272
(A)
(B)
(E)(D)
(4)(9)
(5)
(3)(7)
(10)
(3)
(7)
(1)
(7)
(A)
(B)
(E)
(D)
(J)
(C)
(I)(H)
(F)
(G)
(C)

EB-6
General Description
EXTERIOR BODY PANELS

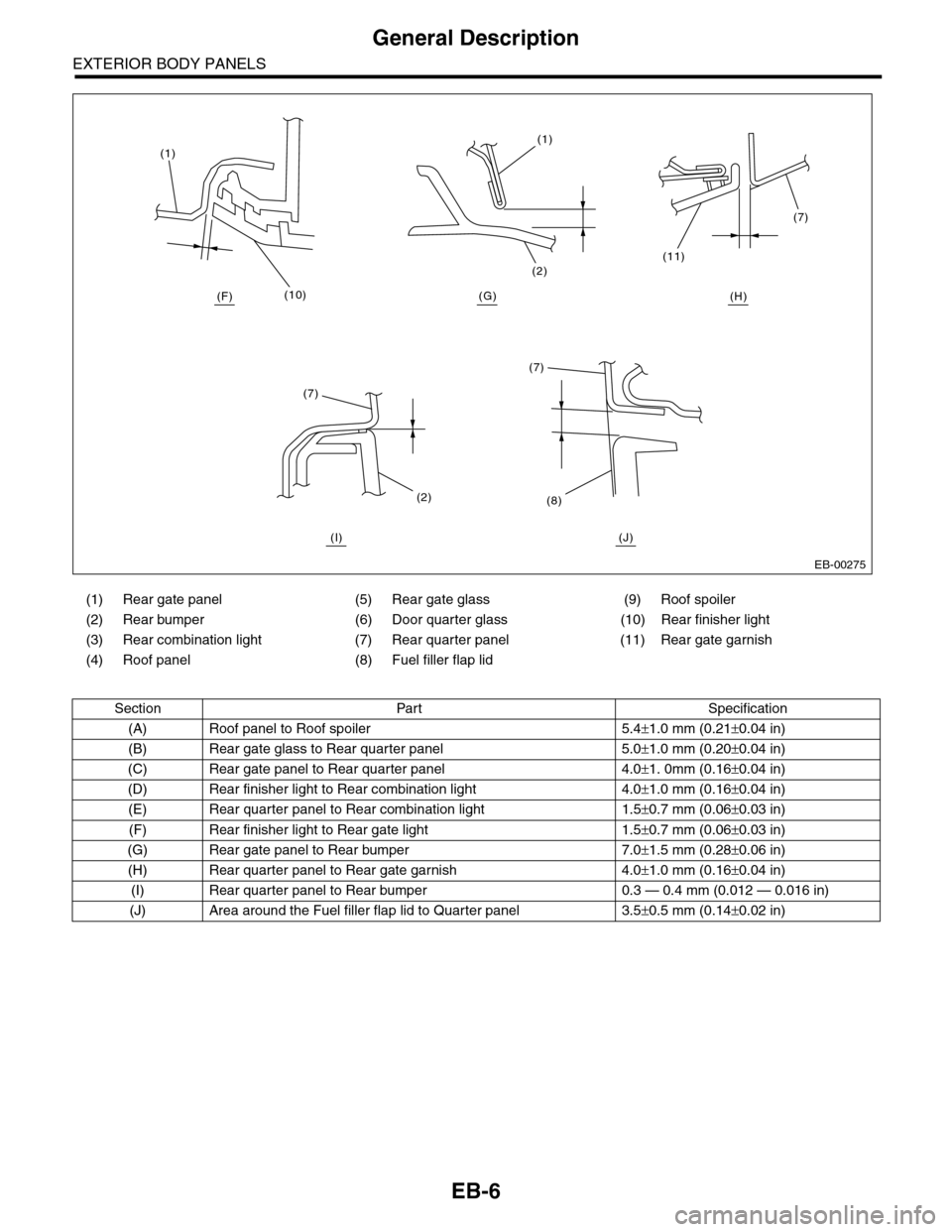

(1) Rear gate panel (5) Rear gate glass (9) Roof spoiler
(2) Rear bumper (6) Door quarter glass (10) Rear finisher light
(3) Rear combination light (7) Rear quarter panel (11) Rear gate garnish
(4) Roof panel (8) Fuel filler flap lid
Section Part Specification
(A) Roof panel to Roof spoiler 5.4±1.0 mm (0.21±0.04 in)
(B) Rear gate glass to Rear quarter panel 5.0±1.0 mm (0.20±0.04 in)
(C) Rear gate panel to Rear quarter panel 4.0±1. 0mm (0.16±0.04 in)
(D) Rear finisher light to Rear combination light 4.0±1.0 mm (0.16±0.04 in)
(E) Rear quarter panel to Rear combination light 1.5±0.7 mm (0.06±0.03 in)
(F) Rear finisher light to Rear gate light 1.5±0.7 mm (0.06±0.03 in)
(G) Rear gate panel to Rear bumper 7.0±1.5 mm (0.28±0.06 in)
(H) Rear quarter panel to Rear gate garnish 4.0±1.0 mm (0.16±0.04 in)
(I) Rear quarter panel to Rear bumper 0.3 — 0.4 mm (0.012 — 0.016 in)
(J) Area around the Fuel filler flap lid to Quarter panel 3.5±0.5 mm (0.14±0.02 in)
EB-00275
(10)
(1)(1)
(2)
(7)
(11)
(7)
(8)(2)
(7)
(H)(G)(F)
(I) (J)

EB-7
General Description
EXTERIOR BODY PANELS
B: COMPONENT

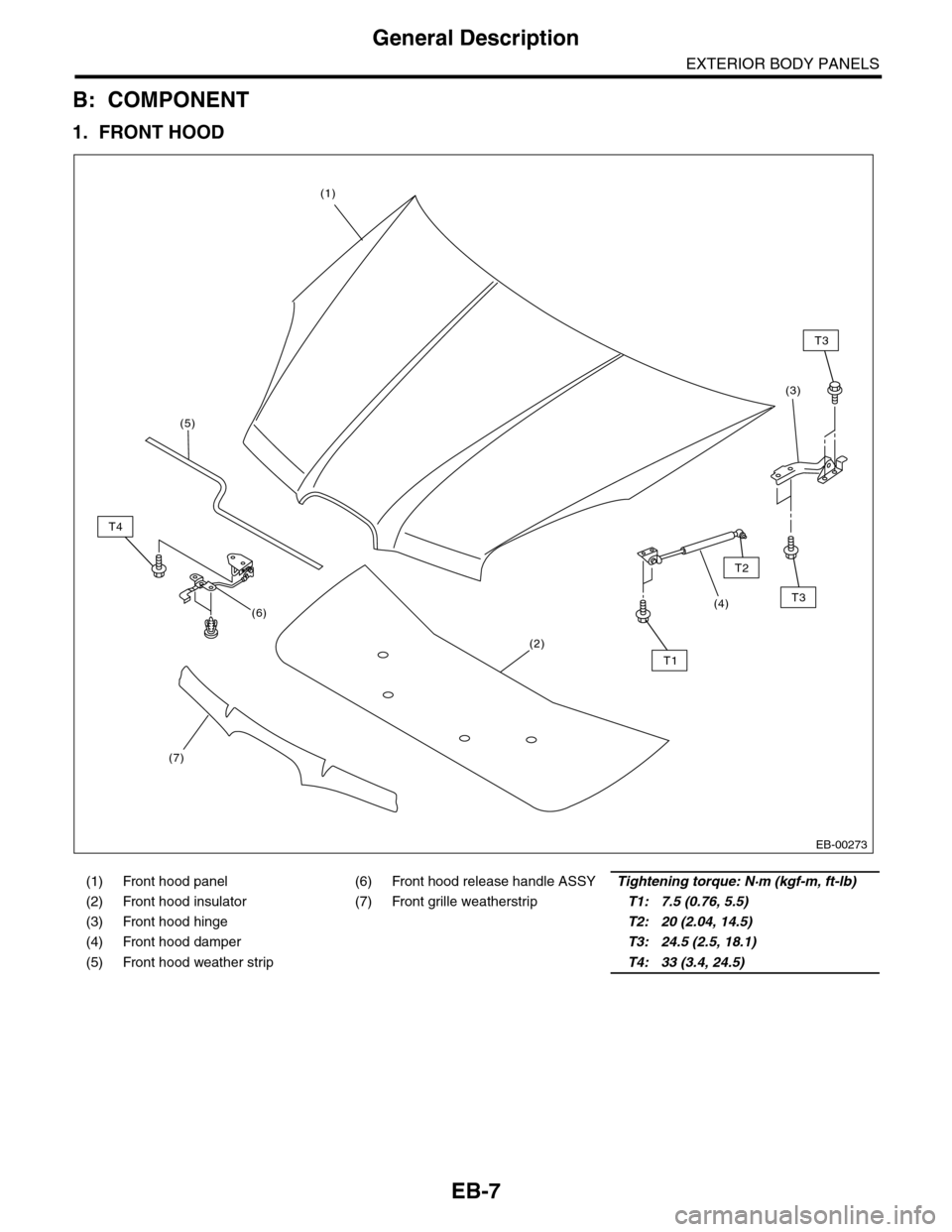

1. FRONT HOOD
(1) Front hood panel (6) Front hood release handle ASSYTightening torque: N·m (kgf-m, ft-lb)
(2) Front hood insulator (7) Front grille weatherstripT1: 7.5 (0.76, 5.5)
(3) Front hood hinge T2: 20 (2.04, 14.5)
(4) Front hood damper T3: 24.5 (2.5, 18.1)
(5) Front hood weather strip T4: 33 (3.4, 24.5)
EB-00273
T3
T1
T3
T2
(2)
(3)
(4)
(5)
(1)
T4
(6)
(7)

EB-8
General Description
EXTERIOR BODY PANELS

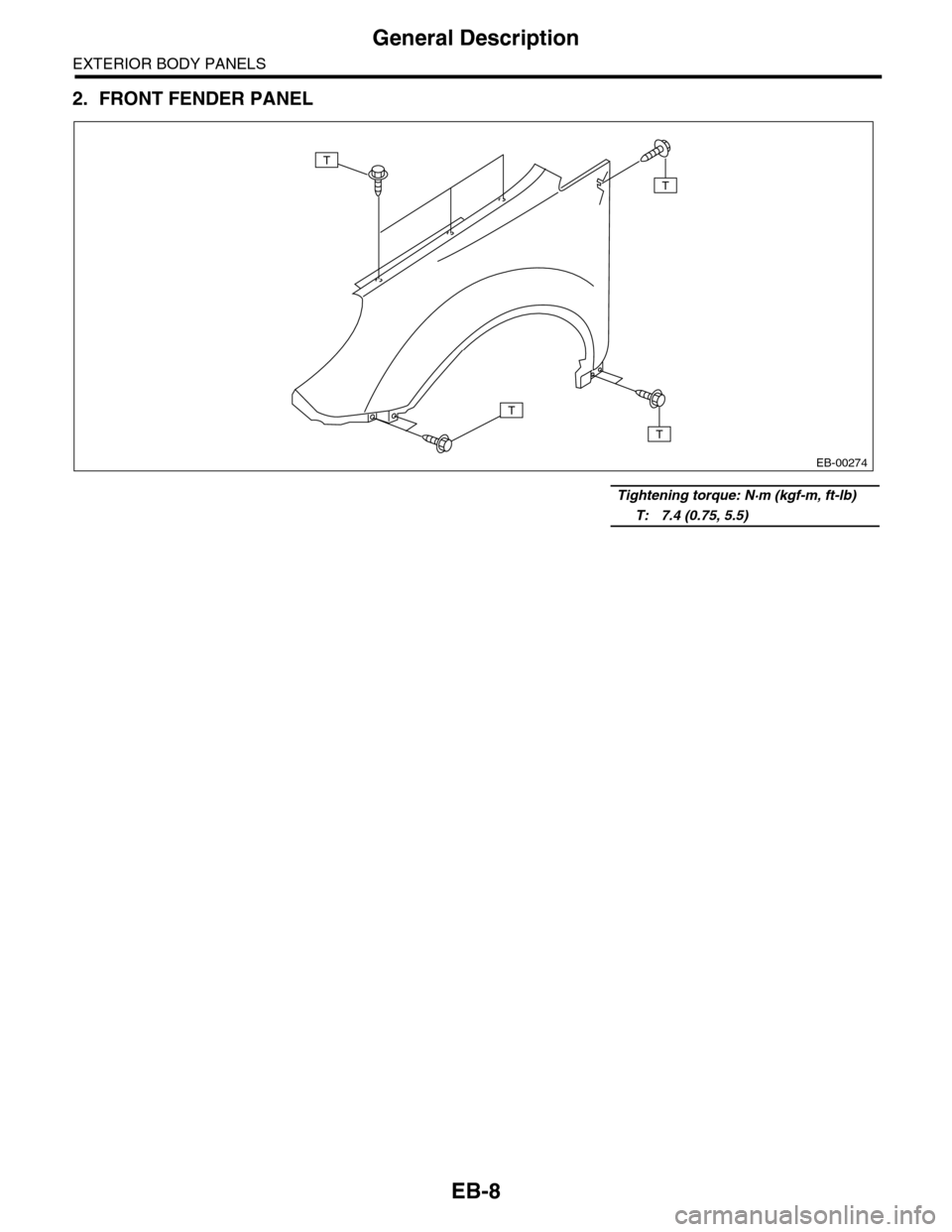

2. FRONT FENDER PANEL
Tightening torque: N·m (kgf-m, ft-lb)
T: 7.4 (0.75, 5.5)
EB-00274
T
T
T
T

EB-9
General Description
EXTERIOR BODY PANELS

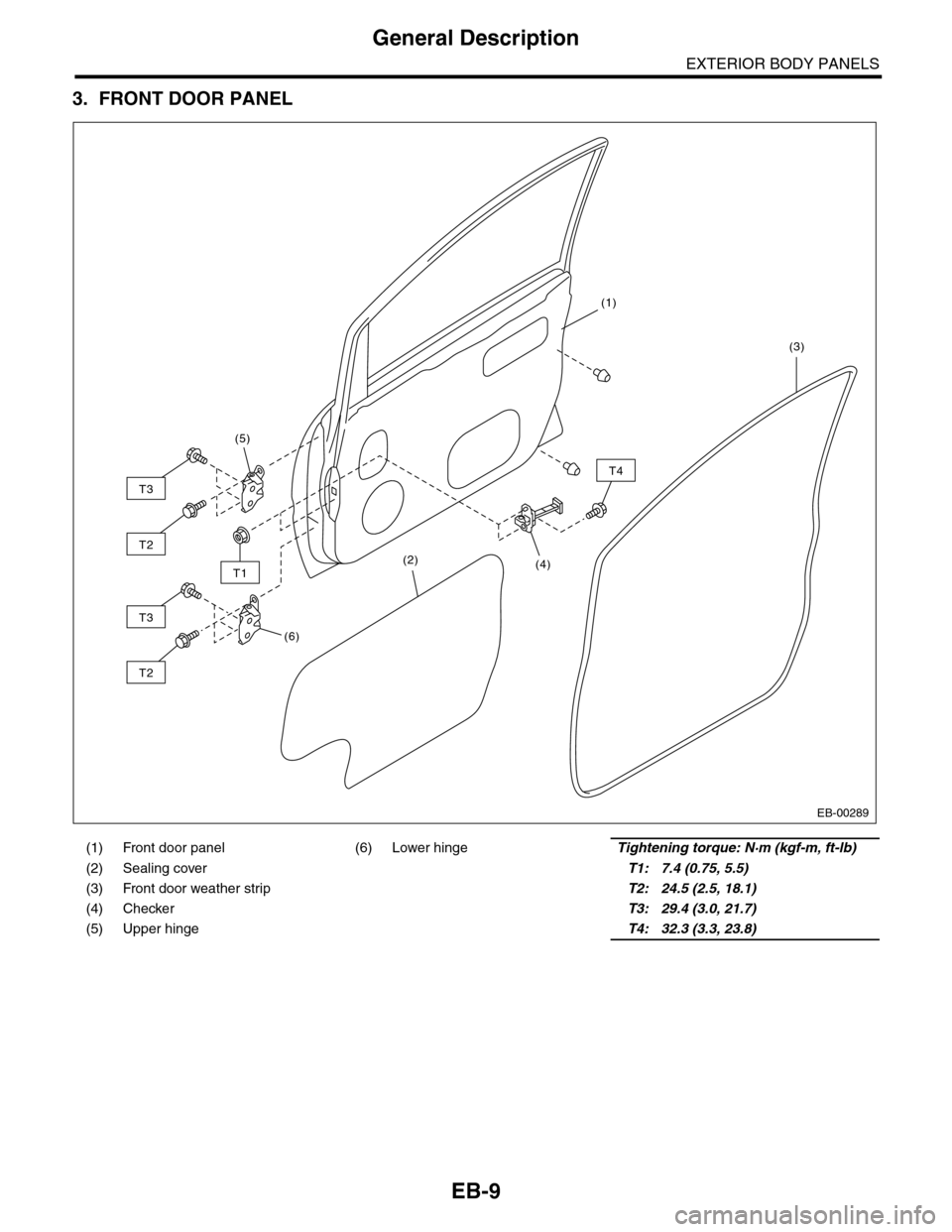

3. FRONT DOOR PANEL
(1) Front door panel (6) Lower hingeTightening torque: N·m (kgf-m, ft-lb)
(2) Sealing cover T1: 7.4 (0.75, 5.5)
(3) Front door weather strip T2: 24.5 (2.5, 18.1)
(4) Checker T3: 29.4 (3.0, 21.7)
(5) Upper hinge T4: 32.3 (3.3, 23.8)
EB-00289
T4
T1
T3
T2
T3
T2
(6)
(2)
(5)
(1)
(3)
(4)

EB-10
General Description
EXTERIOR BODY PANELS

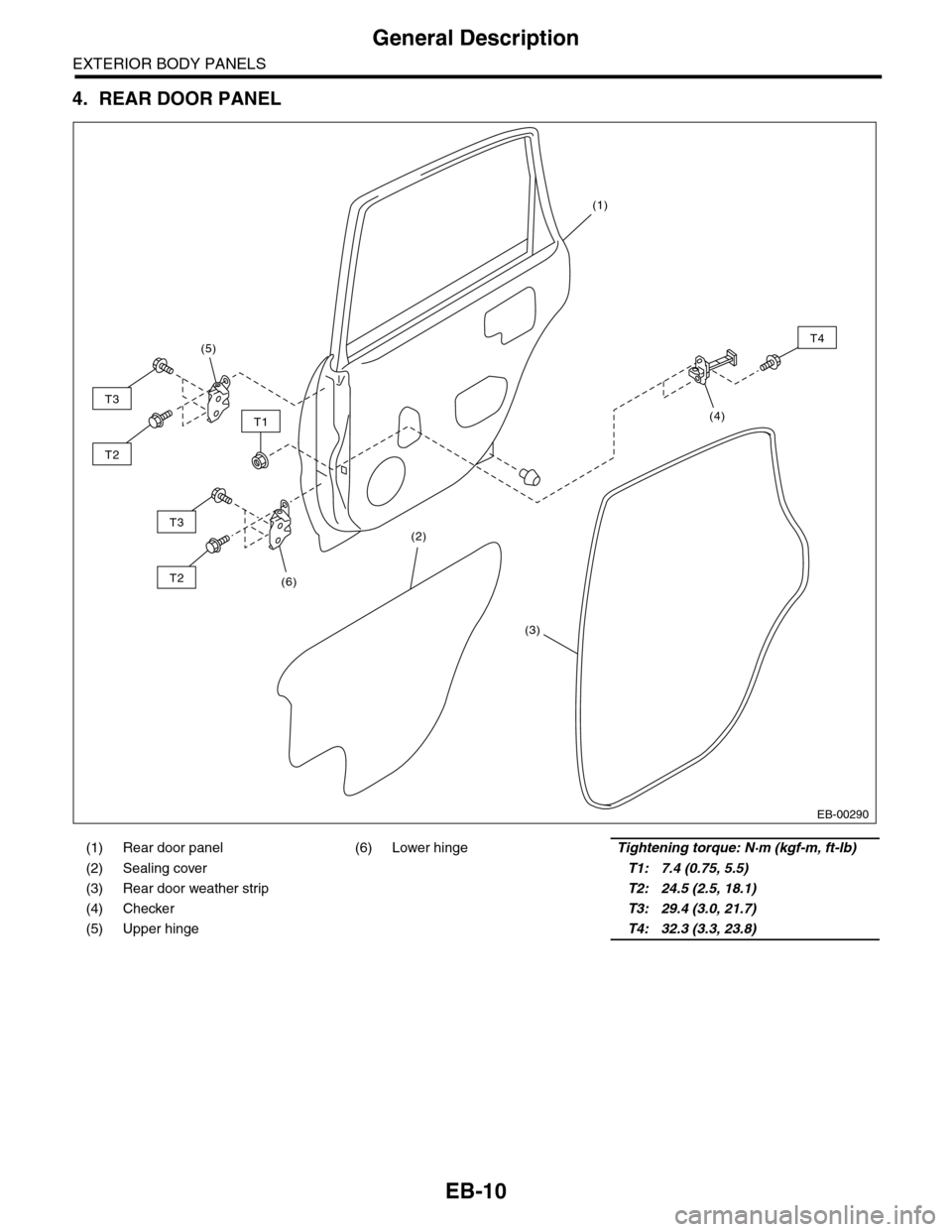

4. REAR DOOR PANEL
(1) Rear door panel (6) Lower hingeTightening torque: N·m (kgf-m, ft-lb)
(2) Sealing cover T1: 7.4 (0.75, 5.5)
(3) Rear door weather strip T2: 24.5 (2.5, 18.1)
(4) Checker T3: 29.4 (3.0, 21.7)
(5) Upper hinge T4: 32.3 (3.3, 23.8)
EB-00290
T1
T3
T2
(5)
(1)
T3
T2(6)
T4
(4)
(2)
(3)

EB-11
General Description
EXTERIOR BODY PANELS

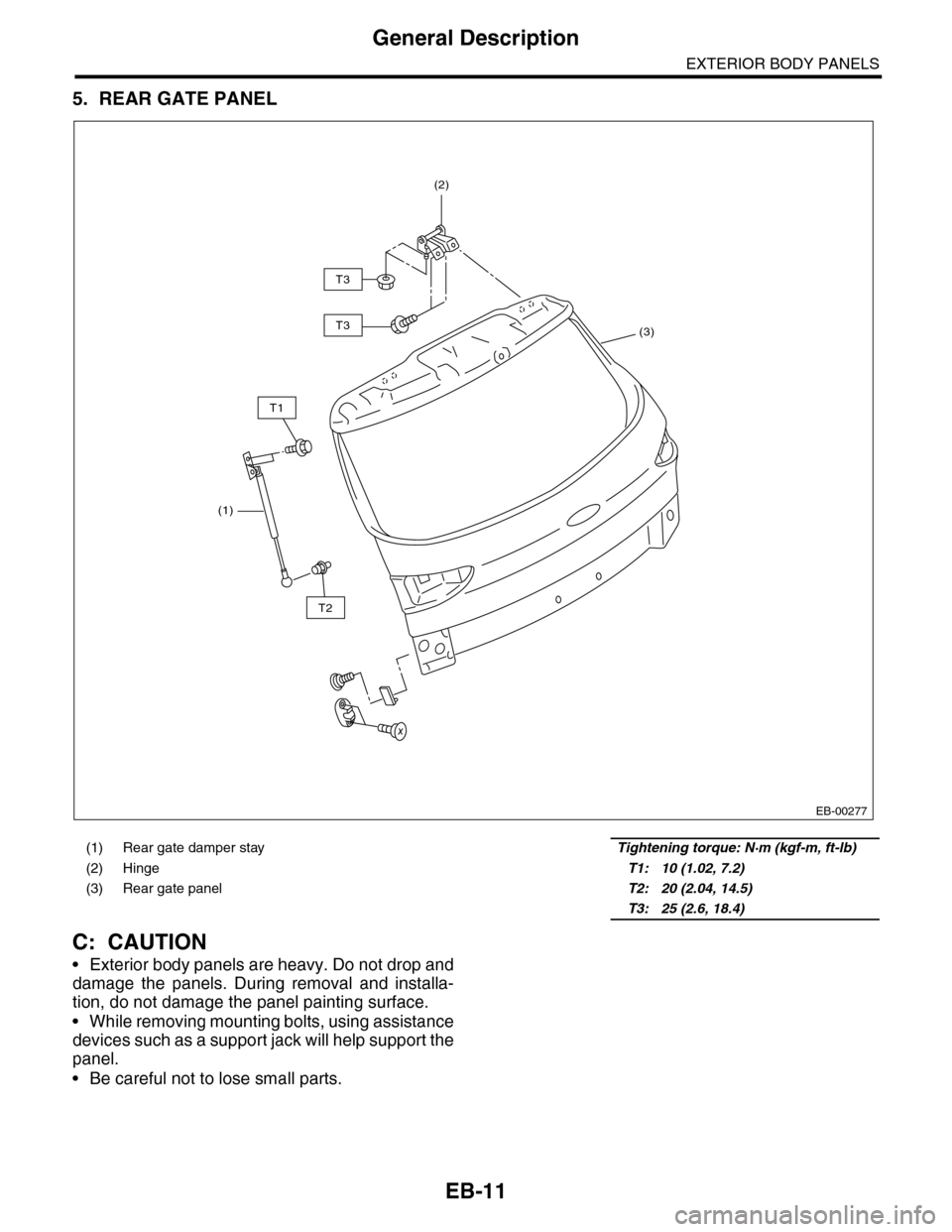

5. REAR GATE PANEL
C: CAUTION
•Exterior body panels are heavy. Do not drop and
damage the panels. During removal and installa-
tion, do not damage the panel painting surface.
•While removing mounting bolts, using assistance
devices such as a support jack will help support the
panel.
•Be careful not to lose small parts.
(1) Rear gate damper stay Tightening torque: N·m (kgf-m, ft-lb)
(2) Hinge T1: 10 (1.02, 7.2)
(3) Rear gate panel T2: 20 (2.04, 14.5)
T3: 25 (2.6, 18.4)
EB-00277
(3)
T3
T3
T1
T2
(2)
(1)
