SUBARU TRIBECA 2009 1.G Service Workshop Manual

WI-157
Engine Wiring Harness and Transmission Cord
WIRING SYSTEM
58.Engine Wiring Harness and Transmission Cord
A: LOCATION
Connector Connecting to
No. Pole Color Area No. Description
E1 16 Brown A-3 B20Bulkhead wiring harnessE2 54 Black A-3 B21
E4 2 Blue A-2 CPC Solenoid
E5 2 Dark gray A-2 Fuel injector No.1
E6 2 Dark gray A-2 Fuel injector No.3
E8 2 Black B-4 Engine coolant temperature sensor
E10 2 Light gray B-4 Crankshaft position sensor
E11 1 B-1 Oil pressure switch
E14 2 Blue A-3 Knock sensor 1
E16 2 Dark gray B-4 Fuel injector No.2
E17 2 Dark gray B-4 Fuel injector No.4
E19 1 B-3 Power steering oil pressure switch
E28 3 Black A-3 Intake manifold pressure sensor
E31 3 Black B-1 Ignition coil No.1
E32 3 Black C-4 Ignition coil No.2
E33 3 B-2 Ignition coil No.3
E34 3 B-4 Ignition coil No.4
E43 2 Dark gray A-2 Fuel injector No.5
E44 2 Dark gray B-5 Fuel injector No.6
E45 3 Black B-2 Ignition coil No.5
E46 3 Black B-5 Ignition coil No.6
E48 2 Blue A-4 Knock sensor 2
E57 6 Black A-3 Electronic throttle control
E67 2 Blue B-1 Intake oil flow control solenoid valve RH
E68 2 Blue C-4 Intake oil flow control solenoid valve LH
E69 2 Blue A-2 Oil switching solenoid valve RH
E70 2 Blue B-5 Oil switching solenoid valve LH
E71 1 A-3 Variable valve lift diagnosis oil pressure switch RH
E72 1 B-5 Variable valve lift diagnosis oil pressure switch LH
E73 3 Gray A-2 Camshaft position sensor RH
E74 3 Gray B-5 Camshaft position sensor LH
E75 2 Black B-5 Oil temperature sensor
E76 6 Dark gray A-3 E77Engine wiring harnessE77 10 Dark gray A-3 E76
: White or natural color
Connector Connecting to
No. Pole Color Area No. Description
T1 3 D-3 Torque converter turbine speed sensor 1
T3 8 Brown D-2 B12Bulkhead wiring harnessT4 20 D-3 B11
T5 16 Green D-3Control valve assemblyT6 12 Green D-3
: White or natural color

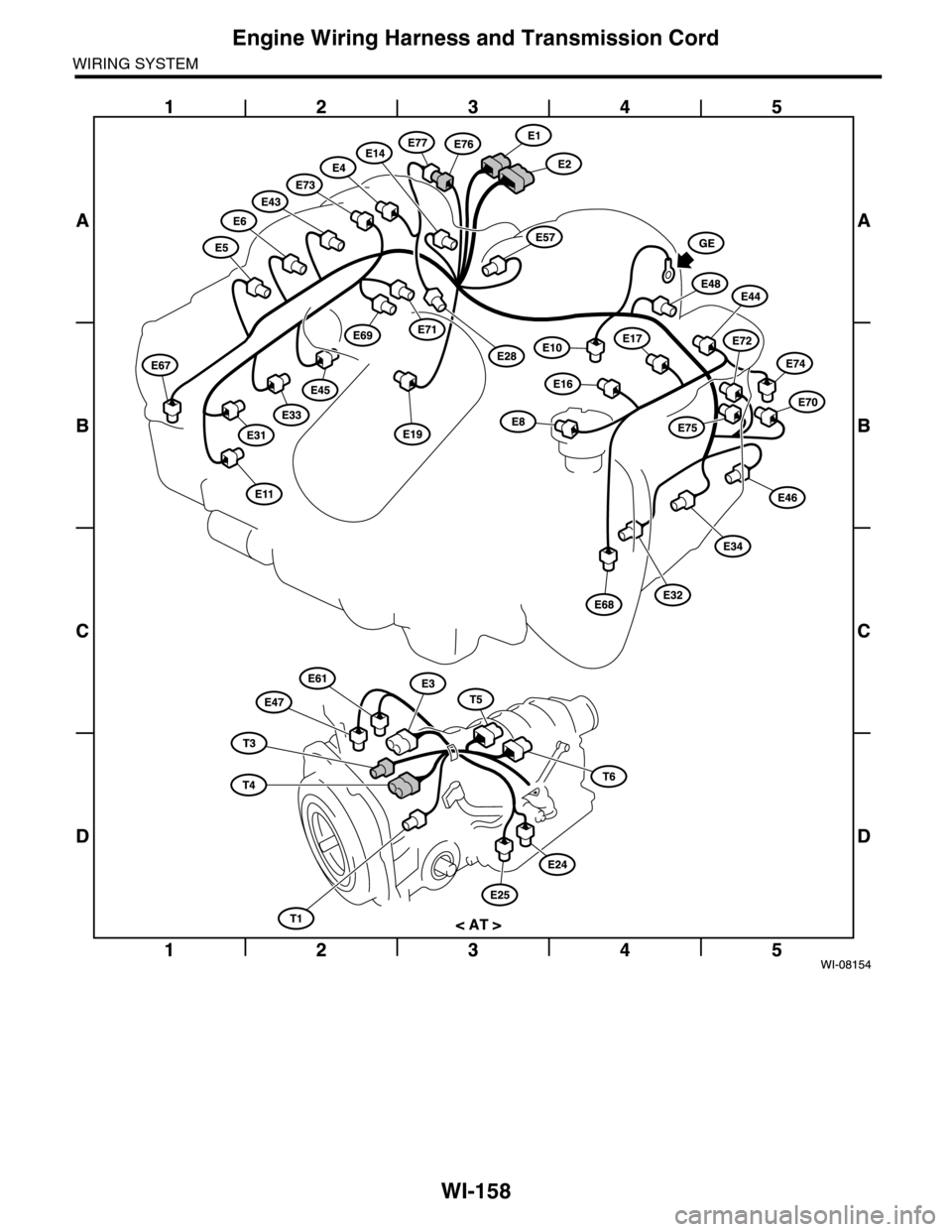

WI-158
Engine Wiring Harness and Transmission Cord
WIRING SYSTEM

WI-159
Instrument Panel Wiring Harness
WIRING SYSTEM
59.Instrument Panel Wiring Harness
A: LOCATION
Connector Connecting to
No. Pole Color Area No. Description
i1 28 Blue B-1 B36
Bulkhead wiring harnessi2 25 B-1 B37
i3 20 B-5 B38
i5 20 C-1 Fuse & relay box (F/B)
i6 16 C-2 Remote control mirror switch
i10 30 Green B-2Combination meteri11 14 Green B-2
i22 4 B-3 Hazard switch
i23 2 B-4 Glove box illumination
i26 16 C-4 Audio
i29 1 Black C-4 Audio bracket earth
i51 2 B-5 Sunload sensor
i53 22 Blue C-5 R98 Rear wiring harness
i76 25 C-1 D83 Front door cord LH
i78 15 Blue C-2 Push switch
i79 6 C-2 Illumination control module
i80 1 C-2Diagnosis connectori81 1 C-2
i82 12 Blue B-2Joint connectori83 12 Blue B-2
i84 35 Gray B-3 Body integrated unit
i85 14 C-4 Audio
i88 8 Black C-4 A/C control panel
i96 8 B-5 Keyless entry control module
i97 22 B-3
Joint connectori98 22 B-3
i99 12 Black B-5
i100 12 Black B-5
i101 25 C-5 D84 Front door cord RH
i102 20 Blue C-1 R167 Rear wiring harness
i112 6 B-4
Joint connectori113 12 B-5
i114 12 B-5
i116 10 Green B-4 Warning box (Passenger’s side)
i117 8 Black B-3 MFD switch
i118 8 Black B-3 Navigation system switch
i119 16 Black B-3TV monitori120 20 Black B-3
i121 8 Black B-3 Navigation system switch
i122 22 Green B-3 MFD
i123 14 Green B-3 Warning box (Driver’s side)
i124 12 Gray C-2
Joint connectori125 12 Gray C-2
i126 12 Black C-1
i127 12 Black C-2
i128 12 Blue C-1 CAN joint connector
i129 8 C-3 Impact sensor

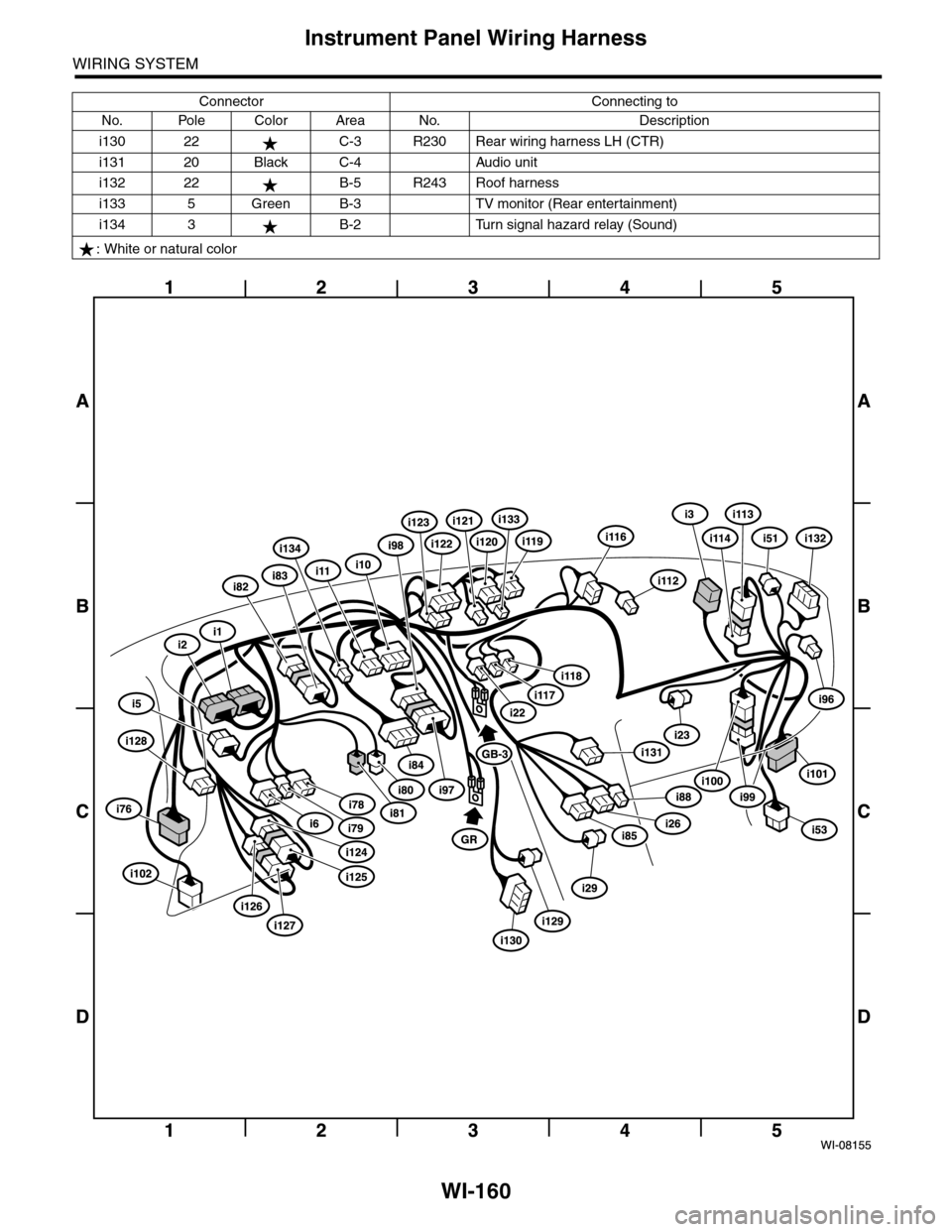

WI-160
Instrument Panel Wiring Harness
WIRING SYSTEM
i130 22 C-3 R230 Rear wiring harness LH (CTR)
i131 20 Black C-4 Audio unit
i132 22 B-5 R243 Roof harness
i133 5 Green B-3 TV monitor (Rear entertainment)
i134 3 B-2 Turn signal hazard relay (Sound)
: White or natural color
Connector Connecting to
No. Pole Color Area No. Description

WI-161
Rear Wiring Harness
WIRING SYSTEM
60.Rear Wiring Harness
A: LOCATION
1. RIGHT HAND
Connector Connecting to
No. Pole Color Area No. Description
R1 24 Black C-1 B98 Bulkhead wiring harness
R10 10 B-3 D22 Rear door cord (Passenger’s side)
R12 3 B-2 Front door switch RH
R15 14 C-3 R60 Fuel cord 1
R16 3 B-3 Rear door switch RH
R44 6 C-3 Seat heater & second-row seat foot light RH
R47 3 Black C-5 Fuel tank pressure sensor
R50 12 C-1 B90 Bulkhead wiring harness
R51 2 Black B-2 Vanity mirror illumination light RH
R52 3 B-3 Room light
R55 10 Gray B-4 Sunroof control unit & motor
R56 6 Gray B-3 Spot map light
R57 3 B-3 Rearview mirror
R58 6 Gray C-4 Fuel gauge main unit
R59 2 C-4 Fuel gauge sub unit
R60 14 C-3 R15 Rear wiring harness
R98 22 Blue C-1 i53 Instrument panel wiring harness
R109 2 Black C-3 Power seat RH
R117 2 A-4 Super woofer
R122 10 Black B-4 Fuel pump relay control unit
R128 5 B-3 Open/Close switch
R143 2 Gray C-5 Drain valve
R187 5 Black B-3 Tilt switch
R233 4 C-3 Joint connector
R234 1 Black C-5 Rear differential gear oil temperature switch
R235 10 A-5 R245 Tail harness
R236 24 B-4 Rear seat entertainment
R237 4 B-3
Joint connector
R238 4 B-3
R239 4 B-4
R240 4 B-4
R241 4 B-2
R243 22 C-1 i132 Instrument panel wiring harness
R249 2 Gray C-3 Rear ABS wheel speed sensor RH
R250 3 B-4 Room light
R251 4 B-2
Joint connector
R252 12 Gray C-2
R253 12 Gray C-2
R255 4 C-2
R256 4 C-2
R257 2 B-3 Rear tweeter RH

WI-162
Rear Wiring Harness
WIRING SYSTEM
R270 2 Black B-4 Home link
R277 1 Black C-5 Bracket earth (Rear differential gear oil temperature switch)
Connector Connecting to
No. Pole Color Area No. Description
AB18 20 Yellow D-3 Airbag control module
AB24 2 Yellow C-3 Inflator (Side) RH
AB26 2 Black B-2 Pretensioner RH
AB28 4 Yellow B-2 Side airbag sensor RH
AB33 2 Yellow A-4 Inflator (Curtain) RH
AB34 4 Yellow B-3 Curtain airbag sensor RH
AB56 3 Brown C-2 Belt tensioner sensor
AB57 2 Yellow C-1 AB55 Bulkhead harness
AB61 6 Gray C-2 AB59 Occupant detection control module
: White or natural color
Connector Connecting to
No. Pole Color Area No. Description

WI-163
Rear Wiring Harness
WIRING SYSTEM
WI-08156
12345
12345
A
B
C
D
A
B
C
D
AB61
R57
R109
R44
AB24
R235
R117
R236
R122
R56R256
R51
R241
AB26
R255
R249
R252
R253
AB56
AB33
R250
R240
R239
R55
AB34
R237
R238
R52
R16
R257
R47
R234
R59
R58
R277
R143
R128
R187
R12
R10R251
AB28
R270R15
R60
AB18
R98
R50
R243
R1
AB57
R233
GB-10
GB-9
GB-8

WI-164
Rear Wiring Harness
WIRING SYSTEM
2. LEFT HAND
Connector Connecting to
No. Pole Color Area No. Description
R2 20 Black D-2 B98 Bulkhead wiring harness
R8 4 C-2 Front seat belt switch LH
R9 3 C-3 Front door cord switch LH
R13 10 C-3 D28 Rear door cord (Driver’s side)
R22 3 C-4 Rear door switch LH
R28 4 B-5 Rear combination light LH
R41 6 C-2 Seat heater & second-row seat foot light LH
R167 20 Blue D-2 i102 Instrument panel wiring harness (Driver’s seat)
R168 20 D-1 Fuse & relay box (F/B)
R188 2 Black C-2 Power seat LH
R211 12 D-2 TPM control module
R215 14 B-5 R247 Tail harness
R216 12 Black B-5 R246 Tail harness (Joint connector)
R217 10 B-5 R248 Tail harness (Rear entertainment)
R218 4 B-5 Rear cooler relay
R219 4 B-5 Blower fan resistor
R220 2 B-5 Blower motor
R221 4 C-3
Joint connectorR222 4 C-3
R224 12 D-2
R225 12 D-2
R226 10 Black C-2 Navigation module
R227 12 D-2Joint connectorR228 12 D-2
R229 11 C-1 R272 Console pocket
R230 22 C-1 i130 Instrument panel wiring harness (Center)
R232 2 Gray C-4 Rear ABS wheel speed sensor LH
R254 14 B-4 Adapter code
R272 11 C-1 R229 Rear harness
R273 2 B-1 Cup holder illumination
R274 2 B-2Fr o nt a cc es so r y p ower s up pl y s ocke tR275 2 B-2
R276 10 B-2 Blower fan switch
: White or natural color
Connector Connecting to
No. Pole Color Area No. Description
AB17 20 Yellow C-1 Airbag control module
AB19 2 Yellow C-2 Inflator (Side) LH
AB21 2 Black C-3 Pretensioner LH
AB23 4 Yellow C-3 Side airbag sensor LH
AB31 2 Yellow B-4 Inflator (Curtain) LH
AB32 4 Yellow C-4 Curtain airbag sensor LH
AB51 2 Yellow C-2 Buckle switch
AB52 2 Yellow C-2 Seat position sensor LH

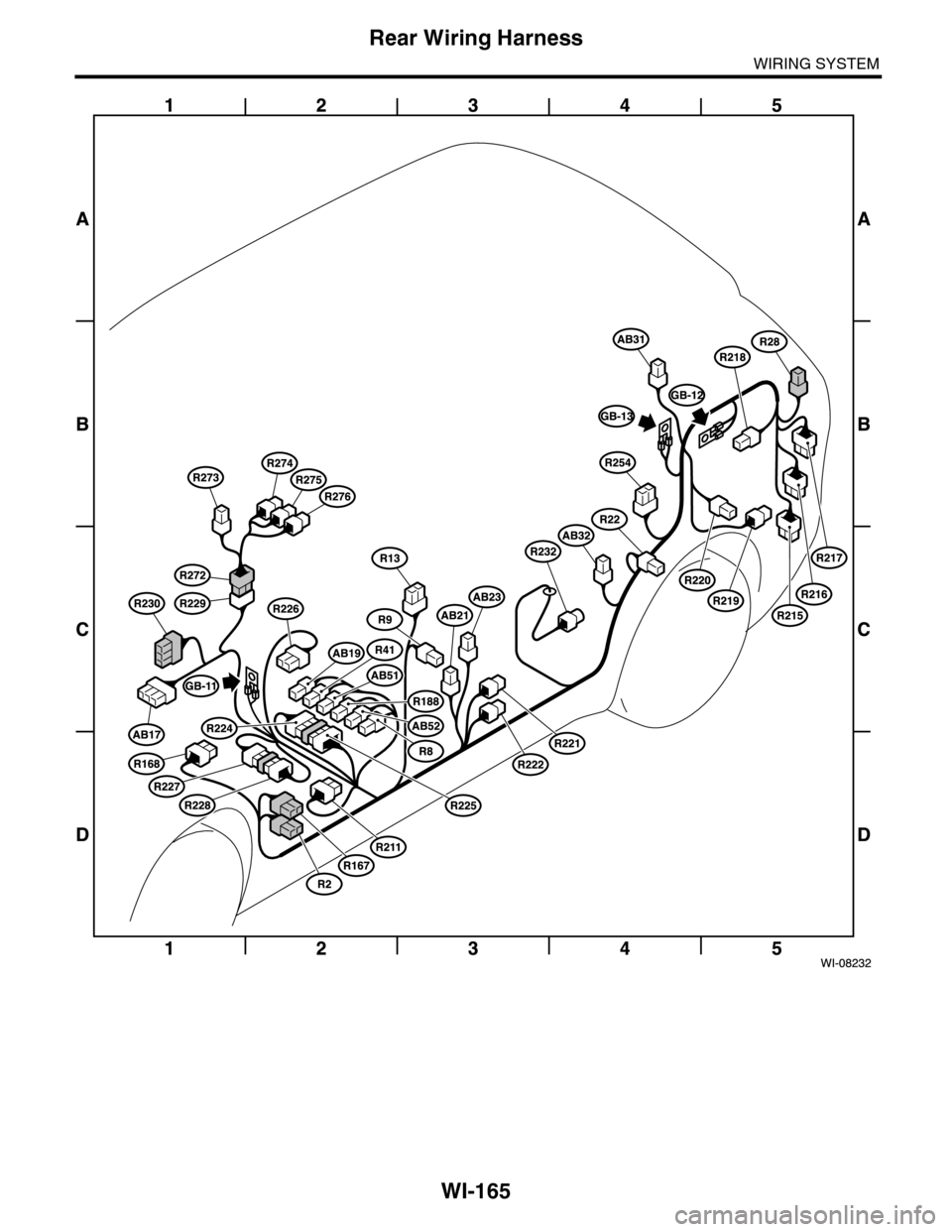

WI-165
Rear Wiring Harness
WIRING SYSTEM

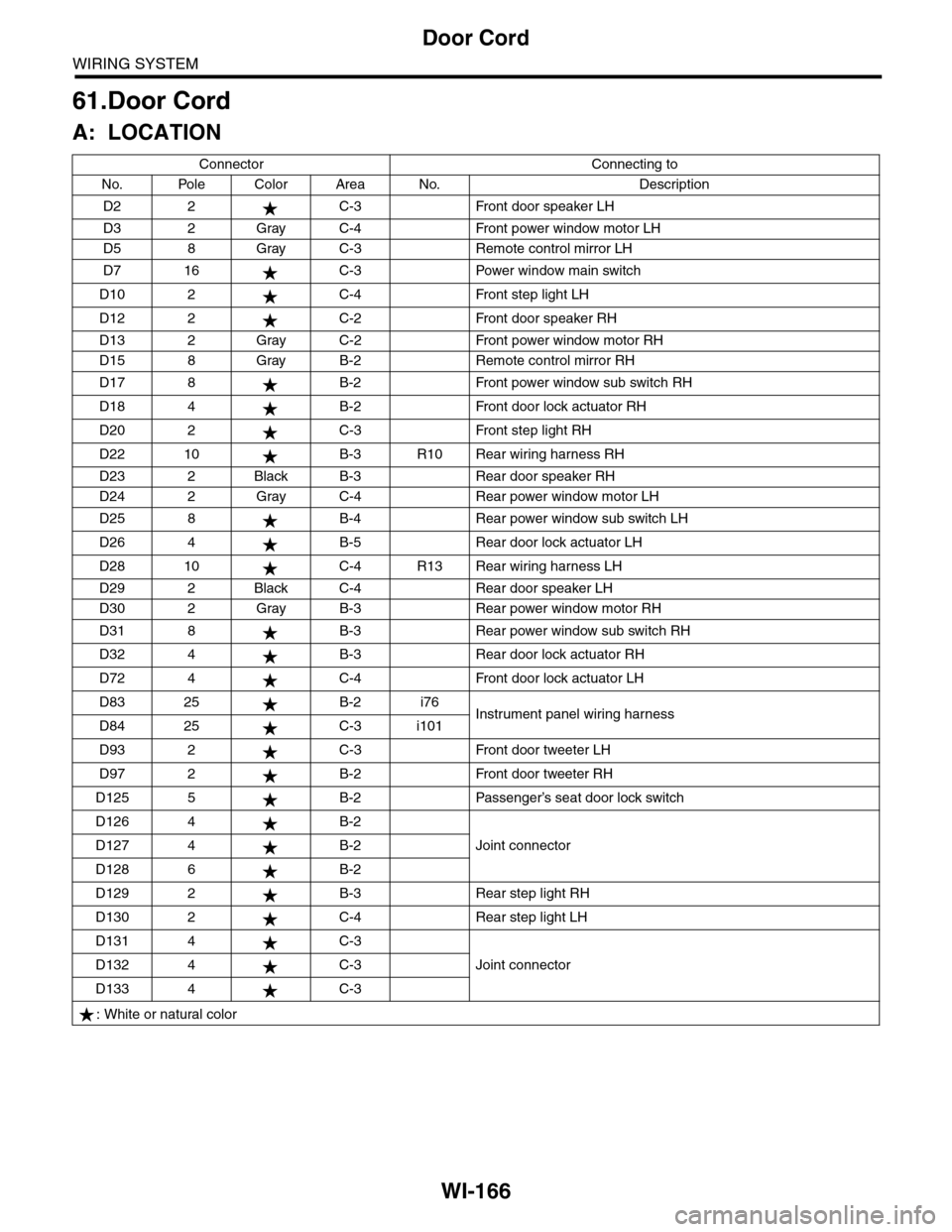

WI-166
Door Cord
WIRING SYSTEM
61.Door Cord
A: LOCATION
Connector Connecting to
No. Pole Color Area No. Description
D2 2 C-3 Front door speaker LH
D3 2 Gray C-4 Front power window motor LH
D5 8 Gray C-3 Remote control mirror LH
D7 16 C-3 Power window main switch
D10 2 C-4 Front step light LH
D12 2 C-2 Front door speaker RH
D13 2 Gray C-2 Front power window motor RH
D15 8 Gray B-2 Remote control mirror RH
D17 8 B-2 Front power window sub switch RH
D18 4 B-2 Front door lock actuator RH
D20 2 C-3 Front step light RH
D22 10 B-3 R10 Rear wiring harness RH
D23 2 Black B-3 Rear door speaker RH
D24 2 Gray C-4 Rear power window motor LH
D25 8 B-4 Rear power window sub switch LH
D26 4 B-5 Rear door lock actuator LH
D28 10 C-4 R13 Rear wiring harness LH
D29 2 Black C-4 Rear door speaker LH
D30 2 Gray B-3 Rear power window motor RH
D31 8 B-3 Rear power window sub switch RH
D32 4 B-3 Rear door lock actuator RH
D72 4 C-4 Front door lock actuator LH
D83 25 B-2 i76Instrument panel wiring harnessD84 25 C-3 i101
D93 2 C-3 Front door tweeter LH
D97 2 B-2 Front door tweeter RH
D125 5 B-2 Passenger’s seat door lock switch
D126 4 B-2
Joint connectorD127 4 B-2
D128 6 B-2
D129 2 B-3 Rear step light RH
D130 2 C-4 Rear step light LH
D131 4 C-3
Joint connectorD132 4 C-3
D133 4 C-3
: White or natural color
