SUBARU TRIBECA 2009 1.G Service Workshop Manual

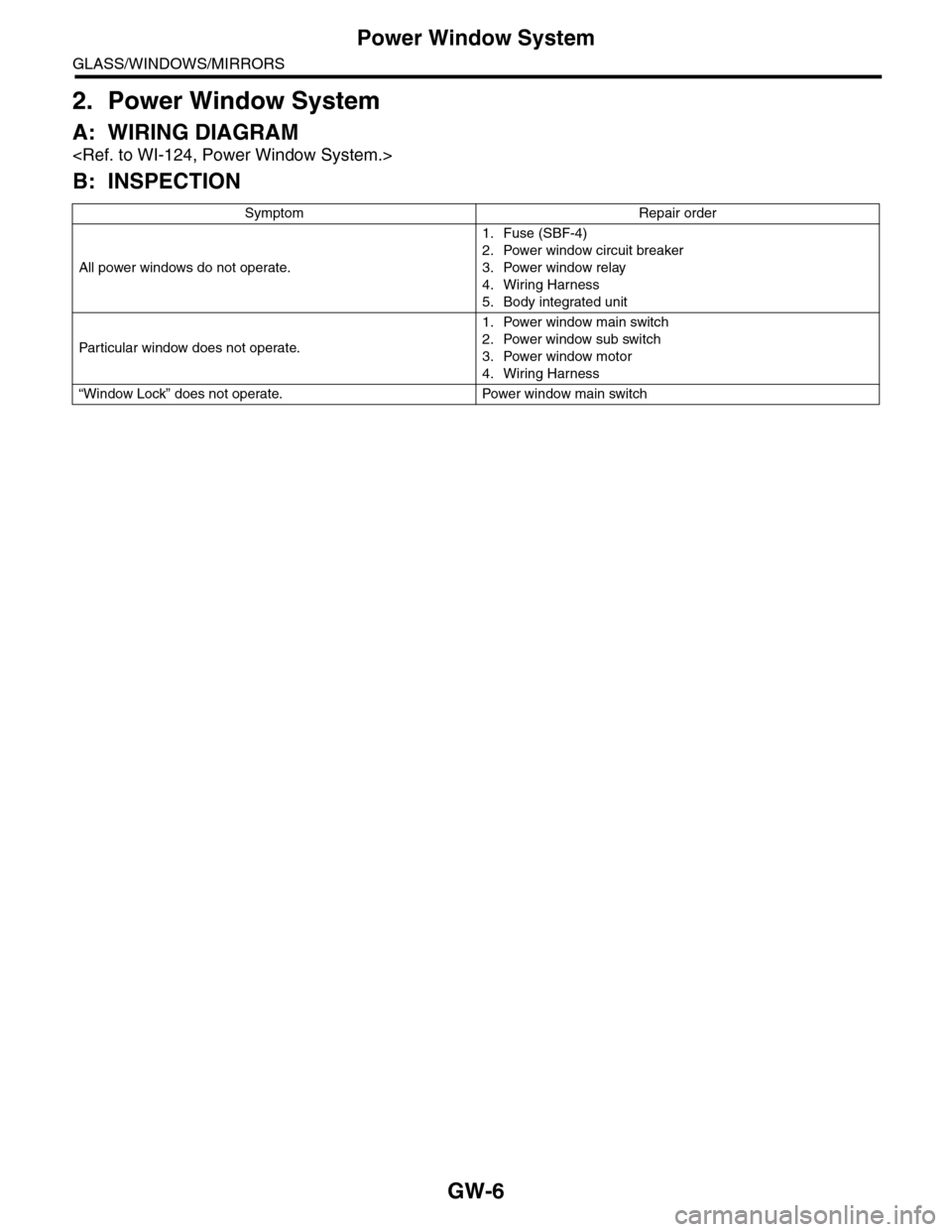

GW-6
Power Window System
GLASS/WINDOWS/MIRRORS
2. Power Window System
A: WIRING DIAGRAM

B: INSPECTION
Symptom Repair order
All power windows do not operate.
1. Fuse (SBF-4)
2. Power window circuit breaker
3. Power window relay
4. Wiring Harness
5. Body integrated unit
Par ticular window does not operate.
1. Power window main switch
2. Power window sub switch
3. Power window motor
4. Wiring Harness
“Window Lock” does not operate. Power window main switch

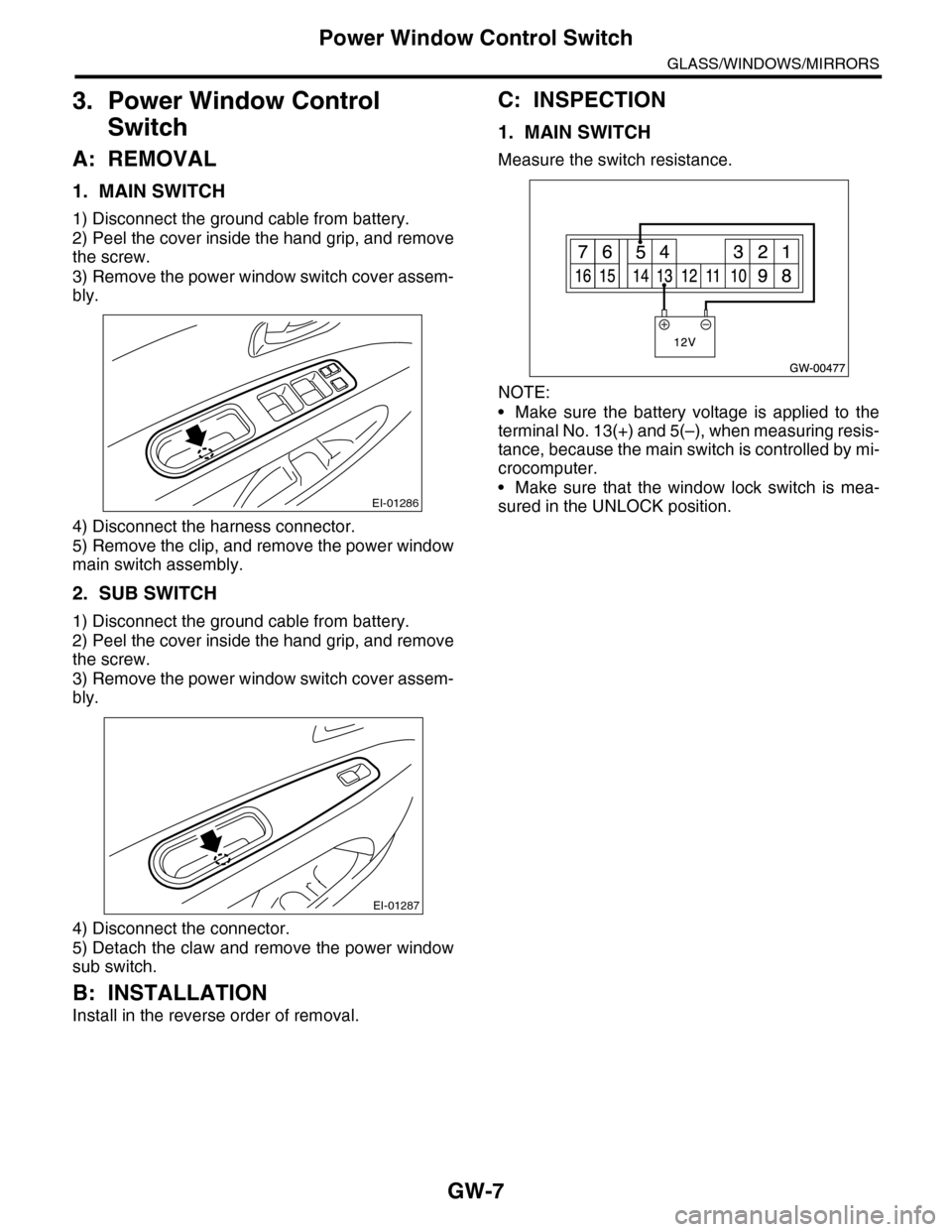

GW-7
Power Window Control Switch
GLASS/WINDOWS/MIRRORS
3. Power Window Control
Switch
A: REMOVAL
1. MAIN SWITCH
1) Disconnect the ground cable from battery.
2) Peel the cover inside the hand grip, and remove
the screw.
3) Remove the power window switch cover assem-
bly.
4) Disconnect the harness connector.
5) Remove the clip, and remove the power window
main switch assembly.
2. SUB SWITCH
1) Disconnect the ground cable from battery.
2) Peel the cover inside the hand grip, and remove
the screw.
3) Remove the power window switch cover assem-
bly.
4) Disconnect the connector.
5) Detach the claw and remove the power window
sub switch.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
1. MAIN SWITCH
Measure the switch resistance.
NOTE:
•Make sure the battery voltage is applied to the
terminal No. 13(+) and 5(–), when measuring resis-
tance, because the main switch is controlled by mi-
crocomputer.
•Make sure that the window lock switch is mea-
sured in the UNLOCK position.EI-01286
EI-01287

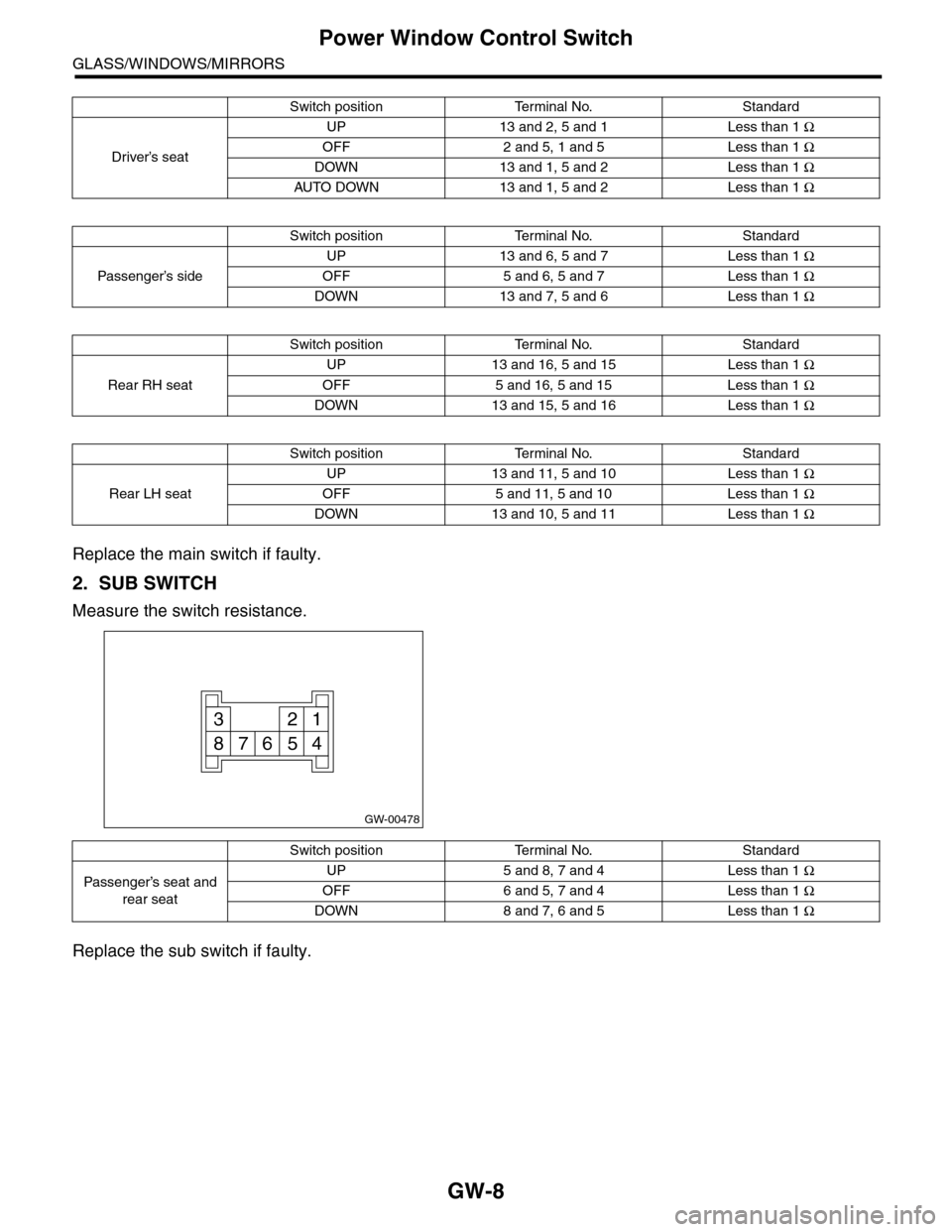

GW-8
Power Window Control Switch
GLASS/WINDOWS/MIRRORS
Replace the main switch if faulty.
2. SUB SWITCH
Measure the switch resistance.
Replace the sub switch if faulty.
Switch positionTerminal No.Standard
Driver’s seat
UP 13 and 2, 5 and 1 Less than 1 Ω
OFF 2 and 5, 1 and 5 Less than 1 Ω
DOWN 13 and 1, 5 and 2 Less than 1 Ω
AUTO DOWN 13 and 1, 5 and 2 Less than 1 Ω
Switch positionTerminal No.Standard
Passenger’s side
UP 13 and 6, 5 and 7 Less than 1 Ω
OFF 5 and 6, 5 and 7 Less than 1 Ω
DOWN 13 and 7, 5 and 6 Less than 1 Ω
Switch positionTerminal No.Standard
Rear RH seat
UP 13 and 16, 5 and 15 Less than 1 Ω
OFF 5 and 16, 5 and 15 Less than 1 Ω
DOWN 13 and 15, 5 and 16 Less than 1 Ω
Switch positionTerminal No.Standard
Rear LH seat
UP 13 and 11, 5 and 10 Less than 1 Ω
OFF 5 and 11, 5 and 10 Less than 1 Ω
DOWN 13 and 10, 5 and 11 Less than 1 Ω
GW-00478
123
45678
Switch positionTerminal No.Standard
Passenger’s seat and
rear seat
UP 5 and 8, 7 and 4 Less than 1 Ω
OFF 6 and 5, 7 and 4 Less than 1 Ω
DOWN 8 and 7, 6 and 5 Less than 1 Ω

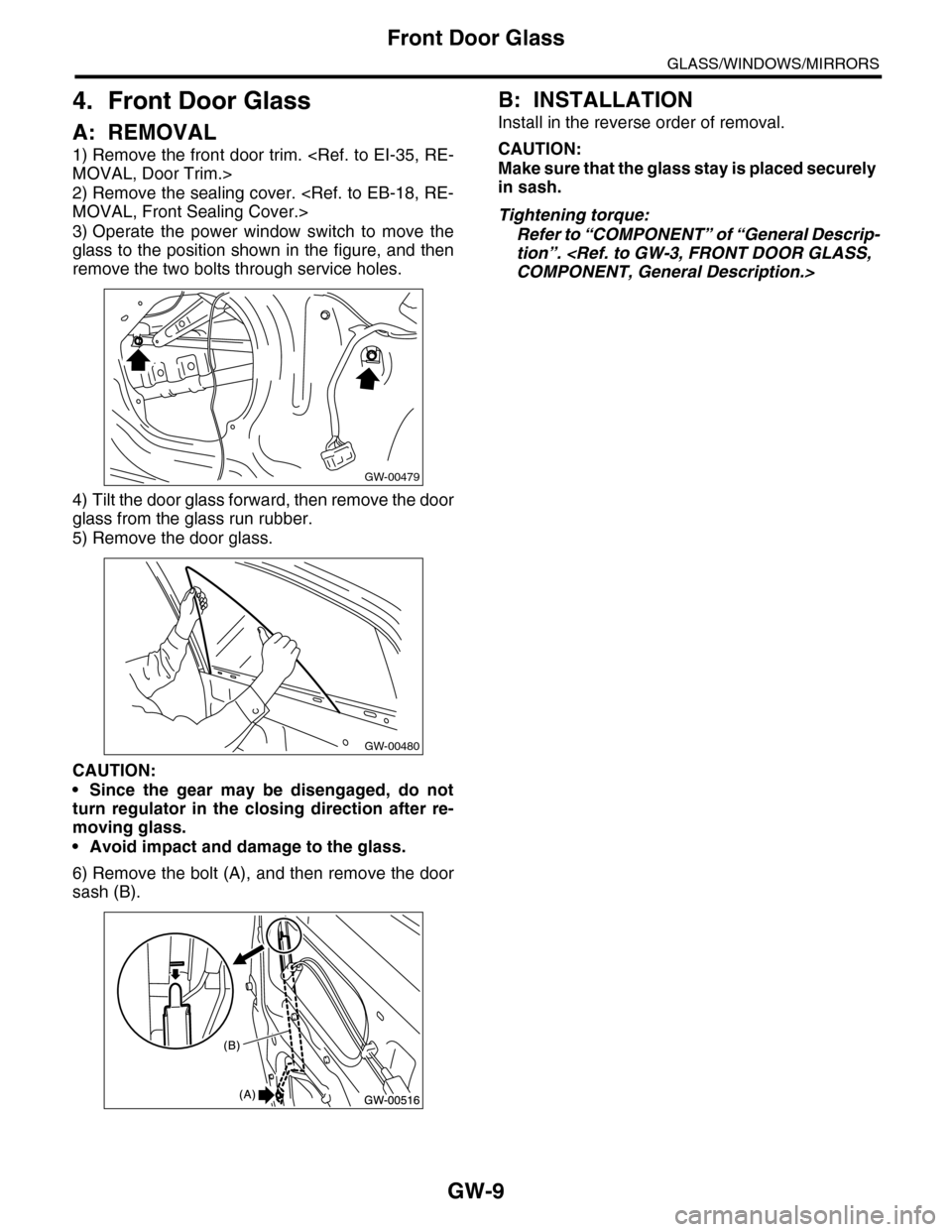

GW-9
Front Door Glass
GLASS/WINDOWS/MIRRORS
4. Front Door Glass
A: REMOVAL
1) Remove the front door trim. MOVAL, Door Trim.>
2) Remove the sealing cover. MOVAL, Front Sealing Cover.>
3) Operate the power window switch to move the
glass to the position shown in the figure, and then
remove the two bolts through service holes.
4) Tilt the door glass forward, then remove the door
glass from the glass run rubber.
5) Remove the door glass.
CAUTION:
•Since the gear may be disengaged, do not
turn regulator in the closing direction after re-
moving glass.
•Avoid impact and damage to the glass.
6) Remove the bolt (A), and then remove the door
sash (B).
B: INSTALLATION
Install in the reverse order of removal.
CAUTION:
Make sure that the glass stay is placed securely
in sash.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”. COMPONENT, General Description.>
GW-00479
GW-00480

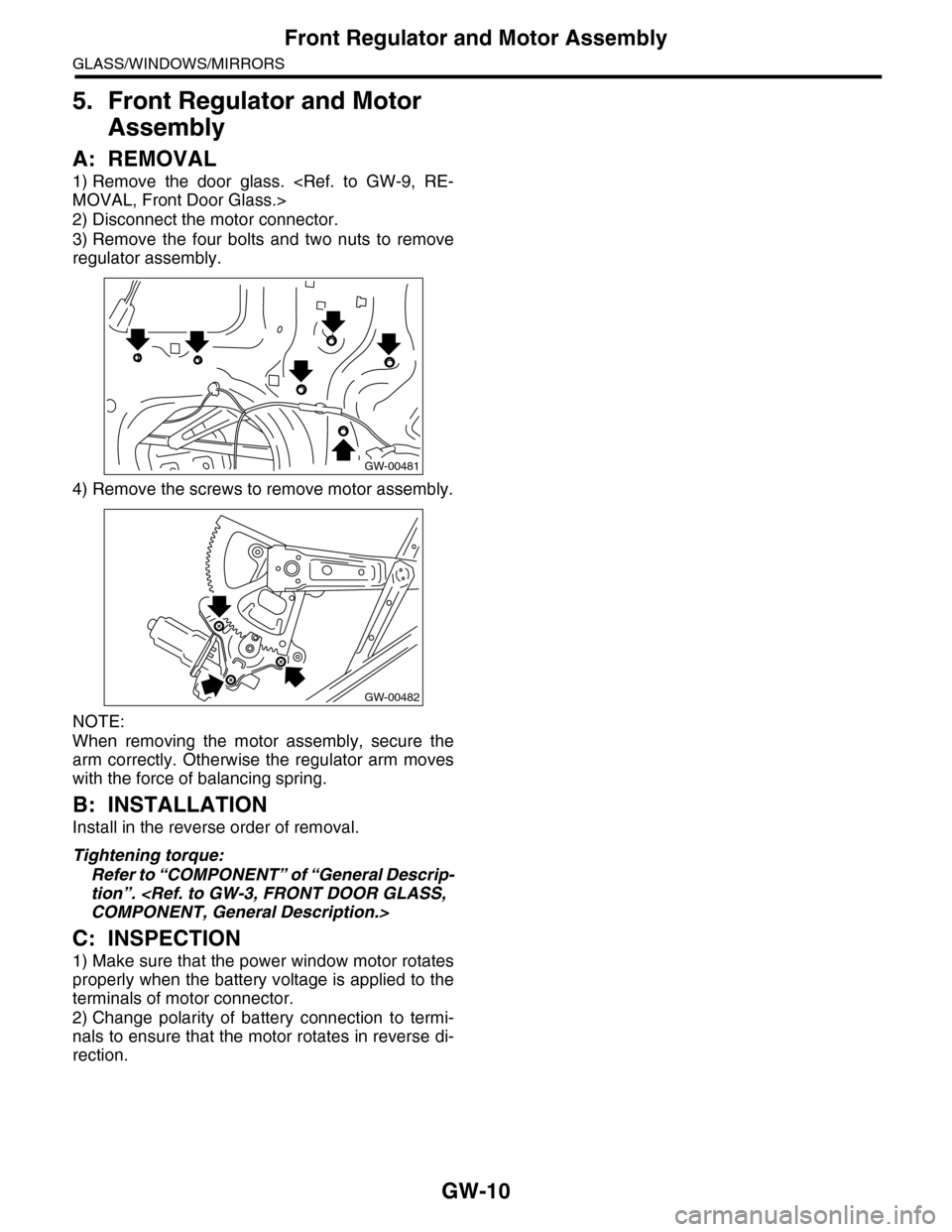

GW-10
Front Regulator and Motor Assembly
GLASS/WINDOWS/MIRRORS
5. Front Regulator and Motor
Assembly
A: REMOVAL
1) Remove the door glass. MOVAL, Front Door Glass.>
2) Disconnect the motor connector.
3) Remove the four bolts and two nuts to remove
regulator assembly.
4) Remove the screws to remove motor assembly.
NOTE:
When removing the motor assembly, secure the
arm correctly. Otherwise the regulator arm moves
with the force of balancing spring.
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”. COMPONENT, General Description.>
C: INSPECTION
1) Make sure that the power window motor rotates
properly when the battery voltage is applied to the
terminals of motor connector.
2) Change polarity of battery connection to termi-
nals to ensure that the motor rotates in reverse di-
rection.
GW-00481
GW-00482

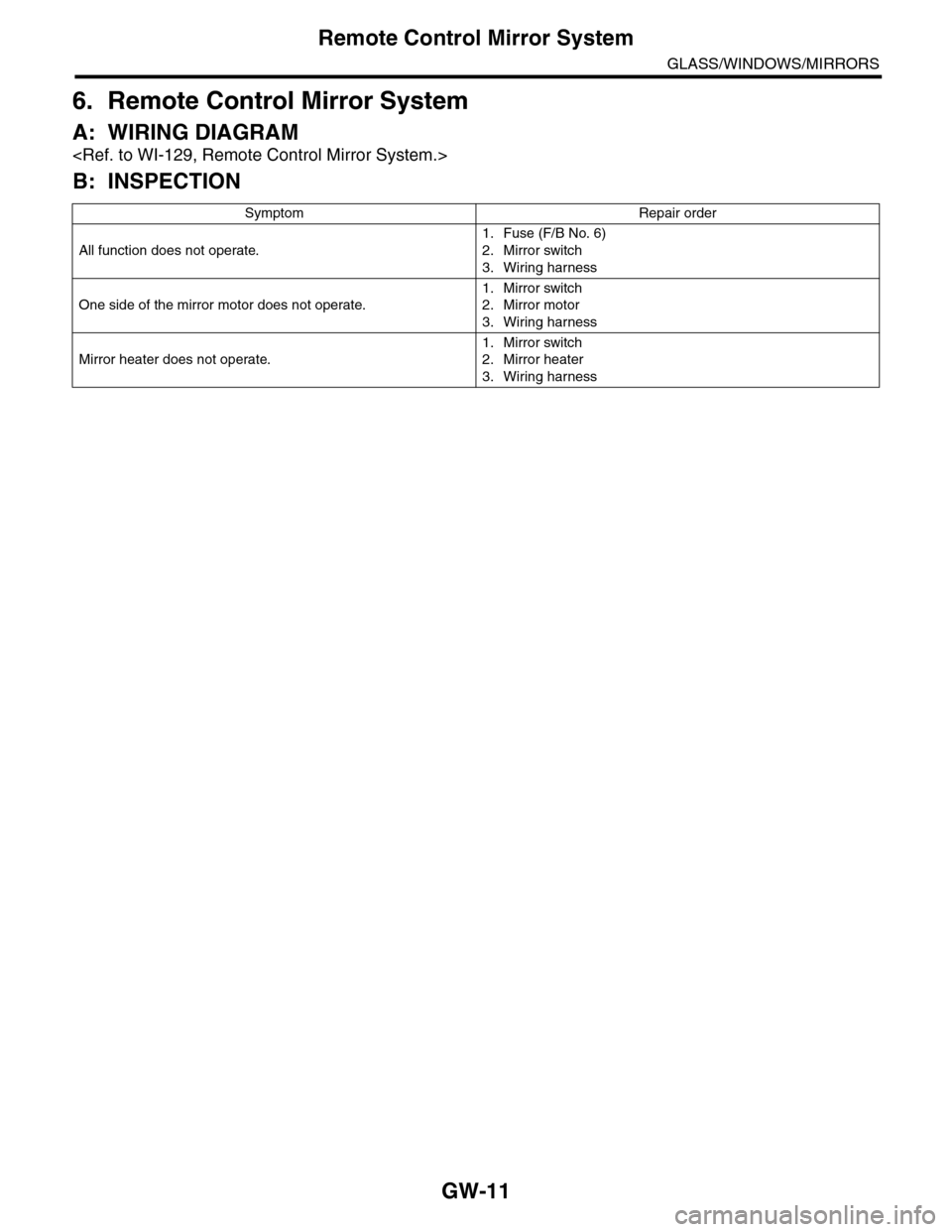

GW-11
Remote Control Mirror System
GLASS/WINDOWS/MIRRORS
6. Remote Control Mirror System
A: WIRING DIAGRAM

B: INSPECTION
Symptom Repair order
All function does not operate.
1. Fuse (F/B No. 6)
2. Mirror switch
3. Wiring harness
One side of the mirror motor does not operate.
1. Mirror switch
2. Mirror motor
3. Wiring harness
Mirror heater does not operate.
1. Mirror switch
2. Mirror heater
3. Wiring harness

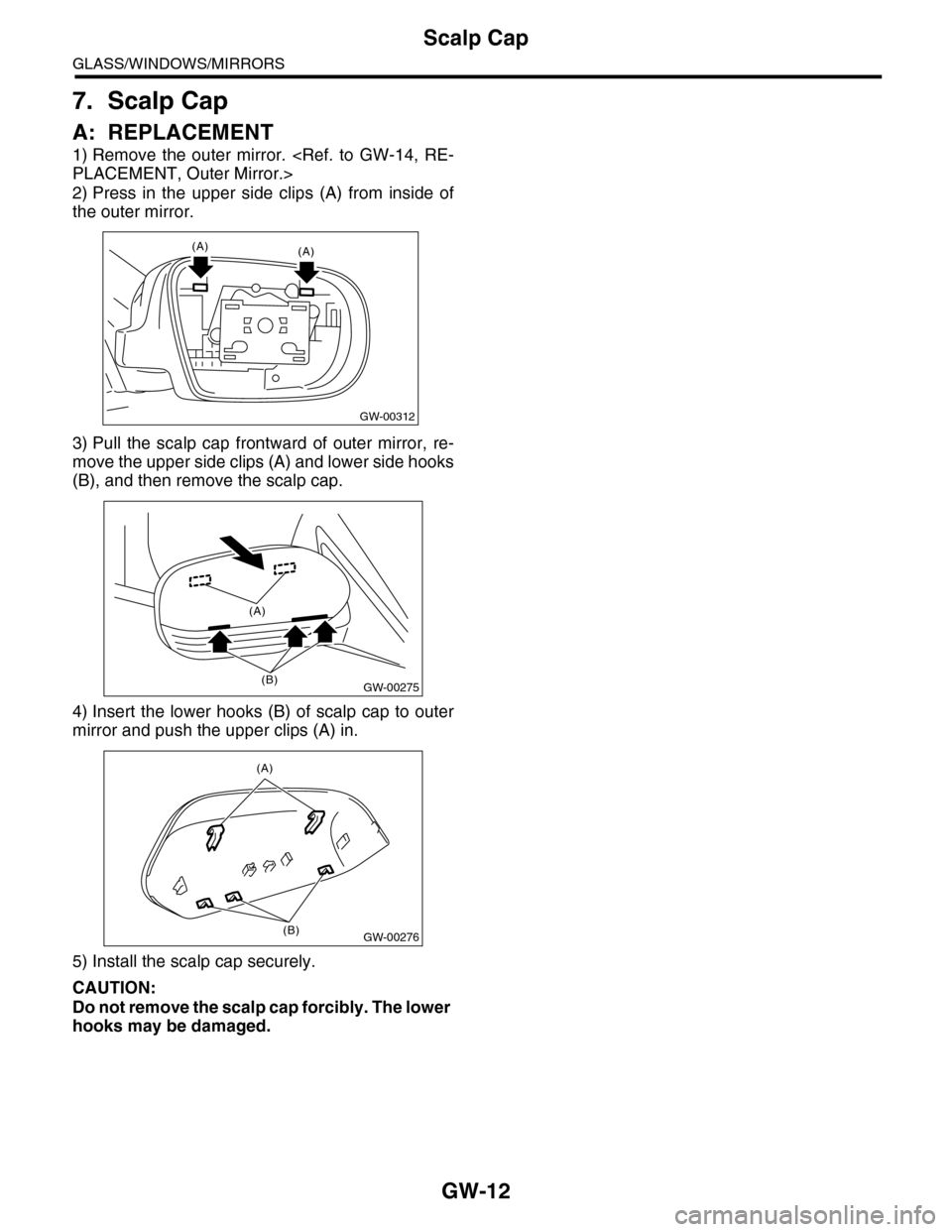

GW-12
Scalp Cap
GLASS/WINDOWS/MIRRORS
7. Scalp Cap
A: REPLACEMENT
1) Remove the outer mirror. PLACEMENT, Outer Mirror.>
2) Press in the upper side clips (A) from inside of
the outer mirror.
3) Pull the scalp cap frontward of outer mirror, re-
move the upper side clips (A) and lower side hooks
(B), and then remove the scalp cap.
4) Insert the lower hooks (B) of scalp cap to outer
mirror and push the upper clips (A) in.
5) Install the scalp cap securely.
CAUTION:
Do not remove the scalp cap forcibly. The lower
hooks may be damaged.
GW-00312
(A)(A)
(A)
GW-00275(B)
(B)
(A)
GW-00276

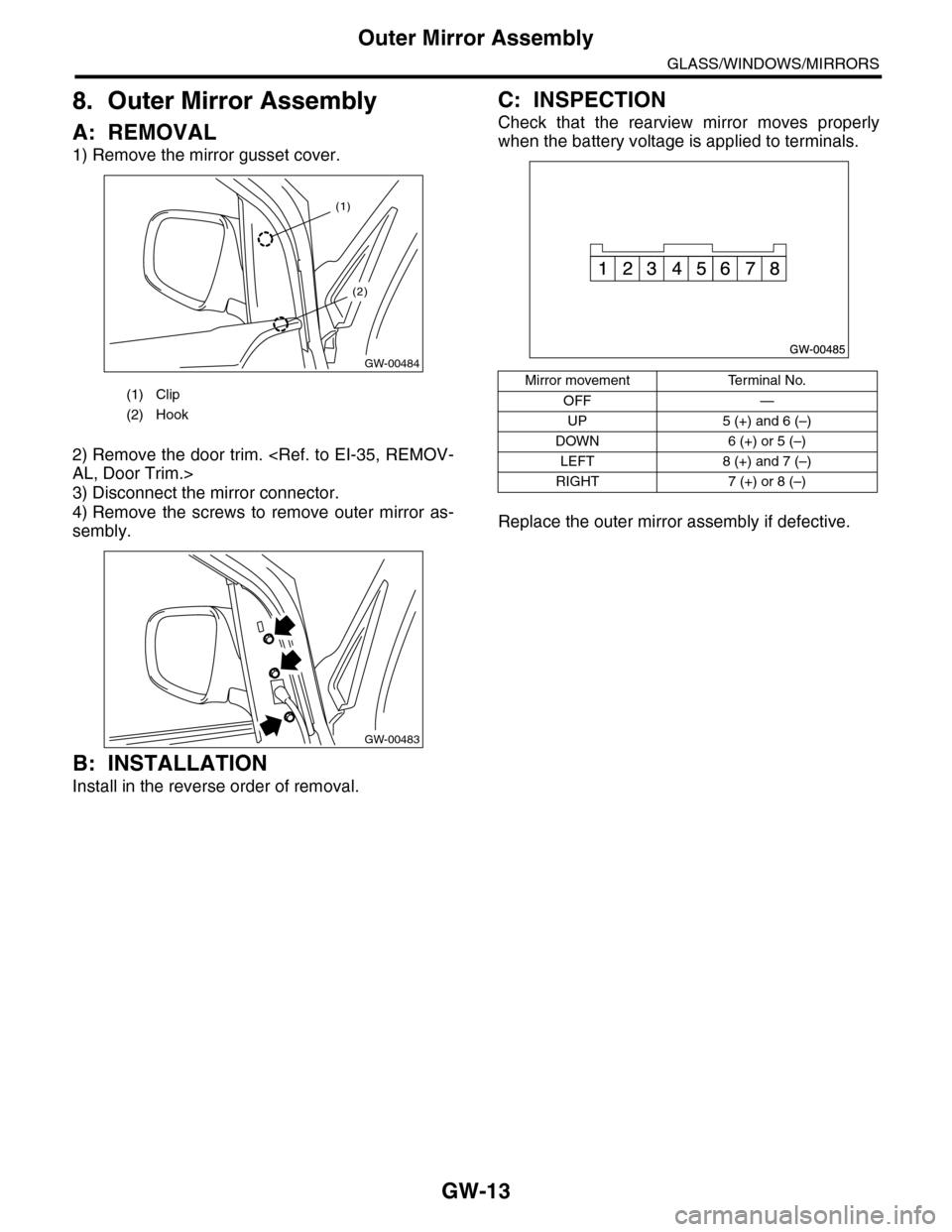

GW-13
Outer Mirror Assembly
GLASS/WINDOWS/MIRRORS
8. Outer Mirror Assembly
A: REMOVAL
1) Remove the mirror gusset cover.
2) Remove the door trim. AL, Door Trim.>
3) Disconnect the mirror connector.
4) Remove the screws to remove outer mirror as-
sembly.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
Check that the rearview mirror moves properly
when the battery voltage is applied to terminals.
Replace the outer mirror assembly if defective.
(1) Clip
(2) Hook
GW-00484
(2)
(1)
GW-00483
Mirror movement Terminal No.
OFF —
UP 5 (+) and 6 (–)
DOWN 6 (+) or 5 (–)
LEFT 8 (+) and 7 (–)
RIGHT 7 (+) or 8 (–)

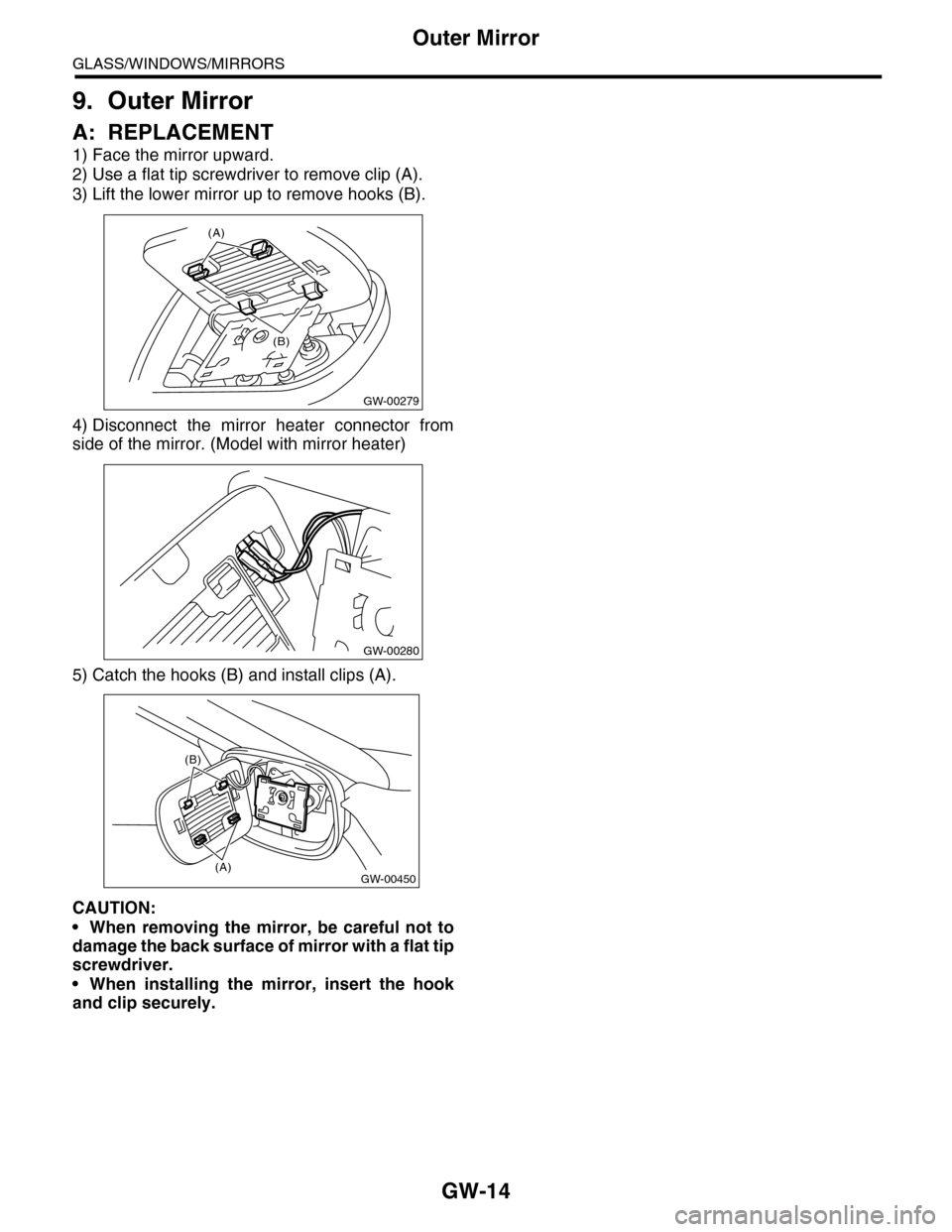

GW-14
Outer Mirror
GLASS/WINDOWS/MIRRORS
9. Outer Mirror
A: REPLACEMENT
1) Face the mirror upward.
2) Use a flat tip screwdriver to remove clip (A).
3) Lift the lower mirror up to remove hooks (B).
4) Disconnect the mirror heater connector from
side of the mirror. (Model with mirror heater)
5) Catch the hooks (B) and install clips (A).
CAUTION:
•When removing the mirror, be careful not to
damage the back surface of mirror with a flat tip
screwdriver.
•When installing the mirror, insert the hook
and clip securely.
(A)
GW-00279
(B)
GW-00280
(B)
GW-00450(A)

GW-15

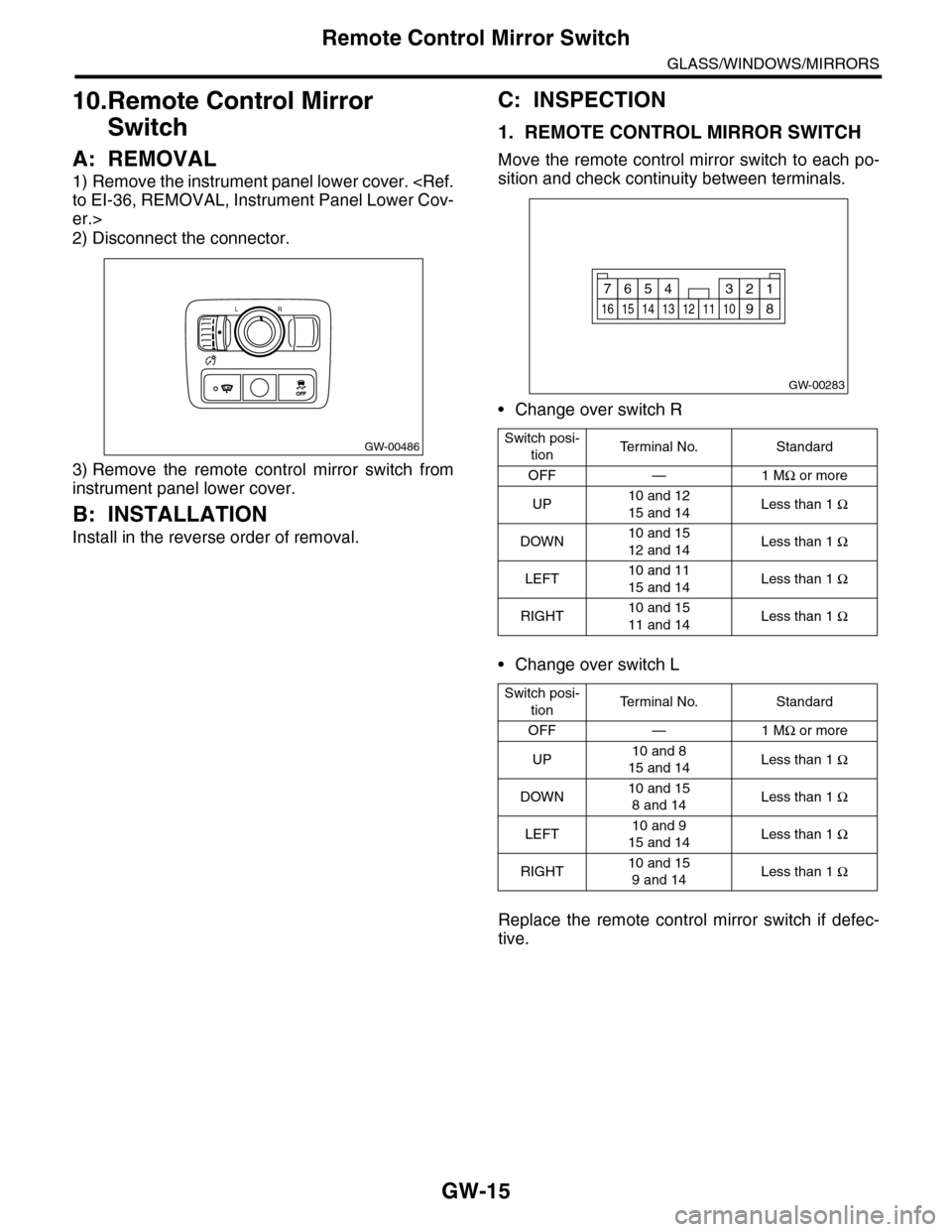

Remote Control Mirror Switch
GLASS/WINDOWS/MIRRORS
10.Remote Control Mirror
Switch
A: REMOVAL
1) Remove the instrument panel lower cover. to EI-36, REMOVAL, Instrument Panel Lower Cov-
er.>
2) Disconnect the connector.
3) Remove the remote control mirror switch from
instrument panel lower cover.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
1. REMOTE CONTROL MIRROR SWITCH
Move the remote control mirror switch to each po-
sition and check continuity between terminals.
•Change over switch R
•Change over switch L
Replace the remote control mirror switch if defec-
tive.
GW-00486
LR
OFFOFF
Switch posi-
tionTe r m i n a l N o . S t a n d a r d
OFF — 1 MΩ or more
UP10 and 12
15 and 14Less than 1 Ω
DOWN10 and 15
12 and 14Less than 1 Ω
LEFT10 and 11
15 and 14Less than 1 Ω
RIGHT10 and 15
11 and 14Less than 1 Ω
Switch posi-
tionTe r m i n a l N o . S t a n d a r d
OFF — 1 MΩ or more
UP10 and 8
15 and 14Less than 1 Ω
DOWN10 and 15
8 and 14Less than 1 Ω
LEFT10 and 9
15 and 14Less than 1 Ω
RIGHT10 and 15
9 and 14Less than 1 Ω
GW-00283
914
7654321
8131211101615
