SUBARU TRIBECA 2009 1.G Service Workshop Manual

EI-49
Assist Grip
EXTERIOR/INTERIOR TRIM

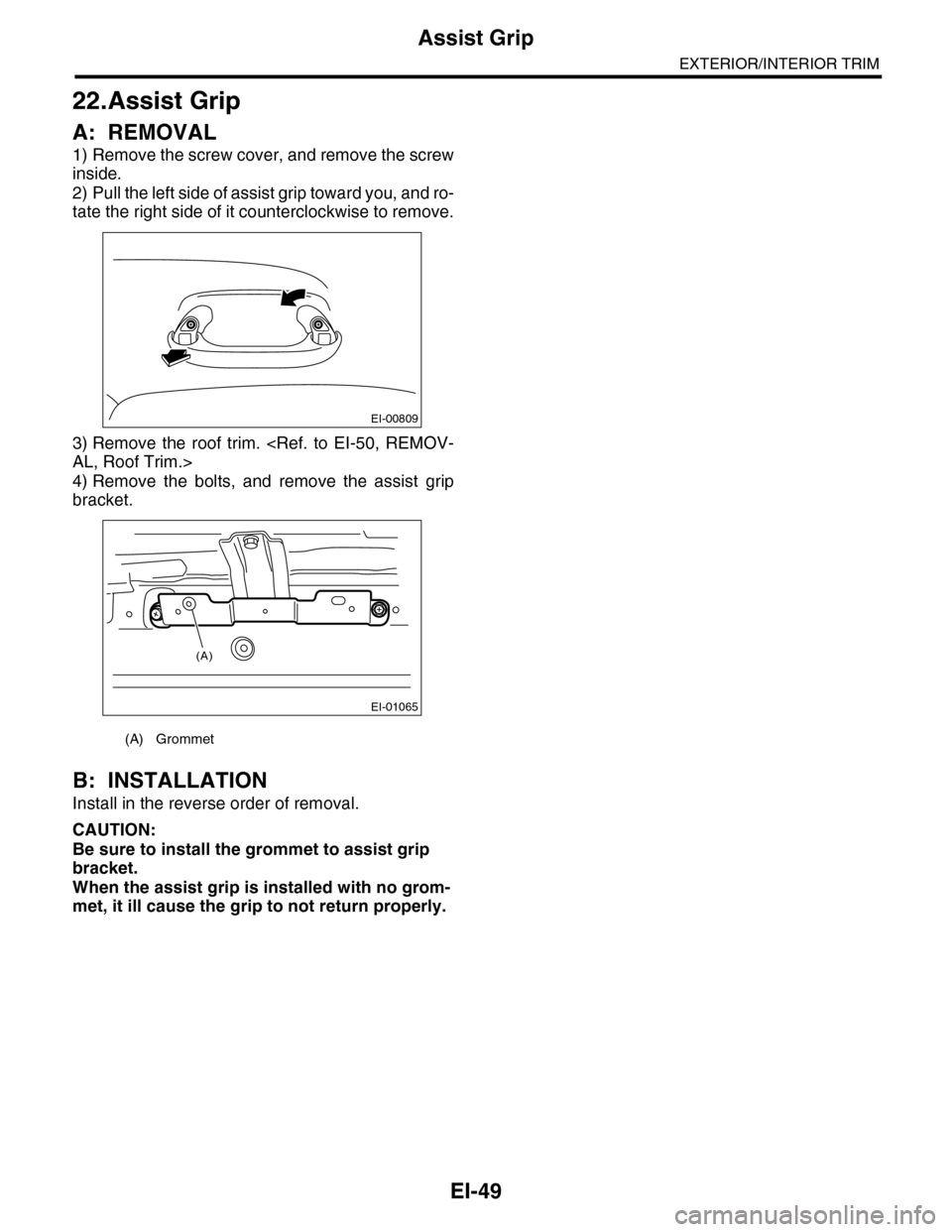

22.Assist Grip
A: REMOVAL
1) Remove the screw cover, and remove the screw
inside.
2) Pull the left side of assist grip toward you, and ro-
tate the right side of it counterclockwise to remove.
3) Remove the roof trim. AL, Roof Trim.>
4) Remove the bolts, and remove the assist grip
bracket.
B: INSTALLATION
Install in the reverse order of removal.
CAUTION:
Be sure to install the grommet to assist grip
bracket.
When the assist grip is installed with no grom-
met, it ill cause the grip to not return properly.
(A) Grommet
EI-00809
EI-01065
(A)

EI-50
Roof Trim
EXTERIOR/INTERIOR TRIM
23.Roof Trim
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the spot map light. MOVAL, Spot Map Light.>
3) Remove the room light or rear entertainment
(model with rear entertainment system). LI-30, REMOVAL, Room Light.>
4) Remove the sun visor. AL, Sun Visor.>
5) Remove the assist grip. AL, Assist Grip.>
6) Remove the front pillar upper trim and center pil-
lar upper trim. Trim.>
7) Remove the rear quarter upper trim. 45, REMOVAL, Rear Quarter Trim.>
8) Remove the sunroof opening trim.
9) Remove the clips and each harness, pull out the
rear center seat belt, and remove the roof trim.
B: INSTALLATION
Install in the reverse order of removal.
EI-00501
EI-01354

EI-51
Rear Gate Trim
EXTERIOR/INTERIOR TRIM

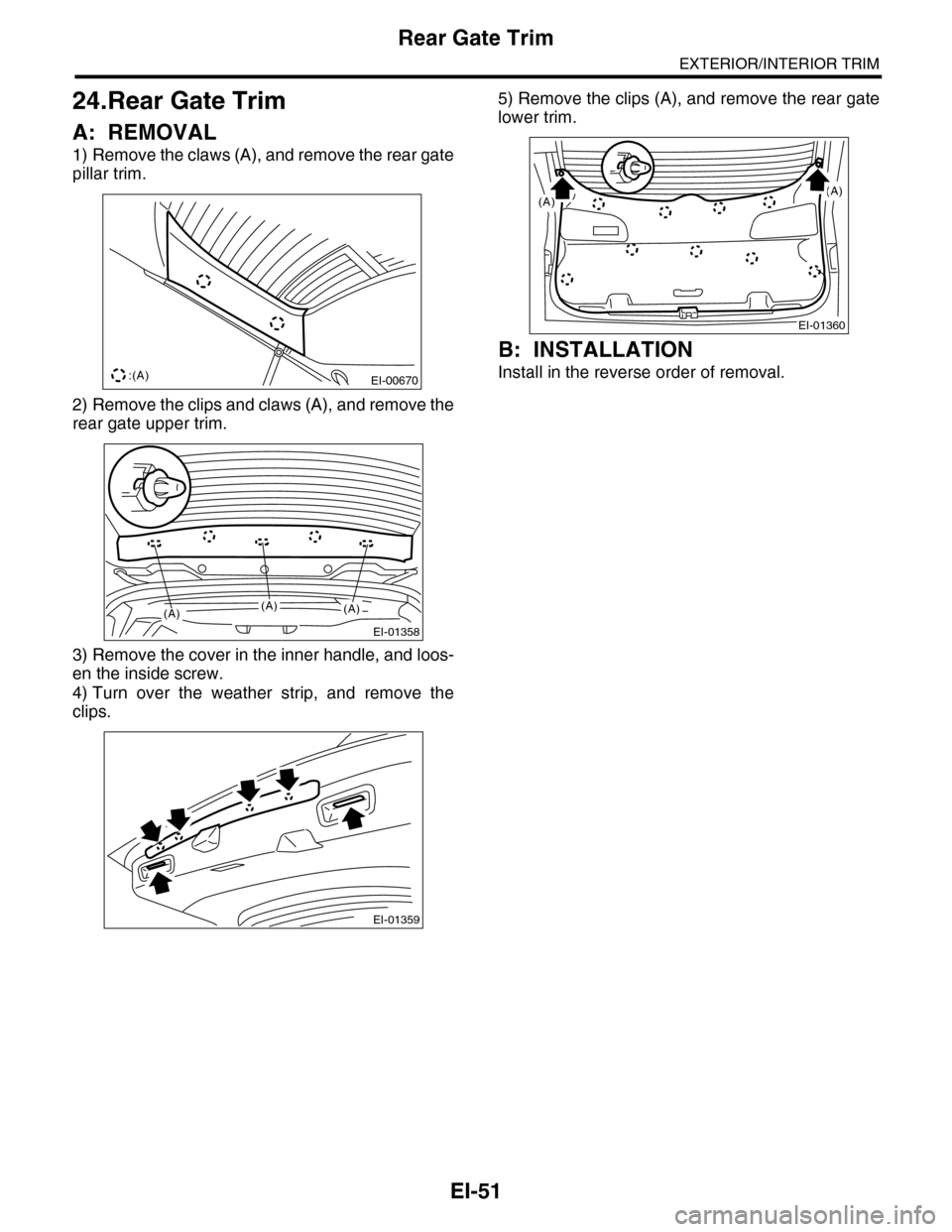

24.Rear Gate Trim
A: REMOVAL
1) Remove the claws (A), and remove the rear gate
pillar trim.
2) Remove the clips and claws (A), and remove the
rear gate upper trim.
3) Remove the cover in the inner handle, and loos-
en the inside screw.
4) Turn over the weather strip, and remove the
clips.
5) Remove the clips (A), and remove the rear gate
lower trim.
B: INSTALLATION
Install in the reverse order of removal.EI-00670:(A)
EI-01358
(A)(A)(A)
EI-01359
EI-01360
(A)(A)

EI-52
Rear Gate Garnish
EXTERIOR/INTERIOR TRIM

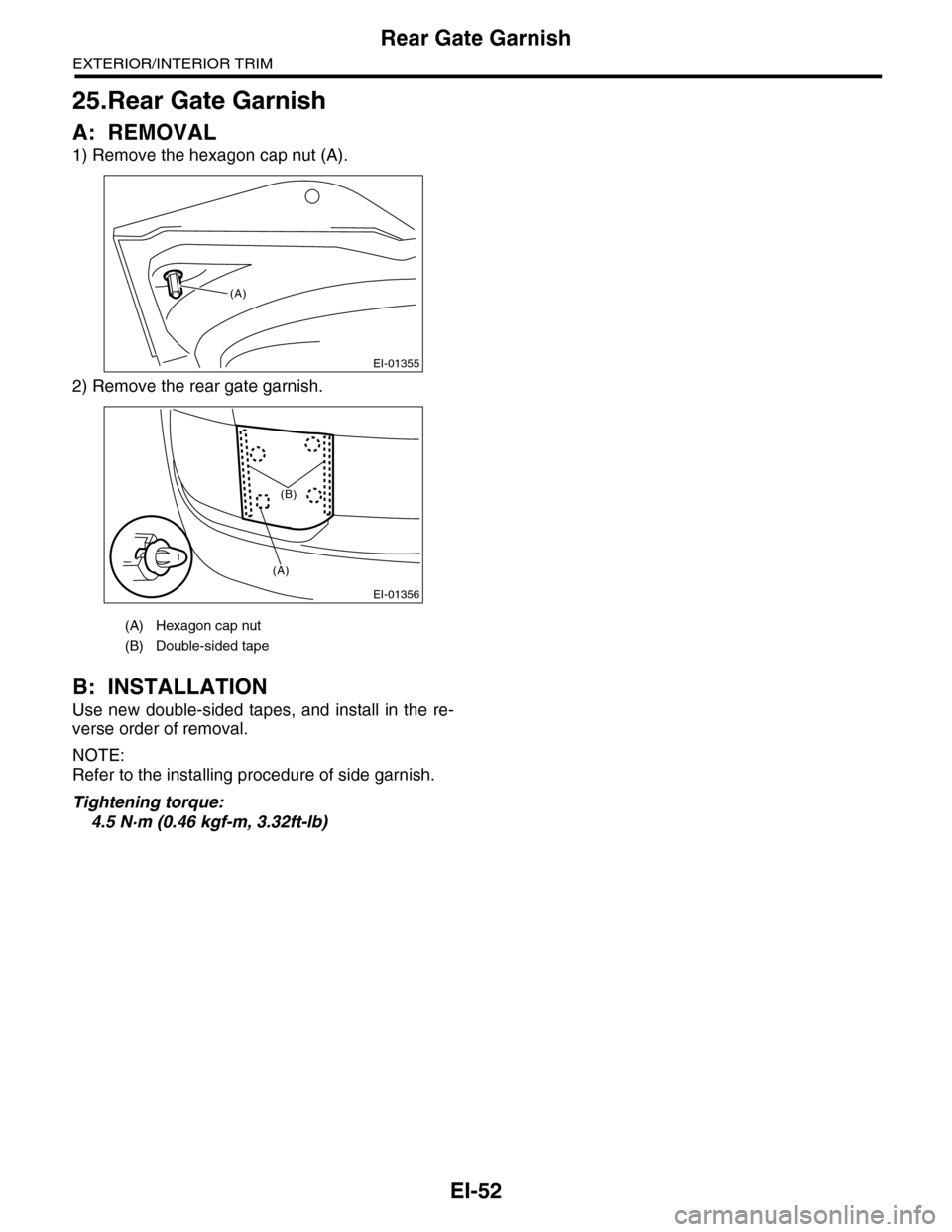

25.Rear Gate Garnish
A: REMOVAL
1) Remove the hexagon cap nut (A).
2) Remove the rear gate garnish.
B: INSTALLATION
Use new double-sided tapes, and install in the re-
verse order of removal.
NOTE:
Refer to the installing procedure of side garnish.
Tightening torque:
4.5 N·m (0.46 kgf-m, 3.32ft-lb)
(A) Hexagon cap nut
(B) Double-sided tape
EI-01355
(A)
EI-01356
(B)
(A)

EI-53
Heat Shield Cover
EXTERIOR/INTERIOR TRIM
26.Heat Shield Cover

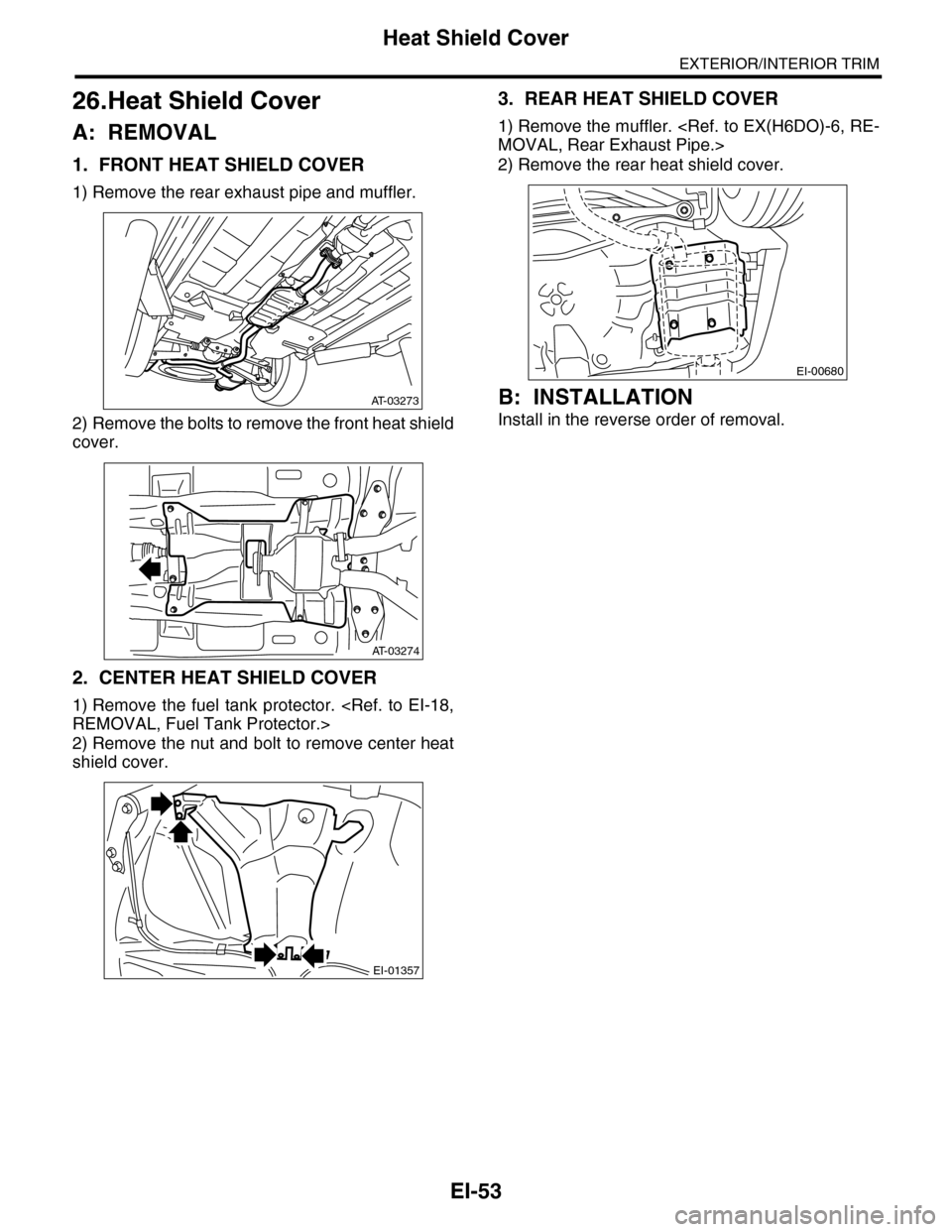

A: REMOVAL
1. FRONT HEAT SHIELD COVER
1) Remove the rear exhaust pipe and muffler.
2) Remove the bolts to remove the front heat shield
cover.
2. CENTER HEAT SHIELD COVER
1) Remove the fuel tank protector. REMOVAL, Fuel Tank Protector.>
2) Remove the nut and bolt to remove center heat
shield cover.
3. REAR HEAT SHIELD COVER
1) Remove the muffler. MOVAL, Rear Exhaust Pipe.>
2) Remove the rear heat shield cover.
B: INSTALLATION
Install in the reverse order of removal.
AT-03273
AT-03274
EI-01357
EI-00680

EI-54
Trailer Hitch
EXTERIOR/INTERIOR TRIM
27.Trailer Hitch
A: REMOVAL
1) Remove the spare tire hoist. REMOVAL, Spare Tire Hoist.>
2) Remove the bolt, and then detach the main
frame.
CAUTION:
The trailer hitch main frame is heavy. Be careful
when removing.
3) Remove the bolts, and then remove the center
frame.
4) Remove the side frame from the vehicle.
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”.
NENT, General Description.>
EI-01383
EI-01384

GW-2
General Description
GLASS/WINDOWS/MIRRORS
1. General Description
A: COMPONENT

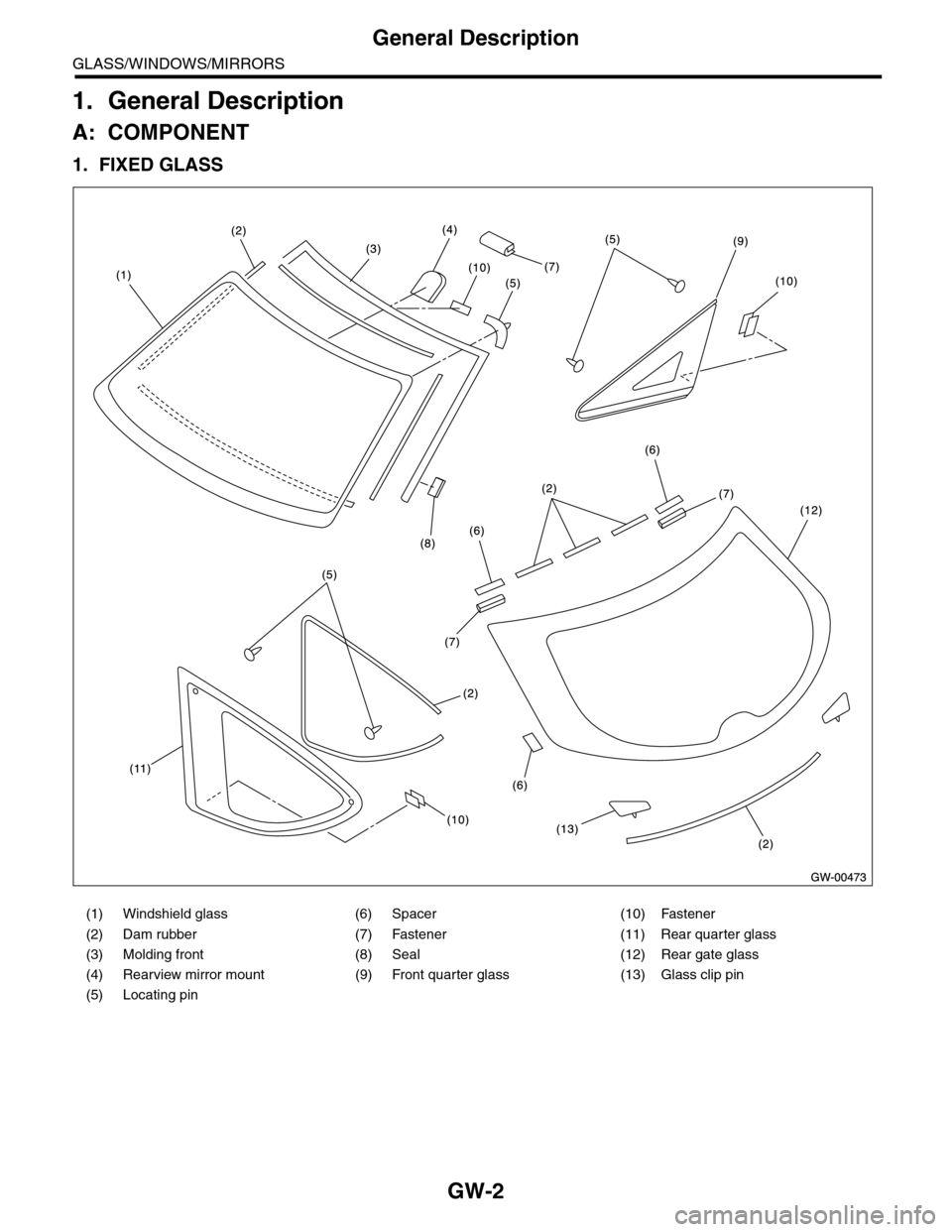

1. FIXED GLASS
(1) Windshield glass (6) Spacer (10) Fastener
(2) Dam rubber (7) Fastener (11) Rear quarter glass
(3) Molding front (8) Seal (12) Rear gate glass
(4) Rearview mirror mount (9) Front quarter glass (13) Glass clip pin
(5) Locating pin

GW-3
General Description
GLASS/WINDOWS/MIRRORS
2. FRONT DOOR GLASS
(1) Glass (4) Regulator ASSYTightening torque: N·m (kgf-m, ft-lb)
(2) Door sash (5) Motor ASSYT1: 4.9 (0.5, 3.6)
(3) Glass run rubber (6) Weather stripT2: 7.4 (0.75, 5.5)

GW-4
General Description
GLASS/WINDOWS/MIRRORS

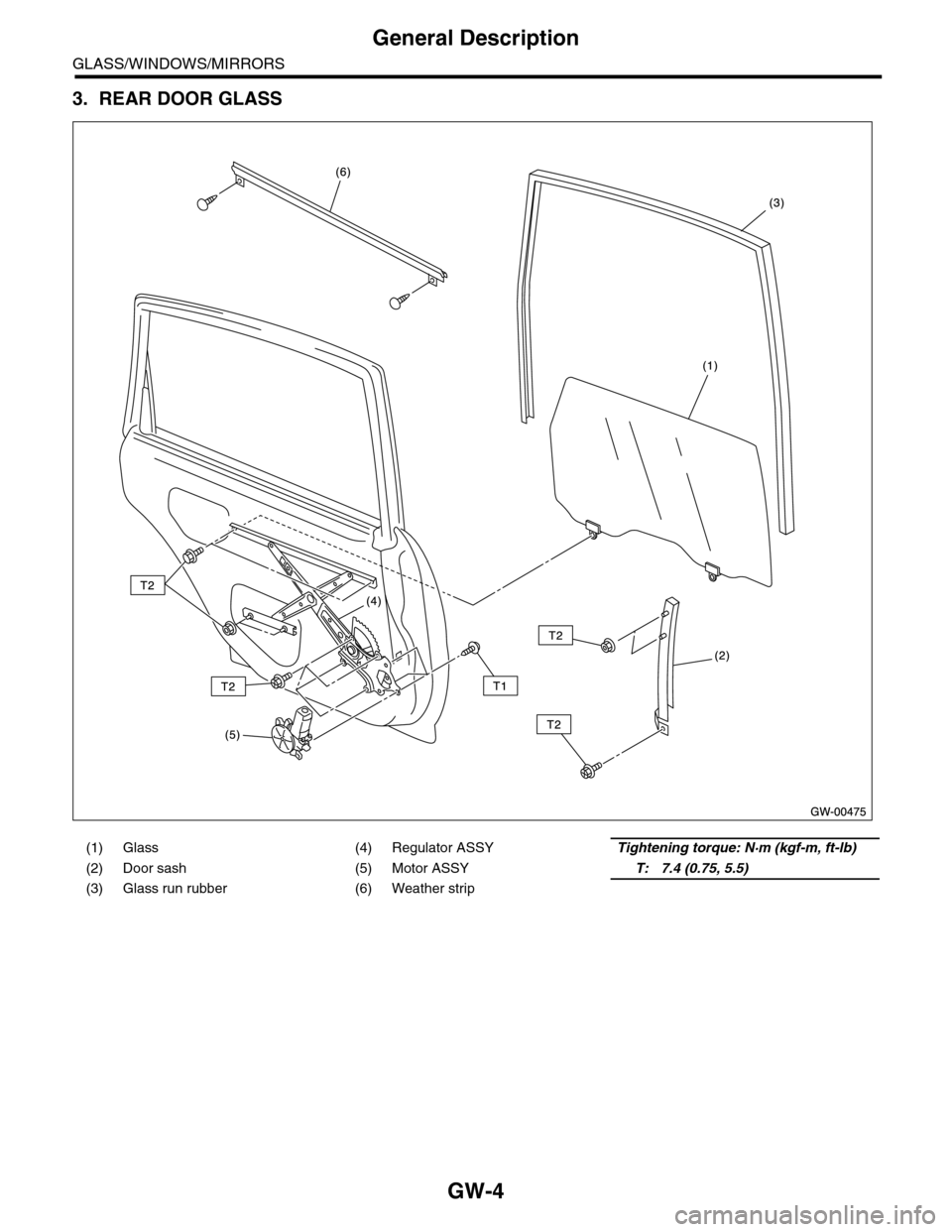

3. REAR DOOR GLASS
(1) Glass (4) Regulator ASSYTightening torque: N·m (kgf-m, ft-lb)
(2) Door sash (5) Motor ASSYT: 7.4 (0.75, 5.5)
(3) Glass run rubber (6) Weather strip

GW-5
General Description
GLASS/WINDOWS/MIRRORS

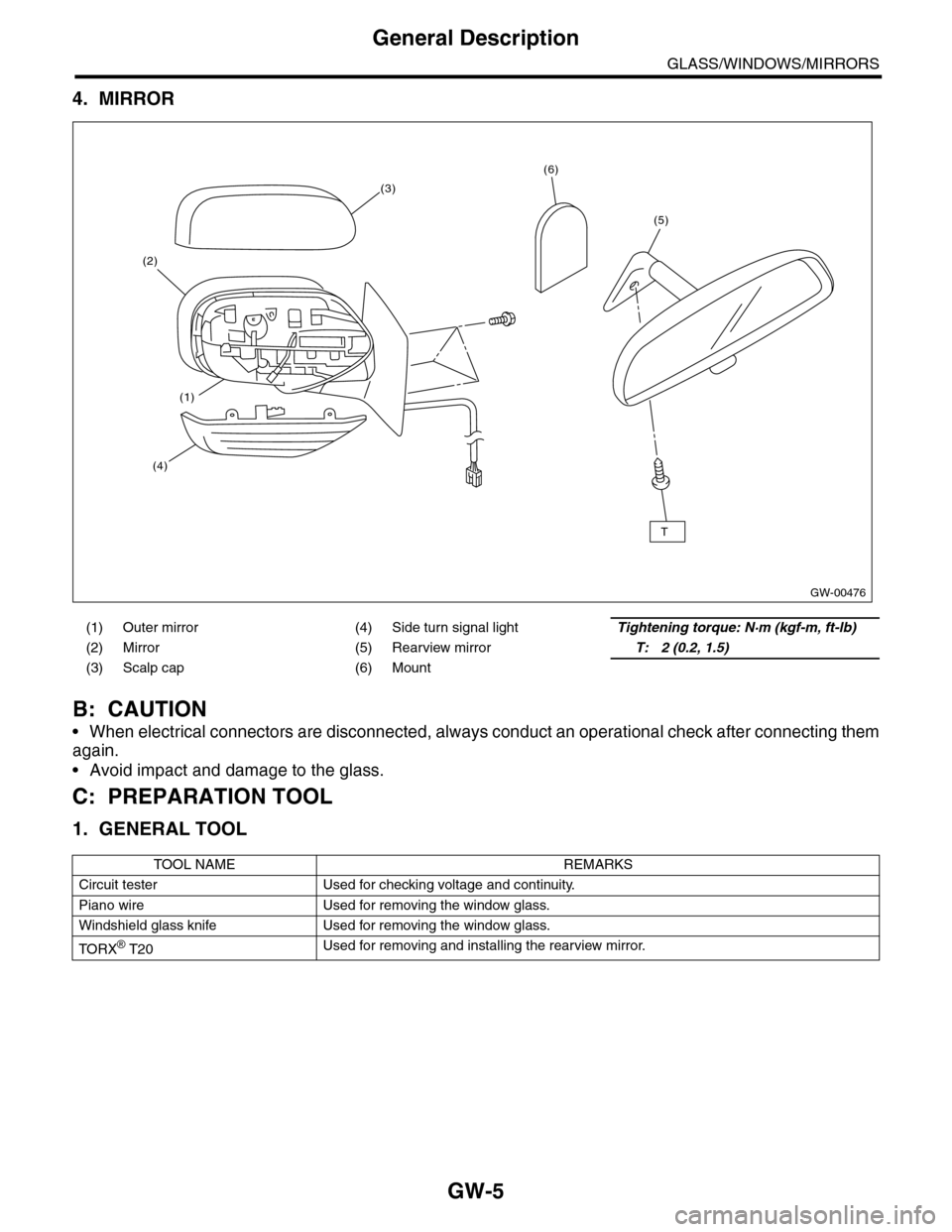

4. MIRROR
B: CAUTION
•When electrical connectors are disconnected, always conduct an operational check after connecting them
again.
•Avoid impact and damage to the glass.
C: PREPARATION TOOL
1. GENERAL TOOL
(1) Outer mirror (4) Side turn signal lightTightening torque: N·m (kgf-m, ft-lb)
(2) Mirror (5) Rearview mirrorT: 2 (0.2, 1.5)
(3) Scalp cap (6) Mount
TOOL NAME REMARKS
Circuit tester Used for checking voltage and continuity.
Piano wire Used for removing the window glass.
Windshield glass knife Used for removing the window glass.
TO RX® T20Used for removing and installing the rearview mirror.
GW-00476
(5)
(6)
(2)
(3)
(4)
(1)
T
