SUBARU TRIBECA 2009 1.G Service Repair Manual

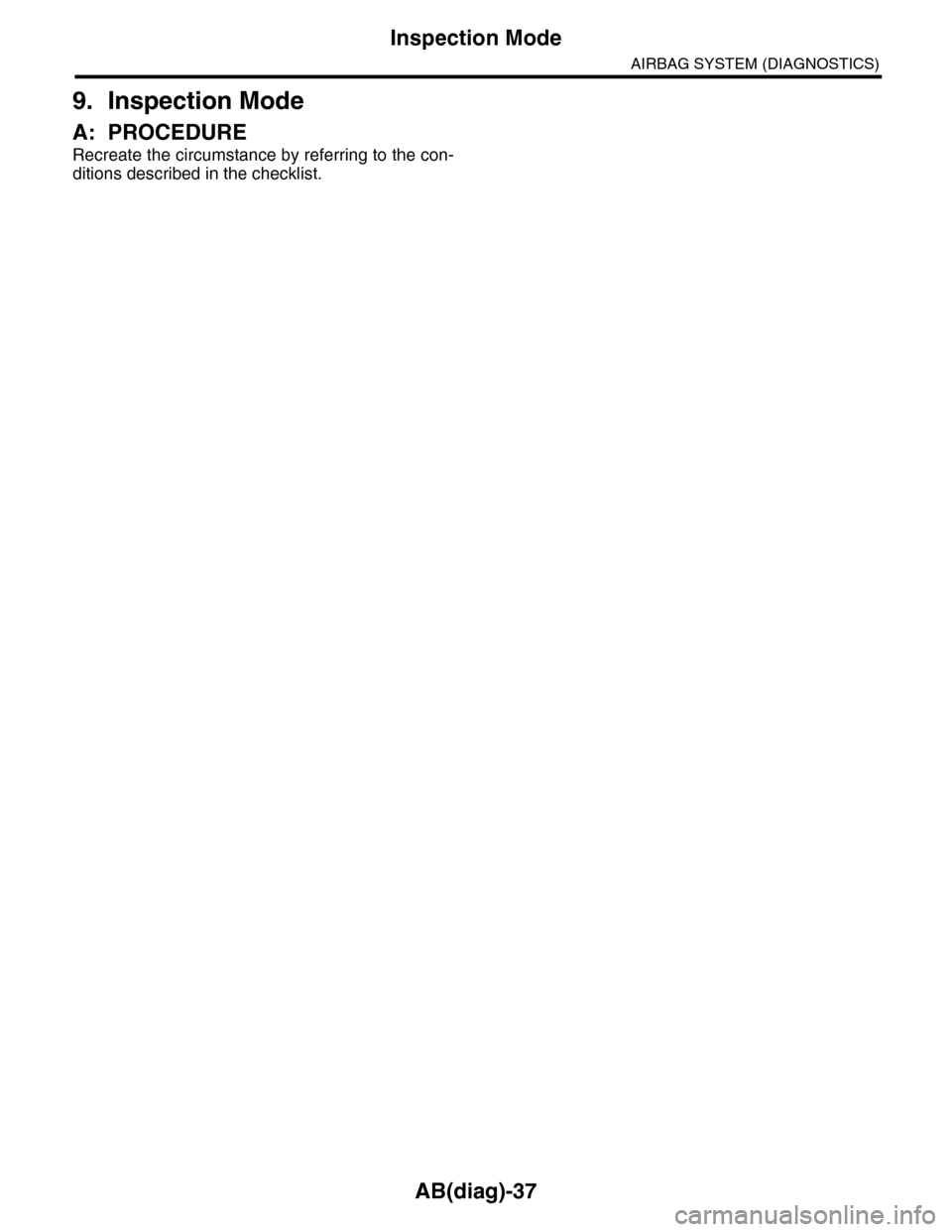

AB(diag)-37
Inspection Mode
AIRBAG SYSTEM (DIAGNOSTICS)
9. Inspection Mode
A: PROCEDURE
Recreate the circumstance by referring to the con-
ditions described in the checklist.

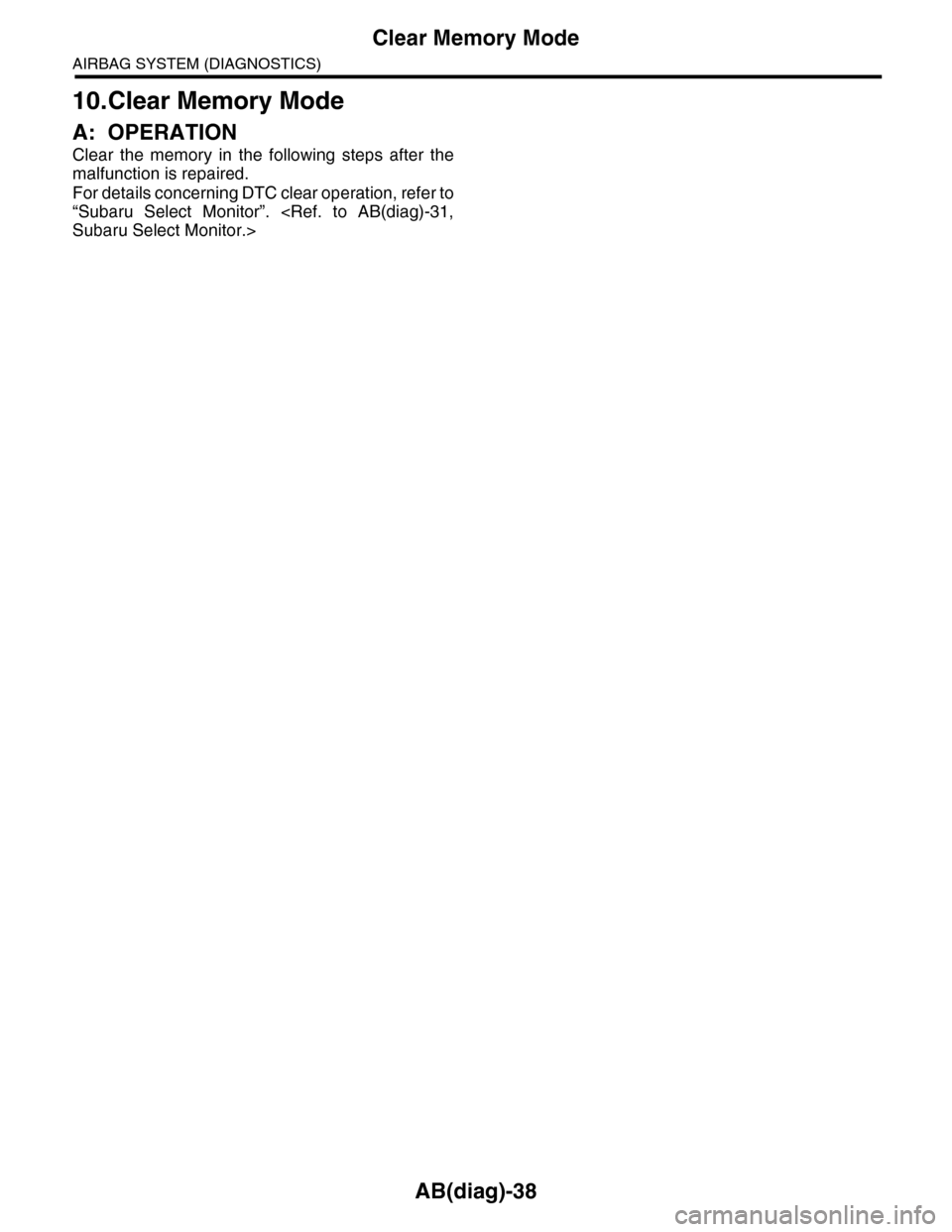

AB(diag)-38
Clear Memory Mode
AIRBAG SYSTEM (DIAGNOSTICS)
10.Clear Memory Mode
A: OPERATION
Clear the memory in the following steps after the
malfunction is repaired.
For details concerning DTC clear operation, refer to
“Subaru Select Monitor”. Subaru Select Monitor.>

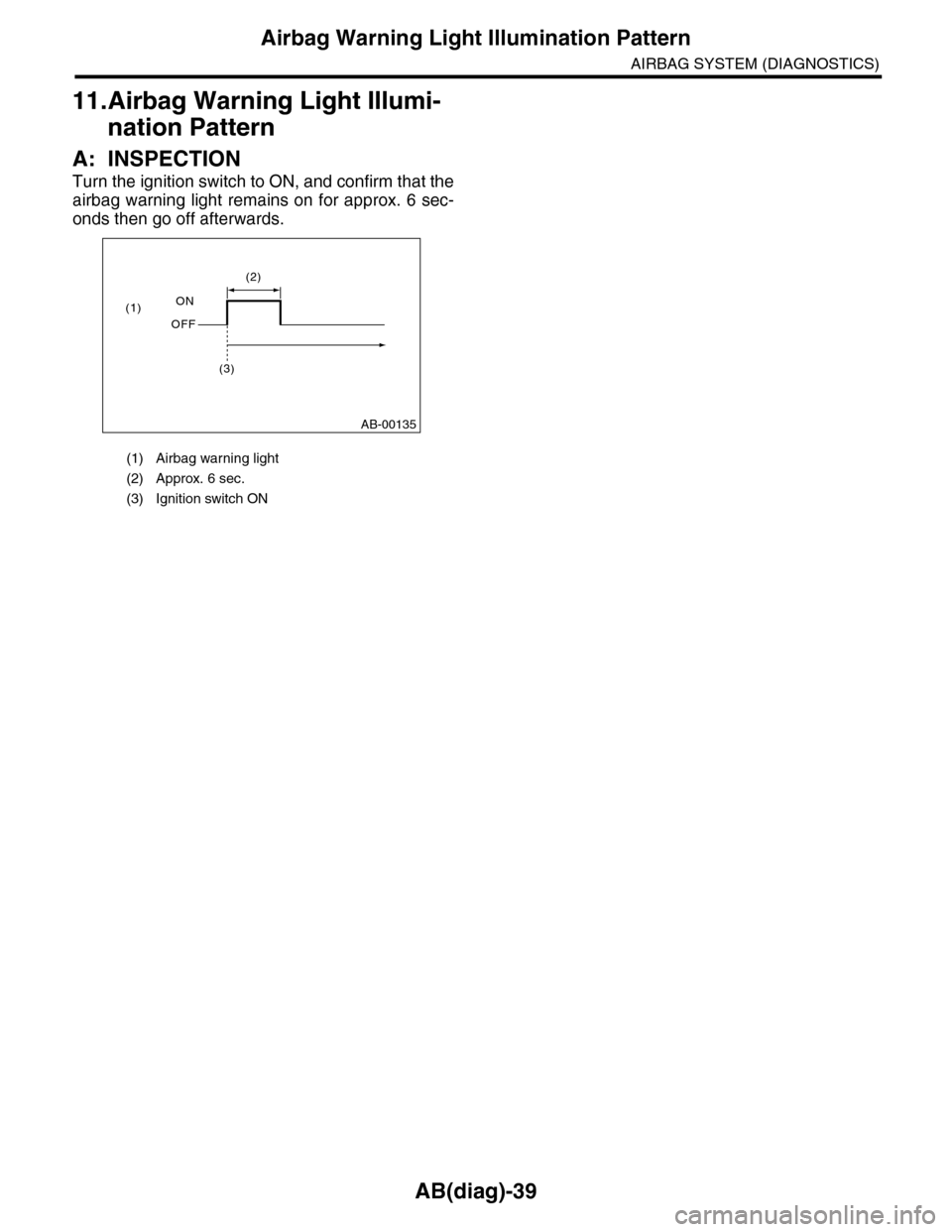

AB(diag)-39
Airbag Warning Light Illumination Pattern
AIRBAG SYSTEM (DIAGNOSTICS)
11.Airbag Warning Light Illumi-
nation Pattern
A: INSPECTION
Turn the ignition switch to ON, and confirm that the
airbag warning light remains on for approx. 6 sec-
onds then go off afterwards.
(1) Airbag warning light
(2) Approx. 6 sec.
(3) Ignition switch ON
AB-00135
(1)
(2)
(3)
OFF
ON

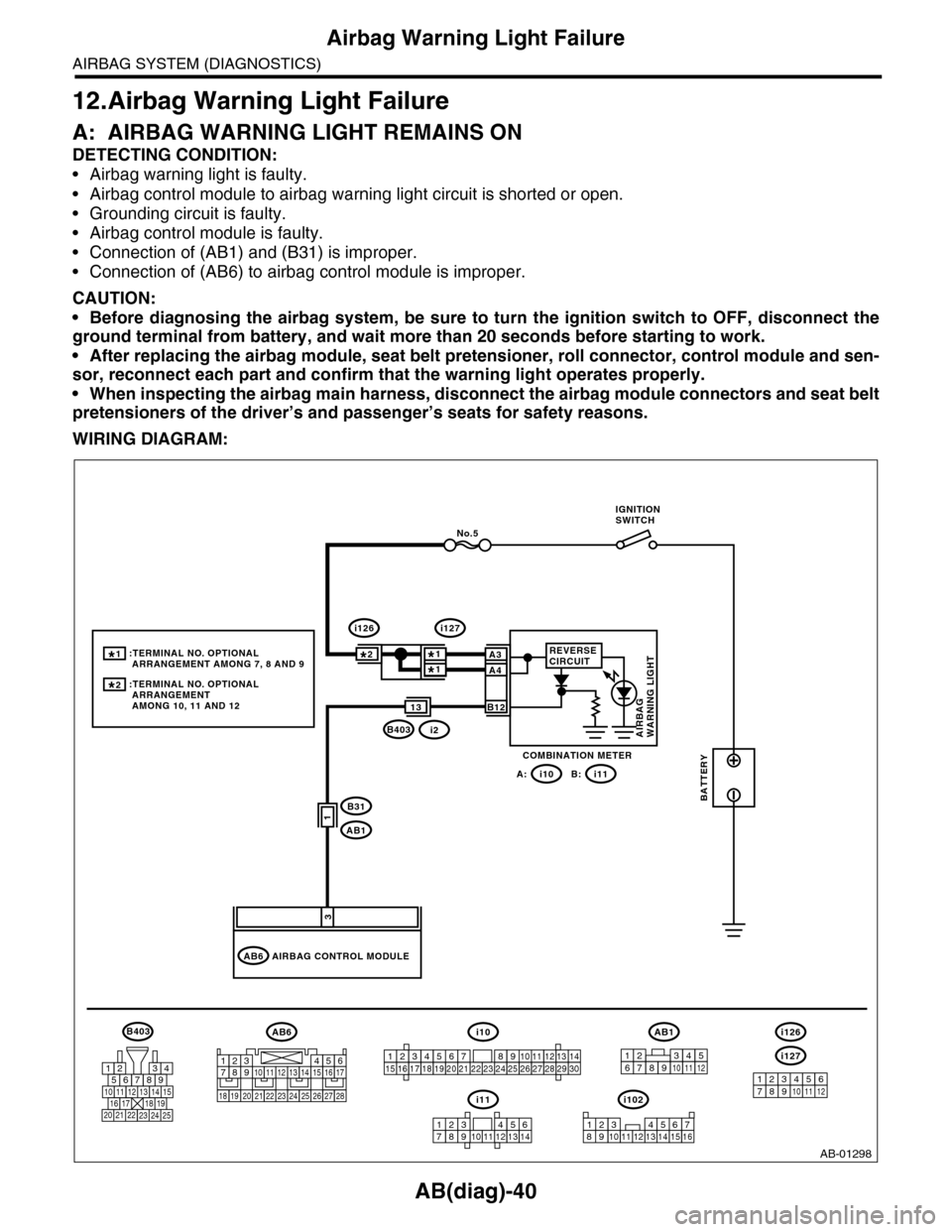

AB(diag)-40
Airbag Warning Light Failure
AIRBAG SYSTEM (DIAGNOSTICS)
12.Airbag Warning Light Failure
A: AIRBAG WARNING LIGHT REMAINS ON
DETECTING CONDITION:
•Airbag warning light is faulty.
•Airbag control module to airbag warning light circuit is shorted or open.
•Grounding circuit is faulty.
•Airbag control module is faulty.
•Connection of (AB1) and (B31) is improper.
•Connection of (AB6) to airbag control module is improper.
CAUTION:
•Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground terminal from battery, and wait more than 20 seconds before starting to work.
•After replacing the airbag module, seat belt pretensioner, roll connector, control module and sen-
sor, reconnect each part and confirm that the warning light operates properly.
•When inspecting the airbag main harness, disconnect the airbag module connectors and seat belt
pretensioners of the driver’s and passenger’s seats for safety reasons.
WIRING DIAGRAM:
AB-01298
AB6
B31
AB1
No.5
3
B12
A3A4
11
AB6AB1i10
B403i2
i126i127
i10A:i11B:
B403
1
13
123456789
1611101514131217 191823 252420 2221
435689122827141110 133029262524232221201918172116157
1245614131211109873
i11
1245614715 1613121110983
i102
1234567891011121314151617
1819202122232425262728
IGNITIONSWITCH
COMBINATION METER
BATTERY
AIRBAG WARNING LIGHT
AIRBAG CONTROL MODULE
:TERMINAL NO. OPTIONAL ARRANGEMENT AMONG 7, 8 AND 9
:TERMINAL NO. OPTIONAL ARRANGEMENT AMONG 10, 11 AND 12
REVERSECIRCUIT
123456789101112
i126
i127
1256347891011 12
2*
2***
1*

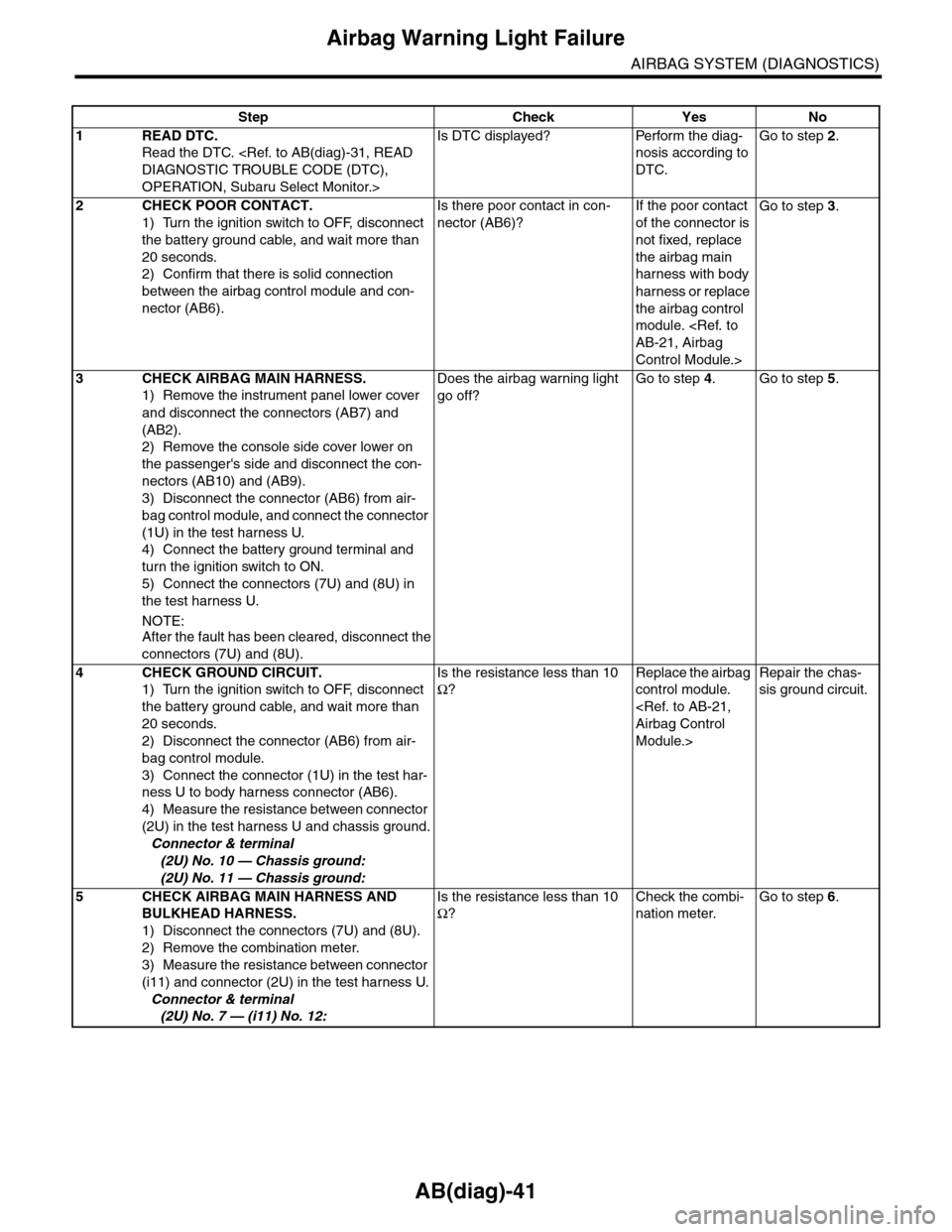

AB(diag)-41
Airbag Warning Light Failure
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1READ DTC.
Read the DTC. DIAGNOSTIC TROUBLE CODE (DTC),
OPERATION, Subaru Select Monitor.>
Is DTC displayed? Perform the diag-
nosis according to
DTC.
Go to step 2.
2CHECK POOR CONTACT.
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Confirm that there is solid connection
between the airbag control module and con-
nector (AB6).
Is there poor contact in con-
nector (AB6)?
If the poor contact
of the connector is
not fixed, replace
the airbag main
harness with body
harness or replace
the airbag control
module. AB-21, Airbag
Control Module.>
Go to step 3.
3CHECK AIRBAG MAIN HARNESS.
1) Remove the instrument panel lower cover
and disconnect the connectors (AB7) and
(AB2).
2) Remove the console side cover lower on
the passenger's side and disconnect the con-
nectors (AB10) and (AB9).
3) Disconnect the connector (AB6) from air-
bag control module, and connect the connector
(1U) in the test harness U.
4) Connect the battery ground terminal and
turn the ignition switch to ON.
5) Connect the connectors (7U) and (8U) in
the test harness U.
NOTE:After the fault has been cleared, disconnect the
connectors (7U) and (8U).
Does the airbag warning light
go off?
Go to step 4.Go to step 5.
4CHECK GROUND CIRCUIT.
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the connector (AB6) from air-
bag control module.
3) Connect the connector (1U) in the test har-
ness U to body harness connector (AB6).
4) Measure the resistance between connector
(2U) in the test harness U and chassis ground.
Connector & terminal
(2U) No. 10 — Chassis ground:
(2U) No. 11 — Chassis ground:
Is the resistance less than 10
Ω?
Replace the airbag
control module.
Airbag Control
Module.>
Repair the chas-
sis ground circuit.
5CHECK AIRBAG MAIN HARNESS AND
BULKHEAD HARNESS.
1) Disconnect the connectors (7U) and (8U).
2) Remove the combination meter.
3) Measure the resistance between connector
(i11) and connector (2U) in the test harness U.
Connector & terminal
(2U) No. 7 — (i11) No. 12:
Is the resistance less than 10
Ω?
Check the combi-
nation meter.
Go to step 6.

AB(diag)-42
Airbag Warning Light Failure
AIRBAG SYSTEM (DIAGNOSTICS)
6CHECK POOR CONTACT OF CONNEC-
TORS (AB1) AND (B31).
1) Turn the ignition switch to OFF, disconnect
the battery ground terminal, and wait more
than 20 seconds.
2) Confirm that there is firm contact between
connectors (AB1) and (B31).
Is there poor contact between
connectors (AB1) and (B31)?
Repair the bulk-
head harness or
replace the airbag
main harness with
body harness.
Go to step 7.
7CHECK AIRBAG MAIN HARNESS.
Check the airbag main harness for defect.
Is there any defect in the air-
bag main harness?
Replace the airbag
main harness with
bulkhead harness.
Repair the bulk-
head harness.
Step Check Yes No

AB(diag)-43
Airbag Warning Light Failure
AIRBAG SYSTEM (DIAGNOSTICS)
B: AIRBAG WARNING LIGHT REMAINS OFF
DETECTING CONDITION:
•Fuse No. 5 (in fuse box) is brown out.
•Body harness circuit is open.
•Airbag warning light is faulty.
•Airbag main harness is faulty.
•Airbag control module is faulty.
CAUTION:
•Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground terminal from battery, and wait more than 20 seconds before starting to work.
•After replacing the airbag module, seat belt pretensioner, roll connector, control module and sen-
sor, reconnect each part and confirm that the warning light operates properly.
•When inspecting the airbag main harness, disconnect the airbag module connectors and seat belt
pretensioners of the driver’s and passenger’s seats for safety reasons.
WIRING DIAGRAM:
AB-01298
AB6
B31
AB1
No.5
3
B12
A3A4
11
AB6AB1i10
B403i2
i126i127
i10A:i11B:
B403
1
13
123456789
1611101514131217 191823 252420 2221
435689122827141110 133029262524232221201918172116157
1245614131211109873
i11
1245614715 1613121110983
i102
1234567891011121314151617
1819202122232425262728
IGNITIONSWITCH
COMBINATION METER
BATTERY
AIRBAG WARNING LIGHT
AIRBAG CONTROL MODULE
:TERMINAL NO. OPTIONAL ARRANGEMENT AMONG 7, 8 AND 9
:TERMINAL NO. OPTIONAL ARRANGEMENT AMONG 10, 11 AND 12
REVERSECIRCUIT
123456789101112
i126
i127
1256347891011 12
2*
2***
1*

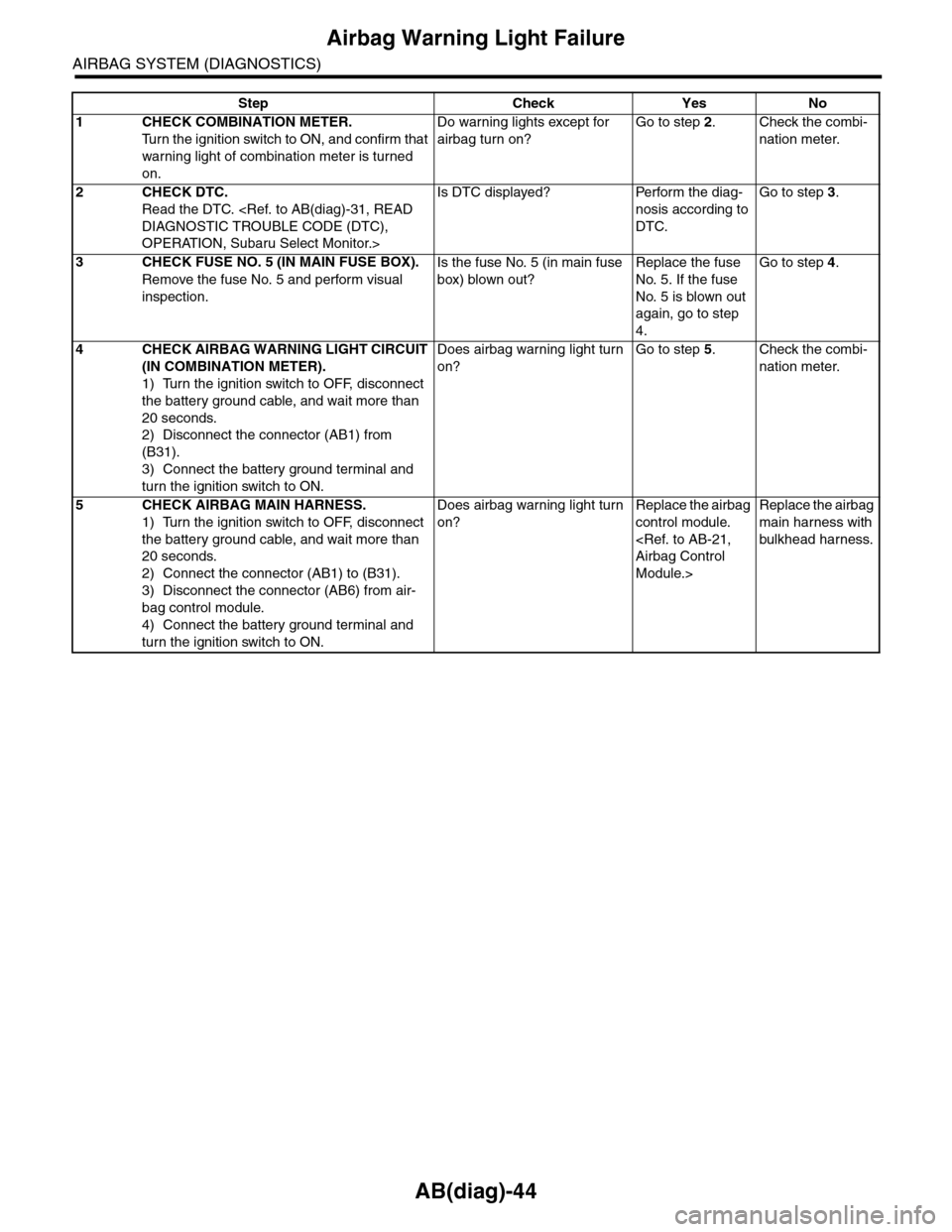

AB(diag)-44
Airbag Warning Light Failure
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1CHECK COMBINATION METER.
Tu r n t h e i g n i t i o n s w i t c h t o O N , a n d c o n f i r m t h a t
warning light of combination meter is turned
on.
Do warning lights except for
airbag turn on?
Go to step 2.Check the combi-
nation meter.
2CHECK DTC.
Read the DTC. DIAGNOSTIC TROUBLE CODE (DTC),
OPERATION, Subaru Select Monitor.>
Is DTC displayed? Perform the diag-
nosis according to
DTC.
Go to step 3.
3CHECK FUSE NO. 5 (IN MAIN FUSE BOX).
Remove the fuse No. 5 and perform visual
inspection.
Is the fuse No. 5 (in main fuse
box) blown out?
Replace the fuse
No. 5. If the fuse
No. 5 is blown out
again, go to step
4.
Go to step 4.
4CHECK AIRBAG WARNING LIGHT CIRCUIT
(IN COMBINATION METER).
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the connector (AB1) from
(B31).
3) Connect the battery ground terminal and
turn the ignition switch to ON.
Does airbag warning light turn
on?
Go to step 5.Check the combi-
nation meter.
5CHECK AIRBAG MAIN HARNESS.
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Connect the connector (AB1) to (B31).
3) Disconnect the connector (AB6) from air-
bag control module.
4) Connect the battery ground terminal and
turn the ignition switch to ON.
Does airbag warning light turn
on?
Replace the airbag
control module.
Airbag Control
Module.>
Replace the airbag
main harness with
bulkhead harness.

AB(diag)-45
List of Diagnostic Trouble Code (DTC)
AIRBAG SYSTEM (DIAGNOSTICS)
13.List of Diagnostic Trouble Code (DTC)
A: LIST
DTC Display Content of diagnosis Reference target
11 Driver’s Airbag failure • Airbag main harness circuit is open, shorted
or shorted to ground.
•Airbag module harness (Driver's side) circuit
is open, shorted or shorted to ground.
•Roll connector circuit is open, shorted or
shorted to ground.
•Airbag control module is faulty.
•Driver's airbag module is faulty.
AIRBAG FAILURE, Diagnostic Chart
with Trouble Code.>
12 Passenger's Airbag failure • Airbag main harness circuit is open, shorted
or shorted to ground.
•Airbag module harness (Passenger's side)
circuit is open, shorted or shorted to ground.
•Airbag control module is faulty.
•Passenger's airbag module is faulty.
GER'S AIRBAG FAILURE, Diagnostic
Chart with Trouble Code.>
15 Driver’s Airbag failure • Airbag main harness circuit (Driver’s side) is
shorted to power supply.
•Airbag module harness circuit (Driver’s side)
is shorted to power supply.
•Roll connector is shorted to power supply.
•Airbag control module is faulty.
•Driver’s airbag module is faulty.
AIRBAG FAILURE, Diagnostic Chart
with Trouble Code.>
16 Passenger's Airbag failure • Airbag main harness circuit (Passenger's
side) is shorted to power supply.
•Airbag module harness circuit (Passenger's
side) is shorted to power supply.
•Airbag control module is faulty.
•Passenger's airbag module is faulty.
GER'S AIRBAG FAILURE, Diagnostic
Chart with Trouble Code.>
21 Airbag ECU failure Airbag control module is faulty. ECU FAILURE, Diagnostic Chart with
Tr o u b l e C o d e . >
22 Front Airbag Firing output Front airbag module and seat belt pretensioner
(LH/RH) are inflated.
AIRBAG FIRING OUTPUT, Diagnostic
Chart with Trouble Code.>
23 Connector to Airbag ECU
failure
Connection of (AB6), (AB17) and (AB18) to air-
bag control module is improper.
TOR TO AIRBAG ECU FAILURE, Diag-
nostic Chart with Trouble Code.>
24 IG1 open • Airbag control module is faulty.
•Airbag main harness circuit is open.
•Fuse No. 12 (in joint box) is blown.
•Airbag rear harness circuit is open.
OPEN, Diagnostic Chart with Trouble
Code.>
25 IG2 open • Airbag control module is faulty.
•Airbag main harness circuit is open.
•Fuse No. 25 (in joint box) is blown.
•Airbag rear harness circuit is open.
OPEN, Diagnostic Chart with Trouble
Code.>
26 Passenger's Airbag indi-
cator failure
•Passenger's airbag indicator is faulty.
•Airbag control module is faulty.
•Airbag main harness circuit is open, shorted
or shorted to ground.
•Body harness circuit is open.
GER'S AIRBAG INDICATOR FAILURE,
Diagnostic Chart with Trouble Code.>
27 ODS Communication error • Occupant detection control module communi-
cation is faulty.
•Airbag rear harness circuit is open, shorted,
shorted to ground or shorted to power supply.
•Occupant detection harness is faulty.
•Airbag control module is faulty.
•Occupant detection system is faulty.
COMMUNICATION ERROR, Diagnostic
Chart with Trouble Code.>

AB(diag)-46
List of Diagnostic Trouble Code (DTC)
AIRBAG SYSTEM (DIAGNOSTICS)
29 ODS failure • Occupant detection sensor is faulty.
•Occupant detection control module is faulty.
•Occupant detection harness is faulty.
•Fuse No. 25 (in joint box) is blown.
Refer to “Occupant Detection System”
for details on DTC 29. 29, DTC 29 ODS FAILURE, Diagnostic
Procedure with Diagnostic Trouble Code
(DTC).>
2A ODS Calibration error System calibration (Rezeroing) of the occupant
detection system was not ended normally.
Refer to “Occupant Detection System”
for details on DTC 2A. OD(diag)-26, DTC 2A OCCUPANT
DETECTION CALIBRATION FAILURE,
Diagnostic Procedure with Diagnostic
Tr o u b l e C o d e ( D T C ) . >
2B ODS System Wrong error • Wrong airbag control module was installed.
•Wrong occupant detection system was
installed.
•Occupant detection system is faulty.
Refer to “Occupant Detection System”
for details on DTC 2B. OD(diag)-26, DTC 2B ODS ERRONE-
OUS PARTS, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
2C Belt Tension Sensor fail-
ure
•Passenger’s seat belt tension sensor is faulty.
•Occupant detection system is faulty.
•Airbag rear harness circuit is open, shorted,
shorted to ground or shorted to power supply.
•Occupant detection harness is faulty.
Refer to “Occupant Detection System”
for details on DTC 2C. OD(diag)-27, DTC 2C BELT TENSION
SENSOR FAILURE, Diagnostic Proce-
dure with Diagnostic Trouble Code
(DTC).>
31 Front Sub Sensor RH fail-
ure
•Front sub sensor harness (RH) circuit is open
or shorted.
•Front sub sensor (RH) is faulty.
•Airbag control module is faulty.
SUB SENSOR RH FAILURE, Diagnostic
Chart with Trouble Code.>
32 Front Sub Sensor LH fail-
ure
•Front sub sensor harness (LH) circuit is open
or shorted.
•Front sub sensor (LH) is faulty.
•Airbag control module is faulty.
SUB SENSOR LH FAILURE, Diagnostic
Chart with Trouble Code.>
33 Front Sub Sensor RH fail-
ure
Fr o nt su b se ns or ( RH) i s fa u lt y. < Re f. t o A B ( d ia g ) - 76 , D TC 3 3 F RONT
SUB SENSOR RH FAILURE, Diagnostic
Chart with Trouble Code.>
34 Front Sub Sensor LH fail-
ure
Fr o nt su b se ns or ( RH) i s fa u lt y. < Re f. t o A B ( d ia g ) - 76 , D TC 3 4 F RONT
SUB SENSOR LH FAILURE, Diagnostic
Chart with Trouble Code.>
36 Seat Position Sensor LH
failure
•Driver's seat position sensor is faulty.
•Airbag control module is faulty.
•Airbag rear harness LH circuit is open,
shorted or shorted to ground.
POSITION SENSOR LH FAILURE,
Diagnostic Chart with Trouble Code.>
37 Buckle Switch RH failure • Passenger's seat buckle switch circuit is
open, shorted or shorted to ground.
•Occupant detection system is faulty.
•Occupant detection harness is faulty.
Refer to “Occupant Detection System”
for details on DTC 37. 30, DTC 37 BUCKLE SWITCH RH FAIL-
URE, Diagnostic Procedure with Diag-
nostic Trouble Code (DTC).>
38 Buckle Switch LH failure • Driver's seat buckle switch circuit is open,
shorted or shorted to ground.
•Airbag rear harness LH circuit is open,
shorted or shorted to ground.
•Airbag control module is faulty.
SWITCH LH FAILURE, Diagnostic Chart
with Trouble Code.>
39 Seatbelt Warning failure • Airbag control module is faulty.
•Body integrated module is faulty.
•Harness circuits between body integrated
module and air bag control module are open,
shorted or shorted to ground.
BELT WARNING FAILURE, Diagnostic
Chart with Trouble Code.>
41 Side Airbag RH failure • Side airbag harness (RH) circuit is faulty.
•Side airbag module (RH) is faulty.
•Airbag control module is faulty.
BAG RH FAILURE, Diagnostic Chart
with Trouble Code.>
DTC Display Content of diagnosis Reference target
