SUBARU TRIBECA 2009 1.G Service Service Manual

AB(diag)-17
General Description
AIRBAG SYSTEM (DIAGNOSTICS)
•TEST HARNESS V
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
98299AG010 TEST HARNESS V Used when measuring voltage and resistance of
side airbag sensor and curtain airbag sensor.
ST98299AG010
1V3V
2V
AB-00677
3V
2V
1V
3V
8
5
1
4
2
3
7
6
3
4
1
2
2
1
4
3
12 3456784321
2V
1234
1V

AB(diag)-18
General Description
AIRBAG SYSTEM (DIAGNOSTICS)

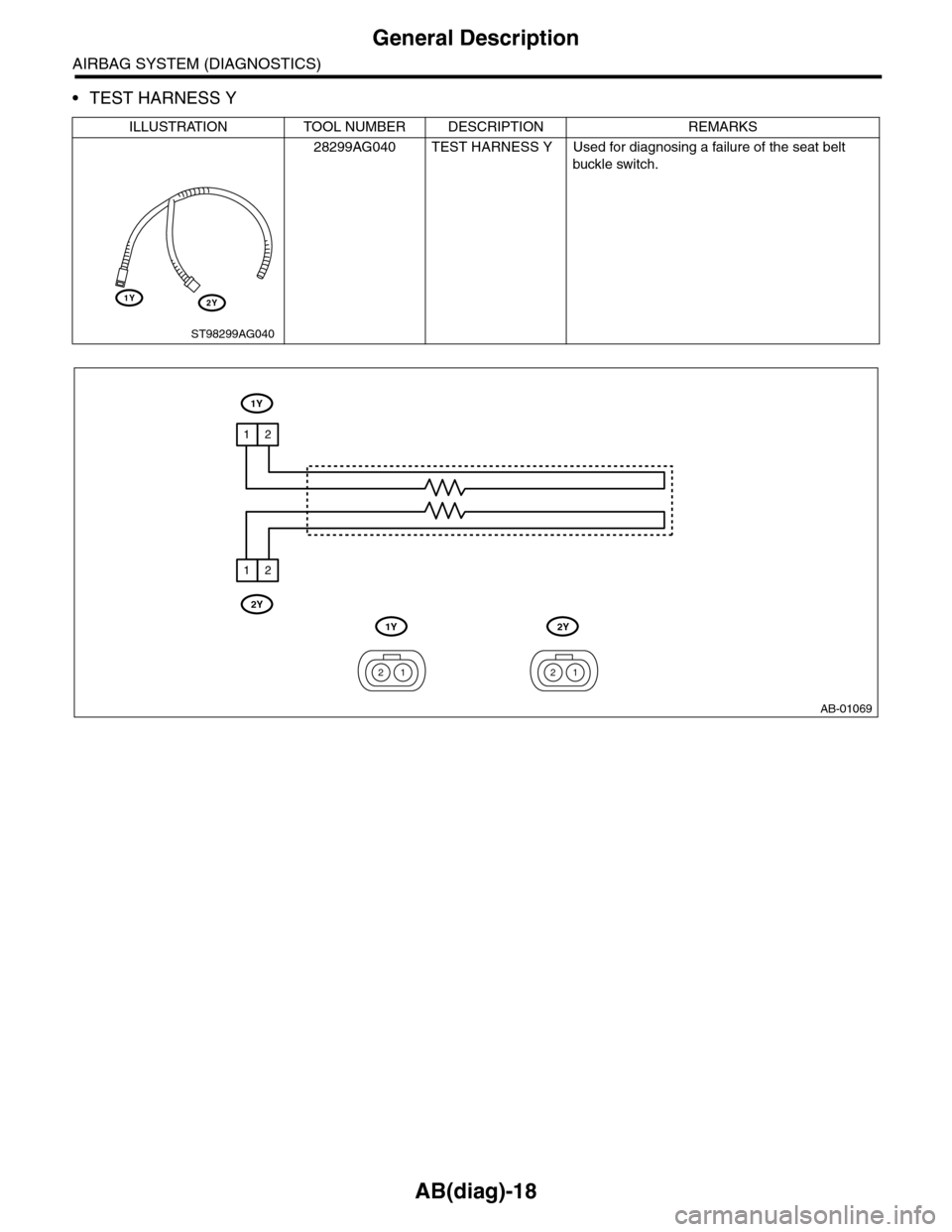

•TEST HARNESS Y
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
28299AG040 TEST HARNESS Y Used for diagnosing a failure of the seat belt
buckle switch.
ST98299AG040
2Y1Y
1Y
1Y
2Y
2Y
AB-01069
12
12
1212

AB(diag)-19
General Description
AIRBAG SYSTEM (DIAGNOSTICS)

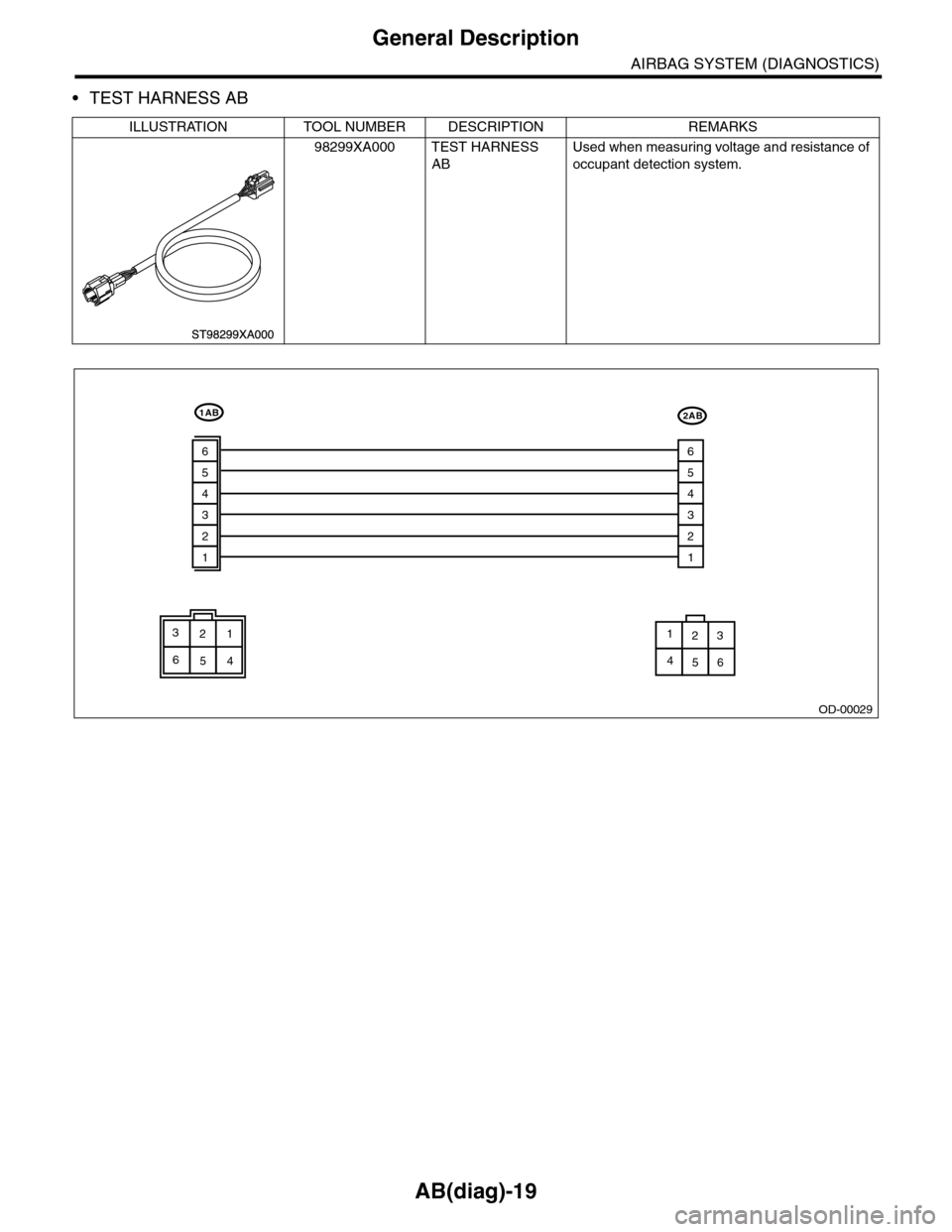

•TEST HARNESS AB
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
98299XA000 TEST HARNESS
AB
Used when measuring voltage and resistance of
occupant detection system.
OD-00029
1AB2AB
4
3
2
1
6
5
4
3
2
1
6
5
65
32
4
1
45
12
6
3

AB(diag)-20
General Description
AIRBAG SYSTEM (DIAGNOSTICS)
•TEST HARNESS AC
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
98299XA010 TEST HARNESS
AC
Used for diagnosing a failure of the seat belt ten-
sion sensor.
OD-00027
A
B
C
ACB
AC

AB(diag)-21
General Description
AIRBAG SYSTEM (DIAGNOSTICS)
•TEST HARNESS AD
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
98299XA020 TEST HARNESS
AD
Used when measuring voltage and resistance of
seat belt tension sensor.
OD-00028
1AD2AD
3
2
1
3123
2
1
312

AB(diag)-22
General Description
AIRBAG SYSTEM (DIAGNOSTICS)

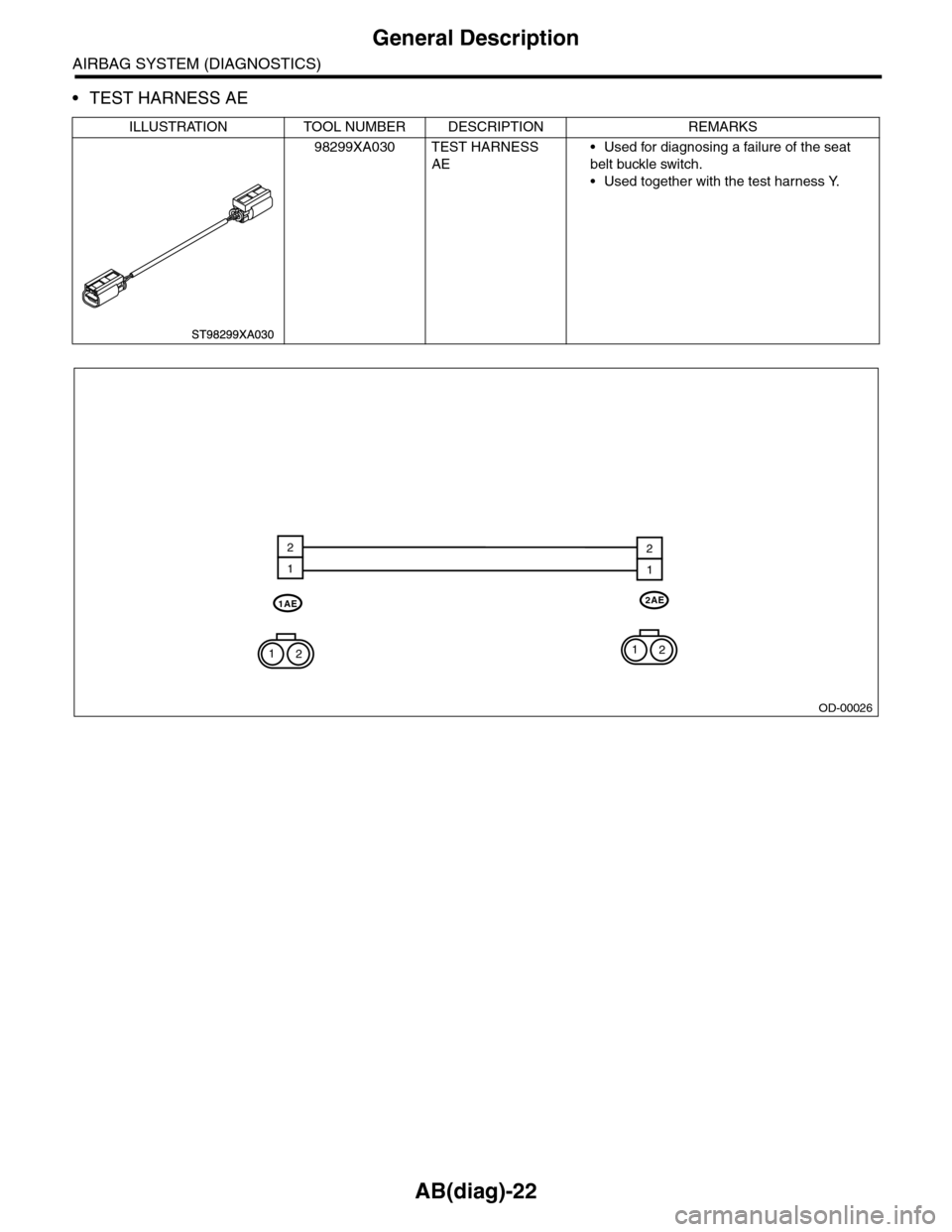

•TEST HARNESS AE
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
98299XA030 TEST HARNESS
AE
•Used for diagnosing a failure of the seat
belt buckle switch.
•Used together with the test harness Y.
OD-00026
1AE2AE
2
1
12
2
1
12

AB(diag)-23
General Description
AIRBAG SYSTEM (DIAGNOSTICS)
•AIRBAG RESISTOR
2. GENERAL TOOL
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
98299PA040 AIRBAG RESISTOR Used in replacement of airbag module for which
resistance value is same as airbag module.
TOOL NAME REMARKS
Circuit tester Used for measuring resistance, voltage and current.
Oscilloscope Used for measuring the sensor.
ST98299PA040
AB-00433
3
1
2
1212134562
4
3

AB(diag)-24
Electrical Component Location
AIRBAG SYSTEM (DIAGNOSTICS)
4. Electrical Component Location
A: LOCATION
(1) Front sub sensor (RH) (9) Side airbag sensor (RH) (17) Curtain airbag inflator (RH)
(2) Front sub sensor (LH) (10) Side airbag sensor (LH) (18) Curtain airbag inflator (LH)
(3)

Airbag control module with built-in
safing and electric sensor
(11) Seat belt pretensioner (RH) (19) Occupant detection control module
(12) Seat belt pretensioner (LH) (20) Buckle switch (LH)
(4) Airbag main harness (13) Curtain airbag sensor (RH) (21) Seat position sensor (LH)
(5) Roll connector (14) Curtain airbag sensor (LH) (22) Buckle switch (RH)
(6) Passenger’s airbag inflator (15) Side airbag inflator (RH) (23) Belt tension sensor
(7) Driver’s airbag inflator (16) Side airbag inflator (LH) (24) Airbag rear harness LH
(8) Airbag rear harness (RH)

AB(diag)-25
Electrical Component Location
AIRBAG SYSTEM (DIAGNOSTICS)

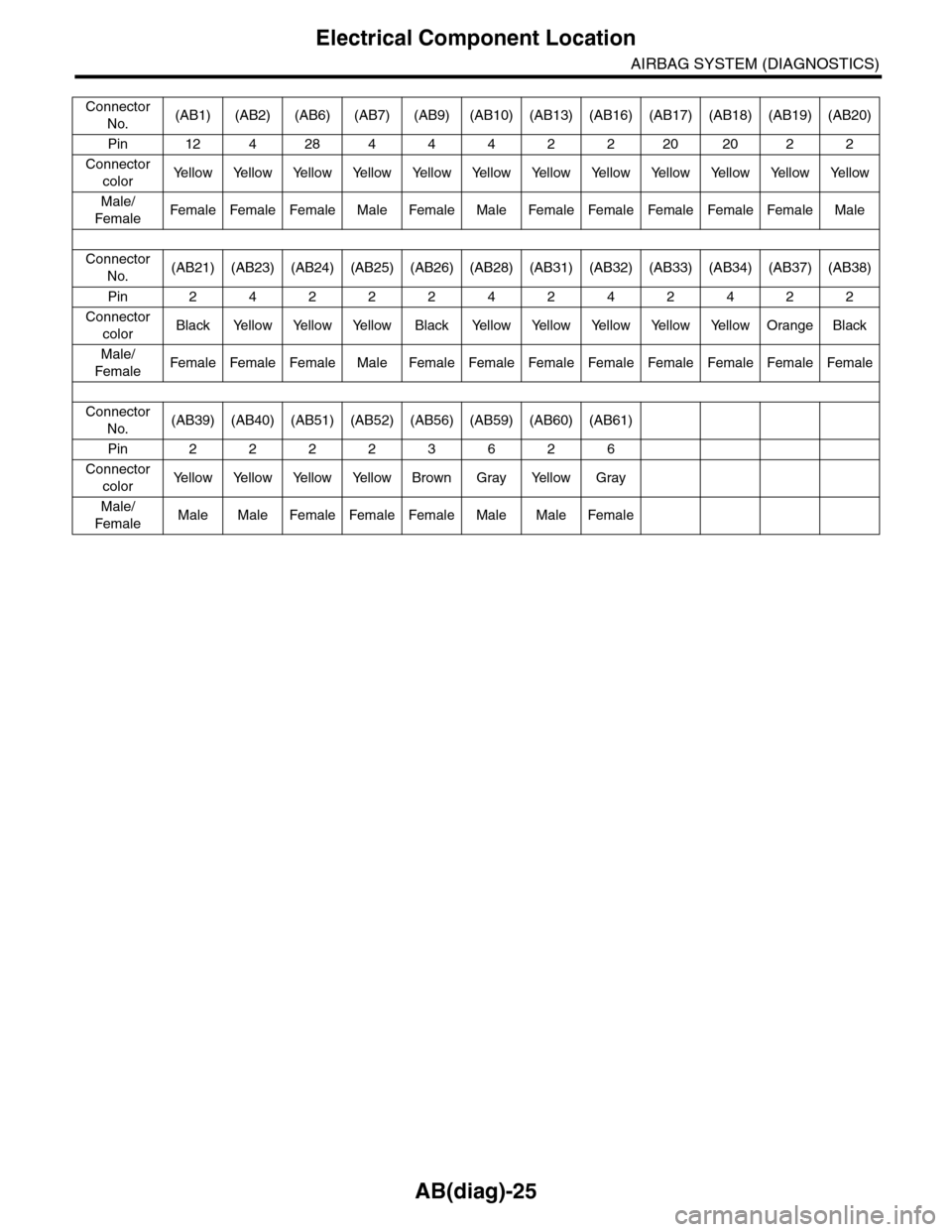

Connector
No.(AB1) (AB2) (AB6) (AB7) (AB9) (AB10) (AB13) (AB16) (AB17) (AB18) (AB19) (AB20)
Pin 12 4 28 4 4 4 2 2 20 20 2 2
Connector
colorYe l l o w Ye l l o w Ye l l o w Ye l l o w Ye l l o w Ye l l o w Ye l l o w Ye l l o w Ye l l o w Ye l l o w Ye l l o w Ye l l o w
Male/
FemaleFemale Female Female Male Female Male Female Female Female Female Female Male

Connector
No.(AB21) (AB23) (AB24) (AB25) (AB26) (AB28) (AB31) (AB32) (AB33) (AB34) (AB37) (AB38)
Pin 2 4 2 2 2 4 2 4 2 4 2 2
Connector
colorBlack Yellow Yellow Yellow Black Yellow Yellow Yellow Yellow Yellow Orange Black
Male/
FemaleFemale Female Female Male Female Female Female Female Female Female Female Female

Connector
No.(AB39) (AB40) (AB51) (AB52) (AB56) (AB59) (AB60) (AB61)
Pin 2 2 2 2 3 6 2 6
Connector
colorYe l l o w Ye l l o w Ye l l o w Ye l l o w B r o w n G r a y Ye l l o w G r a y
Male/
FemaleMale Male Female Female Female Male Male Female

AB(diag)-26
Airbag Connector
AIRBAG SYSTEM (DIAGNOSTICS)

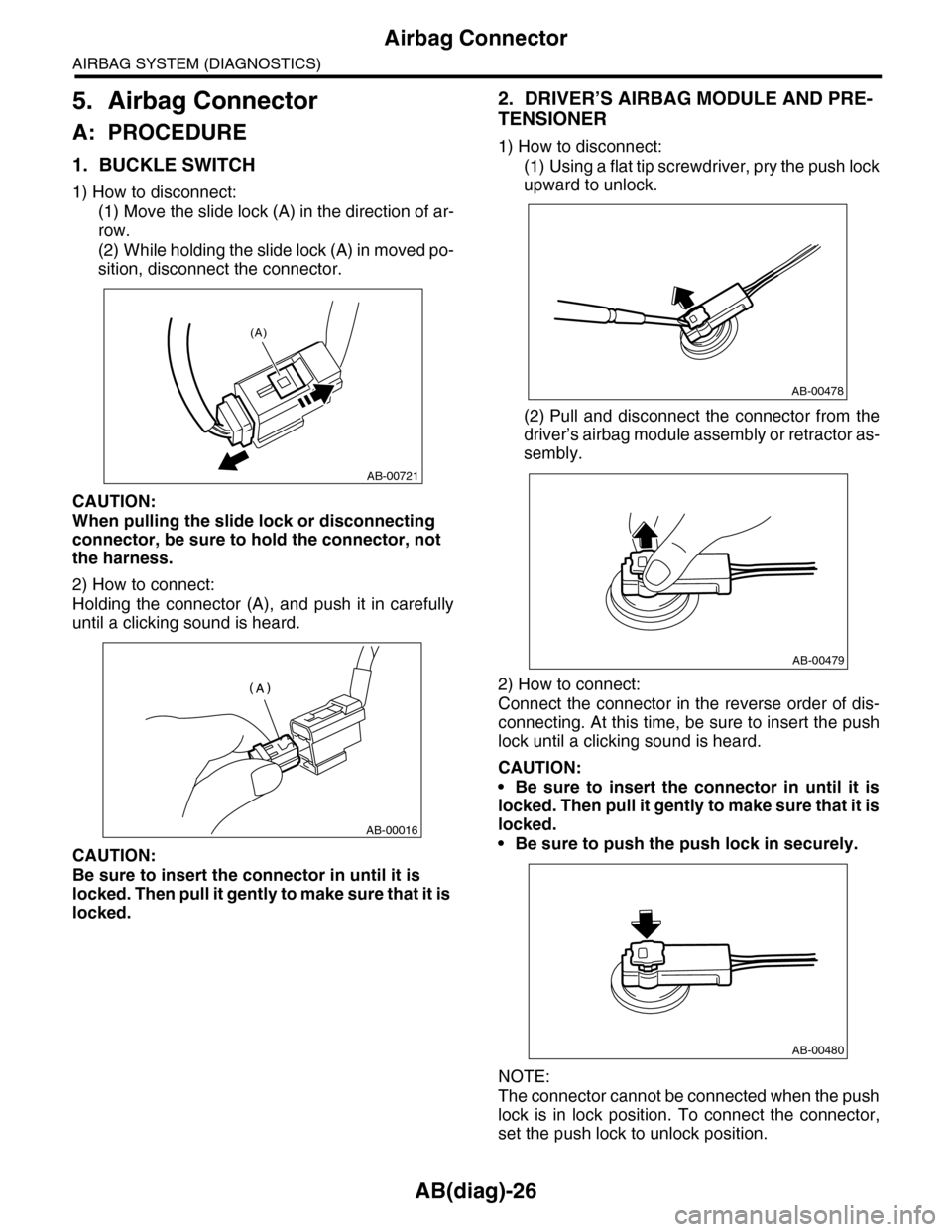

5. Airbag Connector
A: PROCEDURE
1. BUCKLE SWITCH
1) How to disconnect:
(1) Move the slide lock (A) in the direction of ar-
row.
(2) While holding the slide lock (A) in moved po-
sition, disconnect the connector.
CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.
2) How to connect:
Holding the connector (A), and push it in carefully
until a clicking sound is heard.
CAUTION:
Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
2. DRIVER’S AIRBAG MODULE AND PRE-
TENSIONER
1) How to disconnect:
(1) Using a flat tip screwdriver, pry the push lock
upward to unlock.
(2) Pull and disconnect the connector from the
driver’s airbag module assembly or retractor as-
sembly.
2) How to connect:
Connect the connector in the reverse order of dis-
connecting. At this time, be sure to insert the push
lock until a clicking sound is heard.
CAUTION:
•Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
•Be sure to push the push lock in securely.
NOTE:
The connector cannot be connected when the push
lock is in lock position. To connect the connector,
set the push lock to unlock position.
AB-00721
(A)
AB-00016
AB-00478
AB-00479
AB-00480
