1) Make sure the parking brake is set fully.
2) Shift to “N” (Neutral) and fully depress
the clutch pedal. Hold the clutch and
brake pedals fully depressed.
82K254
3) The “PUSH START SWITCH” message
will appear on the information display in
the instrument cluster. Push the engine
switch (1). When the engine is started,
the starter motor will automatically stop.
NOTE:
• You do not need to keep the engine
switch pressed to start the engine.
• The engine of a manual transaxle vehi-
cle will not start unless the clutch pedal
is depressed.
• During the engine starting procedure,
messages on the information display will
help you. Refer to “Information Display”in the “BEFORE DRIVING” section for
details.
• You should turn off such loads as the
headlights and air conditioning system to
facilitate starting of the engine.
• Even if you fail to start the engine, the
starter motor will stop operating auto-
matically after a short time. After the
starter motor has stopped or if there is
some problem with the system, the
starter motor will rotate only while the
engine switch is being pressed.
6 W R S S L Q J W K H H Q J L Q H• Depress the engine switch to stop the
engine after the vehicle stopped com-
pletely.
• In case of emergency, you can stop the
engine by quickly pushing the engine
switch more than 3 times, or pushing
and holding the engine switch more than
2 seconds while the vehicle in motion.
NOTE:
Except in emergency, do not stop the
engine while the vehicle in motion.
The steering and braking operation will
require more efforts when the engine
stopped.
Refer to “Braking” in this section.
• If the engine has been stopped and
stayed as it as for while after the engine
was stopped unexpectedly or was raced
before stopped, a clicking sound may be
heard from around the engine when
engine restarted. This is not a malfunc-
(1)
: $ 5 1 , 1 *
0 D N H V X U H W K D W W K H S D U N L Q J E U D N H L V
V H W I X O O \ D Q G W K H W U D Q V D [ O H L V L Q 1 H X
W U D O E H I R U H D W W H P S W L Q J W R V W D U W W K H
H Q J L Q H
NOTICE
Page 112 of 288
Downloaded from www.Manualslib.com manuals search engine 2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
tion. In this case, always let the engine
idle before stop it. 6 W D U W L Q J D & R O G D Q G : D U P ( Q J L Q H & R O G H Q J L Q H
Depress the clutch and brake pedals fully
and press the engine switch to crank the
engine. If the glow plug indicator light
comes on, the engine will start automati-
cally after the glow plug indicator light goes
off or 10 seconds past.
: D U P H Q J L Q H
Crank the engine by pressing the engine
switch to change the ignition mode to
“START”. & D X W L R Q Z K H Q V W R S S L Q J W K H H Q J L Q H Z L W K
W X U E R F K D U J H U
When stopping the engine after climbing or
high speed driving, let the engine idle for
about one minute or more (if it is not pro-
hibited) to cool down the turbocharger and
engine oil. This is to prevent the engine oil
from over-deteriorating. Deteriorated
engine oil will damage the bearings of the
turbocharger.
5 H V W D U W L Q J G L H V H O H Q J L Q H D I W H U I X H O
H P S W \ V W R S
If the engine stops and the low fuel warn-
ing light and the malfunction indicator light
come on, use the following procedure:
1) Fill the fuel tank.
2) Press the engine switch to change the
ignition mode to “ON” for 5-10 seconds
to feed fuel.
3) Perform above engine starting proce-
dure to start the engine.
If the malfunction indicator light still comes
on after the engine started, there may be
some problem with the engine. Ask your
D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S to have
the engine inspected.
, I W K H 0 $ 6 7 ( 5 : $ 5 1 , 1 * L Q G L F D W R U O L J K W
E O L Q N V D Q G W K H H Q J L Q H F D Q Q R W E H V W D U W H G
Your keyless push start system remote
controller may not be sensed as being
within the interior workable area. Try again
after making sure that you have the remote
controller with you. If the engine still can-
not be started, the battery of the remote
controller may be discharged. You mustthen use the following method to be able to
start the engine.
58MST0302
1) Make sure the parking brake is set fully.
2) Shift to “N” (Neutral) and fully depress
the clutch pedal. Hold the clutch and
brake pedals fully depressed.
3) The “PUSH START SWITCH.” mes-
sage will appear on the information dis-
play in the instrument cluster. Press the
engine switch (1).
4) Within about 10 seconds of blinking of
the “MASTER WARNING” indicator
light in the instrument cluster, touch the
engine switch with the lock button end
of the remote controller (2) for about 2
seconds.
NOTE:
• If you still cannot start the engine after
several attempts using the above
NOTICE
' R Q R W F U D Q N W K H H Q J L Q H I R U P R U H
W K D Q V H F R Q G V D W D W L P H
, I W K H H Q J L Q H G R H V Q
Page 113 of 288
Downloaded from www.Manualslib.com manuals search engine
2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
method, there may be a problem else-
where, such as a low battery. Contact
your D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S
for inspection.
• The immobilizer/keyless push start sys-
tem warning light will come on for about
5 seconds while the master warning indi-
cator light is blinking. In addition, the
information display will show a certain
message during this time. Refer to
“Information Display” in the “BEFORE
DRIVING” section for details.
• You may customize the system to cause
the interior buzzer to sound once for the
remote controller out of sensing range
warning. Please contact an D X W K R U L V H G
0 D U X W L 6 X ] X N L Z R U N V K R S for the
customization.
• If the battery of the remote controller is
about to be completely discharged, a
message warning this will appear on the
information display when the ignition
mode is changed to “ON” by pressing
the engine switch. For details on replac-
ing the battery, refer to the “Keyless
Push Start System Remote Controller” in
the “BEFORE DRIVING” section.
5 H W X U Q L Q J W K H L J Q L W L R Q P R G H W R
³ / 2 & . ´ 2 ) )
Page 114 of 288
Downloaded from www.Manualslib.com manuals search engine 2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
release the clutch. When you hear a
change in the engine’s sound, slowly press
the accelerator while continuing to gradu-
ally release the clutch.
6 K L I W L Q J
All forward gears are synchronized, which
provides for quiet, and easy shifting.
Always depress the clutch pedal all the
way to the floor before shifting gears.
Ensure that the engine rpm does not rise
to the red zone of the tachometer.
61MS2A005
Reverse gear (6MT model): while lifting up
the ring, shift the gearshift lever to the
rightmost position and engage the gear. ' R Z Q V K L I W L Q J P D [ L P X P D O O R Z D E O H V S H H G V
0 7 P R G H O
0 7 P R G H O
*NOTE:
You may not accelerate to the maximum
allowable speed because of the driving sit-
uation and/or the vehicle condition. ( ; $ 0 3 / (
Downshifting km/h (mph)
2nd to 1st 35 (22)
3rd to 2nd 65 (40)
4th to 3rd 100 (62)
5th to 4th 145 (90)*
Downshifting km/h (mph)
2nd to 1st 40 (25)
3rd to 2nd 70 (43)
4th to 3rd 115 (71)
5th to 4th 160 (99)*
6th to 5th 200 (124)*
NOTICE
: K H Q G R Z Q V K L I W L Q J W R D O R Z H U J H D U
P D N H V X U H Q R W W R G R Z Q V K L I W D W W K H
V S H H G I D V W H U W K D Q W K H P D [ L P X P
D O O R Z D E O H V S H H G V I R U W K H Q H [ W O R Z H U
V S H H G R U V H Y H U H H Q J L Q H G D P D J H F D Q
U H V X O W
: $ 5 1 , 1 *
Page 115 of 288
Downloaded from www.Manualslib.com manuals search engine
2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
& U X L V H & R Q W U R O L I H T X L S S H G The cruise control system allows you to
maintain a steady speed without keeping
your foot on the accelerator pedal. The
controls for operating the cruise control
system are on the steering wheel.
You can use the cruise control system with
the following conditions:
• The gear position is in 3rd, 4th, 5th or 6th
(if equipped).
• The vehicle speed is about 40 km/h (25
mph) or higher.
61MS416
(1) “CRUISE” switch
(2) “CANCEL” switch
(3) “RES +” switch
(4) “SET –” switch
7 R 6 H W & U X L V L Q J 6 S H H G1) Turn on the cruise control system by
pushing the “CRUISE” switch (1). When
the “CRUISE” indicator light comes on,
you can set cruising speed.
2) Accelerate or decelerate to the desired
speed.
3) Push the “SET –” switch (4) and the
“SET” indicator light will turn on. Take
your foot off the accelerator pedal and
the set speed will be maintained.
: $ 5 1 , 1 *
7 R K H O S D Y R L G O R V V R I Y H K L F O H F R Q W U R O
G R Q R W X V H W K H F U X L V H F R Q W U R O V \ V W H P
Z K H Q G U L Y L Q J L Q K H D Y \ W U D I I L F R Q V O L S
S H U \ R U Z L Q G L Q J U R D G V R U R Q V W H H S
G R Z Q J U D G H V
(1)(2)
(3)(4)
: $ 5 1 , 1 *
, I W K H F U X L V L Q J V S H H G L V V H W E \ D F F L
G H Q W \ R X F D Q Q R W G H F H O H U D W H D Q G P D \
O R R V H F R Q W U R O R I W K H Y H K L F O H 7 K L V
F R X O G O H D G W R D Q D F F L G H Q W U H V X O W L Q J L Q
V H Y H U H L Q M X U \ R U G H D W K
7 X U Q R I I W K H F U X L V H F R Q W U R O V \ V W H P
D Q G P D N H V X U H W K H
Page 116 of 288
Downloaded from www.Manualslib.com manuals search engine 2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
³ & 5 8 , 6 ( ´ , Q G L F D W R U / L J K W
52D113
When you push the “CRUISE” switch, the
system is on and a “CRUISE” indicator
light on the instrument cluster will be on.
³ 6 ( 7 ´ , Q G L F D W R U / L J K W
65D474
When the vehicle’s speed is controlled by
the cruise control system, a “SET” indica-
tor light on the instrument cluster will be
on. 7 R & K D Q J H 6 S H H G 7 H P S R U D U L O \When the cruising speed is maintained,
you can temporarily accelerate or deceler-
ate.
To accelerate, depress the accelerator
pedal. When you take your foot off the
pedal, your vehicle will return to the set
speed.To decelerate, depress the brake pedal.
The set speed will be canceled and “SET”
indicator light will go off.
To resume the previously set speed, push
the “RES +” switch (3) and turn on the
“SET” indicator light again when vehicle
speed is above 40 km/h (25 mph). The
vehicle will accelerate to and maintain the
previously set speed.
7 R & K D Q J H & U X L V L Q J 6 S H H G 8 V L Q J W K H D F F H O H U D W R U S H G D O
To reset at a faster cruising speed, accel-
erate to the desired speed using the accel-
erator pedal and push the “SET –” switch
(4). The new speed will be maintained.
8 V L Q J W K H E U D N H S H G D O
To reset at a slower cruising speed, decel-
erate to the desired speed using the brake
pedal and push the “SET –” switch (4). The
new speed will be maintained.
NOTE:
When the brake pedal is depressed, the
“SET” indicator light goes off until the cruis-
ing speed is reset.
8 V L Q J W K H
Page 117 of 288
Downloaded from www.Manualslib.com manuals search engine
2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
& D Q F H O O D W L R Q R I W K H & U X L V H & R Q W U R OThe “SET” indicator light will go off and the
cruise control will be canceled temporarily
with following procedures:
• Push the “CANCEL” switch (2).
• Depress the brake pedal.
• Depress the clutch pedal.
• The vehicle speed falls more than about
20 percent from the set speed.
• Any time the vehicle speed falls below
40 km/h (25 mph).
To resume the previously set speed, push
the “RES +” switch (3) and turn on the
“SET” indicator light. Besides, the vehicle
speed has to be above 40 km/h (25 mph)
when the vehicle is not in the above condi-
tions.
To turn off the cruise control system, push
the “CRUISE” switch (1) and make sure
the “CRUISE” indicator light is off.
Also, if the malfunction indicator light in the
instrument cluster comes on or blinks, the
cruise control system will be turned off.
NOTE:
If you turn off the cruise control system, the
previously set speed in the memory is
cleared. Reset your cruising speed again.
3 D U N L Q J 6 H Q V R U V L I H T X L S S H G
61MM0A192
(1) Symbol representing an obstacle
detected by parking sensor*
* This symbol represents an obstacle
that is located to the right rear at
the vehicle.
• The parking sensor system uses ultra-
sonic sensors to detect obstacles near
the rear bumper. If obstacles are sensed
while you are parking or moving the
vehicle slowly, the system warns you by
sounding a buzzer and displaying sym-
bols representing the obstacles on the
information display in the instrument
cluster.
• The system emits an ultrasonic wave
and the relevant sensor detects the
return of the wave reflected by an obsta-
cle. The system measures the time
taken by the ultrasonic wave to reach the
obstacle and return from it, from which it
determines the obstacle’s position.
• The parking sensor function can be used
when you press the engine switch tochange the ignition mode to “ON”, the
gearshift lever is in “R” position and the
parking sensor switch is in the “ON”
position. This function is helpful in the
following cases: pulling over to the curb;
parallel-parking the vehicle; steering the
vehicle into a garage; driving along an
alley; and moving slowly in a place with
obstacles.
(1)
: $ 5 1 , 1 *
Page 118 of 288
Downloaded from www.Manualslib.com manuals search engine 2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
6 H Q V R U / R F D W L R Q V 2 Q W K H U H D U E X P S H U
64MS170
(1) Rear center sensors (2 places)
(2) Rear corner sensors (2 places) : R U N L Q J V H Q V R U V
The sensors that work depends on the
position of the gearshift lever as follows:
$ S S U R [ L P D W H D U H D V Z K H U H R E V W D F O H V F D Q
E H G H W H F W H G
64MS007
• Any obstacle within about 20 cm (8 in)
from the sensor or just below the sensor
is not detectable.
• The sensors can detect an obstacle up
to about 1.5 m (5 ft) from the rear of
vehicle.
NOTICE
Page 119 of 288
Downloaded from www.Manualslib.com manuals search engine
2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (

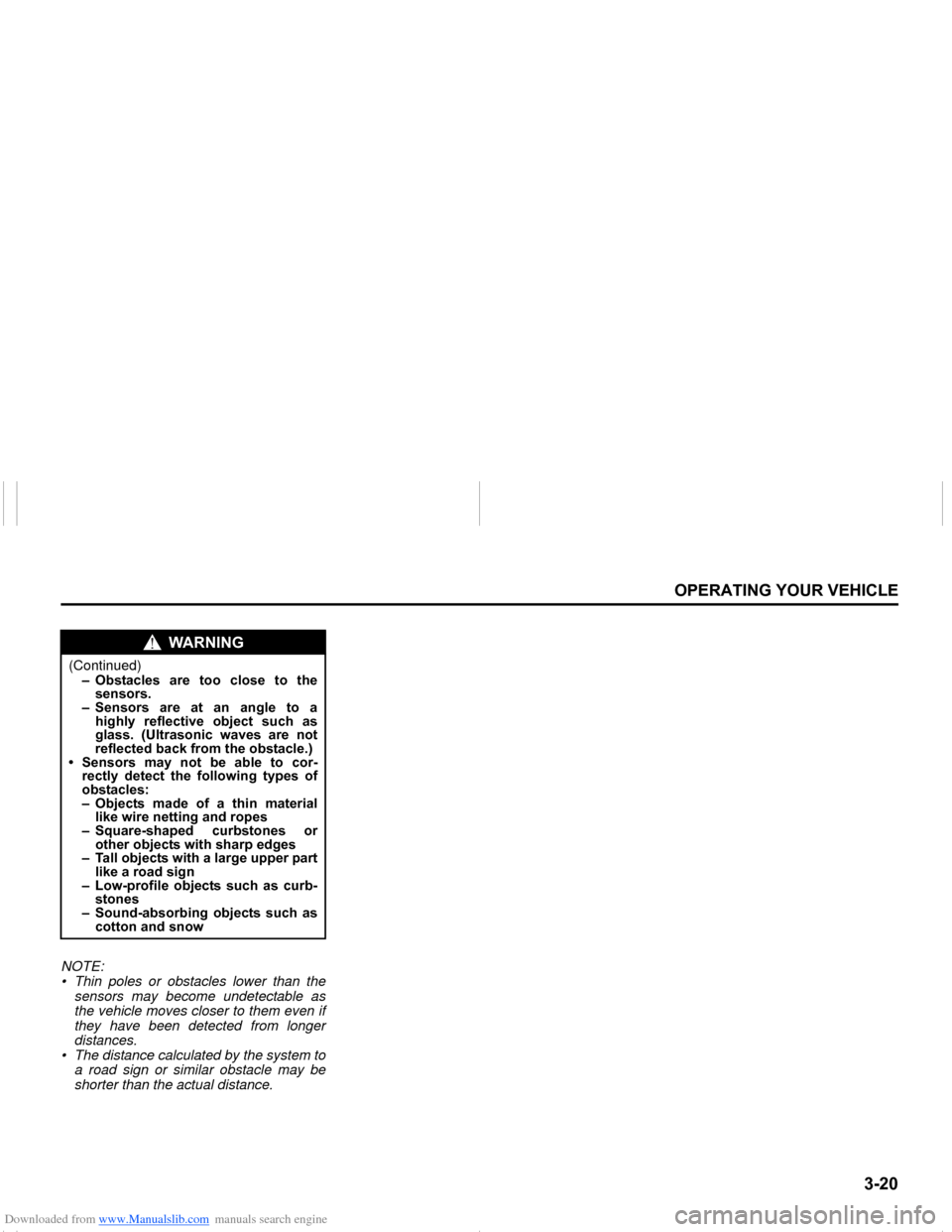

NOTE:
• Thin poles or obstacles lower than the
sensors may become undetectable as
the vehicle moves closer to them even if
they have been detected from longer
distances.
• The distance calculated by the system to
a road sign or similar obstacle may be
shorter than the actual distance.
: $ 5 1 , 1 *
(Continued)
Page 120 of 288
Downloaded from www.Manualslib.com manuals search engine 2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (

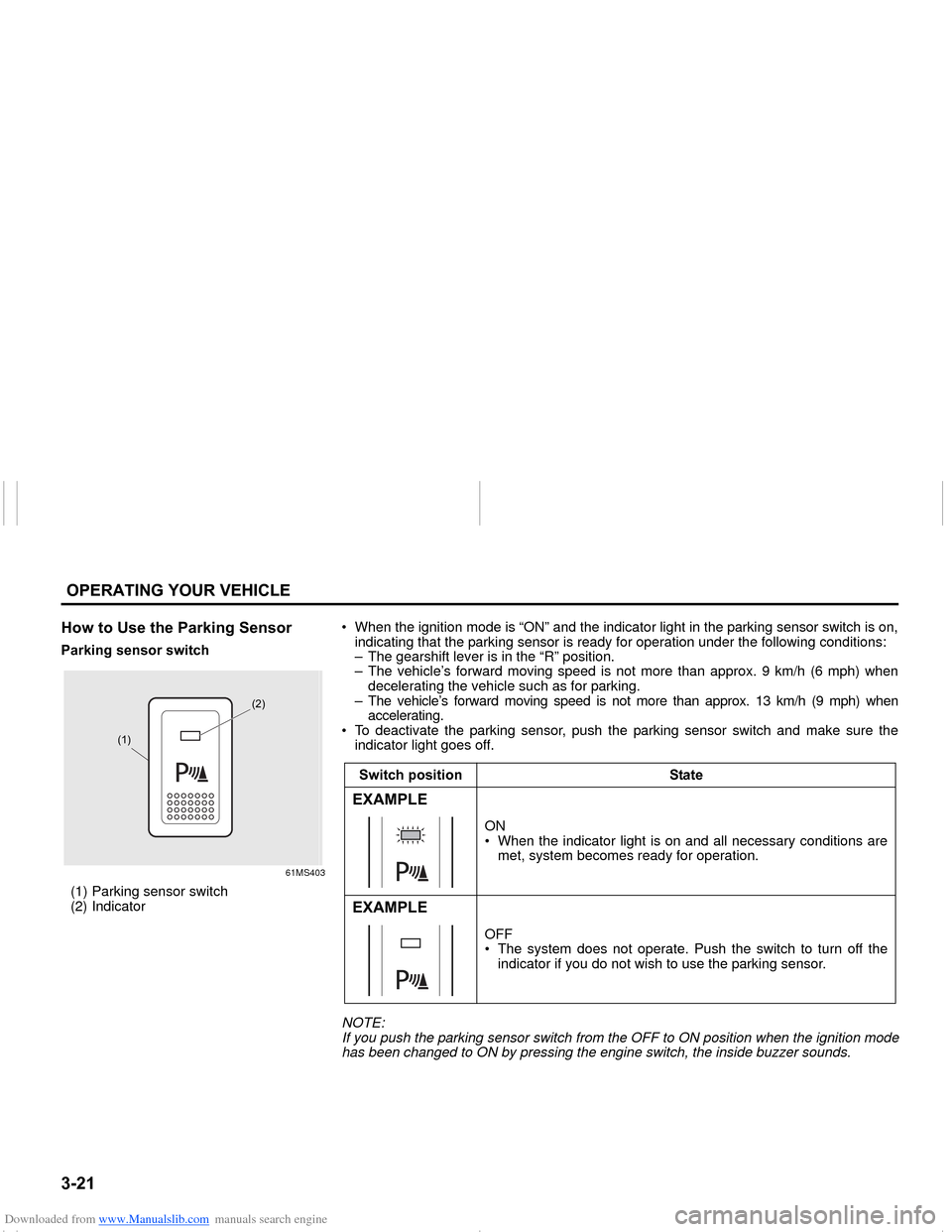

+ R Z W R 8 V H W K H 3 D U N L Q J 6 H Q V R U 3 D U N L Q J V H Q V R U V Z L W F K
61MS403
(1) Parking sensor switch
(2) Indicator
(2)
(1)
• When the ignition mode is “ON” and the indicator light in the parking sensor switch is on,
indicating that the parking sensor is ready for operation under the following conditions:
– The gearshift lever is in the “R” position.
– The vehicle’s forward moving speed is not more than approx. 9 km/h (6 mph) when
decelerating the vehicle such as for parking.
– The vehicle’s forward moving speed is not more than approx. 13 km/h (9 mph) when
accelerating.
• To deactivate the parking sensor, push the parking sensor switch and make sure the
indicator light goes off.
NOTE:
If you push the parking sensor switch from the OFF to ON position when the ignition mode
has been changed to ON by pressing the engine switch, the inside buzzer sounds. 6 Z L W F K S R V L W L R Q 6 W D W H ( ; $ 0 3 / (
ON
• When the indicator light is on and all necessary conditions are
met, system becomes ready for operation.
( ; $ 0 3 / (
OFF
• The system does not operate. Push the switch to turn off the
indicator if you do not wish to use the parking sensor.
