TESLA MODEL 3 2019 Owner's Manual (Europe)
Manufacturer: TESLA, Model Year: 2019, Model line: MODEL 3, Model: TESLA MODEL 3 2019Pages: 179, PDF Size: 9.18 MB
Page 151 of 179

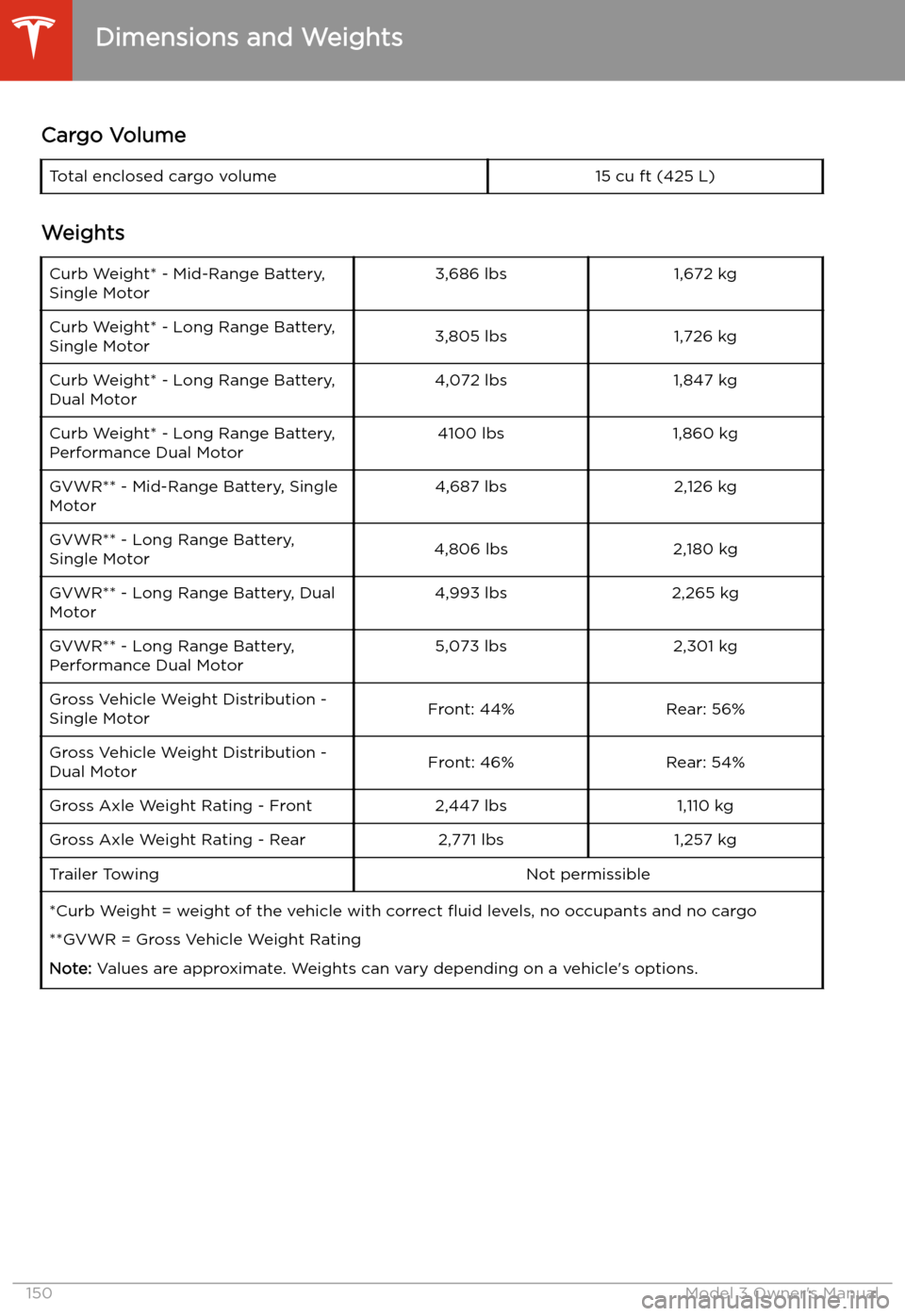

Cargo VolumeTotal enclosed cargo volume15 cu ft (425 L)
Weights
Curb Weight* - Mid-Range Battery,
Single Motor3,686 lbs1,672 kgCurb Weight* - Long Range Battery,
Single Motor3,805 lbs1,726 kgCurb Weight* - Long Range Battery,
Dual Motor4,072 lbs1,847 kgCurb Weight* - Long Range Battery,
Performance Dual Motor4100 lbs1,860 kgGVWR** - Mid-Range Battery, Single
Motor4,687 lbs2,126 kgGVWR** - Long Range Battery,
Single Motor4,806 lbs2,180 kgGVWR** - Long Range Battery, Dual
Motor4,993 lbs2,265 kgGVWR** - Long Range Battery,
Performance Dual Motor5,073 lbs2,301 kgGross Vehicle Weight Distribution -
Single MotorFront: 44%Rear: 56%Gross Vehicle Weight Distribution -
Dual MotorFront: 46%Rear: 54%Gross Axle Weight Rating - Front2,447 lbs1,110 kgGross Axle Weight Rating - Rear2,771 lbs1,257 kgTrailer TowingNot permissible*Curb Weight = weight of the vehicle with correct
Page 152 of 179
Subsystems
Transmission
TypeSingle speed fixed gearGearbox Ratio9:1
Brakes
Type
4-wheel anti-lock braking system (ABS)
with Electronic Brake Force Distribution,
Integrated Advanced Stability Control and
Electronic Accelerator pedal actuated
regenerative braking systemCalipersFront: Four piston fixed
Rear: Integrated Electronic Parking Brake
Sliding
Rotor Diameter (ventilated)
Front (non-Performance): 12.6"/320 mm
Front (Performance): 13.98"/355 mm
Rear (non-Performance): 13.2"/335 mm Rear (Performance): 13.2
Page 153 of 179

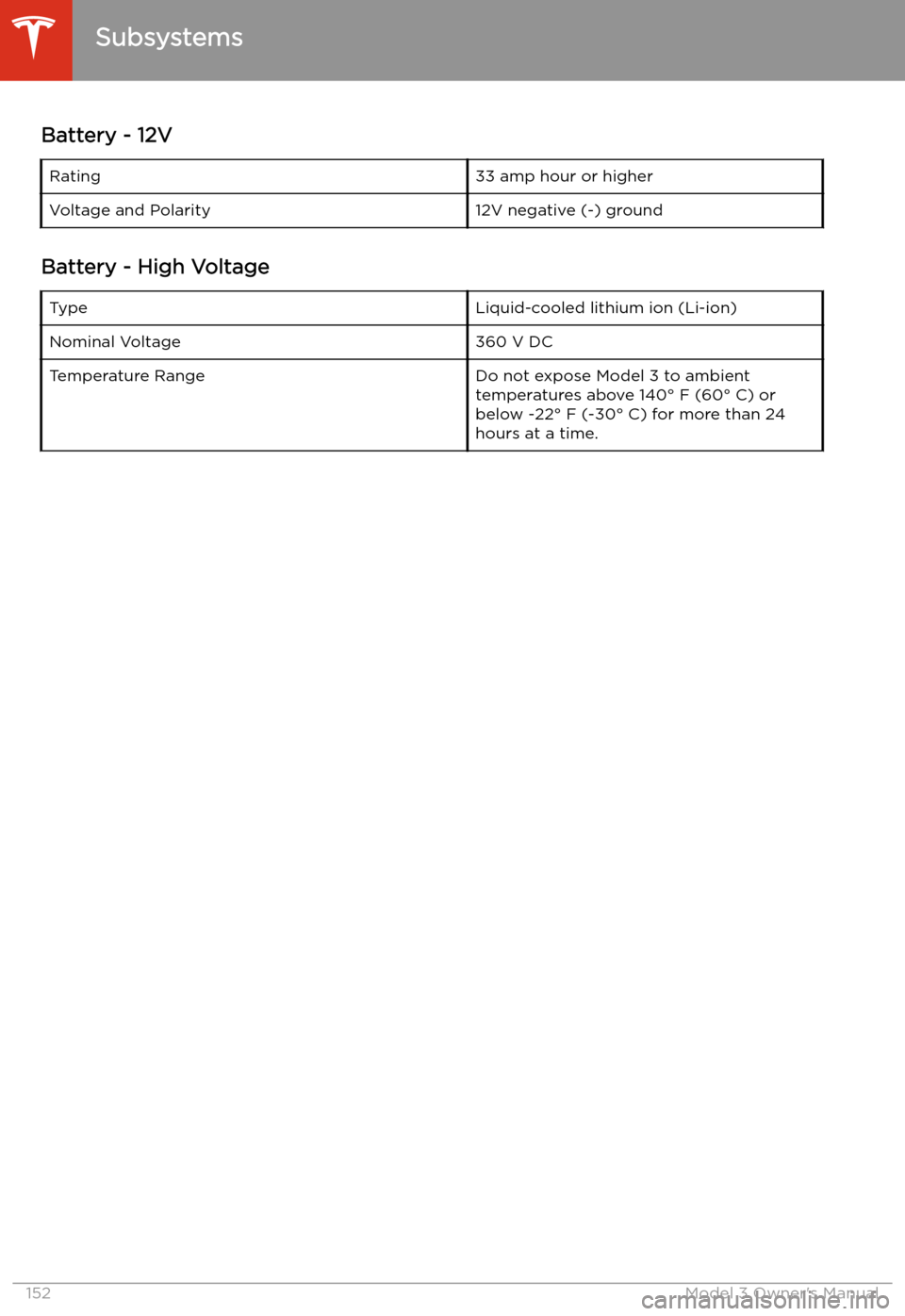

Battery - 12VRating33 amp hour or higherVoltage and Polarity12V negative (-) ground
Battery - High Voltage
TypeLiquid-cooled lithium ion (Li-ion)Nominal Voltage360 V DCTemperature RangeDo not expose Model 3 to ambient
temperatures above 140
Page 154 of 179
Wheels and Tires
Wheel Specifications (Factory)
Wheel DiameterLocationWidth (in)Offset (mm)18"Front/Rear8.54019"Front/Rear8.54020"Front/Rear8.540Lug Nut Torque129 lb. ft (175 Nm)Lug Nut Socket Size21 mmNote: For instructions on how to jack/lift Model 3, see Jacking and Lifting on page 144.
Tire Specifications (Factory)
Tire SizeLocationSize18"Front/RearP235/45R1819"Front/RearP235/40R1920"Front/RearP235/35R20Tire pressures vary depending on the type of tires fitted. Refer to the tire pressures printed on
the Tire and Loading Information label. This label is located on the center door pillar and is
visible when the driver’s door is open (see Maintaining Tire Pressures on page 131).Winter tires can be purchased from a Tesla store.
Wheels and Tires
Specifications153
Page 155 of 179
Understanding Tire MarkingsLaws require tire manufacturers to place standardized information on the sidewall of all tires. This
information identifies and describes the fundamental characteristics of the tire.1Tire category. P indicates that the tire is for passenger vehicles.2Tire width. This 3-digit number is the width (in millimeters) of the tire from sidewall
edge to sidewall edge.3Aspect ratio. This 2-digit number is the sidewall height as a percentage of the tread
width. So, if the tread width is 205 mm, and the aspect ratio is 50, the sidewall height is 102 mm.4Tire construction. R indicates that the tire is of Radial ply construction.5Wheel diameter. This 2-digit number is the diameter of the wheel rim in inches.6Load index. This 2 or 3-digit number is the weight each tire can support. This number is
not always shown.7Speed rating. When stated, indicates the maximum speed (in mph) at which the tire can be used for extended periods. Q=99 mph (160 km/h), R=106 mph (170 km/h), S=112 mph (180 km/h), T=118 mph (190 km/h), U=124 mph (200 km/h), H=130 mph(210 km/h), V=149 mph (240 km/h), W=168 mph (270 km/h), Y=186 mph (300 km/h).8Tire composition and materials. The number of plies in both the tread area and thesidewall area indicates how many layers of rubber coated material make up the structure of the tire. Information is also provided on the type of materials used.9Maximum tire load. The maximum load which can be carried by the tire.10Maximum permissible in
Page 156 of 179

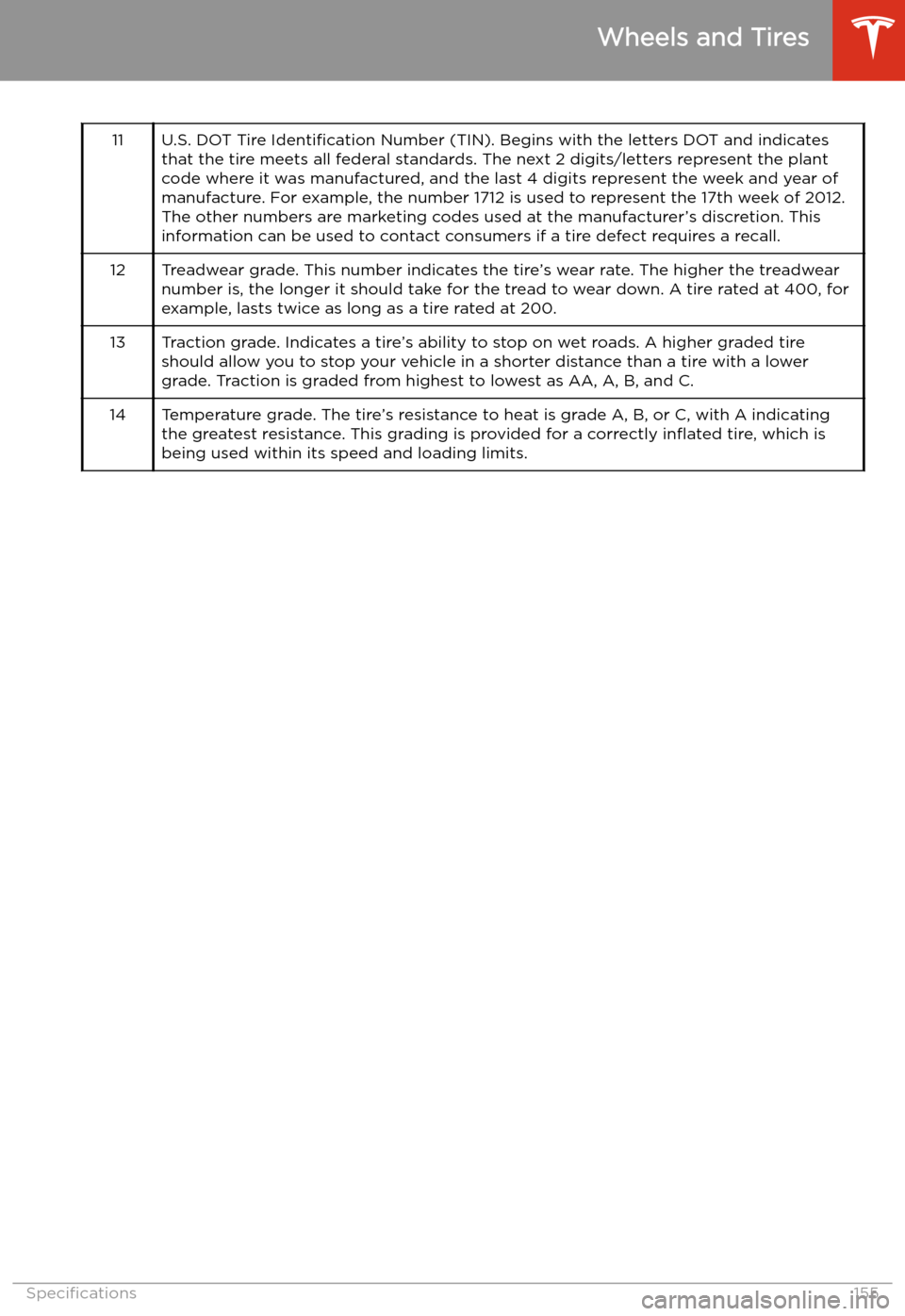

11U.S. DOT Tire Identification Number (TIN). Begins with the letters DOT and indicates
that the tire meets all federal standards. The next 2 digits/letters represent the plant
code where it was manufactured, and the last 4 digits represent the week and year of
manufacture. For example, the number 1712 is used to represent the 17th week of 2012. The other numbers are marketing codes used at the manufacturer’s discretion. This
information can be used to contact consumers if a tire defect requires a recall.12Treadwear grade. This number indicates the tire’s wear rate. The higher the treadwear number is, the longer it should take for the tread to wear down. A tire rated at 400, for
example, lasts twice as long as a tire rated at 200.13Traction grade. Indicates a tire’s ability to stop on wet roads. A higher graded tire
should allow you to stop your vehicle in a shorter distance than a tire with a lower grade. Traction is graded from highest to lowest as AA, A, B, and C.14Temperature grade. The tire’s resistance to heat is grade A, B, or C, with A indicatingthe greatest resistance. This grading is provided for a correctly in
Page 157 of 179

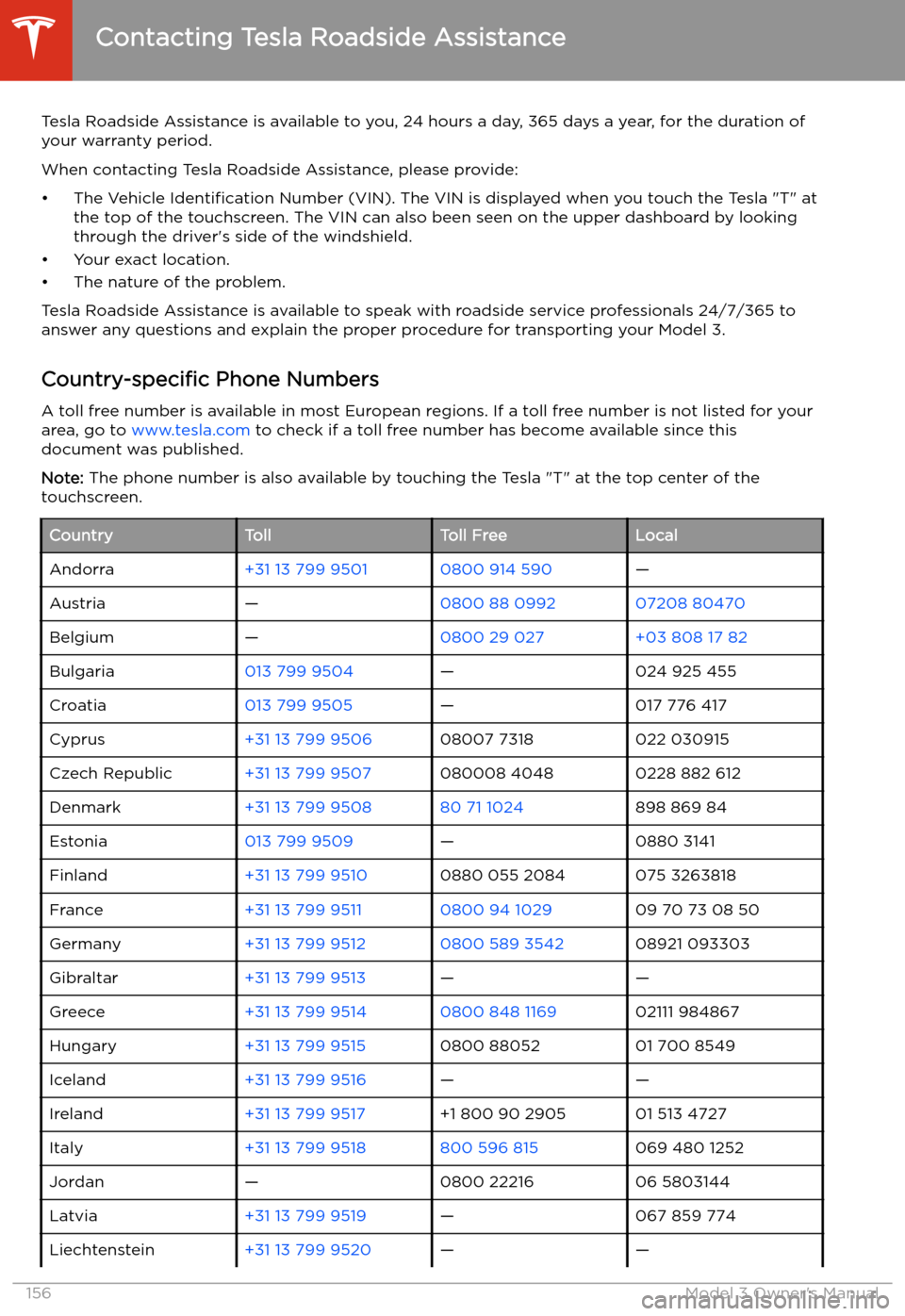

Roadside Assistance
Contacting Tesla Roadside Assistance
Tesla Roadside Assistance is available to you, 24 hours a day, 365 days a year, for the duration of
your warranty period.
When contacting Tesla Roadside Assistance, please provide:
Page 158 of 179

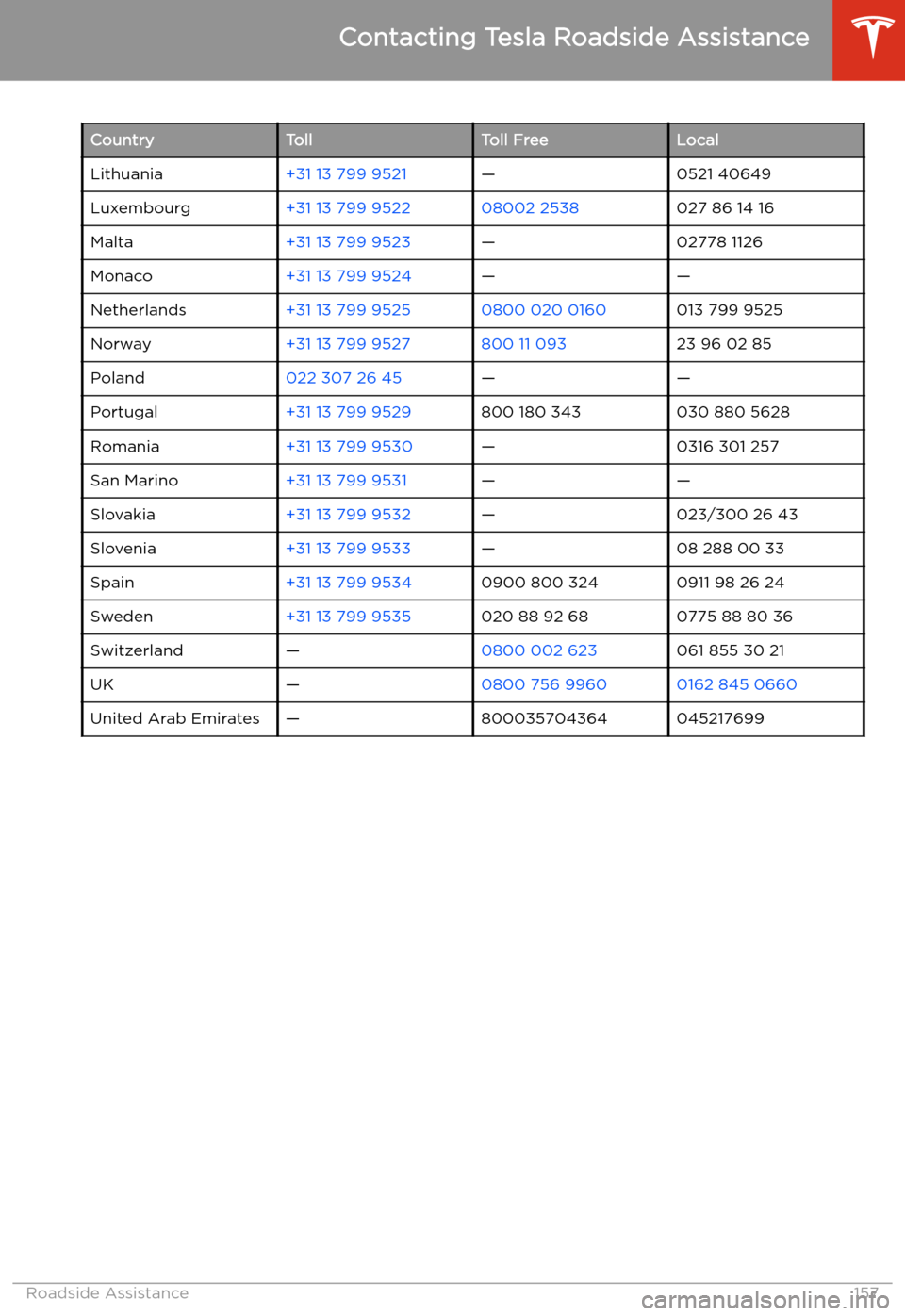

CountryTollToll FreeLocalLithuania+31 13 799 9521
Page 159 of 179

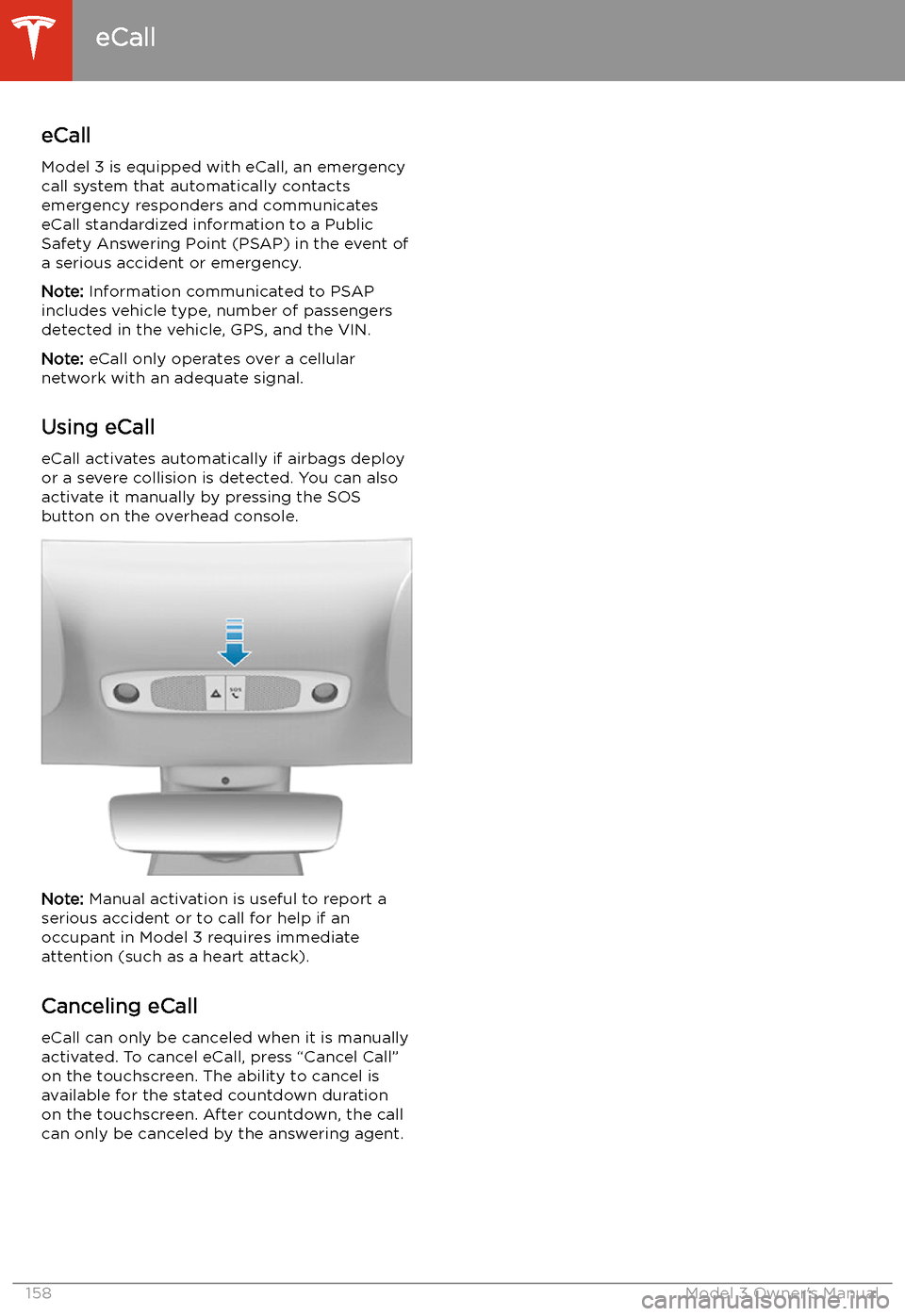

eCall
eCall
Model 3 is equipped with eCall, an emergency
call system that automatically contacts
emergency responders and communicates eCall standardized information to a PublicSafety Answering Point (PSAP) in the event of
a serious accident or emergency.
Note: Information communicated to PSAP
includes vehicle type, number of passengers
detected in the vehicle, GPS, and the VIN.
Note: eCall only operates over a cellular
network with an adequate signal.
Using eCall
eCall activates automatically if airbags deploy or a severe collision is detected. You can also
activate it manually by pressing the SOS
button on the overhead console.
Note: Manual activation is useful to report a
serious accident or to call for help if an
occupant in Model 3 requires immediate
attention (such as a heart attack).
Canceling eCall
eCall can only be canceled when it is manually
activated. To cancel eCall, press
Page 160 of 179
Instructions for Transporters
When Transporting Model 3
Always transport Model 3 with all four tires off
the ground. A
