2157-2. Panoramic view monitor
7
Peripheral monitoring system
AVALON_AVALON HV_Navi_(U)and the buzzer sounds.
Intuitive parking assist
When a sensor detects an obstacle, the direction of and the app
roximate
distance to the obsta cle are displayed and the buzzer sounds.
Rear view
Displays the rear view of the vehicle.
Display mode switching button
Each time the display mode swit ching button is selected, the mode will
change as follows:
• From the rear view & panoramic v iew mode to the wide rear view mode
• From the wide rear view mode to the rear view mode
• From the rear view mode to the rear view & panoramic view mode
Rear camera detection buzzer mute switch
Select to mute the rear camera detection buzzer. The buzzer wil l be
re-enabled when the shift lever i s shifted to a position other than “R”.
Rear camera detection function off indicator
Displayed or flashes when the rear camera detection function is disabled,
such as when it is malfunctioning.
Guide line switching button
Select to switch the guide line mode. ( P.217)
Rear Camera Detection
Displayed automatically wh en a pedestrian is detected.
Rear Cross Traffic Alert
When a sensor detects an obstacle, the direction of obstacle is displayed
and the buzzer sounds.
Intuitive parking assist
When a sensor detects an obstacle, the direction of and the app roximate
distance to the obsta cle are displayed and the buzzer sounds.
G
A
B
C
D
E
F
G

2167-2. Panoramic view monitor
AVALON_AVALON HV_Navi_(U)
●The monitor is cancelled when the shift lever is shifted into any position
other than the “R” position.
●For details about the Rear Cross Traffic Alert function, rear camera detec-
tion function and intuitive park ing assist, refer to the “OWNER ’S MAN-
UAL”.
WA R N I N G
●When a sensor indicator on the intuitive parking assist display illumi-
nates in red or a buzzer sounds continuously, be sure to check the area
around the vehicle immediately a nd do not proceed any further until
safety has been ensured, otherwise an unexpected accident may o ccur.
●As the intuitive parking assist display and Rear Cross Traffic Alert dis-
play are displayed over the came ra view, it may be difficult to see the
intuitive parking assist display and Rear Cross Traffic Alert display
depending on the color and brigh tness of the surrounding area.

2177-2. Panoramic view monitor
7
Peripheral monitoring system
AVALON_AVALON HV_Navi_(U)
Each time the guide line switching button is selected, the mode will
change as follows:
Estimated course line
Estimated course lines are displ ayed which move in accordance w ith
the operation of the steering wheel.
Distance guide lines
Shows distance in front of the vehicle.
• Display points approximately 3 ft. (1 m) from the edge of the bumper.
Estimated course lines
Shows an estimated course when the steering wheel is turned.
Distance guide lines
Shows the distance behind the vehicle when the steering wheel i s turned.
• The guide lines move in conjunc tion with the estimated course lines.
• The guide lines display points approximately 1.5 ft. (0.5 m) (red) and
approximately 3 ft. (1 m) (yello w) from the center of the edge of the
bumper.
Distance guide line
Shows the distance behind the vehicle.
• Displays a point approximately 1.5 ft. (0.5 m) (blue) from the edge of the
bumper.
Vehicle width guide lines
Displays a guide path w hen the vehicle is being backed straight up.
Vehicle center guide line
Indicates the estimated vehicle center on the ground.
Guide lines displayed on the screen
A
B
C
D
E
F

2187-2. Panoramic view monitor
AVALON_AVALON HV_Navi_(U)
Parking assist guide line
The steering wheel return points (parking assist guide lines) are dis-
played.
This mode is recommended for those who are comfortable with par k-
ing the vehicle without the aid of the estimated course lines.
Distance guide lines
Shows distance in front of the vehicle.
• Display points approximately 3 ft. (1 m) from the edge of the bumper.
Distance guide line
Shows the distance behind the vehicle.
• Displays a point approximately 1.5 ft. (0.5 m) (red) from the edge of the
bumper.
Vehicle center guide line
Indicates the estimated ve hicle center on the ground.
Vehicle width guide lines
Displays a guide path when the vehicle is being backed straight up.
Parking assist guide lines
Shows the path of the smallest turn possible behind the vehicle .
A
B
C
D
E

2197-2. Panoramic view monitor
7
Peripheral monitoring system
AVALON_AVALON HV_Navi_(U)
Distance guide line
Only distance guide line is displayed.
This mode is recommended for those who are comfortable with par k-
ing the vehicle without the aid of the guide lines.
Distance guide lines
Shows distance in front of the vehicle.
• Display points approximately 3 ft. (1 m) from the edge of the bumper.
Distance guide line
Shows the distance behind the vehicle.
• Displays a point approximately 1.5 ft. (0.5 m) (red) from the edge of the
bumper.
WA R N I N G
●Depending on the circumstances of the vehicle (number of passen gers,
amount of luggage, etc.), the position of the guide lines displ ayed on the
screen may change. Be sure to check visually around the vehicle before
proceeding.
●If the steering wheel is straight and the vehicle width guide l ines and the
estimated course lines are not in alignment, have the vehicle i nspected
by your Toyota dealer.
●Do not use the system if the display is incorrect due to an une ven (hilly)
road or a non-straight (curvy) road.
A
B

2227-2. Panoramic view monitor
AVALON_AVALON HV_Navi_(U)
1Turn the intuitive parking assist on.
2 Touch the area on the panoramic view display you wish to mag-
nify.
 Touching one of the 4 areas within the dotted lines will magnif y
that area. (Dotted lines are not displayed on the actual displa y. )
 To return to the normal view, touch the panoramic view display
again.
●The magnifying function is enabled when all of the following co nditions are
met:
• The wide front view & panoramic view or the rear view & panoramic view
is displayed.
• The vehicle speed is below approximately 7 mph (12 km/h).
• The intuitive parking assist is available.
●In the following situations, the magnified display will be canc eled automat-
ically:
• The vehicle speed is approximat ely 7 mph (12 km/h) or higher.
• The intuitive parking assist is unavailable.
●When the display is magnified, the guide lines will not be disp layed.

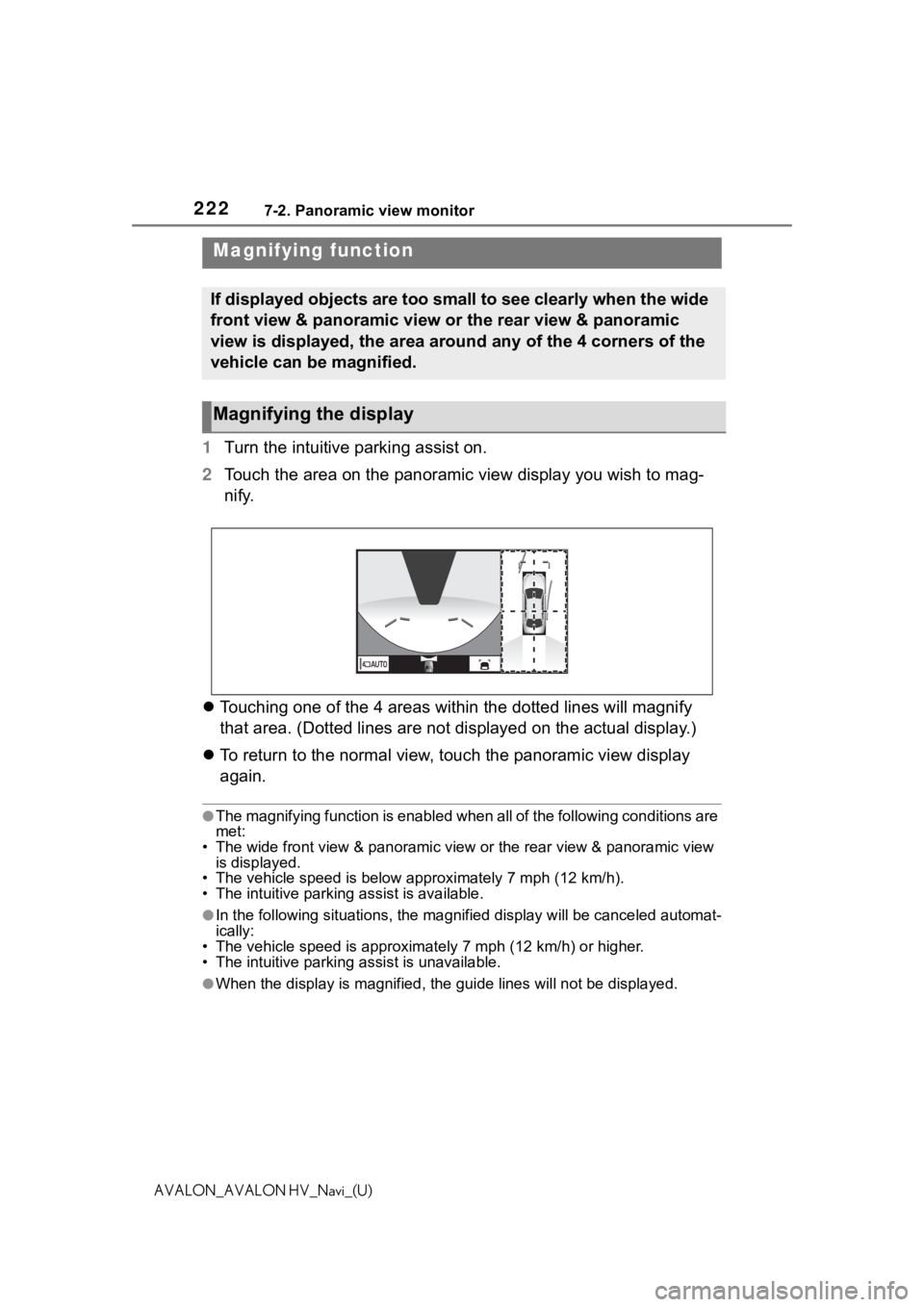

Magnifying function
If displayed objects are too small to see clearly when the wide
front view & panoramic view or the rear view & panoramic
view is displayed, the area around any of the 4 corners of the
vehicle can be magnified.
Magnifying the display

2237-2. Panoramic view monitor
7
Peripheral monitoring system
AVALON_AVALON HV_Navi_(U)
1Display the moving view/see-through view screen. ( P.205)
2 Select .
3 Select the desired color.
Displays the next page

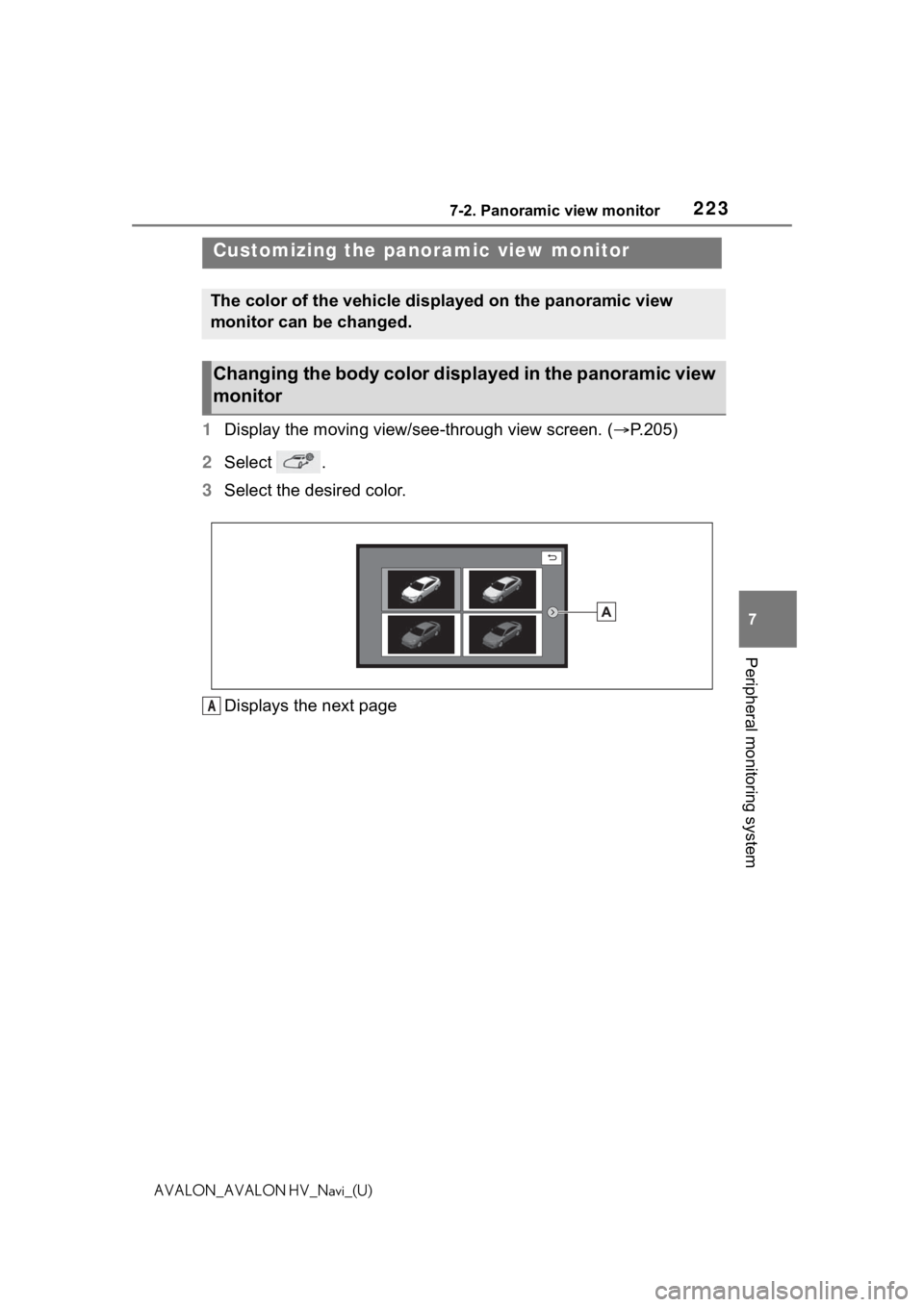

Customizing the panor amic view monitor
The color of the vehicle displayed on the panoramic view
monitor can be changed.
Changing the body color displayed in the panoramic view
monitor
A

2247-2. Panoramic view monitor
AVALON_AVALON HV_Navi_(U)
The panoramic view monitor disp lays an image of the surrounding
view of the vehicle.
Since the panoramic view processes and displays images based on
flat road surfaces, it cannot depict the position of three-dime nsion
objects (such as vehicle bumpers , etc.) that are in positions higher
than the surface of the road. Even if there is room between the bum-
pers of the vehicles and it seems not likely to collide in the image, in
reality, the both vehicles are on a collision course.
Check the safety of the surroundings directly.
Objects located in the shaded areas will not be displayed on th e
screen.
Parts of objects which exten d above a certain height cannot be
displayed on the screen.
●As the images obtained from four cameras are processed and displayed

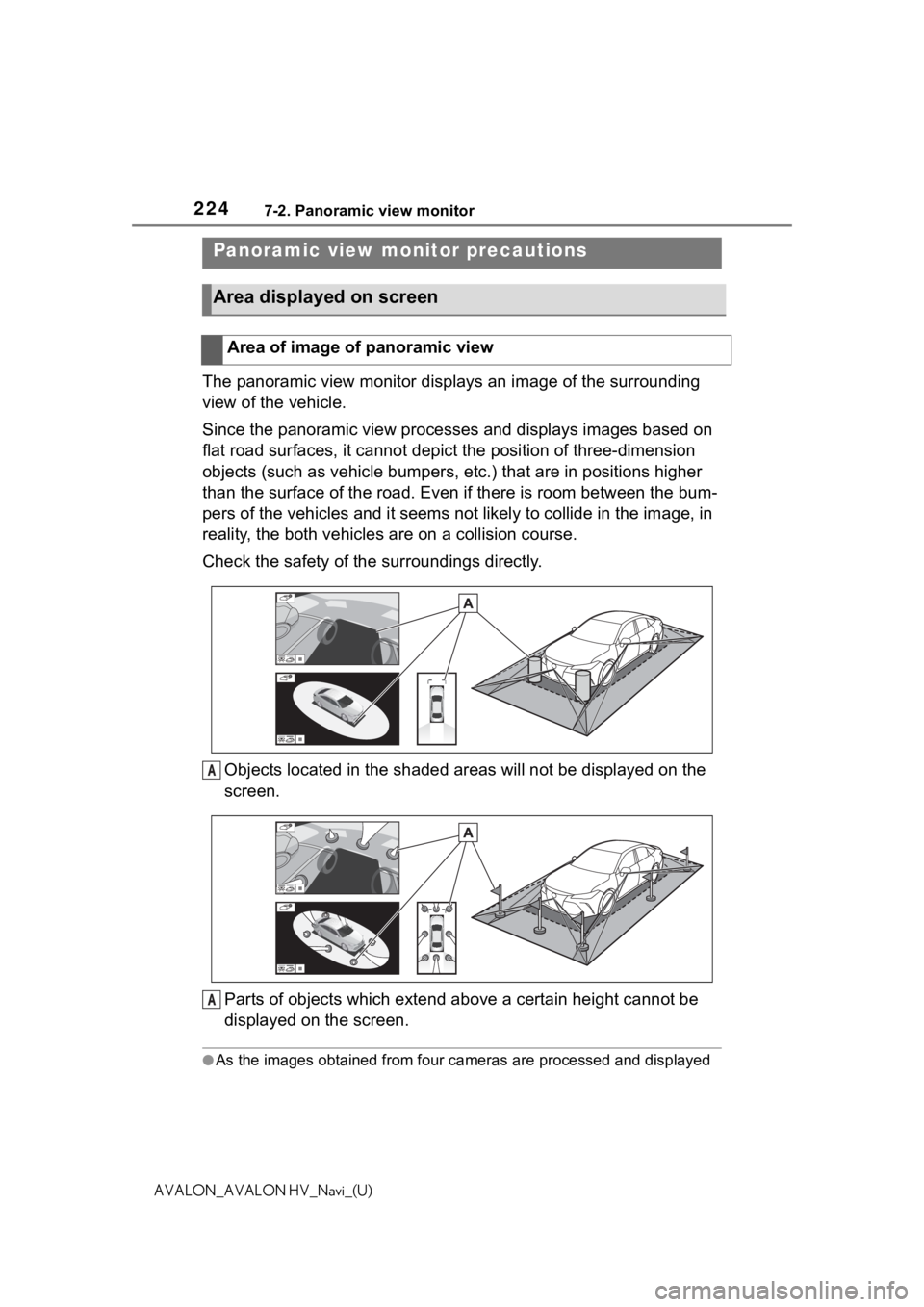

Panoramic view mo nitor precautions
Area displayed on screen
Area of image of panoramic view
A
A

2257-2. Panoramic view monitor
7
Peripheral monitoring system
AVALON_AVALON HV_Navi_(U)on the standard of a flat road s
urface; the panoramic view/moving
view/see-through view may be displayed as follows.
• Objects may look collapsed; t hinner or bigger than usual.
• An object with a higher positi on than the road surface may look farther
away than it actually is or may not appear at all.
• Tall objects may appear protrudi ng from the non-displayed areas of the
image.
●Variations in the brightness of the image may appear for every camera.
●The displayed image may be shift ed by inclination of the vehicle body,
change in vehicle height, etc., d epending on the number of pass engers,
amount of luggage, fuel quantity, etc.
●If the front doors or trunk are not completely closed; neither the image nor
the guide lines are displayed.
●The position relations of the ve hicle icon and the road surface or obstacle
may differ from the actual positions.
●The black areas of the vicinity of the vehicle icon are areas t hat are not
captured by the camera.

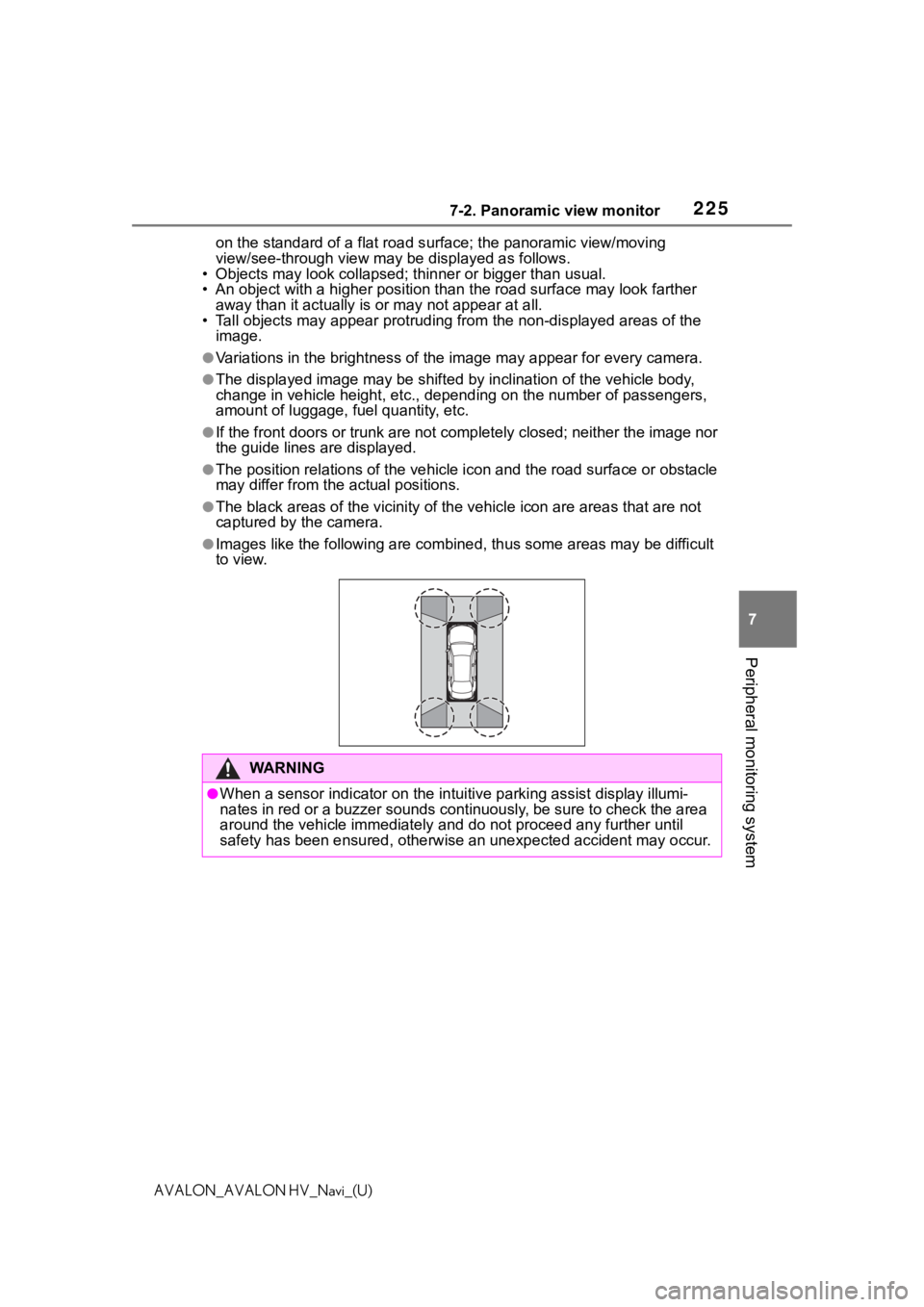

●Images like the following are combined, thus some areas may be difficult
to view.
WA R N I N G
●When a sensor indicator on the intuitive parking assist display illumi-
nates in red or a buzzer sounds continuously, be sure to check the area
around the vehicle immediately a nd do not proceed any further until
safety has been ensured, otherwise an unexpected accident may o ccur.

2267-2. Panoramic view monitor
AVALON_AVALON HV_Navi_(U)

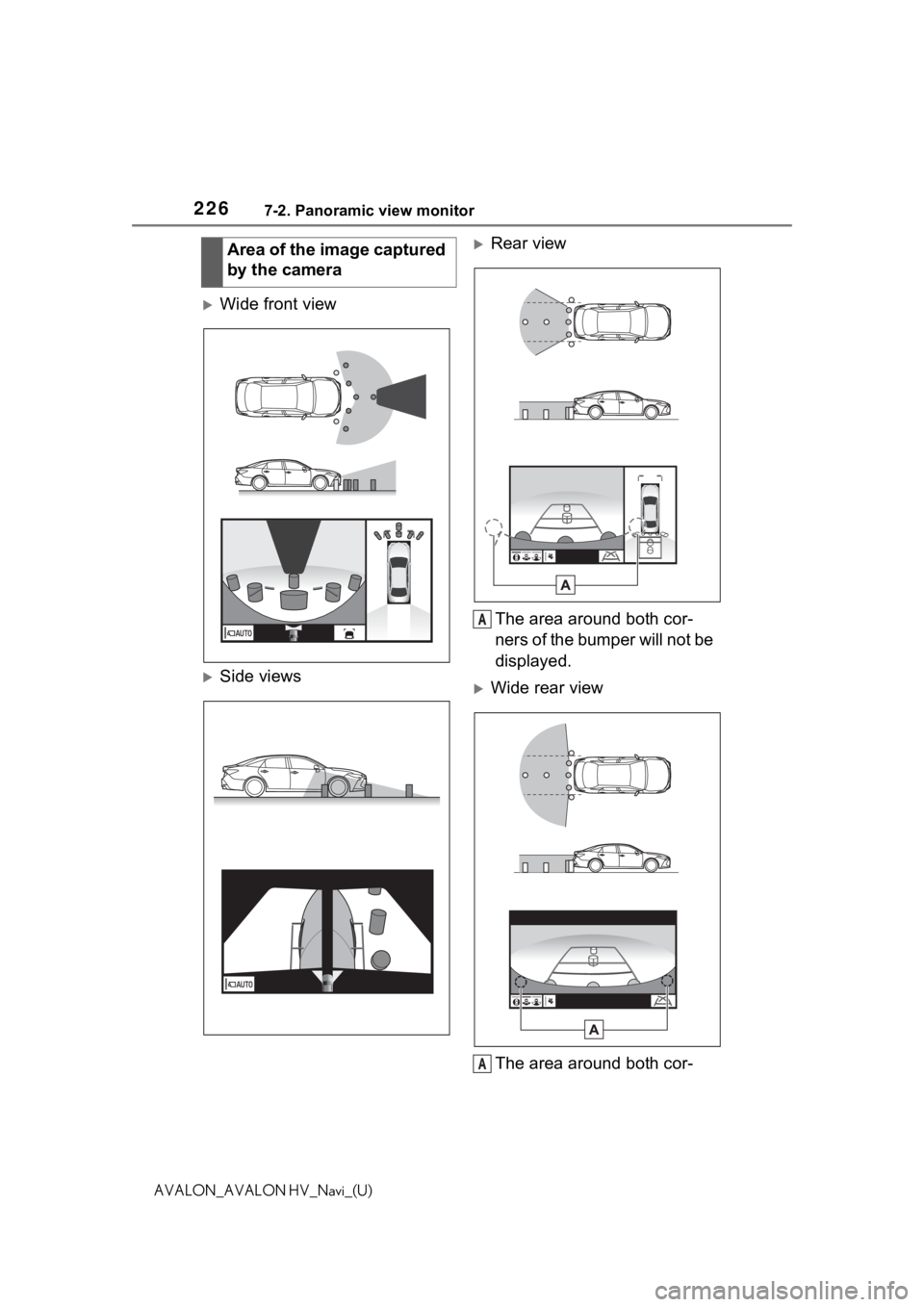

Wide front view
Side views
Rear view
The area around both cor-
ners of the bumper will not be
displayed.
Wide rear viewThe area around both cor-
Area of the image captured
by the camera
