TOYOTA AVENSIS 2002 Repair Manual

B67246
RHD Models
Defogger Wire
Liftback
Wagon

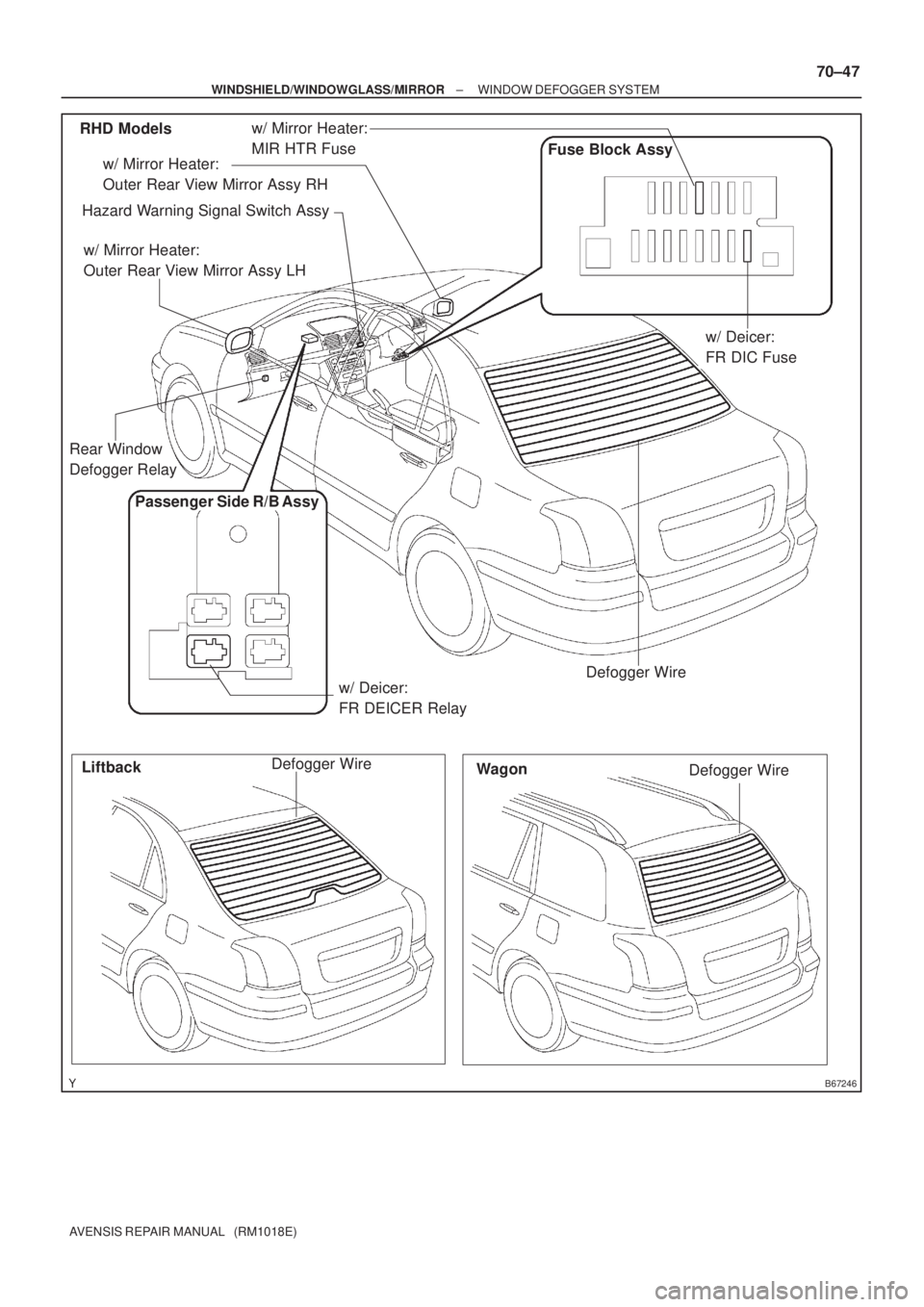

Defogger Wire Defogger Wire
Hazard Warning Signal Switch Assy
Passenger Side R/B Assy
w/ Deicer:
FR DEICER Relay
Fuse Block Assy
w/ Deicer:
FR DIC Fuse w/ Mirror Heater:
Outer Rear View Mirror Assy RH
w/ Mirror Heater:
Outer Rear View Mirror Assy LH
w/ Mirror Heater:
MIR HTR Fuse
Rear Window
Defogger Relay
± WINDSHIELD/WINDOWGLASS/MIRRORWINDOW DEFOGGER SYSTEM
70±47
AVENSIS REPAIR MANUAL (RM1018E)

B67063
w/ Deicer:
Deicer Wire

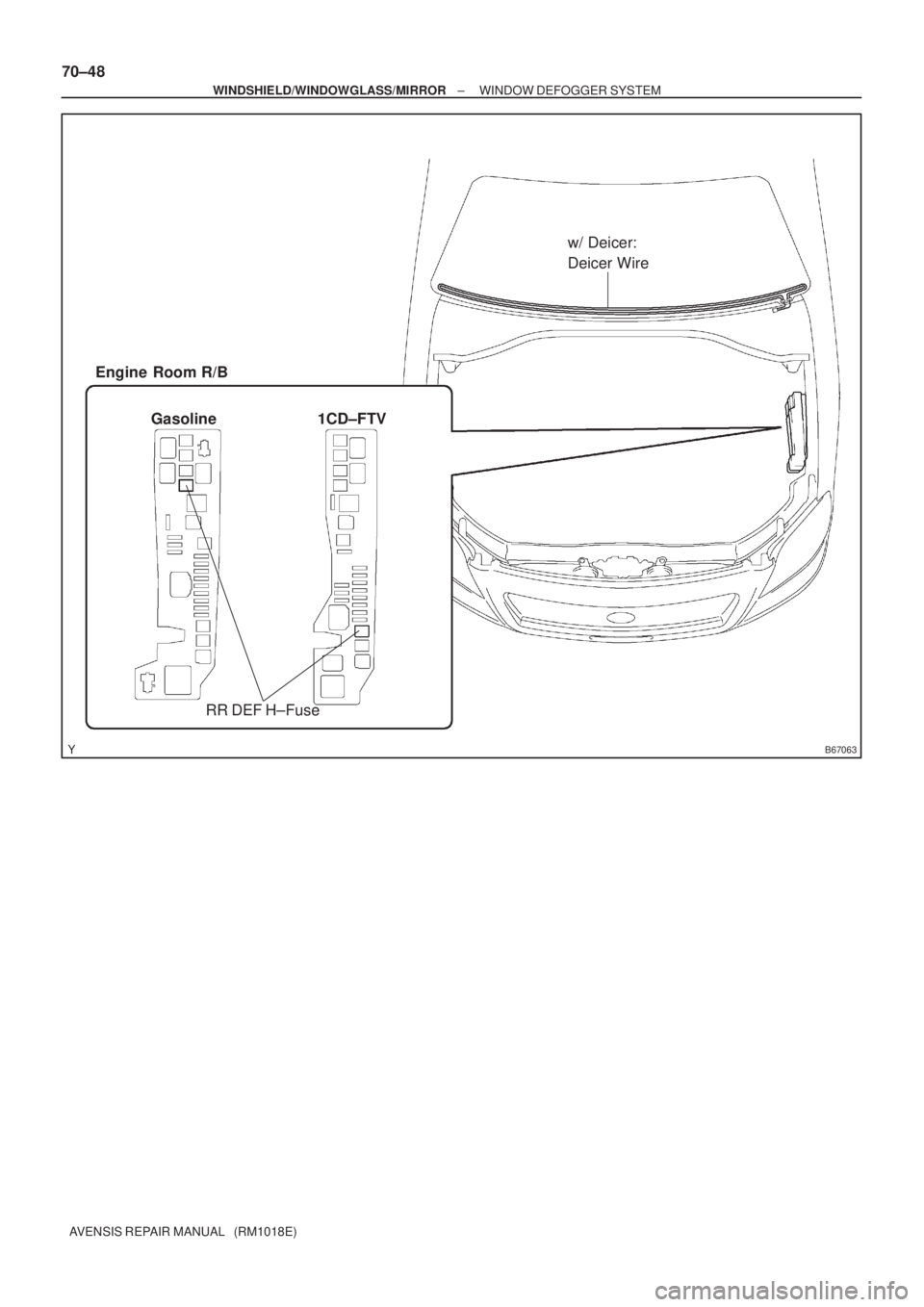

RR DEF H±Fuse Engine Room R/B
Gasoline 1CD±FTV
70±48
± WINDSHIELD/WINDOWGLASS/MIRRORWINDOW DEFOGGER SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

700TC±01
±
WINDSHIELD/WINDOWGLASS/MIRROR WINDOW DEFOGGER SYSTEM
70±49
AVENSIS REPAIR MANUAL (RM1018E)

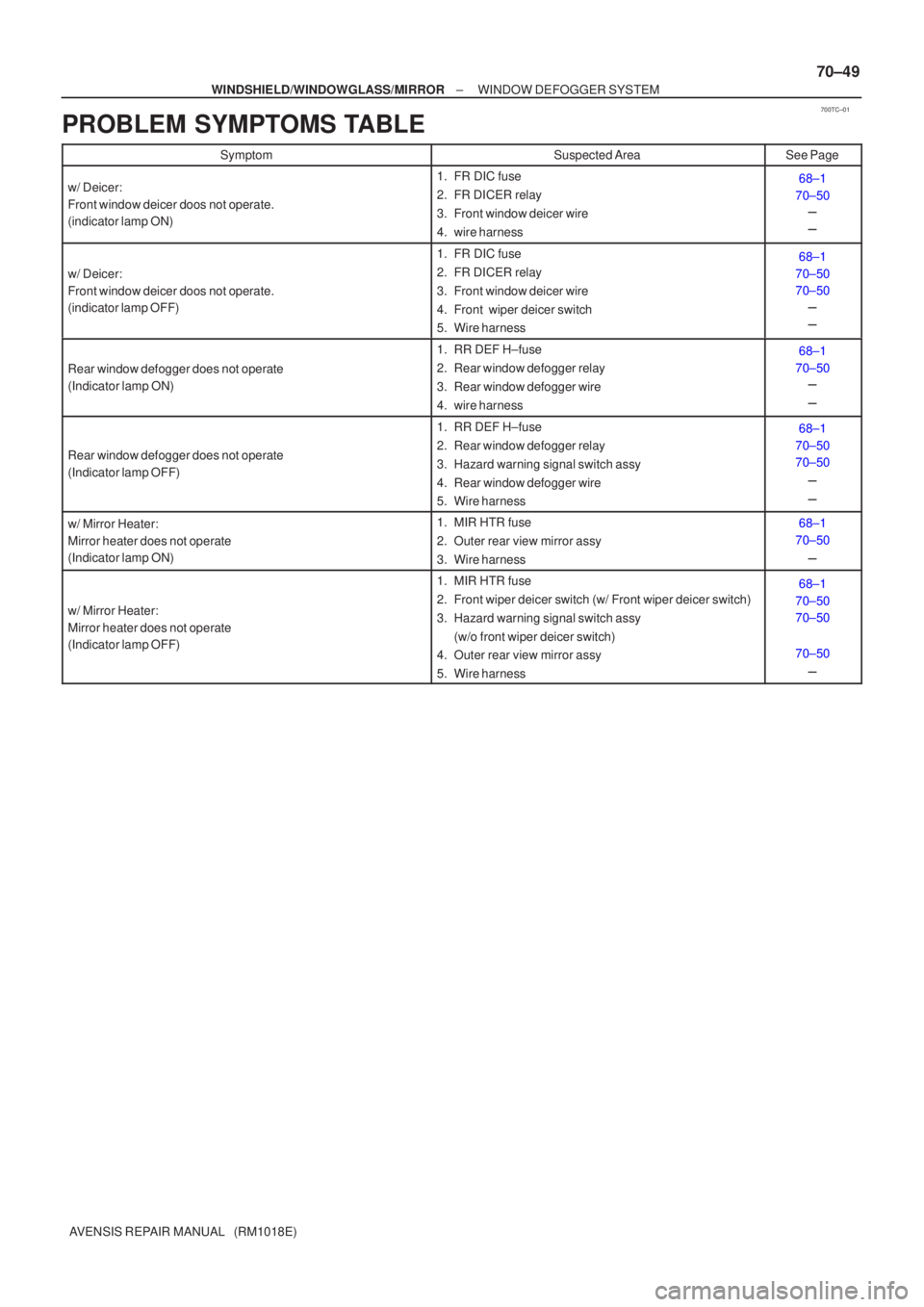

PROBLEM SYMPTOMS TABLE
SymptomSuspected AreaSee Page
w/ Deicer:
Front window deicer doos not operate.
(indicator lamp ON)1. FR DIC fuse
2. FR DICER relay
3. Front window deicer wire
4. wire harness68±1
70±50



w/ Deicer:
Front window deicer doos not operate.
(indicator lamp OFF)
1. FR DIC fuse
2. FR DICER relay
3. Front window deicer wire
4. Front wiper deicer switch
5. Wire harness68±1
70±50
70±50



Rear window defogger does not operate
(Indicator lamp ON)
1. RR DEF H±fuse
2. Rear window defogger relay
3. Rear window defogger wire
4. wire harness68±1
70±50



Rear window defogger does not operate
(Indicator lamp OFF)
1. RR DEF H±fuse
2. Rear window defogger relay
3. Hazard warning signal switch assy
4. Rear window defogger wire
5. Wire harness68±1
70±50
70±50




w/ Mirror Heater:
Mirror heater does not operate
(Indicator lamp ON)1. MIR HTR fuse
2. Outer rear view mirror assy
3. Wire harness68±1
70±50


w/ Mirror Heater:
Mirror heater does not operate
(Indicator lamp OFF)
1. MIR HTR fuse
2. Front wiper deicer switch (w/ Front wiper deicer switch)
3. Hazard warning signal switch assy (w/o front wiper deicer switch)
4. Outer rear view mirror assy
5. Wire harness68±1
70±50
70±50
70±50

700TD±01
B67055
1 2 3 4 5 6 7 8
E
ILL+
B67056
1.4 W
Test Bulb Switch ON
5 (IG)
8 (E) 3 (DEF)
B69288
1 2 3 4 5 6 7 8
E ILL+
70±50
± WINDSHIELD/WINDOWGLASS/MIRRORWINDOW DEFOGGER SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

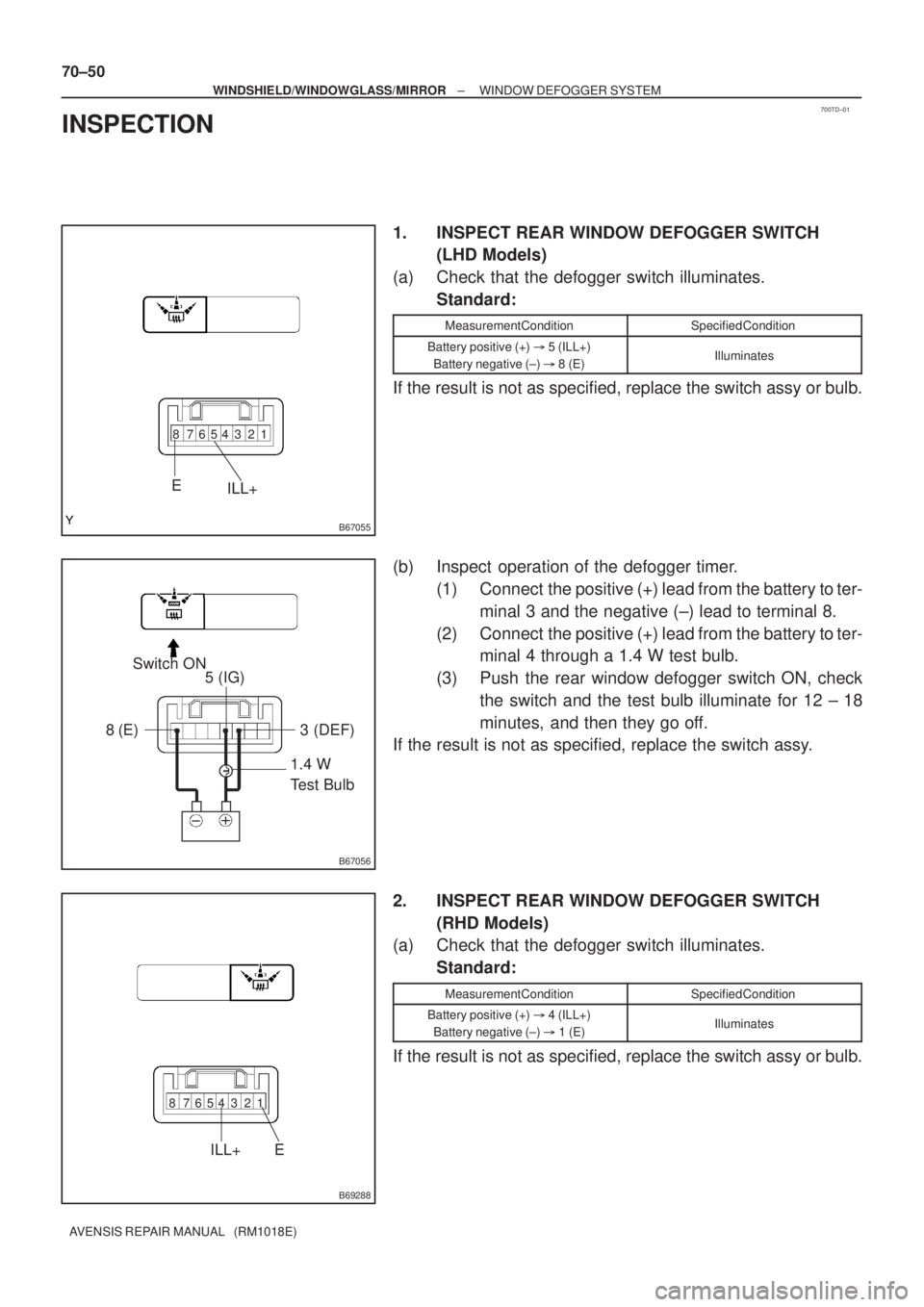

INSPECTION
1. INSPECT REAR WINDOW DEFOGGER SWITCH
(LHD Models)
(a) Check that the defogger switch illuminates.
Standard:
Measurement ConditionSpecified Condition
Battery positive (+)  5 (ILL+)
Battery negative (±) 8 (E)Illuminates
If the result is not as specified, replace the switch assy or bulb.
(b) Inspect operation of the defogger timer.
(1) Connect the positive (+) lead from the battery to ter-
minal 3 and the negative (±) lead to terminal 8.
(2) Connect the positive (+) lead from the battery to ter-
minal 4 through a 1.4 W test bulb.
(3) Push the rear window defogger switch ON, check
the switch and the test bulb illuminate for 12 ± 18
minutes, and then they go off.
If the result is not as specified, replace the switch assy.
2. INSPECT REAR WINDOW DEFOGGER SWITCH
(RHD Models)
(a) Check that the defogger switch illuminates.
Standard:
Measurement ConditionSpecified Condition
Battery positive (+)  4 (ILL+)
Battery negative (±)  1 (E)Illuminates
If the result is not as specified, replace the switch assy or bulb.

B69289
1.4 W
Test Bulb Switch ON
5 (IG)
6 (DEF)
1 (E)
B67057
B67058
1.4 W Test Bulb
Switch ON1 (IG)
6 (D)
3 (E)
± WINDSHIELD/WINDOWGLASS/MIRRORWINDOW DEFOGGER SYSTEM
70±51
AVENSIS REPAIR MANUAL (RM1018E)

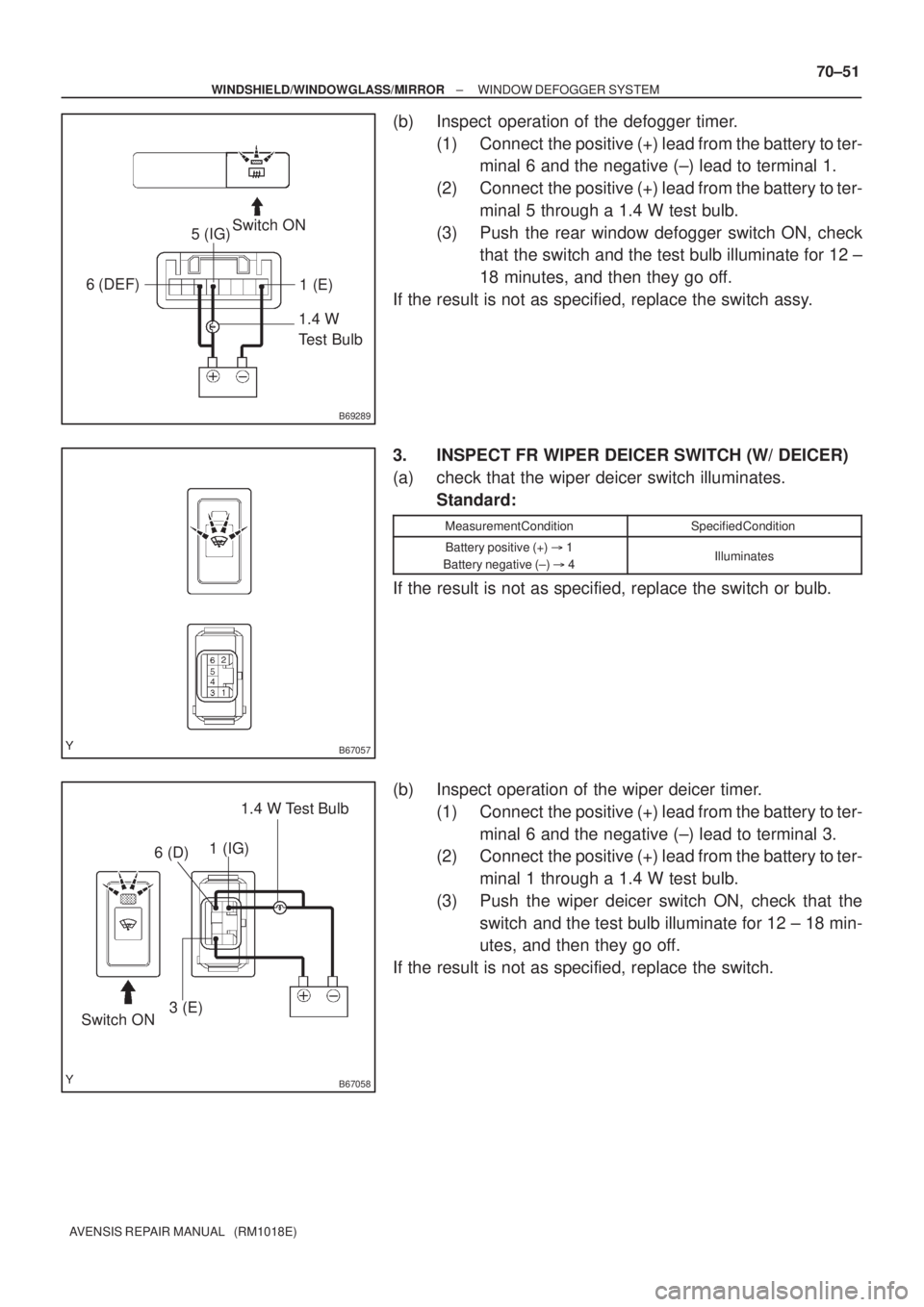

(b) Inspect operation of the defogger timer.
(1) Connect the positive (+) lead from the battery to ter-
minal 6 and the negative (±) lead to terminal 1.
(2) Connect the positive (+) lead from the battery to ter-
minal 5 through a 1.4 W test bulb.
(3) Push the rear window defogger switch ON, check
that the switch and the test bulb illuminate for 12 ±
18 minutes, and then they go off.
If the result is not as specified, replace the switch assy.
3. INSPECT FR WIPER DEICER SWITCH (W/ DEICER)
(a) check that the wiper deicer switch illuminates.
Standard:
Measurement ConditionSpecified Condition
Battery positive (+)
1
Battery negative (±)
4Illuminates
If the result is not as specified, replace the switch or bulb.
(b) Inspect operation of the wiper deicer timer.
(1) Connect the positive (+) lead from the battery to ter-
minal 6 and the negative (±) lead to terminal 3.
(2) Connect the positive (+) lead from the battery to ter-
minal 1 through a 1.4 W test bulb.
(3) Push the wiper deicer switch ON, check that the
switch and the test bulb illuminate for 12 ± 18 min-
utes, and then they go off.
If the result is not as specified, replace the switch.

B68230
1 2 3
4 5 6
7
4 (H+)
5 (H±)
B68231
1 2 3
4 5 6
7
4 (H+)
5 (H±)
B70597
70±52
± WINDSHIELD/WINDOWGLASS/MIRRORWINDOW DEFOGGER SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

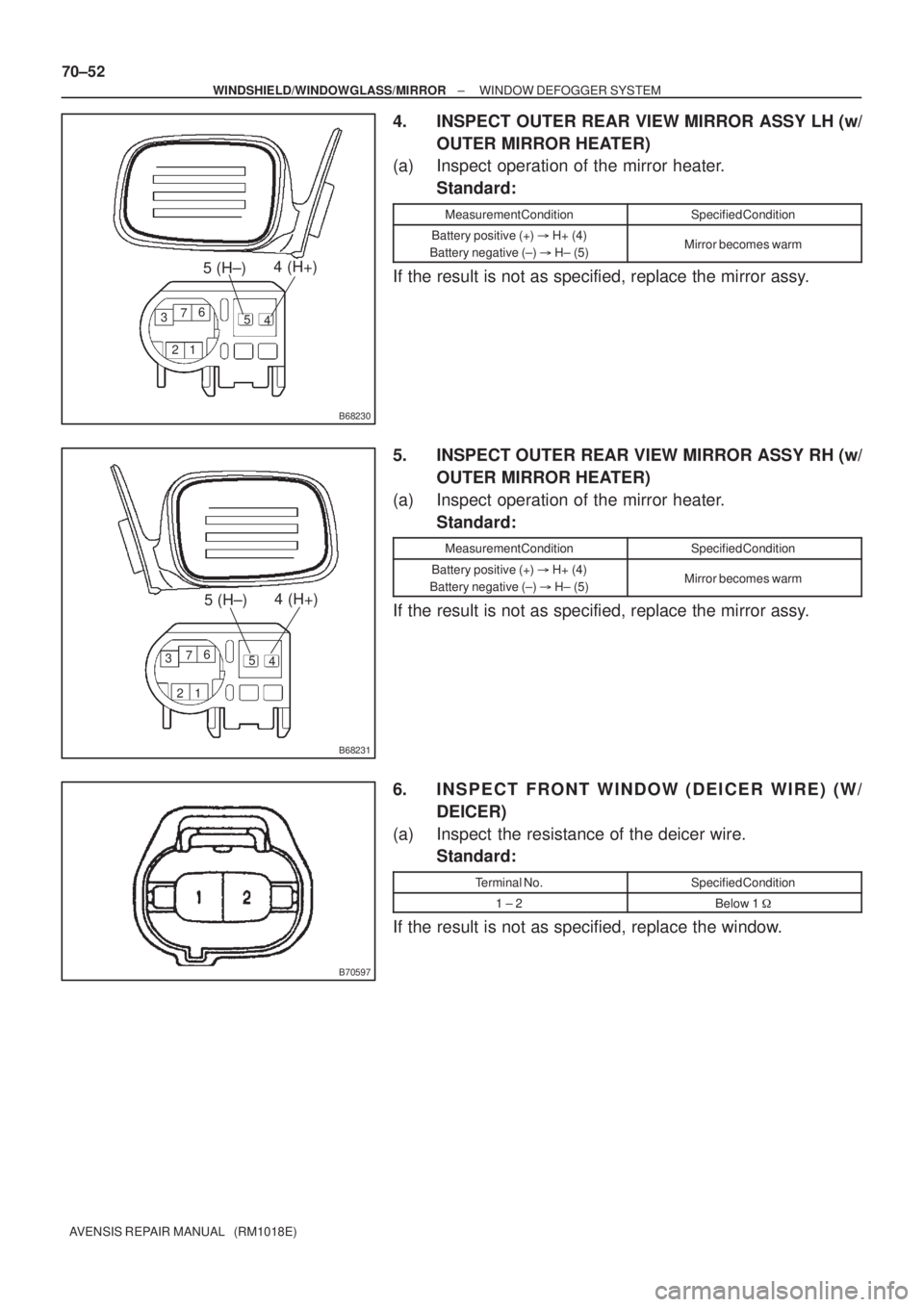

4. INSPECT OUTER REAR VIEW MIRROR ASSY LH (w/
OUTER MIRROR HEATER)
(a) Inspect operation of the mirror heater.
Standard:
Measurement ConditionSpecified Condition
Battery positive (+)
H+ (4)
Battery negative (±)
H± (5)Mirror becomes warm
If the result is not as specified, replace the mirror assy.
5. INSPECT OUTER REAR VIEW MIRROR ASSY RH (w/
OUTER MIRROR HEATER)
(a) Inspect operation of the mirror heater.
Standard:
Measurement ConditionSpecified Condition
Battery positive (+)
H+ (4)
Battery negative (±)
H± (5)Mirror becomes warm
If the result is not as specified, replace the mirror assy.
6. INSPECT FRONT WINDOW (DEICER WIRE) (W/
DEICER)
(a) Inspect the resistance of the deicer wire.
Standard:
Terminal No.Specified Condition
1 ± 2Below 1

If the result is not as specified, replace the window.

B66134
Tester Probe
Tin FoilDefogger Wire
B63720
At Center
V
B63721
0 V
Broken
WireLess than
10V
Battery
Side Ground SideFoil Strip



± WINDSHIELD/WINDOWGLASS/MIRRORWINDOW DEFOGGER SYSTEM
70±53
AVENSIS REPAIR MANUAL (RM1018E)

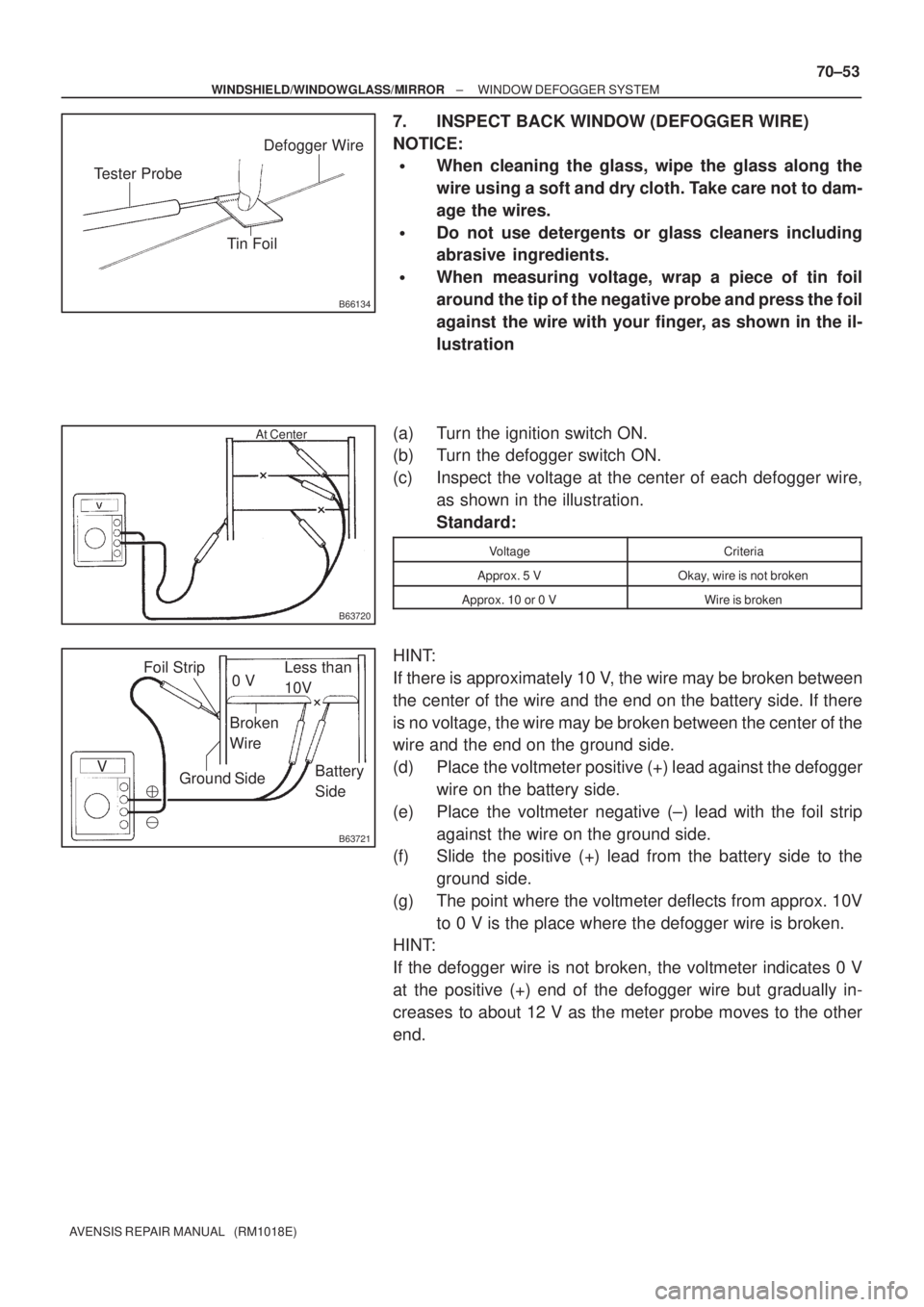

7. INSPECT BACK WINDOW (DEFOGGER WIRE)
NOTICE:

When cleaning the glass, wipe the glass along the
wire using a soft and dry cloth. Take care not to dam-
age the wires.

Do not use detergents or glass cleaners including
abrasive ingredients.

When measuring voltage, wrap a piece of tin foil
around the tip of the negative probe and press the foil
against the wire with your finger, as shown in the il-
lustration
(a) Turn the ignition switch ON.
(b) Turn the defogger switch ON.
(c) Inspect the voltage at the center of each defogger wire,
as shown in the illustration.
Standard:
VoltageCriteria
Approx. 5 VOkay, wire is not broken
Approx. 10 or 0 VWire is broken
HINT:
If there is approximately 10 V, the wire may be broken between
the center of the wire and the end on the battery side. If there
is no voltage, the wire may be broken between the center of the
wire and the end on the ground side.
(d) Place the voltmeter positive (+) lead against the defogger
wire on the battery side.
(e) Place the voltmeter negative (±) lead with the foil strip
against the wire on the ground side.
(f) Slide the positive (+) lead from the battery side to the
ground side.
(g) The point where the voltmeter deflects from approx. 10V
to 0 V is the place where the defogger wire is broken.
HINT:
If the defogger wire is not broken, the voltmeter indicates 0 V
at the positive (+) end of the defogger wire but gradually in-
creases to about 12 V as the meter probe moves to the other
end.

B63722
Repair Point
Broken
Wire
Masking Tape
B63723
B68374
1 2
35
B68374
1 2
35
70±54
± WINDSHIELD/WINDOWGLASS/MIRRORWINDOW DEFOGGER SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

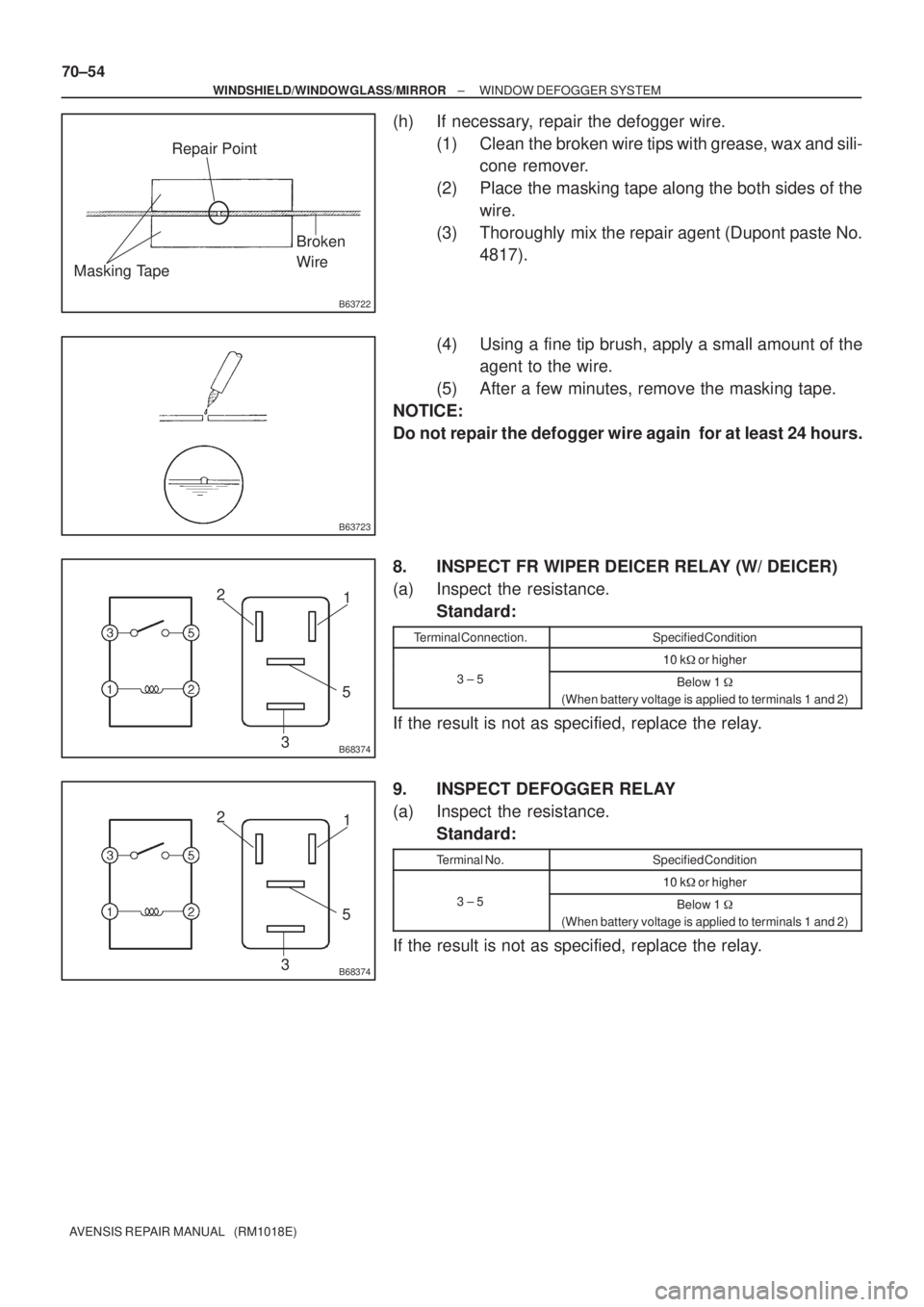

(h) If necessary, repair the defogger wire.
(1) Clean the broken wire tips with grease, wax and sili-
cone remover.
(2) Place the masking tape along the both sides of the
wire.
(3) Thoroughly mix the repair agent (Dupont paste No.
4817).
(4) Using a fine tip brush, apply a small amount of the
agent to the wire.
(5) After a few minutes, remove the masking tape.
NOTICE:
Do not repair the defogger wire again for at least 24 hours.
8. INSPECT FR WIPER DEICER RELAY (W/ DEICER)
(a) Inspect the resistance.
Standard:
Terminal Connection.Specified Condition
10 k
or higher10 k
or higher
3 ± 5Below 1

(When battery voltage is applied to terminals 1 and 2)
If the result is not as specified, replace the relay.
9. INSPECT DEFOGGER RELAY
(a) Inspect the resistance.
Standard:
Terminal No.Specified Condition
10 k
or higher10 k
or higher
3 ± 5Below 1

(When battery voltage is applied to terminals 1 and 2)
If the result is not as specified, replace the relay.

700T1±01
B67031
Assist Grip
RH Visor Assy
LH Visor Assy
Map Lamp AssyRoof Headlining
Rain Sensor
Cover
Rain Sensor Cover Front Pillar Garnish RH
Front Door
Weatherstrip
RHWindshield Moulding
Outer Upper Visor Holder
Visor Holder
Inner Rear View Mirror Assy

Windshield Glass Stopper No. 1
Front Door Weatherstrip LHFront Pillar Garnish LH
Windshield Wiper Arm Cover
FR Wiper Arm LH
Cowl Top Ventilator
Louver RHWindshield Glass
FR Wiper Arm RH
Windshield Glass Stopper No. 2
Hood Cowl Top Seal
Cowl Top Ventilator Louver LHRain Sensor
w/ EC Mirror
Inner Rear Vice Mirror
Assy
: Specified torqueN
m (kgf
cm, ft
lbf)

Non±reusable part
20 (204, 15)
20 (204, 15)

Window Glass Adhesive Dam
Windshield Wiper
Arm Cover
70±14
± WINDSHIELD/WINDOWGLASS/MIRRORWINDSHIELD GLASS
AVENSIS REPAIR MANUAL (RM1018E)
WINDSHIELD GLASS
COMPONENTS

700T2±01
B50448
CutCut
Moulding
WindshieldBody
B67281
±
WINDSHIELD/WINDOWGLASS/MIRROR WINDSHIELD GLASS
70±15
AVENSIS REPAIR MANUAL (RM1018E)

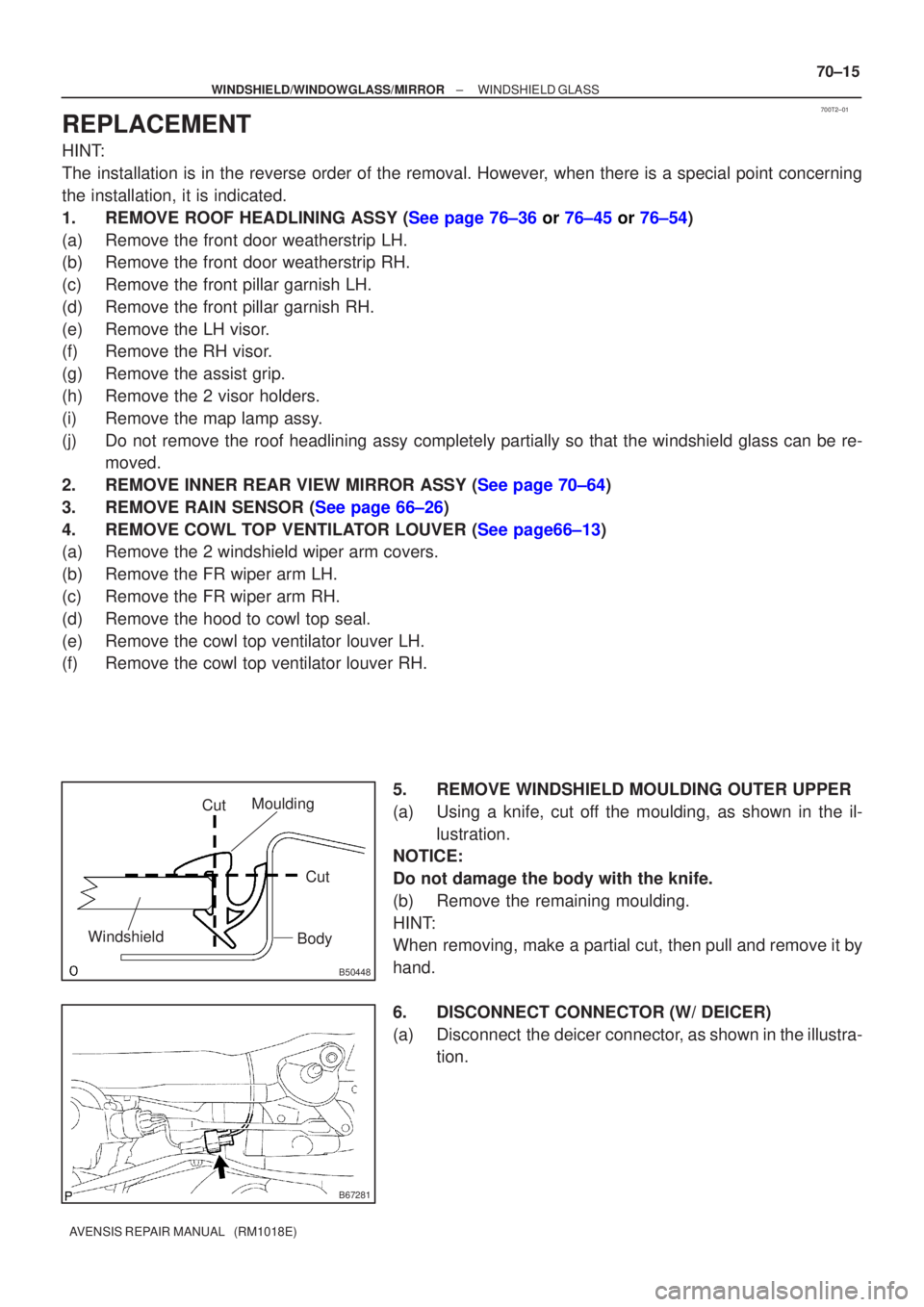

REPLACEMENT
HINT:
The installation is in the reverse order of the removal. However, when there is a special point concerning
the installation, it is indicated.
1. REMOVE ROOF HEADLINING ASSY ( See page 76±36 or 76±45 or 76±54 )
(a) Remove the front door weatherstrip LH.
(b) Remove the front door weatherstrip RH.
(c) Remove the front pillar garnish LH.
(d) Remove the front pillar garnish RH.
(e) Remove the LH visor.
(f) Remove the RH visor.
(g) Remove the assist grip.
(h) Remove the 2 visor holders.
(i) Remove the map lamp assy.
(j) Do not remove the roof headlining assy completely partially so that the \
windshield glass can be re- moved.
2 . REMOVE INNER REAR VIEW MIRROR ASSY ( See page 70±64)
3 . REMOVE RAIN SENSOR ( See page 66±26)
4 . REMOVE COWL T OP VENTIL ATOR LOUVER ( See page66±13 )
(a) Remove the 2 windshield wiper arm covers.
(b) Remove the FR wiper arm LH.
(c) Remove the FR wiper arm RH.
(d) Remove the hood to cowl top seal.
(e) Remove the cowl top ventilator louver LH.
(f) Remove the cowl top ventilator louver RH.
5. REMOVE WINDSHIELD MOULDING OUTER UPPER
(a) Using a knife, cut off the moulding, as shown in the il-lustration.
NOTICE:
Do not damage the body with the knife.
(b) Remove the remaining moulding.
HINT:
When removing, make a partial cut, then pull and remove it by
hand.
6. DISCONNECT CONNECTOR (W/ DEICER)
(a) Disconnect the deicer connector, as shown in the illustra- tion.
