911-3. Theft deterrent system
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security

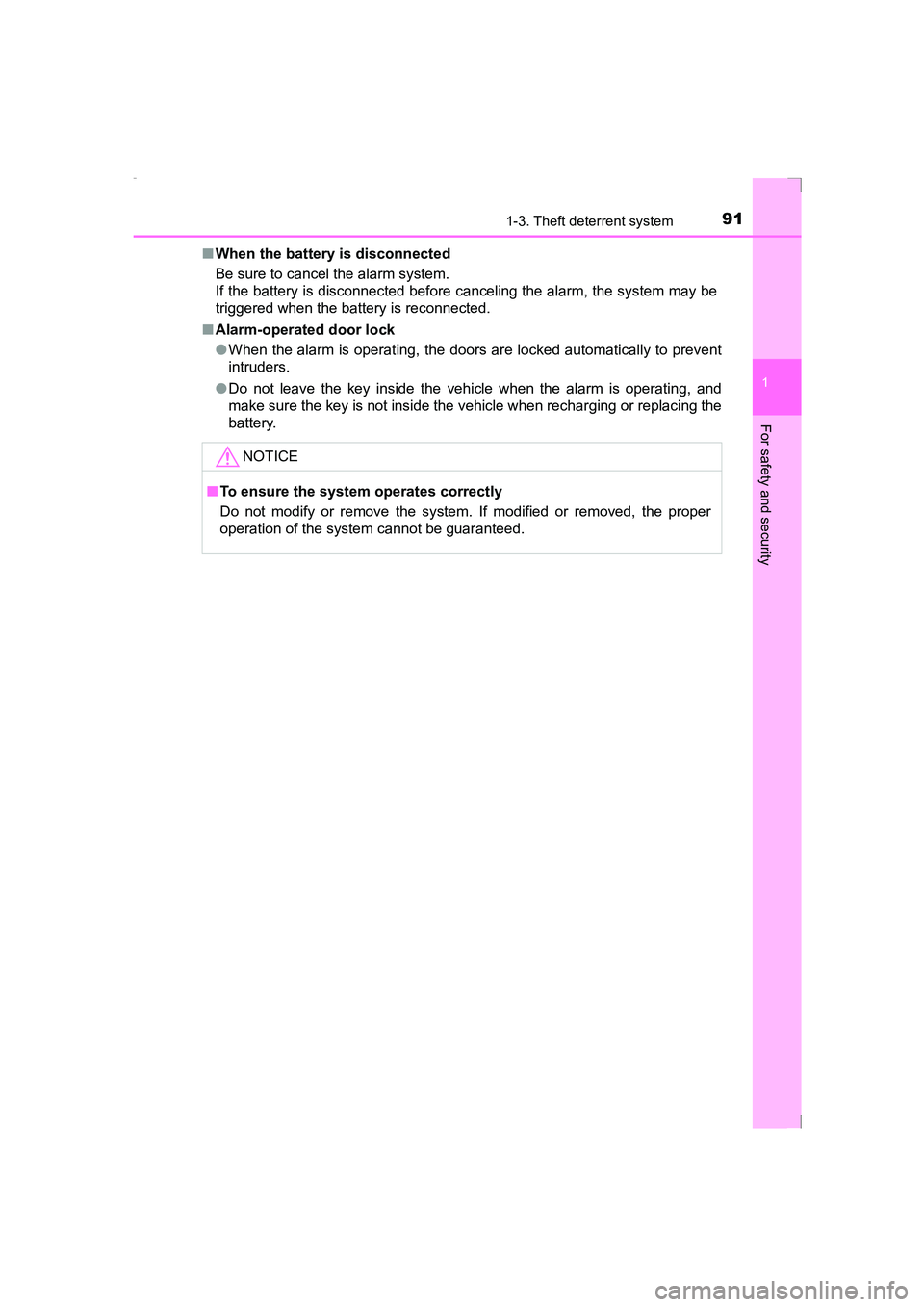

■When the battery is disconnected
Be sure to cancel the alarm system.
If the battery is disconnected before canceling the alarm, the system may be
triggered when the battery is reconnected.
■ Alarm-operated door lock
●When the alarm is operating, the doors are locked automatically to prevent
intruders.
● Do not leave the key inside the vehicle when the alarm is operating, and
make sure the key is not inside the vehicle when recharging or replacing the
battery.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
AVENSIS_OM_OM20C20E_(EE).book Page 91 Thursday, January 29, 2 015 1:47 PM

921-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)

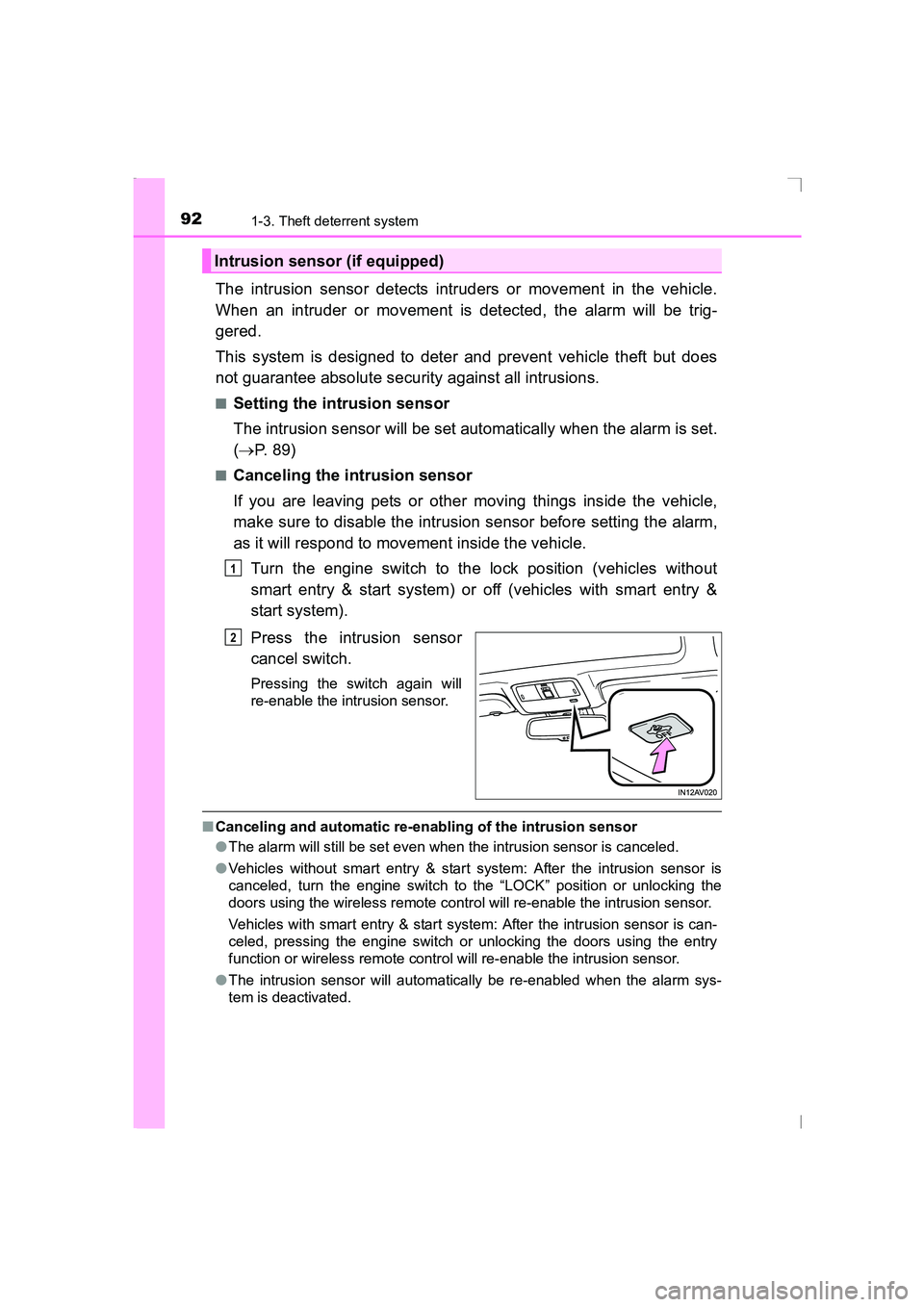

The intrusion sensor detects intruders or movement in the vehicle.
When an intruder or movement is detected, the alarm will be trig-
gered.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
■Setting the intrusion sensor
The intrusion sensor will be set automatically when the alarm is set.
(→ P. 8 9 )
■Canceling the intrusion sensor
If you are leaving pets or other moving things inside the vehicle,
make sure to disable the intrusion sensor before setting the alarm,
as it will respond to movement inside the vehicle.
Turn the engine switch to the lock position (vehicles without
smart entry & start system) or off (vehicles with smart entry &
start system).
Press the intrusion sensor
cancel switch.
Pressing the switch again will
re-enable the intrusion sensor.
■Canceling and automatic re-enabling of the intrusion sensor
●The alarm will still be set even when the intrusion sensor is canceled.
● Vehicles without smart entry & start system: After the intrusion sensor is
canceled, turn the engine switch to the “LOCK” position or unlocking the
doors using the wireless remote control will re-enable the intrusion sensor.
Vehicles with smart entry & start system: After the intrusion sensor is can-
celed, pressing the engine switch or unlocking the doors using the entry
function or wireless remote control will re-enable the intrusion sensor.
● The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.
Intrusion sensor (if equipped)
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 92 Thursday, January 29, 2 015 1:47 PM

931-3. Theft deterrent system
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security

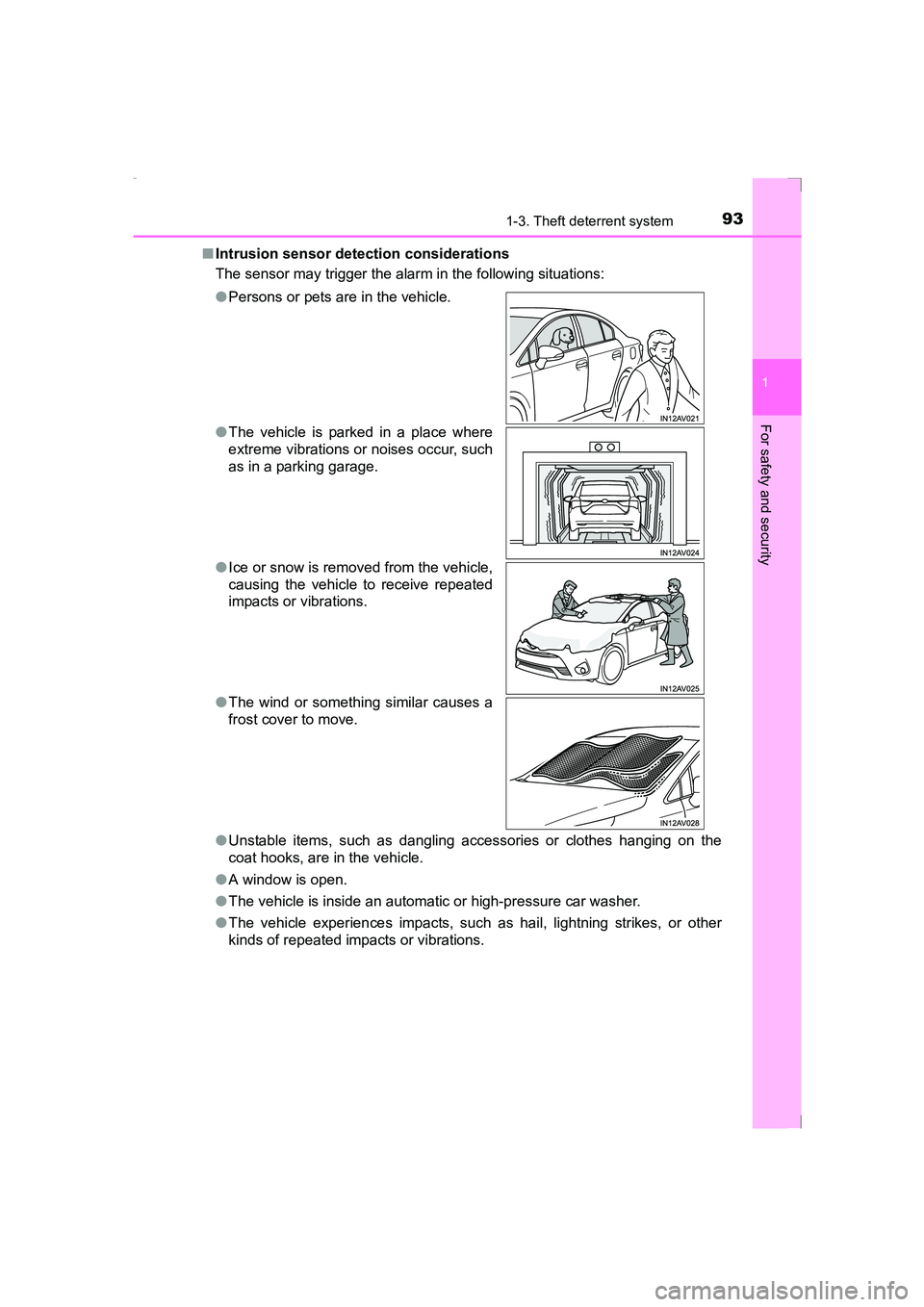

■Intrusion sensor detection considerations
The sensor may trigger the alar m in the following situations:
● Unstable items, such as dangling accessories or clothes hanging on the
coat hooks, are in the vehicle.
● A window is open.
● The vehicle is inside an automatic or high-pressure car washer.
● The vehicle experiences impacts, such as hail, lightning strikes, or other
kinds of repeated impacts or vibrations.
●
Persons or pets are in the vehicle.
● The vehicle is parked in a place where
extreme vibrations or noises occur, such
as in a parking garage.
● Ice or snow is removed from the vehicle,
causing the vehicle to receive repeated
impacts or vibrations.
● The wind or something similar causes a
frost cover to move.
AVENSIS_OM_OM20C20E_(EE).book Page 93 Thursday, January 29, 2 015 1:47 PM

941-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)■

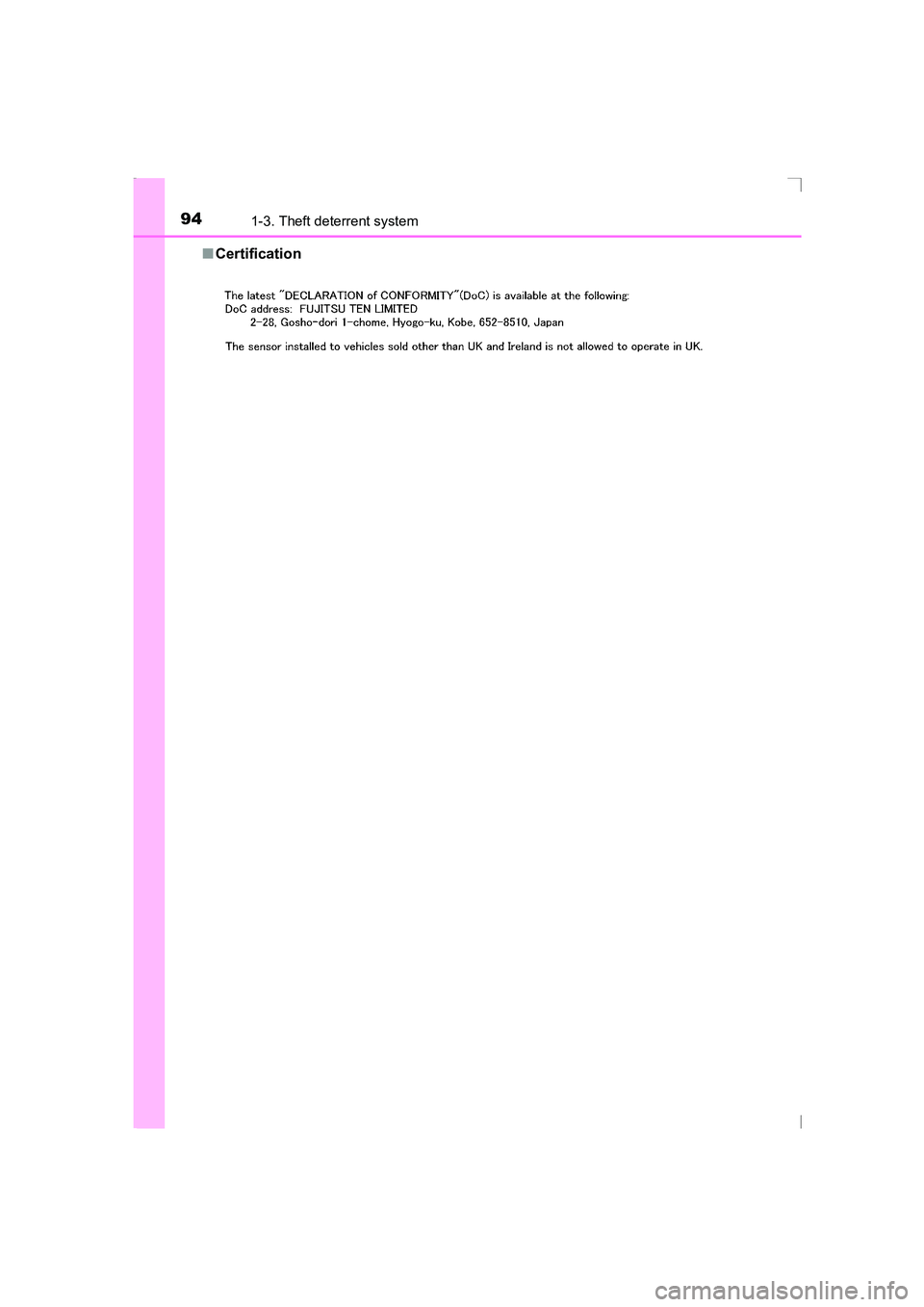

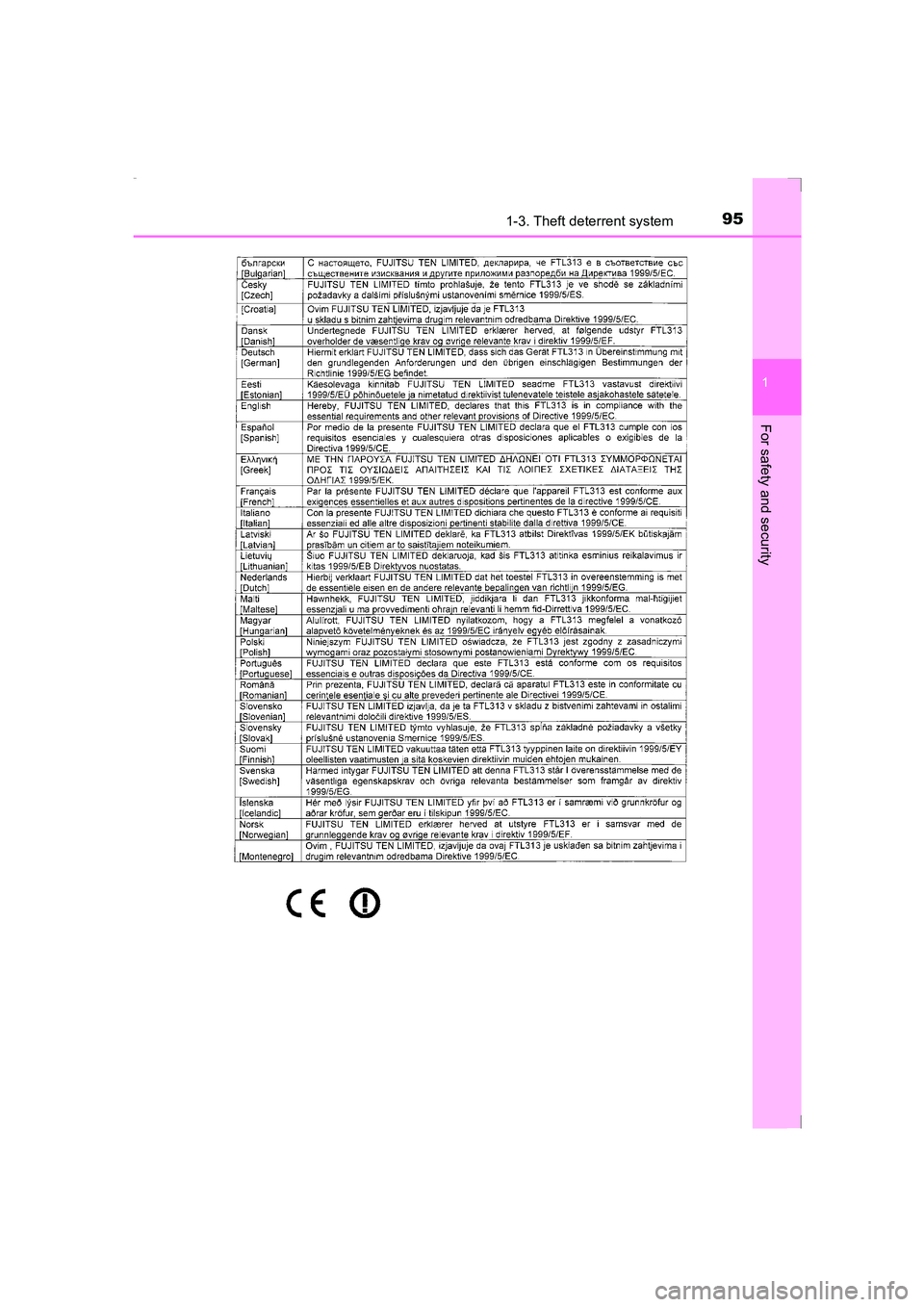

Certification
AVENSIS_OM_OM20C20E_(EE).book Page 94 Thursday, January 29, 2 015 1:47 PM

951-3. Theft deterrent system
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security
AVENSIS_OM_OM20C20E_(EE).book Page 95 Thursday, January 29, 2015 1:47 PM

961-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 96 Thursday, January 29, 2015 1:47 PM

97
2Instrument cluster
AVENSIS_OM_OM20C20E_(EE)2. Instrument cluster
Warning lights and indicators ........................... 98
Gauges and meters ........... 104
Multi-information display (with monochrome
display) ............................ 108
Multi-information display (with color display) ........... 111
Fuel consumption information ....................... 117
AVENSIS_OM_OM20C20E_(EE).book Page 97 Thursday, January 29, 2 015 1:47 PM

982. Instrument cluster
AVENSIS_OM_OM20C20E_(EE)

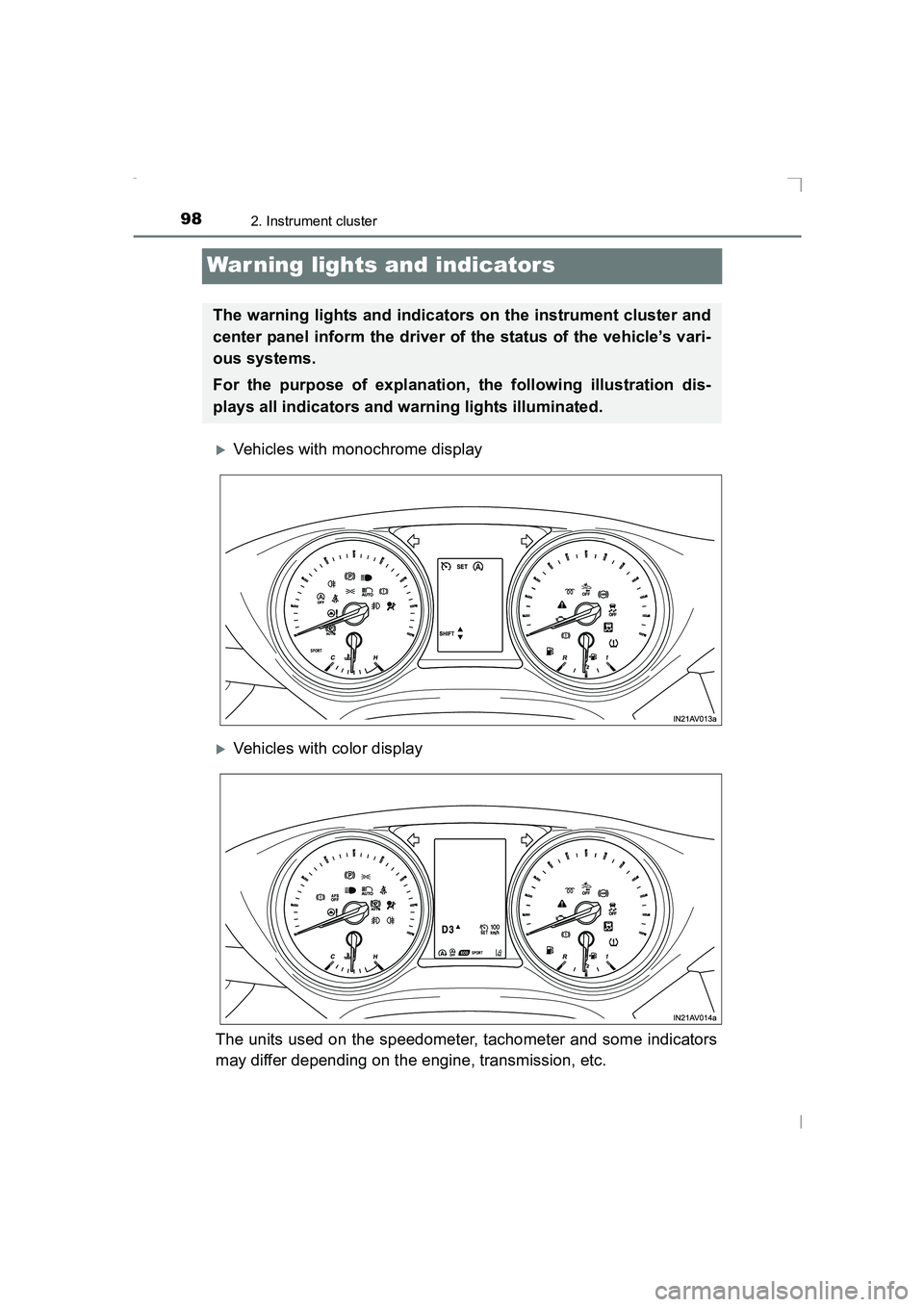

War ning lights and indicators
XVehicles with monochrome display
XVehicles with color display
The units used on the speedometer, tachometer and some indicators
may differ depending on the engine, transmission, etc.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all indicators and warning lights illuminated.
AVENSIS_OM_OM20C20E_(EE).book Page 98 Thursday, January 29, 2 015 1:47 PM

992. Instrument cluster
2
Instrument cluster
AVENSIS_OM_OM20C20E_(EE)

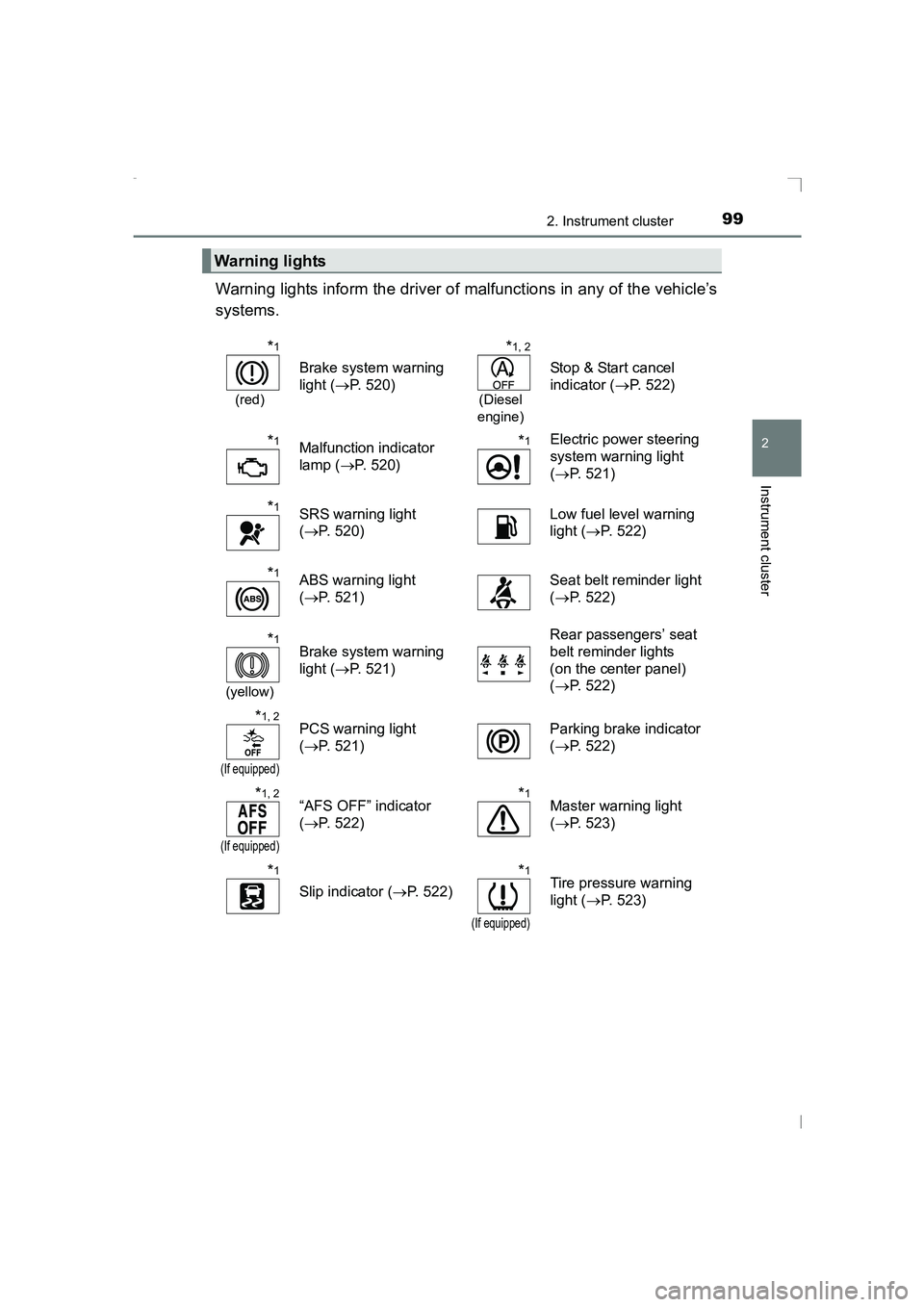

Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
Warning lights
*1
(red)
Brake system warning
light (→P. 520)
*1, 2
(Diesel
engine)
Stop & Start cancel
indicator ( →P. 522)
*1Malfunction indicator
lamp ( →P. 520)*1Electric power steering
system warning light
(→ P. 521)
*1SRS warning light
(→ P. 520) Low fuel level warning
light (
→P. 522)
*1ABS warning light
(→ P. 521) Seat belt reminder light
(
→ P. 522)
*1
(yellow)
Brake system warning
light ( →P. 521) Rear passengers’ seat
belt reminder lights
(on the center panel)
(
→ P. 522)
*1, 2
(If equipped)
PCS warning light
(→ P. 521) Parking brake indicator
(
→ P. 522)
*1, 2
(If equipped)
“AFS OFF” indicator
(→ P. 522)*1Master warning light
(→ P. 523)
*1
Slip indicator ( →P. 522)
*1
(If equipped)
Tire pressure warning
light ( →P. 523)
AVENSIS_OM_OM20C20E_(EE).book Page 99 Thursday, January 29, 2 015 1:47 PM

1002. Instrument cluster
AVENSIS_OM_OM20C20E_(EE)

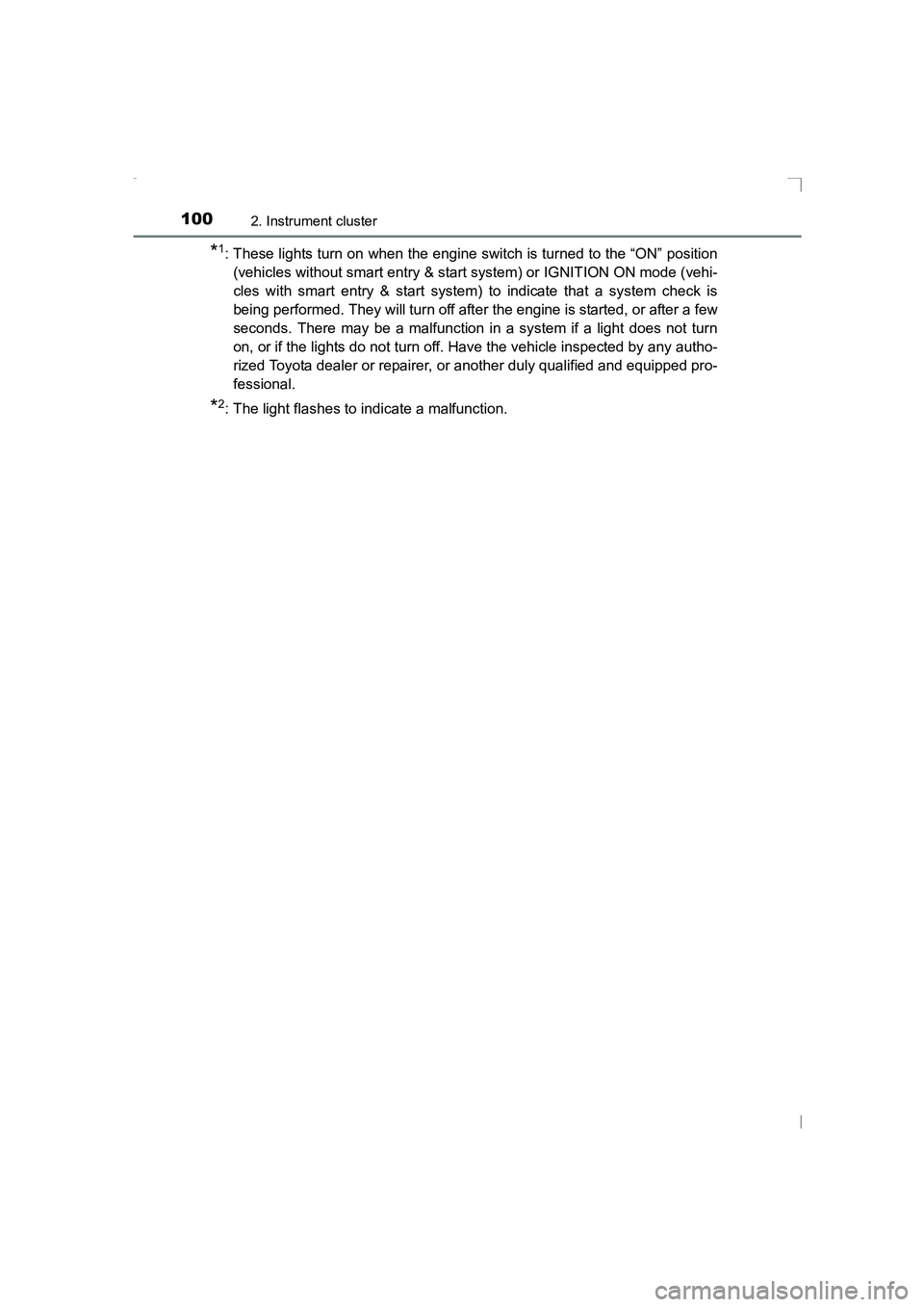

*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system) to indicate that a system check is
being performed. They will turn off afte r the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not turn
on, or if the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
*2: The light flashes to indicate a malfunction.
AVENSIS_OM_OM20C20E_(EE).book Page 100 Thursday, January 29, 2015 1:47 PM
