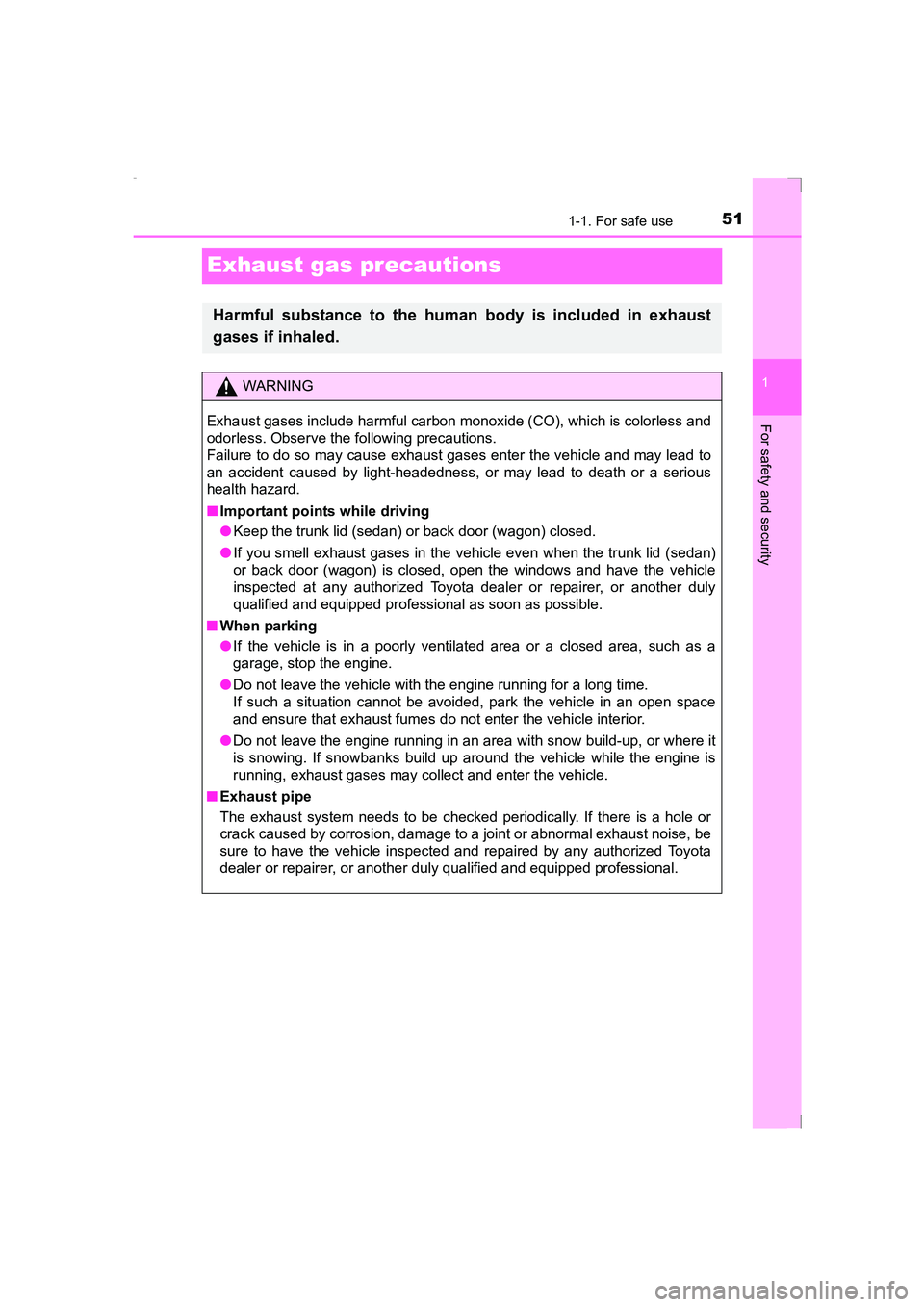

Exhaust gas precautions
Harmful substance to the human body is included in exhaust
gases if inhaled.
WARNING
Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to
an accident caused by light-headedness, or may lead to death or a serious
health hazard.
■ Important points while driving
●Keep the trunk lid (sedan) or back door (wagon) closed.
● If you smell exhaust gases in the vehicle even when the trunk lid (sedan)
or back door (wagon) is closed, open the windows and have the vehicle
inspected at any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional as soon as possible.
■ When parking
●If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the engine.
● Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.
● Do not leave the engine running in an ar ea with snow build-up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle.
■ Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
AVENSIS_OM_OM20C20E_(EE).book Page 51 Thursday, January 29, 2 015 1:47 PM

521-2. Child safety
AVENSIS_OM_OM20C20E_(EE)

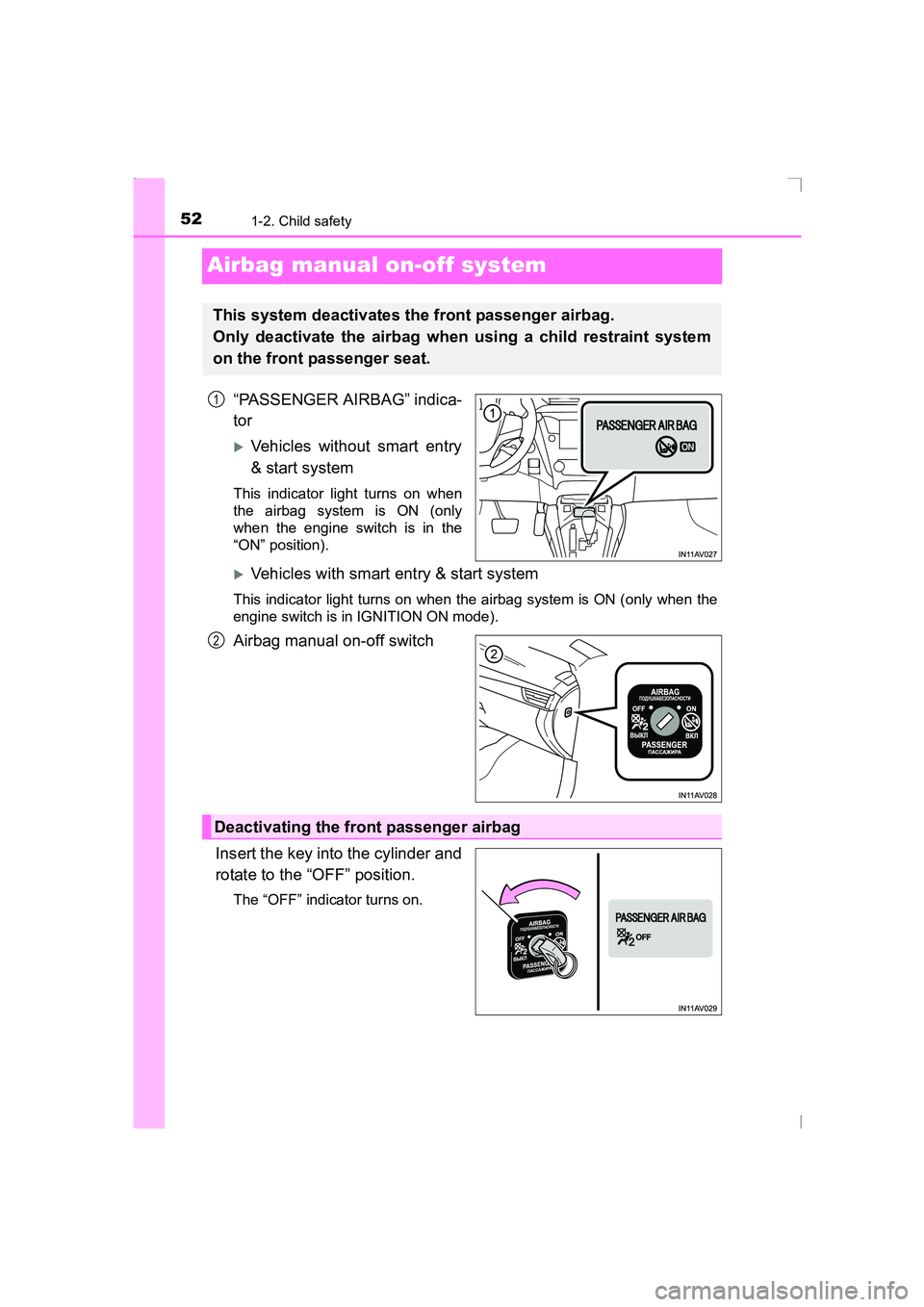

Airbag manual on-off system
“PASSENGER AIRBAG” indica-
tor
XVehicles without smart entry
& start system
This indicator light turns on when
the airbag system is ON (only
when the engine switch is in the
“ON” position).
XVehicles with smart entry & start system
This indicator light turns on when the airbag system is ON (only when the
engine switch is in IGNITION ON mode).
Airbag manual on-off switch
Insert the key into the cylinder and
rotate to the “OFF” position.
The “OFF” indicator turns on.
This system deactivates the front passenger airbag.
Only deactivate the airbag when using a child restraint system
on the front passenger seat.
1
2
Deactivating the front passenger airbag
AVENSIS_OM_OM20C20E_(EE).book Page 52 Thursday, January 29, 2 015 1:47 PM

531-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security

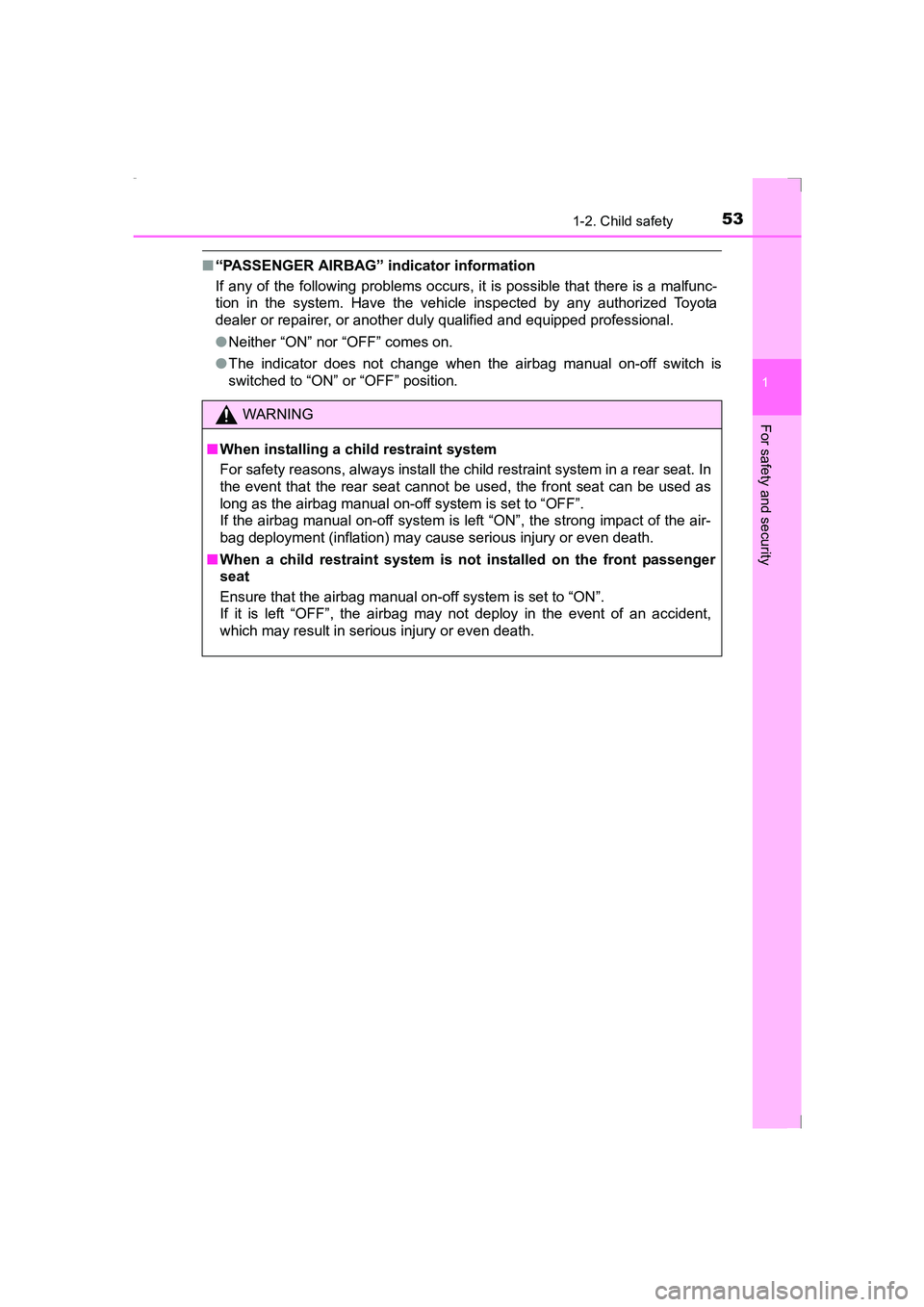

■“PASSENGER AIRBAG” indicator information
If any of the following problems occurs, it is possible that there is a malfunc-
tion in the system. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
●Neither “ON” nor “OFF” comes on.
● The indicator does not change when the airbag manual on-off switch is
switched to “ON” or “OFF” position.
WARNING
■ When installing a child restraint system
For safety reasons, always install the child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left “ON”, the strong impact of the air-
bag deployment (inflation) may cause serious injury or even death.
■ When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left “OFF”, the airbag may not deploy in the event of an accident,
which may result in serious injury or even death.
AVENSIS_OM_OM20C20E_(EE).book Page 53 Thursday, January 29, 2 015 1:47 PM

541-2. Child safety
AVENSIS_OM_OM20C20E_(EE)

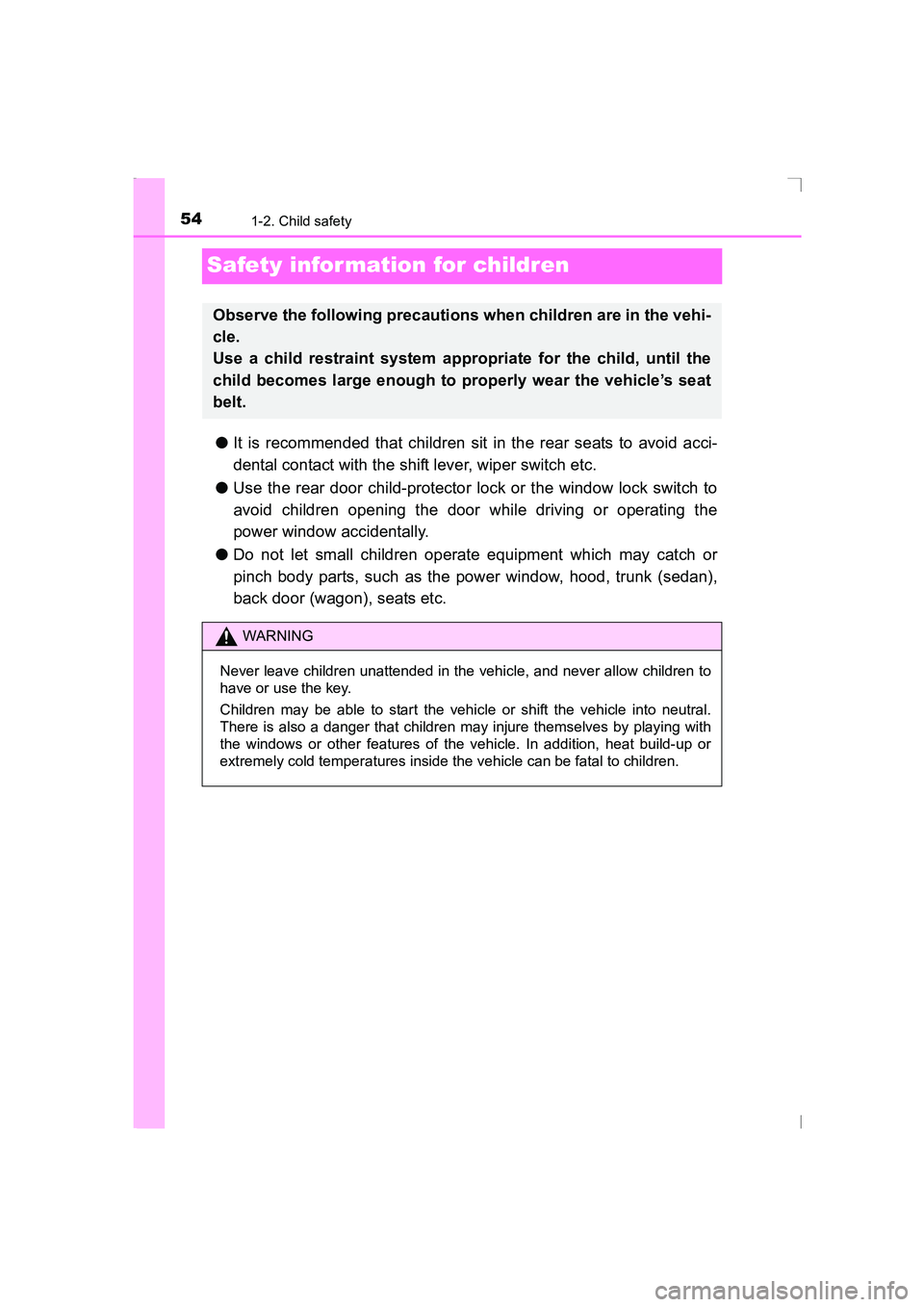

Safety infor mation for children
●It is recommended that children sit in the rear seats to avoid acci-
dental contact with the shift lever, wiper switch etc.
● Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the
power window accidentally.
● Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, trunk (sedan),
back door (wagon), seats etc.
Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.
WARNING
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.
AVENSIS_OM_OM20C20E_(EE).book Page 54 Thursday, January 29, 2 015 1:47 PM

55
1
1-2. Child safety
AVENSIS_OM_OM20C20E_(EE)
For safety and security

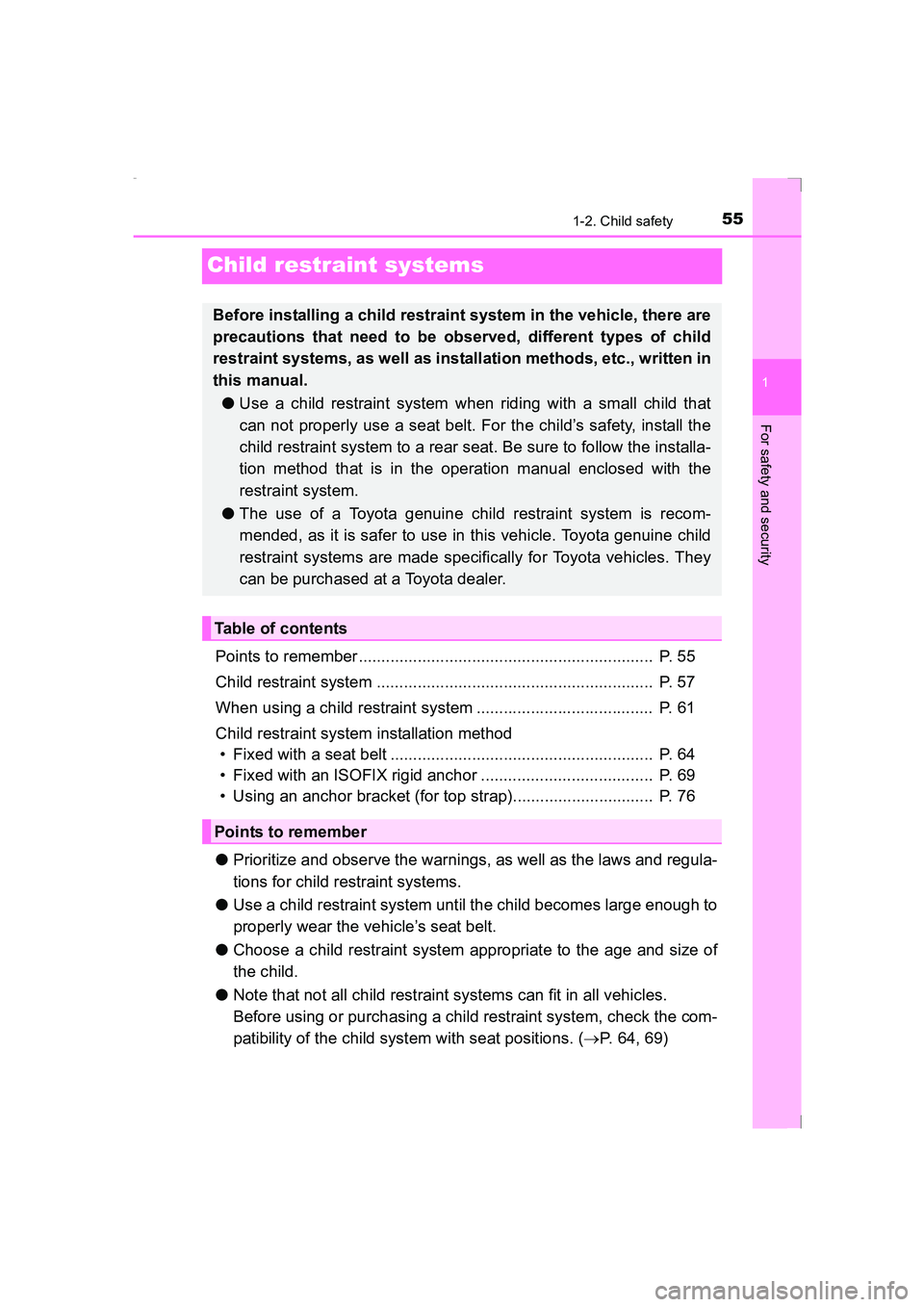

Child restraint systems
Points to remember ................................................................. P. 55
Child restraint system ............................................................. P. 57
When using a child restraint system ....................................... P. 61
Child restraint system installation method• Fixed with a seat belt .......................................................... P. 64
• Fixed with an ISOFIX rigid anchor ...................................... P. 69
• Using an anchor bracket (for top strap)............................... P. 76
● Prioritize and observe the warnings, as well as the laws and regula-
tions for child restraint systems.
● Use a child restraint system until the child becomes large enough to
properly wear the vehicle’s seat belt.
● Choose a child restraint system appropriate to the age and size of
the child.
● Note that not all child restraint systems can fit in all vehicles.
Before using or purchasing a child restraint system, check the com-
patibility of the child system with seat positions. ( →P. 64, 69)
Before installing a child restraint system in the vehicle, there are
precautions that need to be observed, different types of child
restraint systems, as well as installation methods, etc., written in
this manual.
● Use a child restraint system when riding with a small child that
can not properly use a seat belt. For the child’s safety, install the
child restraint system to a rear seat. Be sure to follow the installa-
tion method that is in the operation manual enclosed with the
restraint system.
● The use of a Toyota genuine child restraint system is recom-
mended, as it is safer to use in this vehicle. Toyota genuine child
restraint systems are made specifically for Toyota vehicles. They
can be purchased at a Toyota dealer.
Table of contents
Points to remember
AVENSIS_OM_OM20C20E_(EE).book Page 55 Thursday, January 29, 2 015 1:47 PM

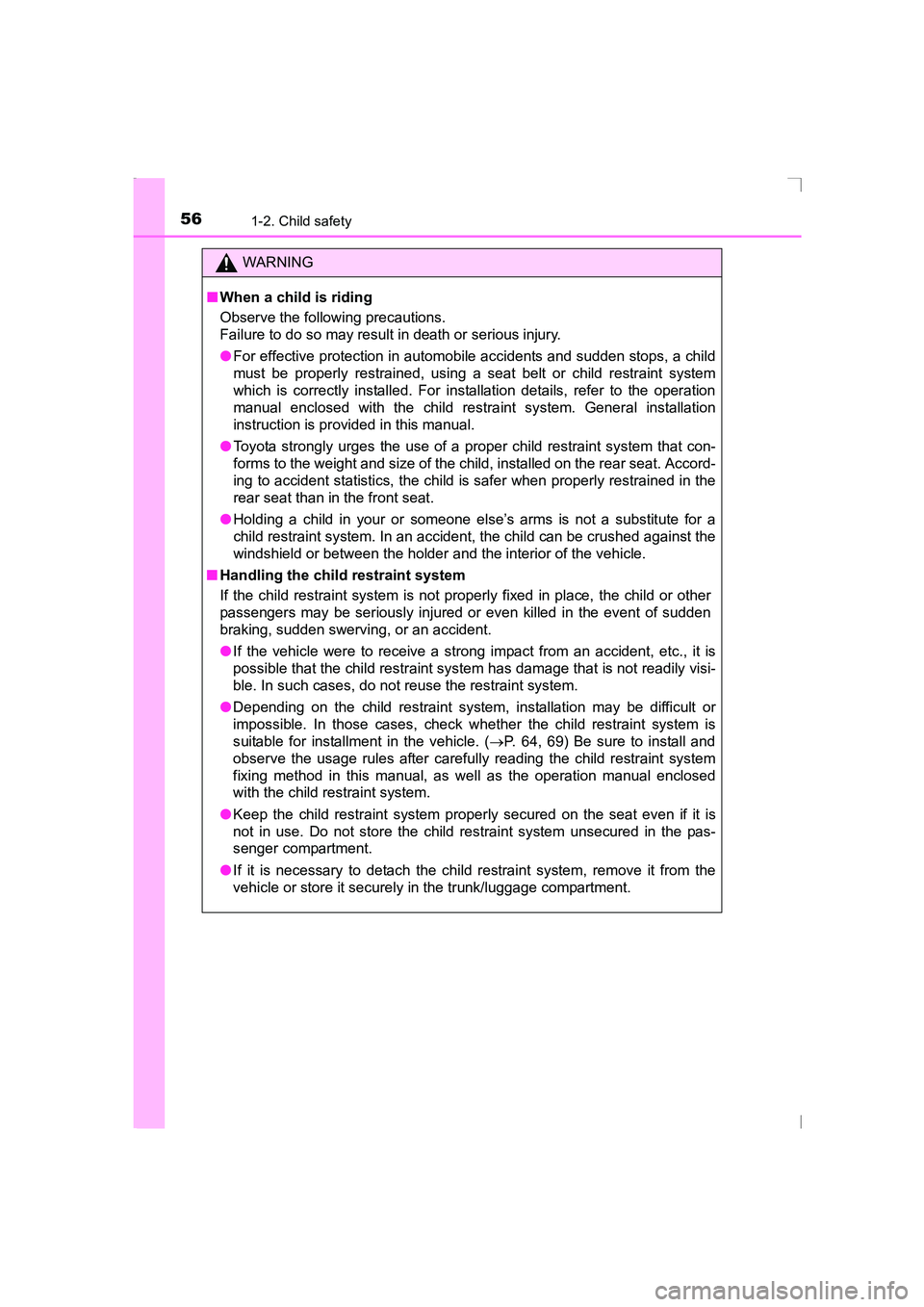

561-2. Child safety
AVENSIS_OM_OM20C20E_(EE)
WARNING
■ When a child is riding
Observe the following precautions.
Failure to do so may result in death or serious injury.
●For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
which is correctly installed. For installation details, refer to the operation
manual enclosed with the child restraint system. General installation
instruction is provided in this manual.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the weight and size of the child, installed on the rear seat. Accord-
ing to accident statistics, the child is safer when properly restrained in the
rear seat than in the front seat.
● Holding a child in your or someone else’s arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the
windshield or between the holder and the interior of the vehicle.
■ Handling the child restraint system
If the child restraint system is not properly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving, or an accident.
●If the vehicle were to receive a strong impact from an accident, etc., it is
possible that the child restraint system has damage that is not readily visi-
ble. In such cases, do not reuse the restraint system.
● Depending on the child restraint system, installation may be difficult or
impossible. In those cases, check whether the child restraint system is
suitable for installment in the vehicle. ( →P. 64, 69) Be sure to install and
observe the usage rules after carefully reading the child restraint system
fixing method in this manual, as well as the operation manual enclosed
with the child restraint system.
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the trunk/luggage compartment.
AVENSIS_OM_OM20C20E_(EE).book Page 56 Thursday, January 29, 2 015 1:47 PM

571-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security

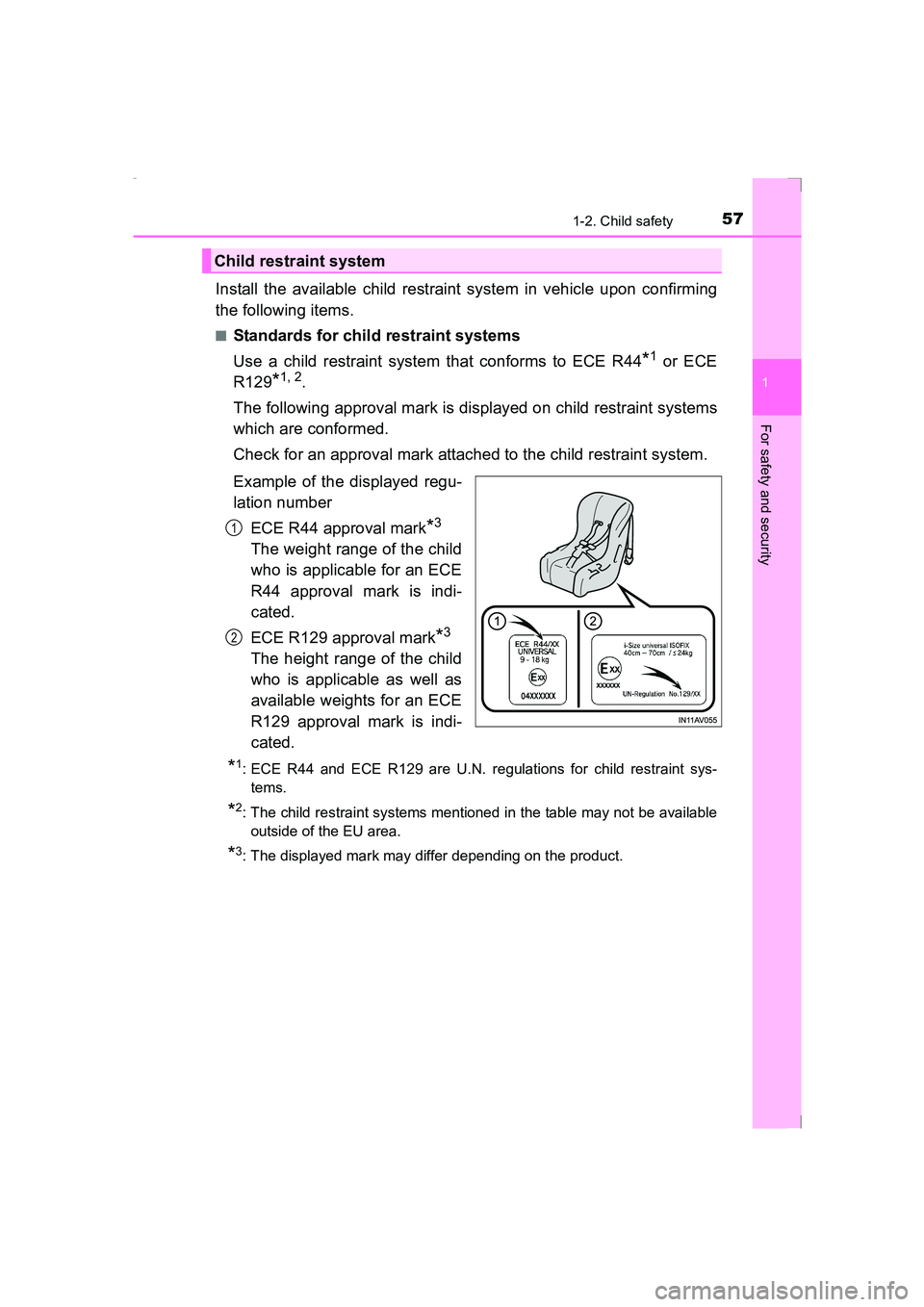

Install the available child restraint system in vehicle upon confirming
the following items.
■Standards for child restraint systems
Use a child restraint system that conforms to ECE R44
*1 or ECE
R129
*1, 2.
The following approval mark is displayed on child restraint systems
which are conformed.
Check for an approval mark attached to the child restraint system.
Example of the displayed regu-
lation number ECE R44 approval mark
*3
The weight range of the child
who is applicable for an ECE
R44 approval mark is indi-
cated.
ECE R129 approval mark
*3
The height range of the child
who is applicable as well as
available weights for an ECE
R129 approval mark is indi-
cated.
*1: ECE R44 and ECE R129 are U.N. regulations for child restraint sys-tems.
*2: The child restraint systems mentioned in the table may not be availableoutside of the EU area.
*3: The displayed mark may differ depending on the product.
Child restraint system
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 57 Thursday, January 29, 2 015 1:47 PM

581-2. Child safety

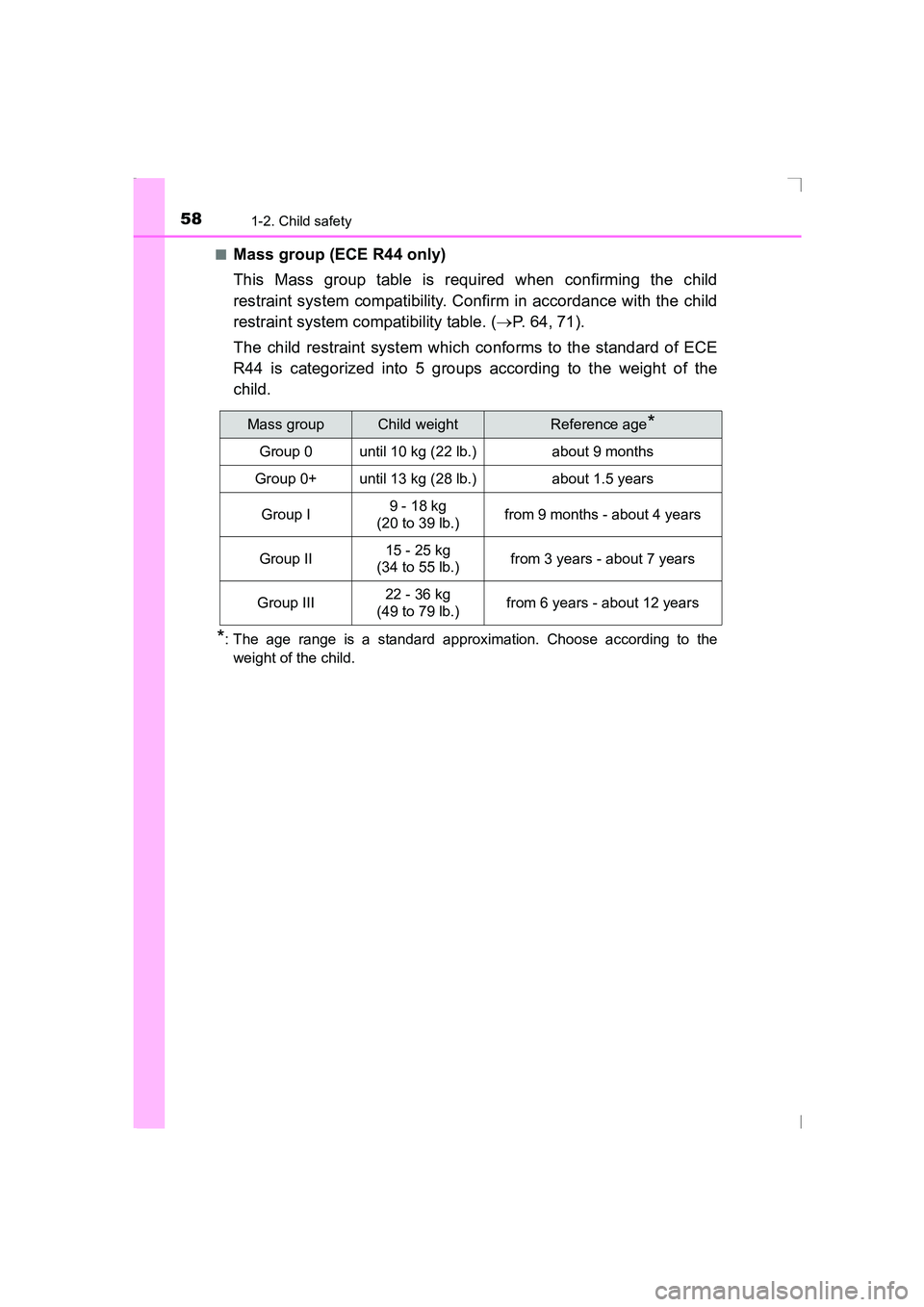

AVENSIS_OM_OM20C20E_(EE)■
Mass group (ECE R44 only)
This Mass group table is required when confirming the child
restraint system compatibility. Confirm in accordance with the child
restraint system compatibility table. (
→P. 6 4 , 71).
The child restraint system which conforms to the standard of ECE
R44 is categorized into 5 groups according to the weight of the
child.
*: The age range is a standard approximation. Choose according to the weight of the child.
Mass groupChild weightReference age*
Group 0until 10 kg (22 lb.)about 9 months
Group 0+until 13 kg (28 lb.)about 1.5 years
Group I9 - 18 kg
(20 to 39 lb.)from 9 months - about 4 years
Group II15 - 25 kg
(34 to 55 lb.)from 3 years - about 7 years
Group III22 - 36 kg
(49 to 79 lb.)from 6 years - about 12 years
AVENSIS_OM_OM20C20E_(EE).book Page 58 Thursday, January 29, 2 015 1:47 PM

591-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security

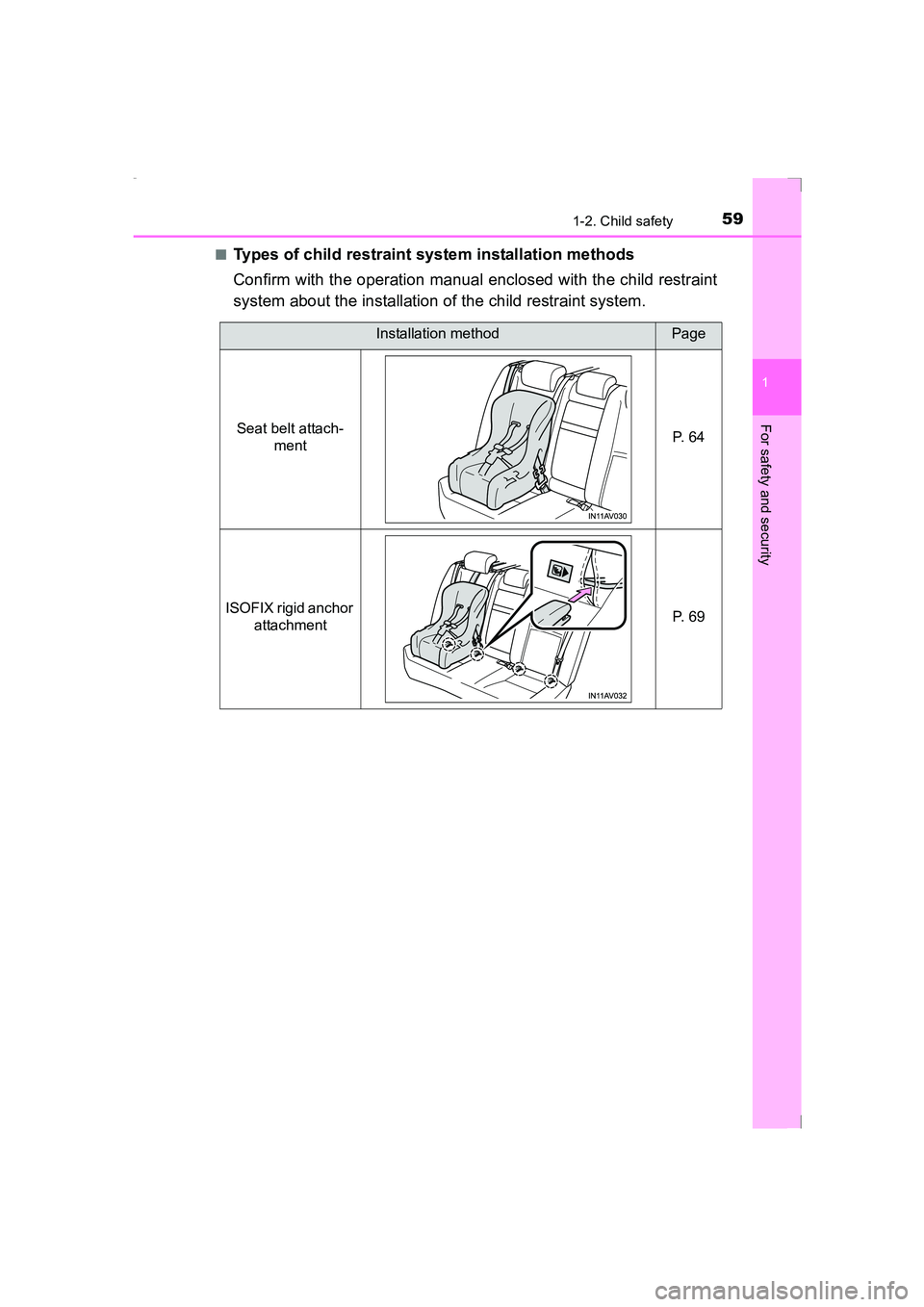

■Types of child restraint system installation methods
Confirm with the operation manual enclosed with the child restraint
system about the installation of the child restraint system.
Installation methodPage
Seat belt attach- ment P. 6 4
ISOFIX rigid anchor attachment P. 6 9
AVENSIS_OM_OM20C20E_(EE).book Page 59 Thursday, January 29, 2
015 1:47 PM

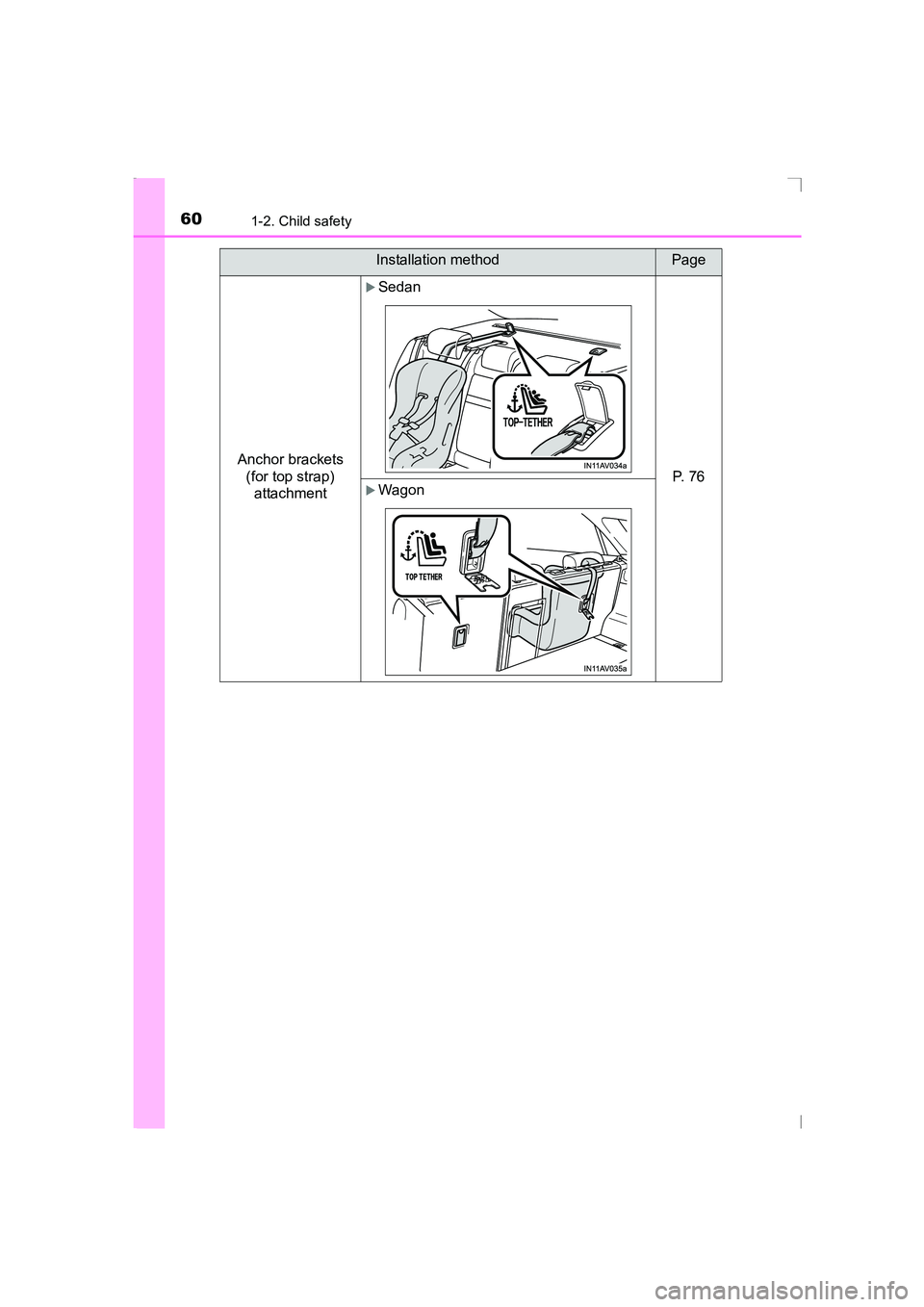

601-2. Child safety
AVENSIS_OM_OM20C20E_(EE)Anchor brackets
(for top strap) attachment
XSedan
P. 7 6XWagon
Installation methodPage
AVENSIS_OM_OM20C20E_(EE).book Page 60 Thursday, January 29, 2 015 1:47 PM
