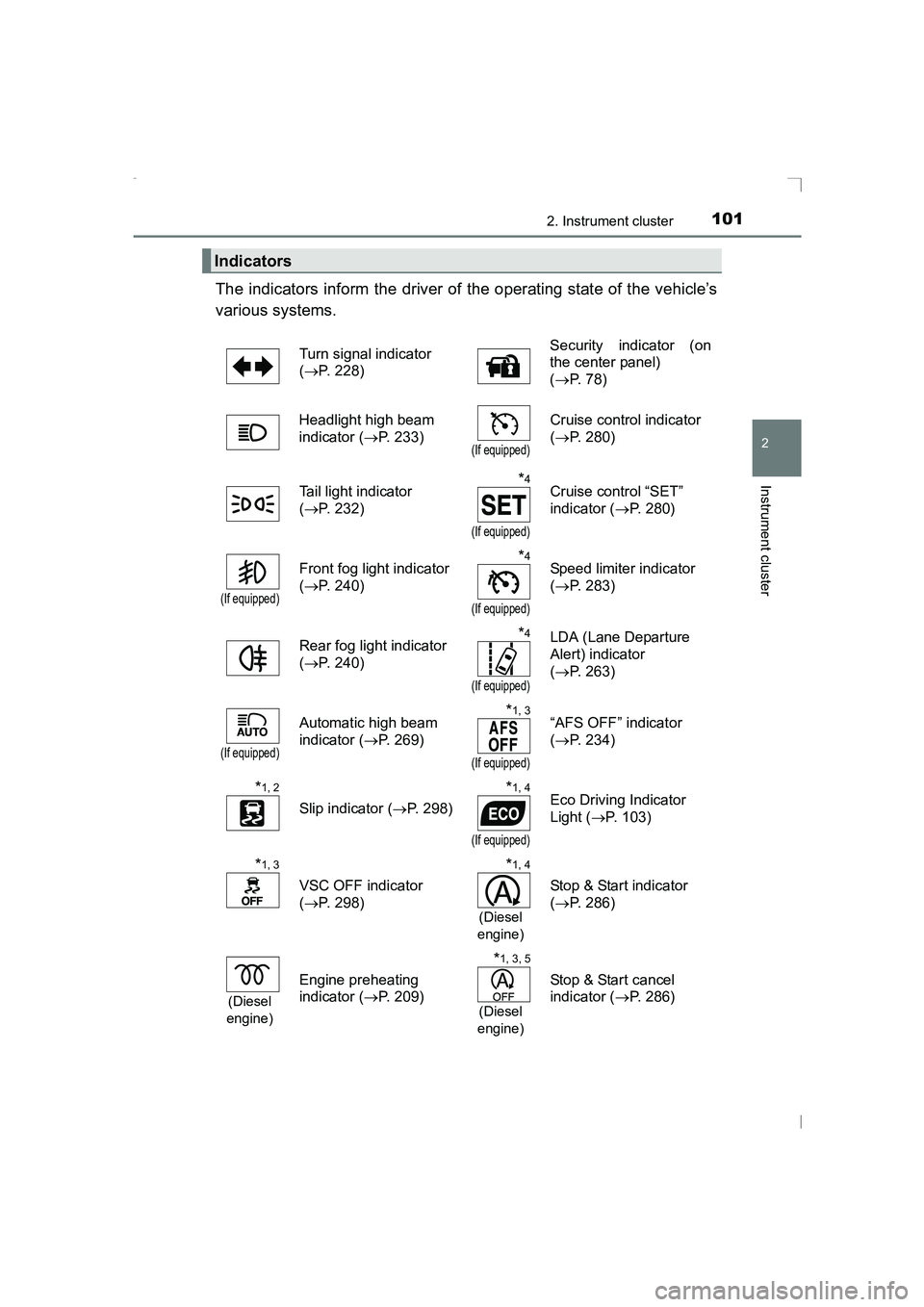

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(→ P. 228) Security indicator (on
the center panel)
(
→ P. 78)
Headlight high beam
indicator ( →P. 233)
(If equipped)
Cruise control indicator
(→ P. 280)
Tail light indicator
( → P. 232)
*4
(If equipped)
Cruise control “SET”
indicator ( →P. 280)
(If equipped)
Front fog light indicator
(→ P. 240)*4
(If equipped)
Speed limiter indicator
(→ P. 283)
Rear fog light indicator
( → P. 240)
*4
(If equipped)
LDA (Lane Departure
Alert) indicator
(→ P. 263)
(If equipped)
Automatic high beam
indicator ( →P. 269)*1, 3
(If equipped)
“AFS OFF” indicator
(→ P. 234)
*1, 2
Slip indicator ( →P. 298)
*1, 4
(If equipped)
Eco Driving Indicator
Light ( →P. 103)
*1, 3
VSC OFF indicator
(→ P. 298)
*1, 4
(Diesel
engine)
Stop & Start indicator
( → P. 286)
(Diesel
engine)
Engine preheating
indicator ( →P. 209)
*1, 3, 5
(Diesel
engine)
Stop & Start cancel
indicator ( →P. 286)
AVENSIS_OM_OM20C20E_(EE).book Page 101 Thursday, January 29, 2015 1:47 PM

1022. Instrument cluster
AVENSIS_OM_OM20C20E_(EE)
*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system) to indicate that a system check is
being performed. They will turn off afte r the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not turn
on, or if the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
*2: The light flashes to indicate that the system is operating.
*3: The light turns on when the system is turned off.
*4: This light illuminates on the multi-information display.
*5: For vehicles with the color display, this light illuminates on the multi-infor- mation display.

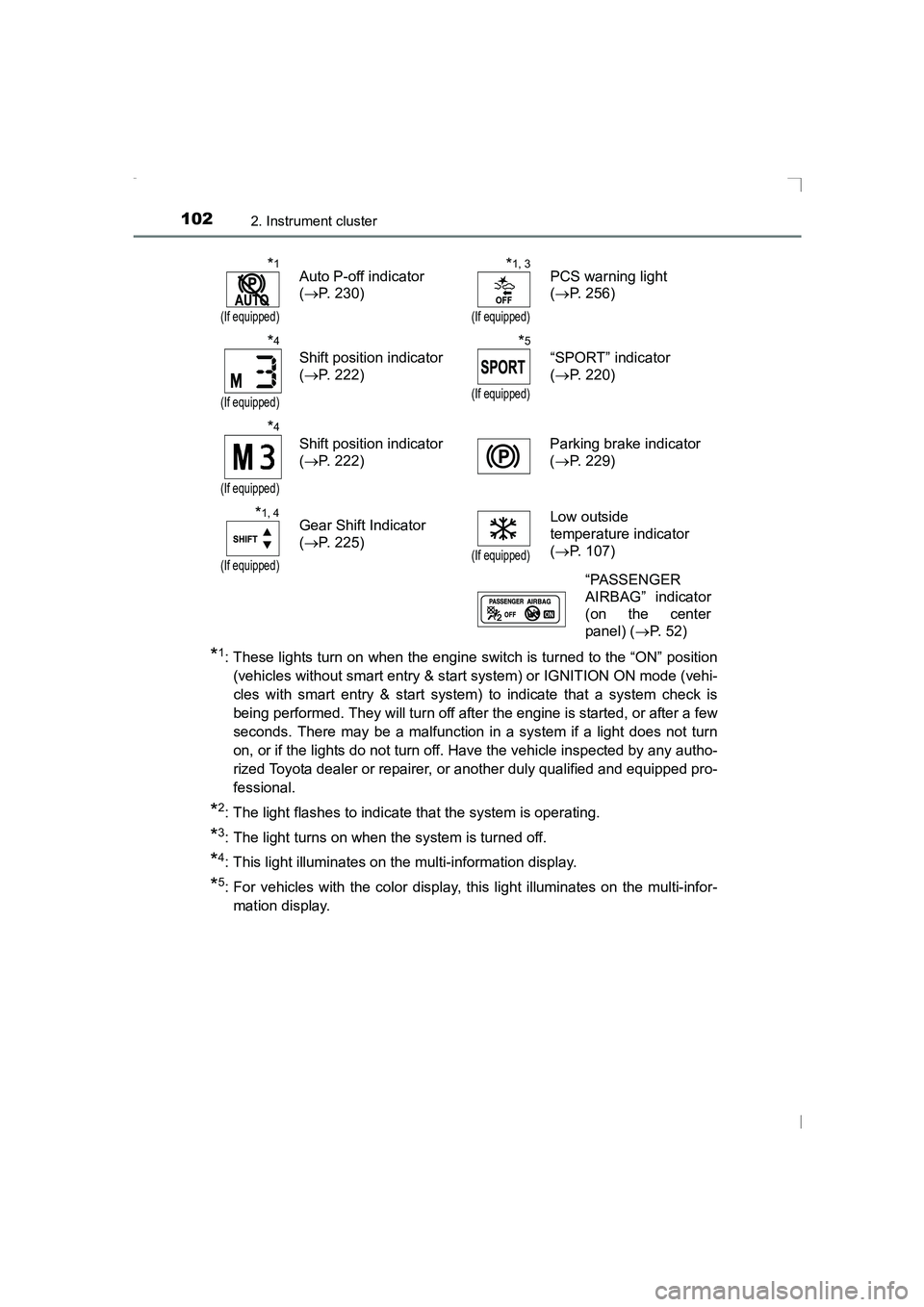

*1
(If equipped)
Auto P-off indicator
(→ P. 230)*1, 3
(If equipped)
PCS warning light
(→ P. 256)
*4
(If equipped)
Shift position indicator
(→ P. 222)
*5
(If equipped)
“SPORT” indicator
(→ P. 220)
*4
(If equipped)
Shift position indicator
(→ P. 222) Parking brake indicator
(
→ P. 229)
*1, 4
(If equipped)
Gear Shift Indicator
(→ P. 225)
(If equipped)
Low outside
temperature indicator
(→ P. 107)
“PASSENGER
AIRBAG” indicator
(on the center
panel) ( →P. 52)
AVENSIS_OM_OM20C20E_(EE).book Page 102 Thursday, January 29, 2015 1:47 PM

1032. Instrument cluster
2
Instrument cluster
AVENSIS_OM_OM20C20E_(EE)

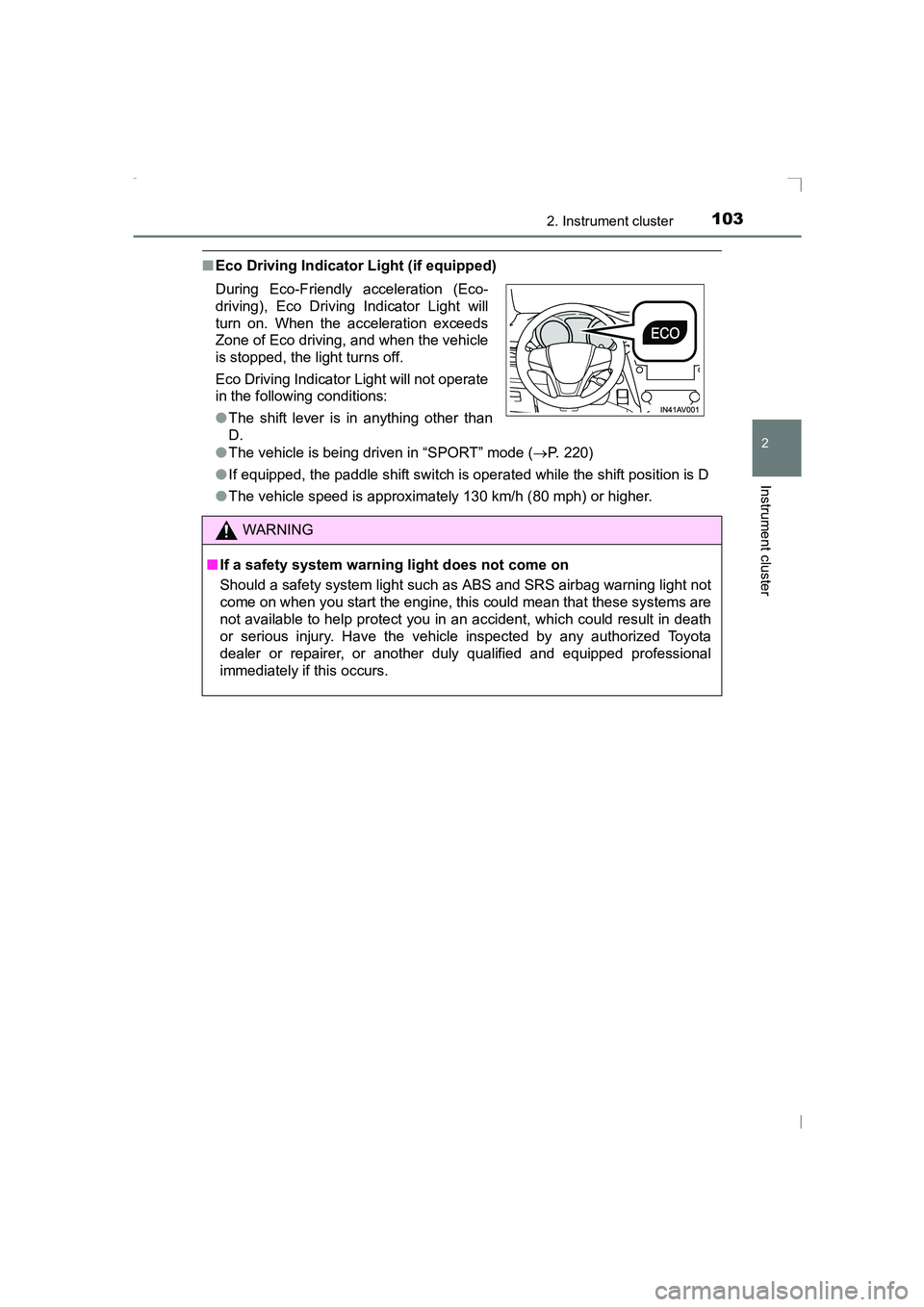

■Eco Driving Indicator Light (if equipped)
●The vehicle is being driven in “SPORT” mode ( →P. 220)
● If equipped, the paddle shift switch is operated while the shift position is D
● The vehicle speed is approximately 130 km/h (80 mph) or higher.
During Eco-Friendly acceleration (Eco-
driving), Eco Driving Indicator Light will
turn on. When the acceleration exceeds
Zone of Eco driving, and when the vehicle
is stopped, the light turns off.
Eco Driving Indicator Light will not operate
in the following conditions:
●
The shift lever is in anything other than
D.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as ABS and SRS airbag warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional
immediately if this occurs.
AVENSIS_OM_OM20C20E_(EE).book Page 103 Thursday, January 29, 2015 1:47 PM

1042. Instrument cluster
AVENSIS_OM_OM20C20E_(EE)

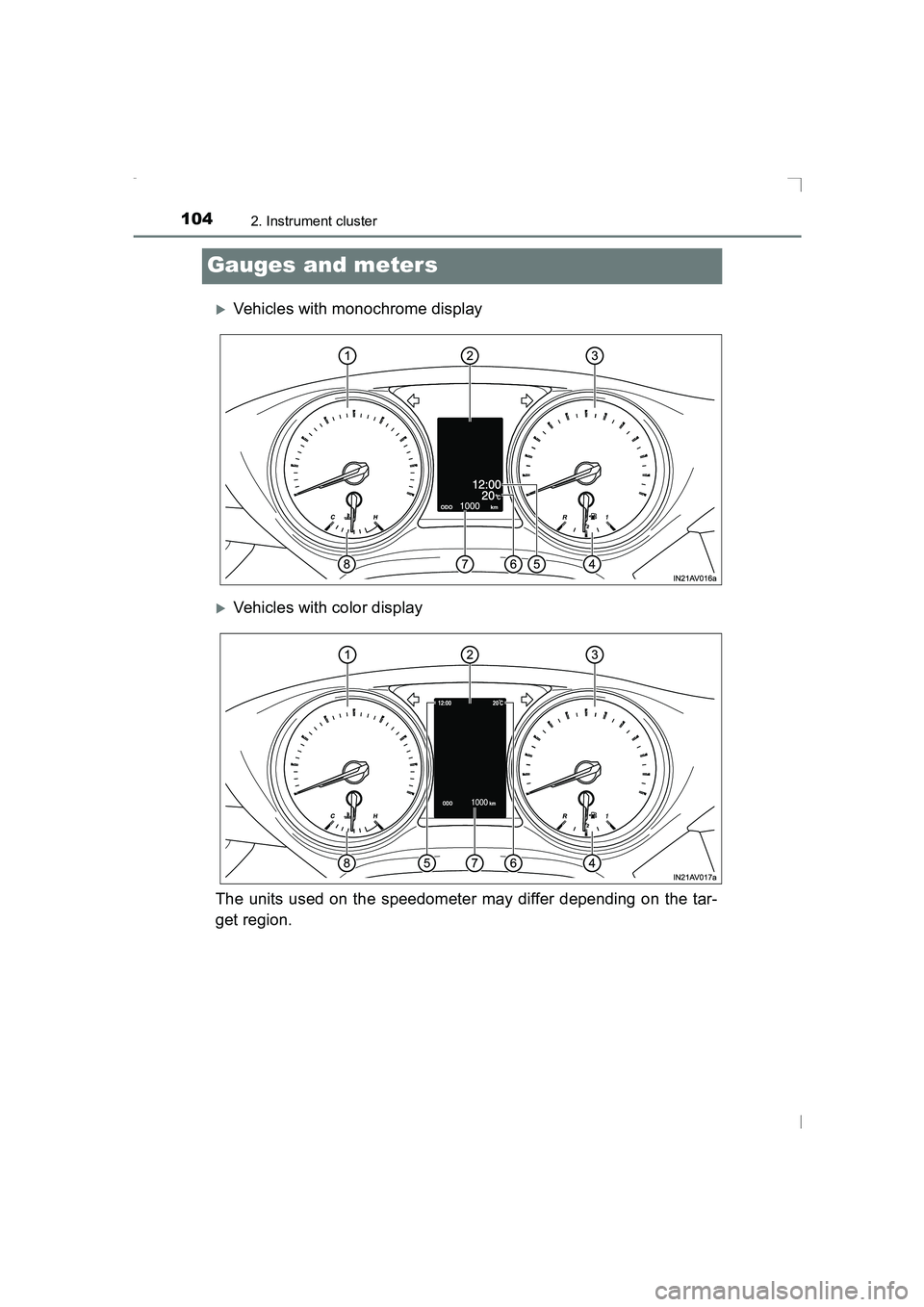

Gauges and meters
XVehicles with monochrome display
XVehicles with color display
The units used on the speedometer may differ depending on the tar-
get region.
AVENSIS_OM_OM20C20E_(EE).book Page 104 Thursday, January 29, 2015 1:47 PM

1052. Instrument cluster
2
Instrument cluster
AVENSIS_OM_OM20C20E_(EE)
Tachometer
Displays the engine speed in revolutions per minute.
Multi-information display
Presents the driver with a variety of driving-related data. (→P. 108, 111)
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Clock
Displays the time.
Outside temperature display
→P. 107
1
2
3
4
5
6
AVENSIS_OM_OM20C20E_(EE).book Page 105 Thursday, January 29, 2015 1:47 PM

1062. Instrument cluster
AVENSIS_OM_OM20C20E_(EE)
Odometer and trip meter display
Displays the following items.
●Odometer
Displays the total distance the vehicle has been driven.
●Trip meter
Displays the distance the vehicle has been driven since the meter was
last reset. Trip meters A and B can be used to record and display differ-
ent distances independently.
●Maintenance required information (1WW and 2WW engines)
Displays the remaining distance until the engine oil should be changed.
If “-” is displayed before distance, it means oil maintenance is overdue.
Have the engine oil changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
• Displays the maintenance required information when the engine switch is turned to the “ON” position (vehicles without smart entry &
start system) or in IGNITION ON mode (vehicles with smart entry &
start system).
• Maintenance required information reset method ( →P. 449)
● Stop & Start system operation time (1WW and 2WW engines
with monochrome display)
Displays the amount of time the engine was stopped due to operation of
the Stop & Start system during the current trip.
●Stop & Start system total operation time (1WW and 2WW
engines with monochrome display)
Displays the total amount of time that the engine has been stopped due
to operation of the Stop & Start system since the system was last reset.
●Stop & Start system operation time (1WW and 2WW engines
with color display)
Displays the elapsed time after the engine is stopped until it is re-started
by the Stop & Start system.
●Instrument panel light control display (vehicles with monochrome
display)
Displays the meter light control display.
Engine coolant temperature gauge
Displays the engine coolant temperature.
7
8
AVENSIS_OM_OM20C20E_(EE).book Page 106 Thursday, January 29, 2015 1:47 PM

1072. Instrument cluster
2
Instrument cluster
AVENSIS_OM_OM20C20E_(EE)

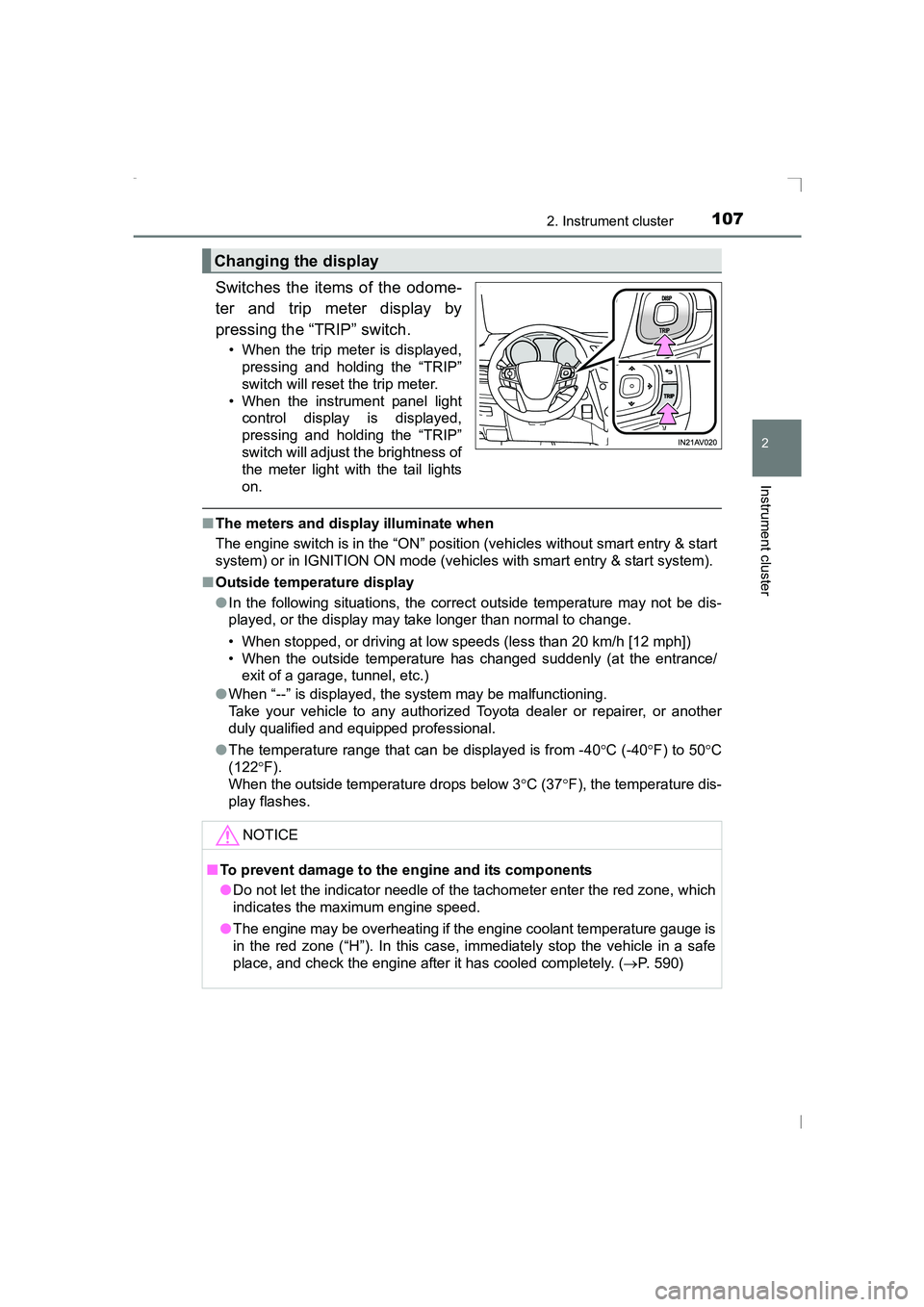

Switches the items of the odome-
ter and trip meter display by
pressing the “TRIP” switch.
• When the trip meter is displayed,pressing and holding the “TRIP”
switch will reset the trip meter.
• When the instrument panel light control display is displayed,
pressing and holding the “TRIP”
switch will adjust the brightness of
the meter light with the tail lights
on.
■The meters and display illuminate when
The engine switch is in the “ON” position (vehicles without smart entry & start
system) or in IGNITION ON mode (vehicles with smart entry & start system).
■ Outside temperature display
●In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 20 km/h [12 mph])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● When “--” is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
● The temperature range that can be displayed is from -40 °C (-40 °F) to 50 °C
(122 °F).
When the outside temperature drops below 3 °C (37 °F), the temperature dis-
play flashes.
Changing the display
NOTICE
■ To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (“H”). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( →P. 590)
AVENSIS_OM_OM20C20E_(EE).book Page 107 Thursday, January 29, 2015 1:47 PM

1082. Instrument cluster
AVENSIS_OM_OM20C20E_(EE)

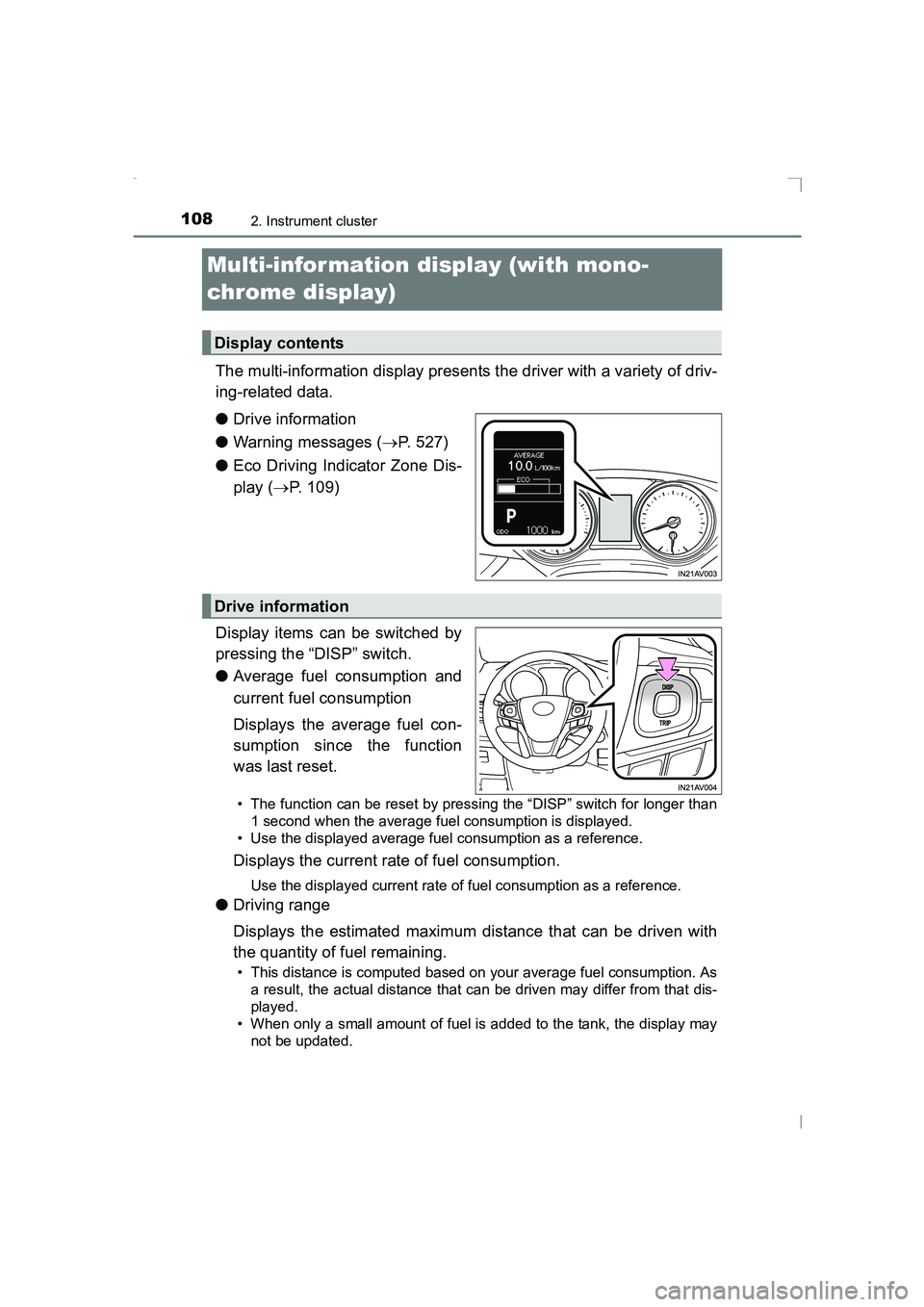

Multi-information display (with mono-
chrome display)
The multi-information display presents the driver with a variety of driv-
ing-related data.
●Drive information
● Warning messages ( →P. 527)
● Eco Driving Indicator Zone Dis-
play ( →P. 109)
Display items can be switched by
pressing the “DISP” switch.
● Average fuel consumption and
current fuel consumption
Displays the average fuel con-
sumption since the function
was last reset.
• The function can be reset by pressing the “DISP” switch for longer than
1 second when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
Displays the current rate of fuel consumption.
Use the displayed current rate of fuel consumption as a reference.
● Driving range
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
Display contents
Drive information
AVENSIS_OM_OM20C20E_(EE).book Page 108 Thursday, January 29, 2015 1:47 PM

1092. Instrument cluster
2
Instrument cluster

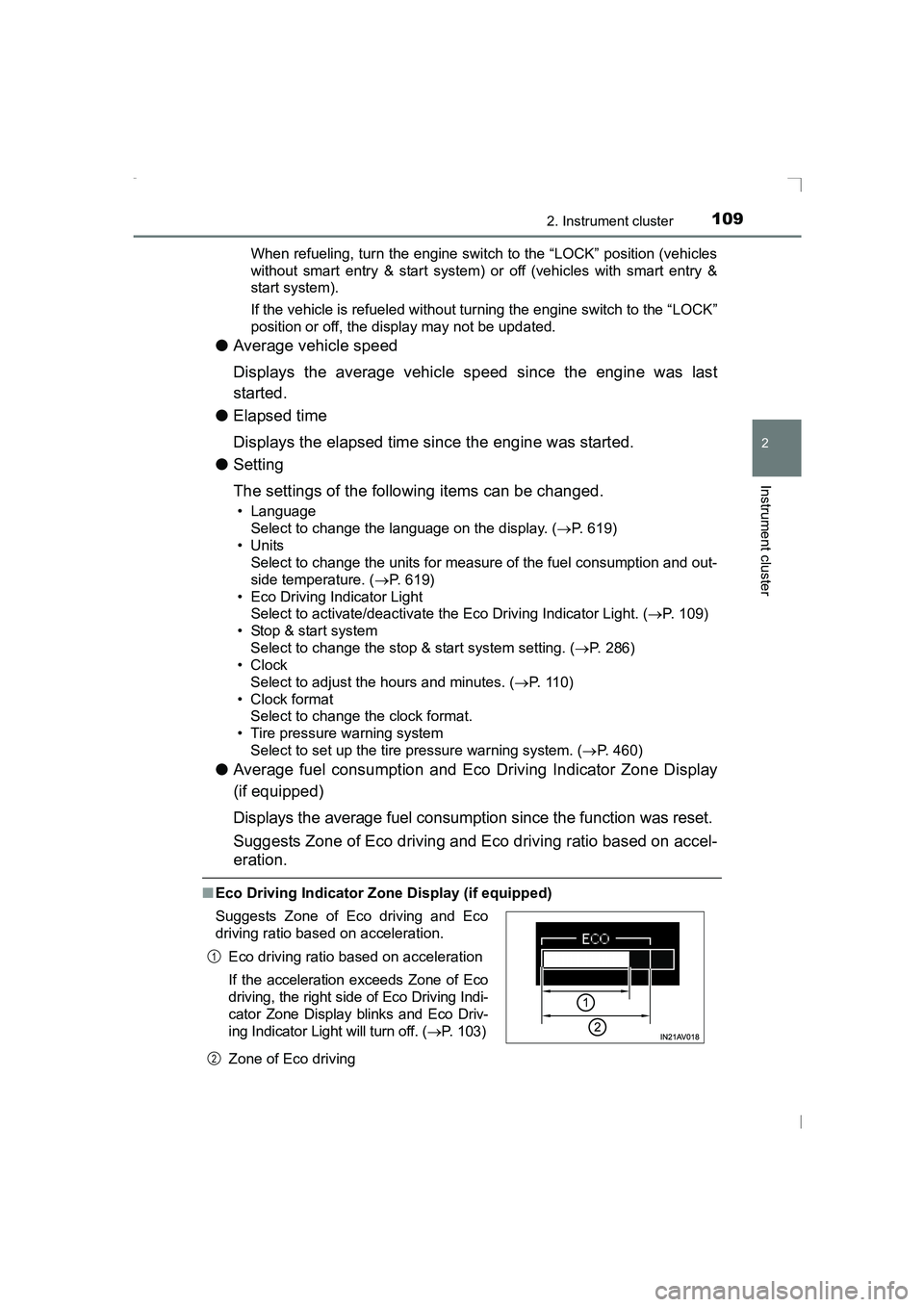

AVENSIS_OM_OM20C20E_(EE)When refueling, turn the engine switch to the “LOCK” position (vehicles
without smart entry & start system) or off (vehicles with smart entry &
start system).
If the vehicle is refueled without turning the engine switch to the “LOCK”
position or off, the display may not be updated.
●
Average vehicle speed
Displays the average vehicle speed since the engine was last
started.
● Elapsed time
Displays the elapsed time since the engine was started.
● Setting
The settings of the following items can be changed.
• Language
Select to change the language on the display. ( →P. 619)
•Units Select to change the units for measure of the fuel consumption and out-
side temperature. ( →P. 619)
• Eco Driving Indicator Light Select to activate/deactivate the Eco Driving Indicator Light. ( →P. 109)
• Stop & start system Select to change the stop & start system setting. ( →P. 286)
•Clock
Select to adjust the hours and minutes. ( →P. 110)
•Clock format Select to change the clock format.
• Tire pressure warning system Select to set up the tire pressure warning system. ( →P. 460)
● Average fuel consumption and Eco Driving Indicator Zone Display
(if equipped)
Displays the average fuel consumption since the function was reset.
Suggests Zone of Eco driving and Eco driving ratio based on accel-
eration.
■Eco Driving Indicator Zone Display (if equipped)
Zone of Eco driving
Suggests Zone of Eco driving and Eco
driving ratio based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds Zone of Eco
driving, the right side of Eco Driving Indi-
cator Zone Display blinks and Eco Driv-
ing Indicator Light will turn off. ( →P. 103)
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 109 Thursday, January 29, 2015 1:47 PM

1102. Instrument cluster

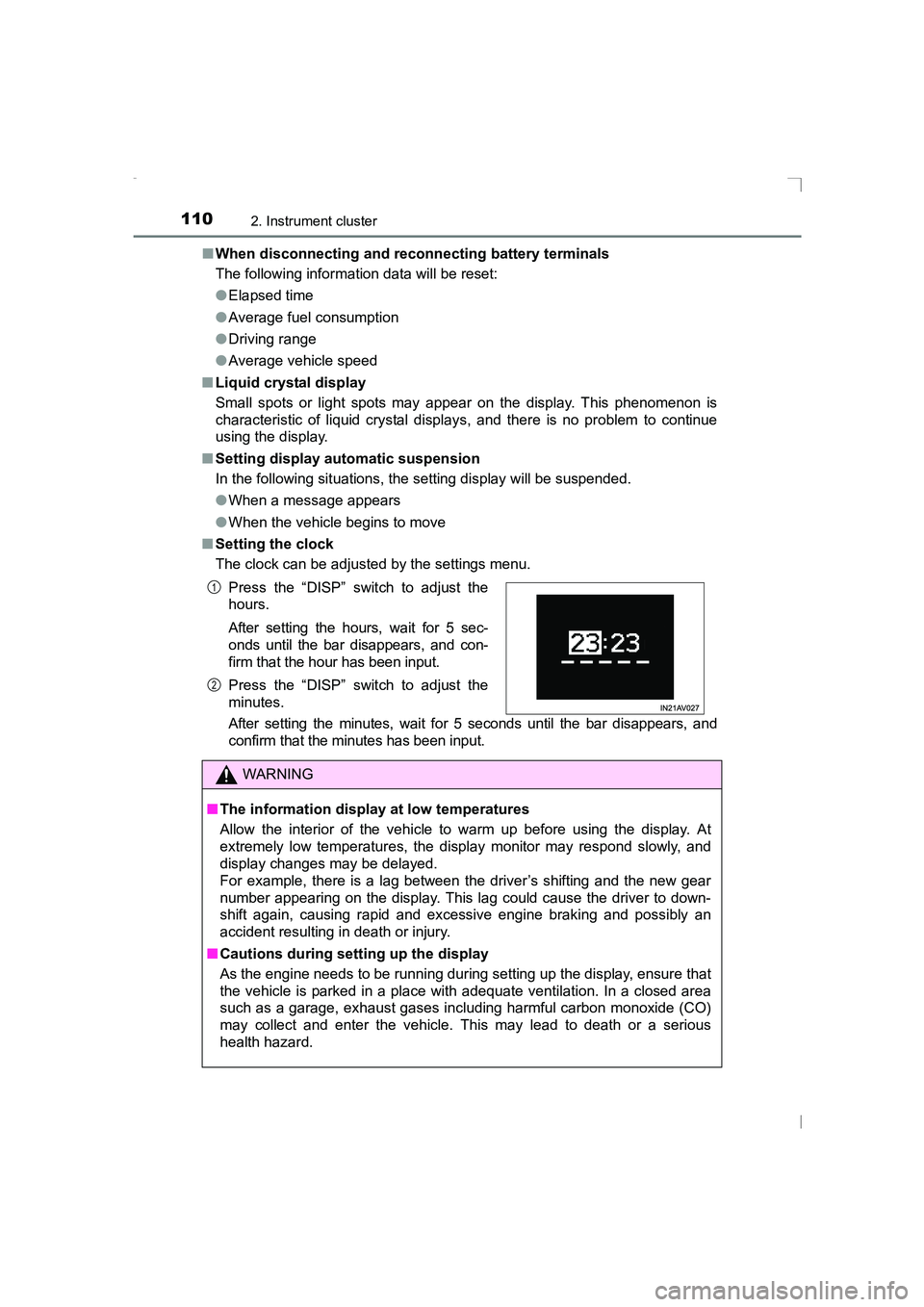

AVENSIS_OM_OM20C20E_(EE)■
When disconnecting and reconnecting battery terminals
The following information data will be reset:
●Elapsed time
● Average fuel consumption
● Driving range
● Average vehicle speed
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem to continue
using the display.
■ Setting display automatic suspension
In the following situations, the setting display will be suspended.
●When a message appears
● When the vehicle begins to move
■ Setting the clock
The clock can be adjusted by the settings menu.
After setting the minutes, wait for 5 seconds until the bar disappears, and
confirm that the minutes has been input. Press the “DISP” switch to adjust the
hours.
After setting the hours, wait for 5 sec-
onds until the bar disappears, and con-
firm that the hour has been input.
Press the “DISP” switch to adjust the
minutes.
WARNING
■ The information display at low temperatures
Allow the interior of the vehicle to warm up before using the display. At
extremely low temperatures, the display monitor may respond slowly, and
display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 110 Thursday, January 29, 2015 1:47 PM
