TOYOTA AVENSIS 2015 Repair Manual

611-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security

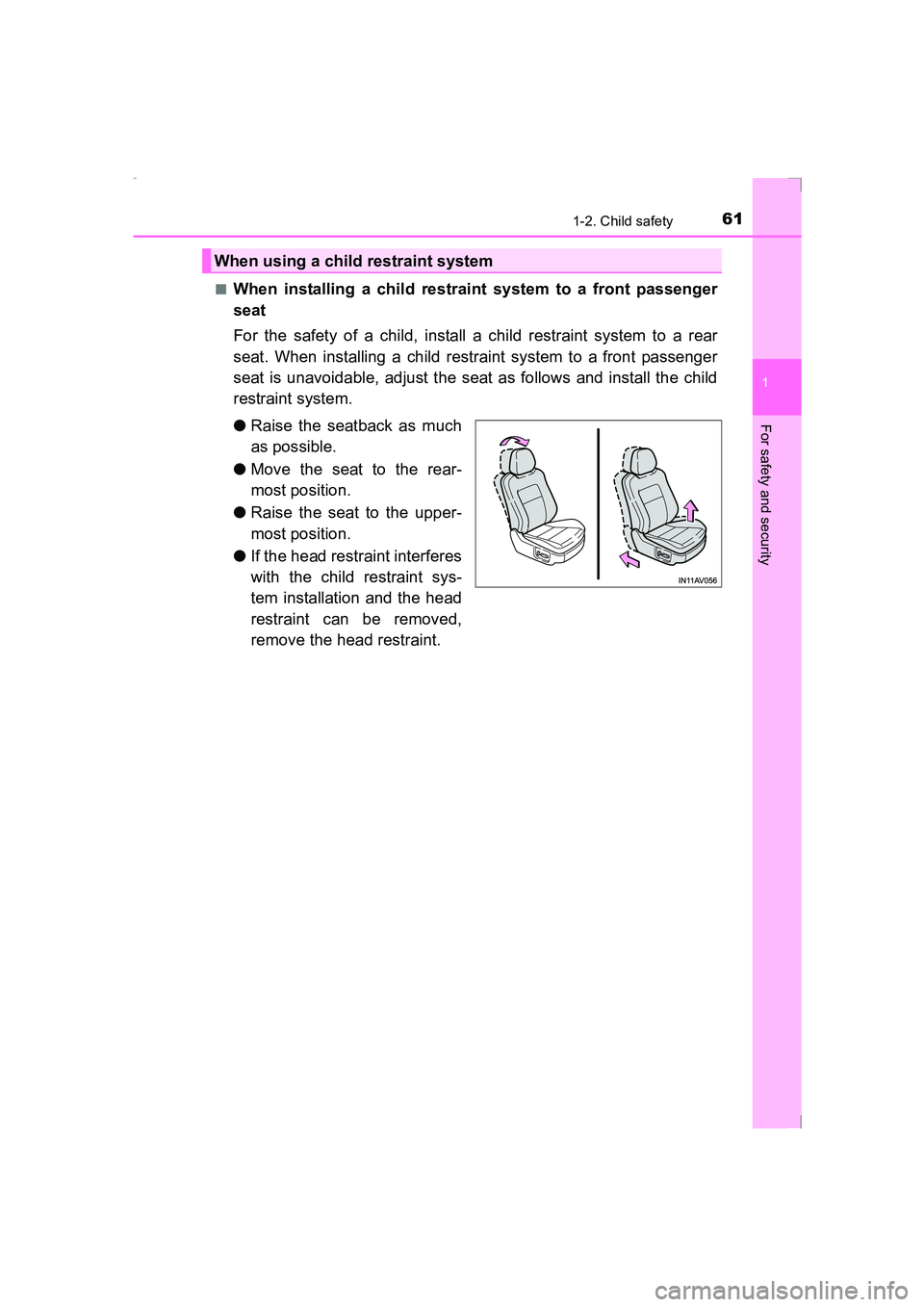

■When installing a child restraint system to a front passenger
seat
For the safety of a child, install a child restraint system to a rear
seat. When installing a child restraint system to a front passenger
seat is unavoidable, adjust the seat as follows and install the child
restraint system.
●Raise the seatback as much
as possible.
● Move the seat to the rear-
most position.
● Raise the seat to the upper-
most position.
● If the head restraint interferes
with the child restraint sys-
tem installation and the head
restraint can be removed,
remove the head restraint.
When using a child restraint system
AVENSIS_OM_OM20C20E_(EE).book Page 61 Thursday, January 29, 2 015 1:47 PM

621-2. Child safety
AVENSIS_OM_OM20C20E_(EE)

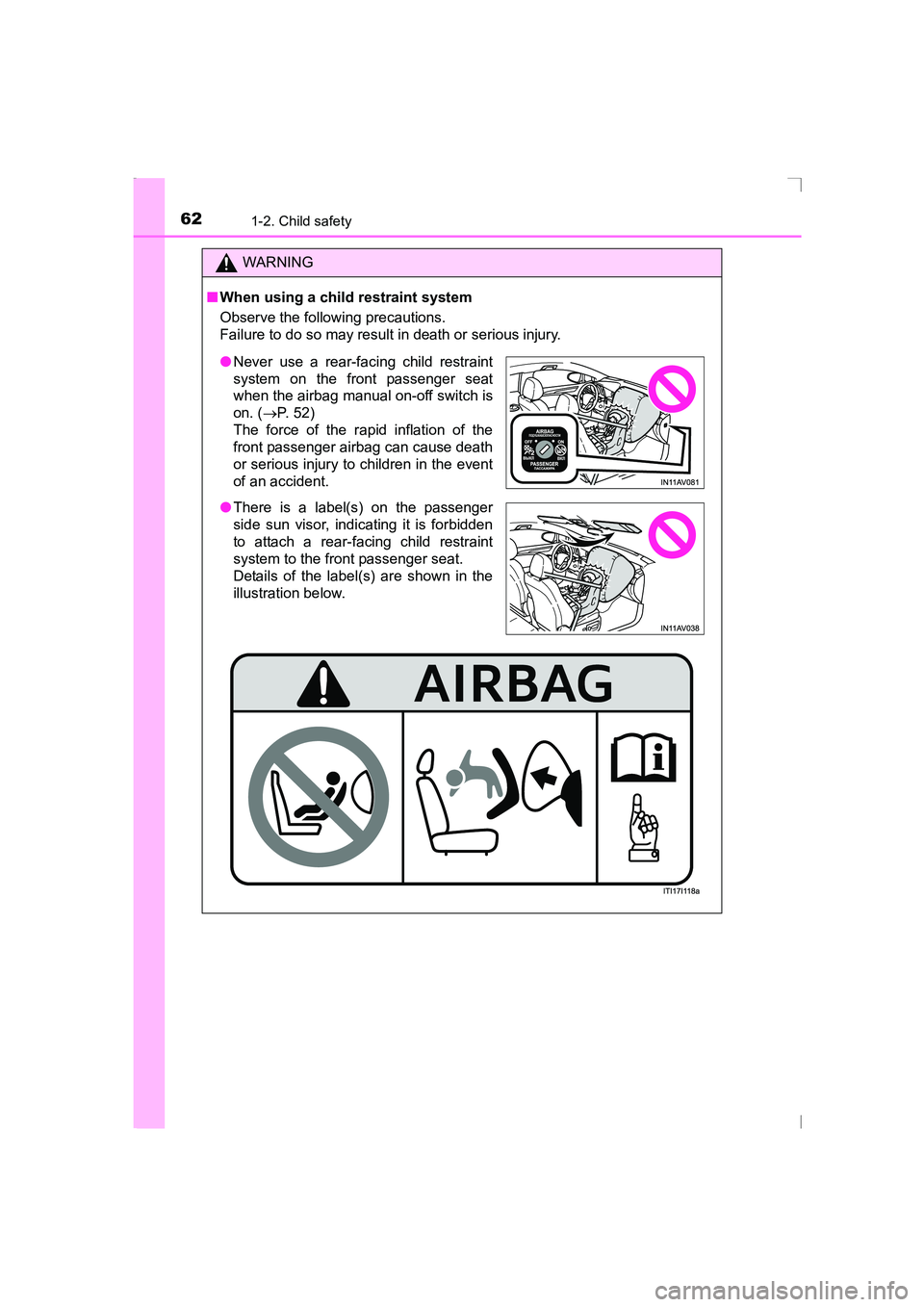

WARNING
■ When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. ( →P. 52)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
● There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.
AVENSIS_OM_OM20C20E_(EE).book Page 62 Thursday, January 29, 2 015 1:47 PM

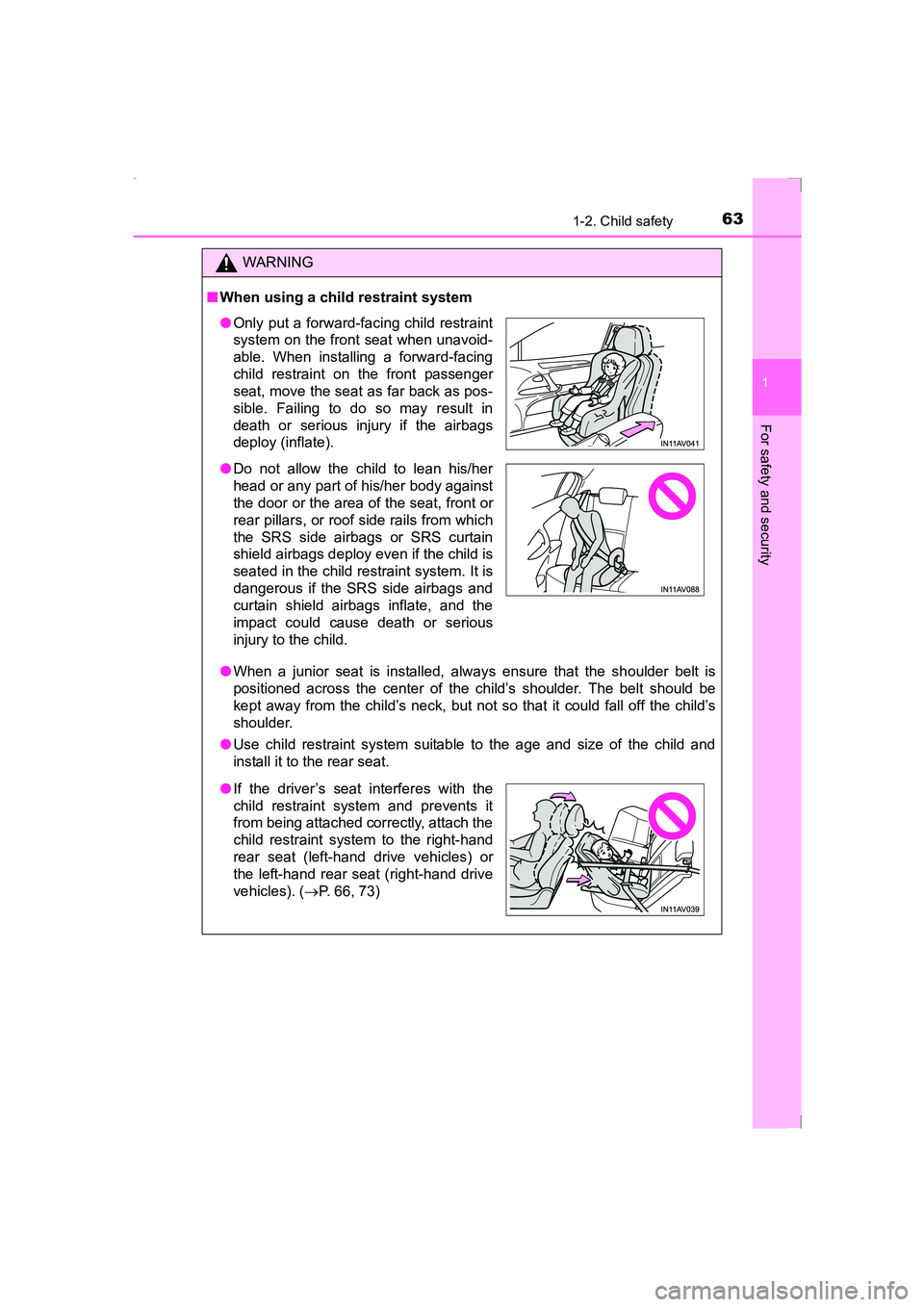

631-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security
WARNING
■ When using a child restraint system
●When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Use child restraint system suitable to the age and size of the child and
install it to the rear seat.
●Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint on the front passenger
seat, move the seat as far back as pos-
sible. Failing to do so may result in
death or serious injury if the airbags
deploy (inflate).
● Do not allow the child to lean his/her
head or any part of his/her body against
the door or the area of the seat, front or
rear pillars, or roof side rails from which
the SRS side airbags or SRS curtain
shield airbags deploy even if the child is
seated in the child restraint system. It is
dangerous if the SRS side airbags and
curtain shield airbags inflate, and the
impact could cause death or serious
injury to the child.
●If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat (left-hand drive vehicles) or
the left-hand rear seat (right-hand drive
vehicles). ( →P. 66, 73)
AVENSIS_OM_OM20C20E_(EE).book Page 63 Thursday, January 29, 2 015 1:47 PM

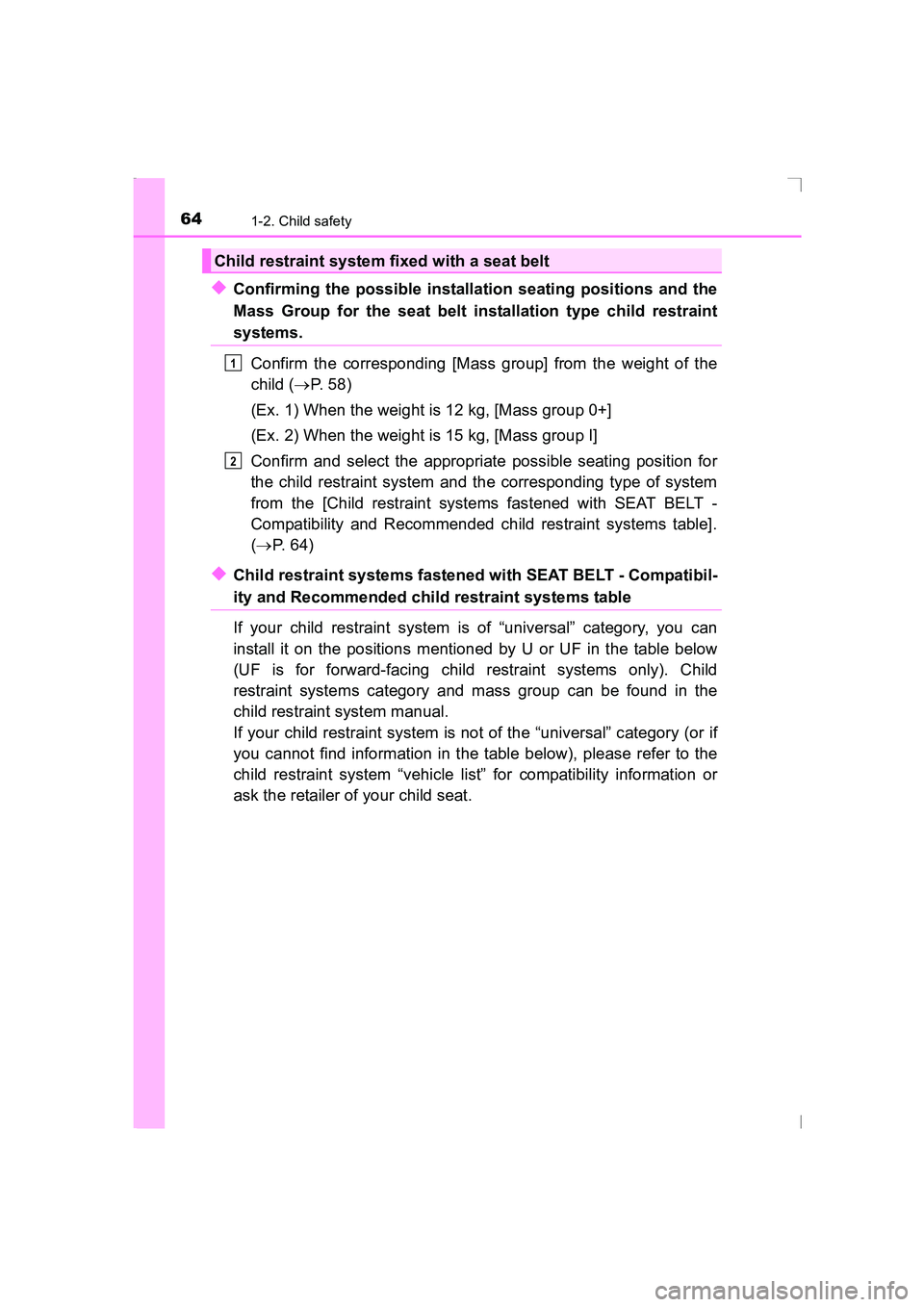

641-2. Child safety
AVENSIS_OM_OM20C20E_(EE)
◆Confirming the possible installation seating positions and the
Mass Group for the seat belt installation type child restraint
systems.Confirm the corresponding [Mass group] from the weight of the
child ( →P. 58)
(Ex. 1) When the weight is 12 kg, [Mass group 0+]
(Ex. 2) When the weight is 15 kg, [Mass group I]
Confirm and select the appropriate possible seating position for
the child restraint system and the corresponding type of system
from the [Child restraint systems fastened with SEAT BELT -
Compatibility and Recommended child restraint systems table].
( → P. 6 4 )
◆Child restraint systems fastened with SEAT BELT - Compatibil-
ity and Recommended child restraint systems table
If your child restraint system is of “universal” category, you can
install it on the positions mentioned by U or UF in the table below
(UF is for forward-facing child restraint systems only). Child
restraint systems category and mass group can be found in the
child restraint system manual.
If your child restraint system is not of the “universal” category (or if
you cannot find information in the table below), please refer to the
child restraint system “vehicle list” for compatibility information or
ask the retailer of your child seat.
Child restraint system fixed with a seat belt
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 64 Thursday, January 29, 2 015 1:47 PM

651-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security

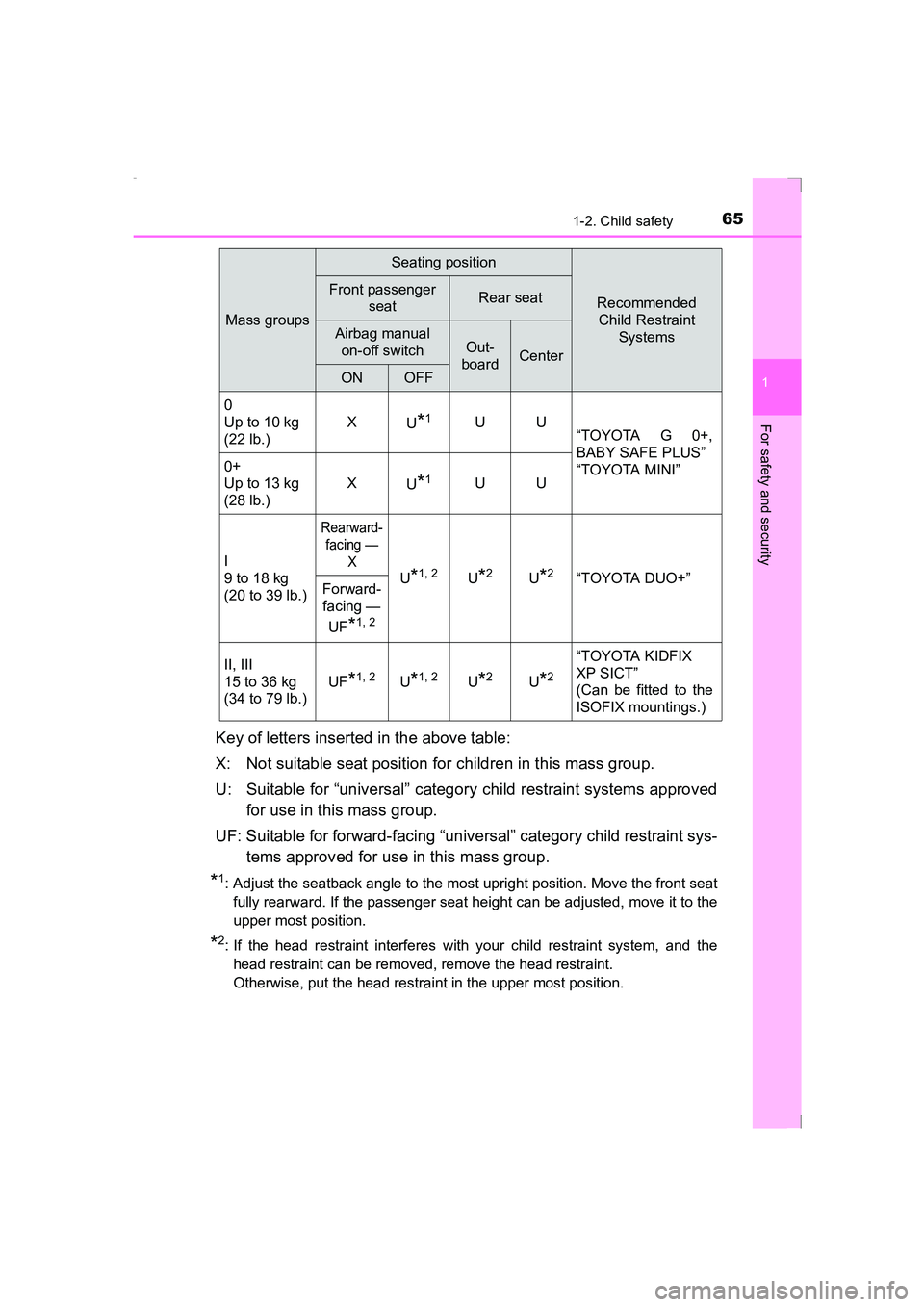

Key of letters inserted in the above table:
X: Not suitable seat position for children in this mass group.
U: Suitable for “universal” category child restraint systems approvedfor use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint sys- tems approved for use in this mass group.
*1: Adjust the seatback angle to the most upright position. Move the front seatfully rearward. If the passenger seat height can be adjusted, move it to the
upper most position.
*2: If the head restraint interferes with your child restraint system, and thehead restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
Mass groups
Seating position
Recommended Child Restraint
SystemsFront passenger seatRear seat
Airbag manual
on-off switchOut-
boardCenter
ONOFF
0
Up to 10 kg
(22 lb.) X
U
*1UU
“TOYOTA G 0+,
BABY SAFE PLUS”
“TOYOTA MINI”
0+
Up to 13 kg
(28 lb.) X
U
*1UU
I
9 to 18 kg
(20 to 39 lb.)
Rearward- facing — X
U*1, 2U*2U*2“TOYOTA DUO+”
Forward-
facing —
UF
*1, 2
II, III
15 to 36 kg
(34 to 79 lb.) UF
*1, 2U*1, 2U*2U*2
“TOYOTA KIDFIX
XP SICT”
(Can be fitted to the
ISOFIX mountings.)
AVENSIS_OM_OM20C20E_(EE).book Page 65 Thursday, January 29, 2
015 1:47 PM

661-2. Child safety
AVENSIS_OM_OM20C20E_(EE)

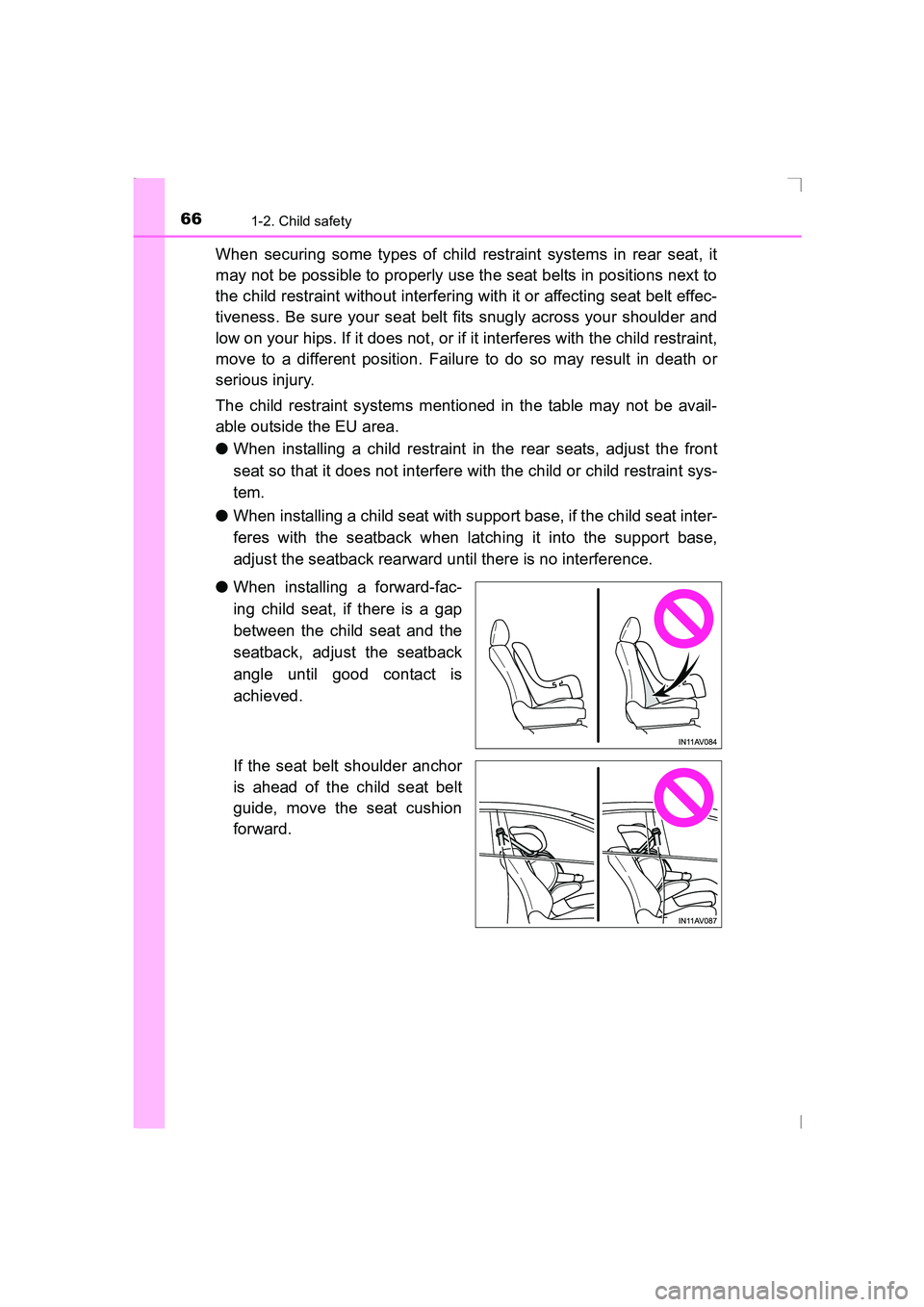

When securing some types of child restraint systems in rear seat, it
may not be possible to properly use the seat belts in positions next to
the child restraint without interfering with it or affecting seat belt effec-
tiveness. Be sure your seat belt fits snugly across your shoulder and
low on your hips. If it does not, or if it interferes with the child restraint,
move to a different position. Failure to do so may result in death or
serious injury.
The child restraint systems mentioned in the table may not be avail-
able outside the EU area.
●When installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child restraint sys-
tem.
● When installing a child seat with support base, if the child seat inter-
feres with the seatback when latching it into the support base,
adjust the seatback rearward until there is no interference.
● When installing a forward-fac-
ing child seat, if there is a gap
between the child seat and the
seatback, adjust the seatback
angle until good contact is
achieved.
If the seat belt shoulder anchor
is ahead of the child seat belt
guide, move the seat cushion
forward.
AVENSIS_OM_OM20C20E_(EE).book Page 66 Thursday, January 29, 2 015 1:47 PM

671-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security

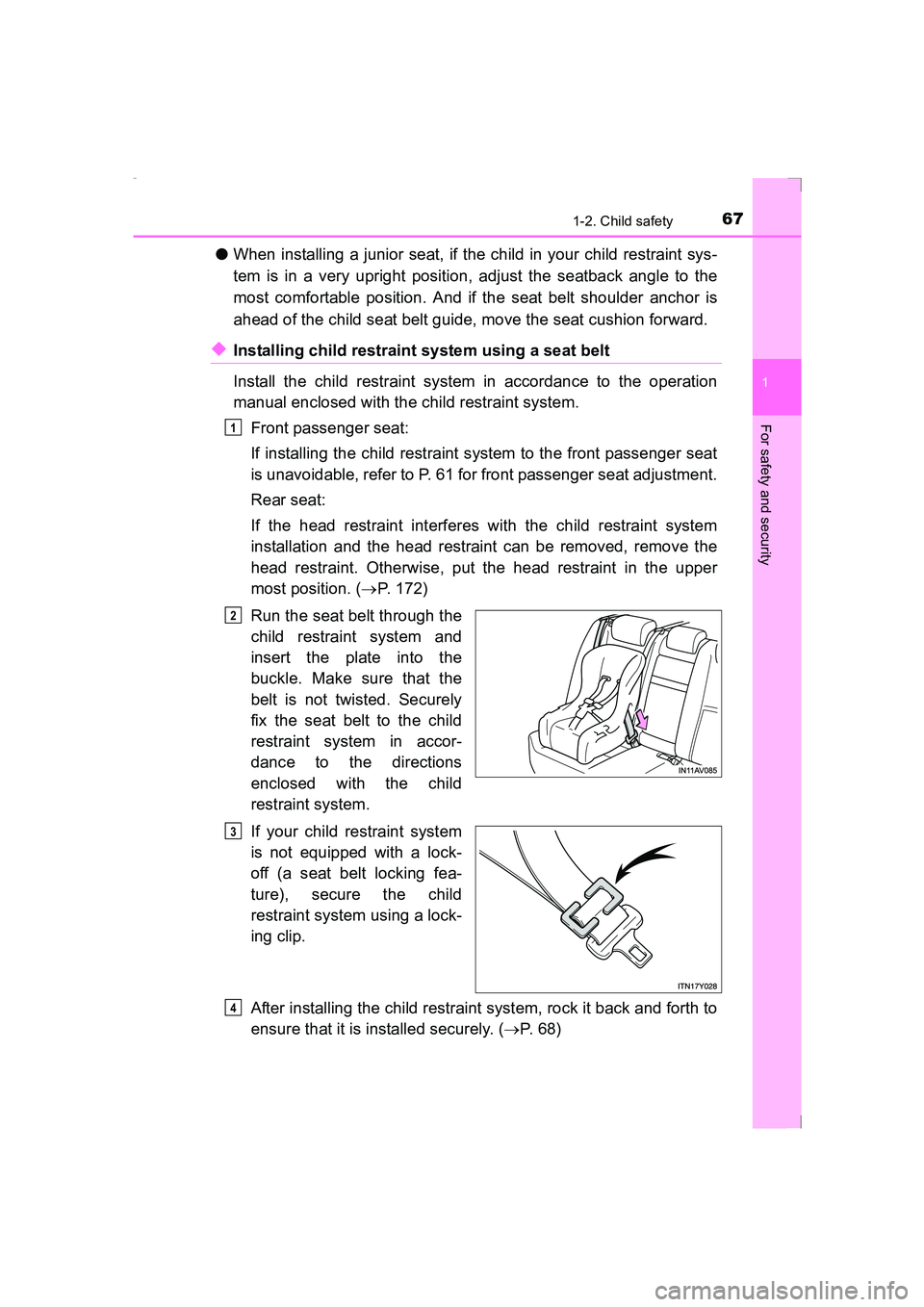

●When installing a junior seat, if the child in your child restraint sys-
tem is in a very upright position, adjust the seatback angle to the
most comfortable position. And if the seat belt shoulder anchor is
ahead of the child seat belt guide, move the seat cushion forward.
◆Installing child restraint system using a seat belt
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.
Front passenger seat:
If installing the child restraint system to the front passenger seat
is unavoidable, refer to P. 61 for front passenger seat adjustment.
Rear seat:
If the head restraint interferes with the child restraint system
installation and the head restraint can be removed, remove the
head restraint. Otherwise, put the head restraint in the upper
most position. ( →P. 172)
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted. Securely
fix the seat belt to the child
restraint system in accor-
dance to the directions
enclosed with the child
restraint system.
If your child restraint system
is not equipped with a lock-
off (a seat belt locking fea-
ture), secure the child
restraint system using a lock-
ing clip.
After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. ( →P. 6 8 )
1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 67 Thursday, January 29, 2 015 1:47 PM

681-2. Child safety
AVENSIS_OM_OM20C20E_(EE)

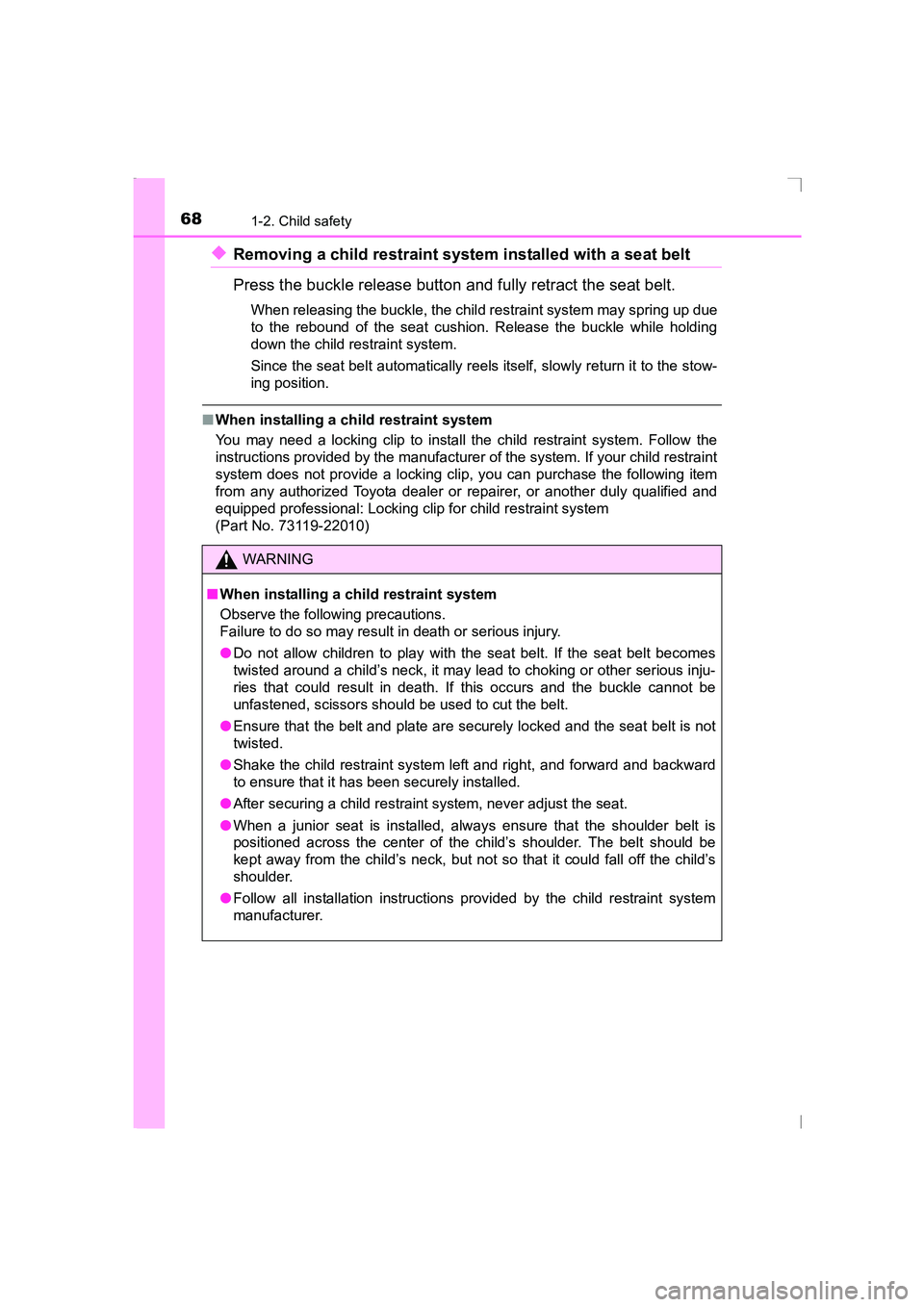

◆Removing a child restraint system installed with a seat belt
Press the buckle release button and fully retract the seat belt.
When releasing the buckle, the child restraint system may spring up due
to the rebound of the seat cushion. Release the buckle while holding
down the child restraint system.
Since the seat belt automatically reels itself, slowly return it to the stow-
ing position.
■ When installing a child restraint system
You may need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child restraint
system does not provide a locking clip, you can purchase the following item
from any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional: Locking clip for child restraint system
(Part No. 73119-22010)
WARNING
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious inju-
ries that could result in death. If this occurs and the buckle cannot be
unfastened, scissors should be used to cut the belt.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Follow all installation instructions provided by the child restraint system
manufacturer.
AVENSIS_OM_OM20C20E_(EE).book Page 68 Thursday, January 29, 2 015 1:47 PM

691-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security

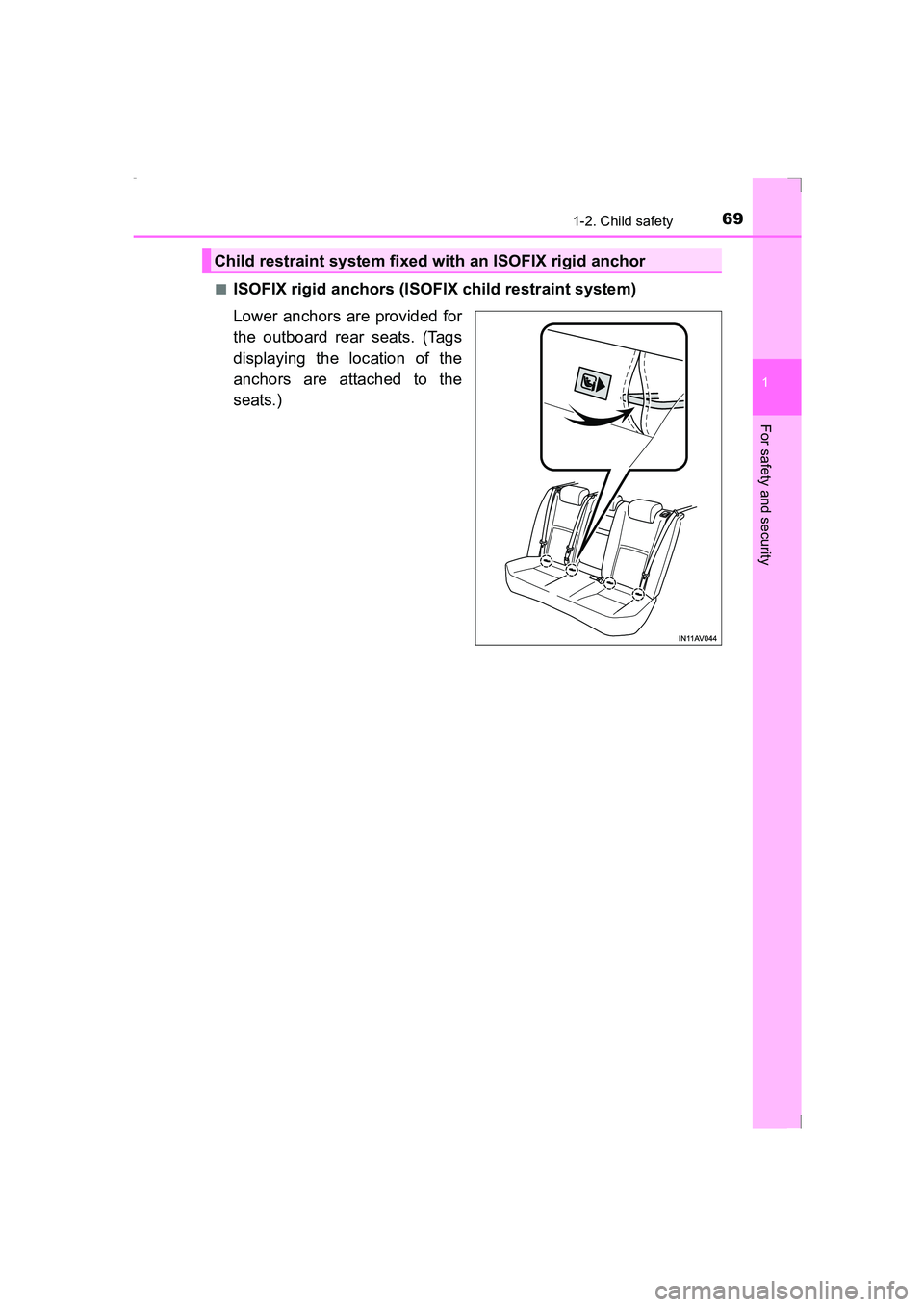

■ISOFIX rigid anchors (ISOFIX child restraint system)
Lower anchors are provided for
the outboard rear seats. (Tags
displaying the location of the
anchors are attached to the
seats.)
Child restraint system fixed with an ISOFIX rigid anchor
AVENSIS_OM_OM20C20E_(EE).book Page 69 Thursday, January 29, 2015 1:47 PM

701-2. Child safety
AVENSIS_OM_OM20C20E_(EE)■

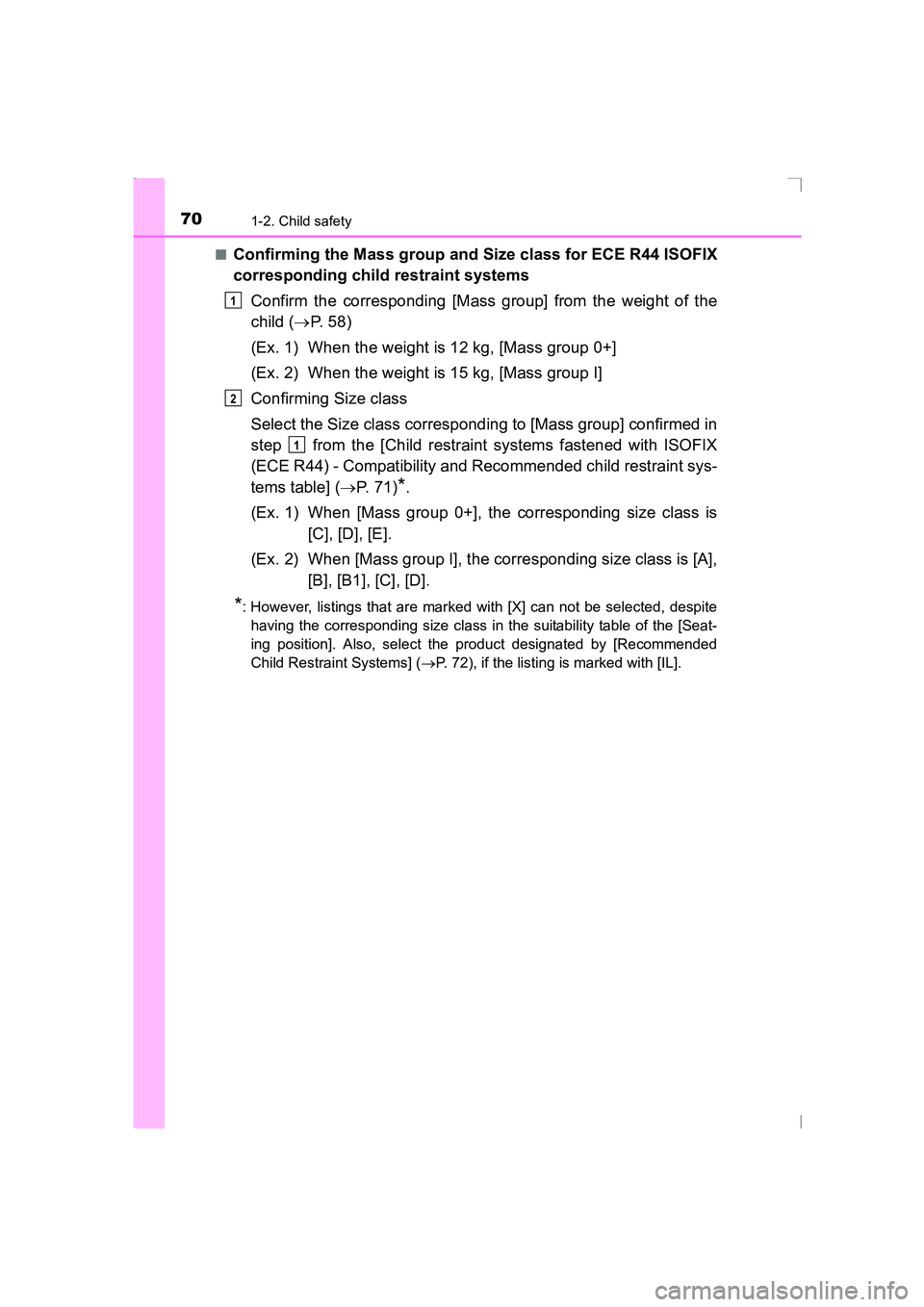

Confirming the Mass group and Size class for ECE R44 ISOFIX
corresponding child restraint systems
Confirm the corresponding [Mass group] from the weight of the
child ( →P. 58)
(Ex. 1) When the weight is 12 kg, [Mass group 0+]
(Ex. 2) When the weight is 15 kg, [Mass group I]
Confirming Size class
Select the Size class corresponding to [Mass group] confirmed in
step from the [Child restraint systems fastened with ISOFIX
(ECE R44) - Compatibility and Recommended child restraint sys-
tems table] ( →P. 7 1 )
*.
(Ex. 1) When [Mass group 0+], the corresponding size class is [C], [D], [E].
(Ex. 2) When [Mass group I], the corresponding size class is [A], [B], [B1], [C], [D].
*: However, listings that are marked with [X] can not be selected, despitehaving the corresponding size class in the suitability table of the [Seat-
ing position]. Also, select the product designated by [Recommended
Child Restraint Systems] ( →P. 72), if the listing is marked with [IL].
1
2
1
AVENSIS_OM_OM20C20E_(EE).book Page 70 Thursday, January 29, 2 015 1:47 PM
