TOYOTA AVENSIS 2015 Manual Online

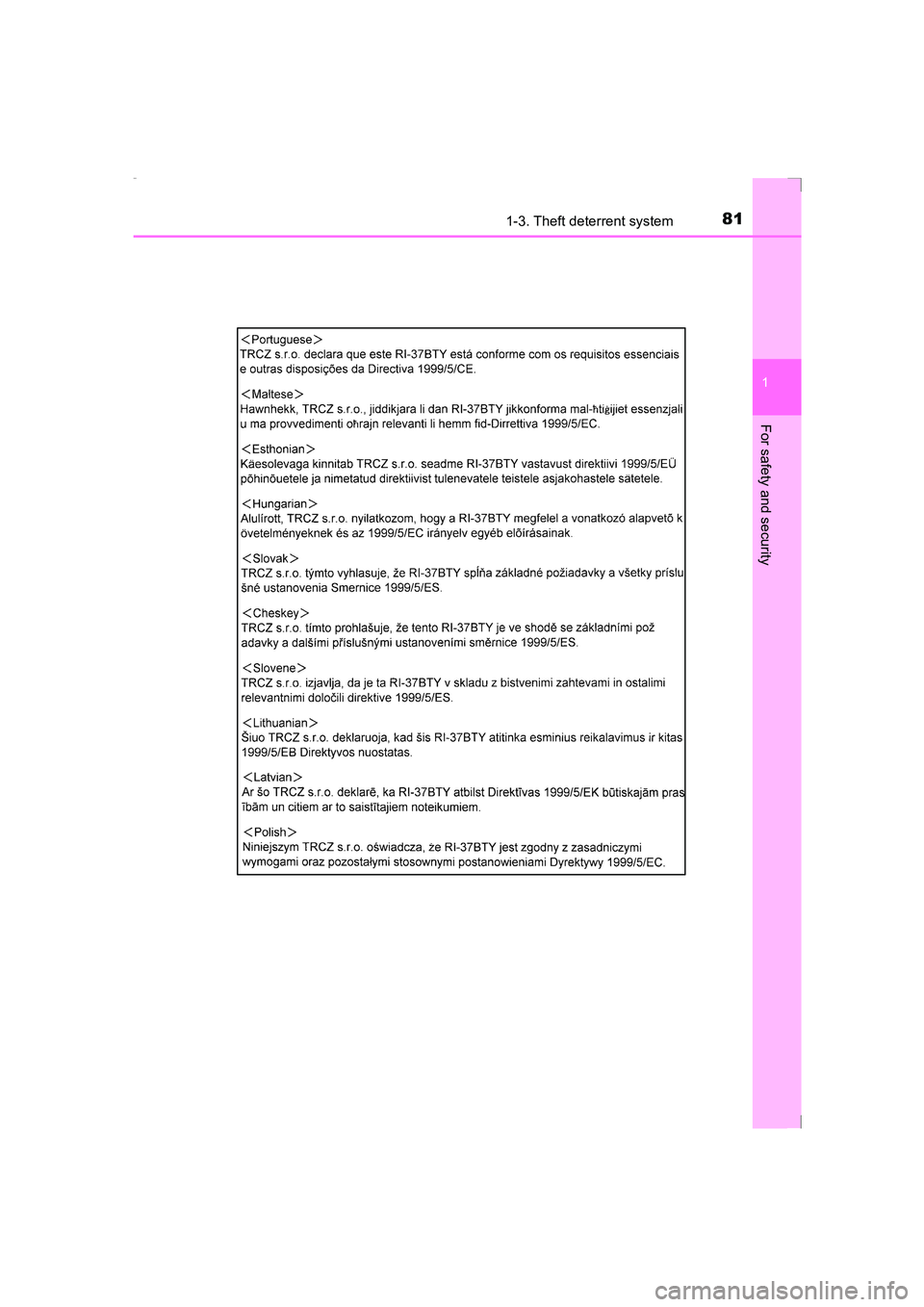

811-3. Theft deterrent system
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security
AVENSIS_OM_OM20C20E_(EE).book Page 81 Thursday, January 29, 2015 1:47 PM

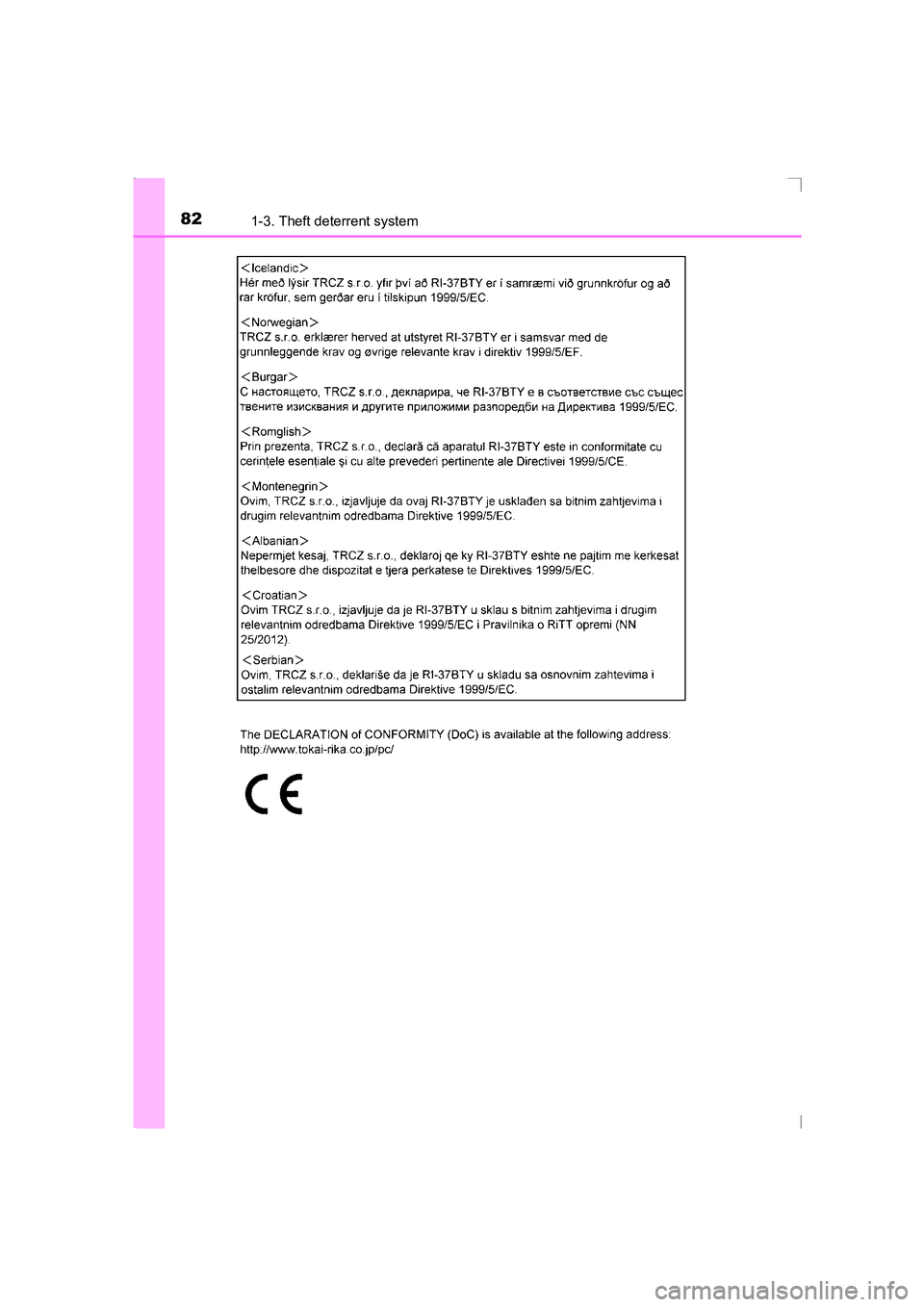

821-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 82 Thursday, January 29, 2015 1:47 PM

831-3. Theft deterrent system
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security

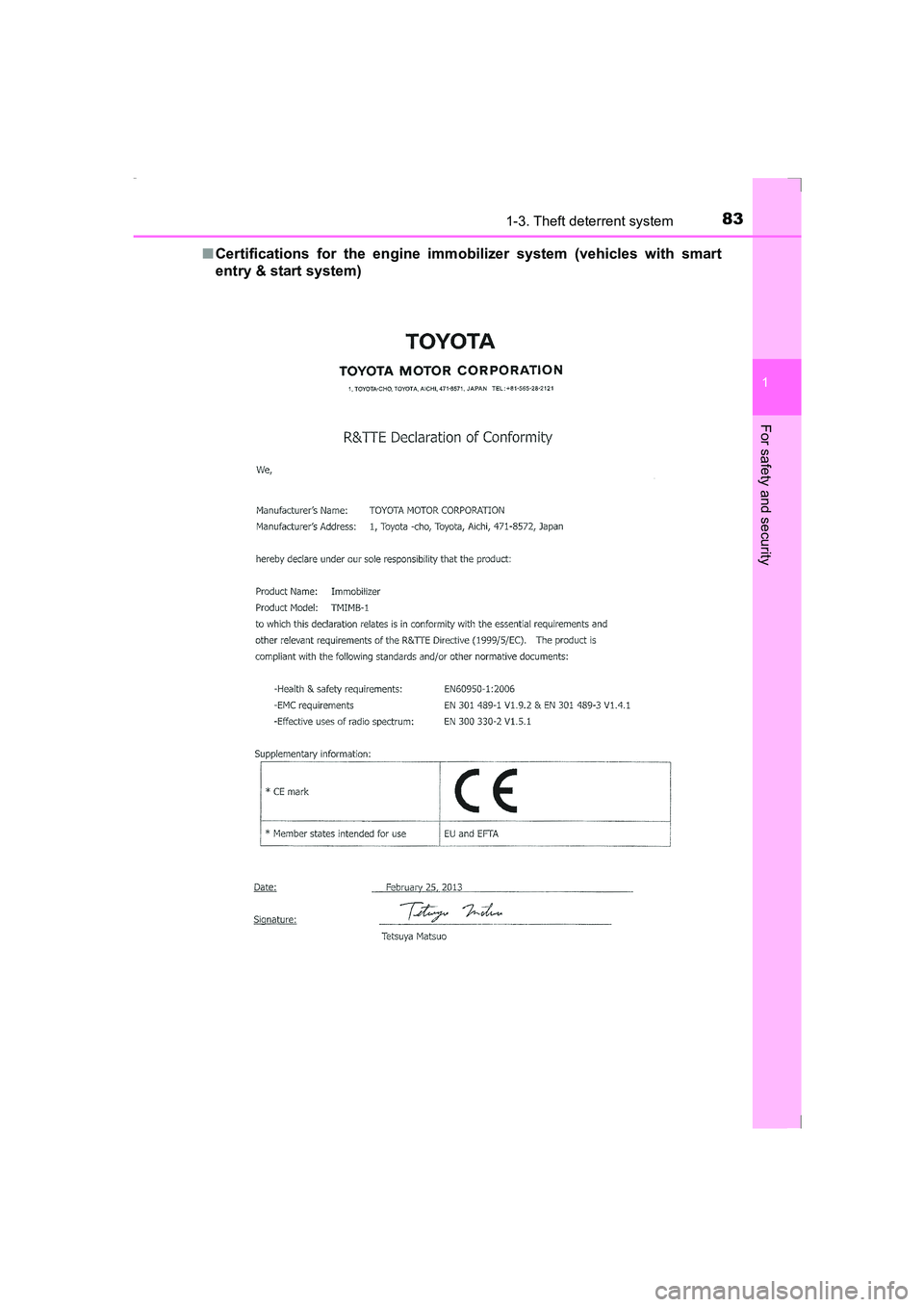

■Certifications for the engine immo bilizer system (vehicles with smart
entry & start system)
AVENSIS_OM_OM20C20E_(EE).book Page 83 Thursday, January 29, 2 015 1:47 PM

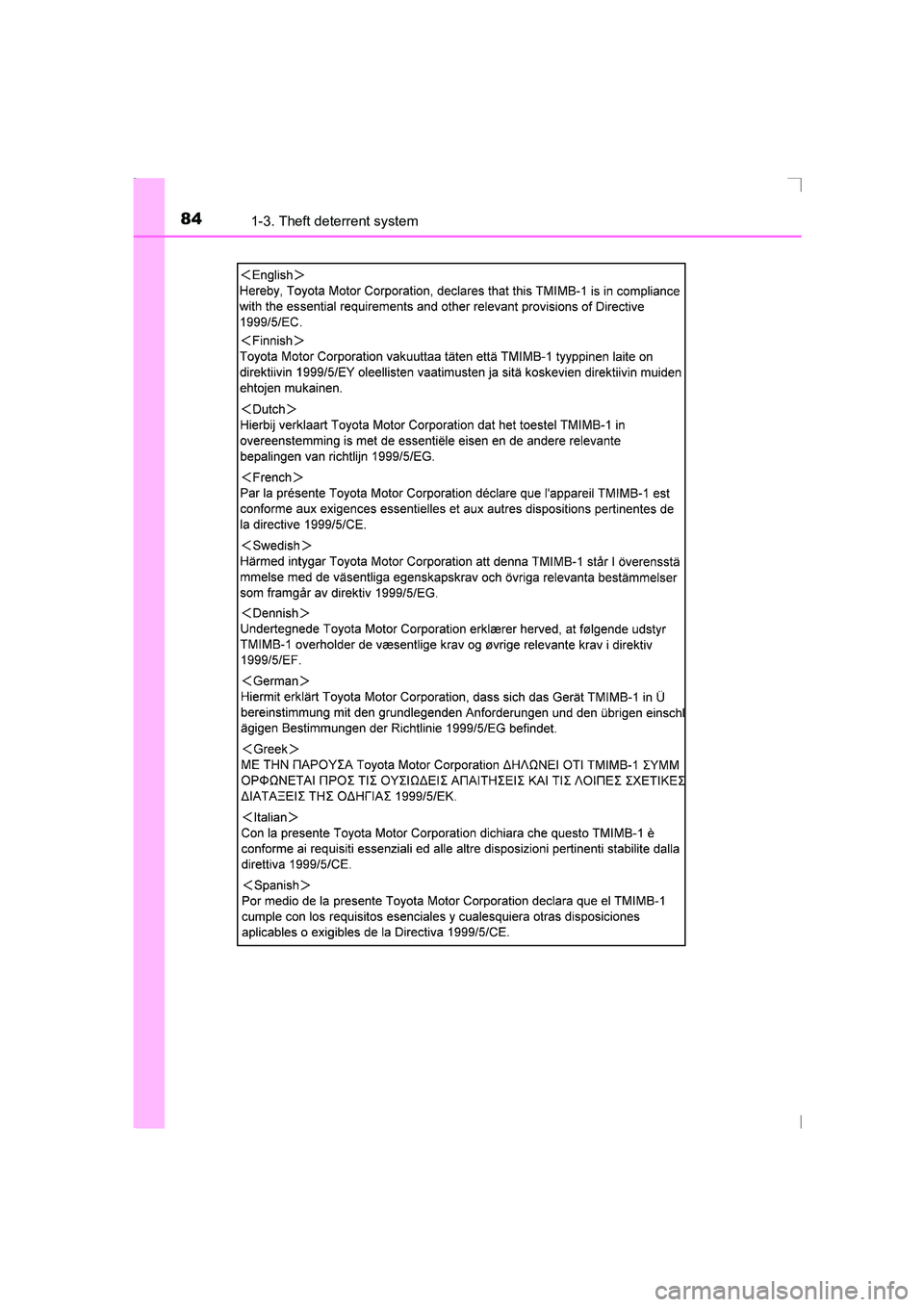

841-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 84 Thursday, January 29, 2015 1:47 PM

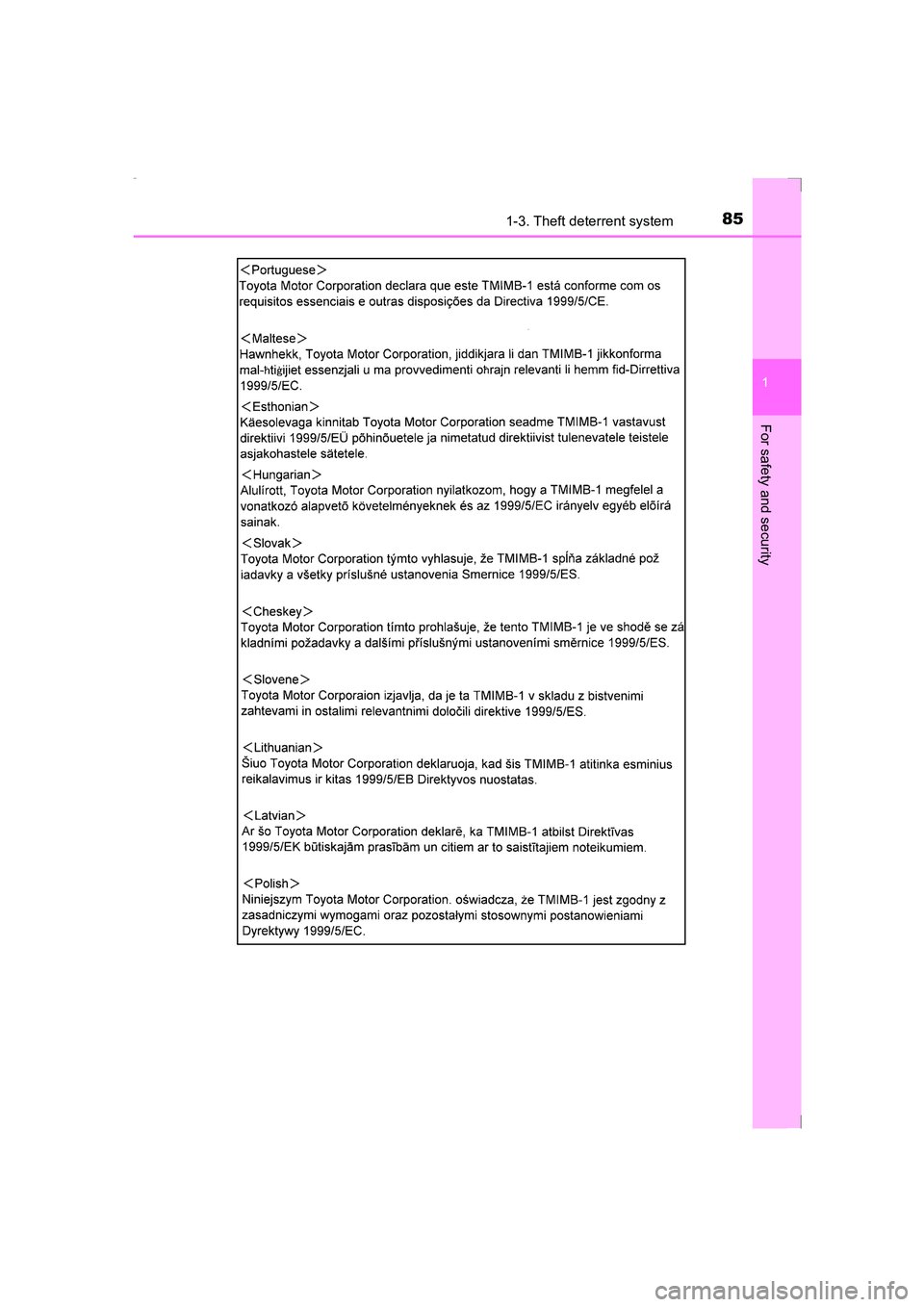

851-3. Theft deterrent system
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security
AVENSIS_OM_OM20C20E_(EE).book Page 85 Thursday, January 29, 2015 1:47 PM

861-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)NOTICE
■
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
AVENSIS_OM_OM20C20E_(EE).book Page 86 Thursday, January 29, 2 015 1:47 PM

87
1
1-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)
For safety and security

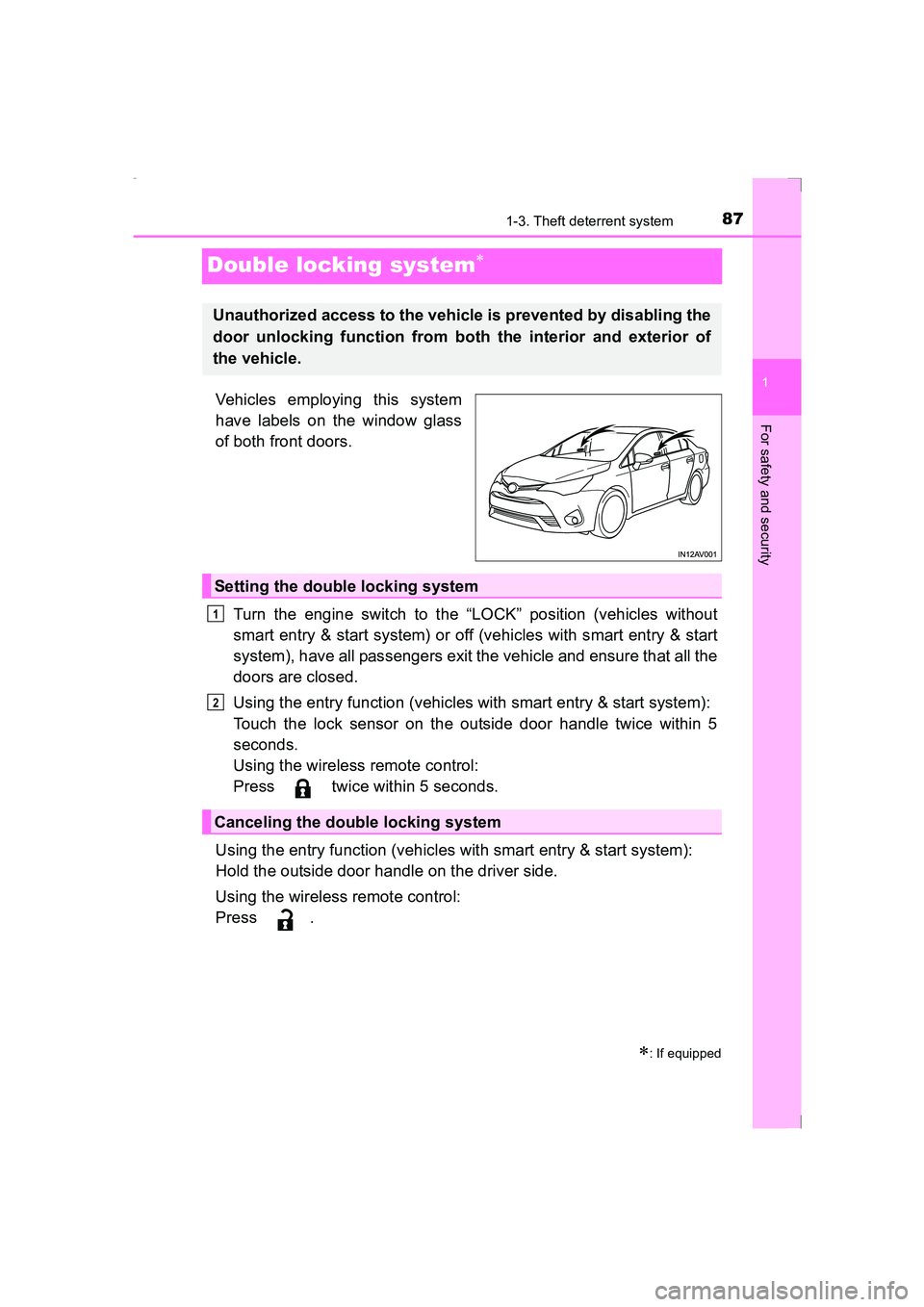

Double locking system∗
Vehicles employing this system
have labels on the window glass
of both front doors.Turn the engine switch to the “LOCK” position (vehicles without
smart entry & start system) or off (vehicles with smart entry & start
system), have all passengers exit the vehicle and ensure that all the
doors are closed.
Using the entry function (vehicles with smart entry & start system):
Touch the lock sensor on the outside door handle twice within 5
seconds.
Using the wireless remote control:
Press twice within 5 seconds.
Using the entry function (vehicles with smart entry & start system):
Hold the outside door handle on the driver side.
Using the wireless remote control:
Press .
∗: If equipped
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system
Canceling the double locking system
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 87 Thursday, January 29, 2 015 1:47 PM

881-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)

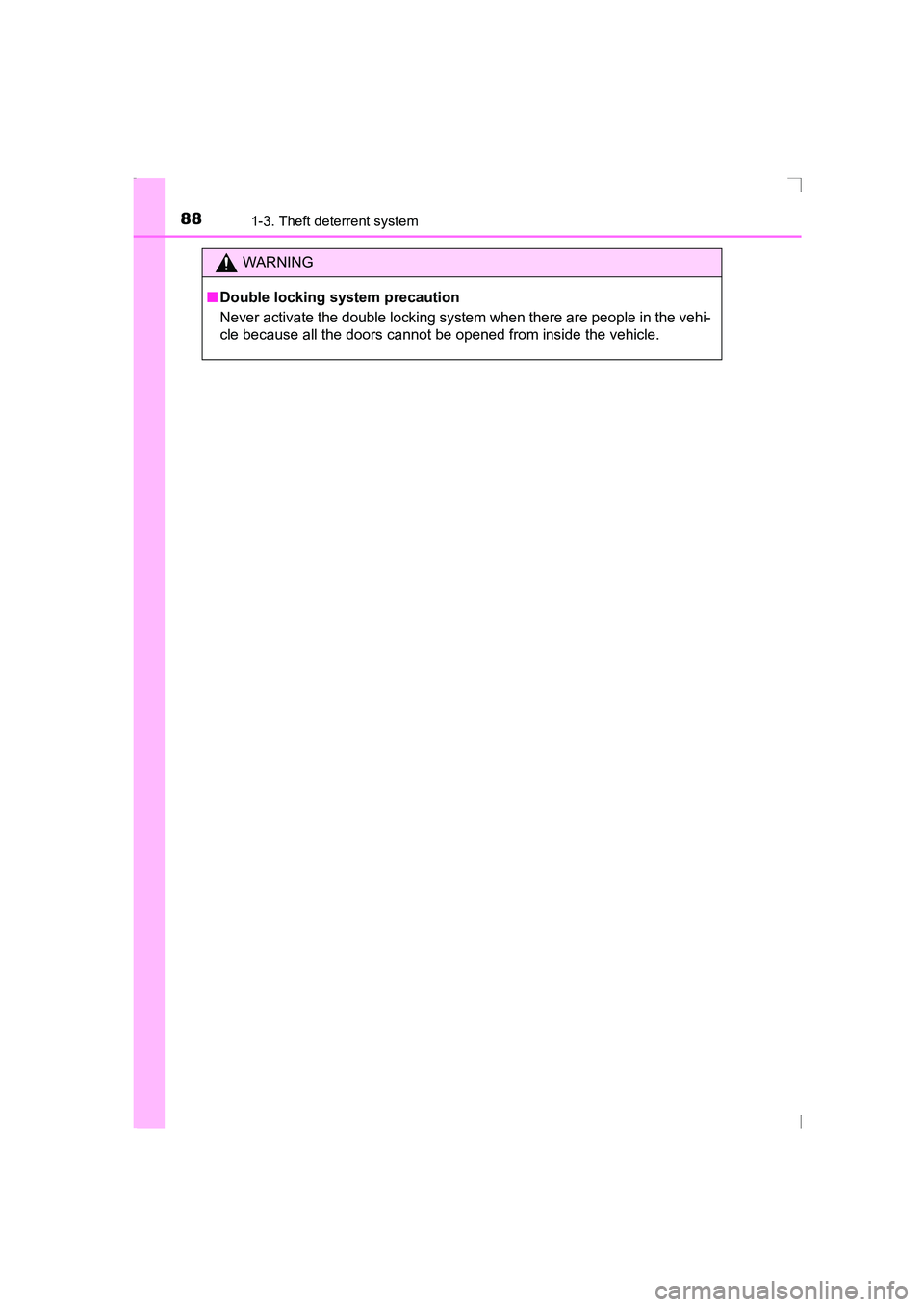

WARNING
■ Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle because all the doors cannot be opened from inside the vehicle.
AVENSIS_OM_OM20C20E_(EE).book Page 88 Thursday, January 29, 2 015 1:47 PM

89
1
1-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)
For safety and security

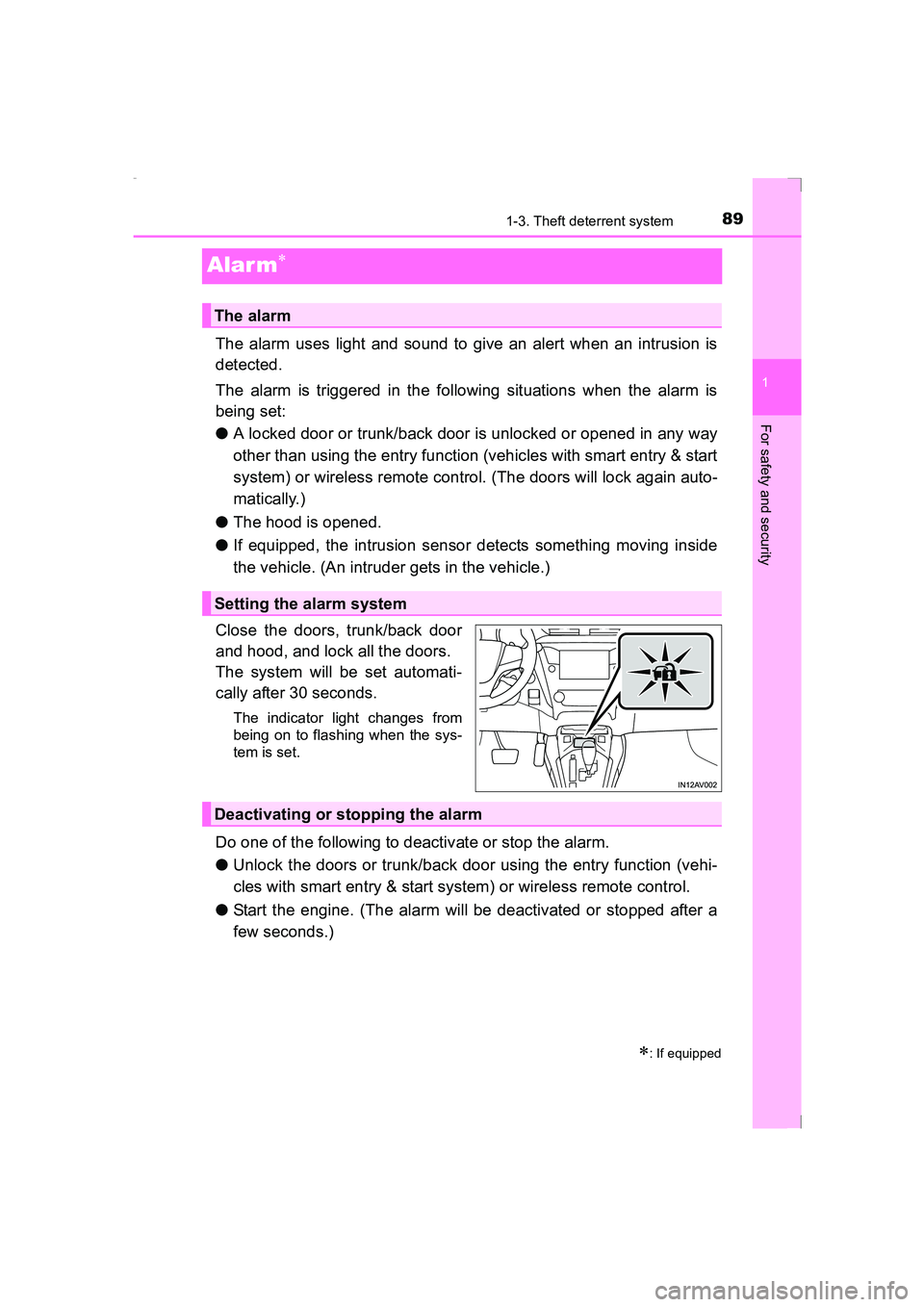

Alar m∗
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
being set:
●A locked door or trunk/back door is unlocked or opened in any way
other than using the entry function (vehicles with smart entry & start
system) or wireless remote control. (The doors will lock again auto-
matically.)
● The hood is opened.
● If equipped, the intrusion sensor detects something moving inside
the vehicle. (An intruder gets in the vehicle.)
Close the doors, trunk/back door
and hood, and lock all the doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Do one of the following to deactivate or stop the alarm.
● Unlock the doors or trunk/back door using the entry function (vehi-
cles with smart entry & start system) or wireless remote control.
● Start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
∗: If equipped
The alarm
Setting the alarm system
Deactivating or stopping the alarm
AVENSIS_OM_OM20C20E_(EE).book Page 89 Thursday, January 29, 2 015 1:47 PM

901-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)

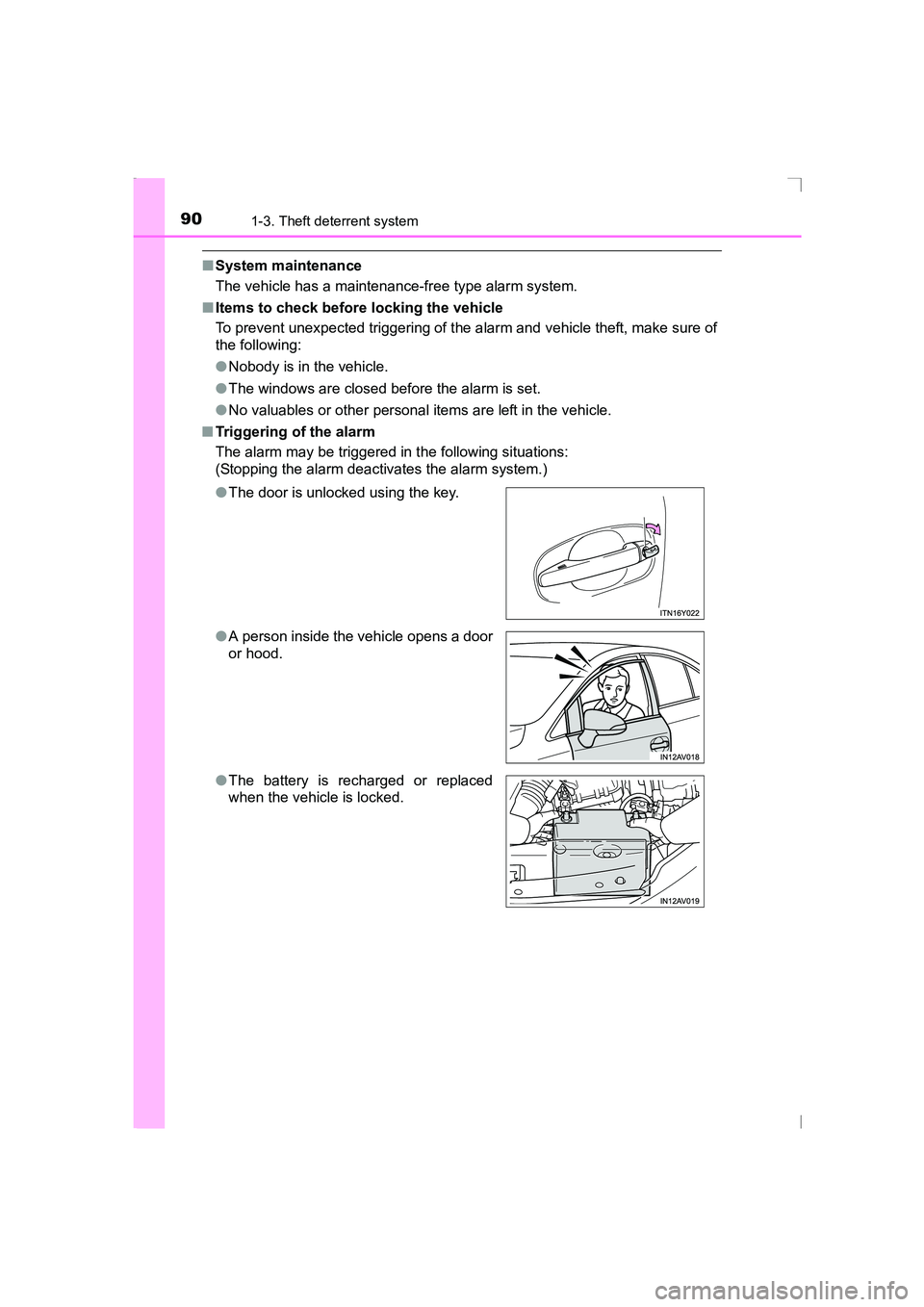

■System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
● Nobody is in the vehicle.
● The windows are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
●The door is unlocked using the key.
● A person inside the vehicle opens a door
or hood.
● The battery is recharged or replaced
when the vehicle is locked.
AVENSIS_OM_OM20C20E_(EE).book Page 90 Thursday, January 29, 2 015 1:47 PM
