TOYOTA AVENSIS 2017 Owners Manual (in English)

4617-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)
7
Maintenance and care

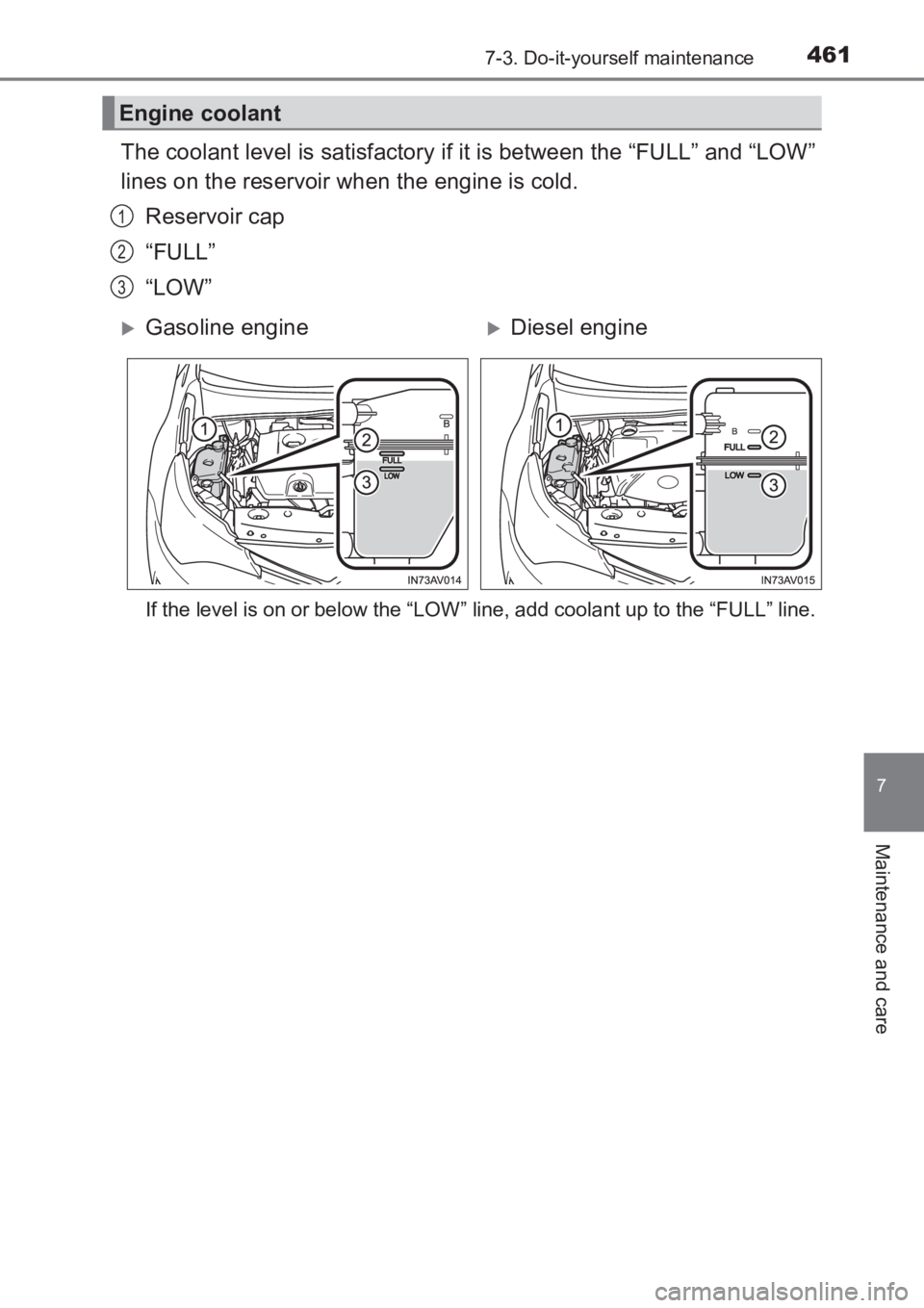

The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.Reservoir cap
“FULL”
“LOW”
If the level is on or below the “LOW” line, add coolant up to the “FULL” line.
Engine coolant
1
2
3
XGasoline engineXDiesel engine
AVENSIS_OM_OM20C66E_(EE).book Page 461 Wednesday, June 15, 20 16 4:07 PM

4627-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)

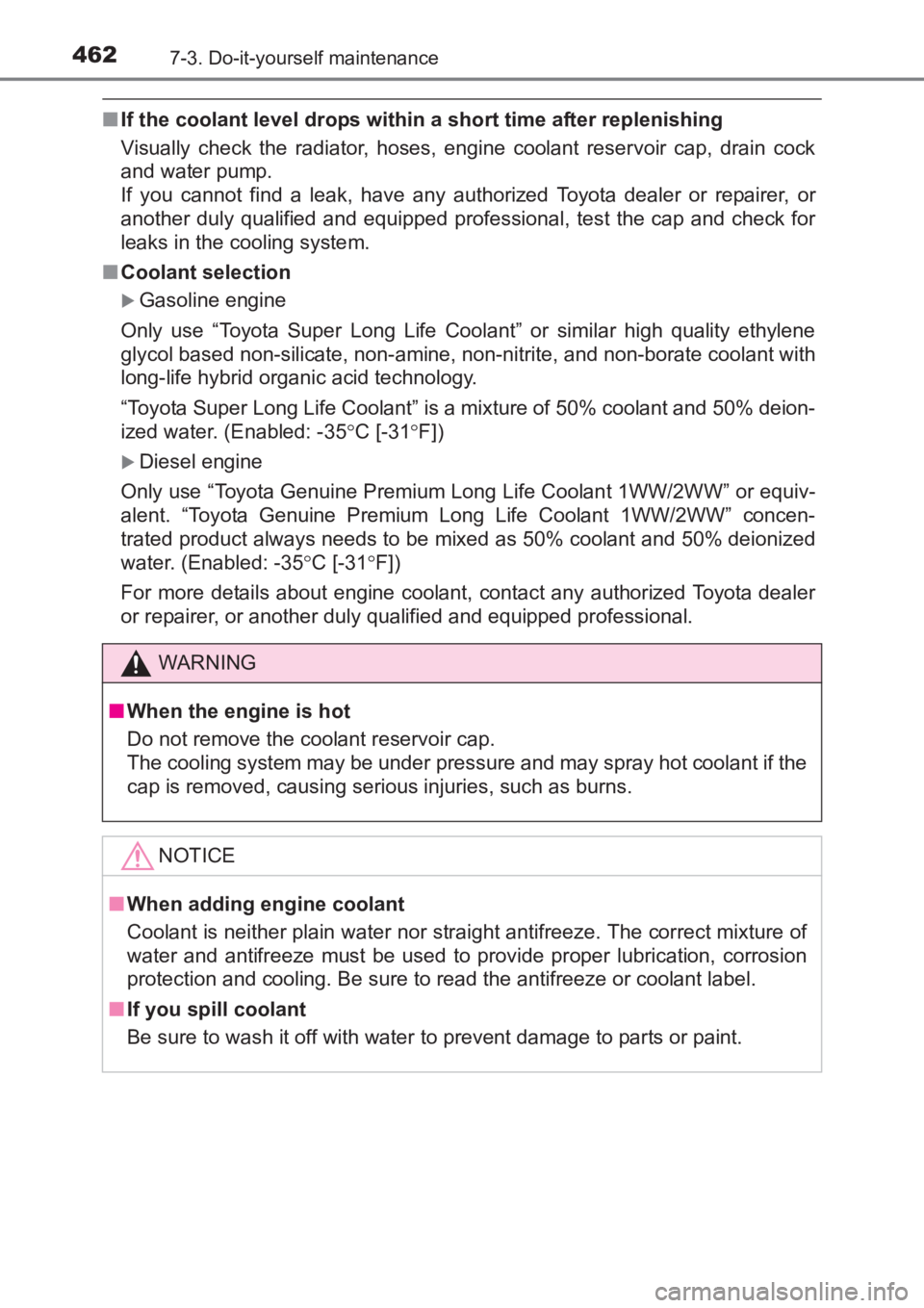

■If the coolant level drops within a short time after replenishing
Visually check the radiator, hoses, engine coolant reservoir cap, drain cock
and water pump.
If you cannot find a leak, have any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, test the cap and check for
leaks in the cooling system.
■ Coolant selection
XGasoline engine
Only use “Toyota Super Long Life Coolant” or similar high quality ethylene
glycol based non-silicate, non-amine, non- nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Enabled: -35 °C [-31 °F])
XDiesel engine
Only use “Toyota Genuine Premium Long Life Coolant 1WW/2WW” or equiv-
alent. “Toyota Genuine Premium Long Life Coolant 1WW/2WW” concen-
trated product always needs to be mixed as 50% coolant and 50% deionized
water. (Enabled: -35 °C [-31 °F])
For more details about engine coolant, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
WARNING
■ When the engine is hot
Do not remove the coolant reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
■When adding engine coolant
Coolant is neither plain water nor stra ight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■ If you spill coolant
Be sure to wash it off with water to prevent damage to parts or paint.
AVENSIS_OM_OM20C66E_(EE).book Page 462 Wednesday, June 15, 20 16 4:07 PM

4637-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)
7
Maintenance and care

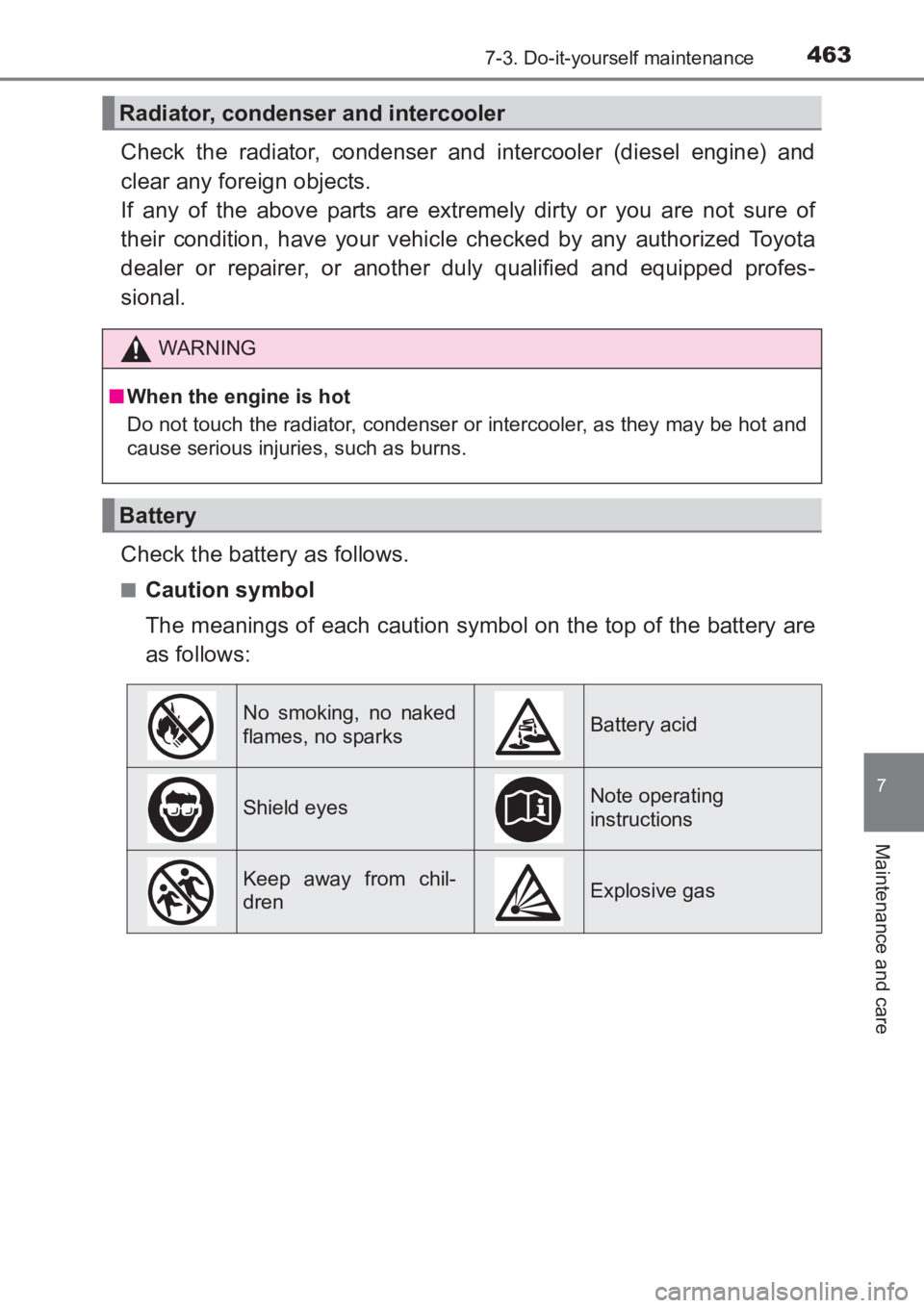

Check the radiator, condenser and intercooler (diesel engine) and
clear any foreign objects.
If any of the above parts are extremely dirty or you are not sure of
their condition, have your vehicle checked by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
Check the battery as follows.
■Caution symbol
The meanings of each caution symbol on the top of the battery are
as follows:
Radiator, condenser and intercooler
WARNING
■ When the engine is hot
Do not touch the radiator, condenser or intercooler, as they may be hot and
cause serious injuries, such as burns.
Battery
No smoking, no naked
flames, no sparksBattery acid
Shield eyesNote operating
instructions
Keep away from chil-
drenExplosive gas
AVENSIS_OM_OM20C66E_(EE).book Page 463 Wednesday, June 15, 20 16 4:07 PM

4647-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)■

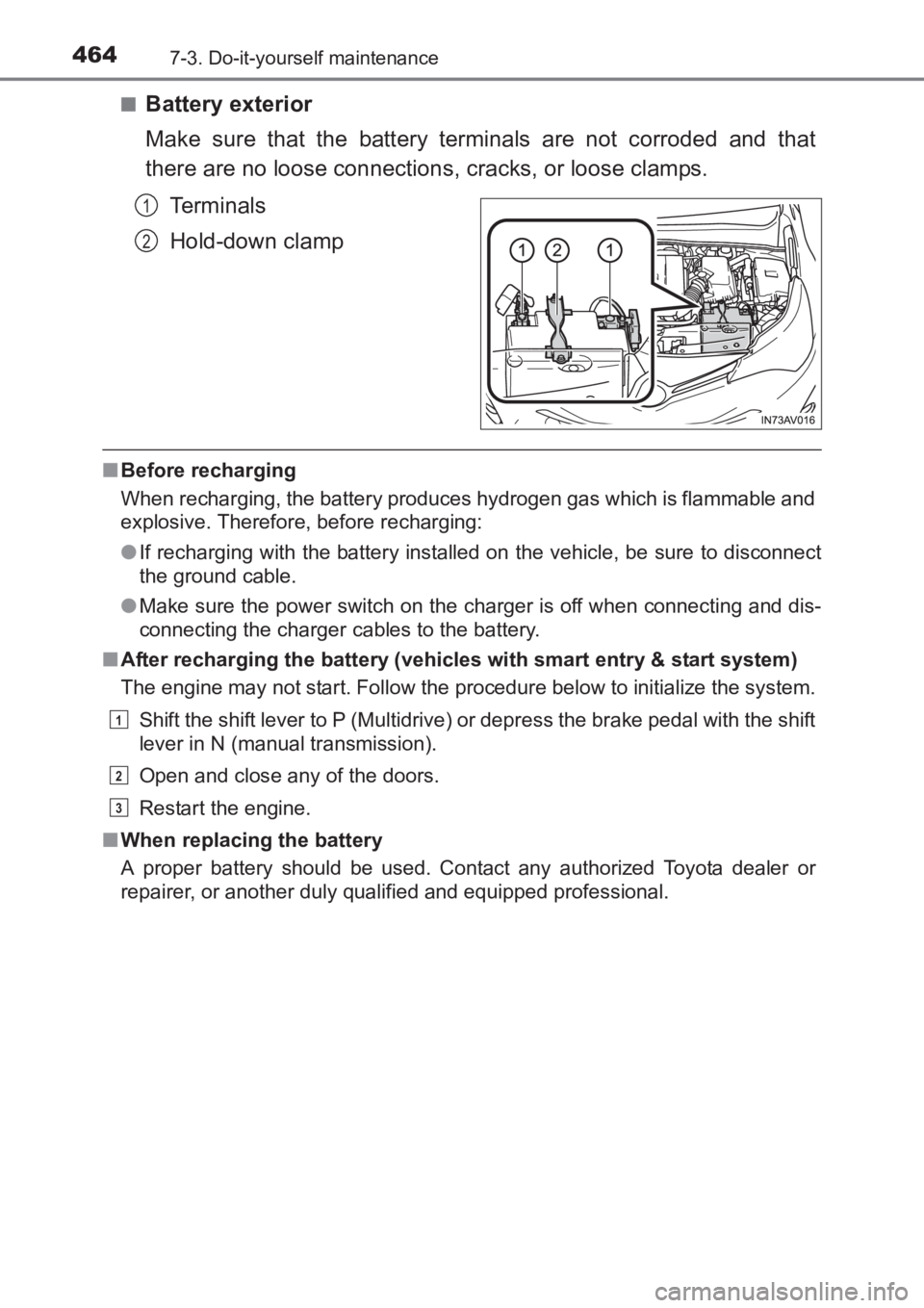

Battery exterior
Make sure that the battery terminals are not corroded and that
there are no loose connections, cracks, or loose clamps.
Te r m i n a l s
Hold-down clamp
■Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, before recharging:
●If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
● Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the battery.
■ After recharging the battery (vehic les with smart entry & start system)
The engine may not start. Follow the procedure below to initialize the system.
Shift the shift lever to P (Multidrive) or depress the brake pedal with the shift
lever in N (manual transmission).
Open and close any of the doors.
Restart the engine.
■ When replacing the battery
A proper battery should be used. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
1
2
1
2
3
AVENSIS_OM_OM20C66E_(EE).book Page 464 Wednesday, June 15, 20 16 4:07 PM

4657-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)
7
Maintenance and care
WARNING

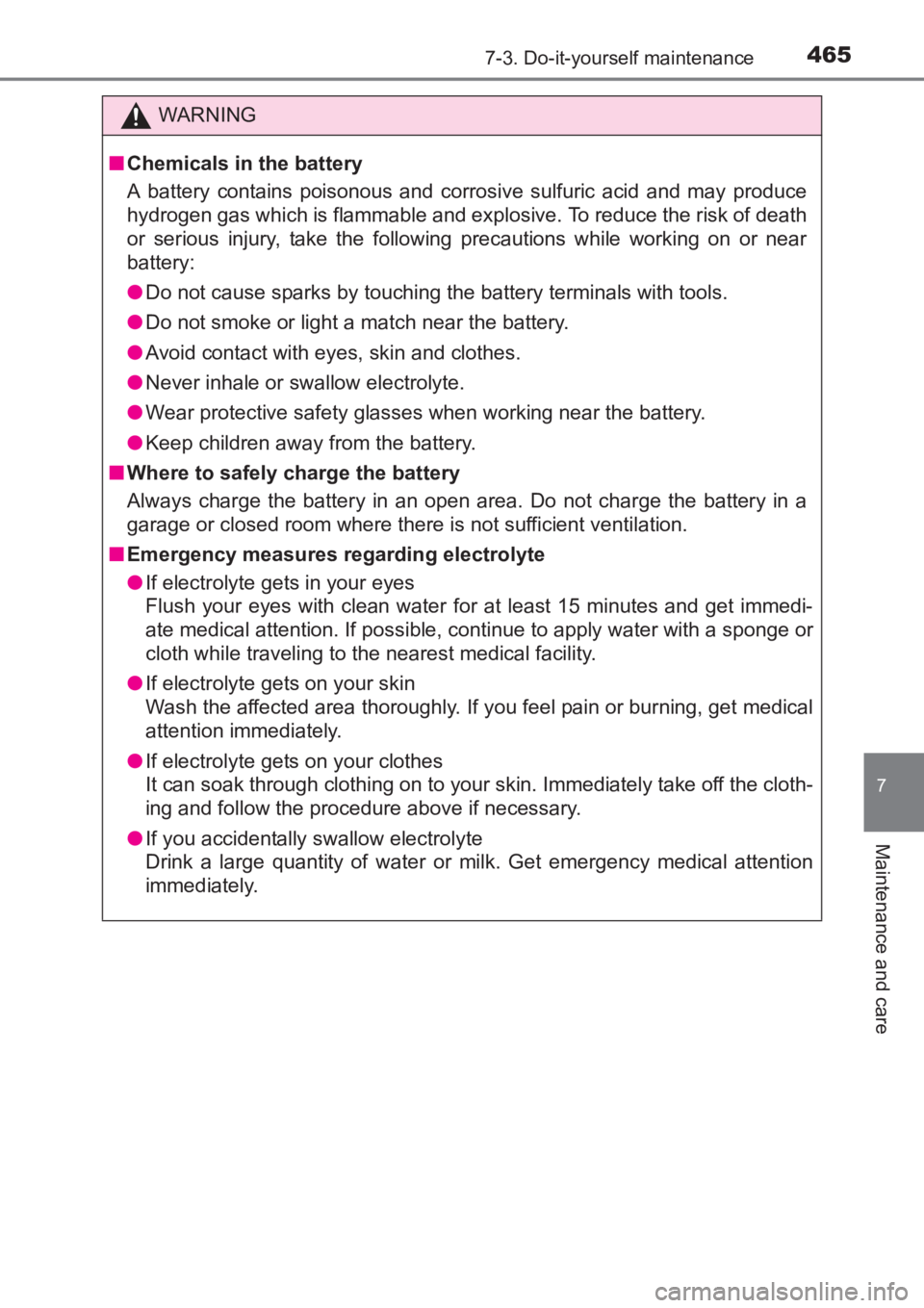

■ Chemicals in the battery
A battery contains poisonous and corrosive sulfuric acid and may produce
hydrogen gas which is flammable and explosive. To reduce the risk of death
or serious injury, take the following precautions while working on or near
battery:
●Do not cause sparks by touching the battery terminals with tools.
● Do not smoke or light a match near the battery.
● Avoid contact with eyes, skin and clothes.
● Never inhale or swallow electrolyte.
● Wear protective safety glasses when working near the battery.
● Keep children away from the battery.
■ Where to safely charge the battery
Always charge the battery in an open area. Do not charge the battery in a
garage or closed room w here there is not sufficient ventilation.
■ Emergency measures regarding electrolyte
●If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.
● If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.
● If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.
● If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.
AVENSIS_OM_OM20C66E_(EE).book Page 465 Wednesday, June 15, 20 16 4:07 PM

4667-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)

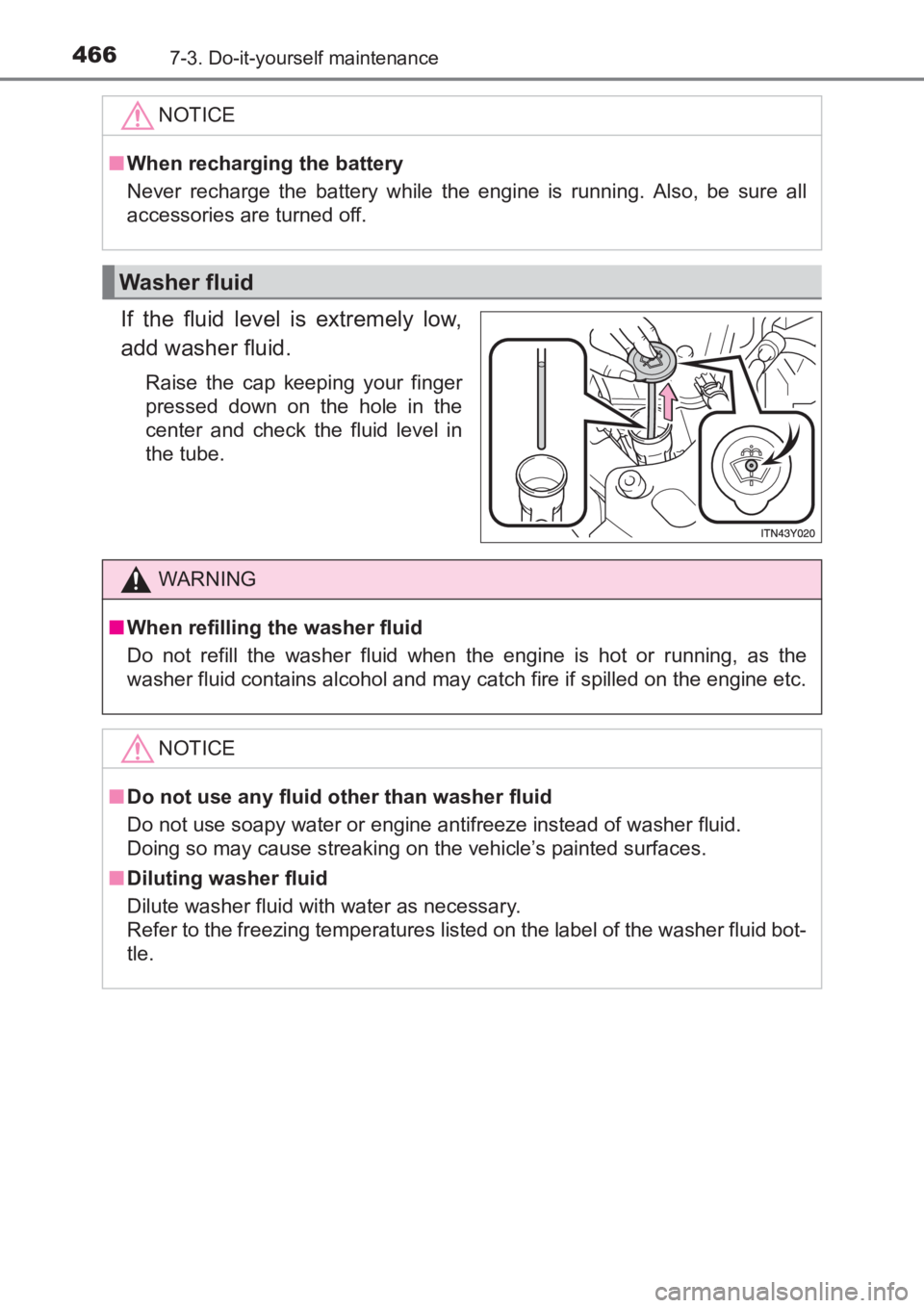

If the fluid level is extremely low,
add washer fluid.
Raise the cap keeping your finger
pressed down on the hole in the
center and check the fluid level in
the tube.NOTICE
■
When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all
accessories are turned off.
Washer fluid
WARNING
■ When refilling the washer fluid
Do not refill the washer fluid when the engine is hot or running, as the
washer fluid contains alcohol and may catch fire if spilled on the engine etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■ Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures list ed on the label of the washer fluid bot-
tle.
AVENSIS_OM_OM20C66E_(EE).book Page 466 Wednesday, June 15, 20 16 4:07 PM

4677-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)
7
Maintenance and care

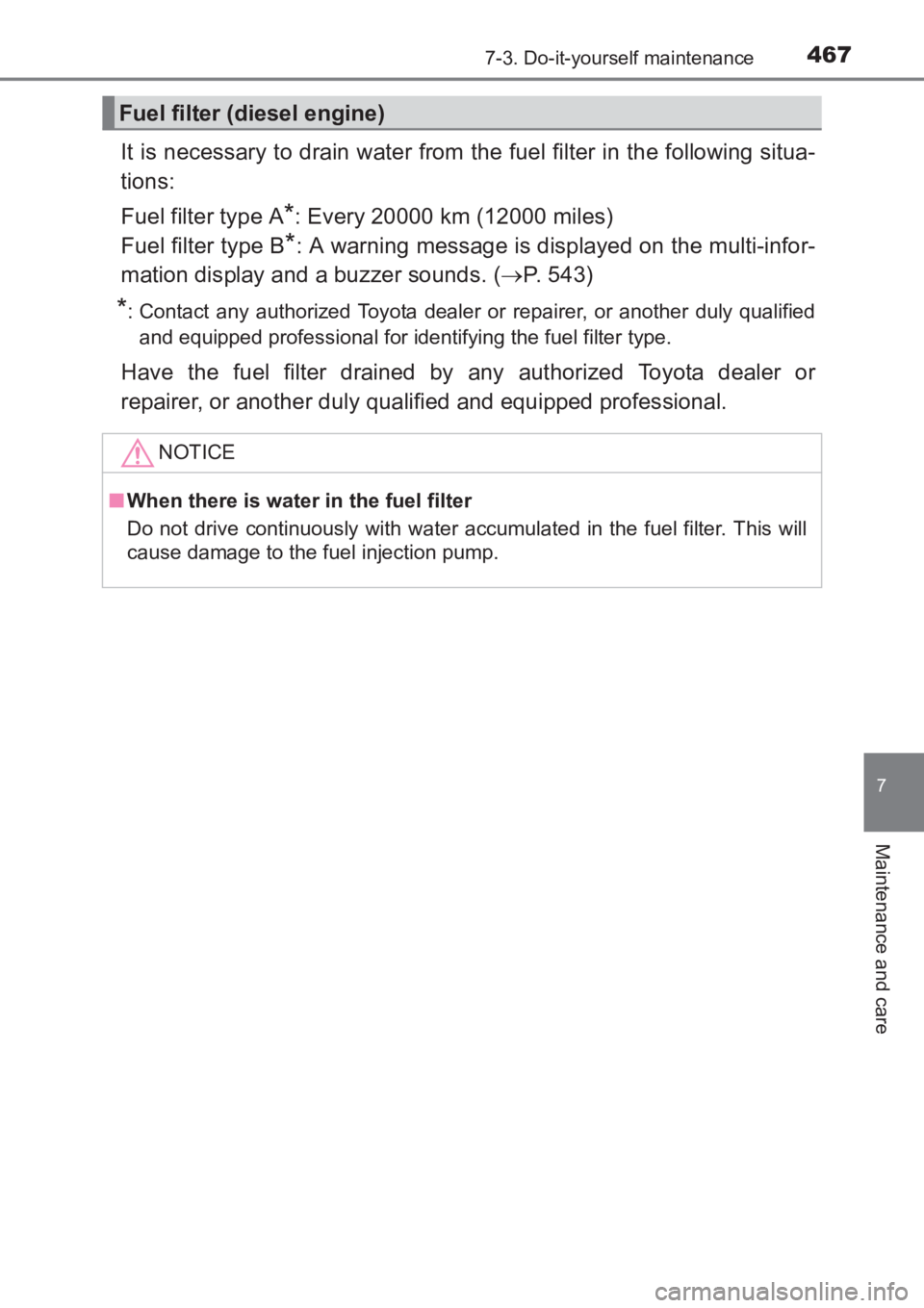

It is necessary to drain water from the fuel filter in the following situa-
tions:
Fuel filter type A
*: Every 20000 km (12000 miles)
Fuel filter type B
*: A warning message is displayed on the multi-infor-
mation display and a buzzer sounds. ( →P. 543)
*: Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for identifying the fuel filter type.
Have the fuel filter drained by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Fuel filter (diesel engine)
NOTICE
■ When there is water in the fuel filter
Do not drive continuously with water accumulated in the fuel filter. This will
cause damage to the fuel injection pump.
AVENSIS_OM_OM20C66E_(EE).book Page 467 Wednesday, June 15, 20 16 4:07 PM

4687-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)

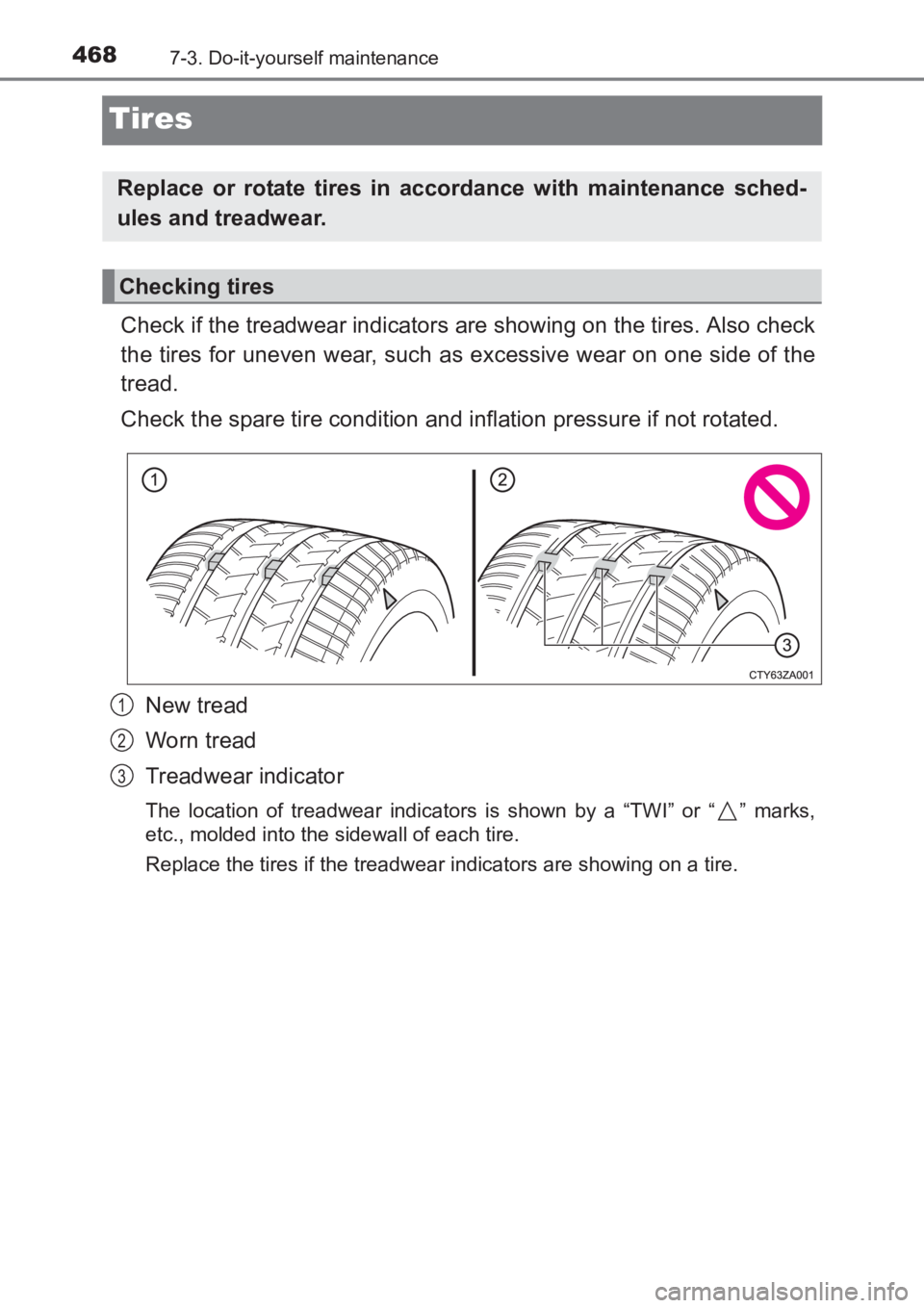

Tires
Check if the treadwear indicators are showing on the tires. Also check
the tires for uneven wear, such as excessive wear on one side of the
tread.
Check the spare tire condition and inflation pressure if not rotated.New tread
Worn tread
Treadwear indicator
The location of treadwear indicators is shown by a “TWI” or “ ” marks,
etc., molded into the sidewall of each tire.
Replace the tires if the treadwear indicators are showing on a tire.
Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.
Checking tires
1
2
3
AVENSIS_OM_OM20C66E_(EE).book Page 468 Wednesday, June 15, 20 16 4:07 PM

4697-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)
7
Maintenance and care
XWith full-size spare tire (vehicles without tire pressure warning sys-
tem)
Rotate the tires in the order
shown.
To equalize tire wear and help
extend tire life, Toyota recom-
mends that you rotate your tires
approximately every 10000 km
(6000 miles).
XWith full-size spare tire (vehicles with tire pressure warning sys-
tem), compact spare tire, or emergency tire puncture repair kit
Rotate the tires in the order
shown.
To equalize tire wear and help
extend tire life, Toyota recom-
mends that you rotate your tires
approximately every 10000 km
(6000 miles).
Vehicles with a tire pressure warn-
ing system: Do not fail to initialize a
tire pressure warning system after
tire rotation.

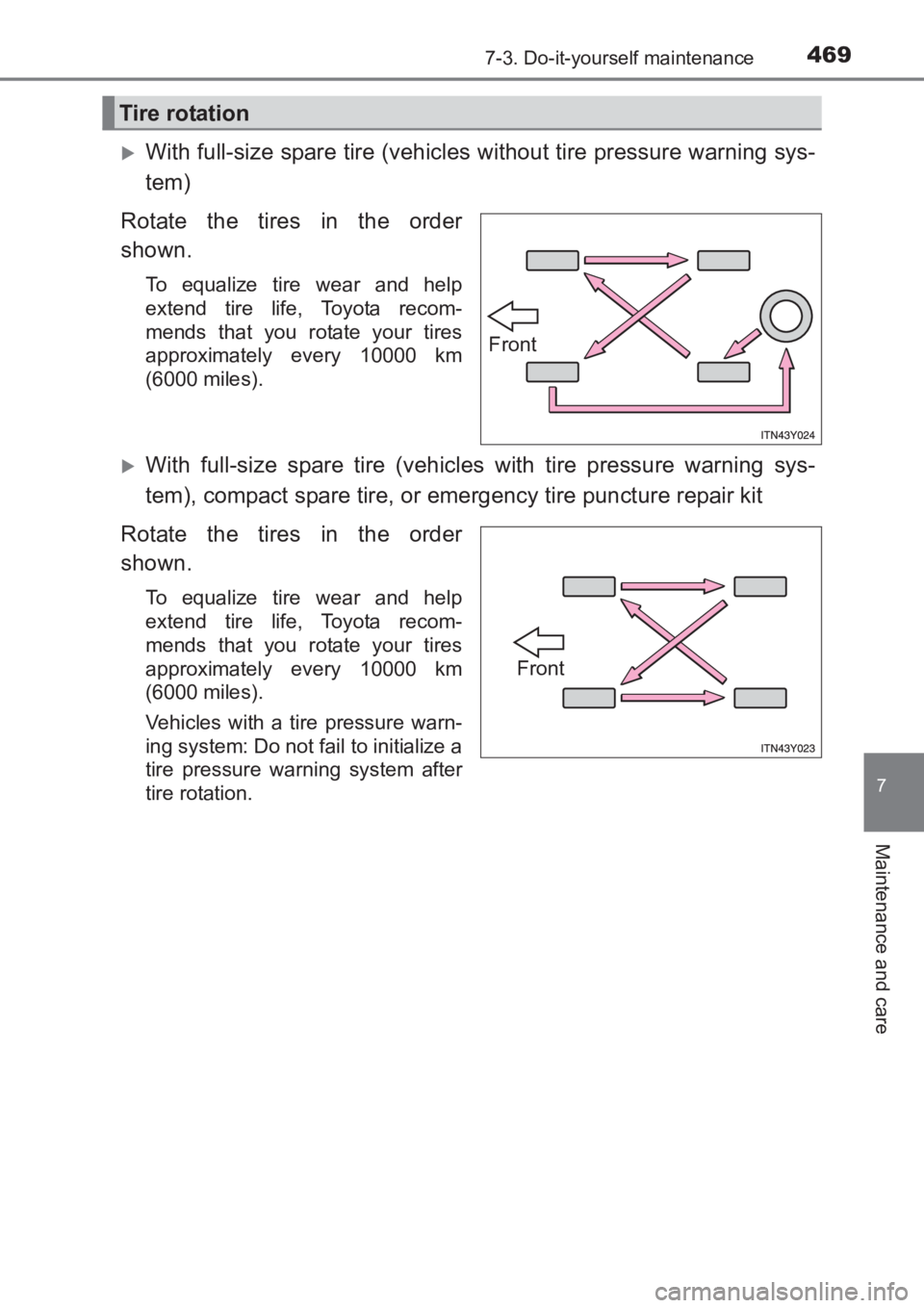

Tire rotation
Front
Front
AVENSIS_OM_OM20C66E_(EE).book Page 469 Wednesday, June 15, 20 16 4:07 PM

4707-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)

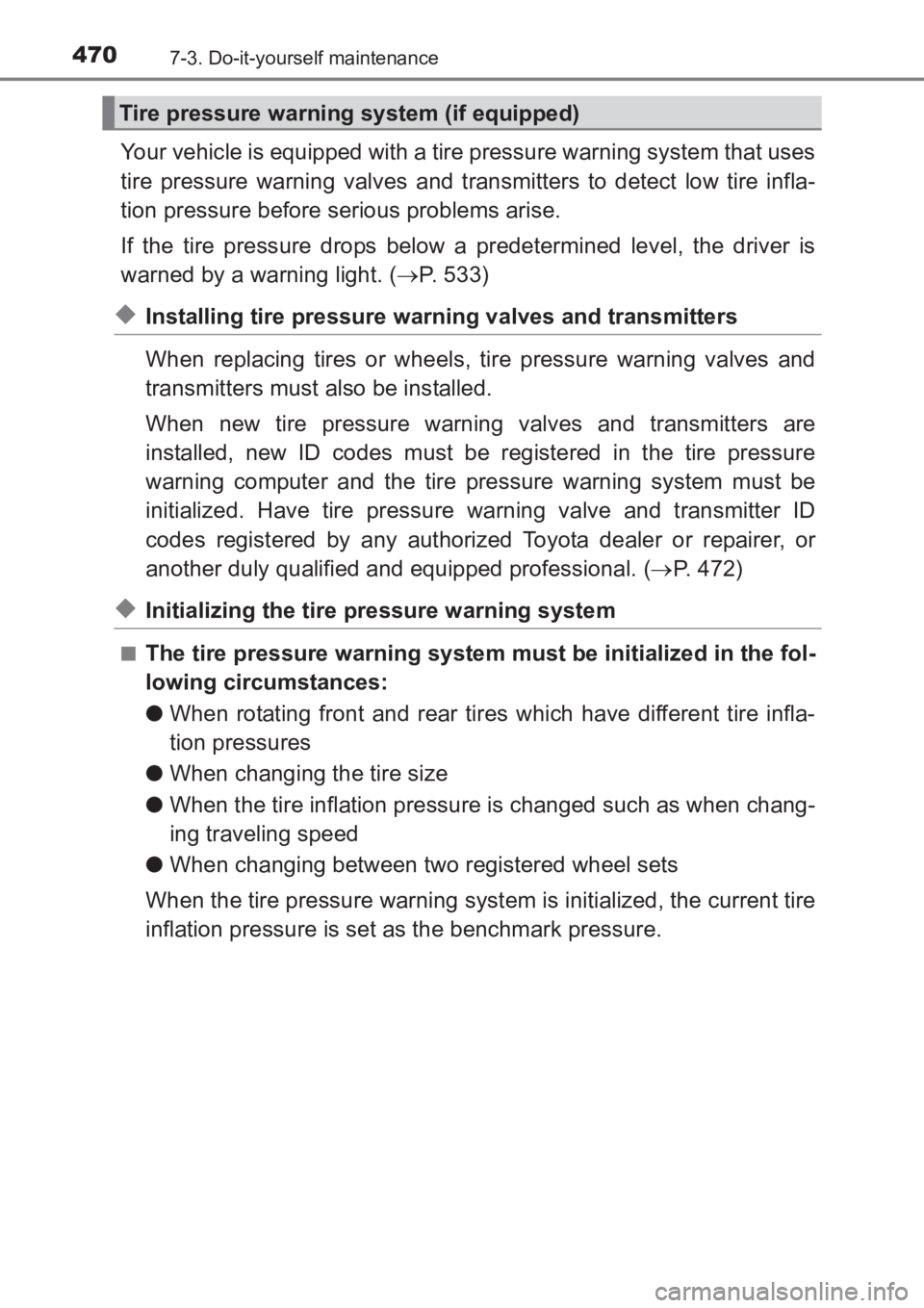

Your vehicle is equipped with a tire pressure warning system that uses
tire pressure warning valves and transmitters to detect low tire infla-
tion pressure before serious problems arise.
If the tire pressure drops below a predetermined level, the driver is
warned by a warning light. (→P. 533)
◆Installing tire pressure warning valves and transmitters
When replacing tires or wheels, tire pressure warning valves and
transmitters must also be installed.
When new tire pressure warning valves and transmitters are
installed, new ID codes must be registered in the tire pressure
warning computer and the tire pressure warning system must be
initialized. Have tire pressure warning valve and transmitter ID
codes registered by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional. ( →P. 472)
◆Initializing the tire pressure warning system
■The tire pressure warning system must be initialized in the fol-
lowing circumstances:
● When rotating front and rear tires which have different tire infla-
tion pressures
● When changing the tire size
● When the tire inflation pressure is changed such as when chang-
ing traveling speed
● When changing between two registered wheel sets
When the tire pressure warning system is initialized, the current tire
inflation pressure is set as the benchmark pressure.
Tire pressure warning system (if equipped)
