1584-2. Driving procedures
AYGO_EE_OM99J92E
WARNING
■ When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution while driving
If engine failure occurs while the vehicle is moving, do not lock or open the
doors until the vehicle reaches a safe and complete stop. Activation of the
steering lock in this circumstance may lead to an accident, resulting in
death or serious injury.
■ Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle,
press and hold the engine switch for more than 2 seconds, or press it briefly
3 times or more in succession. ( →P. 343)
However, do not touch the engine switch while driving except in an emer-
gency. Turning the engine off while driving will not cause loss of steering or
braking control, but the power assist to these systems will be lost. This will
make it more difficult to steer and brake, so you should pull over and stop
the vehicle as soon as it is safe to do so.
NOTICE
■ To prevent battery discharge
● Do not leave the engine switch in ACCESSORY or IGNITION ON mode
for long periods of time without the engine running.
● If the smart entry & start system indicator light (green) is illuminated, the
engine switch is not off. When exiting the vehicle, always check that the
engine switch is off.
■ When starting the engine
● Do not race a cold engine.
● If the engine becomes difficult to start or stalls frequently, have your vehi-
cle checked immediately.
■ Symptoms indicating a malfunction with the engine switch
If the engine switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.

165
4
4-2. Driving procedures
Driving
AYGO_EE_OM99J92E

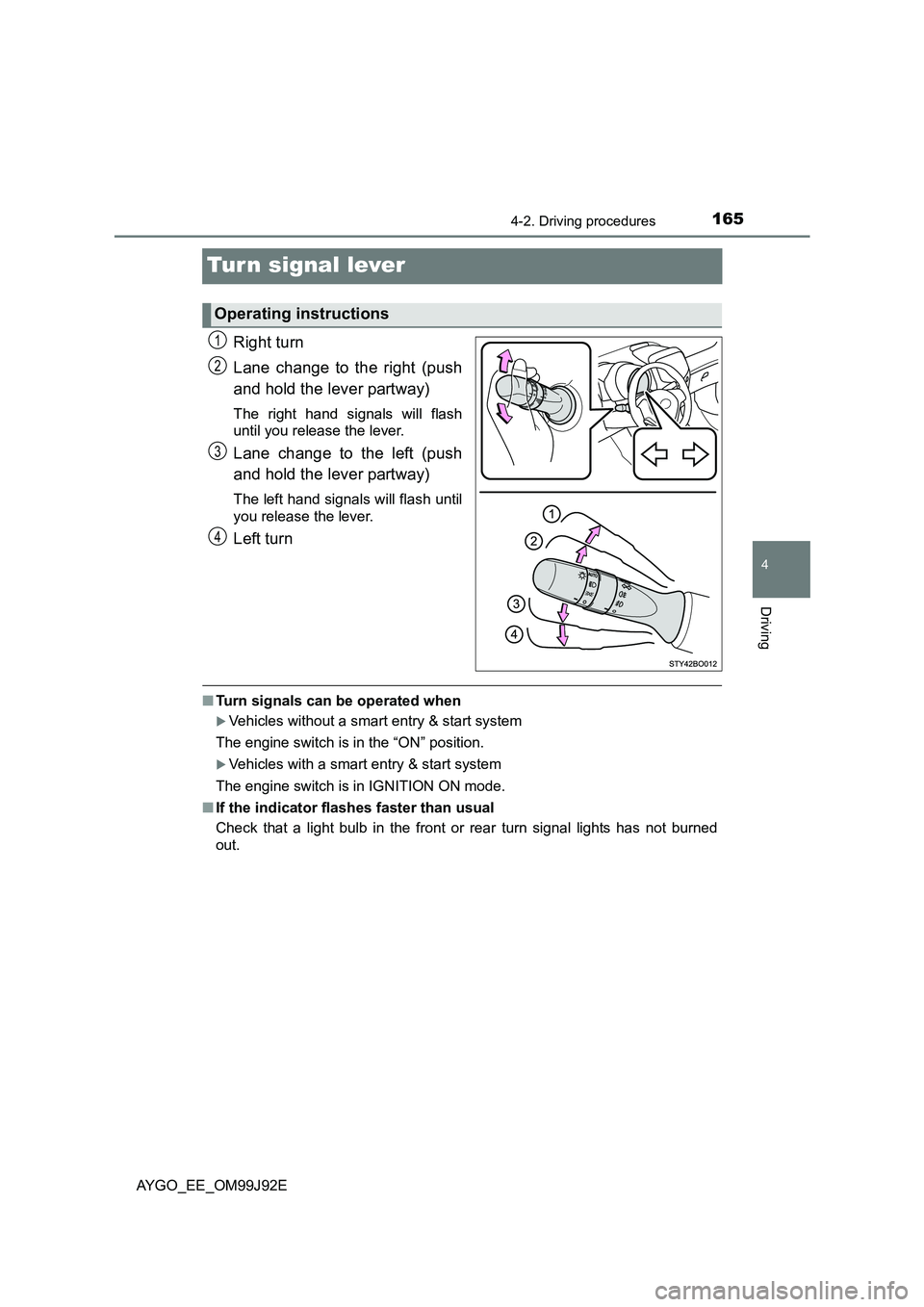

Turn signal lever
Right turn
Lane change to the right (push
and hold the lever partway)
The right hand signals will flash
until you release the lever.
Lane change to the left (push
and hold the lever partway)
The left hand signals will flash until
you release the lever.
Left turn
■ Turn signals can be operated when
XVehicles without a smart entry & start system
The engine switch is in the “ON” position.
XVehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Operating instructions
1
2
3
4

1744-3. Operating the lights and wipers
AYGO_EE_OM99J92E

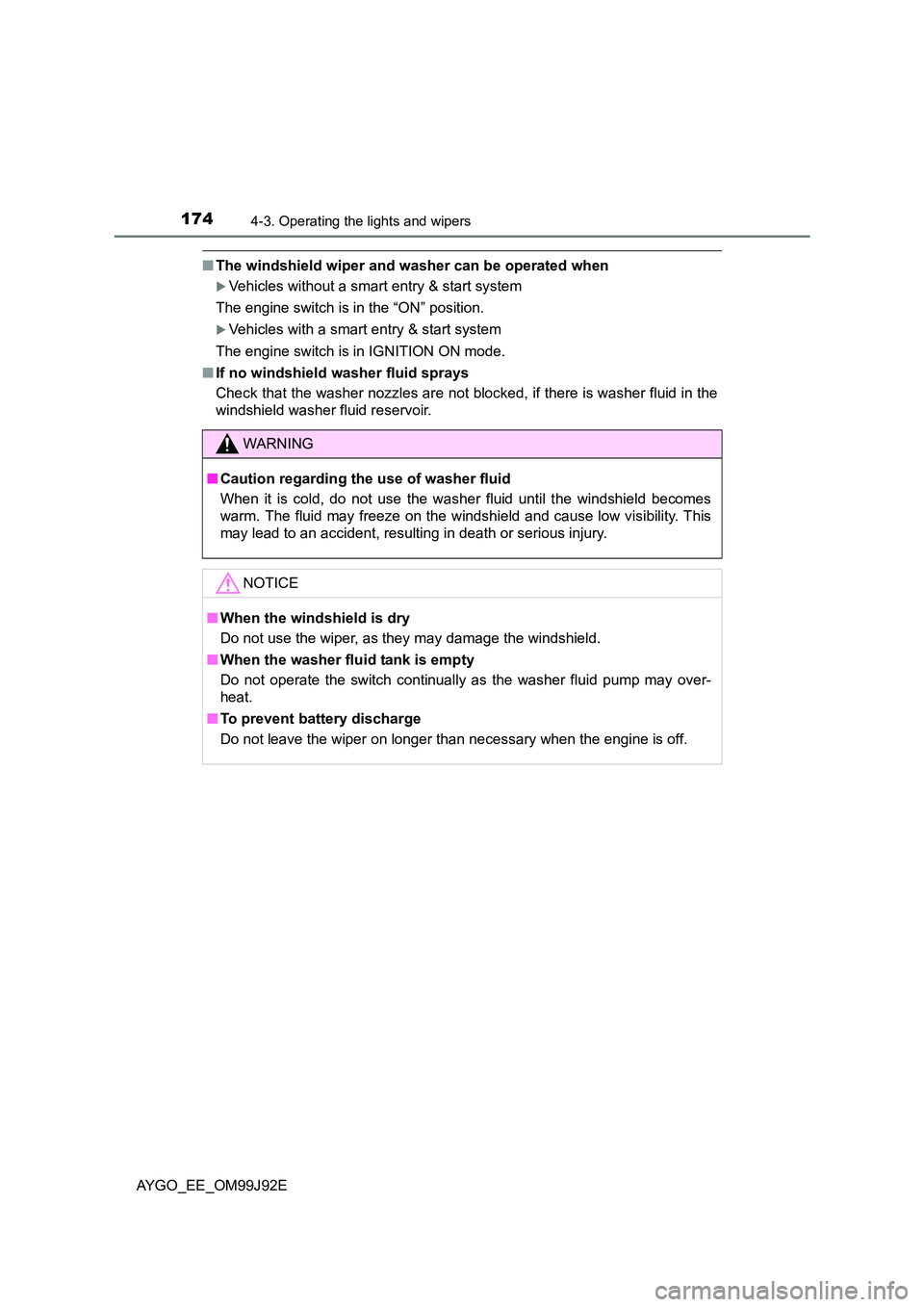

■The windshield wiper and washer can be operated when
XVehicles without a smart entry & start system
The engine switch is in the “ON” position.
XVehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked, if there is washer fluid in the
windshield washer fluid reservoir.
WARNING
■ Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
■ When the windshield is dry
Do not use the wiper, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ To prevent battery discharge
Do not leave the wiper on longer than necessary when the engine is off.

175
4
4-3. Operating the lights and wipers
Driving
AYGO_EE_OM99J92E

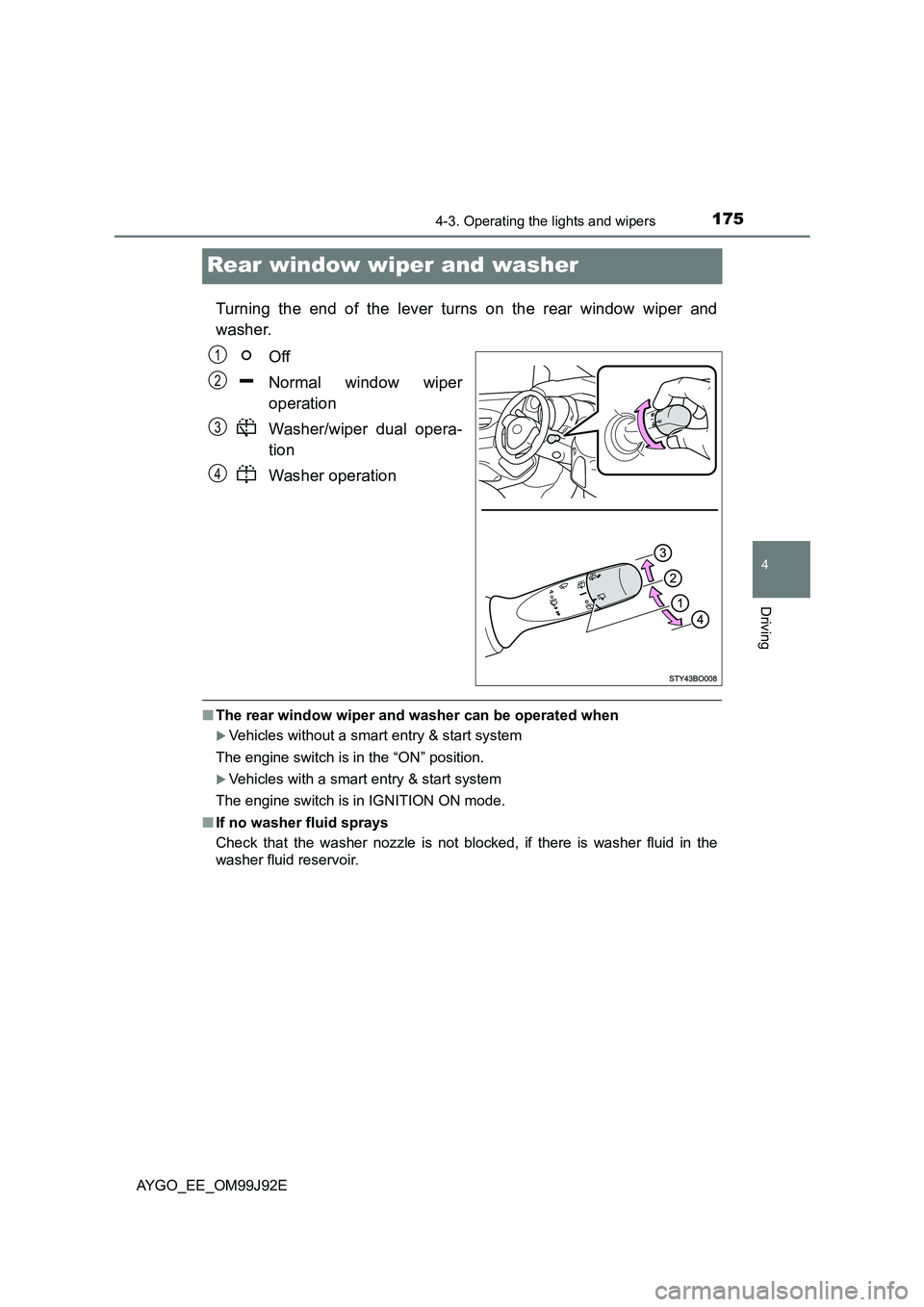

Rear window wiper and washer
Turning the end of the lever turns on the rear window wiper and
washer.
Off
Normal window wiper
operation
Washer/wiper dual opera-
tion
Washer operation
■ The rear window wiper and washer can be operated when
XVehicles without a smart entry & start system
The engine switch is in the “ON” position.
XVehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ If no washer fluid sprays
Check that the washer nozzle is not blocked, if there is washer fluid in the
washer fluid reservoir.
1
2
3
4

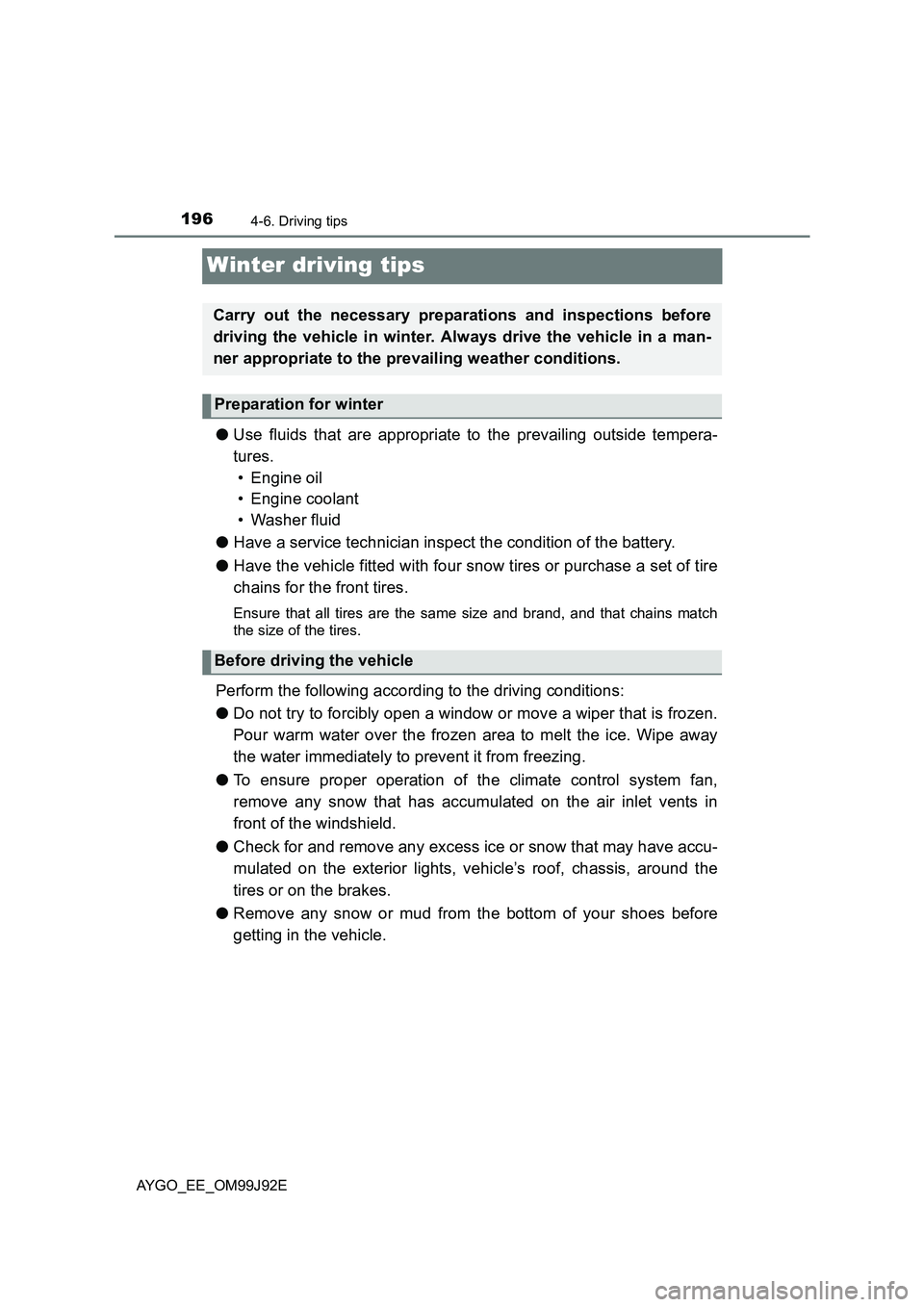

1964-6. Driving tips
AYGO_EE_OM99J92E
Winter driving tips
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the condition of the battery.
● Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
Perform the following according to the driving conditions:
● Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle

281

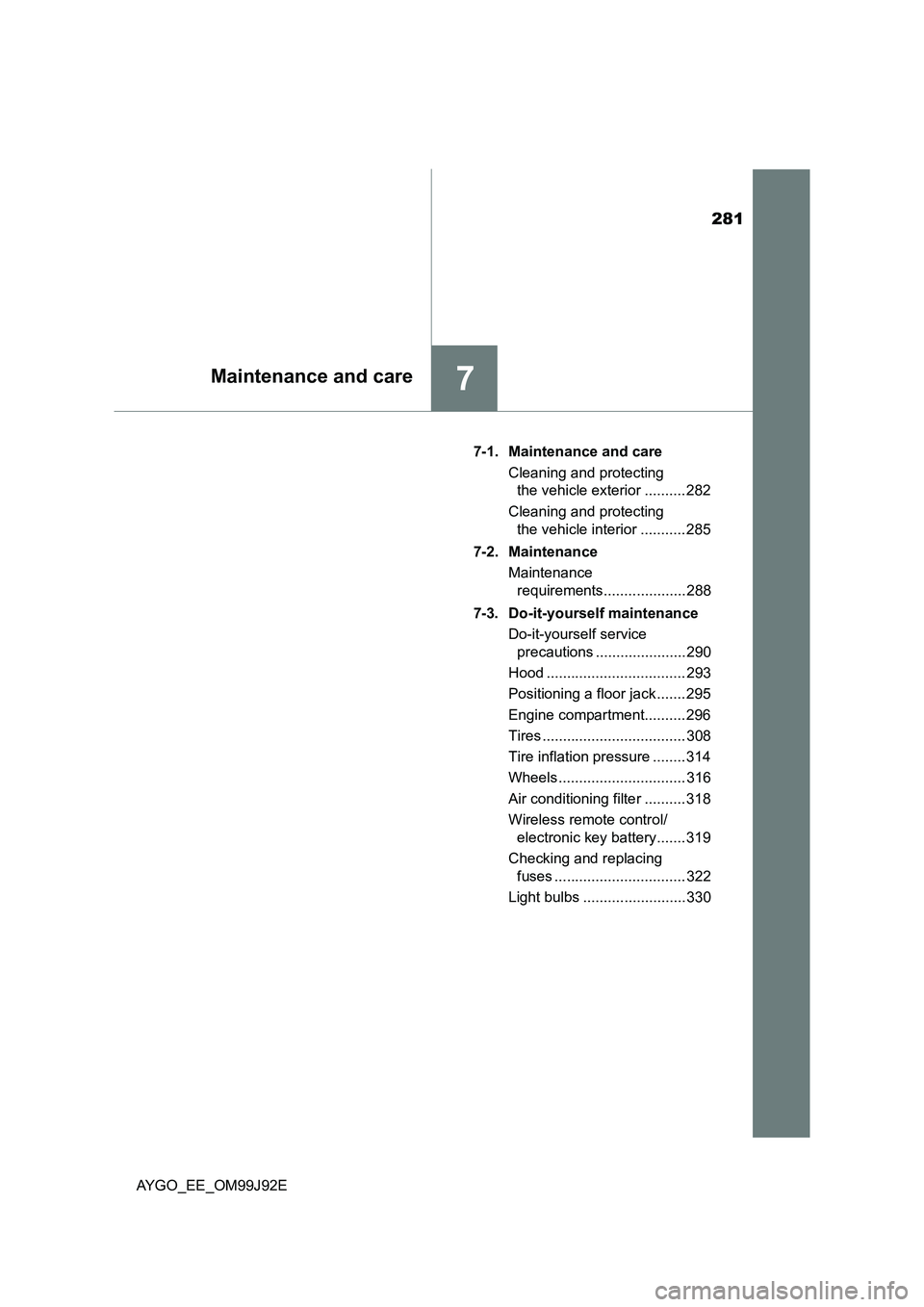

7Maintenance and care
AYGO_EE_OM99J92E
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 282
Cleaning and protecting
the vehicle interior ........... 285
7-2. Maintenance
Maintenance
requirements.................... 288
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ...................... 290
Hood .................................. 293
Positioning a floor jack ....... 295
Engine compartment.......... 296
Tires ................................... 308
Tire inflation pressure ........ 314
Wheels ............................... 316
Air conditioning filter .......... 318
Wireless remote control/
electronic key battery....... 319
Checking and replacing
fuses ................................ 322
Light bulbs ......................... 330

3538-2. Steps to take in an emergency
8
When trouble arises
AYGO_EE_OM99J92E
(Comes on)
High engine coolant temperature warning light (for
HM01 engine)
Indicates that the engine is overheating.
→ P. 398
(Flashes)
“STOP” warning light
Indicates a malfunction in:
• Engine oil pressure is too low; or
• Engine is almost overheating.
→ Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
(Comes on)
Multi-mode manual transmissi on warning light (vehicles
with a multi-mode manual transmission)
Indicates a malfunction in the multi-mode manual trans-
mission system.
→ Have the system checked by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional.
Multi-mode manual transmission warning light (warning
buzzer) (vehicles with a multi-mode manual transmis-
sion)
Indicates a malfunction in the multi-mode manual trans-
mission system and that the clutch has become hot due to
excessive load.
→ Pull over and shift the shift lever to N. Wait for about
15 minutes for the clutch to cool down. Have the sys-
tem checked by any authorized Toyota dealer or
repairer, or another duly qualified and equipped pro-
fessional.
(Flashes)
Heat clutch warning light (warning buzzer) (vehicles
with a multi-mode manual transmission)
Indicates that the clutch has become hot, but does not
indicate a malfunction in the multi-mode manual transmis-
sion system.
→ Pull over and shift the shift lever to N. Wait for about
15 minutes for the clutch to cool down.
Warning lightWarning light/Details/Actions

3928-2. Steps to take in an emergency
AYGO_EE_OM99J92E
Ensure that the shift lever is in N and depress the brake pedal
(multi-mode manual transmission) or clutch pedal (manual trans-
mission).
Touch the corner of the elec-
tronic key with the indicator to
the engine switch.
When the electronic key is
detected, a buzzer sounds and the
engine switch will turn to IGNITION
ON mode.
When the smart entry & start sys-
tem is deactivated in customization
setting, the engine switch will turn
to ACCESSORY mode.
Firmly depress the brake pedal (multi-mode manual transmission)
or clutch pedal (manual transmission) and check that smart entry &
start system indicator light (green) turns on.
Press the engine switch.
In the event that the engine still cannot be started, contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
Starting the engine
1
2
3
4

4149-1. Specifications
AYGO_EE_OM99J92E
XHM01 engine
Capacity (Reference)4.5 L (4.8 qt., 4.0 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Genuine Premium Long Life Coolant
2WZ-TV”
• Similar high-quality ethylene glycol-based non-
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
NOTICE
■To prevent serious engine damage
Do not mix “Toyota Super Long Life Coolant” with “Toyota Genuine Pre-
mium Long Life Coolant 2WZ-TV”.
Electrical system
Battery
Open voltage* at
20°C (68°F):
12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(*: Voltage checked 20 minutes after the
engine and all the lights are turned off)
Charging rates5 A max.

431Alphabetical index
AYGO_EE_OM99J92E
Engine
“ACC” position....................... 151
Accessory mode ................... 156
Compartment ........................ 296
Engine switch ................ 151, 154
Hood ..................................... 293
How to start
the engine................... 151, 154
If the engine will not start ...... 388
Ignition switch
(engine switch) ........... 151, 154
Overheating .......................... 398
Engine coolant ......................... 301
Capacity ................................ 413
Checking ............................... 301
Preparing and checking
before winter....................... 196
Engine coolant
temperature
warning light .................. 352, 353
Engine immobilizer system ...... 69
Engine oil.................................. 298
Capacity ................................ 408
Checking ............................... 298
Preparing and checking
before winter....................... 196
Engine switch
(ignition switch) ............. 151, 154
EPS (Electronic Power
Steering) ................................. 191
Function ................................ 191
Warning light ......................... 354
Flat tire
Vehicles with a spare tire ...... 361
Vehicles without
a spare tire ......................... 374
Floor mats .................................. 26
Fluid
Brake .................................... 416
Washer ................................. 307
Fog lights ................................. 171
Replacing light bulbs..... 333, 336
Switch ................................... 171
Wattage ................................ 418
Follow me home system ......... 169
Front position lights ................ 167
Light switch ........................... 167
Replacing light bulbs............. 339
Front seats ............................... 123
Adjustment ............................ 123
Cleaning................................ 285
Correct driving posture ........... 28
Seat heaters ......................... 268
Front turn signal lights ........... 165
Replacing light bulbs............. 333
Turn signal lever ................... 165
Wattage ................................ 418
Fuel ........................................... 408
Capacity ................................ 408
Fuel gauge .............................. 83
Fuel pump shut off system.... 351
Information ............................ 419
Refueling............................... 177
Type .............................. 177, 408
Warning light ......................... 355
Fuel filler door.......................... 179
Refueling............................... 177
Fuel pump shut off system ..... 351
Fuses ........................................ 322
F
