TABLE OF CONTENTS4
AYGO_EE_OM99J92E
5-8. Bluetooth® Phone
Making a phone call ...........244
Receiving a phone call.......246
Speaking on the phone ......247
5-9. Bluetooth®
Bluetooth®.........................249
6-1. Using the air conditioning
system and defogger
Manual air conditioning
system .............................256
Automatic air conditioning
system .............................262
Seat heaters ......................268
6-2. Using the interior lights
Interior lights list .................270
• Interior light ....................270
6-3. Using the storage features
List of storage features ......271
• Glove box ......................272
• Card holders ..................272
• Cup holders ...................272
• Bottle holders ................273
Luggage compartment
features............................275
6-4. Other interior features
Other interior features ........277
• Sun visors ......................277
• Vanity mirrors ................277
• Clock .............................278
• Outside temperature
display ...........................279
• Power outlet ..................280
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 282
Cleaning and protecting
the vehicle interior ........... 285
7-2. Maintenance
Maintenance
requirements ................... 288
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ..................... 290
Hood.................................. 293
Positioning a floor jack ...... 295
Engine compartment ......... 296
Tires .................................. 308
Tire inflation pressure........ 314
Wheels .............................. 316
Air conditioning filter .......... 318
Wireless remote control/
electronic key battery ...... 319
Checking and replacing
fuses ............................... 322
Light bulbs ......................... 330
6Interior features
7Maintenance and care

11Pictorial index
AYGO_EE_OM99J92E
Windshield wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 173
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 196
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 177
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 177
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 408
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 416
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 196
Checking/rotation/tire pressure warning system*2 . . . . . . . . . P. 308
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 361, 374
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 293
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 293
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 408
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 398
Camera*2, 3
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 167
Front position lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 167
Daytime running lights*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 167
Front fog lights*2/rear fog lights . . . . . . . . . . . . . . . . . . . . . P. 171
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 165
Emergency brake signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 191
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 167
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 167
Back-up lights
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 159, 163
4
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 330, Watts: P. 418)
*1: Vehicles with a smart entry & start system
*2: If equipped
*3: For vehicles with a multimedia system , refer to “Multimedia owner’s manual”.
9
10
11
12
13
14
15
16

681-1. For safe use
AYGO_EE_OM99J92E
Exhaust gas precautions
Harmful substance to the human body is included in exhaust
gases if inhale.
WARNING
Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to
an accident caused by light-headedness, or may lead to death or a serious
health hazard.
■ Important points while driving
● Keep the back door closed.
● If you smell exhaust gases in the vehicle even when the back door is
closed, open the windows and have the vehicle inspected at any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
■ When parking
● If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the engine.
● Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.
● Do not leave the engine running in an area with snow build-up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle.
■ Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.

802. Instrument cluster
AYGO_EE_OM99J92E
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system), to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if the lights do not
come on, or turn off. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
*2: If equipped
*3: The light comes in yellow to indicate a malfunction.
*4: For 1KR engine
*5: For HM01 engine
*6: The light flashes to indicate a malfunction.
*7: The light flashes in yellow to indicate a malfunction. The light flashes
quickly in green to indicate that the steering lock has not been released.
*8: Driver’s seat belt reminder light only, on some models
*9: This light illuminates on the center panel.
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
*1Gear Shift indicator
( →P. 161, 163)
*2Front fog light indicator
( →P. 171)
Turn signal indicator
( →P. 165)
Rear fog light indicator
( →P. 171)
*2
(Green)
Smart entry & start
system indicator light
( →P. 154)
*1, 2, 3
Slip indicator light
( →P. 192)
Tail light indicator
( →P. 167)
*1, 2
VSC off indicator
( →P. 192)
Headlight high beam
indicator ( →P. 168)
*2, 4
(Green)
Speed limiter indicator
light ( →P. 181)

812. Instrument cluster
2
Instrument cluster
AYGO_EE_OM99J92E
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system), to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if the lights do not
come on, or turn off. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
*2: If equipped
*3: The light flashes to indicate that the system is operating.
*4: For 1KR engine
*5: This light illuminates on the center panel.
*1, 2Stop & Start indicator
light ( →P. 185)
*1, 2“TRC OFF” indicator
( →P. 192)
*1, 2Stop & Start cancel
indicator ( →P. 186)
“PASSENGER AIR BAG” indicator
( →P. 45)
“PASSENGER AIR BAG” indicator
( →P. 45)
*1, 2, 5*1, 2, 5

822. Instrument cluster
AYGO_EE_OM99J92E
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional
immediately if this occurs.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the high engine coolant temperature
warning light flashes or turns on. In this case, immediately stop the vehicle
in a safe place, and check the engine after it has cooled completely.
( →P. 398)

1163-2. Opening, closing and locking the doors
AYGO_EE_OM99J92E
■ Note for the entry function
● Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near
the ground, or in a high place w hen the doors are locked or unlocked.
• The electronic key is on the inst rument panel, luggage cover (if equipped)
or floor, or in the door pockets or glove box when the engine is started or
engine switch modes are changed.
● As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. However, only the doors detecting the elec-
tronic key can be used to unlock the vehicle.
Depending on the situation, even when the electronic key in the vicinity of
opposite side door to the door to be unlocked, the electronic key may be
detected and the door unlocks.
● If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)
■ Note for the unlocking function
● There are cases when pulling the door handle while pressing the Lock/
Unlock button that the door will not unlock. In those cases, after returning
the door handle to the original position, press the Lock/Unlock button once
again and check that the doors unlock before pulling the door handle.
● If there is another electronic key in the detection area, it may take slightly
longer for the doors to unlock after the Lock/Unlock button is pressed.
■ When the vehicle is not driven for extended periods
● To prevent theft of the vehicle, do not leave the electronic key within 2 m
(6 ft.) of the vehicle.
● The smart entry & start system can be deactivated in advance. (→P. 421)
■ To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from the
outside of the vehicle.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention function may not
operate.)
■ If the smart entry & start system does not operate properly
● Locking and unlocking the doors: Use the mechanical key. (→P. 391)
● Starting the engine: →P. 392

1434-1. Before driving
4
Driving
AYGO_EE_OM99J92E
■ Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. ( →P. 419)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When starting the vehicle
On vehicles with a multi-mode manual transmission, always keep your foot
on the brake pedal while stopped with the engine running. This prevents the
vehicle from moving unexpectedly.
■ When driving the vehicle
● Do not drive if you are unfamiliar with the location of the brake and accel-
erator pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake
pedal will result in sudden acceleration that may lead to an accident.
• When backing up, you may twist your body around, leading to difficulty
in operating the pedals. Make su re to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the
vehicle only slightly. This allows you to depress the brake and accelera-
tor pedals properly.
• Depress the brake pedal using your right foot. Depressing the brake
pedal using your left foot may delay response in an emergency, result-
ing in an accident.
● Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. These hot
parts may cause a fire if there is any flammable material nearby.
● During normal driving, do not turn off the engine. Turning the engine off
while driving will not cause loss of steering or braking control, but the
power assist to these systems will be lost. This will make it more difficult to
steer and brake, so you should pull over and stop the vehicle as soon as it
is safe to do so.
However, in the event of an emergency, such as if it becomes impossible
to stop the vehicle in the normal way: →P. 343
● Use engine braking (downshift) to maintain a safe speed when driving
down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. ( →P. 159, 163)
● Do not adjust the positions of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control.
● Always check that all passengers’ arms, heads or other parts of their body
are not outside the vehicle.

1544-2. Driving procedures
AYGO_EE_OM99J92E

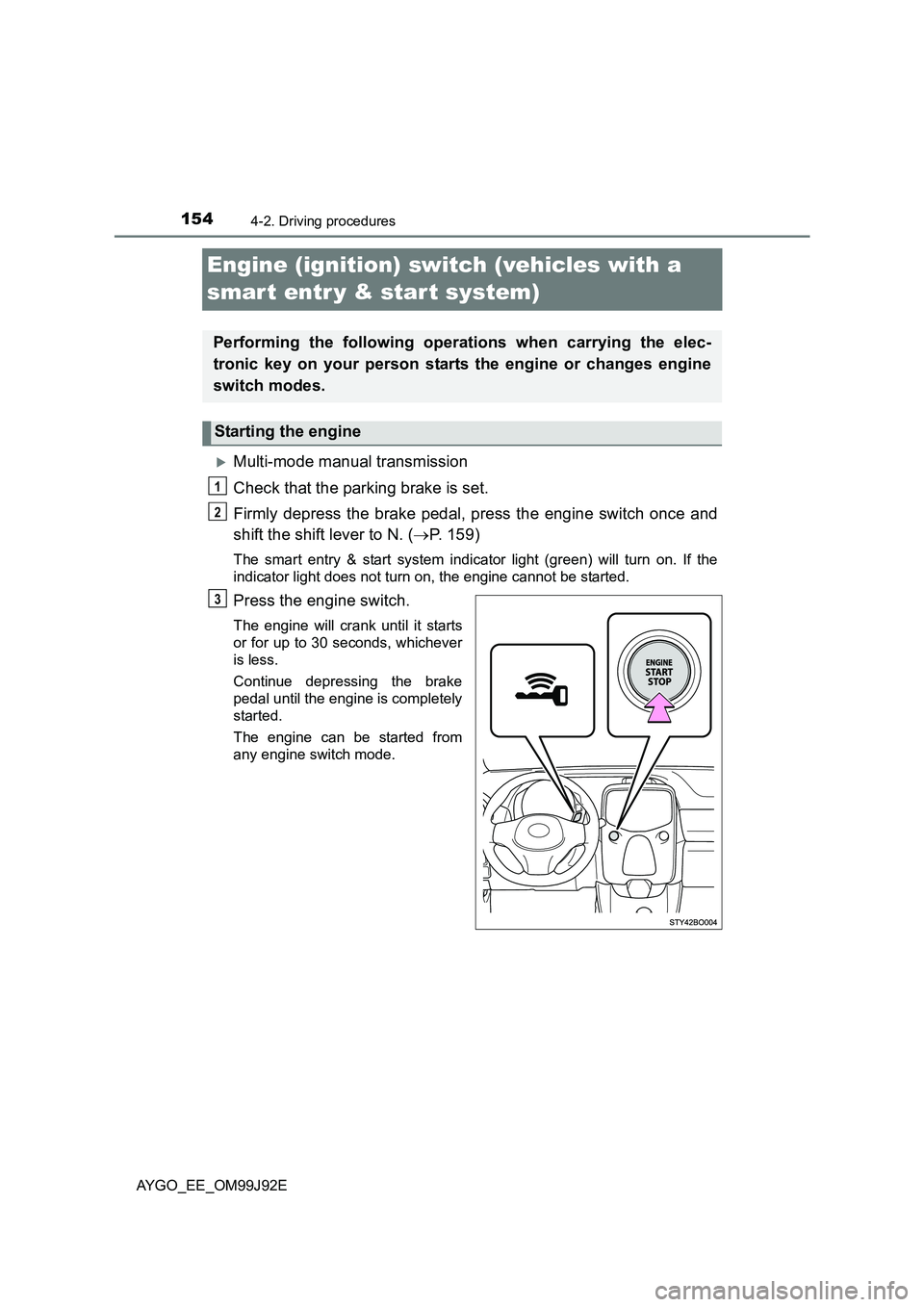

Engine (ignition) switch (vehicles with a
smar t entr y & start system)
XMulti-mode manual transmission
Check that the parking brake is set.
Firmly depress the brake pedal, press the engine switch once and
shift the shift lever to N. ( →P. 159)
The smart entry & start system indicator light (green) will turn on. If the
indicator light does not turn on, the engine cannot be started.
Press the engine switch.
The engine will crank until it starts
or for up to 30 seconds, whichever
is less.
Continue depressing the brake
pedal until the engine is completely
started.
The engine can be started from
any engine switch mode.
Performing the following operations when carrying the elec-
tronic key on your person starts the engine or changes engine
switch modes.
Starting the engine
1
2
3

1554-2. Driving procedures
4
Driving
AYGO_EE_OM99J92E
XManual transmission
Check that the parking brake is set.
Check that the shift lever is set in N. ( →P. 163)
Firmly depress the clutch pedal.
The smart entry & start system indicator light (green) will turn on. If the
indicator light does not turn on, the engine cannot be started.
Press the engine switch.
The engine will crank until it starts
or for up to 30 seconds, whichever
is less.
Continue depressing the brake
pedal until the engine is completely
started.
The engine can be started from
any engine switch mode.
Stop the vehicle.
Shift the shift lever to E, M or R (multi-mode manual transmission)
or N (manual transmission).
Set the parking brake. ( →P. 166)
Press the engine switch.
Release the brake pedal (multi-mode manual transmission) or
clutch pedal (manual transmission) and check that the smart entry
& start system indicator light (green) is off.
1
2
3
4
Stopping the engine
1
2
3
4
5
