3938-2. Steps to take in an emergency
8
When trouble arises
AYGO_EE_OM99J92E
■Stopping the engine
Shift the shift lever to N and press the engine switch as you normally do when
stopping the engine.
■ Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
( →P. 319)
■ Changing engine switch modes
Release the brake pedal (multi-mode m anual transmission) or clutch pedal
(manual transmission) and press t he engine switch in step above.
The engine does not start and modes will be changed each time the switch is
pressed. ( →P. 156)
■ When the electronic key does not work properly
● Make sure that the smart entry & start system has not been deactivated in
the customization setting. If it is off, turn the function on.
(Customizable features: →P. 421)
● Check if battery-saving mode is set. If it is set, cancel the function.
( →P. 115)
3

4008-2. Steps to take in an emergency
AYGO_EE_OM99J92E
Add coolant if necessary.
Water can be used in an emergency if coolant is unavailable.
Start the engine and turn the air conditioning system on to check
that the radiator cooling fans operate and to check for coolant leaks
from the radiator or hoses.
The fans operate when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fans are operating by checking the
fan sound and air flow. If it is difficult to check these, turn the air condition-
ing system on and off repeatedly. (The fans may not operate in freezing
temperatures.)
If the fans are not operating:
Stop the engine immediately and contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
If the fans are operating:
Have the vehicle inspected at the nearest any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
5
X1KR engineXHM01 engine
6
7

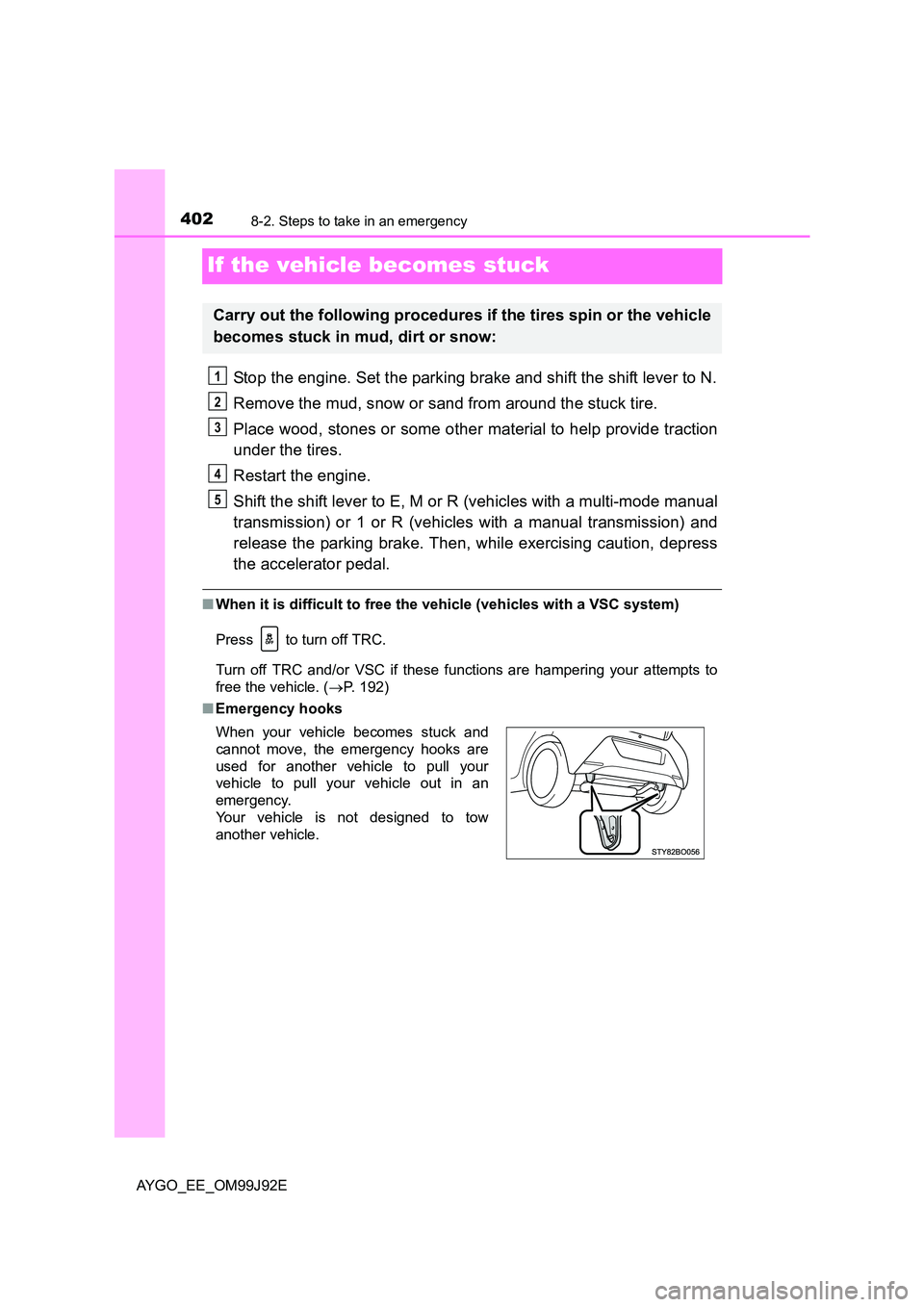

4028-2. Steps to take in an emergency
AYGO_EE_OM99J92E
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to N.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material to help provide traction
under the tires.
Restart the engine.
Shift the shift lever to E, M or R (vehicles with a multi-mode manual
transmission) or 1 or R (vehicles with a manual transmission) and
release the parking brake. Then, while exercising caution, depress
the accelerator pedal.
■ When it is difficult to free the vehicle (vehicles with a VSC system)
Press to turn off TRC.
Turn off TRC and/or VSC if these functions are hampering your attempts to
free the vehicle. ( →P. 192)
■ Emergency hooks
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
When your vehicle becomes stuck and
cannot move, the emergency hooks are
used for another vehicle to pull your
vehicle to pull your vehicle out in an
emergency.
Your vehicle is not designed to tow
another vehicle.
1
2
3
4
5

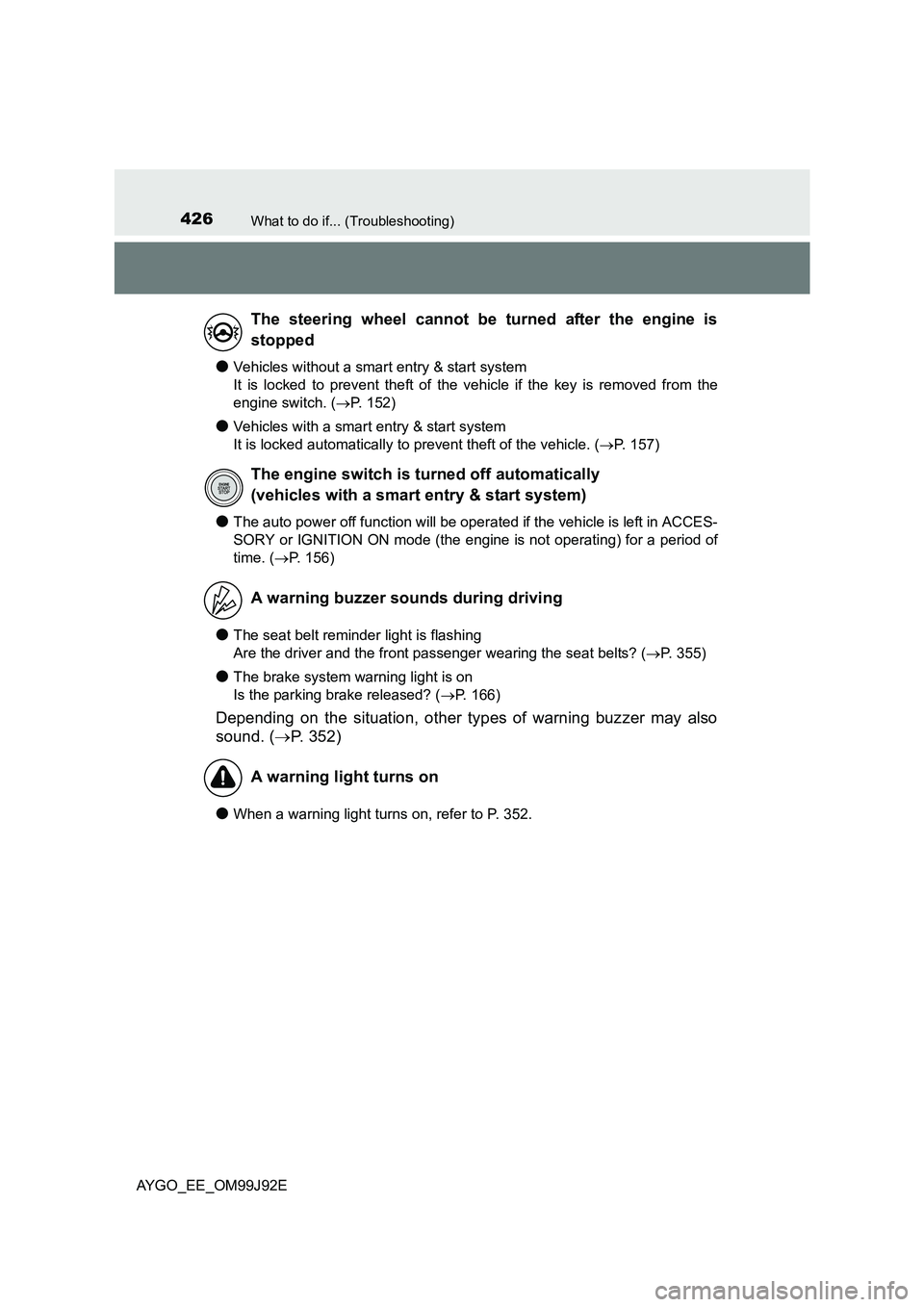

426What to do if... (Troubleshooting)
AYGO_EE_OM99J92E
●Vehicles without a smart entry & start system
It is locked to prevent theft of the vehicle if the key is removed from the
engine switch. ( →P. 152)
●Vehicles with a smart entry & start system
It is locked automatically to prevent theft of the vehicle. ( →P. 157)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not operating) for a period of
time. ( →P. 156)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( →P. 355)
●The brake system warning light is on
Is the parking brake released? ( →P. 166)
Depending on the situation, other types of warning buzzer may also
sound. ( →P. 352)
●When a warning light turns on, refer to P. 352.
The steering wheel cannot be turned after the engine is
stopped
The engine switch is turned off automatically
(vehicles with a smart entry & start system)
A warning buzzer sounds during driving
A warning light turns on

432Alphabetical index
AYGO_EE_OM99J92E
Gauges........................................ 83
Gear Shift Indicator ......... 161, 163
Glove box ................................. 272
Grocery bag hooks .................. 275
Hands-free system
(for cellular phone)*.............. 244
Head restraints......................... 127
Headlights ................................ 167
Follow me home system ....... 169
Light switch ........................... 167
Replacing light bulbs ............. 332
Wattage................................. 418
Heaters
Automatic air conditioning
system ................................ 262
Manual air conditioning
system ................................ 256
Seat heaters.......................... 268
Outside rear view
mirrors ........................ 258, 264
High mounted stoplight
Replacing .............................. 338
Wattage................................. 418
Hood.......................................... 293
Hooks
Grocery bag hooks................ 275
Retaining hooks (floor mat) ..... 26
Horn .......................................... 128
Identification ............................ 407
Vehicle .................................. 407
Ignition switch
(engine switch) .............. 151, 154
Immobilizer system ................... 69
Indicators ................................... 78
Initialization
Tire pressure warning
system ................................ 309
Inside rear view mirror ............ 130
Instrument cluster light
control ...................................... 88
Interior lights............................ 270
Switch ................................... 270
Wattage ................................ 418
ISOFIX rigid anchors ................. 58
Jack
Positioning a floor jack .......... 295
Vehicle-equipped jack... 362, 375
Keyless entry
Smart entry &
start system ................ 103, 107
Wireless remote
control......................... 103, 107
Keys ............................................ 92
Battery-saving function ......... 115
Electronic key ......................... 92
Engine switch................ 151, 154
If the electronic key does not
operate properly ................. 391
G
H
I
J
K

435Alphabetical index
AYGO_EE_OM99J92E
Seat belts .................................... 30
Child restraint system
installation............................. 58
Cleaning and maintaining
the seat belt ........................ 286
Emergency Locking
Retractor............................... 31
How to wear your seat belt ..... 30
How your child should wear
the seat belt .......................... 31
Pregnant women, proper
seat belt use ......................... 32
Reminder light and buzzer .... 355
Seat belt pretensioners ........... 31
SRS warning light ................. 354
Seat heaters ............................. 268
Seats ................................. 123, 125
Adjustment ............................ 123
Adjustment
precautions ................. 124, 126
Child seats/child restraint
system installation ................ 58
Cleaning ................................ 285
Folding down the rear
seatbacks ........................... 125
Head restraint ....................... 127
Properly sitting in the seat....... 28
Seat heaters.......................... 268
Sensor
Automatic headlight
system ................................ 169
Service reminder indicators ..... 78
Shift lever
If the shift lever cannot be
shifted ................................. 390
Manual transmission ............. 163
Multi-mode manual
transmission ....................... 159
Shift lock system ..................... 390
Shopping bag hooks ............... 275
Side airbags ............................... 34
Side mirrors ............................. 131
Adjusting and folding ............ 131
Side turn signal lights ............. 165
Replacing light bulbs............. 339
Turn signal lever ................... 165
Smart entry & start system ..... 113
Antenna location ................... 113
Entry functions .............. 103, 107
Starting the engine................ 154
Warning light ................. 355, 359
Snow tires ................................ 198
Spare tire .................................. 361
Inflation pressure .................. 416
Storage location .................... 362
Specifications .......................... 406
Speed limiter ............................ 181
Speedometer .............................. 83
Steering lock .................... 152, 157
Steering lock system
warning light ....................... 359
Steering wheel ......................... 128
Adjustment ............................ 128
Audio switches ...................... 202
Stop & Start system ................ 185
Stop/tail lights
Replacing light bulbs............. 336
Wattage ................................ 418
Storage feature ........................ 271
S
*: For vehicles with a multimedia system , refer to “Multimedia owner’s manual”.

436Alphabetical index
AYGO_EE_OM99J92E
Stuck
If the vehicle becomes
stuck ................................... 402
Sun visors ................................ 277
Switch
Airbag manual on-off
switch.................................... 45
Audio remote control
switches.............................. 202
Canvas top switch ................. 136
“DISP” button .......................... 85
Emergency flashers
switch.................................. 342
Engine switch ................. 151,154
Fog light switch ..................... 171
Ignition switch ................ 151,154
Light switches ....................... 167
Outside rear view mirror
switches.............................. 131
Paddle shift switches ............ 160
Power window switch ............ 133
Rear window wiper and
washer switch ..................... 175
Rear window and outside
rear view mirror
defoggers switch......... 258, 264
Seat heater switch ................ 268
Speed limiter ......................... 181
Stop & Start cancel switch .... 186
Telephone switches*.... 229, 233
Tire pressure warning
reset switch......................... 309
VSC off switch....................... 192
Windshield wipers and
washer switch ..................... 173
Tachometer ................................ 84
Tail lights .................................. 167
Light switch ........................... 167
Replacing light bulbs............. 336
Wattage ................................ 418
Telephone switches*...... 229, 233
Theft deterrent system
Engine immobilizer system ..... 69
Tire inflation pressure ............. 314
Maintenance data ................. 416
Warning light ......................... 356
Tire pressure warning
system .................................... 309
Function ................................ 309
Initializing .............................. 309
Tire pressure warning reset
switch ................................. 310
Warning light ......................... 356
Tires .......................................... 308
Chains................................... 196
Checking ............................... 308
If you have a flat tire ..... 361, 374
Inflation pressure .................. 416
Replacing ...................... 361, 374
Rotating tires......................... 308
Size ....................................... 416
Snow tires ............................. 198
Spare tire .............................. 361
Tire pressure warning
system ................................ 309
Warning light ......................... 356
Tools ................................. 362, 375
Top strap .................................... 63
T

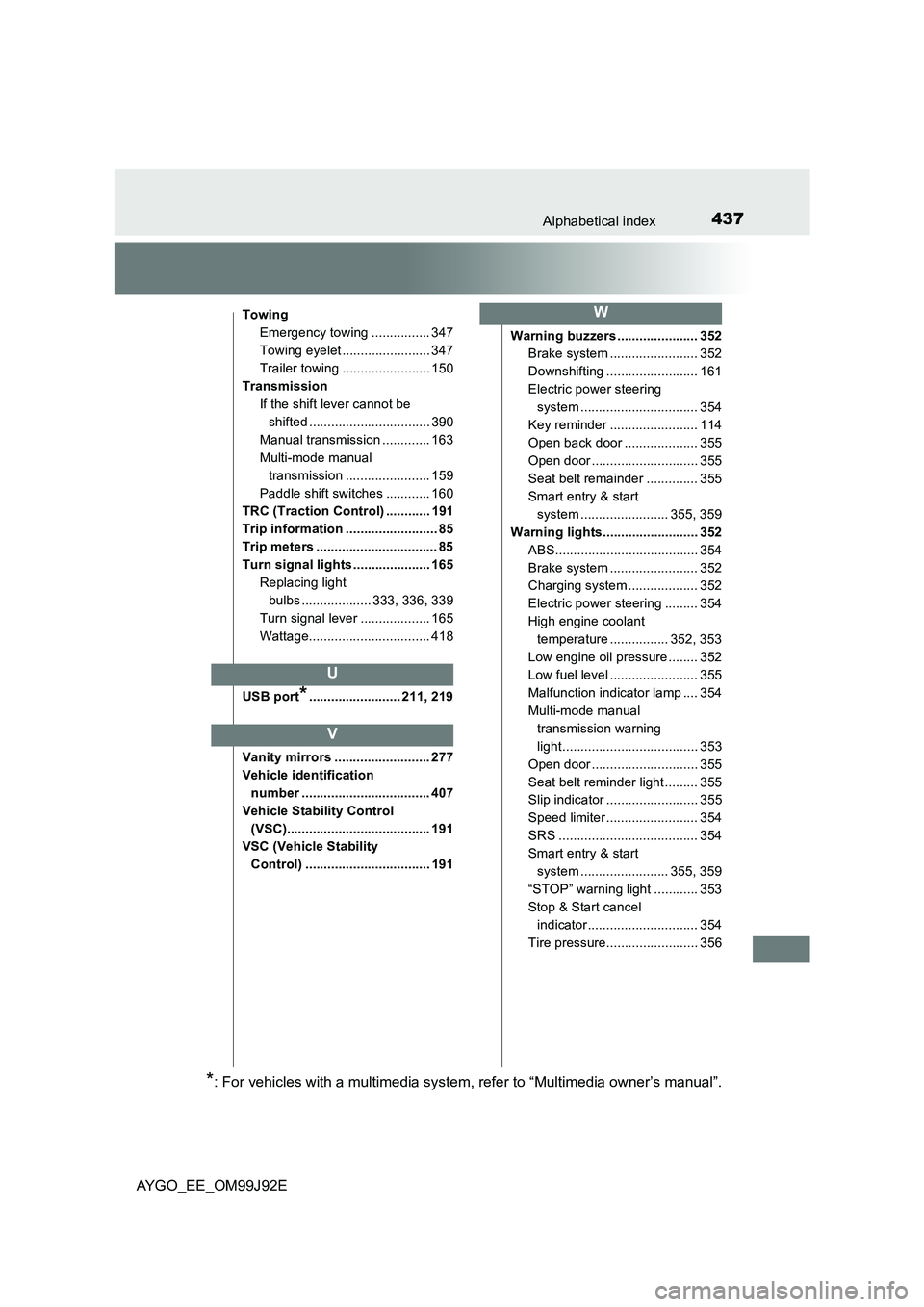

437Alphabetical index
AYGO_EE_OM99J92E
Towing
Emergency towing ................ 347
Towing eyelet ........................ 347
Trailer towing ........................ 150
Transmission
If the shift lever cannot be
shifted ................................. 390
Manual transmission ............. 163
Multi-mode manual
transmission ....................... 159
Paddle shift switches ............ 160
TRC (Traction Control) ............ 191
Trip information ......................... 85
Trip meters ................................. 85
Turn signal lights ..................... 165
Replacing light
bulbs ................... 333, 336, 339
Turn signal lever ................... 165
Wattage................................. 418
USB port*......................... 211, 219
Vanity mirrors .......................... 277
Vehicle identification
number ................................... 407
Vehicle Stability Control
(VSC)....................................... 191
VSC (Vehicle Stability
Control) .................................. 191
Warning buzzers ...................... 352
Brake system ........................ 352
Downshifting ......................... 161
Electric power steering
system ................................ 354
Key reminder ........................ 114
Open back door .................... 355
Open door ............................. 355
Seat belt remainder .............. 355
Smart entry & start
system ........................ 355, 359
Warning lights.......................... 352
ABS....................................... 354
Brake system ........................ 352
Charging system ................... 352
Electric power steering ......... 354
High engine coolant
temperature ................ 352, 353
Low engine oil pressure ........ 352
Low fuel level ........................ 355
Malfunction indicator lamp .... 354
Multi-mode manual
transmission warning
light..................................... 353
Open door ............................. 355
Seat belt reminder light ......... 355
Slip indicator ......................... 355
Speed limiter ......................... 354
SRS ...................................... 354
Smart entry & start
system ........................ 355, 359
“STOP” warning light ............ 353
Stop & Start cancel
indicator.............................. 354
Tire pressure......................... 356
U
V
W
*: For vehicles with a multimedia system , refer to “Multimedia owner’s manual”.
