TOYOTA BZ4X 2022 Owners Manual (in English)

199
4
Owners Manual_Europe_M42D76_en
4-2. Opening, closing and locking the doors
Before driving
WARNING
■Back door closer
●In the event that the back door is
left slightly open, the back door closer will automatically close it to the fully closed position. It takes
several seconds before the back door closer begins to operate. Be careful not to catch fingers or any-
thing else in the back door, as this may cause bone fractures or other serious injuries.
●Use caution when using the back door closer as it still operates when
the power back door system is can- celed.
■Power back door
Observe the following precautions when operating the power back door.
Failure to do so may cause death or serious injury.
●Check the safety of the surrounding
area to make sure there are no obstacles or anything that could cause any of your belongings to get
caught.
●If anyone is in the vicinity, make
sure they are safe and let them know that the back door is about to open or close
●If the power back door system is turned off while the back door is
operating automatically, the auto- matic operation is stopped. The back door then has to be operated
manually. Take extra care when on an incline, as the back door may open or close unexpectedly.
●If the operating conditions of the power back door are no longer met, a buzzer may sound and the back
door may stop opening or closing. The back door then has to be oper-ated manually. Take extra care
when on an incline, as the back door may open or close abruptly.
●On an incline, the back door may suddenly shut after it opens. Make sure the back door is fully open and
secure.
●In the following situations, the
power back door may detect an abnormality and automatic opera-tion may be stopped. In this case,
the back door has to be operated manually. Take extra care in this sit-uation, as the back door may open
or close suddenly.
• When the back door contacts an
obstacle
• When the 12-volt battery voltage
suddenly drops, such as when the power switch is turned to ON or the EV system is started during auto-
matic operation
●If a bicycle carrier or similar heavy
object is attached to the back door, the power back door may not oper-ate, causing itself to malfunction, or
the back door may suddenly shut again after being opened, causing someone’s hands, arms, head or
neck to be caught and injured. When installing an accessory part to the back door, ask any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer for details.
■Jam protection function
Observe the following precautions.
Failure to do so may cause death or serious injury.
●Never use any part of your body to
intentionally activate the jam pro- tection function.

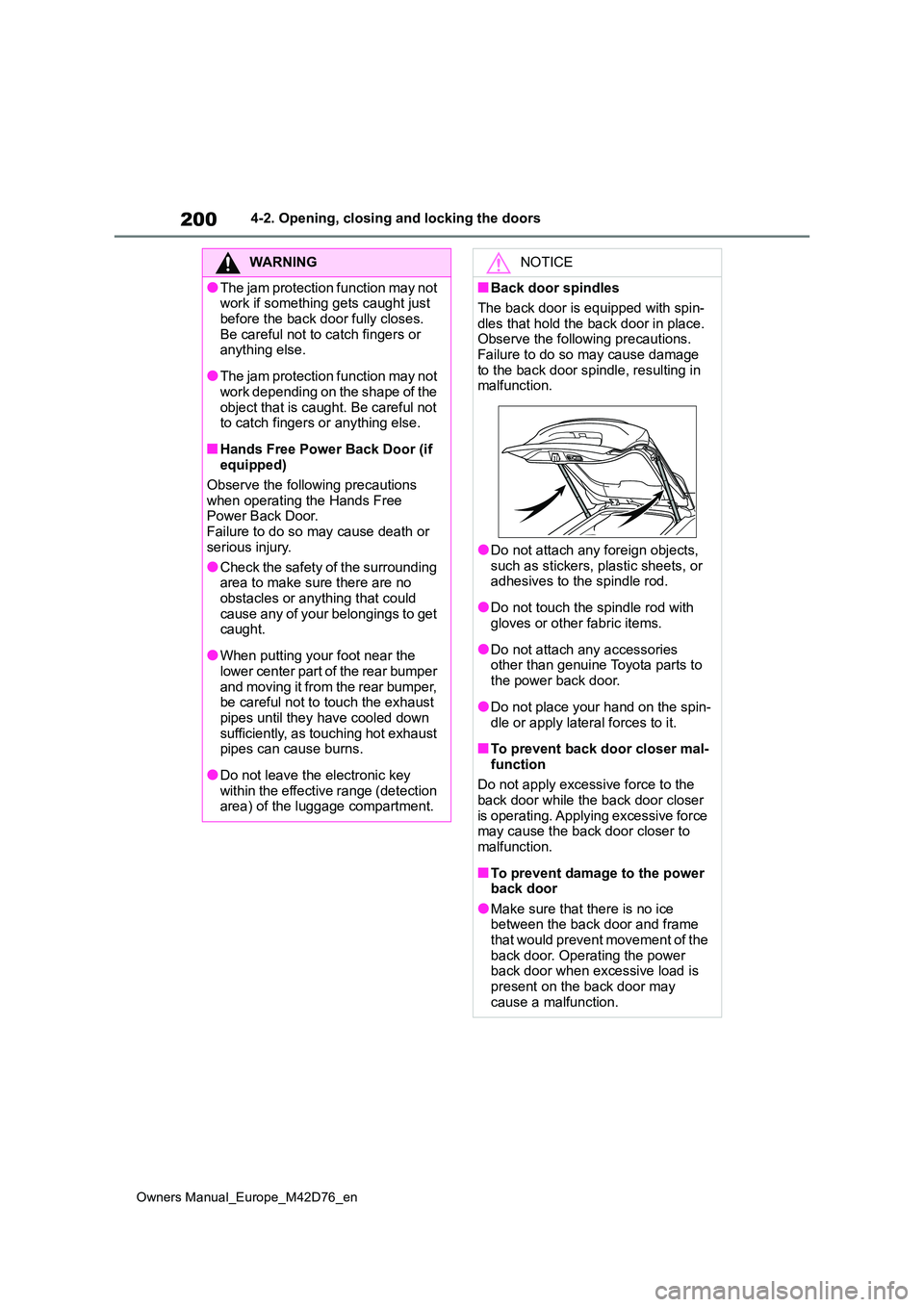

200
Owners Manual_Europe_M42D76_en
4-2. Opening, closing and locking the doors
WARNING
●The jam protection function may not work if something gets caught just
before the back door fully closes. Be careful not to catch fingers or anything else.
●The jam protection function may not work depending on the shape of the
object that is caught. Be careful not to catch fingers or anything else.
■Hands Free Power Back Door (if equipped)
Observe the following precautions
when operating the Hands Free Power Back Door.Failure to do so may cause death or
serious injury.
●Check the safety of the surrounding area to make sure there are no
obstacles or anything that could cause any of your belongings to get caught.
●When putting your foot near the lower center part of the rear bumper
and moving it from the rear bumper, be careful not to touch the exhaust pipes until they have cooled down
sufficiently, as touching hot exhaust pipes can cause burns.
●Do not leave the electronic key within the effective range (detection area) of the luggage compartment.
NOTICE
■Back door spindles
The back door is equipped with spin-
dles that hold the back door in place. Observe the following precautions. Failure to do so may cause damage
to the back door spindle, resulting in malfunction.
●Do not attach any foreign objects, such as stickers, plastic sheets, or adhesives to the spindle rod.
●Do not touch the spindle rod with gloves or other fabric items.
●Do not attach any accessories other than genuine Toyota parts to
the power back door.
●Do not place your hand on the spin-
dle or apply lateral forces to it.
■To prevent back door closer mal-
function
Do not apply excessive force to the back door while the back door closer
is operating. Applying excessive force may cause the back door closer to malfunction.
■To prevent damage to the power back door
●Make sure that there is no ice between the back door and frame that would prevent movement of the
back door. Operating the power back door when excessive load is present on the back door may
cause a malfunction.

201
4
Owners Manual_Europe_M42D76_en
4-2. Opening, closing and locking the doors
Before driving
NOTICE
●Do not apply excessive force to the back door while the power back
door is operating.
●Take care not to damage the sen-
sors (installed on the right and left edges of the power back door) with a knife or other sharp object. If the
sensor is disconnected, the power back door will not close automati-cally.
■Close & lock function
When closing the power back door
using the close & lock function, a dif- ferent buzzer than the normal one will sound before the operation begins.
To check that the operation has started correctly, check that a different buzzer than the normal one has
sounded.
Additionally, when the power back door is fully closed and locked, opera-
tion signals will indicate that all of the doors have been locked.
Before leaving the vehicle, make sure
that the operation signals have oper- ated and that all of the doors are locked.
■Hands Free Power Back Door (if equipped) precautions
The kick sensor is located behind lower center part of the rear bumper. Observe the following to ensure that
the Hands Free Power Back Door function operates properly:
●Keep the lower center part of the rear bumper clean at all times. If the lower center part of the rear bumper
is dirty or covered with snow, the kick sensor may not operate. In this situation, clean off the dirt or snow,
move the vehicle from the current position and then check if the kick sensor operates. If it does not oper-
ate, have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
●Do not apply coatings that have a
rain clearing (hydrophilic) effect, or other coatings, to the lower center part of the rear bumper.
●Do not park the vehicle near objects that may move and contact the
lower center part of the rear bumper, such as grass or trees. If the vehicle has been parked for a
while near objects that may move and contact the lower center part of the rear bumper, such as grass or
trees, the kick sensor may not oper- ate. In this situation, move the vehi-cle from the current position and
then check if the kick sensor oper- ates. If it does not operate, have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●Do not subject the rear bumper to a strong impact.If the rear bumper has been sub-
jected to a strong impact, the Hands Free Power Back Door may not operate properly. If the Hands
Free Power Back Door does not operate in the following situations, have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
• The kick sensor or its surrounding area has been subjected to a strong
impact.

202
Owners Manual_Europe_M42D76_en
4-2. Opening, closing and locking the doors
The settings of the power back door
system can be changed by display-
ing the “Vehicle Settings”
screen from the setting screen of
the multi-information display.
( P.178)
The changed power back door settings
are not reset by turning the power
switch to OFF. In order to restore the
original settings, they need to be
changed back on the setting screen of
the multi-information display.
The open position of the power
back door can be adjusted.
1 Stop the back door in the desir-
able position. ( P.192)
2 Press and hold the power back
door switch on the back door for
2 seconds.
• When the settings are com-
pleted, the buzzer sounds 4
times.
• When opening the back door the
next time, the back door will stop
at that position.
■Returning the back door automatic stop position to the initial settings
Press and hold the power back door switch on the back door for 7 seconds.
After the buzzer sounds 4 times, it
sounds twice more. When the power
back door does the opening operation
the next time, the door will open to the
initial settings position.
■Customization
The opening position can be set with the
multi-information display. ( P.564) Priority for the stop position is given to the last position set by either the power
back door switch on the back door or multi-information display.
NOTICE
• The lower center part of the rear bumper is scratched or damaged.
●Do not disassemble the rear bumper.
●Do not attach stickers to the rear bumper.
●Do not paint the rear bumper.
●If a bicycle carrier or similar heavy object is attached to the power back door, disable the Hands Free
Power Back Door.
Canceling the power back
door system (vehicles with
power back door)
Adjusting the open position
of the back door (vehicles
with power back door)

203
4
Owners Manual_Europe_M42D76_en
4-2. Opening, closing and locking the doors
Before driving
■Antenna location
Antennas outside the cabin (front)
Antennas outside the cabin (rear) (if
equipped)
Antennas inside the cabin
Antenna inside the luggage compart-
ment
Antenna outside the luggage com-
partment
■Effective range (areas within which
the electronic key is detected)
When locking or unlocking the doors
The system can be operated when the
electronic key is within about 0.7 m (2.3
ft.) of the front door handles, rear door
handles (if equipped) and back door
opener switch. (Only the doors detecting
the key can be operated.)
When starting the EV system or
changing power switch modes
The system can be operated when the
electronic key is inside the vehicle.
■If an alarm sounds or a warning
message is displayed
An alarm sounds and warning mes- sages are displayed on the multi-infor-
mation display to protect against unexpected accidents or theft of the vehicle resulting from erroneous opera-
tion. When a warning message is dis- played, take appropriate measures based on the displayed message.
When only an alarm sounds, circum- stances and correction procedures are as follows.
Smart entr y & start sys-
tem
The following operations can
be performed simply by carry-
ing the electronic key on your
person, for example in your
pocket. The driver should
always carry the electronic
key.
 Locks and unlocks the side
doors ( P.185)
Locks and unlocks the back
door ( P.185)
Starts the EV system (P.243)

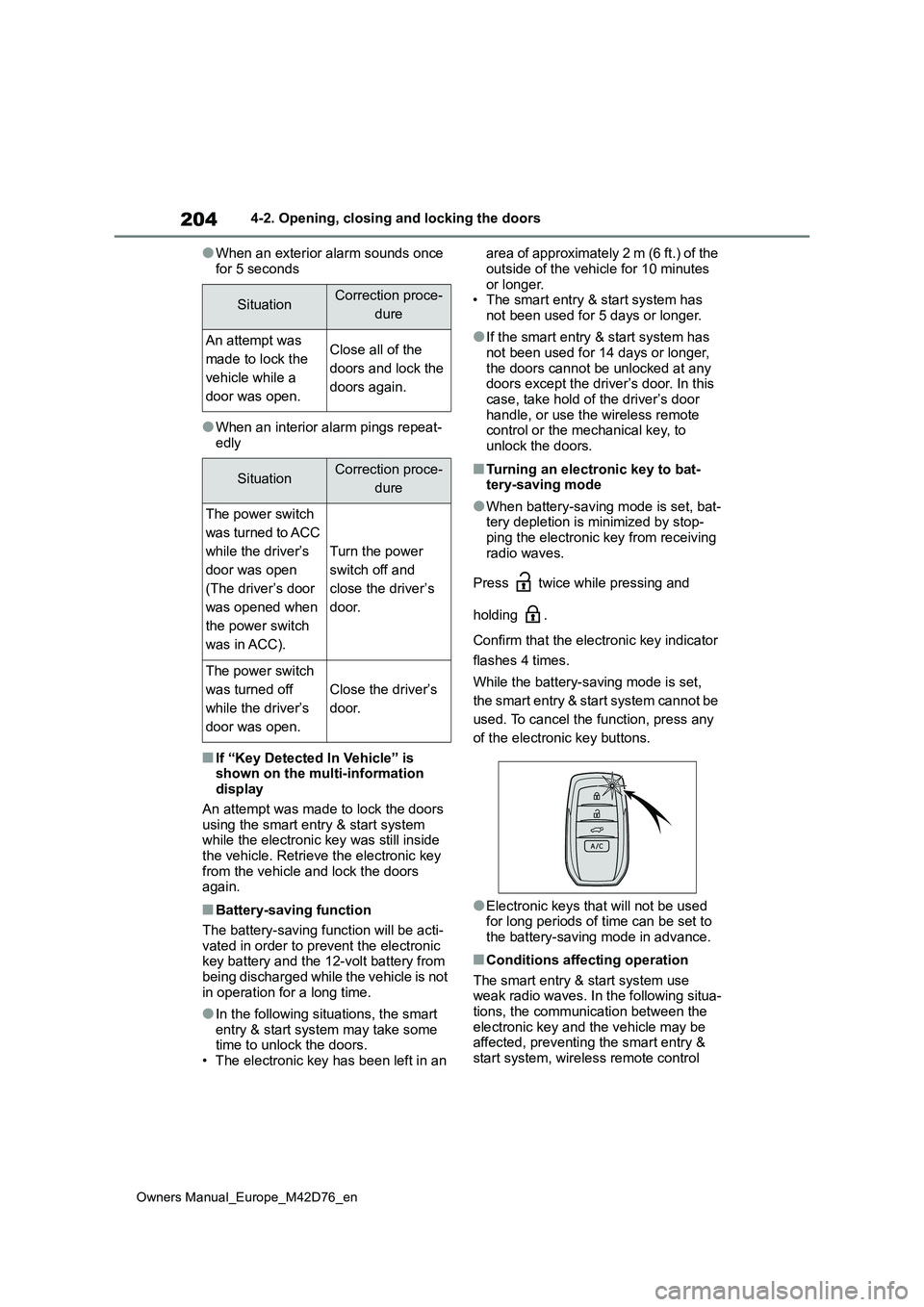

204
Owners Manual_Europe_M42D76_en
4-2. Opening, closing and locking the doors
●When an exterior alarm sounds once
for 5 seconds
●When an interior alarm pings repeat- edly
■If “Key Detected In Vehicle” is shown on the multi-information display
An attempt was made to lock the doors using the smart entry & start system while the electronic key was still inside
the vehicle. Retrieve the electronic key from the vehicle and lock the doors again.
■Battery-saving function
The battery-saving function will be acti- vated in order to prevent the electronic key battery and the 12-volt battery from
being discharged while the vehicle is not in operation for a long time.
●In the following situations, the smart entry & start system may take some time to unlock the doors.
• The electronic key has been left in an
area of approximately 2 m (6 ft.) of the
outside of the vehicle for 10 minutes or longer.• The smart entry & start system has
not been used for 5 days or longer.
●If the smart entry & start system has
not been used for 14 days or longer, the doors cannot be unlocked at any doors except the driver’s door. In this
case, take hold of the driver’s door handle, or use the wireless remote control or the mechanical key, to
unlock the doors.
■Turning an electronic key to bat- tery-saving mode
●When battery-saving mode is set, bat-tery depletion is minimized by stop-ping the electronic key from receiving
radio waves.
Press twice while pressing and
holding .
Confirm that the electronic key indicator
flashes 4 times.
While the battery-saving mode is set,
the smart entry & start system cannot be
used. To cancel the function, press any
of the electronic key buttons.
●Electronic keys that will not be used for long periods of time can be set to the battery-saving mode in advance.
■Conditions affecting operation
The smart entry & start system use weak radio waves. In the following situa-tions, the communication between the
electronic key and the vehicle may be affected, preventing the smart entry & start system, wireless remote control
SituationCorrection proce-
dure
An attempt was
made to lock the
vehicle while a
door was open.
Close all of the
doors and lock the
doors again.
SituationCorrection proce-
dure
The power switch
was turned to ACC
while the driver’s
door was open
(The driver’s door
was opened when
the power switch
was in ACC).
Turn the power
switch off and
close the driver’s
door.
The power switch
was turned off
while the driver’s
door was open.
Close the driver’s
door.

205
4
Owners Manual_Europe_M42D76_en
4-2. Opening, closing and locking the doors
Before driving
and immobilizer system from operating
properly. (Ways of coping: P.542)
●When the electronic key battery is
depleted
●Near a TV tower, electric power plant,
gas station, radio station, large dis- play, airport or other facility that gen-erates strong radio waves or electrical
noise
●When carrying a portable radio, cellu-
lar phone, cordless phone or other wireless communication device
●When the electronic key is in contact with, or is covered by the following metallic objects
• Cards to which aluminum foil is attached• Cigarette boxes that have aluminum
foil inside • Metallic wallets or bags• Coins
• Hand warmers made of metal • Media such as CDs and DVDs
●When other wireless keys (that emit radio waves) are being used nearby
●When carrying the electronic key together with the following devices that emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves• Personal computers or personal digi-
tal assistants (PDAs) • Digital audio players• Portable game systems
●If window tint with a metallic content or metallic objects are attached to the
rear window
●When the electronic key is placed
near a battery charger or electronic devices
●When the vehicle is parked in a pay parking spot where radio waves are emitted
■Note for the entry function
●Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The electronic key is too close to the
window or outside door handle, near the ground, or in a high place when the doors are locked or unlocked.
• The electronic key is on the instru- ment panel, luggage room, floor, or in the door pockets or glove box when
the EV system is started or power switch modes are changed.
●Do not leave the electronic key on top of the instrument panel or near the door pockets when exiting the vehicle.
Depending on the radio wave recep- tion conditions, it may be detected by the antenna outside the cabin and the
door will become lockable from the outside, possibly trapping the elec-tronic key inside the vehicle.
●As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. How- ever, only the doors detecting the electronic key can be used to unlock
the vehicle.
●Even if the electronic key is not inside
the vehicle, it may be possible to start the EV system if the electronic key is near the window.
●The doors may unlock if a large amount of water splashes on the door
handle, such as in the rain or in a car wash when the electronic key is within the effective range. (The doors will
automatically be locked after approxi- mately 30 seconds if the doors are not opened and closed.)
●When the lock operation is performed using the lock sensor, recognition sig-
nals will be shown up to two consecu- tive times. After this, no recognition signals will be given.
●If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a pos- sibility that the door may not be unlocked by the entry function. (Use
the wireless remote control to unlock the doors.)
●Touching the door lock sensor while wearing gloves may delay or prevent

206
Owners Manual_Europe_M42D76_en
4-2. Opening, closing and locking the doors
lock operation. Remove the gloves
and touch the lock sensor again.
●If the door handle becomes wet while
the electronic key is within the effec- tive range, the door may lock and unlock repeatedly. In that case, follow
the following correction procedures to wash the vehicle:• P l ac e t h e e l ec t ro n ic ke y i n a l oc at i o n 2
m (6 ft.) or more away from the vehi- cle. (Take care to ensure that the key is not stolen.)
• Set the electronic key to battery-sav- ing mode to disable the smart entry & start system. ( P.204)
●If the electronic key is inside the vehi- cle and a door handle becomes wet
during a car wash, a message may be shown on the multi-information dis-play and a buzzer will sound outside
the vehicle. To turn off the alarm, lock all the doors.
●The lock sensor may not work prop-erly if it comes into contact with ice, snow, mud, etc. Clean the lock sensor
and attempt to operate it again.
●A sudden approach to the effective
range or door handle may prevent the doors from being unlocked. In this case, return the door handle to the
original position and check that the doors unlock before pulling the door handle again.
●If there is another electronic key in the detection area, it may take slightly lon-
ger to unlock the doors after the door handle is gripped.
■When the vehicle is not driven for extended periods
●To prevent theft of the vehicle, do not leave the electronic key within 2 m (6
ft.) of the vehicle.
●The smart entry & start system can be
deactivated in advance.
●Setting the electronic key to battery-
saving mode helps to reduce key bat- tery depletion. ( P.204)
■To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the electronic key too close to the vehi-
cle when operating the system from the outside of the vehicle.
Depending on the position and holding
condition of the electronic key, the key may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention may not operate.)
■If the smart entry & start system does not operate properly
●If the doors cannot be locked or unlocked, perform the following.
• Bring the electronic key close to the door handle and perform a lock or unlock operation.
• Use the wireless remote control.
If the doors cannot be locked or
unlocked by perform the above, use the
mechanical key. ( P.542)
However, if the mechanical key is used
while the alarm system is set, the warn-
ing will sound. ( P.77)
●If the EV system cannot be started,
refer to P.543
■Customization
Settings (e.g. smart entry & start sys- tem) can be changed.
(Customizable features:P.565)
If the smart entry & start system has been deactivated by a customized set-
ting, refer to the explanations for the fol- lowing operations.
●Locking and unlocking the doors:Use the wireless remote control or mechanical key. ( P.185, 542)
●Starting the EV system and changing power switch modes: P. 5 4 3
●Stopping the EV system:P. 2 4 5

207
4
Owners Manual_Europe_M42D76_en
4-2. Opening, closing and locking the doors
Before driving

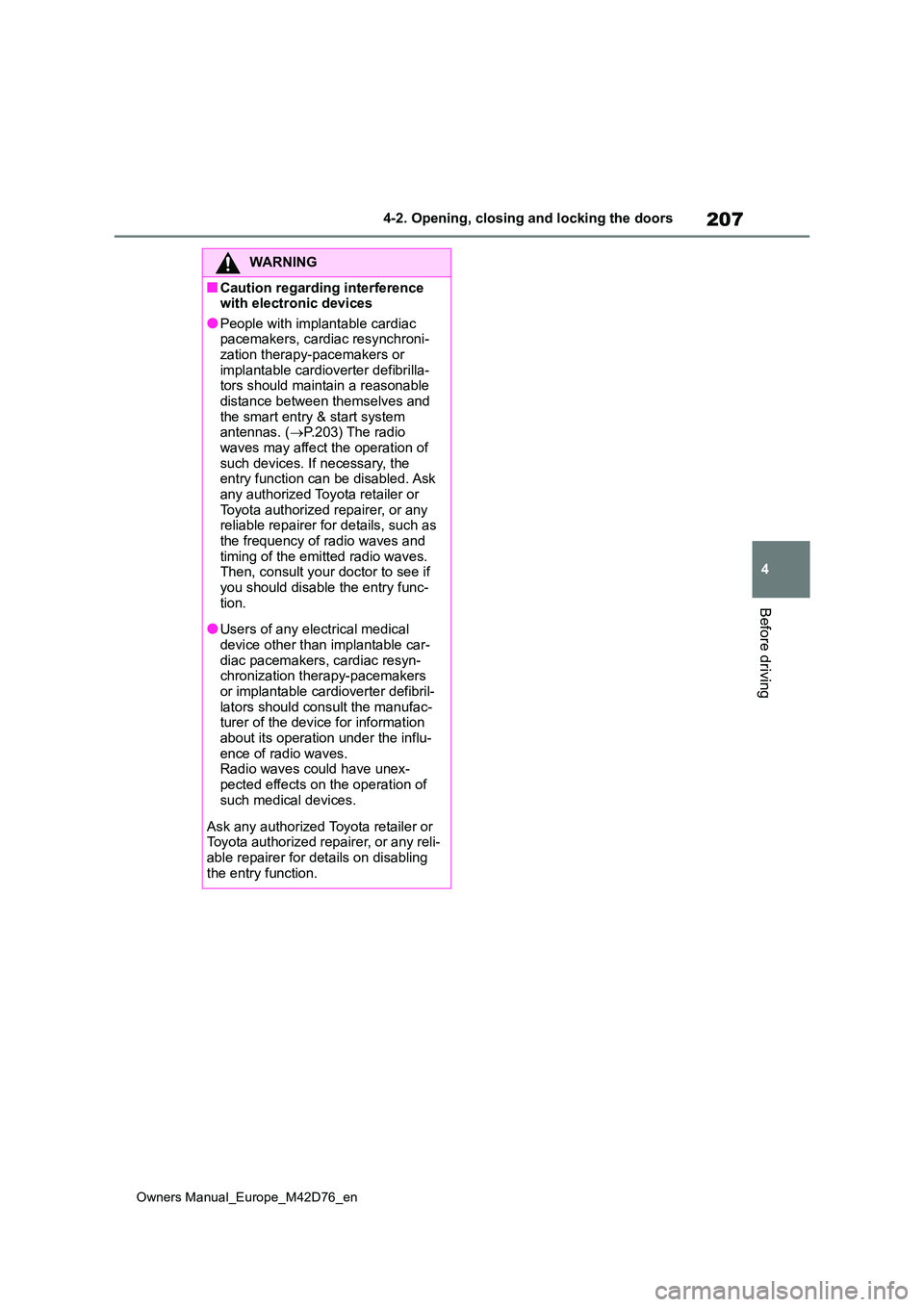

WARNING
■Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchroni-zation therapy-pacemakers or
implantable cardioverter defibrilla- tors should maintain a reasonable distance between themselves and
the smart entry & start system antennas. ( P.203) The radio waves may affect the operation of
such devices. If necessary, the entry function can be disabled. Ask any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for details, such as the frequency of radio waves and
timing of the emitted radio waves. Then, consult your doctor to see if you should disable the entry func-
tion.
●Users of any electrical medical
device other than implantable car- diac pacemakers, cardiac resyn-chronization therapy-pacemakers
or implantable cardioverter defibril- lators should consult the manufac-turer of the device for information
about its operation under the influ- ence of radio waves.Radio waves could have unex-
pected effects on the operation of such medical devices.
Ask any authorized Toyota retailer or Toyota authorized repairer, or any reli-able repairer for details on disabling
the entry function.

208
Owners Manual_Europe_M42D76_en

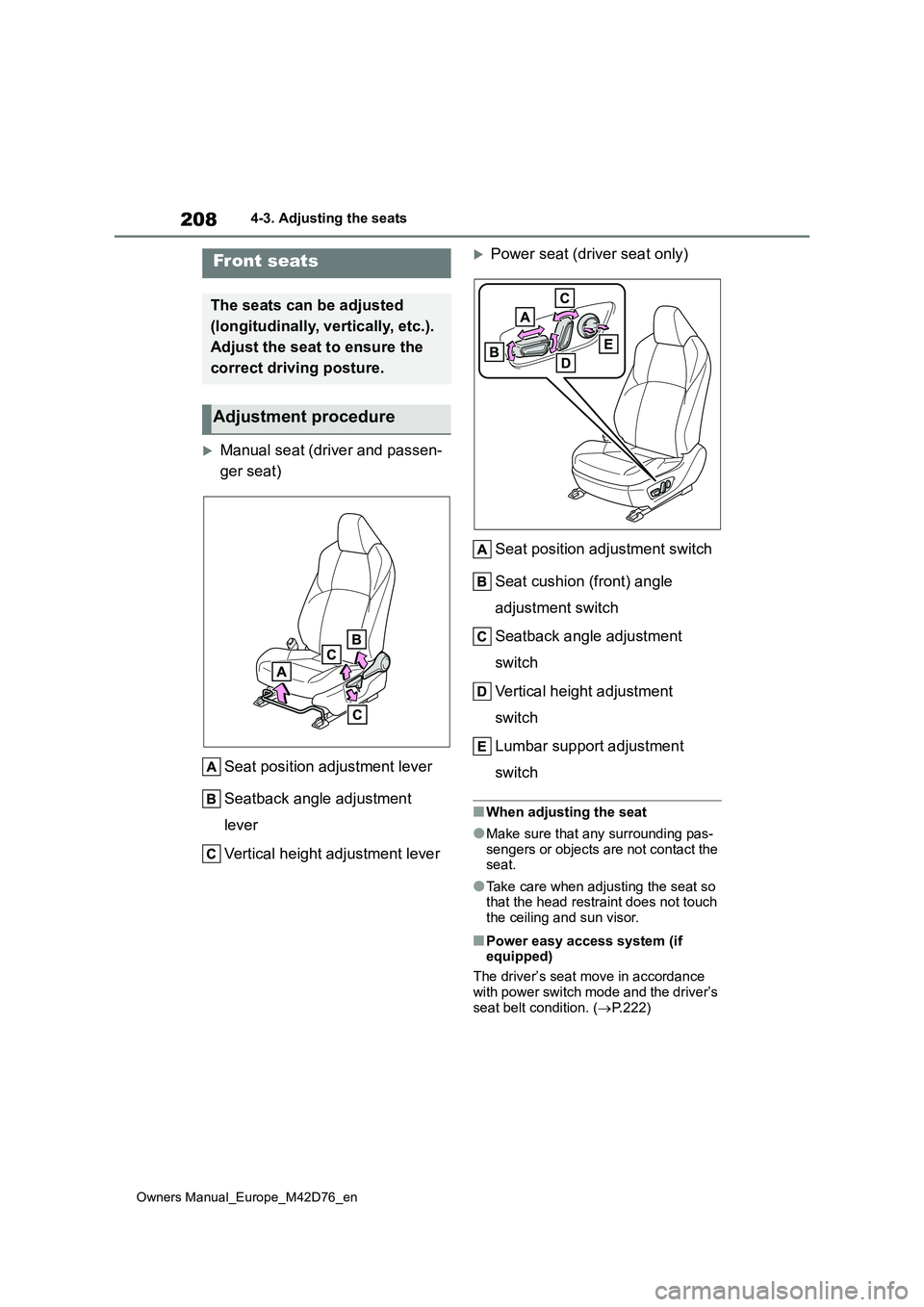

4-3. Adjusting the seats
4-3.Adjusting the sea ts
Manual seat (driver and passen-
ger seat)
Seat position adjustment lever
Seatback angle adjustment
lever
Vertical height adjustment lever
Power seat (driver seat only)
Seat position adjustment switch
Seat cushion (front) angle
adjustment switch
Seatback angle adjustment
switch
Vertical height adjustment
switch
Lumbar support adjustment
switch
■When adjusting the seat
●Make sure that any surrounding pas- sengers or objects are not contact the seat.
●Take care when adjusting the seat so that the head restraint does not touch
the ceiling and sun visor.
■Power easy access system (if equipped)
The driver’s seat move in accordance
with power switch mode and the driver’s seat belt condition. ( P.222)
Front seats
The seats can be adjusted
(longitudinally, vertically, etc.).
Adjust the seat t o ensure the
correct driving posture.
Adjustment procedure
