TOYOTA BZ4X 2022 Owners Manual (in English)

179
3
Owners Manual_Europe_M42D76_en
3-1. Instrument cluster
Vehicle status information and indicators
• Display contents (AWD models only)
Select to display/not display the torque
distribution display.
• Drive information type
Select to change the drive information
type display between after start/after
reset.
• Drive information items
Select to set the first and second items
of the drive information display to any of
the following: average vehicle
speed/distance/elapsed time.
 Closing Display
Select to set the items displayed when
the power switch is turned off.
 Pop-up display
Select to enable/disable pop-up dis-
plays for each relevant system.
 Calendar
The year, month, and day can be set.
Default setting
Select to reset the meter display set-
tings to the default setting.
■Vehicle functions and settings
that can be changed
 P. 5 6 1
■Suspension of the settings display
●Some settings cannot be changed
while driving. When changing set- tings, park the vehicle in a safe place.
●If a warning message is displayed, operation of the settings display will be suspended.
Displays suggestions to the driver
in the following situations. To select
a response to a displayed sugges-
tion, use the meter control
switches.
■Suggestion to turn on the
headlights
If the headlight switch is in other
than or , and the vehicle
speed is 5 km/h (3 mph) or higher
for a certain amount of time when
the surroundings are dark, a sug-
gestion message will be displayed.
■Suggestion to turn off the
headlights
If the headlights are left on for a
certain amount of time after the
power switch has been turned off, a
suggestion message will be dis-
played.
When the headlight switch is in the
AUTO position: The message ask-
ing if you wish to turn the headlights
off is displayed. To turn the head-
lights off, select “Yes”.
If the driver’s door is opened after the
power switch is turned off, this sugges-
tion message will not be displayed.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge,
ensure that the EV system is operat- ing while setting up the display fea-tures.
Suggestion function

180
Owners Manual_Europe_M42D76_en
3-1. Instrument cluster

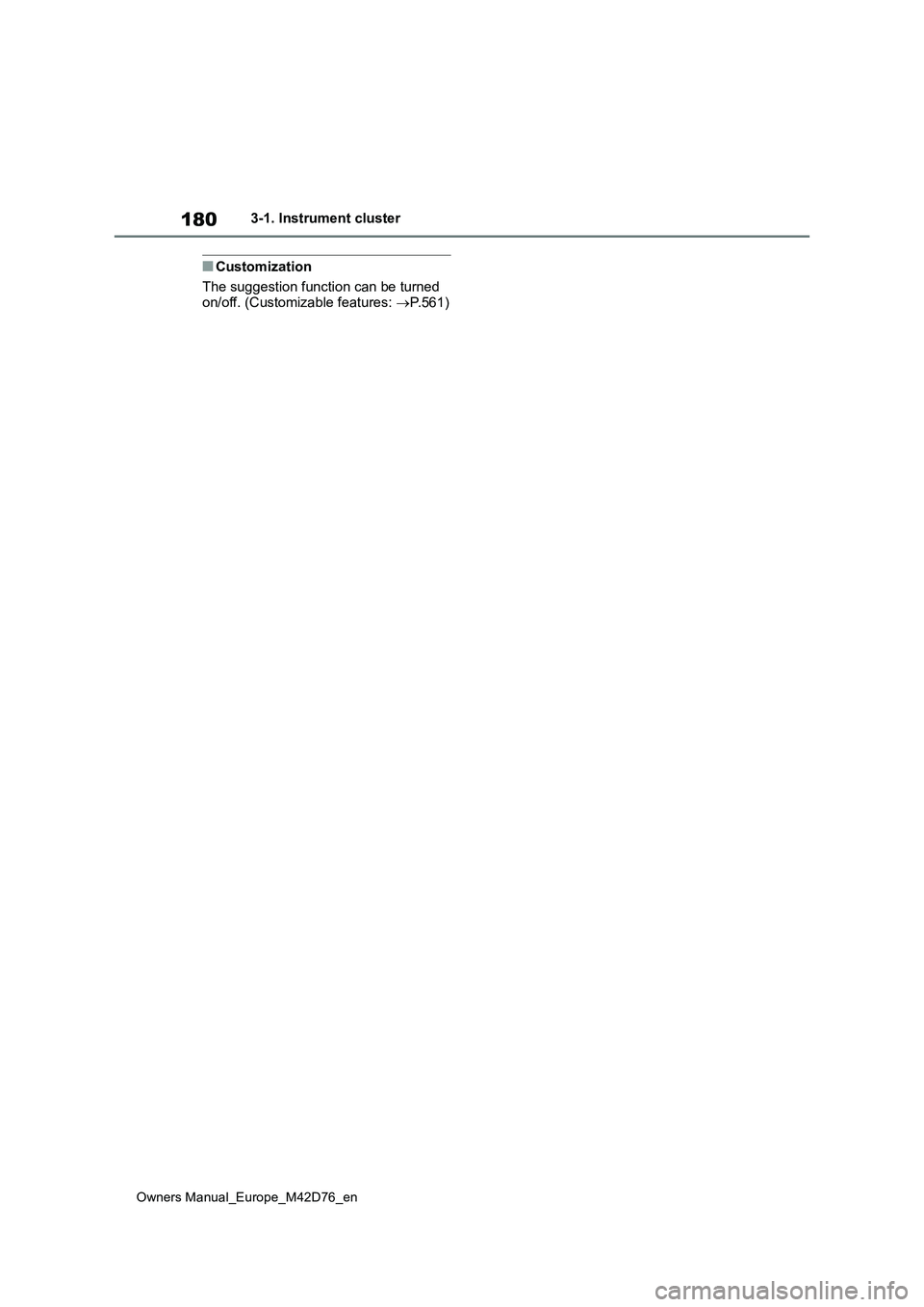

■Customization
The suggestion function can be turned
on/off. (Customizable features: P.561)

4
181
Owners Manual_Europe_M42D76_en
4

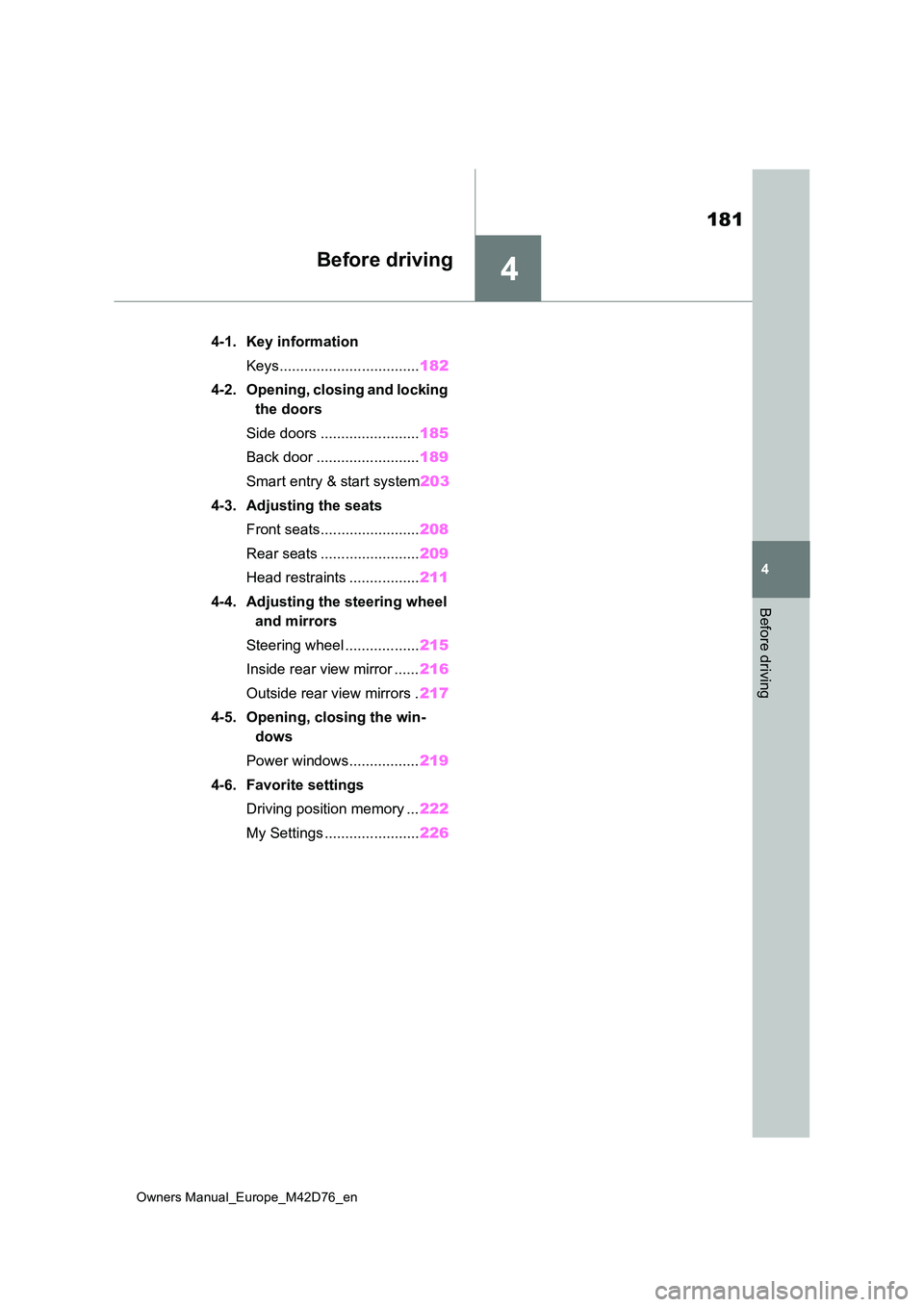

Before driving
Before driving
4-1. Key information
Keys.................................. 182
4-2. Opening, closing and locking
the doors
Side doors ........................ 185
Back door ......................... 189
Smart entry & start system 203
4-3. Adjusting the seats
Front seats........................ 208
Rear seats ........................ 209
Head restraints ................. 211
4-4. Adjusting the steering wheel
and mirrors
Steering wheel .................. 215
Inside rear view mirror ...... 216
Outside rear view mirrors . 217
4-5. Opening, closing the win-
dows
Power windows................. 219
4-6. Favorite settings
Driving position memory ... 222
My Settings ....................... 226

182
Owners Manual_Europe_M42D76_en
4-1. Key information
4-1.Key info rmation

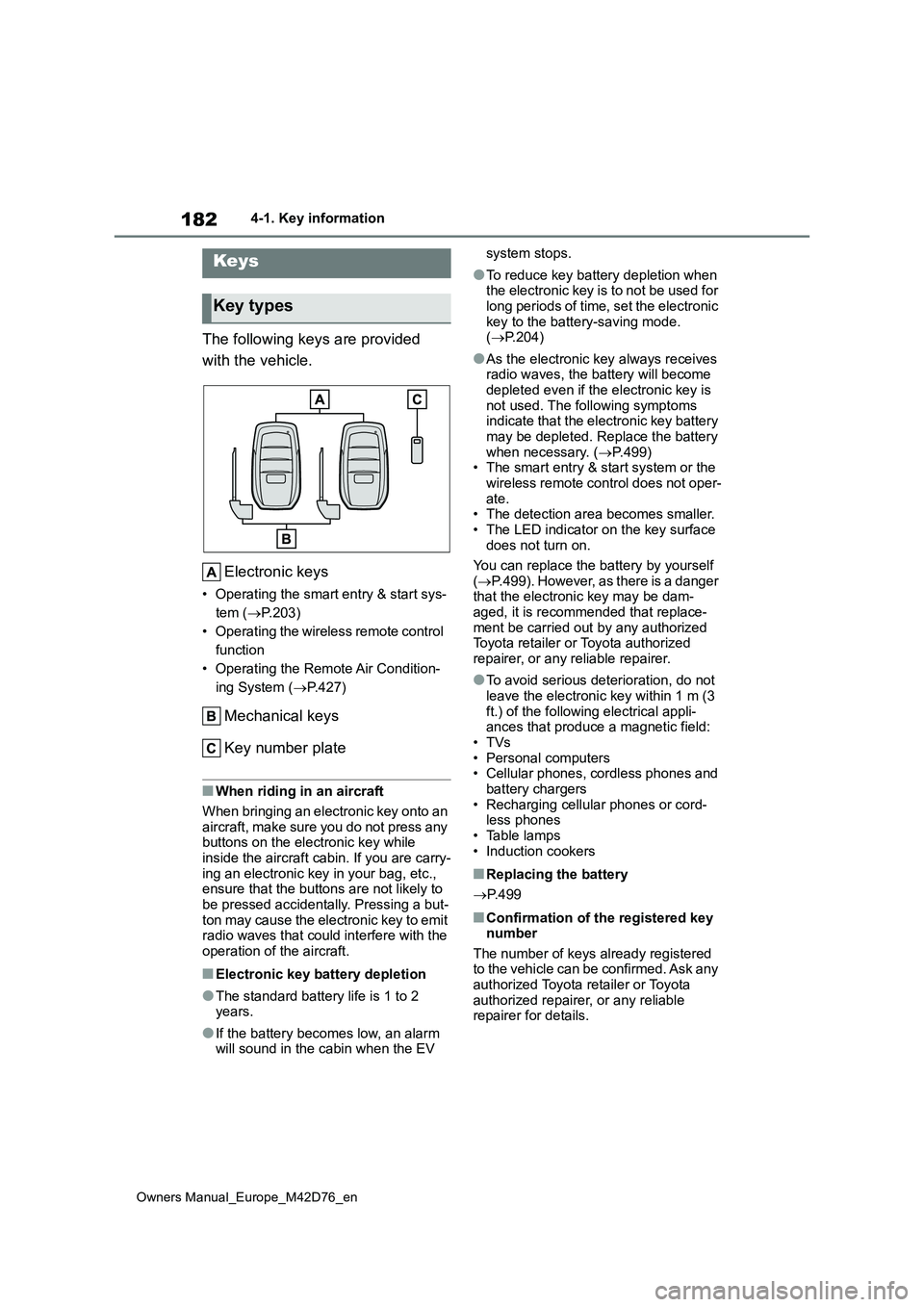

The following keys are provided
with the vehicle.
Electronic keys
• Operating the smart entry & start sys-
tem ( P.203)
• Operating the wireless remote control
function
• Operating the Remote Air Condition-
ing System ( P.427)
Mechanical keys
Key number plate
■When riding in an aircraft
When bringing an electronic key onto an
aircraft, make sure you do not press any buttons on the electronic key while inside the aircraft cabin. If you are carry-
ing an electronic key in your bag, etc., ensure that the buttons are not likely to be pressed accidentally. Pressing a but-
ton may cause the electronic key to emit radio waves that could interfere with the operation of the aircraft.
■Electronic key battery depletion
●The standard battery life is 1 to 2 years.
●If the battery becomes low, an alarm will sound in the cabin when the EV
system stops.
●To reduce key battery depletion when the electronic key is to not be used for
long periods of time, set the electronic key to the battery-saving mode. ( P.204)
●As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indicate that the electronic key battery
may be depleted. Replace the battery when necessary. ( P.499) • The smart entry & start system or the
wireless remote control does not oper- ate.• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
You can replace the battery by yourself
( P.499). However, as there is a danger that the electronic key may be dam-aged, it is recommended that replace-
ment be carried out by any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appli- ances that produce a magnetic field:•TVs
• Personal computers • Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cord- less phones• Table lamps
• Induction cookers
■Replacing the battery
 P. 4 9 9
■Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer for details.
Keys
Key types

183
4
Owners Manual_Europe_M42D76_en
4-1. Key information
Before driving

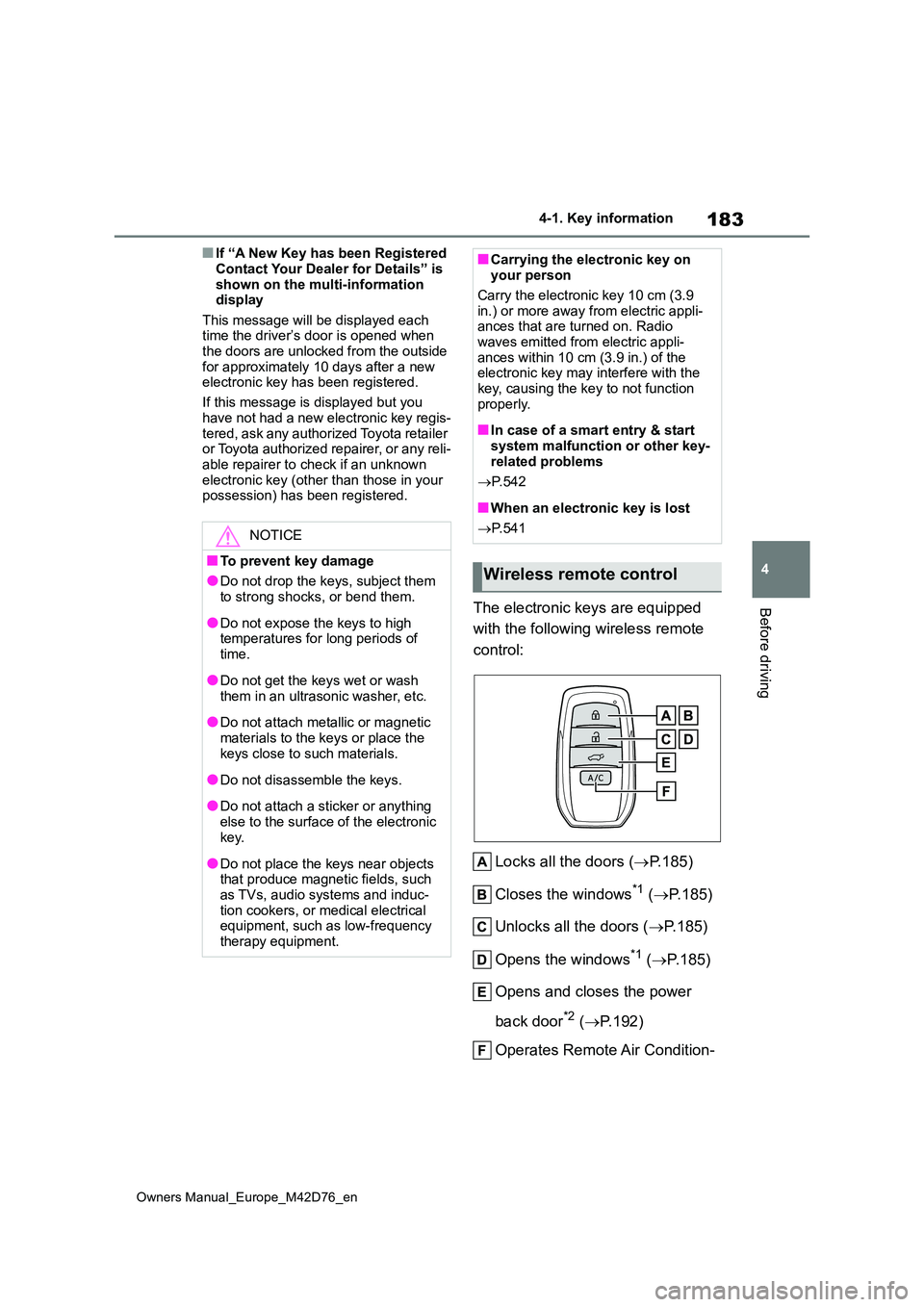

■If “A New Key has been Registered
Contact Your Dealer for Details” is shown on the multi-information display
This message will be displayed each time the driver’s door is opened when the doors are unlocked from the outside
for approximately 10 days after a new electronic key has been registered.
If this message is displayed but you
have not had a new electronic key regis- tered, ask any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer to check if an unknown electronic key (other than those in your possession) has been registered.
The electronic keys are equipped
with the following wireless remote
control:
Locks all the doors ( P.185)
Closes the windows*1 ( P.185)
Unlocks all the doors ( P.185)
Opens the windows*1 ( P.185)
Opens and closes the power
back door*2 ( P.192)
Operates Remote Air Condition-
NOTICE
■To prevent key damage
●Do not drop the keys, subject them to strong shocks, or bend them.
●Do not expose the keys to high temperatures for long periods of
time.
●Do not get the keys wet or wash
them in an ultrasonic washer, etc.
●Do not attach metallic or magnetic
materials to the keys or place the keys close to such materials.
●Do not disassemble the keys.
●Do not attach a sticker or anything
else to the surface of the electronic key.
●Do not place the keys near objects that produce magnetic fields, such as TVs, audio systems and induc-
tion cookers, or medical electrical equipment, such as low-frequency therapy equipment.
■Carrying the electronic key on your person
Carry the electronic key 10 cm (3.9
in.) or more away from electric appli- ances that are turned on. Radio waves emitted from electric appli-
ances within 10 cm (3.9 in.) of the electronic key may interfere with the key, causing the key to not function
properly.
■In case of a smart entry & start
system malfunction or other key- related problems
 P. 5 4 2
■When an electronic key is lost
 P. 5 4 1
Wireless remote control

184
Owners Manual_Europe_M42D76_en
4-1. Key information
ing System (P.427)
*1: These settings must be customized
at any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
*2: If equipped

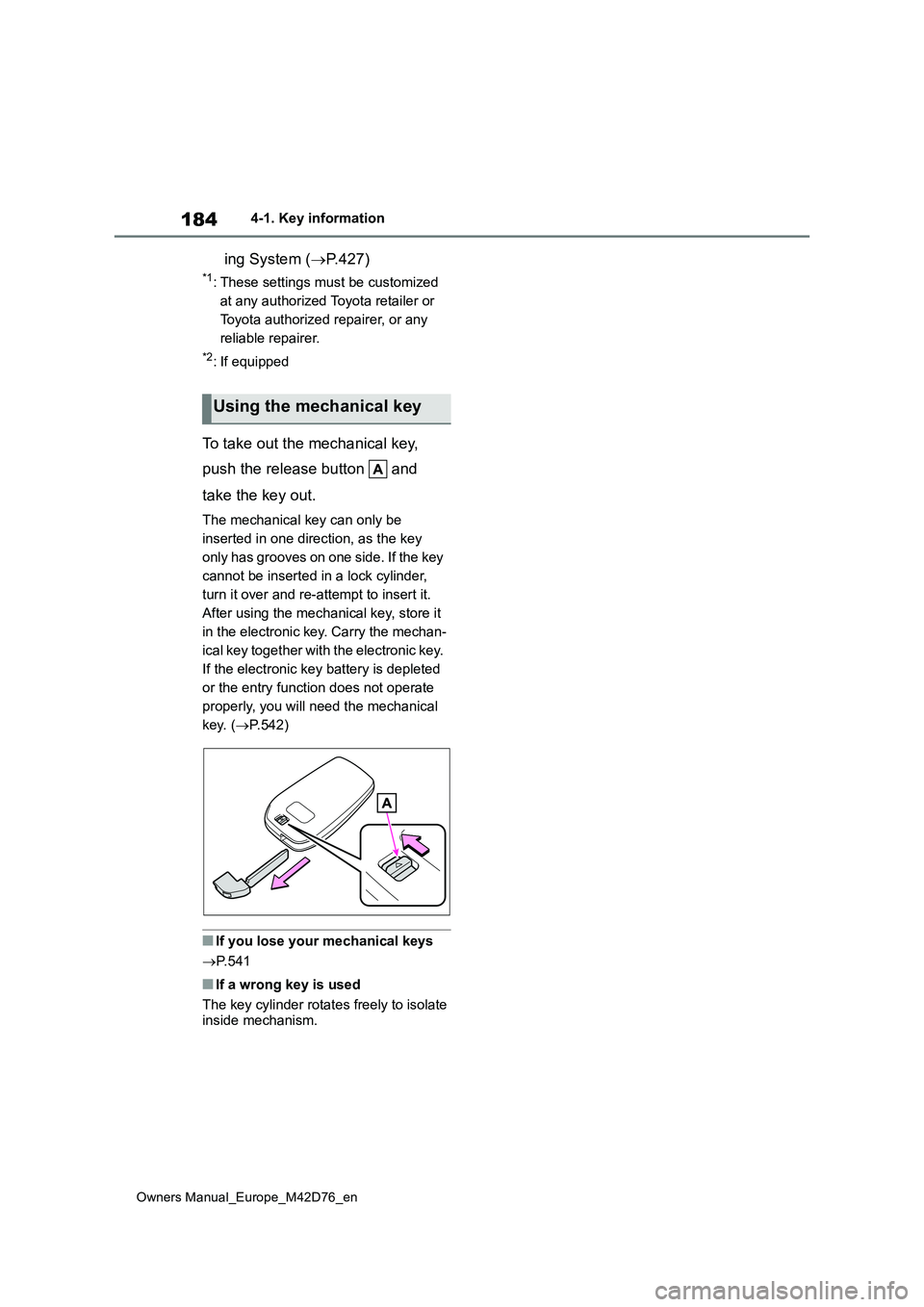

To take out the mechanical key,
push the release button and
take the key out.
The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the key
cannot be inserted in a lock cylinder,
turn it over and re-attempt to insert it.
After using the mechanical key, store it
in the electronic key. Carry the mechan-
ical key together with the electronic key.
If the electronic key battery is depleted
or the entry function does not operate
properly, you will need the mechanical
key. ( P.542)
■If you lose your mechanical keys
 P. 5 4 1
■If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.
Using the mechanical key

185
4
Owners Manual_Europe_M42D76_en
4-2. Opening, closing and locking the doors
Before driving
4-2.Opening, closing and lo cking th e d oors
■Smart entry & start system
Carry the electronic key to enable
this function.
1 Grip the front door handle or
rear door handle (some models)
to unlock the doors.*
Make sure to touch the sensor on the
back of the handle.
The doors cannot be unlocked for 3
seconds after the doors are locked.
2 Touch the lock sensor (the
indentation on the side of the
door handle) to lock all the
doors.
Check that the door is securely locked.
*: The door unlock settings can be
changed.
■Wireless remote control
1 Locks all the doors
Check that the door is securely locked.
Press and hold to close the windows.*
2 Unlocks all the doors
Press and hold to open the windows.*
*: These settings must be customized
at any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
■Switching the door unlock function
It is possible to set which doors the entry function unlocks using the wireless remote control.
1 Turn the power switch off.
2 Cancel the intrusion sensor and tilt
sensor of the alarm system to pre- vent unintended triggering of the alarm while changing the settings. (if
equipped) ( P. 7 8 )
3 When the indicator light on the key
surface is not on, press and hold
or for approximately 5 sec-
onds while pressing and holding .
The setting changes each time an oper-
ation is performed, as shown below.
(When changing the setting continu-
ously, release the buttons, wait for at
least 5 seconds, and repeat step 3.)
Side doors
Unlocking and locking the
doors from the outside

186
Owners Manual_Europe_M42D76_en
4-2. Opening, closing and locking the doors
For vehicles with alarm: To prevent unin-
tended triggering of the alarm, unlock
the doors using the wireless remote
control and open and close a door once
after the settings have been changed. (If
a door is not opened within 30 seconds
after is pressed, the doors will be
locked again and the alarm will automat-
ically be set.)
In a case that the alarm is triggered,
immediately stop the alarm. ( P.77)
■Locking the front doors from the outside without a key
1 Move the inside lock button to the lock position. ( P.188)
2 Close the door while pulling the door
handle.
The door cannot be locked if the power switch is in ACC or ON, or the electronic
key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
■Impact detection door lock release
system
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of accident, however, the system may not operate.
■Operation signals
The emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: once;
Unlocked: twice)
A buzzer sounds to indicate that the win- dows are operating.
■Security feature
If a door is not opened within approxi- mately 30 seconds after the vehicle is unlocked, the security feature automati-
cally locks the vehicle again.
■When the door cannot be locked by the lock sensor on the surface of the door handle
When the door cannot be locked even if the lock sensor on the surface of the door handle is touched by a finger, touch
the lock sensor with the palm. When gloves are being worn, remove the gloves.
■Open door warning buzzer
If an attempt to lock the doors is made
when a door is not fully closed, a buzzer sounds continuously for 5 seconds. Fully close the door to stop the buzzer,
and lock the vehicle once more.
■Setting the alarm (if equipped)
Locking the doors will set the alarm sys- tem. ( P.77)
Multi-information
display/BeepUnlocking function
(Left-hand drive vehicles)
(Right-hand drive vehicles)
Exterior: Beeps 3 times
Interior: Pings once
Holding the driver’s
door handle unlocks
only the driver’s
door.
Holding the front
passenger door
handle or rear door
handle (vehicles
with lock sensor)
unlocks all the
doors.
Exterior: Beeps twice
Interior: Pings once
Holding a front door
handle or rear door
handle (vehicles
with lock sensor)
unlocks all the
doors.

187
4
Owners Manual_Europe_M42D76_en

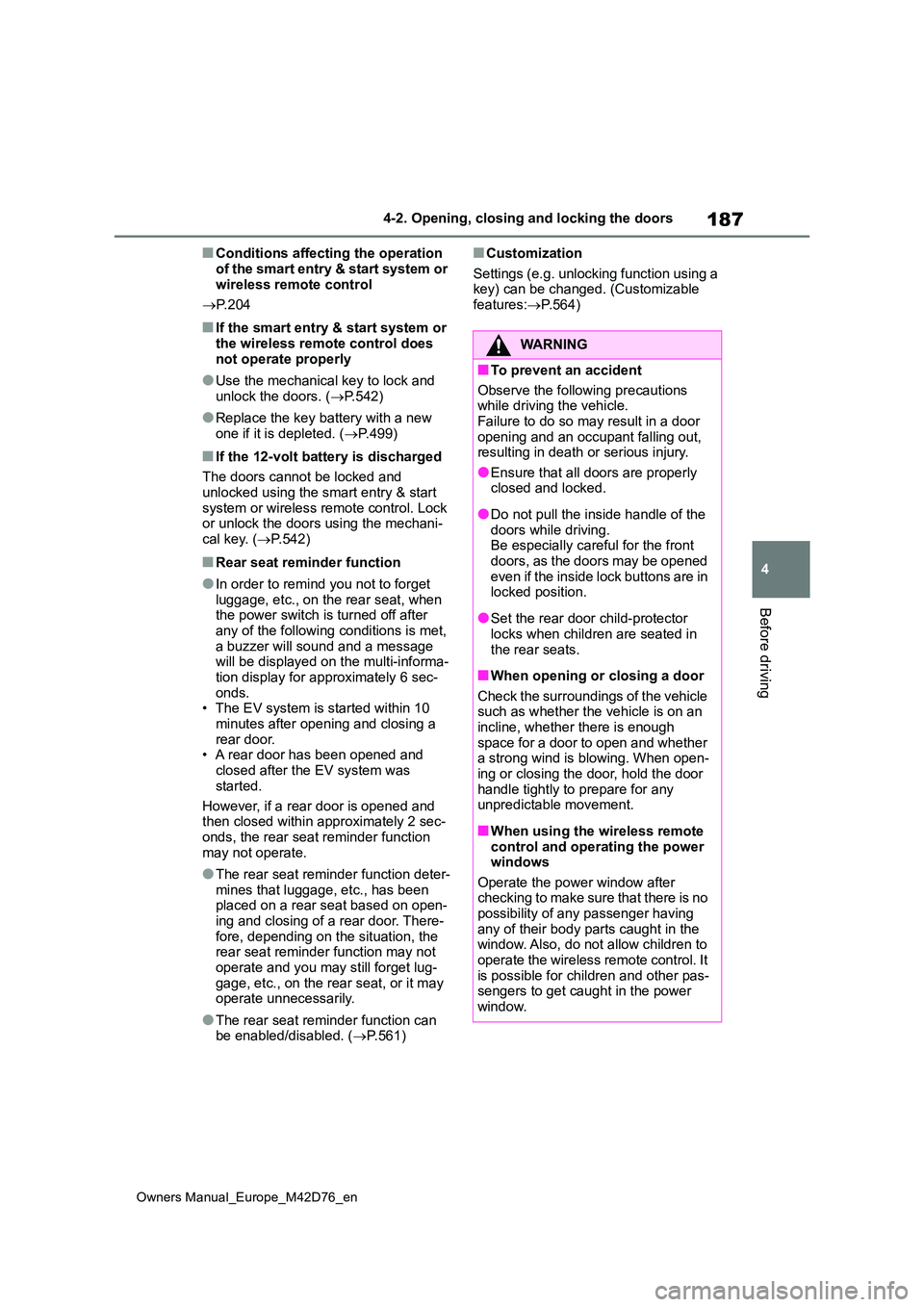

4-2. Opening, closing and locking the doors
Before driving
■Conditions affecting the operation
of the smart entry & start system or wireless remote control
 P. 2 0 4
■If the smart entry & start system or
the wireless remote control does not operate properly
●Use the mechanical key to lock and unlock the doors. ( P.542)
●Replace the key battery with a new one if it is depleted. ( P.499)
■If the 12-volt battery is discharged
The doors cannot be locked and
unlocked using the smart entry & start system or wireless remote control. Lock or unlock the doors using the mechani-
cal key. ( P.542)
■Rear seat reminder function
●In order to remind you not to forget
luggage, etc., on the rear seat, when the power switch is turned off after any of the following conditions is met,
a buzzer will sound and a message will be displayed on the multi-informa-tion display for approximately 6 sec-
onds. • The EV system is started within 10 minutes after opening and closing a
rear door. • A rear door has been opened and closed after the EV system was
started.
However, if a rear door is opened and then closed within approximately 2 sec-
onds, the rear seat reminder function may not operate.
●The rear seat reminder function deter-mines that luggage, etc., has been placed on a rear seat based on open-
ing and closing of a rear door. There- fore, depending on the situation, the rear seat reminder function may not
operate and you may still forget lug- gage, etc., on the rear seat, or it may operate unnecessarily.
●The rear seat reminder function can be enabled/disabled. ( P.561)
■Customization
Settings (e.g. unlocking function using a key) can be changed. (Customizable features: P.564)
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out, resulting in death or serious injury.
●Ensure that all doors are properly closed and locked.
●Do not pull the inside handle of the doors while driving.Be especially careful for the front
doors, as the doors may be opened even if the inside lock buttons are in locked position.
●Set the rear door child-protector locks when children are seated in
the rear seats.
■When opening or closing a door
Check the surroundings of the vehicle such as whether the vehicle is on an incline, whether there is enough
space for a door to open and whether a strong wind is blowing. When open-ing or closing the door, hold the door
handle tightly to prepare for any unpredictable movement.
■When using the wireless remote control and operating the power windows
Operate the power window after checking to make sure that there is no possibility of any passenger having
any of their body parts caught in the window. Also, do not allow children to operate the wireless remote control. It
is possible for children and other pas- sengers to get caught in the power window.

188
Owners Manual_Europe_M42D76_en

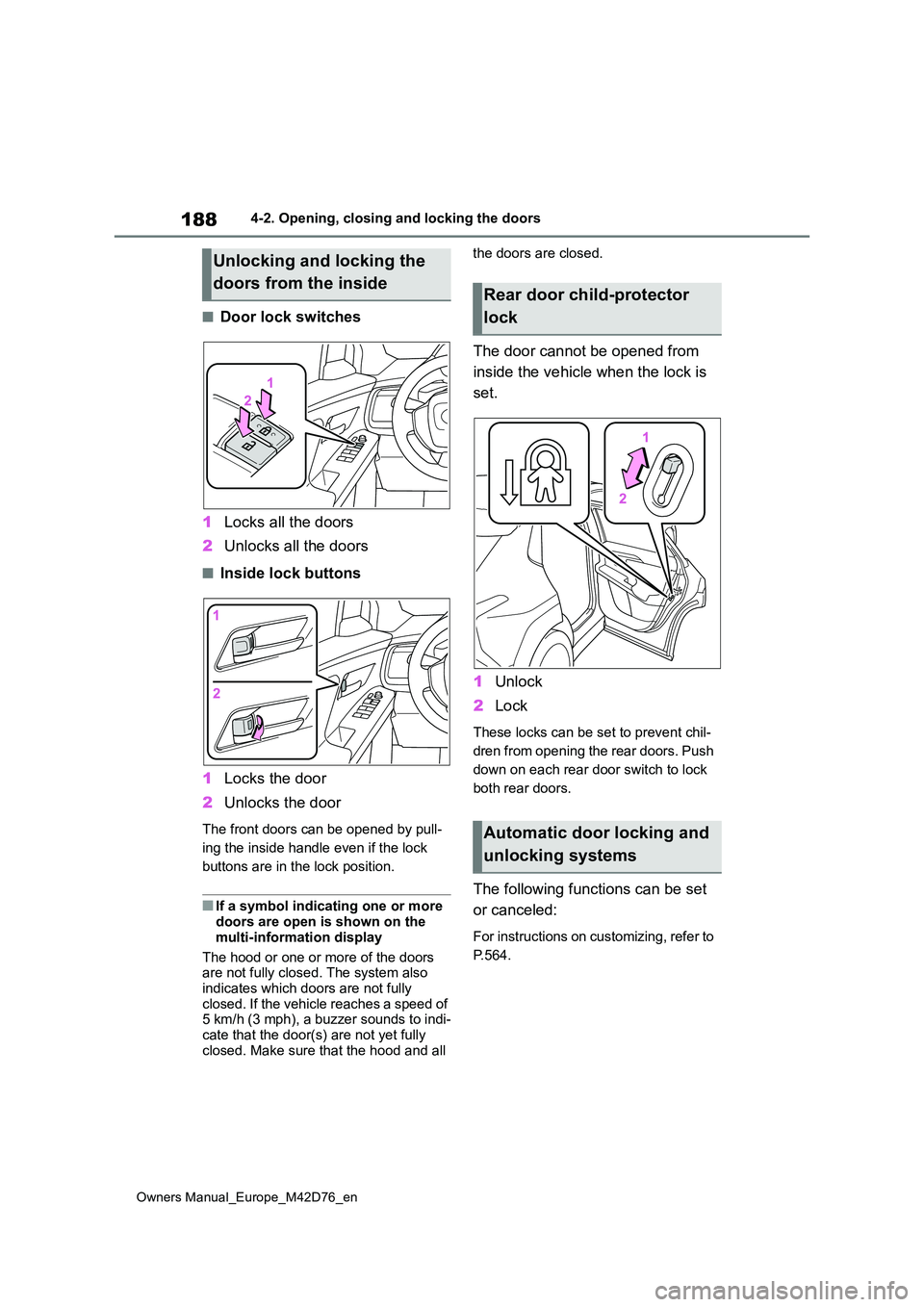

4-2. Opening, closing and locking the doors
■Door lock switches
1 Locks all the doors
2 Unlocks all the doors
■Inside lock buttons
1 Locks the door
2 Unlocks the door
The front doors can be opened by pull-
ing the inside handle even if the lock
buttons are in the lock position.
■If a symbol indicating one or more doors are open is shown on the
multi-information display
The hood or one or more of the doors are not fully closed. The system also
indicates which doors are not fully closed. If the vehicle reaches a speed of 5 km/h (3 mph), a buzzer sounds to indi-
cate that the door(s) are not yet fully closed. Make sure that the hood and all
the doors are closed.
The door cannot be opened from
inside the vehicle when the lock is
set.
1 Unlock
2 Lock
These locks can be set to prevent chil-
dren from opening the rear doors. Push
down on each rear door switch to lock
both rear doors.
The following functions can be set
or canceled:
For instructions on customizing, refer to
P.564.
Unlocking and locking the
doors from the insideRear door child-protector
lock
Automatic door locking and
unlocking systems
