TOYOTA BZ4X 2022 Owners Manual (in English)

429
6
Owners Manual_Europe_M42D76_en

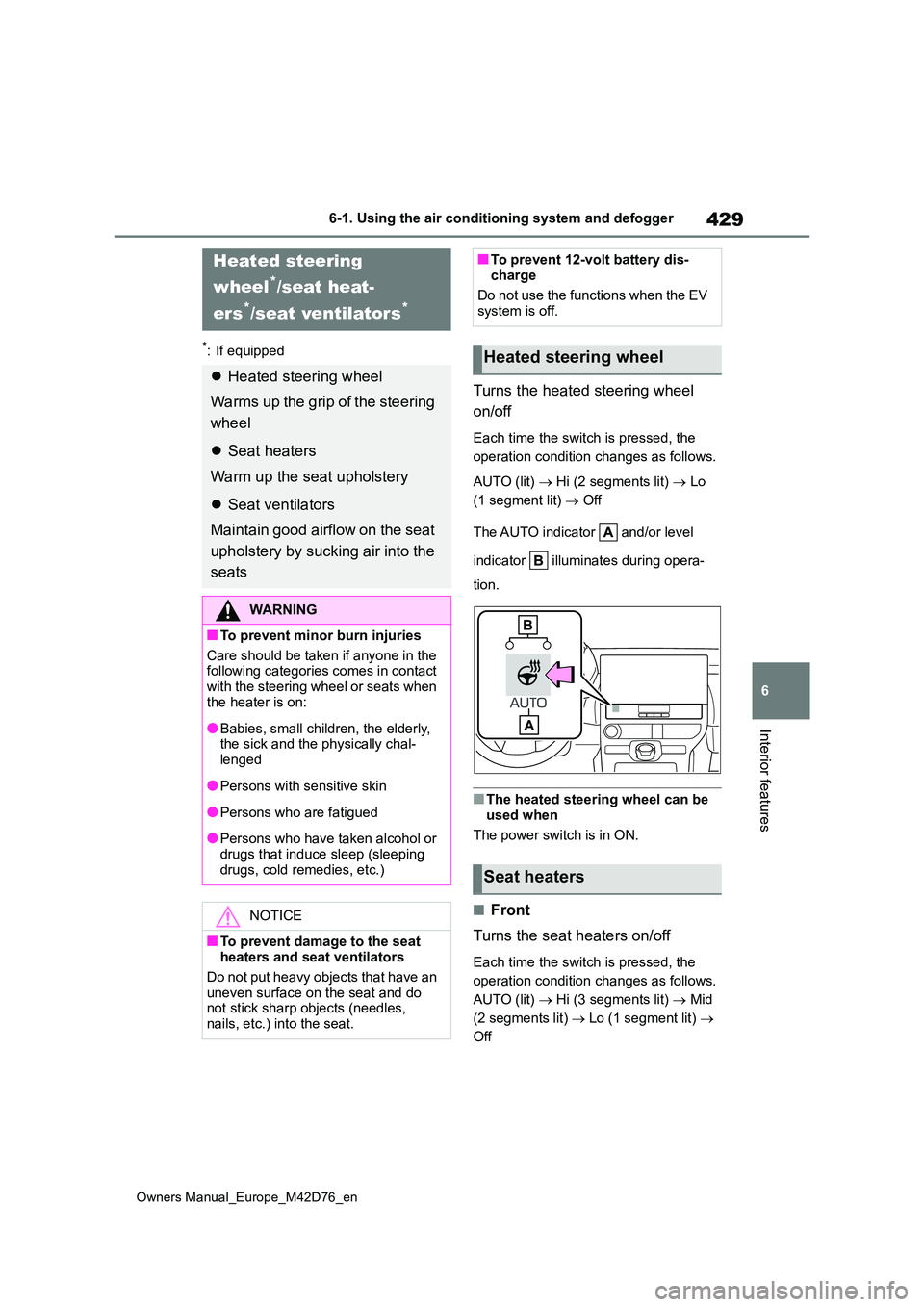

6-1. Using the air conditioning system and defogger
Interior features
*: If equipped
Turns the heated steering wheel
on/off
Each time the switch is pressed, the
operation condition changes as follows.
AUTO (lit)  Hi (2 segments lit)  Lo
(1 segment lit)  Off
The AUTO indicator and/or level
indicator illuminates during opera-
tion.
■The heated steering wheel can be
used when
The power switch is in ON.
■Front
Turns the seat heaters on/off
Each time the switch is pressed, the
operation condition changes as follows.
AUTO (lit)  Hi (3 segments lit)  Mid
(2 segments lit)  Lo (1 segment lit) 
Off
Heated steering
wheel*/seat heat-
ers*/seat ventilators*
 Heated steering wheel
Warms up the grip of the steering
wheel
 Seat heaters
Warm up the seat upholstery
 Seat ventilators
Maintain good airflow on the seat
upholstery by sucking air into the
seats
WARNING
■To prevent minor burn injuries
Care should be taken if anyone in the following categories comes in contact
with the steering wheel or seats when the heater is on:
●Babies, small children, the elderly, the sick and the physically chal-lenged
●Persons with sensitive skin
●Persons who are fatigued
●Persons who have taken alcohol or
drugs that induce sleep (sleeping drugs, cold remedies, etc.)
NOTICE
■To prevent damage to the seat heaters and seat ventilators
Do not put heavy objects that have an
uneven surface on the seat and do not stick sharp objects (needles, nails, etc.) into the seat.
■To prevent 12-volt battery dis-charge
Do not use the functions when the EV
system is off.
Heated steering wheel
Seat heaters

430
Owners Manual_Europe_M42D76_en
6-1. Using the air conditioning system and defogger

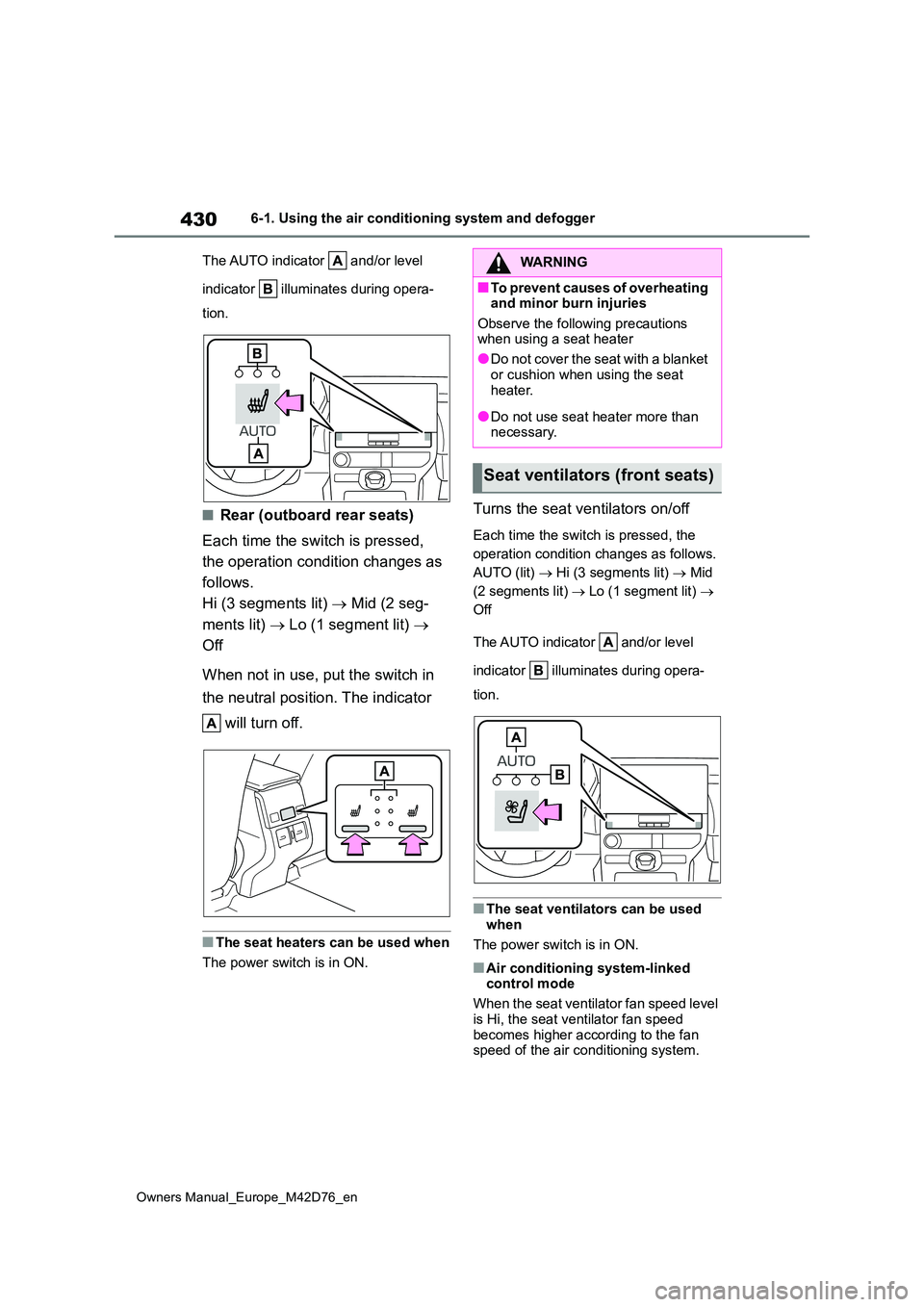

The AUTO indicator and/or level
indicator illuminates during opera-
tion.
■Rear (outboard rear seats)
Each time the switch is pressed,
the operation condition changes as
follows.
Hi (3 segments lit)  Mid (2 seg-
ments lit)  Lo (1 segment lit) 
Off
When not in use, put the switch in
the neutral position. The indicator
will turn off.
■The seat heaters can be used when
The power switch is in ON.
Turns the seat ventilators on/off
Each time the switch is pressed, the
operation condition changes as follows.
AUTO (lit)  Hi (3 segments lit)  Mid
(2 segments lit)  Lo (1 segment lit) 
Off
The AUTO indicator and/or level
indicator illuminates during opera-
tion.
■The seat ventilators can be used when
The power switch is in ON.
■Air conditioning system-linked control mode
When the seat ventilator fan speed level
is Hi, the seat ventilator fan speed becomes higher according to the fan speed of the air conditioning system.
WARNING
■To prevent causes of overheating and minor burn injuries
Observe the following precautions when using a seat heater
●Do not cover the seat with a blanket
or cushion when using the seat heater.
●Do not use seat heater more than necessary.
Seat ventilators (front seats)

431
6
Owners Manual_Europe_M42D76_en

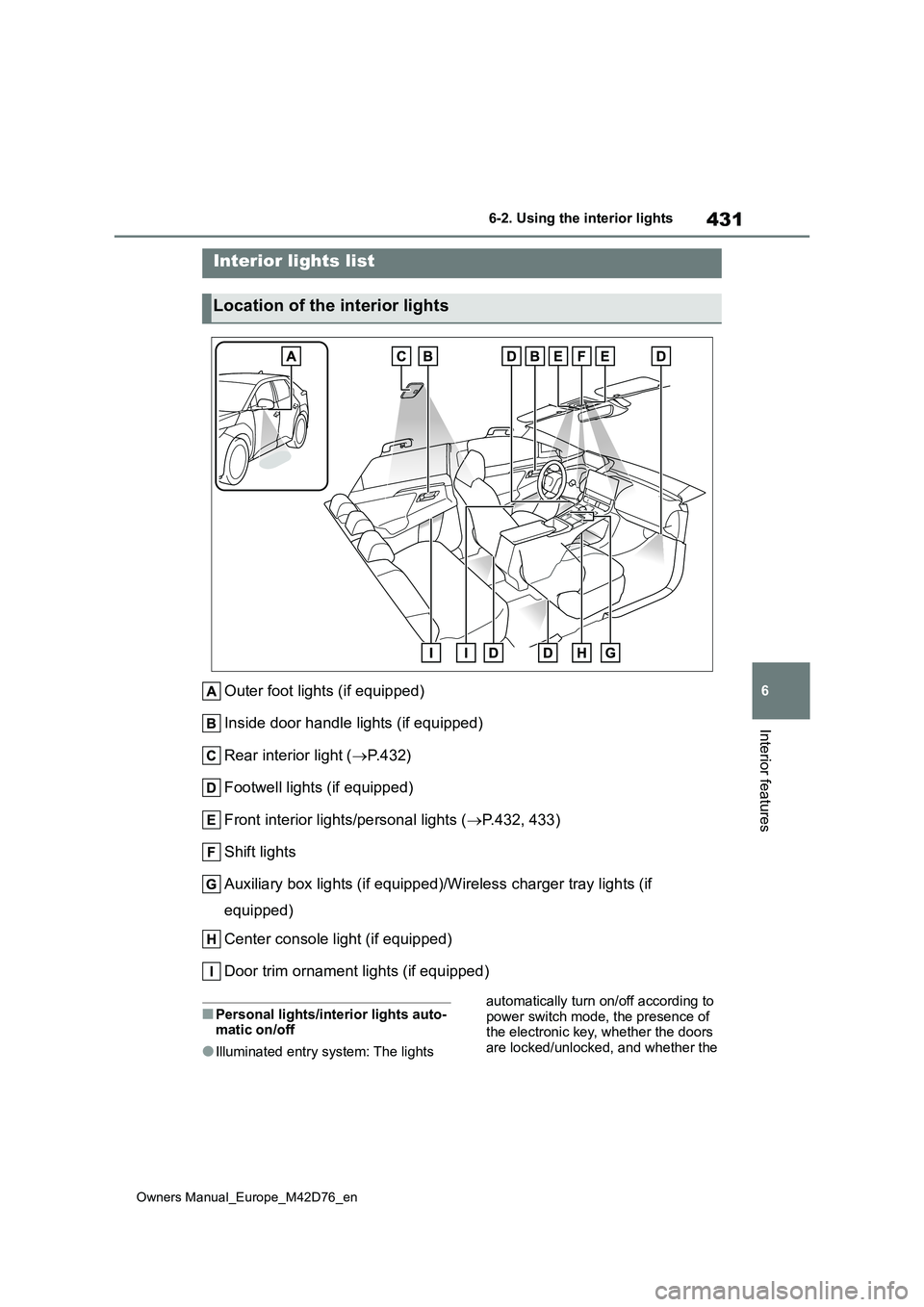

6-2. Using the interior lights
Interior features
6-2.Using the interior lights
Outer foot lights (if equipped)
Inside door handle lights (if equipped)
Rear interior light ( P. 4 3 2 )
Footwell lights (if equipped)
Front interior lights/personal lights ( P.432, 433)
Shift lights
Auxiliary box lights (if equipped)/Wireless charger tray lights (if
equipped)
Center console light (if equipped)
Door trim ornament lights (if equipped)
■Personal lights/interior lights auto- matic on/off
●Illuminated entry system: The lights
automatically turn on/off according to power switch mode, the presence of the electronic key, whether the doors
are locked/unlocked, and whether the
Interior lights list
Location of the interior lights

432
Owners Manual_Europe_M42D76_en
6-2. Using the interior lights
doors are opened/closed.
●If the interior lights remain on when the power switch is turned off, the
lights will go off automatically after 20 minutes.
■The interior lights will turn on auto-matically when
If any of the SRS airbags deploy (inflate) or in the event of a strong rear impact, the interior lights will turn on automati-
cally. The interior lights will turn off auto- matically after approximately 20 minutes.
The interior lights can be turned off man- ually. However, in order to help prevent further collisions, it is recommended that
they be left on until safety can be ensured.
(The interior lights may not turn on auto-
matically depending on the force of the impact and conditions of the collision.)
■Customization
Setting (e.g. the time elapsed before the
lights turn off) can be changed. (Customizable features: P.572)
■Front interior lights
1 Turns the door-linked function
off
2 Turns the door-linked function
on (door position)
The lights turn on/off according to the
opening/closing of the doors.
3 Turns the lights on/off
Press the switch to turn on/off the front
interior lights/personal lights, and rear
interior lights.
■Rear interior lights
1 Turns the light on
2 Turns the door-linked function
on (door position)
NOTICE
■To prevent 12-volt battery dis-
charge
Do not leave the lights on longer than necessary when the EV system is off.
Operating interior lights

433
6
Owners Manual_Europe_M42D76_en

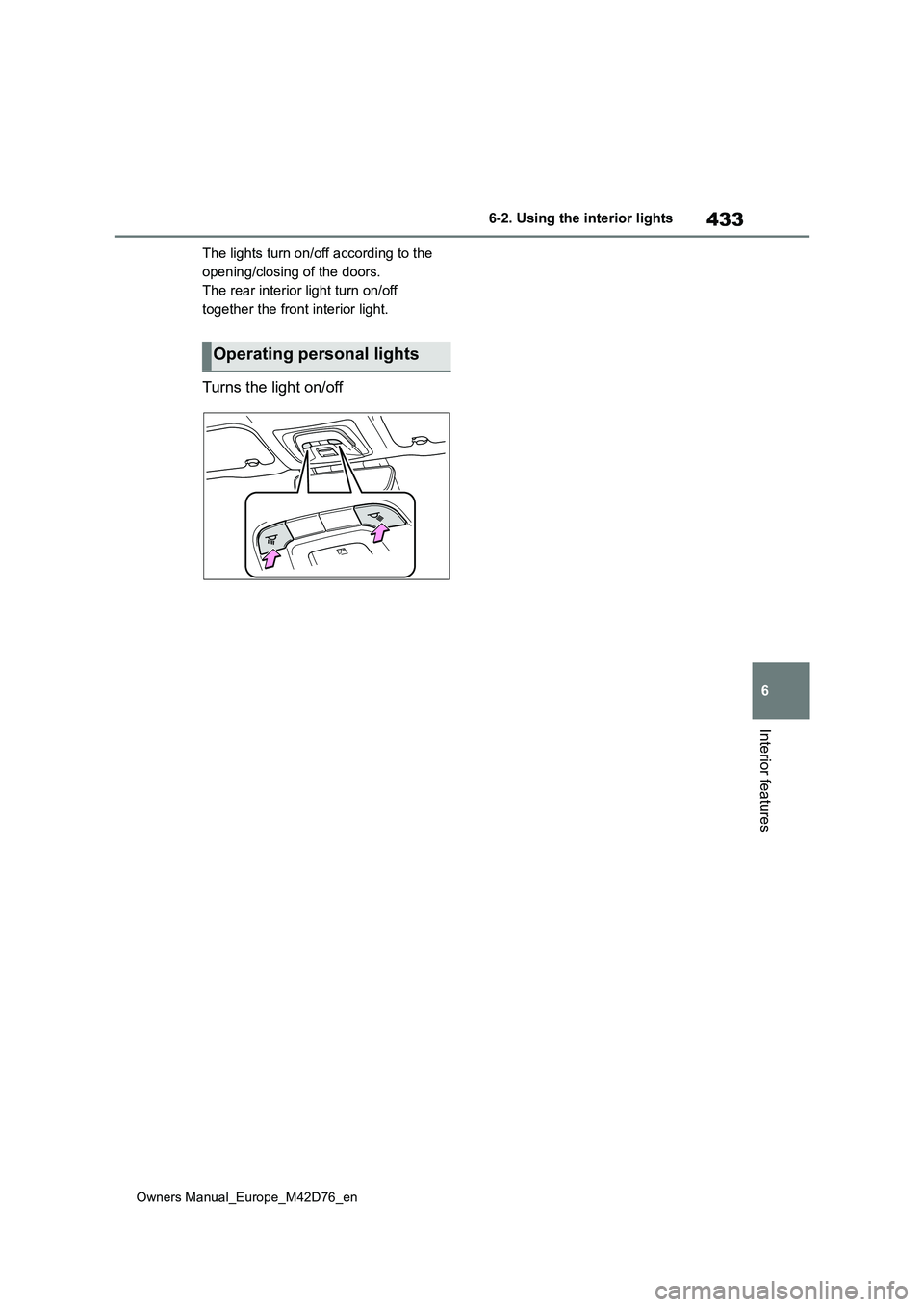

6-2. Using the interior lights
Interior features
The lights turn on/off according to the
opening/closing of the doors.
The rear interior light turn on/off
together the front interior light.
Turns the light on/off
Operating personal lights

434
Owners Manual_Europe_M42D76_en

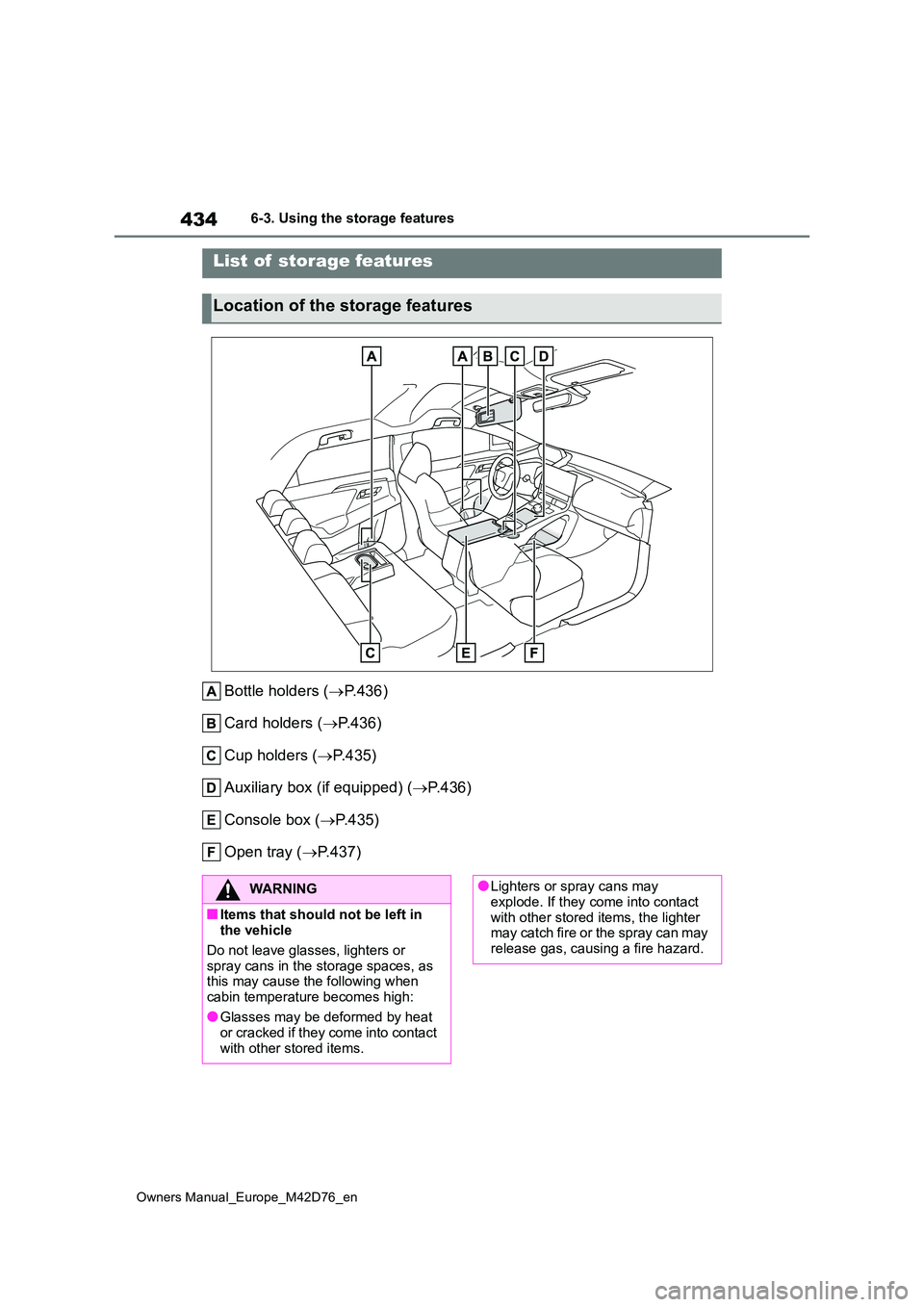

6-3. Using the storage features
6-3.Using the s torage feature s
Bottle holders (P.436)
Card holders ( P.436)
Cup holders ( P.435)
Auxiliary box (if equipped) ( P.436)
Console box ( P.435)
Open tray ( P.437)
List of storage features
Location of the storage features
WARNING
■Items that should not be left in the vehicle
Do not leave glasses, lighters or
spray cans in the storage spaces, as this may cause the following when cabin temperature becomes high:
●Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
●Lighters or spray cans may
explode. If they come into contact with other stored items, the lighter may catch fire or the spray can may
release gas, causing a fire hazard.

435
6
Owners Manual_Europe_M42D76_en
6-3. Using the storage features
Interior features

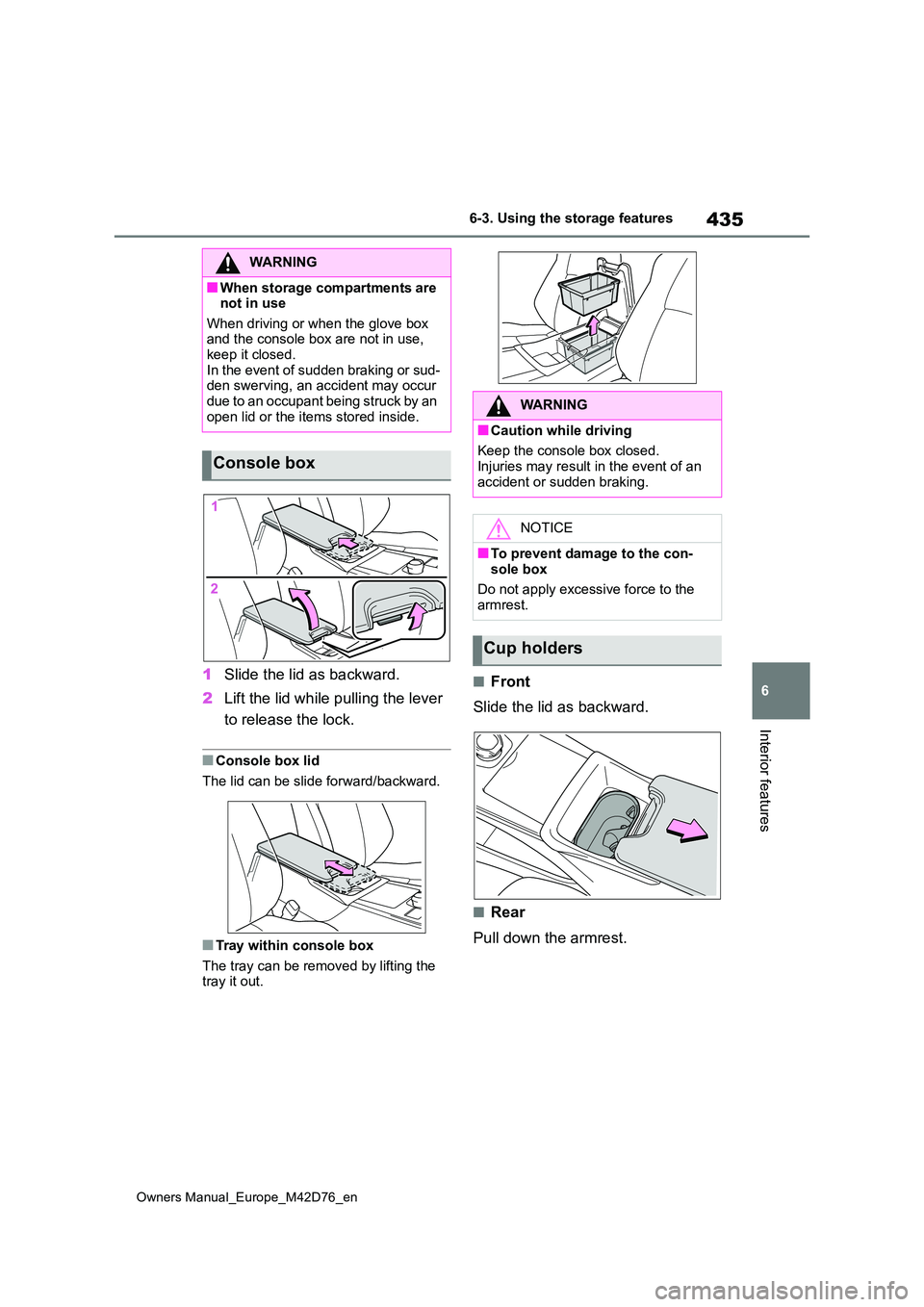

1Slide the lid as backward.
2 Lift the lid while pulling the lever
to release the lock.
■Console box lid
The lid can be slide forward/backward.
■Tray within console box
The tray can be removed by lifting the tray it out.
■Front
Slide the lid as backward.
■Rear
Pull down the armrest.
WARNING
■When storage compartments are not in use
When driving or when the glove box and the console box are not in use, keep it closed.
In the event of sudden braking or sud- den swerving, an accident may occur due to an occupant being struck by an
open lid or the items stored inside.
Console box
WARNING
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
NOTICE
■To prevent damage to the con-sole box
Do not apply excessive force to the
armrest.
Cup holders

436
Owners Manual_Europe_M42D76_en
6-3. Using the storage features

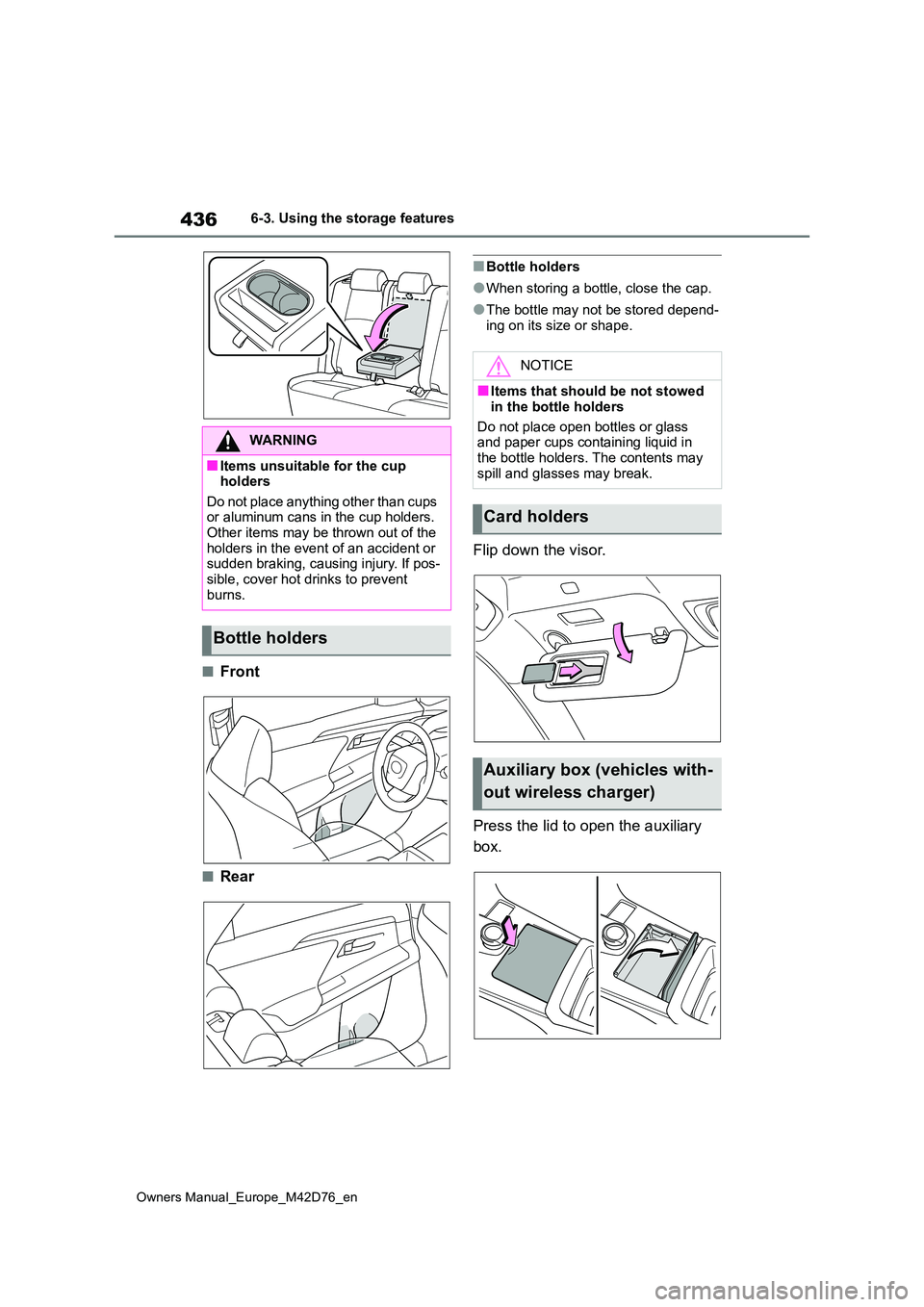

■Front
■Rear
■Bottle holders
●When storing a bottle, close the cap.
●The bottle may not be stored depend-
ing on its size or shape.
Flip down the visor.
Press the lid to open the auxiliary
box.
WARNING
■Items unsuitable for the cup holders
Do n ot p la ce an y th i ng ot h er t h an cu ps or aluminum cans in the cup holders.Other items may be thrown out of the
holders in the event of an accident or sudden braking, causing injury. If pos-sible, cover hot drinks to prevent
burns.
Bottle holders
NOTICE
■Items that should be not stowed
in the bottle holders
Do not place open bottles or glass and paper cups containing liquid in
the bottle holders. The contents may spill and glasses may break.
Card holders
Auxiliary box (vehicles with-
out wireless charger)

437
6
Owners Manual_Europe_M42D76_en
6-3. Using the storage features
Interior features

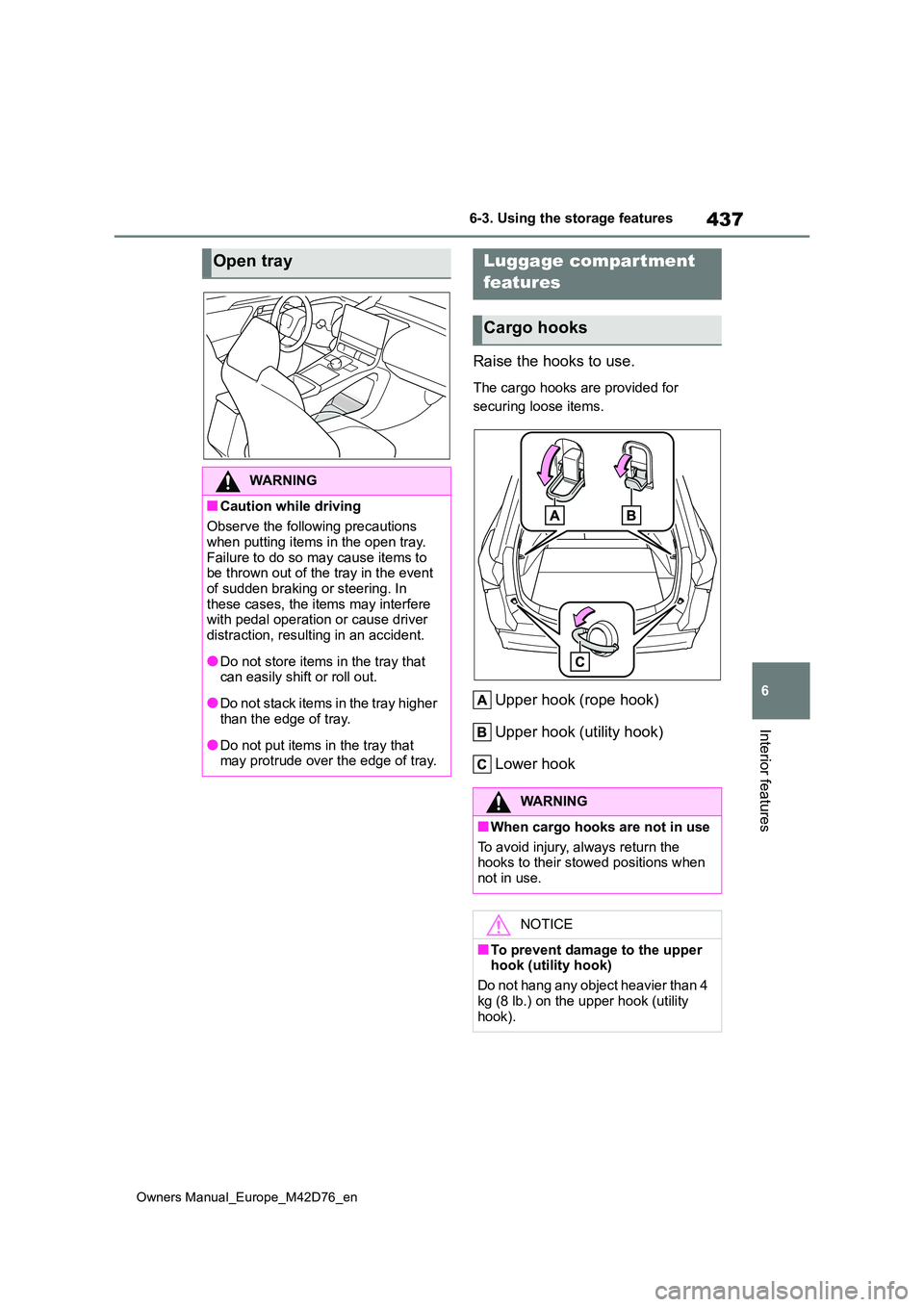

Raise the hooks to use.
The cargo hooks are provided for
securing loose items.
Upper hook (rope hook)
Upper hook (utility hook)
Lower hook
Open tray
WARNING
■Caution while driving
Observe the following precautions when putting items in the open tray.
Failure to do so may cause items to be thrown out of the tray in the event of sudden braking or steering. In
these cases, the items may interfere with pedal operation or cause driver distraction, resulting in an accident.
●Do not store items in the tray that can easily shift or roll out.
●Do not stack items in the tray higher than the edge of tray.
●Do not put items in the tray that may protrude over the edge of tray.
Luggage compartment
features
Cargo hooks
WARNING
■When cargo hooks are not in use
To avoid injury, always return the hooks to their stowed positions when
not in use.
NOTICE
■To prevent damage to the upper hook (utility hook)
Do not hang any object heavier than 4
kg (8 lb.) on the upper hook (utility hook).

438
Owners Manual_Europe_M42D76_en
6-3. Using the storage features

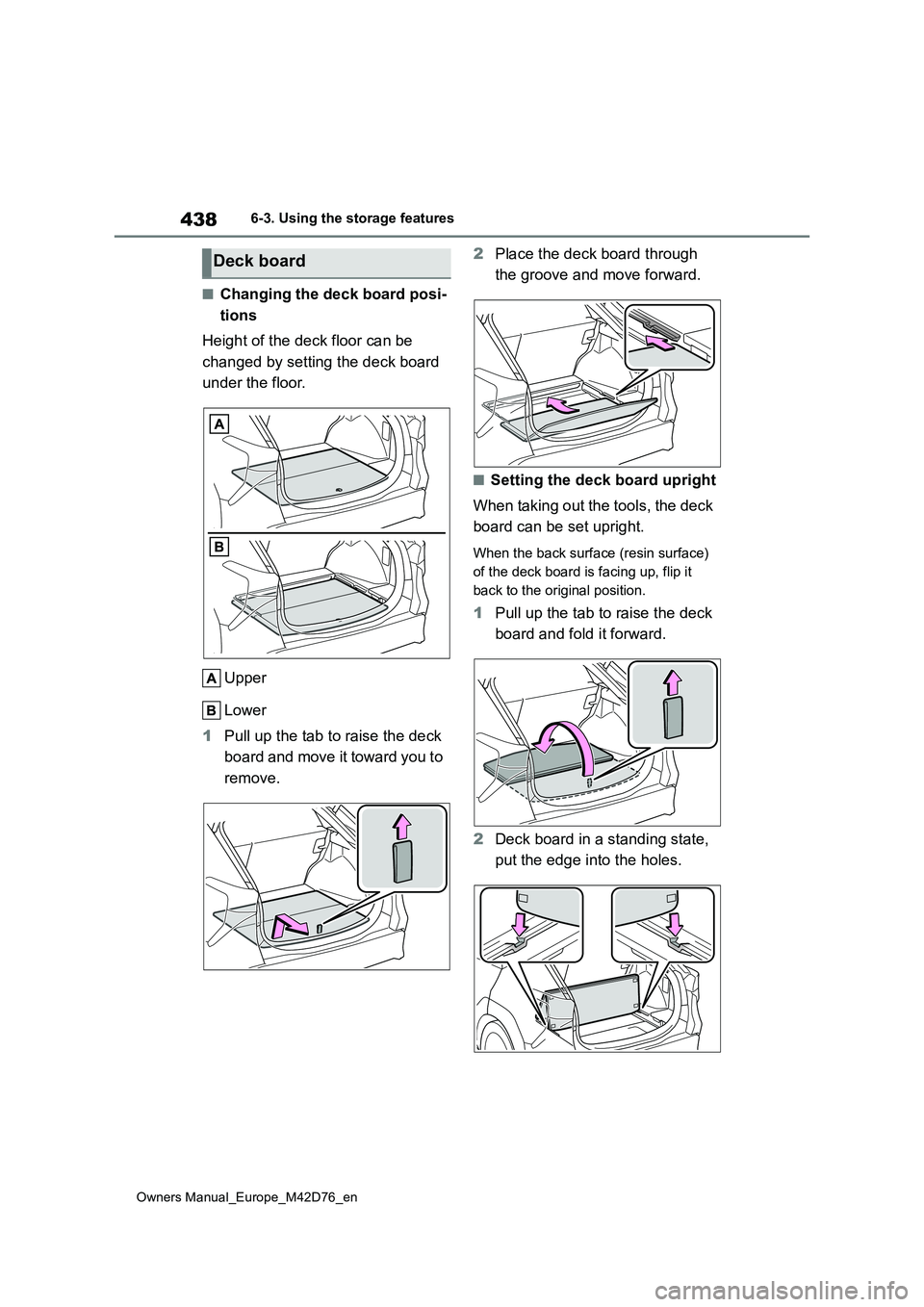

■Changing the deck board posi-
tions
Height of the deck floor can be
changed by setting the deck board
under the floor.
Upper
Lower
1 Pull up the tab to raise the deck
board and move it toward you to
remove.
2 Place the deck board through
the groove and move forward.
■Setting the deck board upright
When taking out the tools, the deck
board can be set upright.
When the back surface (resin surface)
of the deck board is facing up, flip it
back to the original position.
1 Pull up the tab to raise the deck
board and fold it forward.
2 Deck board in a standing state,
put the edge into the holes.
Deck board
