TOYOTA BZ4X 2022 Owners Manual (in English)

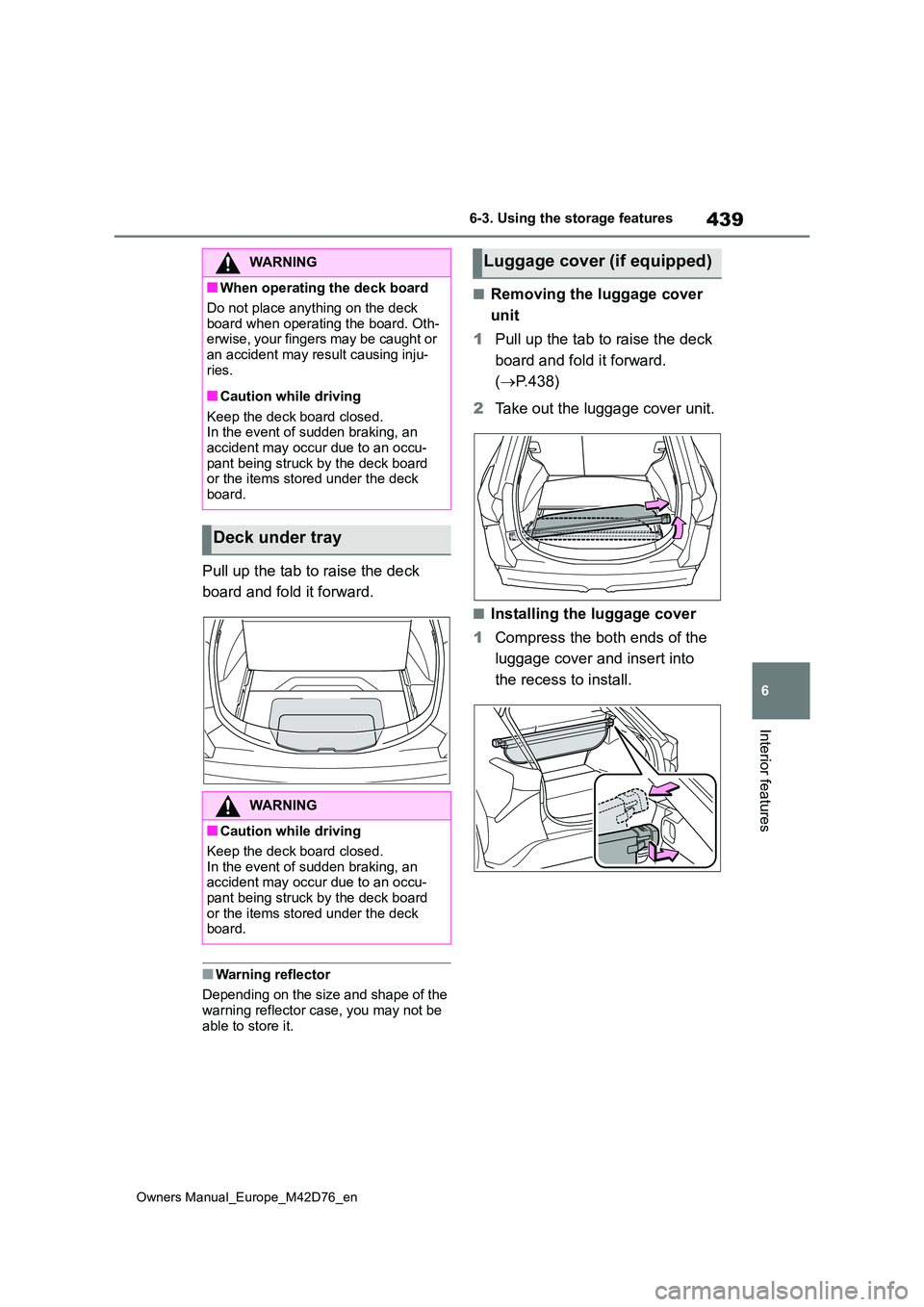

439
6
Owners Manual_Europe_M42D76_en
6-3. Using the storage features
Interior features
Pull up the tab to raise the deck
board and fold it forward.
■Warning reflector
Depending on the size and shape of the warning reflector case, you may not be
able to store it.
■Removing the luggage cover
unit
1 Pull up the tab to raise the deck
board and fold it forward.
( P.438)
2 Take out the luggage cover unit.
■Installing the luggage cover
1 Compress the both ends of the
luggage cover and insert into
the recess to install.
WARNING
■When operating the deck board
Do not place anything on the deck
board when operating the board. Oth- erwise, your fingers may be caught or an accident may result causing inju-
ries.
■Caution while driving
Keep the deck board closed. In the event of sudden braking, an accident may occur due to an occu-
pant being struck by the deck board or the items stored under the deck board.
Deck under tray
WARNING
■Caution while driving
Keep the deck board closed.
In the event of sudden braking, an accident may occur due to an occu-pant being struck by the deck board
or the items stored under the deck board.
Luggage cover (if equipped)

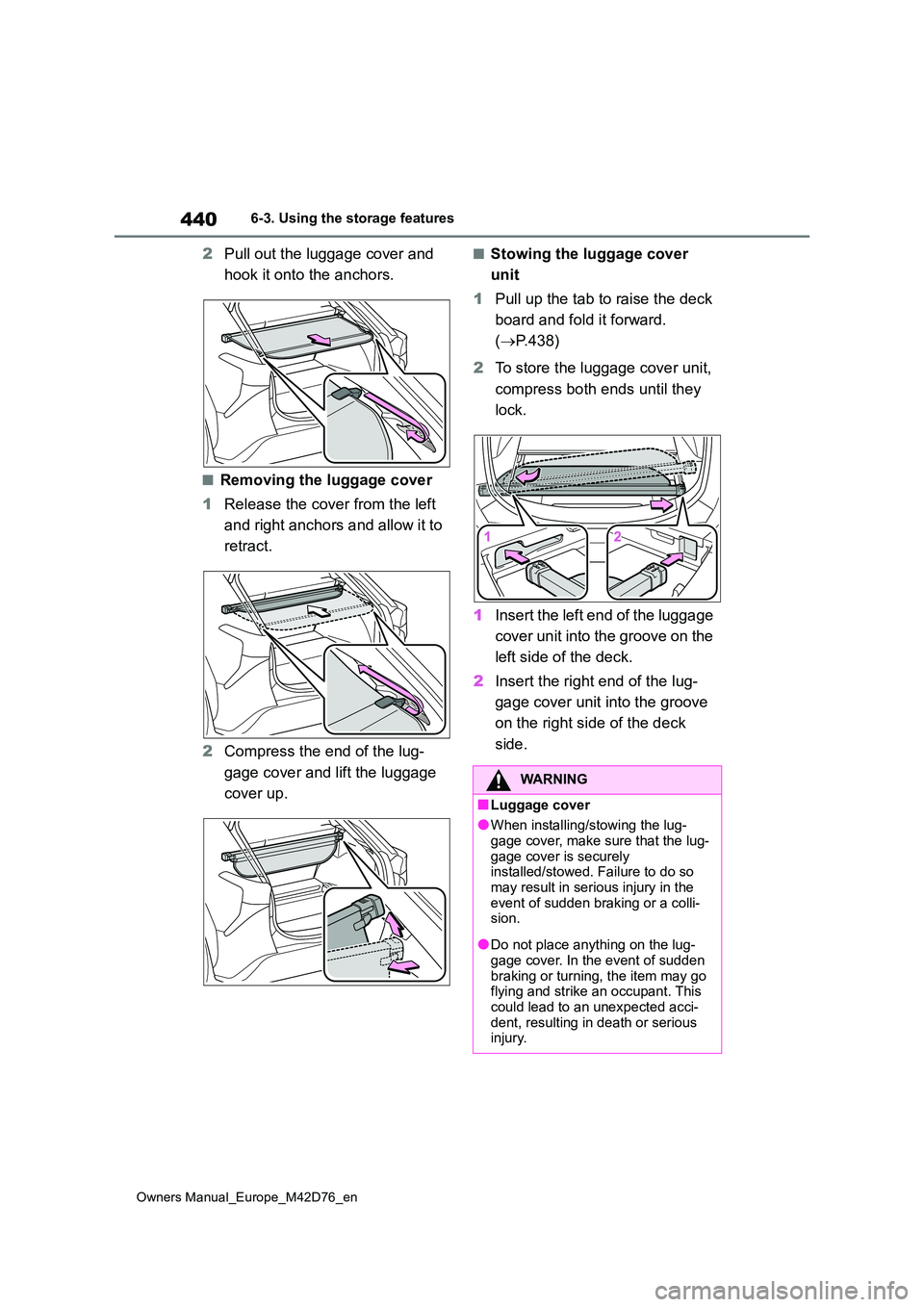

440
Owners Manual_Europe_M42D76_en
6-3. Using the storage features
2Pull out the luggage cover and
hook it onto the anchors.
■Removing the luggage cover
1 Release the cover from the left
and right anchors and allow it to
retract.
2 Compress the end of the lug-
gage cover and lift the luggage
cover up.
■Stowing the luggage cover
unit
1 Pull up the tab to raise the deck
board and fold it forward.
( P.438)
2 To store the luggage cover unit,
compress both ends until they
lock.
1 Insert the left end of the luggage
cover unit into the groove on the
left side of the deck.
2 Insert the right end of the lug-
gage cover unit into the groove
on the right side of the deck
side.
WARNING
■Luggage cover
●When installing/stowing the lug-
gage cover, make sure that the lug- gage cover is securely installed/stowed. Failure to do so
may result in serious injury in the event of sudden braking or a colli-sion.
●Do not place anything on the lug-gage cover. In the event of sudden
braking or turning, the item may go flying and strike an occupant. This could lead to an unexpected acci-
dent, resulting in death or serious injury.

441
6
Owners Manual_Europe_M42D76_en
6-3. Using the storage features
Interior features

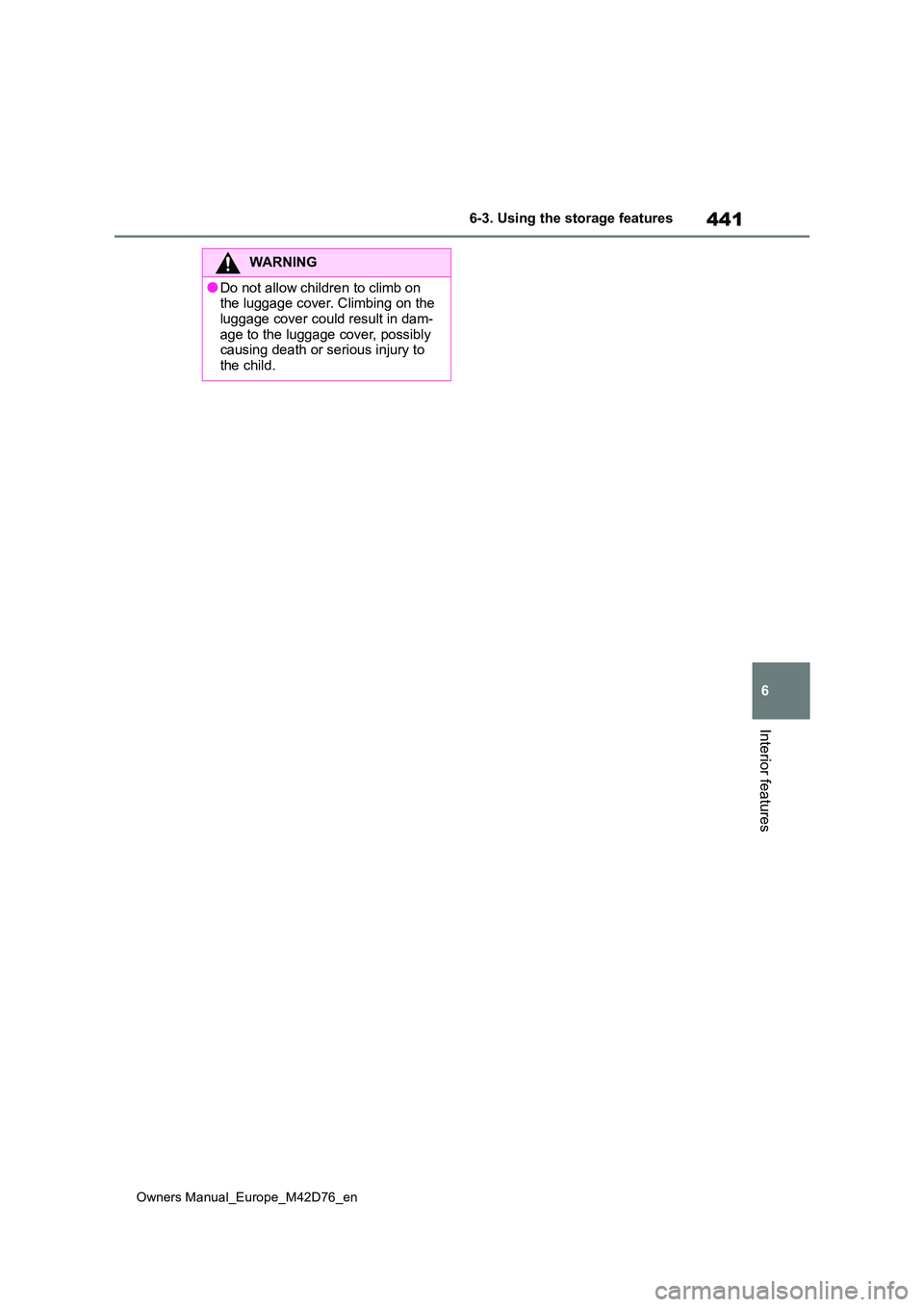

WARNING
●Do not allow children to climb on the luggage cover. Climbing on the
luggage cover could result in dam- age to the luggage cover, possibly causing death or serious injury to
the child.

442
Owners Manual_Europe_M42D76_en

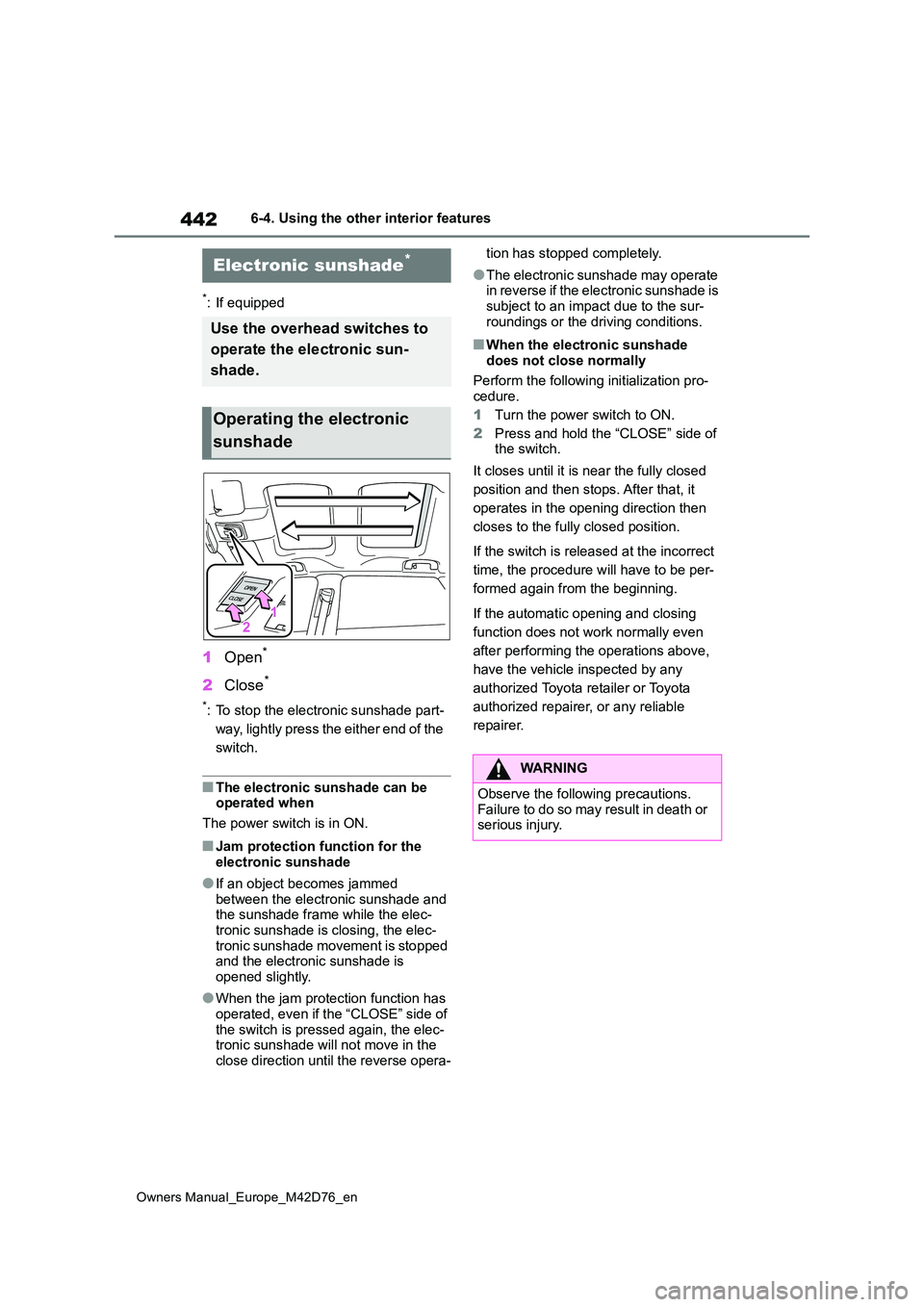

6-4. Using the other interior features
6-4.Using the o ther interio r fea tures
*: If equipped
1Open*
2Close*
*: To stop the electronic sunshade part-
way, lightly press the either end of the
switch.
■The electronic sunshade can be operated when
The power switch is in ON.
■Jam protection function for the electronic sunshade
●If an object becomes jammed between the electronic sunshade and the sunshade frame while the elec-
tronic sunshade is closing, the elec- tronic sunshade movement is stopped and the electronic sunshade is
opened slightly.
●When the jam protection function has
operated, even if the “CLOSE” side of the switch is pressed again, the elec-tronic sunshade will not move in the
close direction until the reverse opera-
tion has stopped completely.
●The electronic sunshade may operate in reverse if the electronic sunshade is
subject to an impact due to the sur- roundings or the driving conditions.
■When the electronic sunshade does not close normally
Perform the following initialization pro- cedure.
1 Turn the power switch to ON.
2 Press and hold the “CLOSE” side of the switch.
It closes until it is near the fully closed
position and then stops. After that, it
operates in the opening direction then
closes to the fully closed position.
If the switch is released at the incorrect
time, the procedure will have to be per-
formed again from the beginning.
If the automatic opening and closing
function does not work normally even
after performing the operations above,
have the vehicle inspected by any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
Electronic sunshade*
Use the overhead switches to
operate the electronic sun-
shade.
Operating the electronic
sunshade
WARNING
Observe the following precautions. Failure to do so may result in death or serious injury.

443
6
Owners Manual_Europe_M42D76_en
6-4. Using the other interior features
Interior features

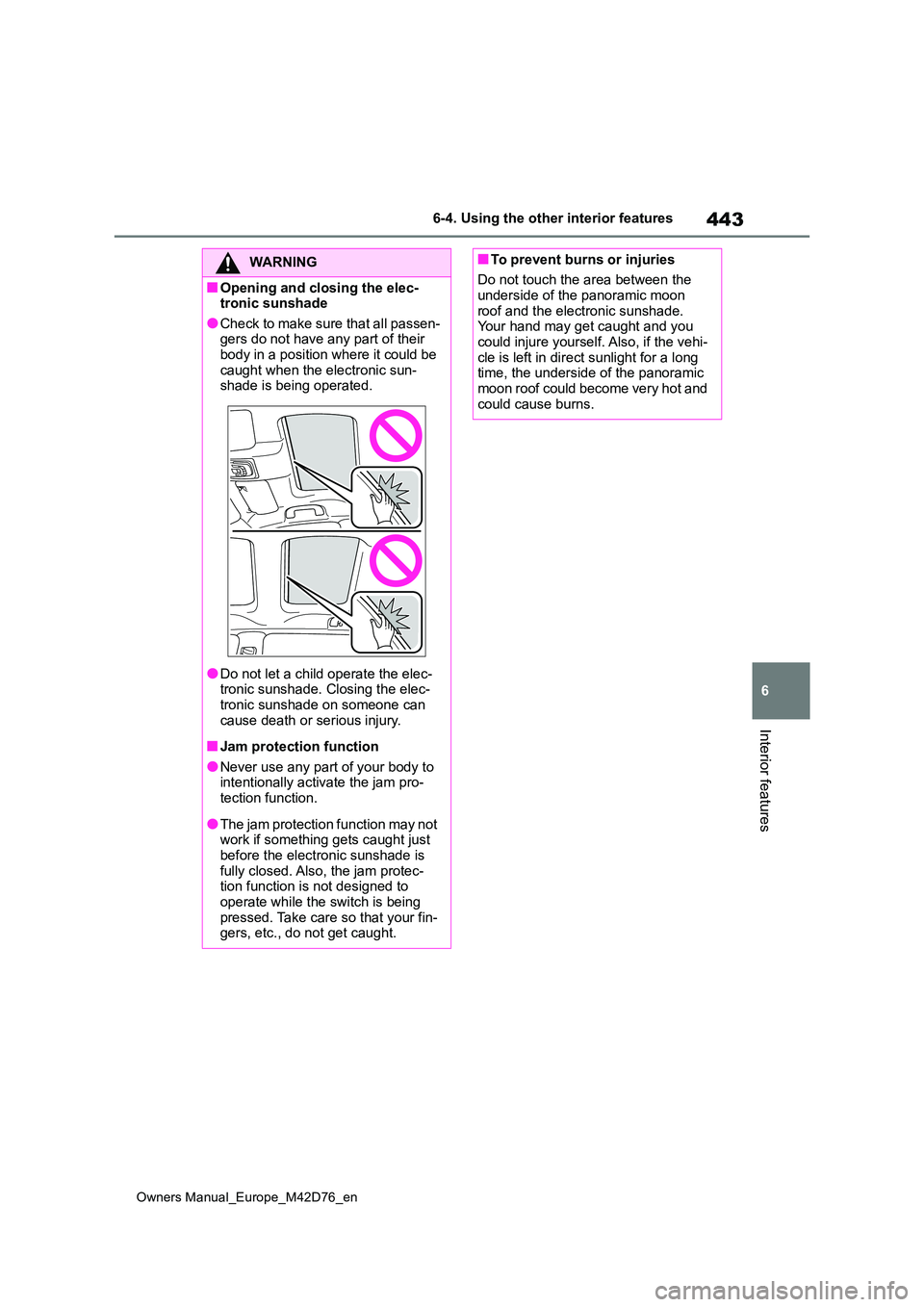

WARNING
■Opening and closing the elec- tronic sunshade
●Check to make sure that all passen-gers do not have any part of their body in a position where it could be
caught when the electronic sun- shade is being operated.
●Do not let a child operate the elec-tronic sunshade. Closing the elec-tronic sunshade on someone can
cause death or serious injury.
■Jam protection function
●Never use any part of your body to intentionally activate the jam pro-tection function.
●The jam protection function may not work if something gets caught just
before the electronic sunshade is fully closed. Also, the jam protec-tion function is not designed to
operate while the switch is being pressed. Take care so that your fin-gers, etc., do not get caught.
■To prevent burns or injuries
Do not touch the area between the underside of the panoramic moon
roof and the electronic sunshade. Your hand may get caught and you could injure yourself. Also, if the vehi-
cle is left in direct sunlight for a long time, the underside of the panoramic moon roof could become very hot and
could cause burns.

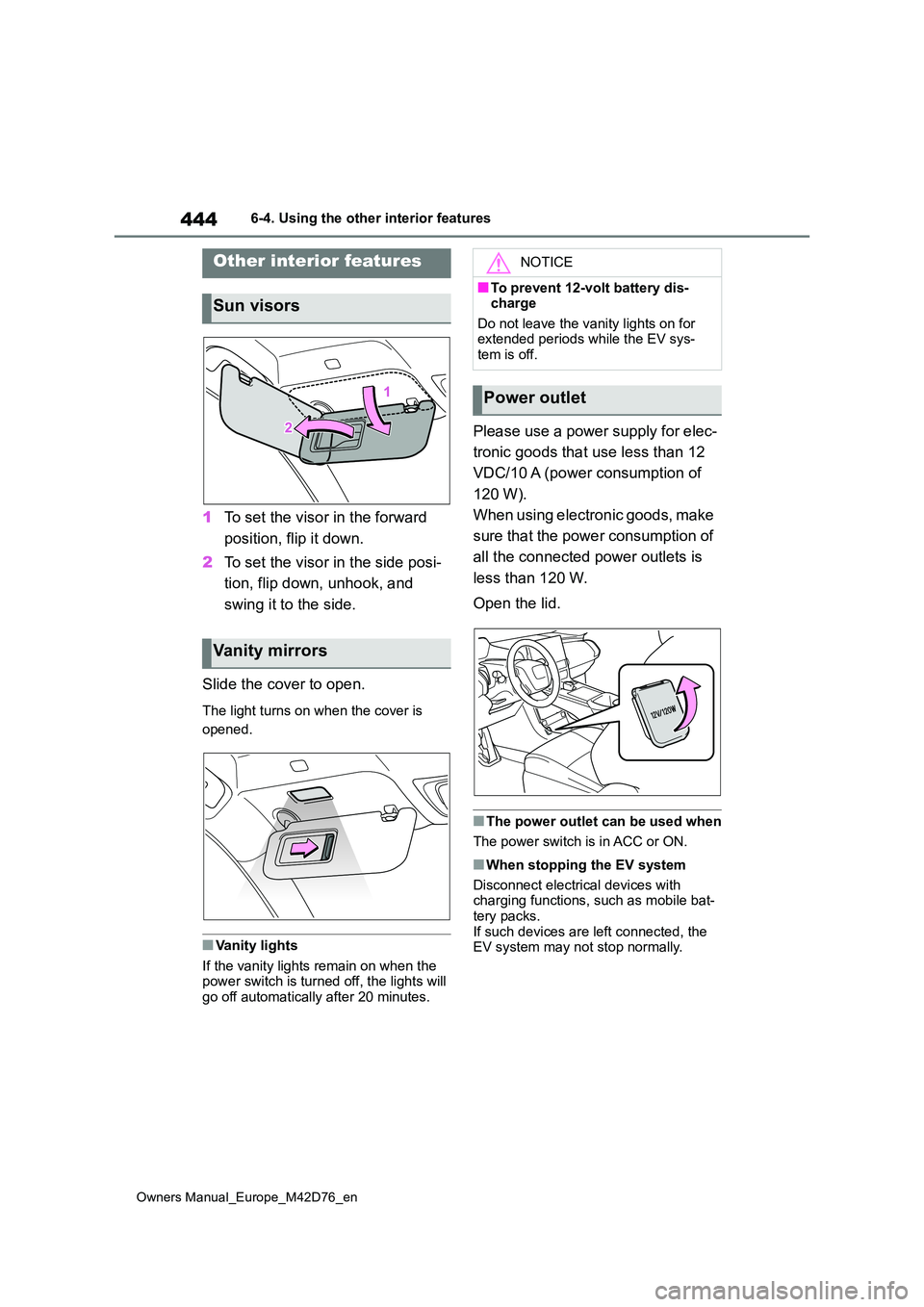

444
Owners Manual_Europe_M42D76_en
6-4. Using the other interior features
1To set the visor in the forward
position, flip it down.
2 To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover to open.
The light turns on when the cover is
opened.
■Vanity lights
If the vanity lights remain on when the power switch is turned off, the lights will go off automatically after 20 minutes.
Please use a power supply for elec-
tronic goods that use less than 12
VDC/10 A (power consumption of
120 W).
When using electronic goods, make
sure that the power consumption of
all the connected power outlets is
less than 120 W.
Open the lid.
■The power outlet can be used when
The power switch is in ACC or ON.
■When stopping the EV system
Disconnect electrical devices with charging functions, such as mobile bat-
tery packs. If such devices are left connected, the EV system may not stop normally.
Other interior features
Sun visors
Vanity mirrors
NOTICE
■To prevent 12-volt battery dis-charge
Do not leave the vanity lights on for extended periods while the EV sys-tem is off.
Power outlet

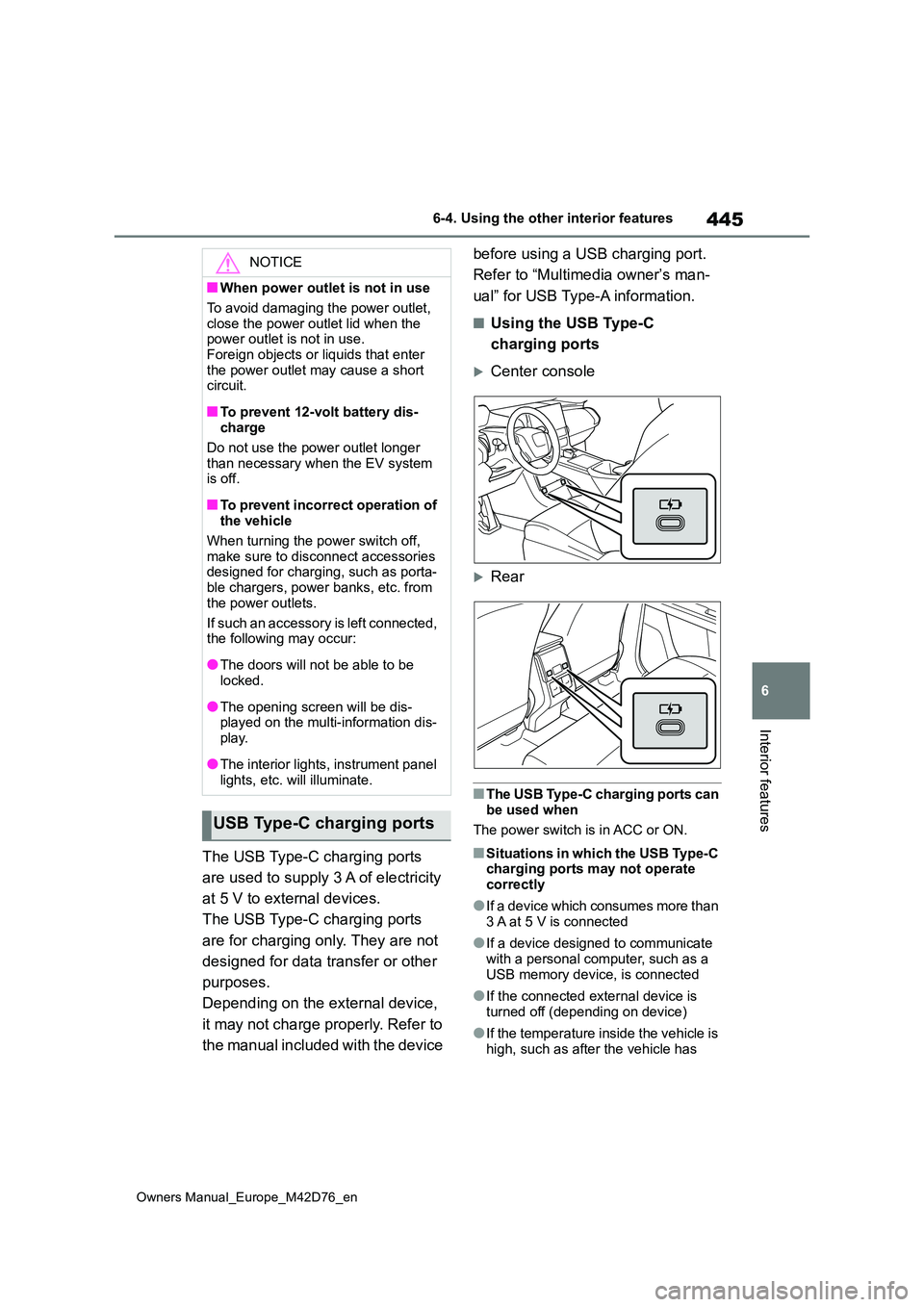

445
6
Owners Manual_Europe_M42D76_en
6-4. Using the other interior features
Interior features
The USB Type-C charging ports
are used to supply 3 A of electricity
at 5 V to external devices.
The USB Type-C charging ports
are for charging only. They are not
designed for data transfer or other
purposes.
Depending on the external device,
it may not charge properly. Refer to
the manual included with the device
before using a USB charging port.
Refer to “Multimedia owner’s man-
ual” for USB Type-A information.
■Using the USB Type-C
charging ports
Center console
Rear
■The USB Type-C charging ports can be used when
The power switch is in ACC or ON.
■Situations in which the USB Type-C charging ports may not operate correctly
●If a device which consumes more than 3 A at 5 V is connected
●If a device designed to communicate with a personal computer, such as a
USB memory device, is connected
●If the connected external device is
turned off (depending on device)
●If the temperature inside the vehicle is
high, such as after the vehicle has
NOTICE
■When power outlet is not in use
To avoid damaging the power outlet,
close the power outlet lid when the power outlet is not in use.Foreign objects or liquids that enter
the power outlet may cause a short circuit.
■To prevent 12-volt battery dis-charge
Do not use the power outlet longer
than necessary when the EV system is off.
■To prevent incorrect operation of the vehicle
When turning the power switch off,
make sure to disconnect accessories designed for charging, such as porta-ble chargers, power banks, etc. from
the power outlets.
If such an accessory is left connected, the following may occur:
●The doors will not be able to be locked.
●The opening screen will be dis-played on the multi-information dis-
play.
●The interior lights, instrument panel
lights, etc. will illuminate.
USB Type-C charging ports

446
Owners Manual_Europe_M42D76_en
6-4. Using the other interior features
been parked in the sun
■About connected external devices
Depending on the connected external device, charging may occasionally be suspended and then start again. This is
not a malfunction.
A portable device can be charged
by just placing Qi standard wireless
charge compatible portable devices
according to the Wireless Power
Consortium, such as smartphones
and mobile batteries, etc., on the
charge area.
This function cannot be used with
portable devices that are larger
than the charging tray. Also,
depending on the portable device, it
may not operate as normal. Please
read the operation manual for por-
table devices to be used.
■The “Qi” symbol
The “Qi” symbol is a trademark of
the Wireless Power Consortium.
■Name for all parts
Charging tray
Charging area*
Operation indicator light
*: Portable devices and wireless char-
gers contain charging coils. The
charging coil in the wireless charger
can be moved within the charge area
near the center of the charging tray. If
NOTICE
■To prevent damage to the USB Type-C charging ports
●Do not insert foreign objects into the ports.
●Do not spill water or other liquids into the ports.
●Do not apply excessive force to or impact the USB Type-C charging ports.
●Do not disassemble or modify the USB Type-C charging ports.
■To prevent damage to external devices
●Do not leave external devices in the vehicle. The temperature inside the vehicle may become high, resulting
in damage to an external device.
●Do not push down on or apply
unnecessary force to an external device or the cable of an external device while it is connected.
■To prevent 12-volt battery dis-charge
Do not use the USB Type-C charging ports for a long period of time with the EV system stopped.
Wireless charger (if
equipped)

447
6
Owners Manual_Europe_M42D76_en
6-4. Using the other interior features
Interior features
the charging coil inside a portable
device is detected in the charge area,
the charging coil inside the wireless
charger will move toward it and start
charging. If the charging coil inside a
portable device moves outside of the
charge area, charging will automati-
cally stop.
If 2 or more portable devices are
placed on the charging tray, their
charging coils may not be properly
detected and they may not be
charged.
■Using the wireless charger
1 Open the lid.
2 Place the portable device on the
charging tray.
Place the charging side of the portable
device down with the center of the
device in the center of the charge area.
Depending on the portable device, the
charging coil may not be located in the
center of the device. In this case, place
the portable device so that its charging
coil is in the center of the charge area.
When charging, the operation indicator
light (orange) comes on.
If charging is not occurring, try placing
the portable device as close to the
center of the charging area as possible.
When charging is complete, the opera-
tion indicator light (green) comes on.
■Recharging function
 When charging is complete and
after a fixed time in the charge
suspension state, charging
restarts.
 When a portable device is
moved significantly in the charge
area, the charging coil is discon-
nected and charging is stopped
momentarily. However, if there is
a charging coil in the charge
area, the charging coil inside the
wireless charger will move
toward it and then charging
restarts.
■Rapid charging function
 The following portable devices
support rapid charging.
• Portable devices compliant with WPC
Ver1.2.4 and compatible with rapid
charging
• iPhone’s with an iOS version that
supports 7.5 W charging (iPhone 8
and later models)
 When a portable device that sup-
ports rapid charging is charged,
charging automatically switches
to the rapid charging function.

448
Owners Manual_Europe_M42D76_en

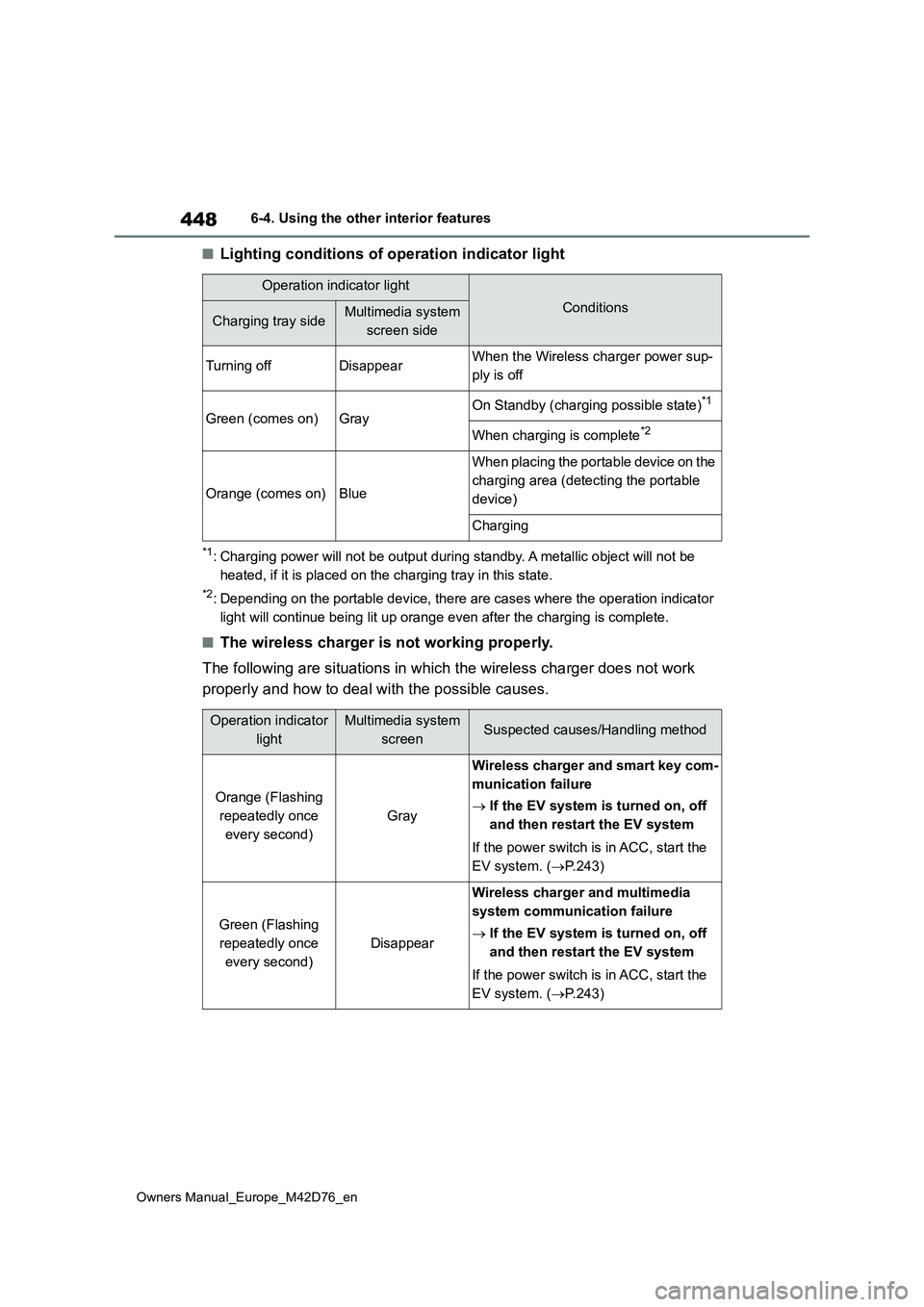

6-4. Using the other interior features
■Lighting conditions of operation indicator light
*1: Charging power will not be output during standby. A metallic object will not be
heated, if it is placed on the charging tray in this state.
*2: Depending on the portable device, there are cases where the op eration indicator
light will continue being lit up orange even after the charging is complete.
■The wireless charger is not working properly.
The following are situations in which the wireless charger does not work
properly and how to deal with the possible causes.
Operation indicator light
ConditionsCharging tray sideMultimedia system
screen side
Turning offDisappearWhen the Wireless charger power sup-
ply is off
Green (comes on)GrayOn Standby (charging possible state)*1
When charging is complete*2
Orange (comes on)Blue
When placing the portable device on the
charging area (detecting the portable
device)
Charging
Operation indicator
light
Multimedia system
screenSuspected causes/Handling method
Orange (Flashing
repeatedly once
every second)
Gray
Wireless charger and smart key com-
munication failure
 If the EV system is turned on, off
and then restart the EV system
If the power switch is in ACC, start the
EV system. ( P.243)
Green (Flashing
repeatedly once
every second)
Disappear
Wireless charger and multimedia
system communication failure
 If the EV system is turned on, off
and then restart the EV system
If the power switch is in ACC, start the
EV system. ( P.243)
