●Eco Driving Indicator Zone Display
P. 104
●Speedometer
Displays the vehicle speed.
●G Monitor
P. 105
●Display off
A blank screen is displayed.
*1: Can be registered to Drive information 1 and 2. ( P. 102)
*2: Resetting procedures:
• Select a function to be reset using the meter control switches and then
press and hold to reset.
• If there is more than one function that can be reset, check bo xes will be
displayed next to those functions.

1022. Instrument cluster
C-HR_OM_USA_OM10684U
The settings of the following items can be changed, refer to P. 500.
For functions that can be enabled or disabled, the function swi tches
between on and off each time is pressed.
● LTA (Lane Tracing Assist) ( P. 2 4 6 )
Select to set up the following items.
• Lane centering function on/off
• Alert sensitivity
• Sway Alert on/off
• Sway sensitivity
● PCS (Pre-Collis ion System) (P. 231)
Select to set up the following items.
• PCS on/off
• PCS sensitivity
● BSM (Blind Spot Monitor) ( P. 283, 292)*
Select to set up the following items.
• BSM function on/off
• BSM Sensitivity
• BSM Brightness
• RCTA function on/off
● RSA (Road Sign Assist) ( P. 261)*
Select to enable/disable th e RSA (Road Sign Assist).
● Driving mode select ( P. 281)
Settings display

1032. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10684U
●Vehicle Settings
Select the menu to set up the following items.
• RCTA setup ( P. 5 0 9 )
*
Select to change the RCTA buzzer volume.
• (Tire pressure warning system) setup ( P. 378)
Select to initialize the tire pressure warning system.
• RSA (Road Sign Assist) setup (P. 508)*
Select to set up RSA (Road Sign Assist).
● Meter settings
Select the menu to set up the following items.
• Language
Select to change the language on the display.
•Units
Select to change the unit of measure for fuel consumption.
• (Eco Driving Indicator Light) setup
Select to activate/deactivate the Eco Driving Indicator Light
• Drive information 1 and 2
Select to select up to 2 items that will be displayed on a Driv e informa-
tion screen, up to 2 Drive information screens can be set.
• Pop-up display
Select to enable/disable pop-up displays for incoming call disp lay of the
hands-free phone system.
• Initialisation
Registered or changed meter settings will be deleted or returne d to their
default setting.
*: if equipped

1042. Instrument cluster
C-HR_OM_USA_OM10684U
■Setting items
●“Meter Settings” and “Vehicle Settings” setting items are not s electable
during driving and cannot be operated.
Also, the settings screen is temporarily canceled in the follow ing situations.
• A warning message is displayed.
• The vehicle starts off.
● Settings for functions not equipped to the vehicle are not disp layed.
● When a function is turned off, the related settings for that fu nction are not
selectable.
■ Pop-up display
In some situations, such as when a switch operation is performe d, a pop-up
display will be temporarily displayed on the multi-information display.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phen omenon is
characteristic of liquid crystal displays, and there is no prob lem continuing to
use the display.
■ When disconnecting and reco nnecting battery terminals
The drive information will be reset.
■ Eco Driving Indicator Zone Display
Suggests Zone of Eco driving and Eco
driving ratio based on acceleration.
Zone of Eco driving
Eco driving ratio based on accelera-
tion
If the vehicle exceeds Zone of Eco
driving, the green area disappears
and Eco Driving Indicator Light will
turn off. ( P. 95)

1052. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10684U■
G Monitor
■ Ending display
When the engine switch is turned off, each of the following wil l be displayed
on the multi-information display, and will extinguish after approximately
30 seconds.
● Elapsed time
● Distance
● Average fuel consumption
The following item is displayed.
G-force display
Displays the current G-force state.

1062. Instrument cluster
C-HR_OM_USA_OM10684U
WARNING
■Caution for use while driving
● When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
● Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahea d of the
vehicle.
■ The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and t he new gear
number appearing on the display. This lag could cause the drive r to down-
shift again, causing rapid and excessive engine braking and pos sibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display , ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxi de (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ While setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.

1072. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10684U
Fuel consumption information
Fuel consumption information can be displayed on the audio
system screen.

1082. Instrument cluster
C-HR_OM_USA_OM10684U

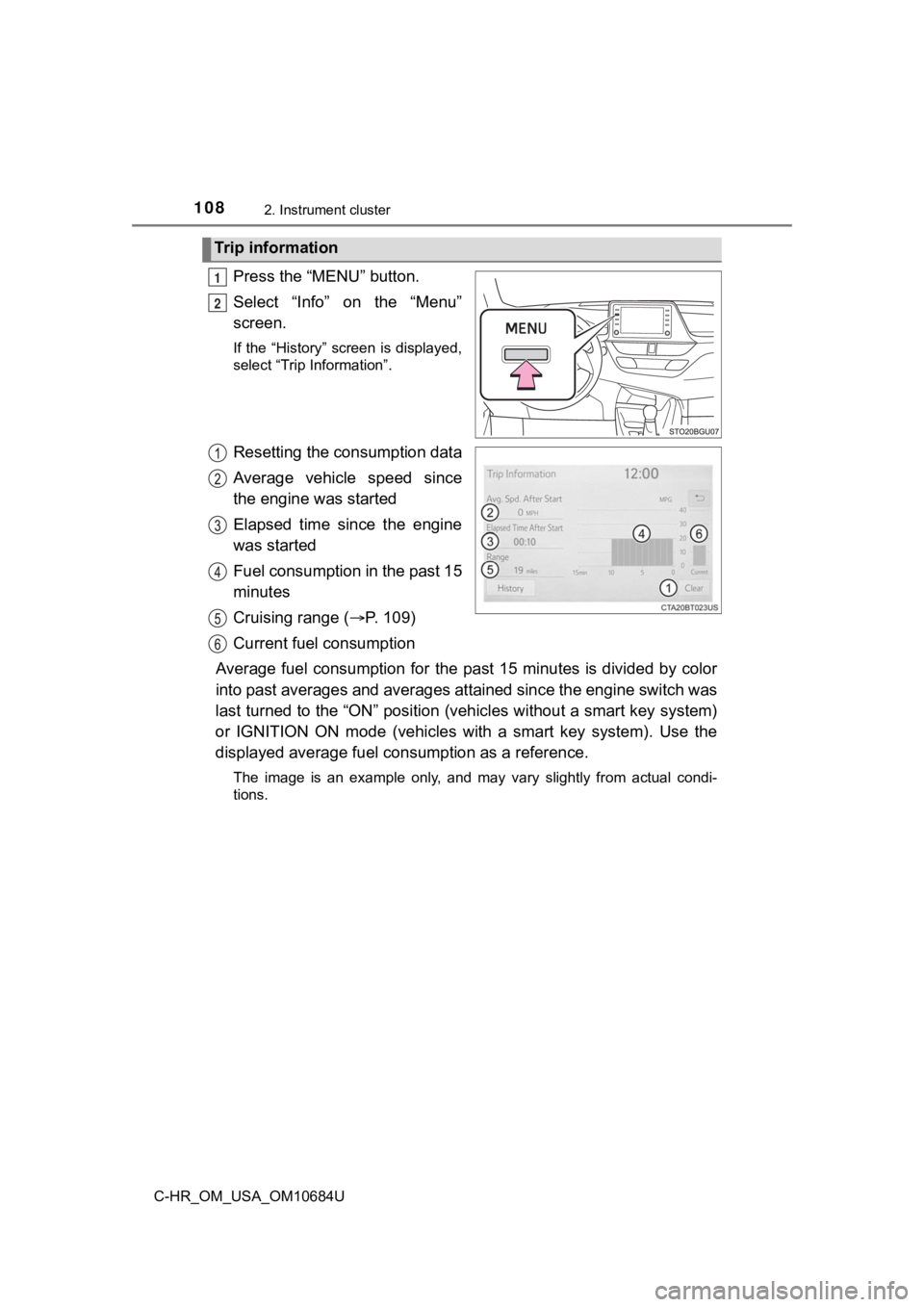

Press the “MENU” button.
Select “Info” on the “Menu”
screen.
If the “History” screen is displayed,
select “Trip Information”.
Resetting the consumption data
Average vehicle speed since
the engine was started
Elapsed time since the engine
was started
Fuel consumption in the past 15
minutes
Cruising range (P. 109)
Current fuel consumption
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the engine switch was
last turned to the “ON” position (vehicles without a smart key system)
or IGNITION ON mode (vehicles with a smart key system). Use the
displayed average fuel con sumption as a reference.
The image is an example only, and may vary slightly from actual condi-
tions.
Trip information
1
2

1092. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10684U
Press the “MENU” button.
Select “Info” on the “Menu” screen.
If the “Trip Information” screen is displayed, select “History” .
Resetting the history data
Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption
record
Displays the daily average fuel
consumption. (Instead of the date,
“Trip 1” through “Trip 5” will be dis-
played.)
Updating the latest fuel consumption data
The average fuel consumption histo ry is divided by color into past
averages and the average fuel consumption since the last time
updated. Use the displayed aver age fuel consumption as a reference.
The image is an example only, and may vary slightly from actual condi-
tions.
■ Updating the history data
Update the average fuel consumption by selecting “Clip” to meas ure the cur-
rent fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumptio n.
As a result, the actual distance that can be driven may differ from that dis-
played.
History
1
2

1102. Instrument cluster
