TOYOTA CAMRY 2000 Service Repair Manual

BO±52
± BODYBACK WINDOW GLASS
2400 Author: Date:
(d) Room partition trims
(e) Seat belt lower side bolts
Torque: 42 N´m (420 kgf´cm, 31 ft´lbf)
(f) High±mounted stop light
(g) Roof side inner garnish
(h) Rear seatbacks and seat cushion
Torque: 18 N´m (185 kgf´cm, 13 ft´lbf)

N10192
BO0M1±01
± BODYSLIDING ROOF (TMC Made)
BO±53
2401 Author: Date:
SLIDING ROOF (TMC Made)
ON±VEHICLE INSPECTION
INSPECT SLIDING ROOF GLASS ALIGNMENT
(a) Start the engine and check the operation time of the slid-
ing roof.
Operation time:
Approx. 6 secs.
(b) Check for abnormal noise or binding during operation.
(c) With the sliding roof fully closed, check for water leakage.
(d) Check for a difference in level between the sliding roof
weatherstrip and roof panel.
Except rear end:
0 ± 1.5 mm (0 ± 0.059 in.)
Rear end:
0 + 1.5 mm (0 + 0.059 in.)
0 ± 1.0 mm (0 ± 0.039 in.)

BO0M2±01

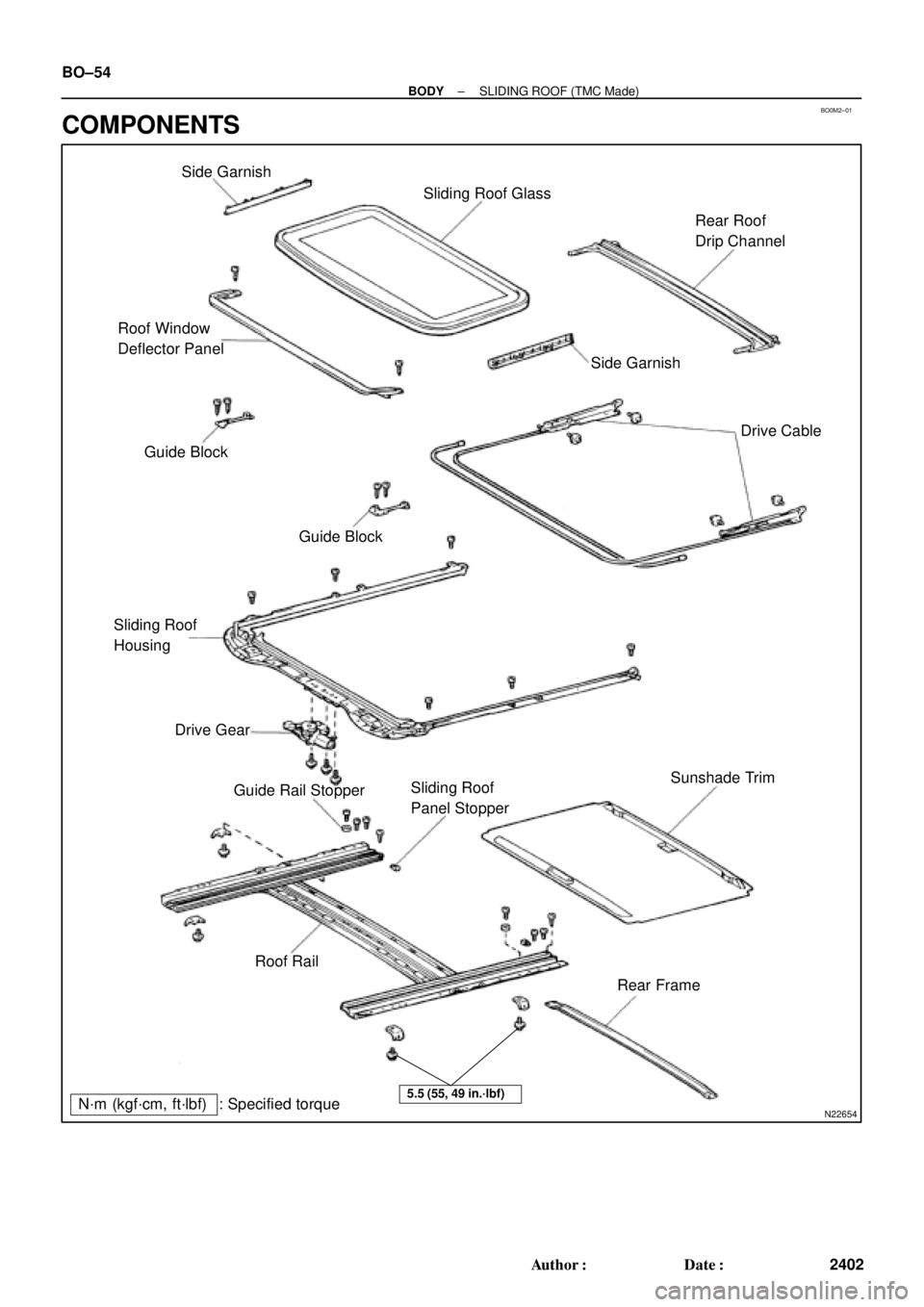

N22654
Side Garnish
Sliding Roof Glass
Rear Roof
Drip Channel
Roof Window
Deflector Panel
Side Garnish
Drive Cable
Guide Block
Guide Block
Sliding Roof
Housing
Drive Gear
Sunshade Trim
Sliding Roof
Panel Stopper Guide Rail Stopper
Roof Rail
Rear Frame
5.5 (55, 49 in.´lbf)N´m (kgf´cm, ft´lbf): Specified torque BO±54
± BODYSLIDING ROOF (TMC Made)
2402 Author: Date:
COMPONENTS

BO0M3±01
N21524
N21527
Point Marks
± BODYSLIDING ROOF (TMC Made)
BO±55
2403 Author: Date:
REMOVAL
1. REMOVE ROOF HEADLINING
(See page BO±83)
2. REMOVE SIDE GARNISH
Using a screwdriver, remove the garnishes.
HINT:
Tape the screwdriver tip before use.
3. REMOVE SLIDING ROOF GLASS ASSEMBLY
(a) Using a torx wrench, remove the 4 screws.
(b) Pull the glass upward to remove it.
4. REMOVE DRIVE GEAR
NOTICE:
Remove the drive gear with the sliding roof is full closed.
(a) Disconnect the connector.
(b) Remove the 3 bolts and drive gear.
(c) Remove the screw and cam plate cover.
(d) Turn the drive gear to align the point marks as shown in
the illustration.
(e) Install the cam plate cover and screw.
NOTICE:
At the time of installation, please refer to the following item.
If the sliding roof position and drive gear full close position
is not matched, the sliding roof does not operate normally.

N21529
BO±56
± BODYSLIDING ROOF (TMC Made)
2404 Author: Date:
5. REMOVE SLIDING ROOF HOUSING
(a) Disconnect the 4 drain hoses from the housing.
(b) Remove the 8 bolts and 4 brackets.
Torque: 5.5 N´m (55 kgf´cm, 49 in.´lbf)
(c) Remove the 6 nuts, then remove the housing as shown
on the following page.

BO0M4±01
N21523
N21421
N21424
N21526
N21525
± BODYSLIDING ROOF (TMC Made)
BO±57
2405 Author: Date:
DISASSEMBLY
1. REMOVE SLIDING ROOF PANEL STOPPER
Remove the 2 screws and 2 stoppers.
2. REMOVE SUNSHADE TRIM
3. REMOVE REAR ROOF DRIP CHANNEL
Remove the rear roof drip channel as shown in the illustration.
4. REMOVE REAR FRAME
Remove the 4 screws and rear frame.
5. REMOVE DRIVE CABLE
(a) Remove the screw and guide rail stopper.
(b) Slide the drive cable rearward, then remove it.
HINT:
At the time of reassembly, please refer to the following items.

Adjust the drive cable to a closed and tilted down position.

Slide the cable forward or backward to align the 2 marks
as shown.

Slide the cable to the forefront with your hand.
6. REMOVE ROOF WINDOW DEFLECTOR PANEL

N21420
N21522
BO±58
± BODYSLIDING ROOF (TMC Made)
2406 Author: Date:
7. REMOVE GUIDE BLOCK
Remove the 2 screws and guide block.
8. REMOVE SLIDING ROOF HOUSING
Remove the 6 screws and sliding roof housing.

BO0M5±01
N21422
Z04207
BO3396
N21525
± BODYSLIDING ROOF (TMC Made)
BO±59
2407 Author: Date:
ADJUSTMENT
1. REMOVE SIDE GARNISH
Before making adjustments, using a screwdriver, remove the
side garnishes.
HINT:

Tape the screwdriver tip before use.

After adjustment, reinstall the side garnishes.
2. TO ADJUST FORWARD OR REARWARD
(a) Using a torx wrench, loosening the sliding roof glass
installation screws.
(b) Adjust the sliding roof glass forward and rearward.
3. TO ADJUST CLEARANCE
(Difference in left and right clearance)
(a) When the front or rear alignment is not correct, remove
the drive gear and sliding roof glass, then adjust the drive
rail.
NOTICE:
Remove the drive gear with sliding roof is full closed.
(b) Adjust by slide the cable forward or rearward to align the
2 marks as shown.
(c) Install the drive gear and sliding roof glass.

BO0M6±01
BO±60
± BODYSLIDING ROOF (TMC Made)
2408 Author: Date:
REASSEMBLY
Reassembly is in the reverse order of disassembly (See page BO±57).

BO0M7±01
± BODYSLIDING ROOF (TMC Made)
BO±61
2409 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See page BO±55).
