TOYOTA CAMRY 2000 Service Repair Manual

BO0MB±01
N20950
Instrument Panel ReinforcementNN
DD
No.2 Instrumental Panel Bracket
No.1 Instrumental Panel Bracket
No.2 Instrumental Panel Brace
QQH N
N
N
N
GG
NG
NOB
NN
Instrument Panel Brace Mount
No.1 Instrument
Panel BraceFront Pillar Garnish
Front Pillar
GarnishFront
Passenger
Airbag
Assembly
20 (200, 14)
No.2 Side Defroster Nozzle
Cowl Side Trim
Front Door Openin
g
Cover
Instrument Panel
C
Remote Control
Mirror Hole Base
Upper Column
CoverHazard Warning
Switch
Lower Finish
PlateGlove Compartment
Door Finish PlateFront Door
Inside Scuff Plate
FFF
FJ
Glove
Compartment
No.2 Lower
Panel A
A
Cluster Finish
Panel
Lower Column
Cover
Front Door
Opening
Cover
Cowl Side
TrimD
DD
D
D
F
AA
Lower Panel
InsertCoin
BoxCombination SwitchCombination
MeterRadio Assembly
Center Cluster
Finish Panel
A/C
Control Assembly
35 (360, 26)
Steering
Wheel
Pad Steering Wheel No.1 Lower
Panel
Front Door
Inside Scuff PlateFront Console
Box
Center Console
Upper PanelF
F
B
B
Rear Console
Box
N´m (kgf´cm, ft´lbf) : Specified torque BO±72
± BODYINSTRUMENT PANEL
2420 Author: Date:
INSTRUMENT PANEL
COMPONENTS

N20951

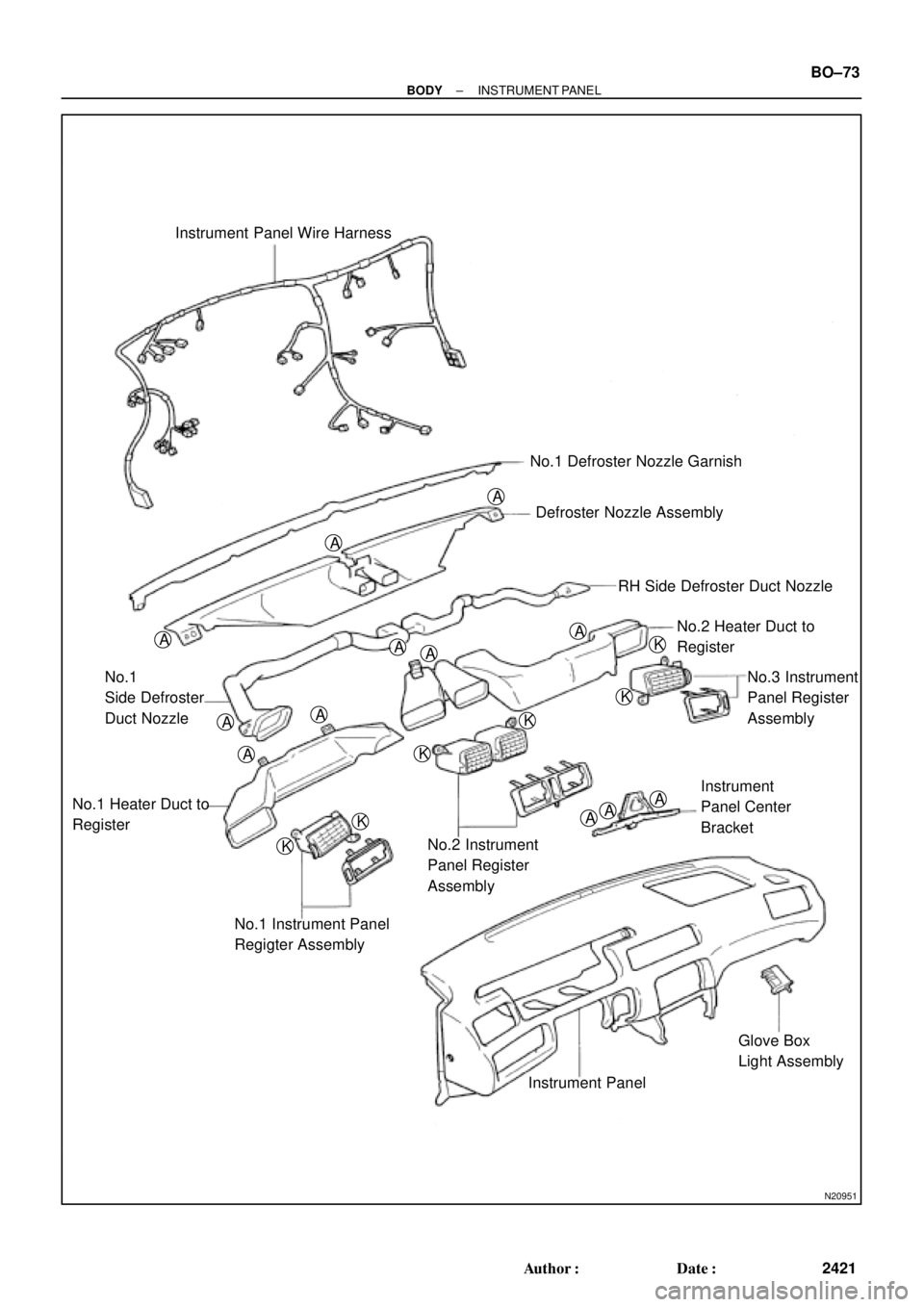

A
Instrument Panel Wire Harness
No.1 Defroster Nozzle Garnish
Defroster Nozzle Assembly A
A
RH Side Defroster Duct Nozzle
No.1
Side Defroster
Duct Nozzle
A
A
A
A
A
ANo.2 Heater Duct to
Register
No.3 Instrument
Panel Register
Assembly K
K
K
K
K
K
No.1 Heater Duct to
RegisterAAA
No.1 Instrument Panel
Regigter AssemblyNo.2 Instrument
Panel Register
AssemblyInstrument
Panel Center
Bracket
Instrument PanelGlove Box
Light Assembly
± BODYINSTRUMENT PANEL
BO±73
2421 Author: Date:

H01983

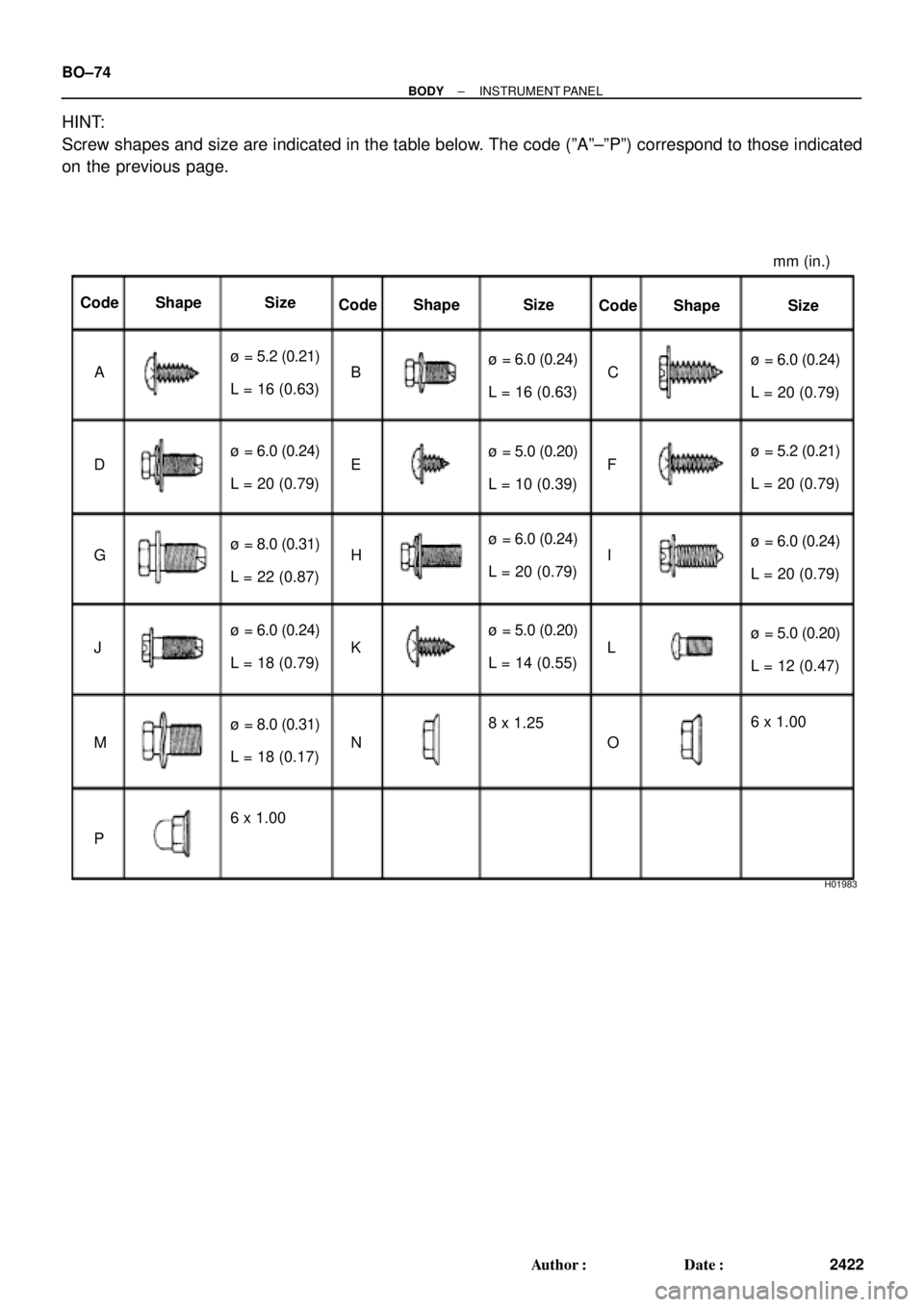

Code Shape Size
Code Shape Size
Code Shape Size
A
D
G
J
M
PBC
EF
HI
K
NL
O L = 16 (0.63) ù = 5.2 (0.21)mm (in.)
L = 16 (0.63) ù = 6.0 (0.24)
L = 20 (0.79) ù = 6.0 (0.24)
L = 20 (0.79) ù = 6.0 (0.24)
L = 10 (0.39) ù = 5.0 (0.20)
L = 20 (0.79) ù = 5.2 (0.21)
L = 22 (0.87) ù = 8.0 (0.31)
L = 20 (0.79) ù = 6.0 (0.24)
L = 20 (0.79) ù = 6.0 (0.24)
L = 18 (0.79) ù = 6.0 (0.24)
L = 14 (0.55) ù = 5.0 (0.20)
L = 12 (0.47) ù = 5.0 (0.20)
L = 18 (0.17) ù = 8.0 (0.31)8 x 1.256 x 1.00
6 x 1.00 BO±74
± BODYINSTRUMENT PANEL
2422 Author: Date:
HINT:
Screw shapes and size are indicated in the table below. The code (ºAº±ºPº) correspond to those indicated
on the previous page.

BO0MC±01
N20987
N21123
± BODYINSTRUMENT PANEL
BO±75
2423 Author: Date:
REMOVAL
1. REMOVE THESE PARTS:
HINT:
Tape a screwdriver tip before use.
(a) Front door inside scuff plates
(b) Cowl side trims
(c) Front pillar garnishes
(d) Front door opening covers
(e) Lower finish plate
2. REMOVE STEERING WHEEL
(See page SR±11)
3. REMOVE STEERING COLUMN COVERS
(a) Remove the steering tilt handle.
(b) Remove the 3 screws, then the upper and lower column
covers.
4. REMOVE COMBINATION SWITCH
5. REMOVE No.1 LOWER PANEL
(a) Remove the 2 screws and hood lock release lever.
(b) Press on the sides of the coin box while pulling the coin
box outward, and remove the coin box.
(c) Remove the screw, bolt and the No.1 lower panel.
6. REMOVE LOWER PANEL INSERT
(a) Remove the 2 screws holding the DLC3 to the LH lower
panel.
(b) Remove the 4 bolts, and the panel.
7. REMOVE No.2 LOWER COVER

N20988
N21023
7 Clips
N21024
6 Clips BO±76
± BODYINSTRUMENT PANEL
2424 Author: Date:
8. REMOVE GLOVE COMPARTMENT ASSEMBLY
(a) Using a screwdriver, remove the glove compartment door
finish plate to the glove compartment box inside.
NOTICE:
When handling the airbag connector, be careful not to dam-
age the airbag wire harness.
HINT:
Tape the screwdriver tip before use.
(b) Pull up and disconnect the airbag connector.
(c) Remove the 4 screws, bolt and glove compartment as-
sembly.
9. REMOVE CENTER CONSOLE UPPER PANEL
Using a screwdriver, remove the panel, then disconnect the
connector.
HINT:
Tape the screwdriver tip before use.
10. REMOVE REAR CONSOLE BOX
Remove the 2 bolts, 2 screws and the console box.
11. REMOVE CENTER CLUSTER FINISH PANEL
Using a screwdriver, remove the panel, then disconnect the
connector.
HINT:
Tape the screwdriver tip before using.
12. REMOVE FRONT CONSOLE BOX
Remove the 2 screws and the front console box.
13. REMOVE RADIO ASSEMBLY
14. REMOVE A/C CONTROL ASSEMBLY
(See page AC±82)
15. REMOVE HAZARD WARNING SWITCH
16. REMOVE CLUSTER FINISH PANEL
(a) Remove the 2 screws.
(b) Using a screwdriver, remove the panel.
HINT:
Tape the screwdriver tip before use.
17. REMOVE COMBINATION METER
18. REMOVE REMOTE CONTROL MIRROR HOLE BASE

W03509
N20991
N20992
N20993
± BODYINSTRUMENT PANEL
BO±77
2425 Author: Date:
19. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY
(See page RS±28)
Remove the 2 bolts, 4 nuts and the front passenger airbag as-
sembly.
Torque:
Bolt: 20 N´m (200 kgf´cm, 14 ft´lbf)
CAUTION:

Store the front passenger airbag door facing upward
(never downward).

Never disassemble the front passenger airbag as-
sembly.
NOTICE:
The 2 bolts to the instrument panel have been anti±rust
treated. After removing the front passenger airbag assem-
bly, always replace the bolts and nuts with new ones.
20. REMOVE No.1 AND No.2 INSTRUMENT PANEL
BRACKETS
Remove the 4 bolts and the No.1 and No.2 panel brackets.
21. REMOVE NO.2 SIDE DEFROSTER NOZZLE
22. REMOVE INSTRUMENT PANEL ASSEMBLY
(a) Disconnect the connectors from the LH and RH connector
holders.
(b) Remove the bolts holding the ground wire to the body.
(c) Remove the connector holder from the body.
(d) Disconnect the connectors.
(e) Remove the bolt holding the ground wire to the No.2
instrument panel brace.

N20994
N20995
N20996
N20997
BO±78
± BODYINSTRUMENT PANEL
2426 Author: Date:
(f) Remove the bolt, nut, screw and the instrument panel as-
sembly.
23. REMOVE INSTRUMENT PANEL BRACES
(a) Remove the wire brackets and connector.
(b) Remove the bolt and connector from the No.1 instrument
panel brace.
(c) w/ Wireless Control:
Remove the nut and the wireless control unit from the
No.1 instrument panel brace.
(d) Remove the nut holding the radio antenna to the No.2
instrument panel brace.
(e) Remove a nut and brace mount bracket.
(f) Remove the 6 nuts, 2 bolts and No.1 and No.2 instrument
panel braces.
24. REMOVE INSTRUMENT PANEL REINFORCEMENT
(a) Remove the connectors from the steering column tube.
(b) Remove the 4 wire brackets and connectors.
(c) Remove the 2 nuts and bolt holding the No.1 Junction Box
(J/B) to the reinforcement.
(d) Remove the 4 nuts and the steering column from the rein-
forcement.
(e) Remove the brake pedal spring from the reinforcement
and brake pedal.
(f) Remove the 4 nuts, 3 bolts and the reinforcement.

BO0MD±01
N21124
± BODYINSTRUMENT PANEL
BO±79
2427 Author: Date:
DISASSEMBLY
1. REMOVE THESE PARTS:
(a) No.1 defroster nozzle garnish
(b) No.1 defroster nozzle
(c) RH side defroster duct nozzle
(d) No.1 side defroster duct nozzle
(e) No.1 heater duct to register
(f) No.2 heater duct to register
(g) No.2 register assembly
(h) No.3 register assembly
(i) No.1 register assembly
2. REMOVE INSTRUMENT PANEL WIRE HARNESS
Remove the 2 brackets, 8 clips and wire harness.
3. REMOVE INSTRUMENT PANEL CENTER BRACKET
4. REMOVE THESE PARTS:
(a) Clock unit
(b) Glove box light assembly

BO0ME±01
BO±80
± BODYINSTRUMENT PANEL
2428 Author: Date:
REASSEMBLY
Reassembly is in the reverse order of disassembly (See page BO±79).

BO0MF±01
± BODYINSTRUMENT PANEL
BO±81
2429 Author: Date:
INSTALLATION
Reassembly is in the reverse order of removal (See page BO±75).
