TOYOTA CAMRY 2019 Accessories, Audio & Navigation (in English)

21
1. BASIC FUNCTION
QUICK GUIDE
1
The level of
reception
(Phone)
Poor Excellent
 The level of reception does not always correspond with the leve l
displayed on the cellular phone. The level of reception may not
be displayed depending on the phone you have.
When the cellular phone is out of the service area or in a place
inaccessible by radio waves, is displayed.
 “Rm” is displayed when receiving in a roaming area. While
roaming, display “Rm” top-left on the icon.
 The receiving area may not be displayed depending on the type
of phone you have.
The amount
of battery
charge left
(Phone)Empty Full
 The amount displayed does not always correspond with the
amount displayed on the Bluetooth
® device.
The amount of battery charge left may not be displayed depend-
ing on the type of the Bluetooth
® device connected.
This system does not have a charging function.
*1, 2The condition
of Wi-Fi® con-
nectionNo connection Connected
 When Wi-Fi® Hotspot is off, no item is displayed.
*1Data Commu-
nication Mod-
ule (DCM)
Indicate during data communication performed via DCM.
*1The level of
reception
(DCM)
No connection Poor Excellent
*2, 3Weather alertSelect to display important weather information for the current
location or along the route. ( P.149)
*
1: Vehicles with DCM
*2: This function is not made avail able in some countries or areas.
*3: Entune Premium Audio only
IconIndicatorsConditions

22
2. QUICK REFERENCE
1. “Setup” SCREEN
Entune Audio/Entune Audio Plus
 Entune Premium Audio
Press the “MENU” button, then select “Setup” to display the “Setup” screen. The
items shown on the “Setup” screen can be set.
2. QUICK REFERENCE

23
2. QUICK REFERENCE
QUICK GUIDE
1No.FunctionPage
Select to change the selected language, operation sound settings,
etc.64
Select to set Bluetooth® device and Bluetooth® system settings.48
Select to set audio/visual settings.11 9
Select to set the phone sound, cont acts, message settings, etc.232
Select to set the voice settings.70
Select to set vehicle information such as vehicle customization .71
*1, 2Select to set Wi-Fi® connection settings.57
*2Select to set Toyota Entune App Suite Connect settings.329
Select to set memory points (home, favorites entries, areas to avoid),
or navigation details.291, 297
*2Select to set traffic information settings.301
*2Select to set data services settings.152
*
1: Vehicles with DCM
*2: This function is not made available in some countries or areas.

24
3. NAVIGATION OPERATION
1. REGISTERING HOME*
Vehicles without a smart key system
Turn the engine switch to the
“ACC” or “ON” position.
 Vehicles with a smart key system
Turn the engine switch
to ACCESSORY or IGNITION ON
mode.
Press the “MAP” button.
Select . Search for your home.
There are different kinds of methods to
search for your home. ( P.265)
Select “Enter”.
Select “OK”.
Registration of home is complete.
 Registering home in a different way
P.292
 Editing the name, location, phone num-
ber and icon
P.292
 Setting home as the destination
P.27, 267, 273
*: Entune Premium Audio only
1
1
2
3
4
5
6
3. NAVIGATION OPERATION

25
3. NAVIGATION OPERATION
QUICK GUIDE
1
2. REGISTERING FAVORITE DESTINATIONS*
Vehicles without a smart key system
Turn the engine switch to the
“ACC” or “ON” position.
 Vehicles with a smart key system
Turn the engine switch
to ACCESSORY or IGNITION ON
mode.
Press the “MAP” button.
Select .
Select “New”.
Search for a favorite destination.
There are different kinds of methods to
search for a destination. ( P.265)
Select “Enter”. Select “OK”.
Registration of favorite destinations is
complete.

Registering favorite destinations in a dif-
ferent way
P.293
 Editing the name, l ocation, phone num-
ber and icon
P.293
 Setting favorite destinations as the des-
tination
P.268, 273
*: Entune Premium Audio only
1
1
2
3
4
5
6
7

26
3. NAVIGATION OPERATION
3. OPERATION FLOW: ROUTE GUIDANCE*
Press the “MAP” button.
Select .
Search for a destination.
There are different kinds of methods to
search for a destination. (P.265)
Select “Go”.
Select “OK”.
Selecting routes other than the one recom-
mended. ( P.276)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
*: Entune Premium Audio only
1
2
3
4
5

27
3. NAVIGATION OPERATION
QUICK GUIDE
1
4. SETTING HOME AS THE DESTINATION*
Vehicles without a smart key system
Turn the engine switch to the
“ACC” or “ON” position.
 Vehicles with a smart key system
Turn the engine switch
to ACCESSORY or IGNITION ON
mode.
Press the “MAP” button.
Select .
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
 Setting home as the destination in a dif-
ferent way
P.267
*: Entune Premium Audio only
1
1
2
3

28
4. FUNCTION INDEX
1. FUNCTION INDEX
Map*
 Route guidance*
Displaying mapsPage
Viewing the map screen252
Displaying the current position254
Viewing the current position vicinity map256
Changing the scale254
Changing the map orientation255
Displaying map options operation258
Displaying the estimated travel/arrival time to the destination281
Selecting the map mode258
Displaying traffic information262
Searching for destinationsPage
Searching for the destination265
Changing the search area267
Before starting or during route guidancePage
Starting route guide275
Displaying route options operation287
Viewing the route overview276
Adjusting route guidance volume70
Deleting the destination279
FavoritesPage
Registering favorites list entries293
Marking icons on the map294
*: Entune Premium Audio only

29
4. FUNCTION INDEX
QUICK GUIDE
1
Useful functions
InformationPage
Displaying vehicle maintenance*72
Hands-free system (for cellular phone)Page
Registering/connecting a Bluetooth® phone44
Placing a call using the Bluetooth® hands-free system219
Receiving a call using the Bluetooth® hands-free system223
Voice command systemPage
Operating the system with your voice134
Peripheral monitoring systemPage
Viewing behind the rear of the vehicle156, 164
Viewing around the vehicle179
*: Entune Premium Audio only

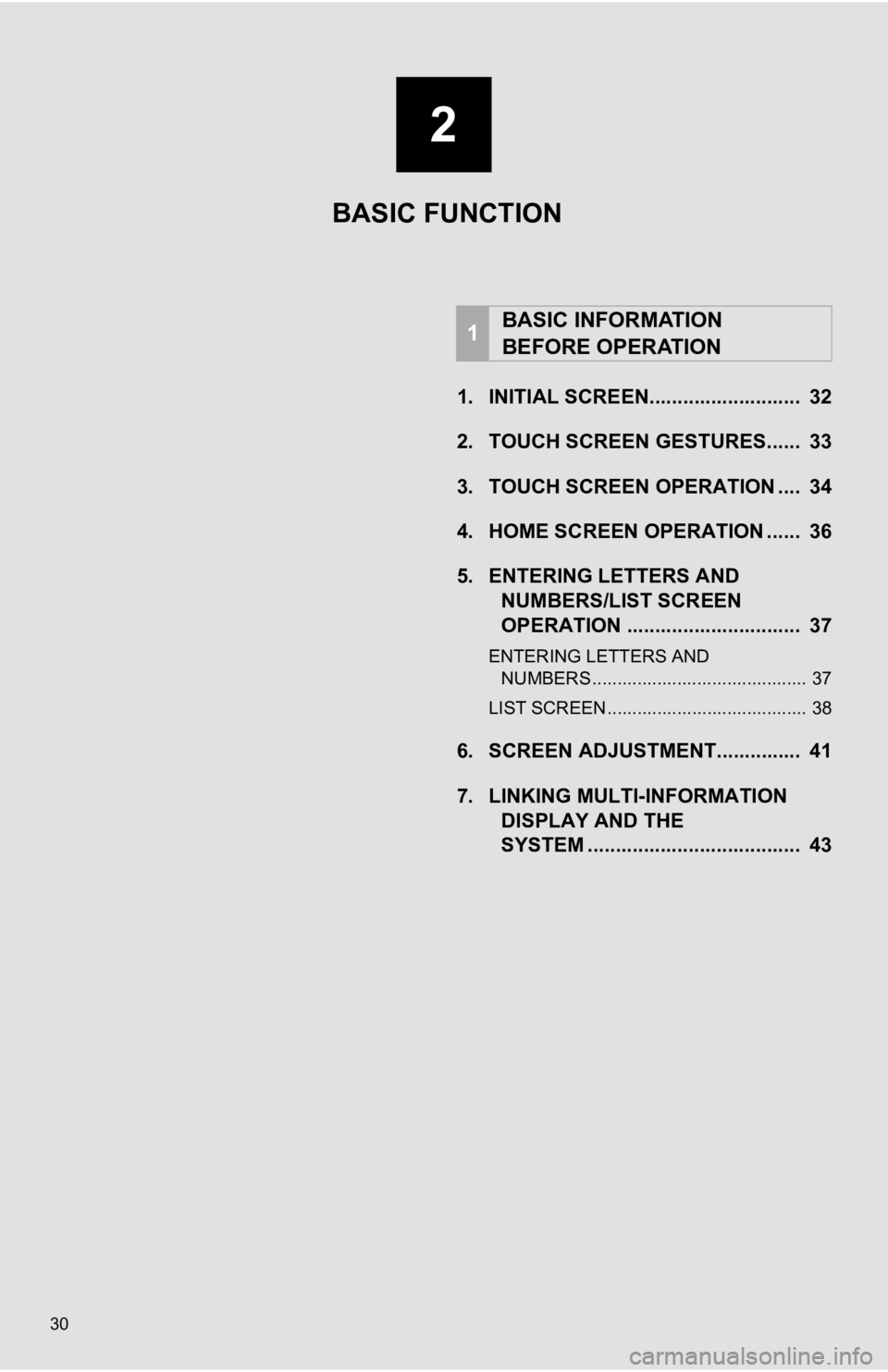

30
1. INITIAL SCREEN........................... 32
2. TOUCH SCREEN GESTURES...... 33
3. TOUCH SCREEN OPERATION .... 34
4. HOME SCREEN OPERATION ...... 36
5. ENTERING LETTERS ANDNUMBERS/LIST SCREEN
OPERATION ............................... 37
ENTERING LETTERS AND
NUMBERS ........................................... 37
LIST SCREEN ........................................ 38
6. SCREEN ADJUSTMENT............... 41
7. LINKING MULTI-INFORMATION DISPLAY AND THE
SYSTEM ........... ....................... .... 43
1BASIC INFORMATION
BEFORE OPERATION
2
BASIC FUNCTION
