TOYOTA COROLLA HATCHBACK 2022 Owners Manual (in English)

369
5
5-1. Basic Operations
Audio system
Volume
• Press: Increases/decreases volume
• Press and hold until you hear a beep:
Continuously increases/decreases
volume
“MODE” switch
• Press: Turn the power on, select an
audio source
• Press and hold until you hear a beep:
Radio mode: Mute
CD, MP3/WMA/AAC disc, iPod, USB or
Bluetooth® audio mode: Pause the cur-
rent operation.
To cancel the mute or pause, press and
hold the switch again.
Radio mode:
• Press: Select a radi o station saved in
preset channels.
• Press and hold until you hear a beep:
Seek up/down
CD, MP3/WMA/AAC disc, iPod, USB or
Bluetooth® audio mode:
• Press: Select a track/file
• Press and hold until you hear a beep:
Select a folder or album
(MP3/WMA/AAC disc, USB or
Bluetooth® audio)
■Changing the audio source
Press the “MODE” switch when the
audio system is turned on. The audio source changes as follows each time
the button is pressed. If a mode cannot
be used, it will be skipped.
AM FMCD or
MP3/WMA/AAC iPod or USB mem-
ory Bluetooth® audio
Using the steering wheel
audio switches
Some audio features can be
controlled using the switches
on the steering wheel.
Operation may differ depend-
ing on the type of audio sys-
tem or navigation system. For
details, refer to the manual pro-
vided with the audio system or
navigation system.
Operating the audio system
using the steering wheel
switches
WA R N I N G
■To reduce the risk of an accident
Exercise care when operating the
audio switches on the steering wheel.

3705-1. Basic Operations
■iPod
Connect an iPod using an iPod
cable.
Turn on the power of the iPod if it is not
turned on.
■USB memory
Connect the USB memory device.
Turn on the power of the USB memory
device if it is not turned on.
■Portable audio player
Connect the portable audio player.
Turn on the power of the portable audio
player if it is not turned on.
USB port
Connect an iPod, USB memory
device or portable audio player
to the USB port as indicated
below. Press the “MODE” but-
ton to select “iPod” or “USB”.
Connecting using the USB
port
WA R N I N G
■While driving
Do not connect a device or operate
the device controls.

371
5
5-2. Using the audio system
Audio system
5-2.Using the audio system
“TUNE•SELECT” knob
Press: Displays the “SETUP”
menu/Selects the mode
Turn: Changes the following settings
• “Sound setting”
 P.371
•“Radio”
 P.373
• “Bluetooth”
 P.398
•“TEL”
 P. 4 0 0
Day mode switch
When the headlights are turned on,
the screen dims.
However, the screen can be
switched to day mode by selecting
day mode.
The screen will stay in day mode
when the headlights are turned on
until day mode is selected again.
■Changing sound quality
modes
1 Press the “TUNE•SELECT”
knob.
2 Turn the knob to select “Sound
setting”.
3 Press the knob.
4 Turn the knob as corresponds to
the desired mode.
“Bass”, “Treble”, “Fader”, “Balance”, or
“ASL” can be selected.
5 Press the knob.
■Adjusting sound quality
Turning the “TUNE•SELECT” knob adjusts the level.
Optimal use of the audio
system
The sound quality, volume bal-
ance and ASL settings can be
adjusted and the day mode can
be selected.
Operation method
Day mode
Using the audio control
function
Sound quality
modeMode displayedLevelTurn to the leftTurn to the right
Bass*“Bass”-5 to 5LowHigh
Treble*“Treble”-5 to 5

3725-2. Using the audio system
*: The sound quality level is adjusted individually in each audio mode.
Press the knob or (Back) to return to the sound setting menu.
■Adjusting the Automatic
Sound Levelizer (ASL)
When ASL is selected, turn the
“TUNE•SELECT” knob to change
the amount of ASL.
“Low”, “Mid”, “High” or “Off” can be
selected.
ASL automatically adjusts the volume
and tone quality according to vehicle
speed.
Press the knob or (Back) to
return to the sound setting menu.
Front/rear vol-
ume balance“Fader”R7 to F7Shifts to rearShifts to front
Left/right vol-
ume balance“Balance”L7 to R7Shifts to leftShifts to right
Sound quality
modeMode displayedLevelTurn to the leftTurn to the right

373
5
5-3. Using the radio
Audio system
5-3.Using the radio
“POWER VOLUME” knob
Press: Turning the audio system on or off
Turn: Adjusting the volume
AM/FM mode button
Station selectors
“TUNE•SELECT” knob
Adjusting the frequency
Mute
Seeking the frequency
1 Search for the desired stations
by turning the “TUNE•SELECT”
knob or pressing the “SEEK >”
or “< TRACK” button.
2 Press and hold one of the sta-
tion selectors to be set until
you hear a beep.
■Reception sensitivity
●Maintaining perfect radio reception at
all times is difficult due to the continu-
ally changing position of the antenna, differences in signal strength and sur-
Radio operation
Press the “MODE” button until “AM” or “FM” is displayed.
Control panel
Setting station presets

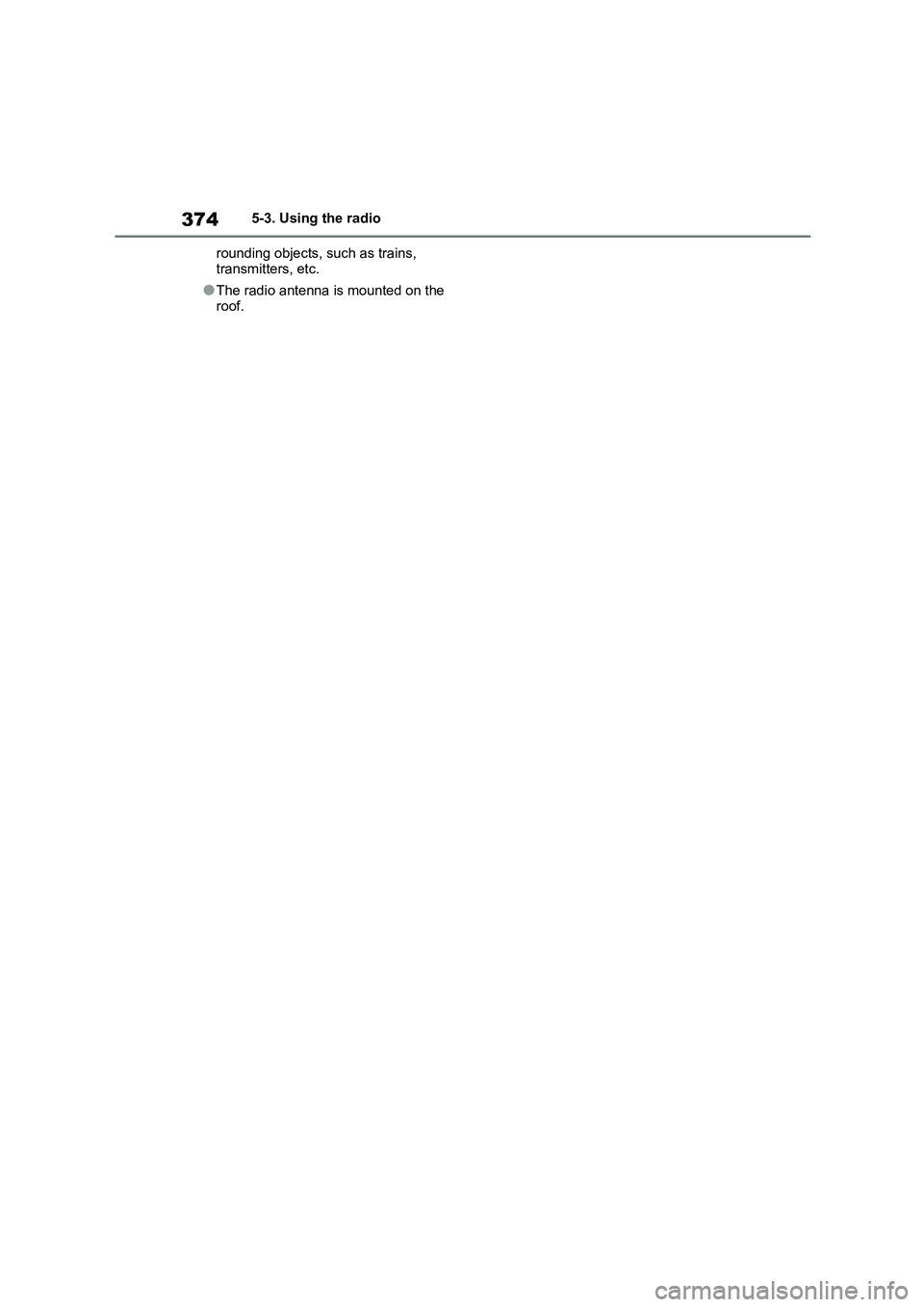

3745-3. Using the radio
rounding objects, such as trains,
transmitters, etc.
●The radio antenna is mounted on the
roof.

375
5
5-4. Playing an audio CD and MP3/WMA discs
Audio system
5-4.Playing an audio CD and MP3/WMA discs
Disc eject
“POWER VOLUME” knob
Press: Turning the audio system on or off
Turn: Adjusting the volume
Displaying text message
Changing the audio source/playback
Displaying track/folder list
Selecting a folder (MP3/WMA/AAC discs only)
Repeat play
Random play or back button
“TUNE•SELECT” knob
Selecting a track/file
Pause/playback
Selecting a track, fast-forwarding or rewinding
CD player operation
Insert a disc or press the “MODE” button (CD is already loaded) to
begin listening to a CD.
Control panel

3765-4. Playing an audio CD and MP3/WMA discs
Insert a disc.
Press the disc eject button and
remove the disc.
■Selecting a track
Turn the “TUNE•SELECT” knob or
press the “SEEK >” or “< TRACK”
button to move up or down until the
desired track number is displayed.
■Selecting a track from a track
list
1 Press (List).
The track list will be displayed.
2Turn and press the
“TUNE•SELECT” knob to select
a track.
To return to the previous display, press
(Back).
■Fast-forwarding and rewinding
tracks
Press and hold the “SEEK >” or “<
TRACK” button until you hear a
beep.
■Random play
Press (RDM).
To cancel, press (RDM) again.
■Repeat play
Press (RPT).
To cancel, press (RPT) again.
■Switching the display
Press (Text) to display or hide
the CD title.
If there are continuing texts, is dis-
played.
Press and hold (Text) until you hear
a beep to display the remaining texts.
■Selecting folders one at a time
Press ()
to select the desired folder.
■Selecting a folder and file from
folder list
1 Press “TUNE•SELECT” knob or
(List).
The folder list will be displayed.
2 Turn and press the knob to
select a folder and a file.
To return to the previous display, press
(Back).
■Returning to the first folder
Press and hold ( you hear a beep.
■Selecting a file
Turn the “TUNE•SELECT” knob or
press the “SEEK >” or “< TRACK”
button to move up or down to select
Loading a CD or
MP3/WMA/AAC disc
Ejecting a CD or
MP3/WMA/AAC disc
Using the CD player
Playing back
MP3/WMA/AAC disc

377
5
5-4. Playing an audio CD and MP3/WMA discs
Audio system
the desired file.
■Fast-forwarding and rewinding
files
Press and hold the “SEEK >” or “<
TRACK” button until you hear a
beep.
■Random play
Pressing (RDM) changes
modes in the following order:
Folder random Disc randomOff
■Repeat play
Pressing (RPT) changes modes
in the following order: File
repeat Folder repeat*Off
*: Available except when “RDM” (ran-
dom play) is selected
■Switching the display
Press (Text) to display or hide
the album title.
If there are continuing texts, is dis-
played.
Press and hold (Text) until you hear
a beep to display the remaining texts.
■Display
Depending on the contents recorded,
the characters may not be displayed
properly or may not be displayed at all.
■Error messages
If an error message is displayed, refer to
the following table and take the appro-
priate measures. If the problem is not rectified, take the vehicle to any author-
ized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
■Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depend-
ing on recording format or disc features, or due to scratches, dirt or deterioration.
MessageCause/Correction
procedures
“CD check”
The disc may be
dirty, damaged or
inserted
upside-down.
Clean the disc or
insert it correctly.
“Error 3”
There is a trouble
inside the system.
Eject the disc.
“Error 4”
An over current
error has occurred.
Turn the engine
switch off.
“Wait”
Operation has
stopped due to a
high temperature
inside the player.
Wait for a while
and then press the
“MODE” button. If
the CD still cannot
be played back,
contact any
authorized Toyota
retailer or Toyota
authorized
repairer, or any
reliable repairer.
“No support”
This indicates that
the MP3, WMA or
AAC file is not
included in the CD.

3785-4. Playing an audio CD and MP3/WMA discs
CDs with copy-protect features may not
play correctly.
■CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected while the CD
player is being used.
■If a CD is left inside the CD player or in the ejected position for
extended periods
The CD may be damaged and may not play properly.
■Lens cleaners
Do not use lens cleaners. Doing so may
damage the CD player.
■MP3, WMA and AAC files
MP3 (MPEG Audio LAYER3) is a stand- ard audio compression format.
Files can be compressed to approxi-
mately 1/10 of their original size by using MP3 compression.
WMA (Windows Media Audio) is a
Microsoft audio co mpression format.
Windows Media is either a registered
trademark or trademark of Microsoft
Corporation in the United States and/or other countries. This product is pro-
tected by certain intellectual property
rights of Microsoft. Use or distribution of such technology outside of this product
is prohibited without a license from
Microsoft.
This format compresses audio data to a
size smaller than that of the MP3 format.
AAC is short for Advanced Audio Cod-
ing and refers to an audio compression technology standard used with MPEG2
and MPEG4.
There is a limit to the MP3, WMA and AAC file standards and to the media/for-
mats recorded by them that can be
used.
●MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF
LAYER3)
• Compatible sampling frequencies
MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24
(kHz)
• Compatible bit rates (compatible with
VBR)
MPEG1 LAYER3: 32-320 (kbps)
MPEG2 LSF LAYER3: 8-160 (kbps)
• Compatible channel modes: stereo,
joint stereo, dual channel and monau-
ral
●WMA file compatibility
• Compatible standards
WMA Ver. 7, 8, 9 (9.1/9.2)
• Compatible sampling frequencies
32, 44.1, 48 (kHz)
• Compatible bit rates (only compatible
with 2-channel playback)
Ver. 7, 8: CBR 48-192 (kbps)
Ver. 9 (9.1/9.2): CBR 48-320 (kbps)
●AAC file compatibility
• Compatible standards
MPEG4/AAC-LC
• Compatible sampling frequencies
11.025/12/16/22.05/24/32/44.1/48 (kHz)
• Compatible bit rates (compatible with
VBR)
8-320 (kbps)
• Compatible channel modes
1ch, 2ch (Dual channel is not supported)
●Compatible media
Media that can be used for MP3, WMA
