TOYOTA GR86 2022 Owners Manual (in English)

79
6
6-3. Media operation
Audio
The AUX control screen can be
accessed with the following meth-
ods:
 Connect a portable audio device.
( P. 1 9 )
 Select “AUX” on the media con-
trol screen. ( P.64)
Select to switch between other
media sources.
Select to displa y the sound cus-
tomisation screen. ( P.65)
Turn to adjust the volume.
Press to mute the audio/visual
system.
Press and hold to turn the
audio/visual system off, and
press and hold to turn it on
again.
Press and hold to display the
sound customisation screen.
( P. 6 5 )
AUX
Overview
Control screen
Control panel
A
B
A
WA R N I N G
●Do not operate the player’s controls
or connect the portable audio
device while driving.
NOTICE
●Do not leave portable audio device
in the vehicle. The temperature
inside the vehicle may become high, resulting in damage to the
player.
●Do not push down on or apply
unnecessary pressure to the porta-
ble audio device while it is con- nected as this may damage the
portable audio device or its termi-
nal.
●Do not insert foreign objects into
the port as this may damage the portable audio device or its termi-
nal.
B

806-3. Media operation
*: When connected as an Android Auto
device
1 Connect an Android Auto device
to the USB port. ( P. 1 9 )
2 Check the confirmation mes-
sage, and then select “Yes”.
 If “Don’t show again.” is selected,
the confirmation message will
not be displayed again.
If the connected Android device
is not recognised as an Android
Auto device, select the check
box for the device on the Android
Auto device list. ( P. 6 2 )
Select “Android Auto” on the media
control screen. ( P. 6 4 )
Select to switch between other
media sources.
Displays cover art.
Select to display the sound cus-
tomisation screen. ( P. 6 5 )
Shows progress.
Select to pause/play.
Select to change the track.
Turn to adjust the volume.
Press to mute the audio/visual
system.
Press and hold to turn the
audio/visual system off, and
press and hold to turn it on
again.
Turn to change the track.
Press and hold to display the
sound customisation screen.
( P. 6 5 )
Press to change a track.
●Depending on the device or music file being played, the cover art may not be
displayed.
Android Auto*
Audio files on an Android Auto
device can be played back.
Connecting an Android Auto
device
Overview
Control screen
A
Control panel
B
C
D
E
F
A
B
C

81
6

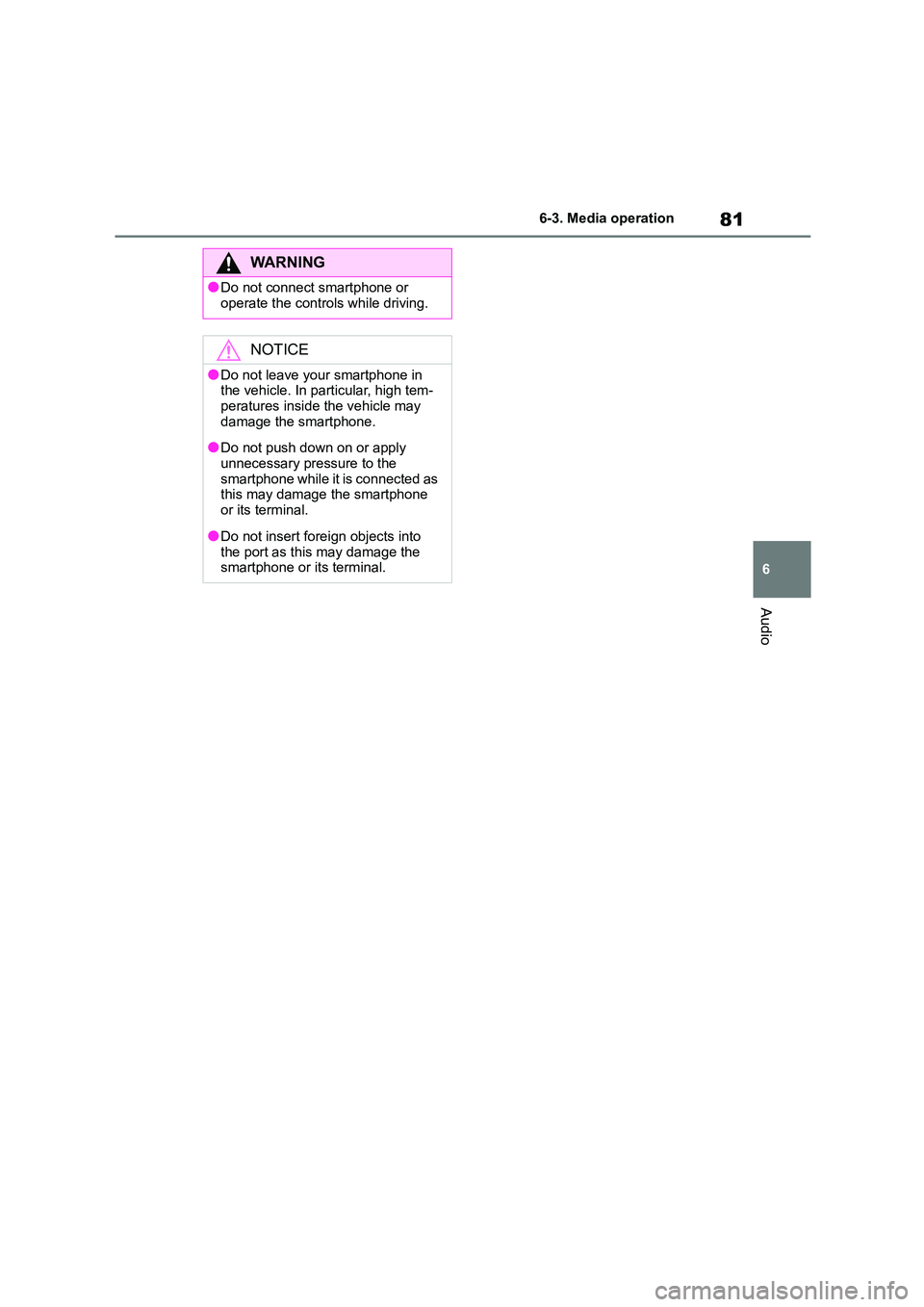

6-3. Media operation
Audio
WA R N I N G
●Do not connect smartphone or
operate the controls while driving.
NOTICE
●Do not leave your smartphone in the vehicle. In particular, high tem-
peratures inside the vehicle may
damage the smartphone.
●Do not push down on or apply
unnecessary pressure to the smartphone while it is connected as
this may damage the smartphone
or its terminal.
●Do not insert foreign objects into
the port as this may damage the smartphone or its terminal.

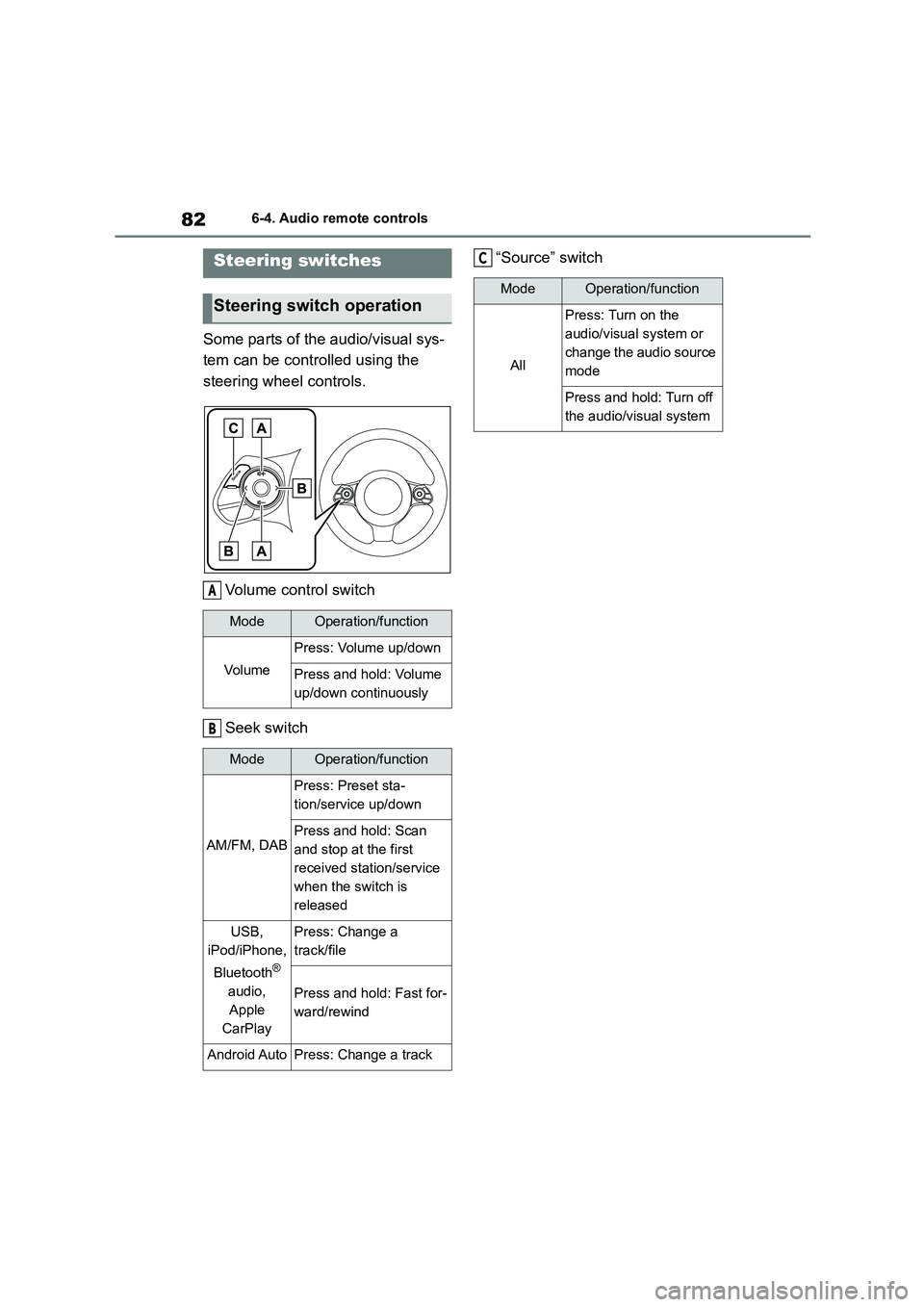

826-4. Audio remote controls
6-4.Audio remote controls
Some parts of the audio/visual sys-
tem can be controlled using the
steering wheel controls.
Volume control switch
Seek switch
“Source” switchSteering switches
Steering switch operation
ModeOperation/function
Vo l u me
Press: Volume up/down
Press and hold: Volume
up/down continuously
ModeOperation/function
AM/FM, DAB
Press: Preset sta-
tion/service up/down
Press and hold: Scan
and stop at the first
received station/service
when the switch is
released
USB,
iPod/iPhone,
Bluetooth®
audio,
Apple
CarPlay
Press: Change a
track/file
Press and hold: Fast for-
ward/rewind
Android AutoPress: Change a track
A
B
ModeOperation/function
All
Press: Turn on the
audio/visual system or
change the audio source
mode
Press and hold: Turn off
the audio/visual system
C

83
6
6-5. Tips for operating the audio/visual system
Audio
6-5.Tips for operating the audio/visual system
●The use of a mobile phone inside or
near the vehicle may cause a noise from the speakers of the audio/visual
system which you are listening to.
However, this does not indicate a mal- function.
Usually, a problem with radio recep-
tion does not mean there is a prob-
lem with the radio  it is just the
normal result of conditions outside
the vehicle.
For example, nearby buildings and
terrain can interfere with FM recep-
tion. Power lines or phone wires
can interfere with AM signals. And
of course, radio signals have a lim-
ited range. The farther the vehicle
is from a station, the weaker its sig-
nal will be. In addition, reception
conditions change c onstantly as the
vehicle moves.
Here, some common reception
problems that probably do not indi-
cate a problem with the radio are
described.
■FM
Fading and drifting stations: Gener-
ally, the effective range of FM is
about 40 km (25 miles). Once out-
side this range, you may notice fad-
ing and drifting, wh ich increase with
the distance from the radio trans-
mitter. They are often accompanied
by distortion.
Multi-path: FM signals are reflec-
tive, making it possible for 2 signals
to reach the vehicle’s antenna at
the same time. If this happens, the
signals will cancel each other out,
causing a momentary flutter or loss
of reception.
Static and fluttering: These occur
when signals are blocked by build-
ings, trees or other large objects.
Increasing the bass level may
reduce static and fluttering.
Station swapping: If the FM signal
being listened to is interrupted or
weakened, and there is another
strong station nearby on the FM
band, the radio may tune in the
second station until the original sig-
nal can be picked up again.
■AM
Fading: AM broadcasts are
reflected by the upper atmosphere
 especially at night. These
reflected signals can interfere with
those received directly from the
radio station, causing the radio sta-
tion to sound alternately strong and
weak.
Station interference: When a
reflected signal and a signal
received directly from a radio sta-
tion are very nearly the same fre-
quency, they can interfere with
Operating infor mation
NOTICE
●To avoid damage to the
audio/visual system, be careful not
to spill beverages over the audio/visual system.
Radio

846-5. Tips for operating the audio/visual system
each other, making it difficult to
hear the broadcast.
Static: AM is easily affected by
external sources of electrical noise,
such as high tension power lines,
lightening or electrical motors. This
results in static.
 USB communication formats:
USB 2.0 LS (1.5 Mbps)/FS (12
Mbps)/HS (480 Mbps)
 File formats: FAT 32
 Correspondence class: Mass
storage class
The following iPod touch and
iPhone devices can be used with
this system.
Made for
 iPhone 11 Pro Max
 iPhone 11 Pro
 iPhone 11
 iPhone XS Max
 iPhone XS
 iPhone XR
 iPhone X
 iPhone 8 Plus
 iPhone 8
 iPhone 7 Plus
 iPhone 7
 iPhone SE
 iPhone 6s Plus
 iPhone 6s
 iPhone 6 Plus
 iPhone 6
 iPhone 5s
 iPhone 5c
 iPhone 5
 iPod touch (6th generation)
●This system only supports audio play-
back.
●Depending on difference between
models or software versions etc.,
some models might be incompatible
with this system.
USB memory device
iPod/iPhone
File information
CodecDescriptionChannelsContainer/
Extension
MPEG-4
AAC LC
8-48 kHz sampling rate
8-320 kbps CBR, VBR
Mono and
stereo.m4a, .aac
MPEG-4 HE
AAC
16-48 kHz sampling rate
8-320 kbps CBR, VBR
Mono and
stereo.m4a, .aac
MPEG-4 HE
AAC v2
16-48 kHz sampling rate
8-320 kbps CBR, VBR
Mono and
stereo.m4a, .aac

85
6
6-5. Tips for operating the audio/visual system
Audio
 The player is compatible with
VBR (Variable Bit Rate).
 MP3 (MPEG Audio Layer 3),
WMA (Windows Media Audio)
and AAC (Advanced Audio Cod-
ing) are audio compression
standards.
 This system can play AAC/AAC+
v2/MP3/WMA files on USB
memory device, and Bluetooth®
device.
 When naming an AAC/AAC+
v2/MP3/WMA file, add an appro-
priate file extension
(.mp3/.wma/.m4a).
 This system plays back files with
.mp3/.wma/.m4a file extensions
as AAC/AAC+ v2/MP3/WMA
files respectively. To prevent
noise and playback errors, use
the appropriate file extension.
 MP3 files are compatible with the
ID3 Tag Ver. 1.0, Ver. 1.1, Ver.
2.2 and Ver. 2.3 formats. This
system cannot display folder
name, file name and artist name
in other formats.
 WMA/AAC files can contain a
WMA/AAC tag that is used in the
same way as an ID3 tag.
WMA/AAC tags carry information
such as file name and artist
name.
 This system can play back AAC
files encoded by iTunes.
 The sound quality of MP3/WMA
files generally improves with
higher bit rates. In order to
achieve a reasonable level of
sound quality, USB memory
MP38-48 kHz sampling rate
8-320 kbps CBR, VBR
Mono, Ste-
reo, and
Joint
.mp3
WMA2/7/8/
9/9.1/9.2
16-48 kHz sampling rate
8-320 kbps CBR, VBR
Mono and
stereo.wma
PCMWAVE
8000, 16000, and 44100 Hz sampling
frequency
8 bit and 16 bit
Mono and
stereo.wav
FLAC
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz,
176.4 kHz, 192 kHz sampling rate
16 bit and 24 bit
Mono and
stereo.flac
ALAC
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz,
176.4 kHz, 192 kHz sampling rate
16 bit and 24 bit
Mono and
stereo.m4a
CodecDescriptionChannelsContainer/
Extension

866-5. Tips for operating the audio/visual system
device recorded with a bit rate of
at least 128 kbps are recom-
mended.
 m3u playlists are not compatible
with the audio device.
 MP3i (MP3 interactive) and
MP3PRO formats are not com-
patible with the audio device.
 When playing back files
recorded as VBR (Variable Bit
Rate) files, the play time will not
be correctly displayed if the fast
forward or rewind operations are
used.
 It is not possible to check folders
that do not include AAC/AAC+
v2/MP3/WMA files.
 AAC/AAC+ v2/MP3/WMA files in
folders up to 3 levels deep can
be played. However, the start of
playback may be delayed when
using USB memory device con-
taining numerous levels of fold-
ers. For this reason, we
recommend creating USB mem-
ory device with no more than 2
levels of folders.
 The play order of the USB mem-
ory device with the structure
shown above is as follows:
The play order will change according to
the playback method.
 The play order of a USB memory
device may change depending
on the personal computer and
AAC/AAC+ v2/MP3/WMA
encoding software that were
used.
 WMA (Windows Media Audio) is
an audio compression format
developed by Microsoft®. It com-
presses files into a size smaller
than that of MP3 files. The
decoding formats for WMA files
are Ver. 7, 8 and 9. This product
is protected by certain intellec-
tual property rights of Microsoft
Corporation and third parties.
Use or distribution of such tech-
nology outside of this product is
prohibited without a licence from
Microsoft or an authorized
Microsoft subsidiary and third
parties.
 MP3 is an audio compression
standard determined by a work-
ing group (MPEG) of the ISO
(International Standard Organi-
zation). MP3 compresses audio
data to about 1/10 the size of
that on conventional discs.
001.mp3 002.wma Folder 1 003.mp3 Folder 2 004.mp3 005.wma Folder 3 006.m4a
001.mp3 002.wma . . . 006.m4a

87
6
6-5. Tips for operating the audio/visual system
Audio
■Video Codec
■Audio Codec
 The player is compatible with VBR (Variable Bit Rate).
Compatible compressed files (Video)
File TypeProfile
WMV9WMV
Simple Profile
 Main Profile
 Advanced Profile
MPEG4MPEG4Simple Profile
 Advanced Simple Profile
H.264/AVCMPEG4
Baseline Profile
 Main Profile
 High Profile
File
Ty p e
Corresponding
Sampling Fre-
quency (kHz)
Corresponding Bit
Rates (kbps)Channel Mode
MP3WMV
MPEG4
MPEG1 Layer3:
32/44.1/48
MPEG2 LSF Lay-
er3: 16/22.05/24
MPEG1 Layer3:
32-320
MPEG2 LSF Lay-
er3: 8-160
Stereo
Joint Stereo
Dual Channel
Monaural
WMA
Ver.7/8/9WMV32/44.1/48
Ver. 7/8: 48-192
Ver. 9 (9.1/9.2):
48-320
Stereo
AACMPEG411.025/16/22.05/24/
32/44.1/4816-320Stereo
Monaural

886-5. Tips for operating the audio/visual system
